300-ton Minster E2-300-84-48 Hevi-Stamper Used Straight Side Stamping Press For Sale, Year 1981

Manufacturer

MINSTER

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2937

Model

E2-300-84-48

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 300
Stroke - 12 inches
Shut Height - 30 inches
Adjustment - 6 inches
Bed Size - 84" LR x 48" FB Bed Area
Ram Area - 84" LR x 48" FB Slide Area
SPM - 40-80 VSPM


Standard Specifications

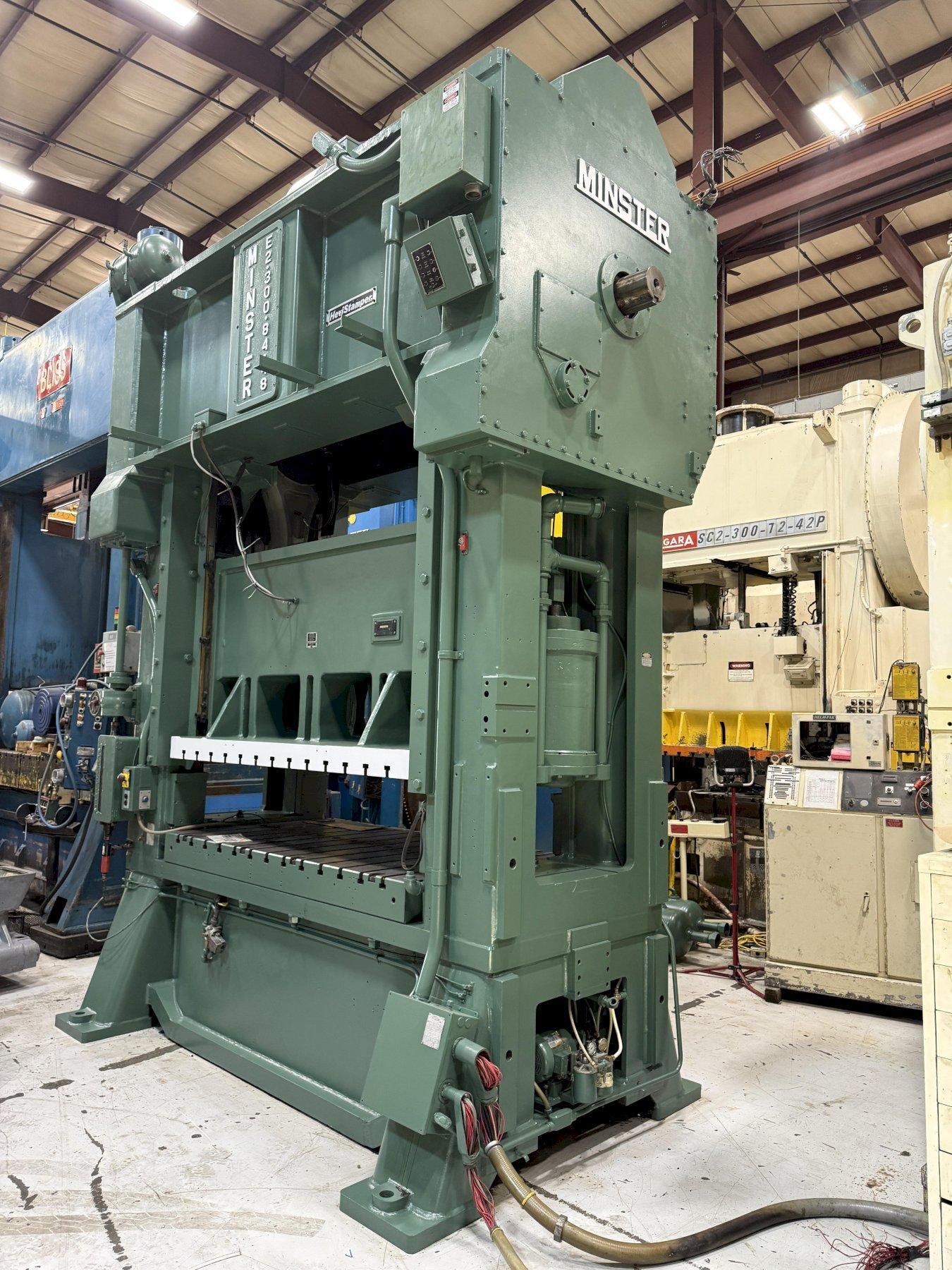

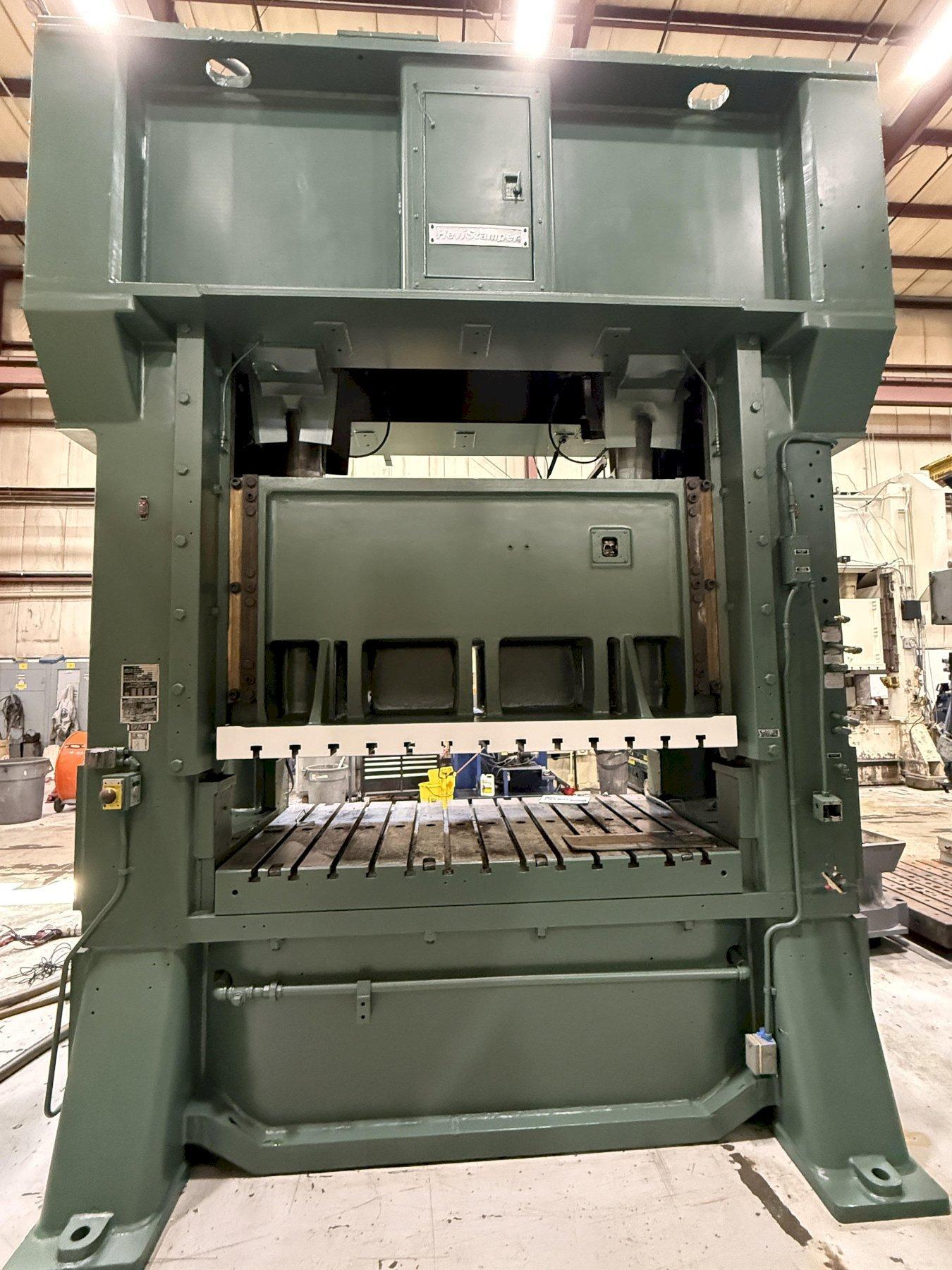

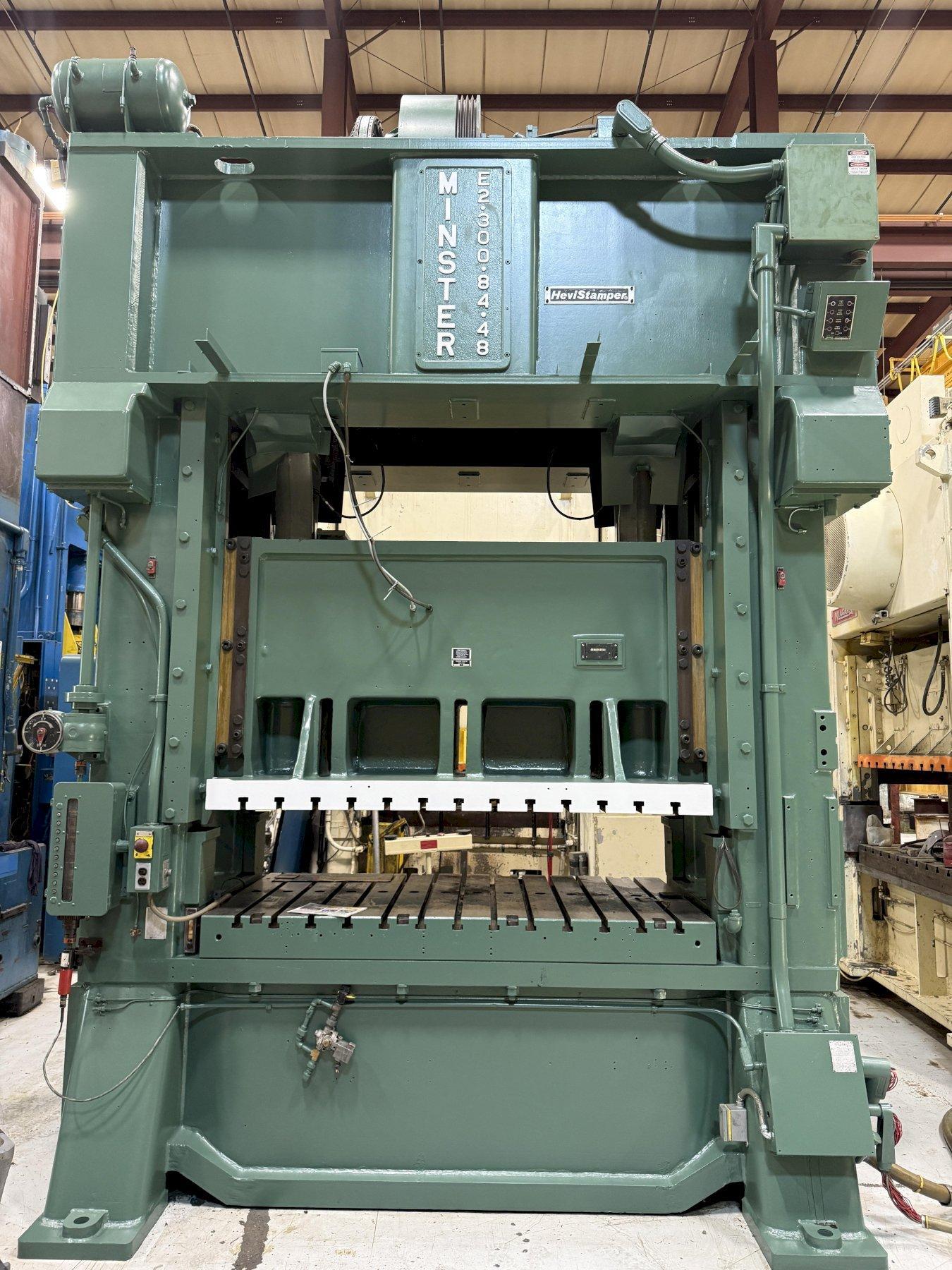

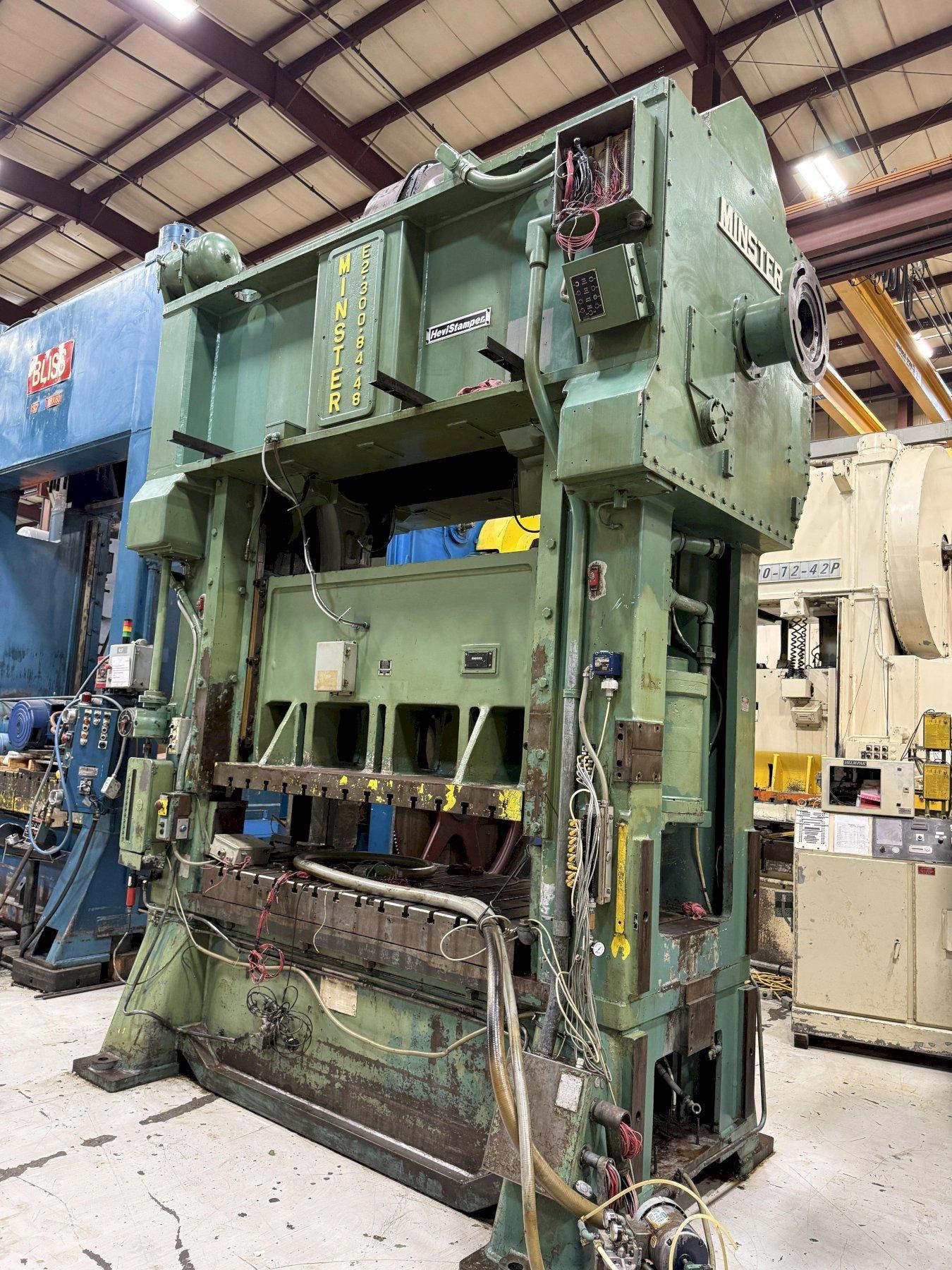

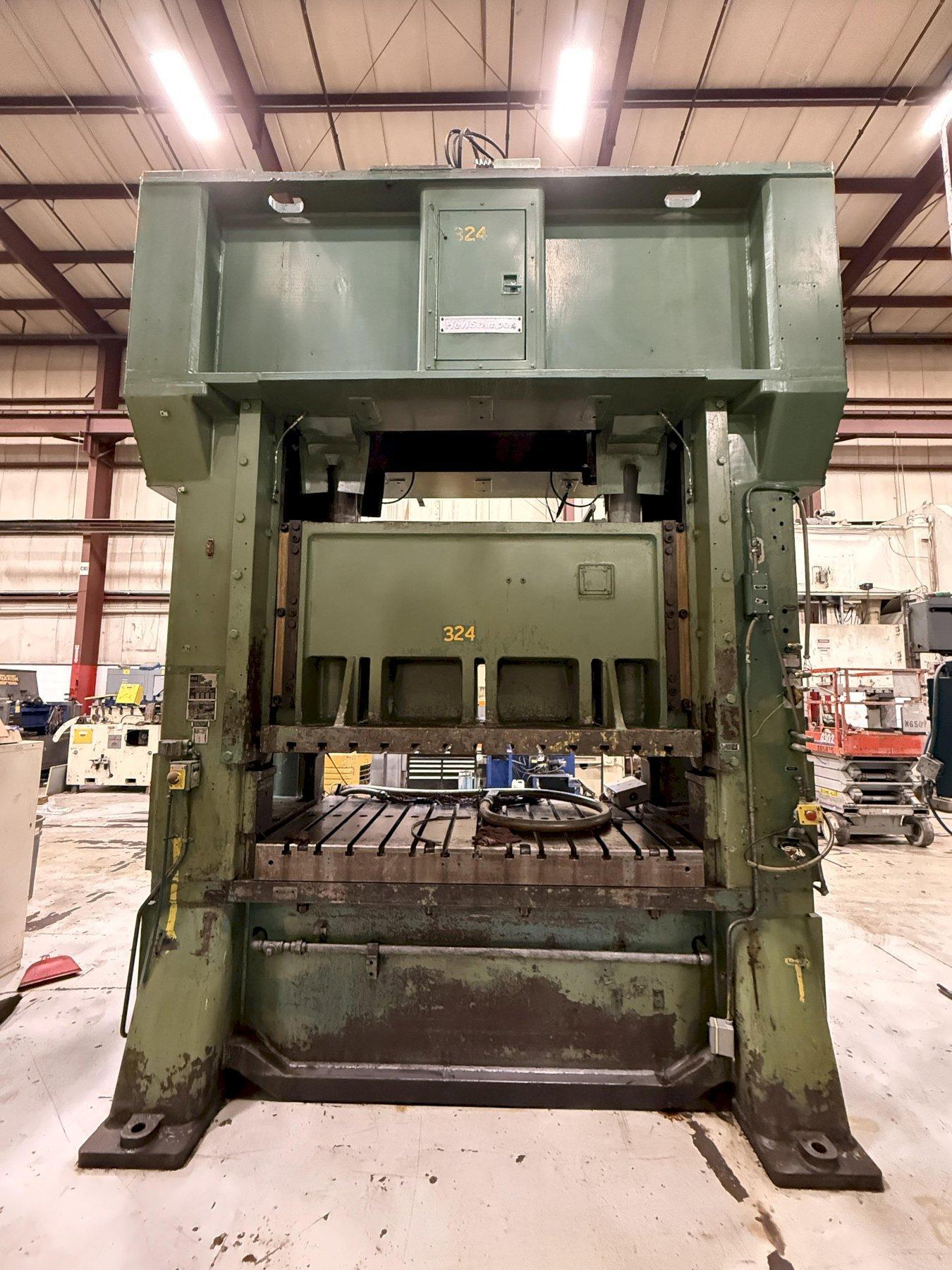

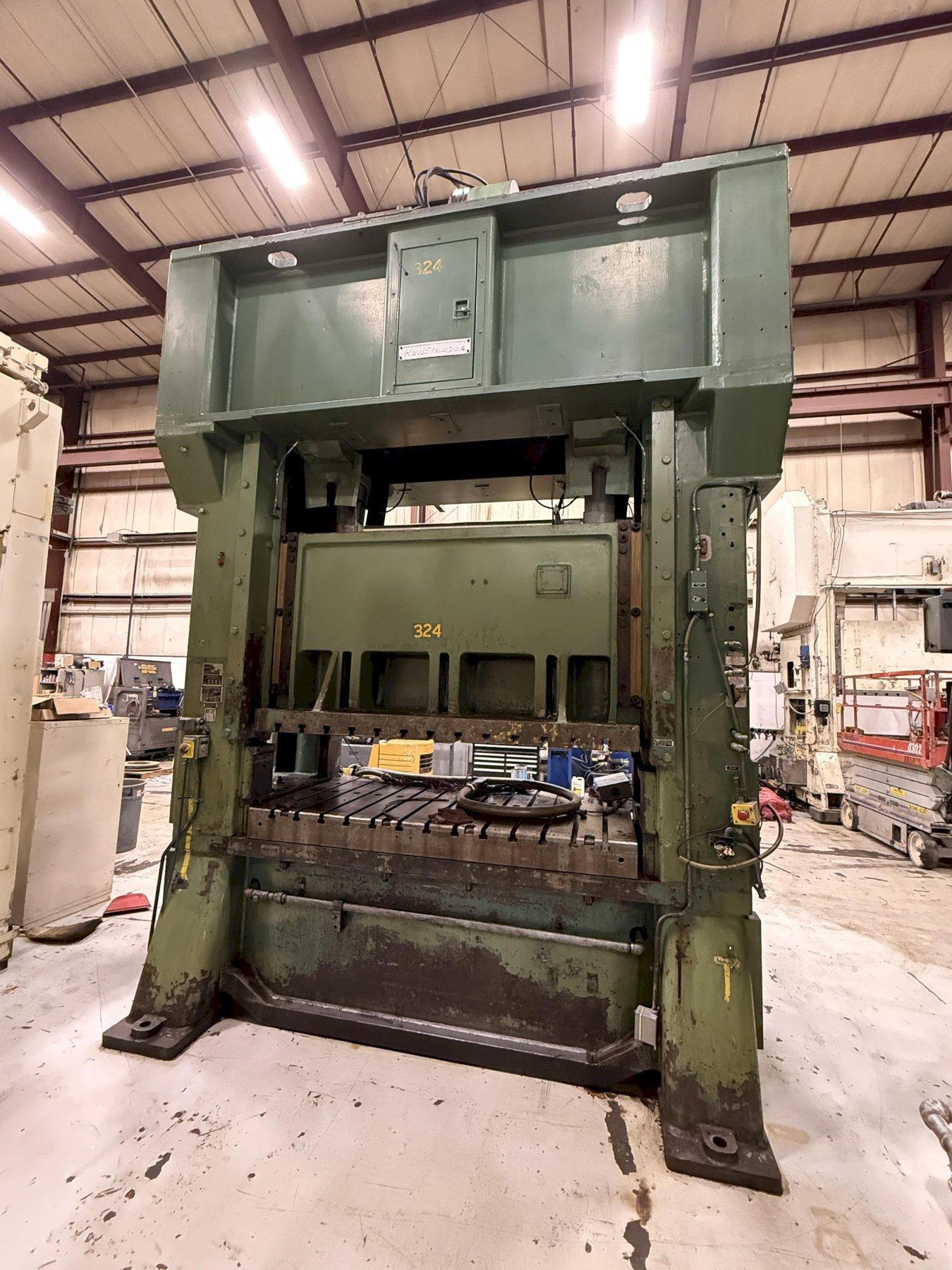

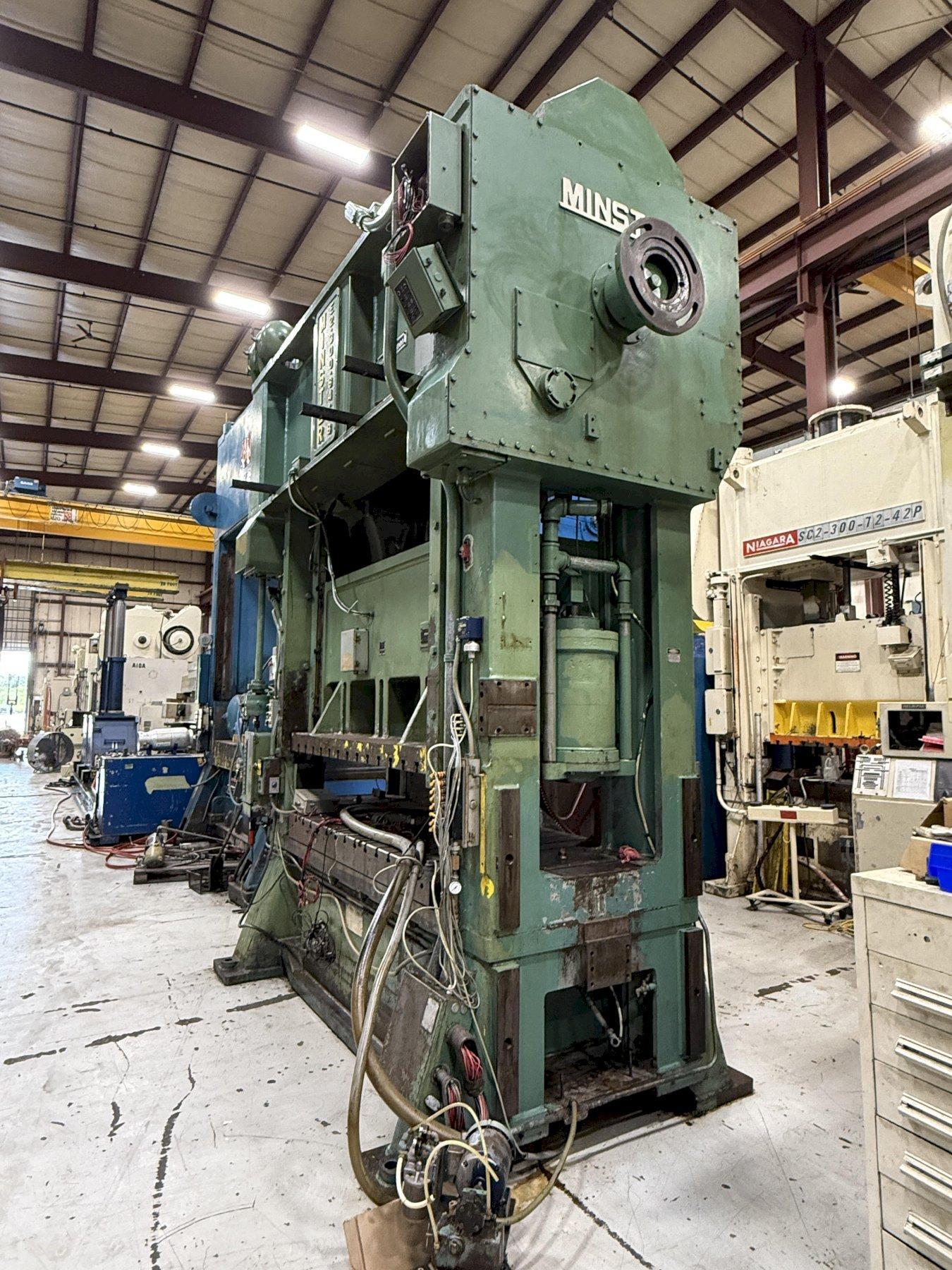

Used 300-ton Minster Straight Side Mechanical Stamping Press
Minster Model E2-300-84-48 Hevi-Stamper

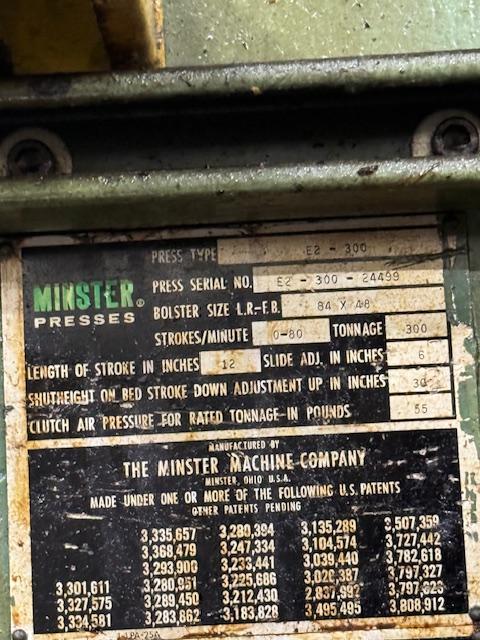

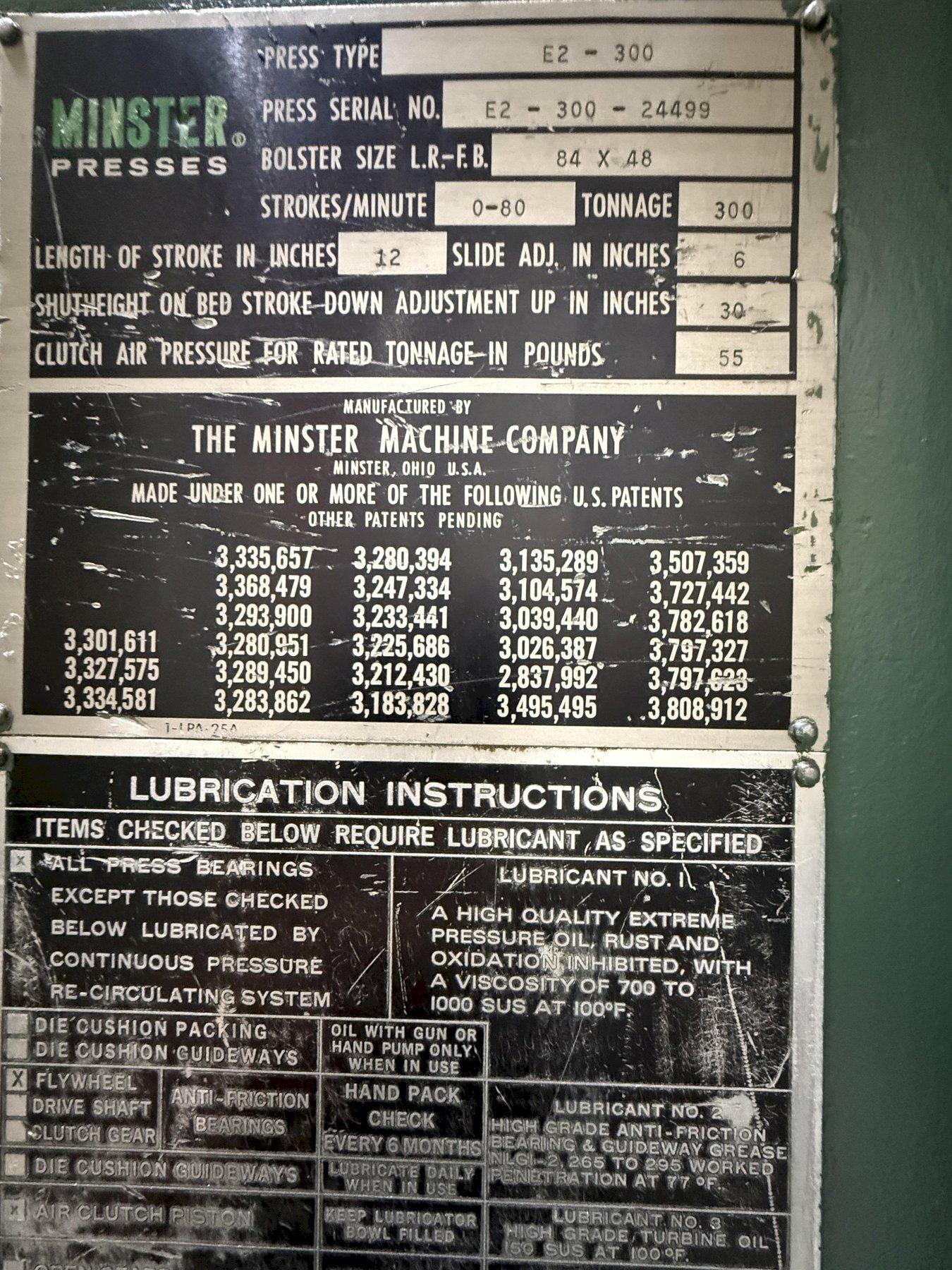

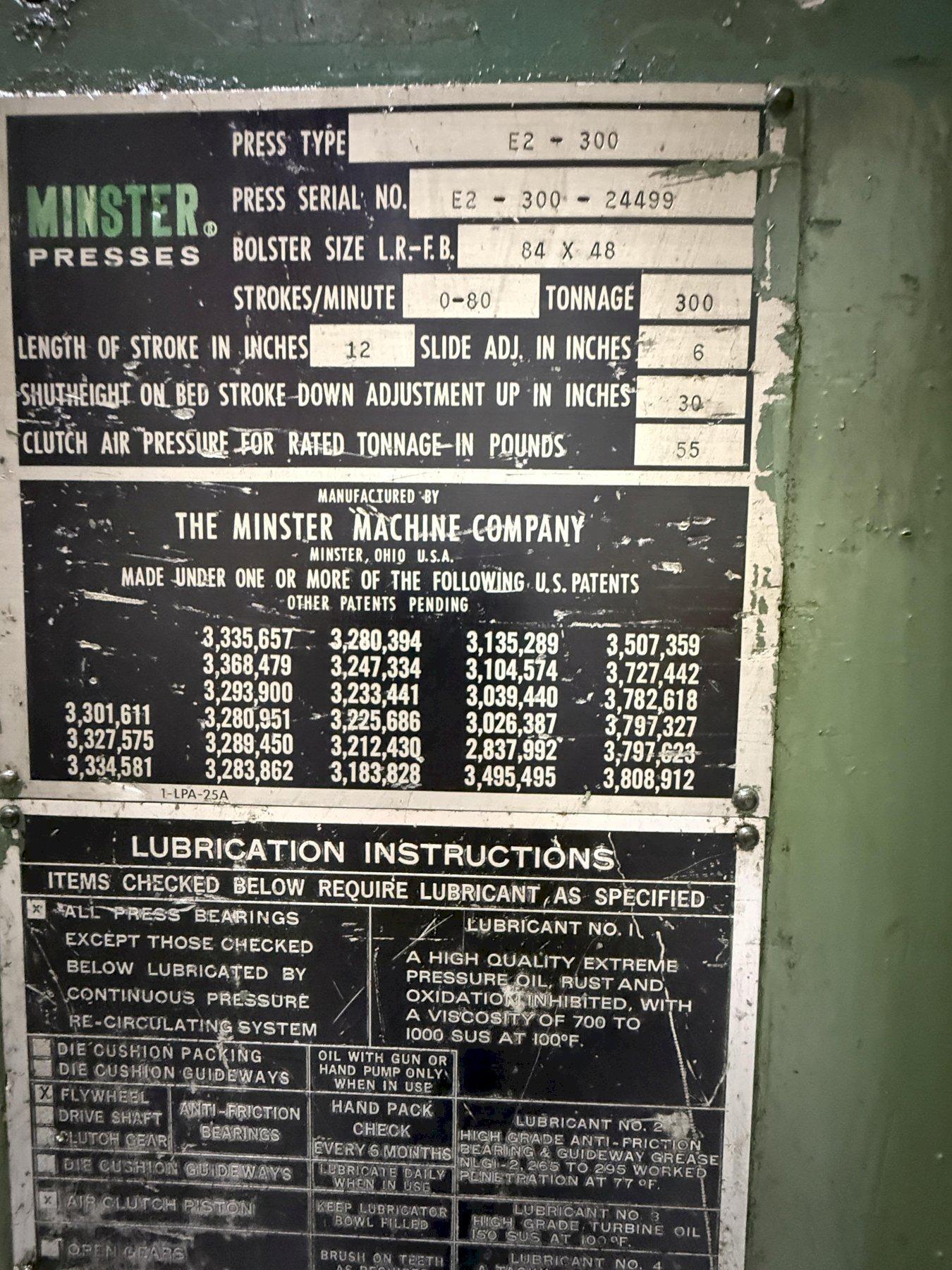

Serial Number/ 24499
300 ton Capacity
12" Stroke
30" Shut Height on Bed
6" Motorized Adjustment
84" LR x 48" FB Bed Area
84" LR x 48" FB Slide Area
40-80 VSPM

Equipment and Features
Minster Combination Air Clutch and Brake
Air Counterbalances
Minster Monitor Flow Recirculating Lube System
Single Geared - Twin End Drive

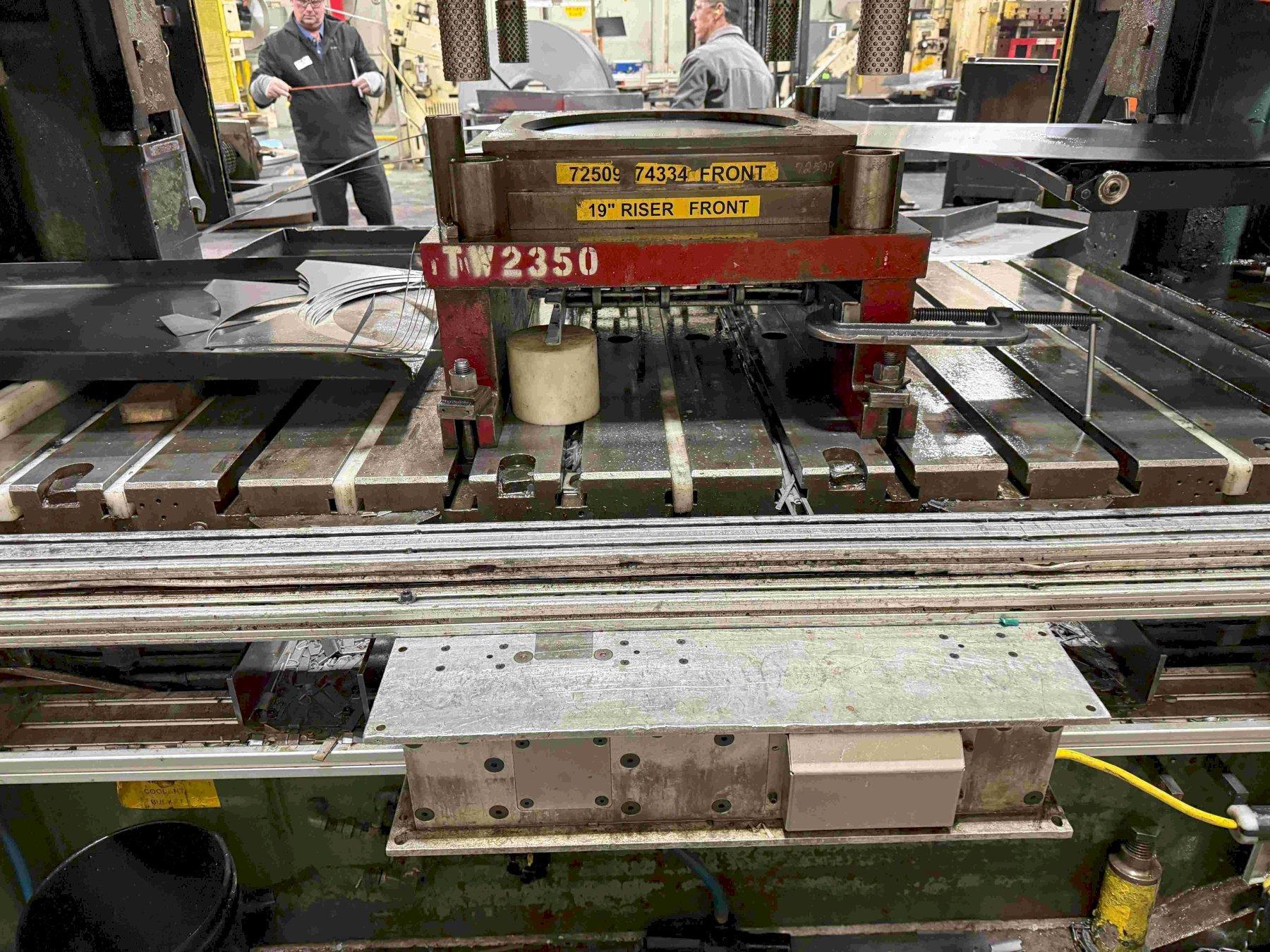

T-Slotted Ram and Bolster
7" Thick Bolster Plate

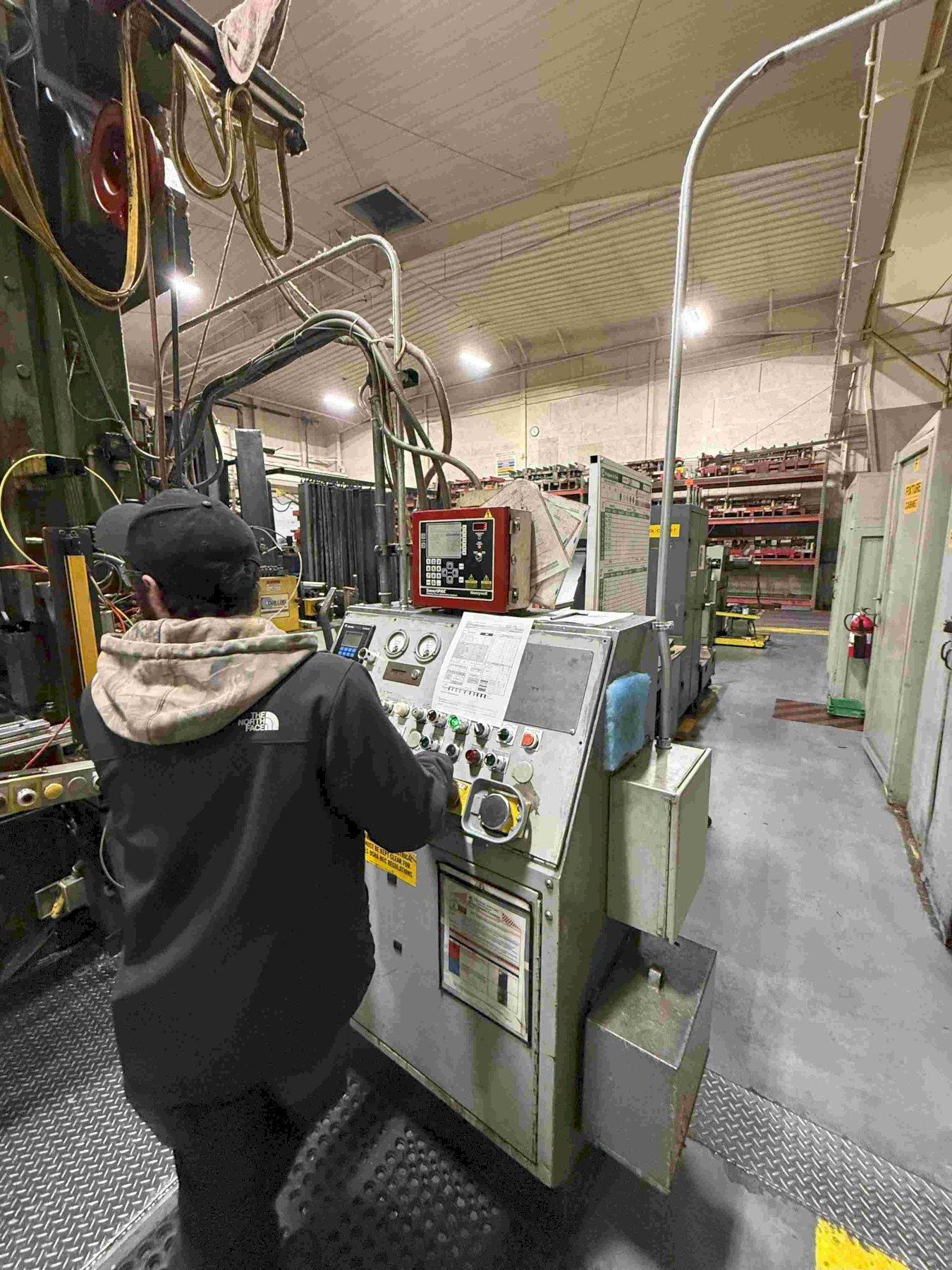

Free Standing Console Controls
27" Wide Windows
38" Floor to Top of Bed
Vibro Dynamic Floor Pads
Floor Standing

Weight of Press:  93,000 lbs.

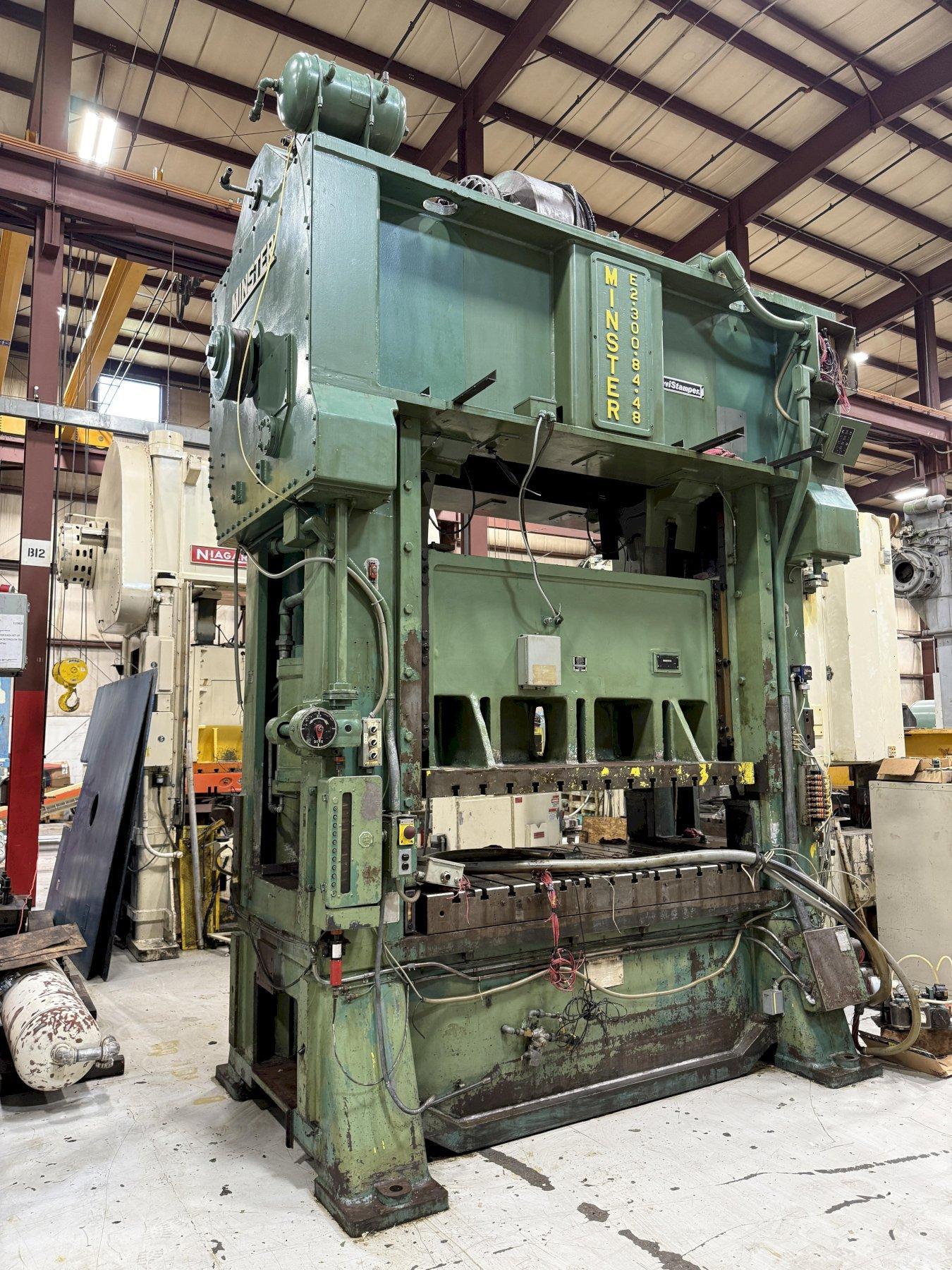

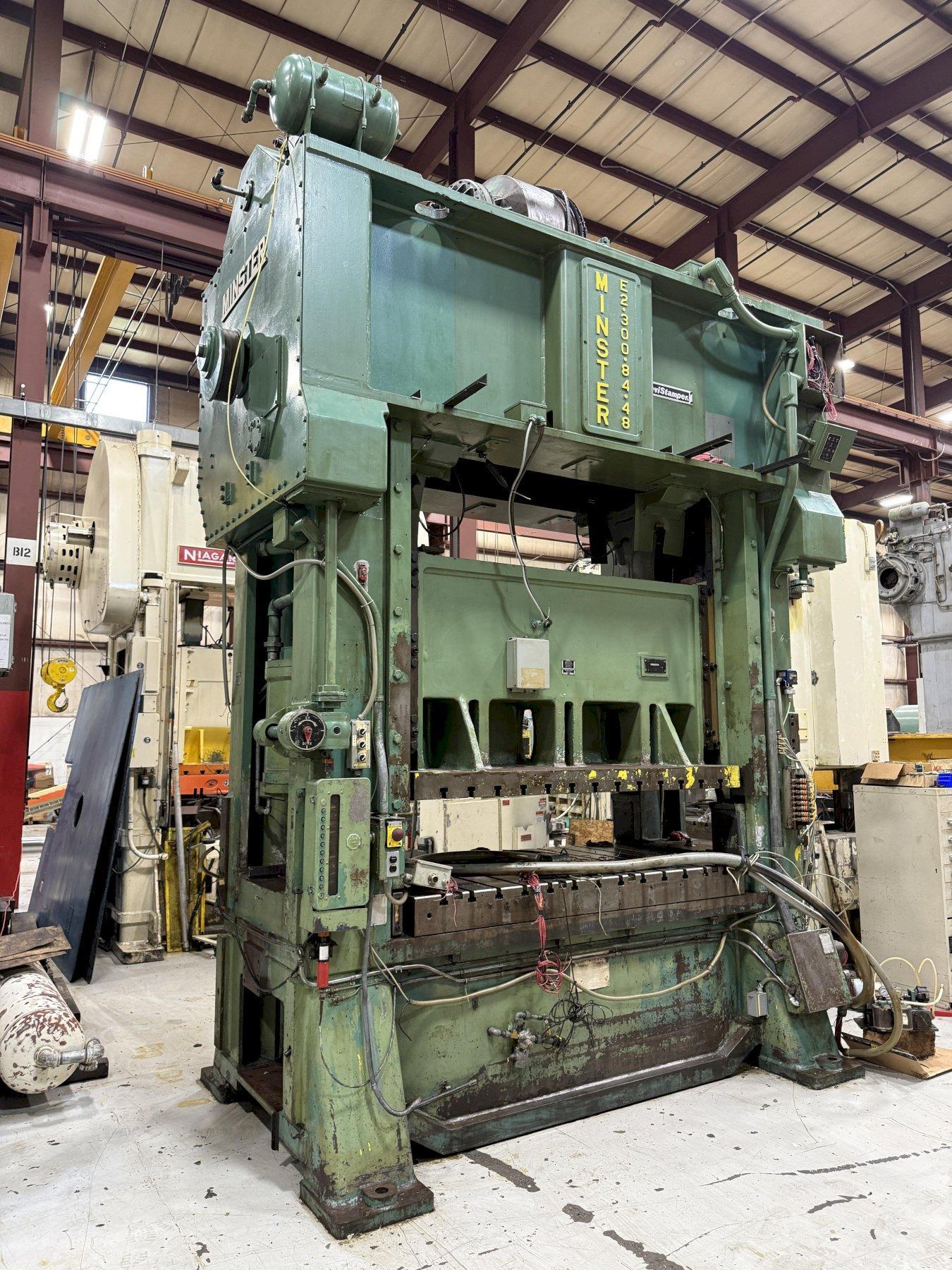

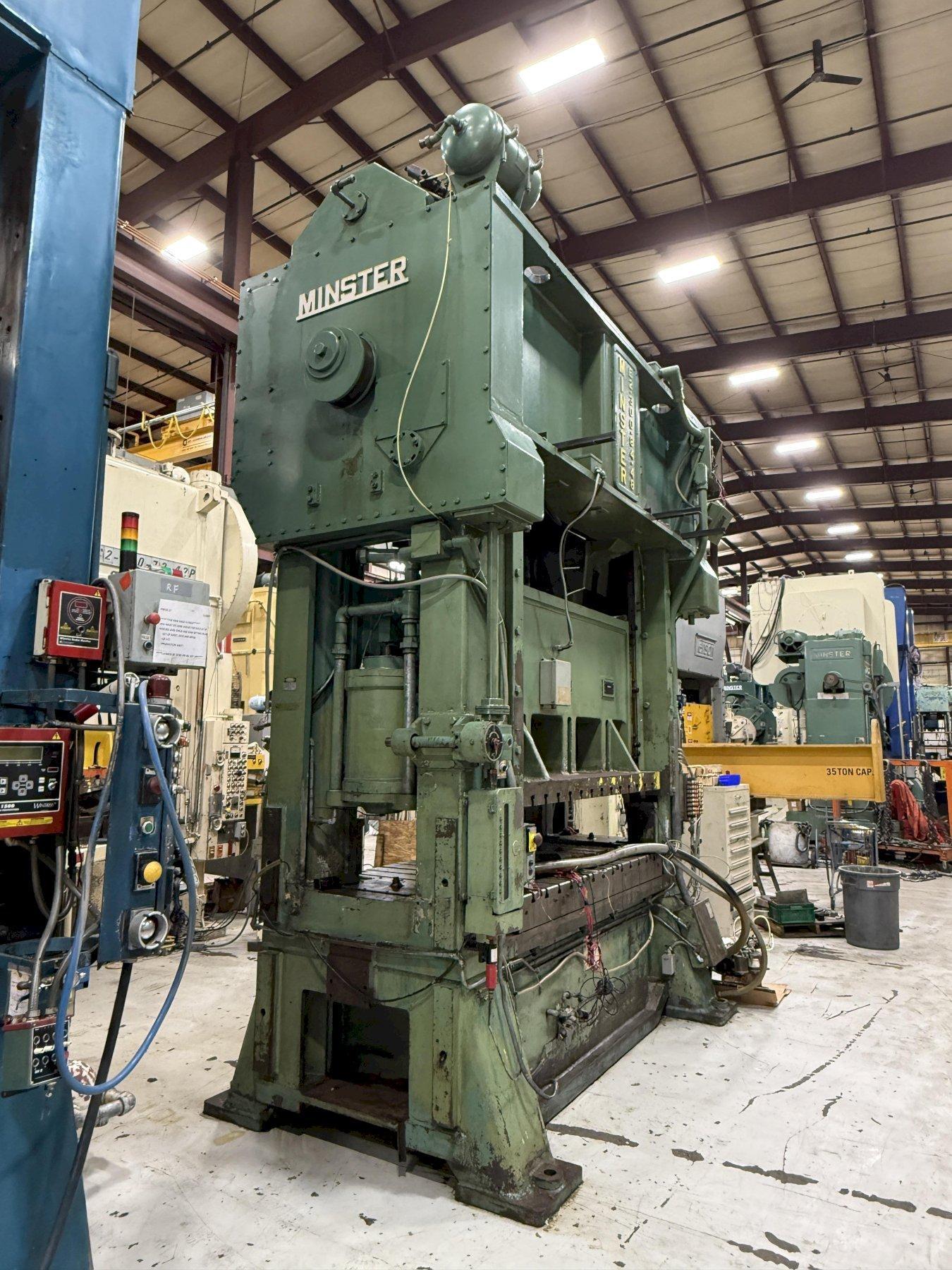

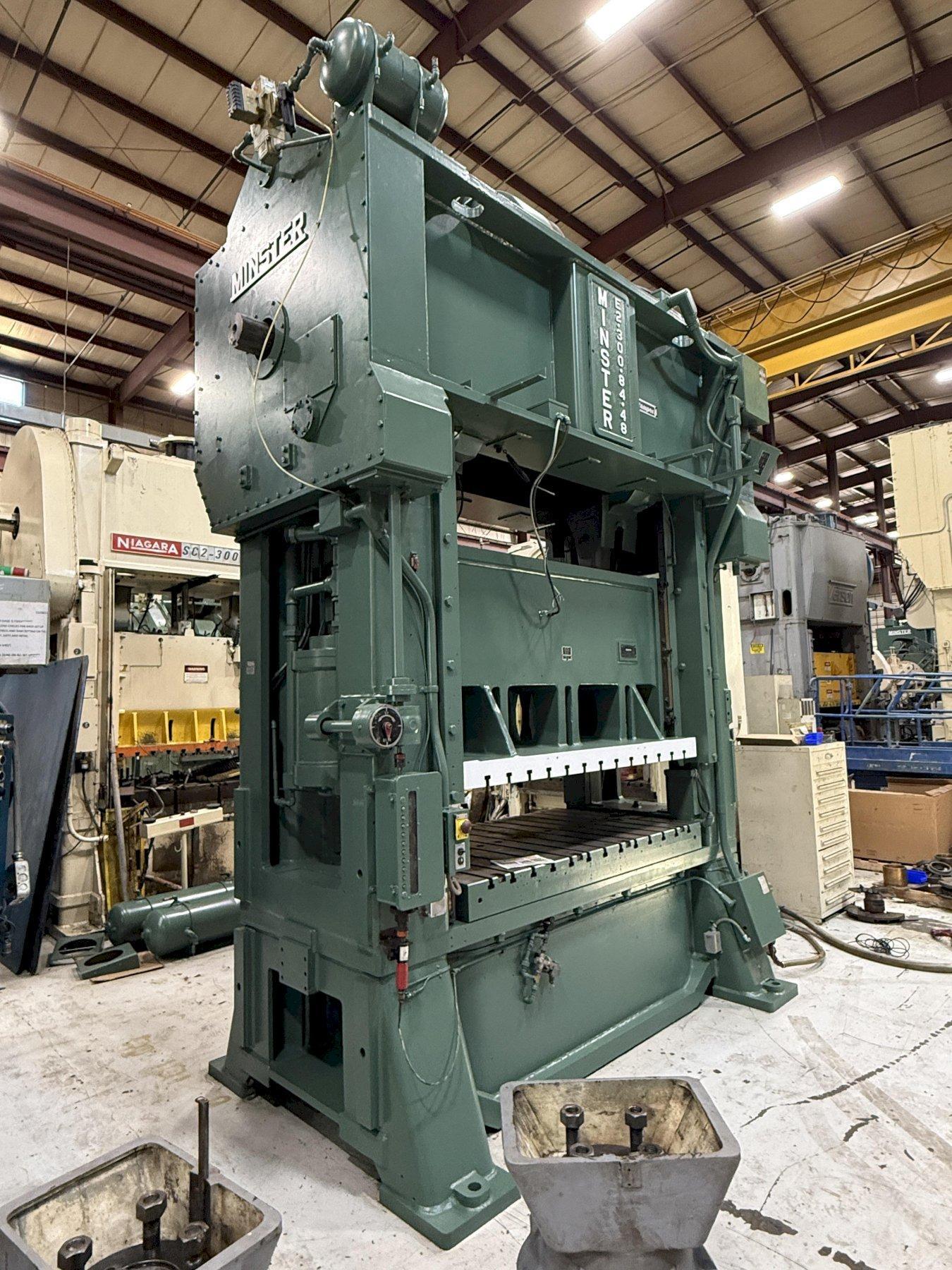

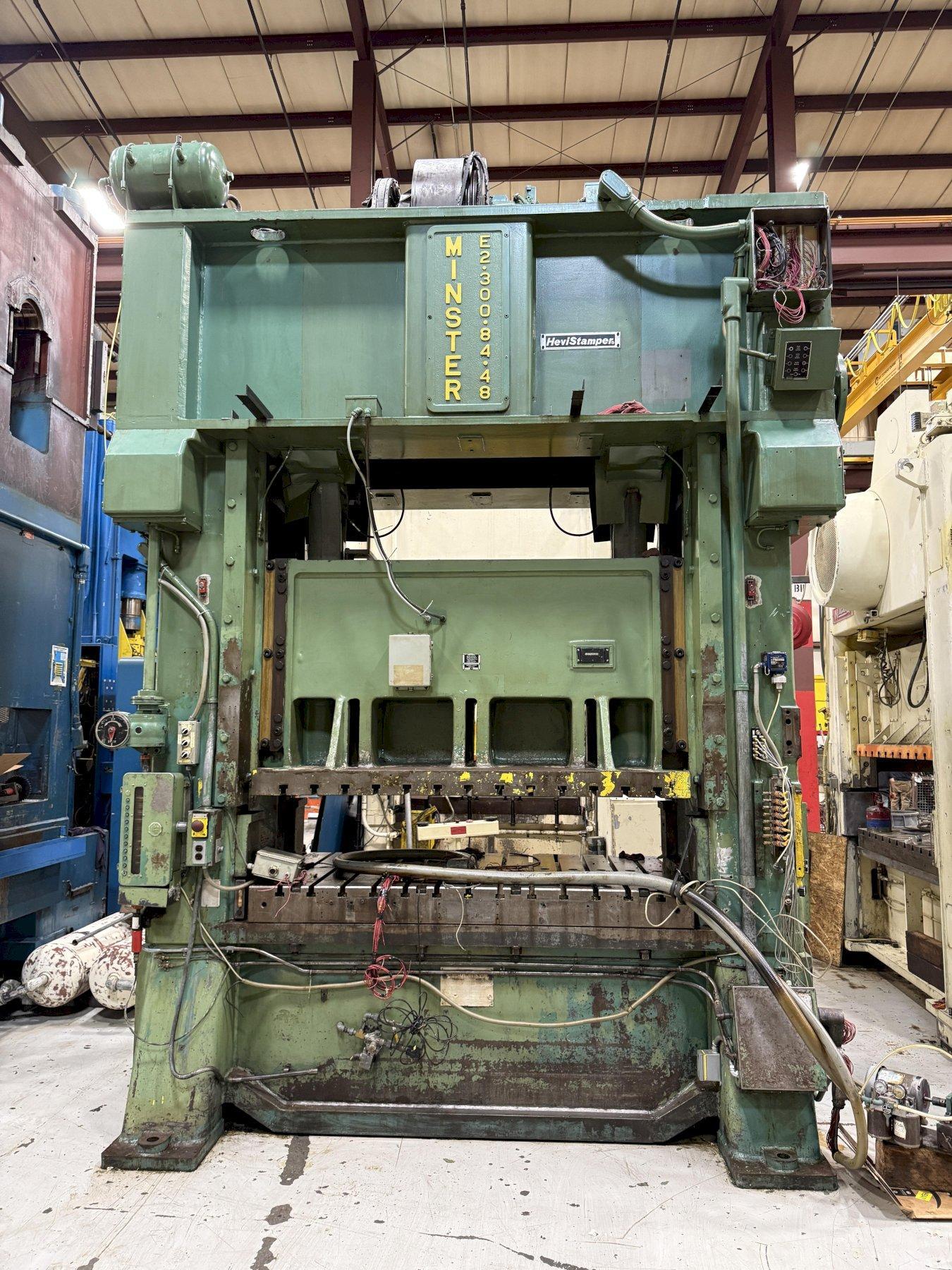

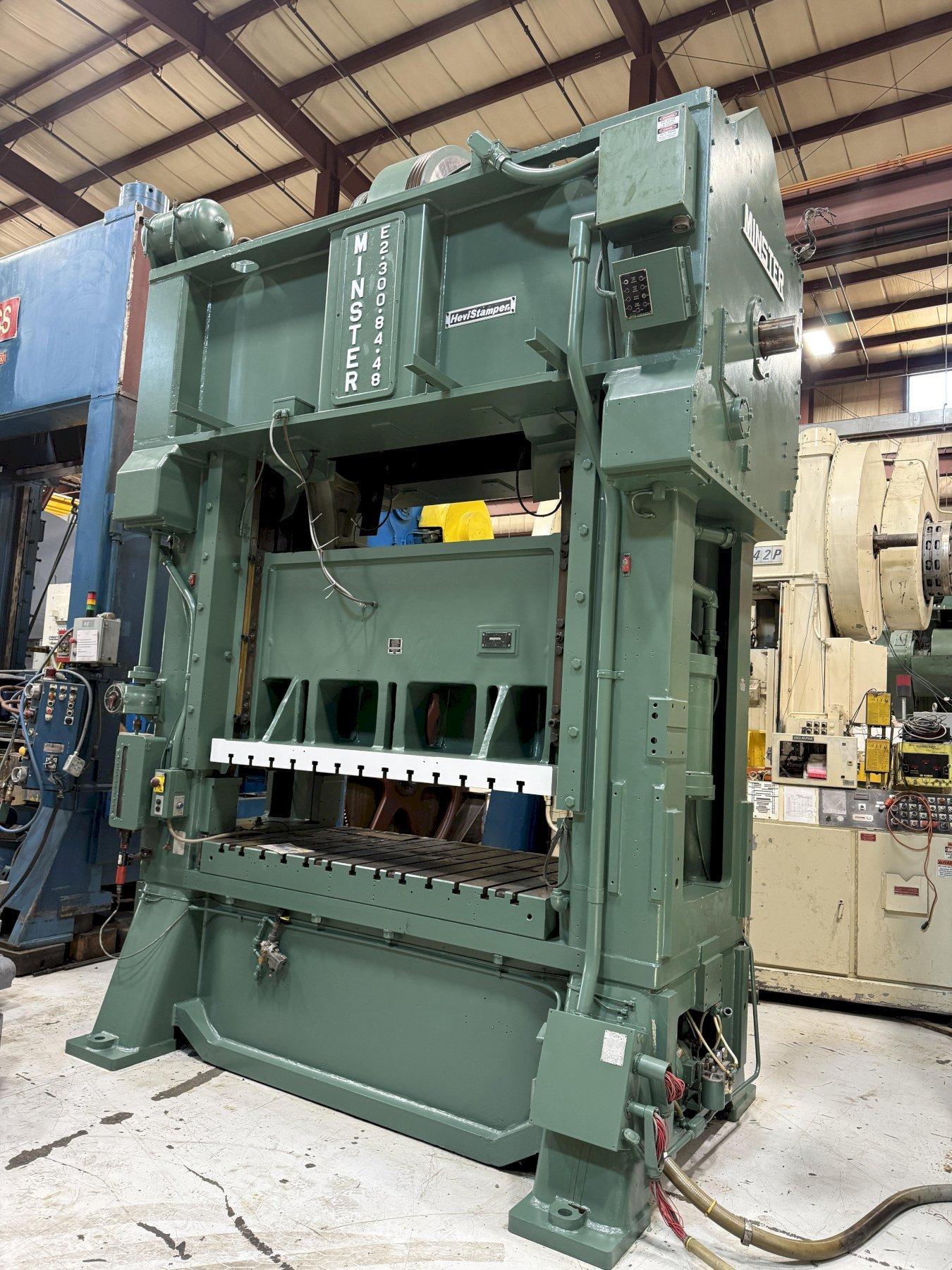

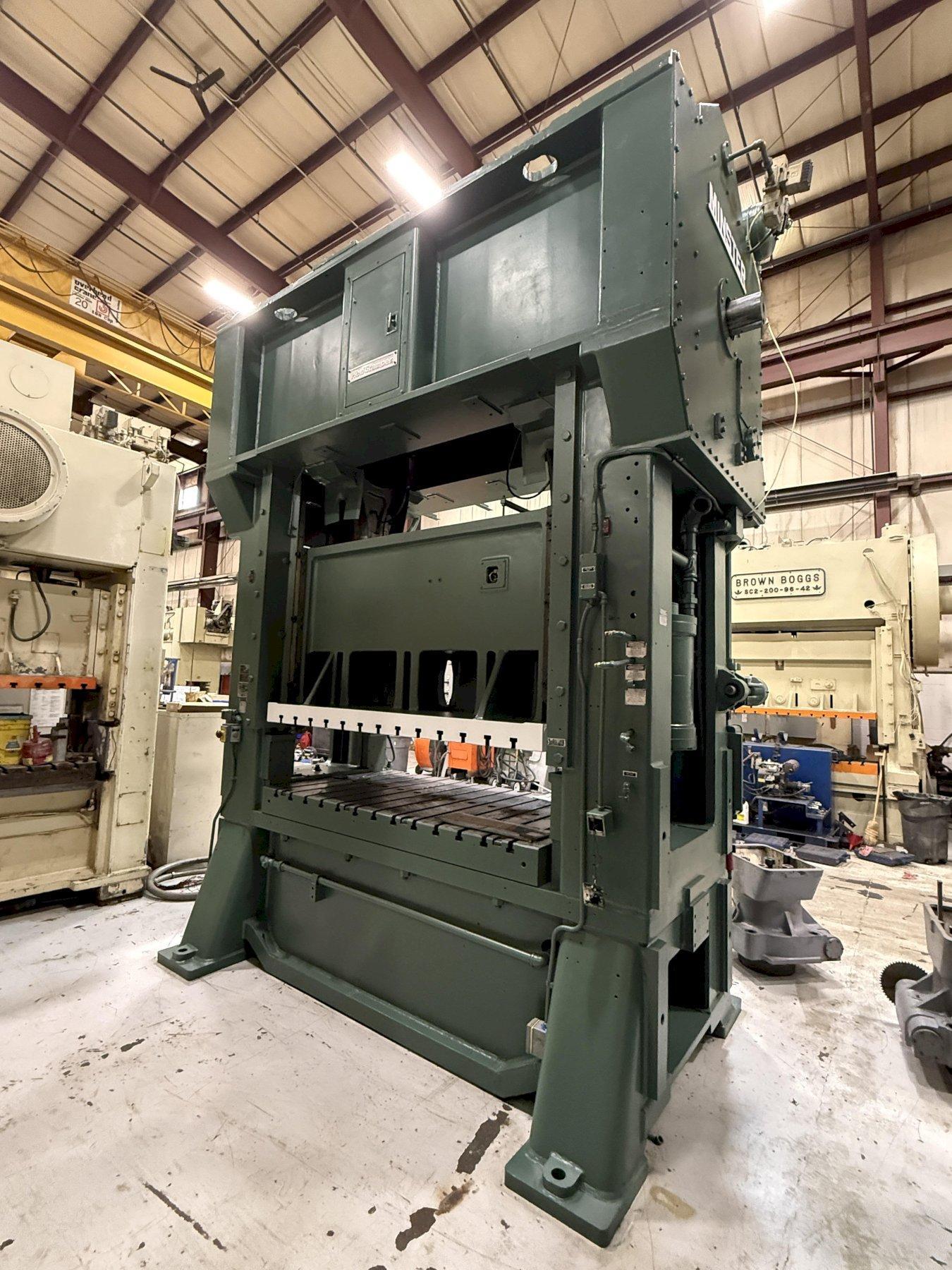

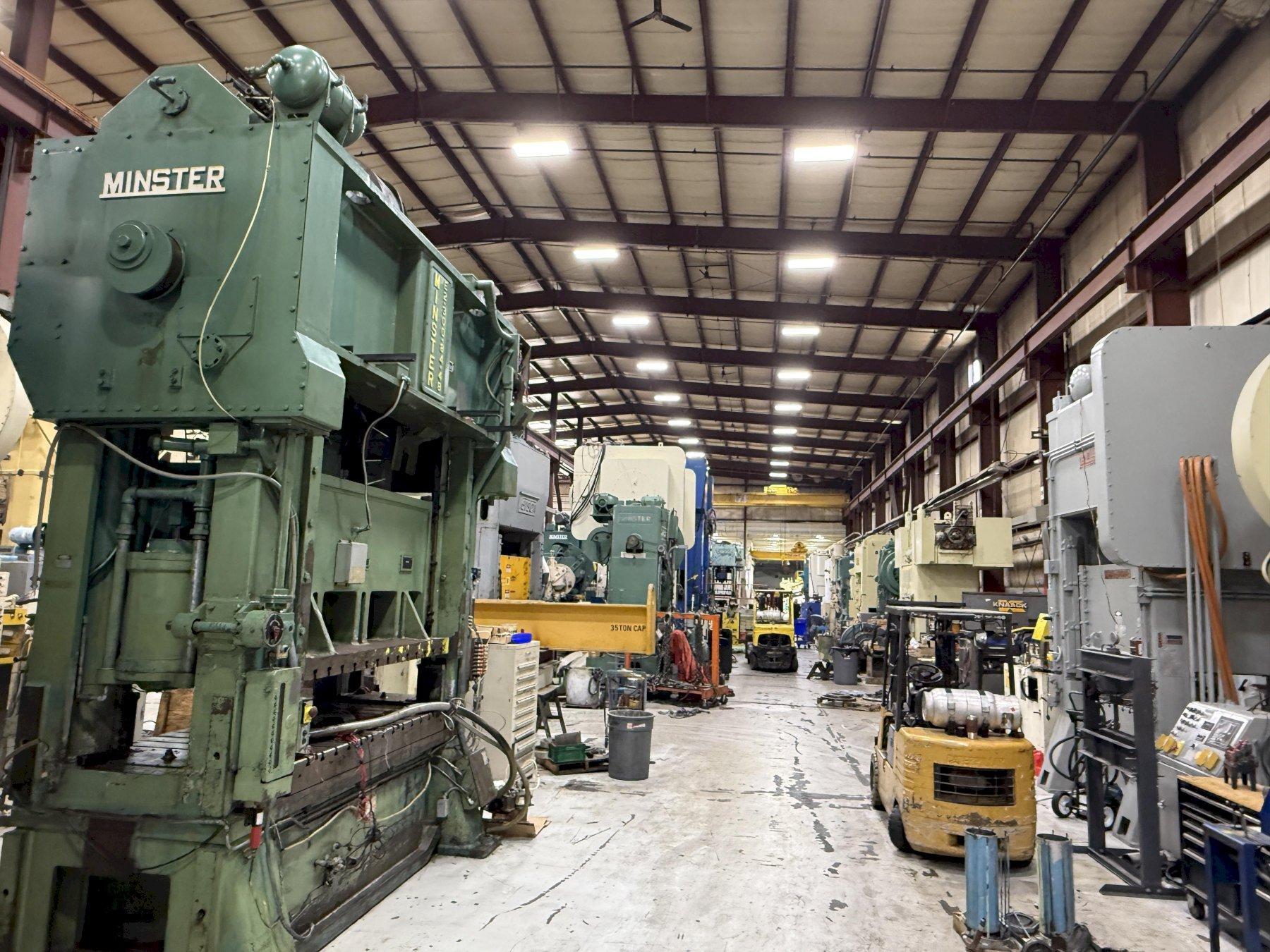

This used 300 ton Minster Hevi-stamper Press for sale can be seen under power in the S & G Press Livonia Michigan Warehouse.


In the realm of metalworking, Minster's 300-ton Hevi-stampers Straight Side Stamping presses reign supreme. These mechanical workhorses pack a serious punch, delivering up to 300 tons of force to effortlessly form and shape even the thickest sheets of metal. Their secret lies in the double crank design, which guarantees balanced pressure throughout the forming process. No matter the project size, the Hevi-stamper's spacious bed ensures it can handle even the most demanding tasks.
