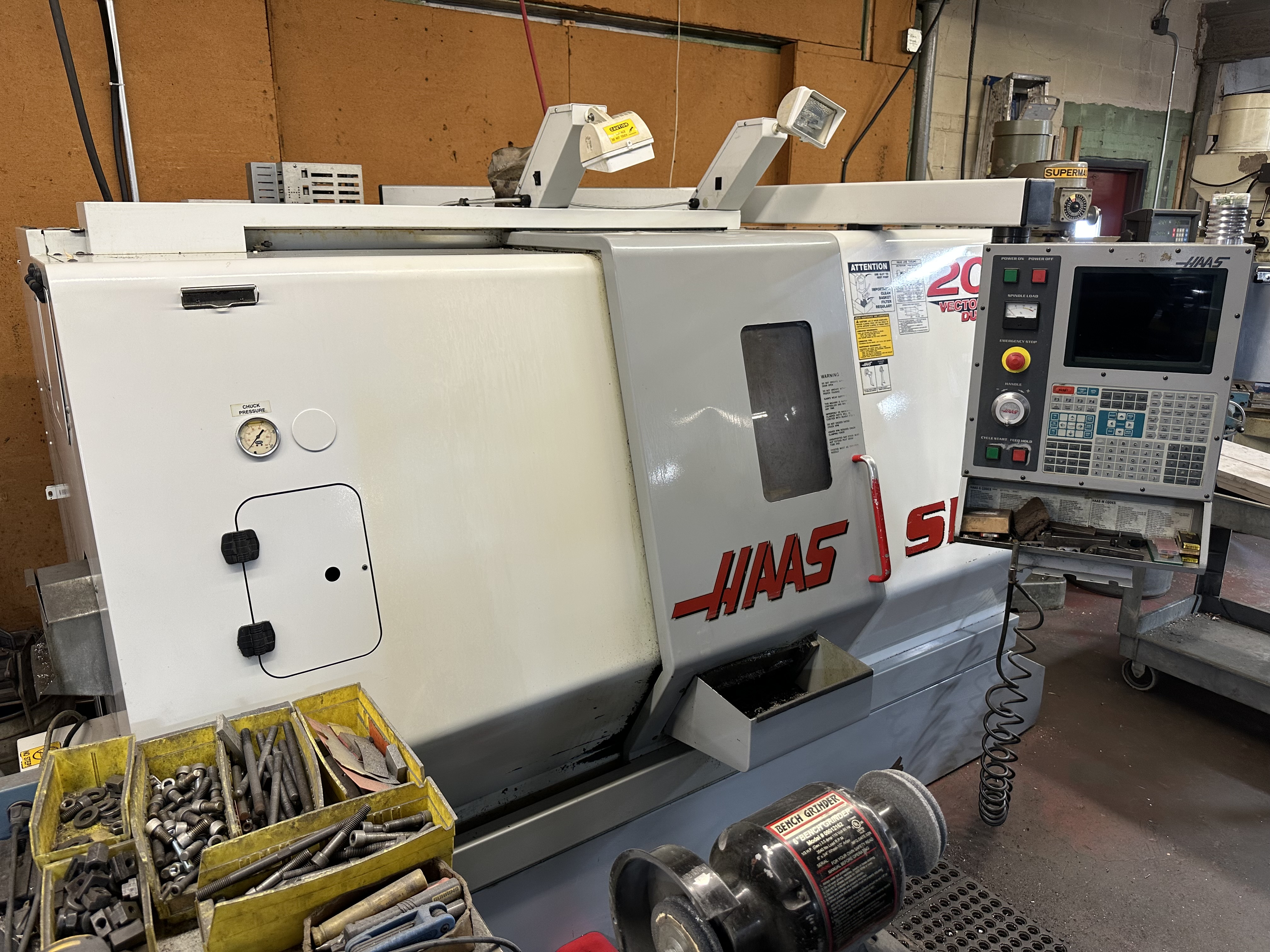

Haas Model SL-20 CNC Lathe, Mfg. 2001, 23" Swing, 20" Centers, 2" Bore, 20 HP, 4,000 RPM, Live Tooling, Presetter

Manufacturer

Haas

Category

Lathes

Type

LATHES, CNC

Stock

4381

Model

SL-20

Dealer Location

Massachusetts

Request a Quote
View Contact Information

Spec Sheet

Specifications
Swing Over Apron - 23"
Swing Over Cross Slide - 9.5"
Maximum Cutting Diameter - 10.3"
Maximum Cutting Length - 20"
Bar Capacity - 2"
X-Axis ravel - 8.45"
Z-Axis Travel - 20"
Rapid Traverse Speed - 710 IPM
Maximum Spindle Speed - 4,000 RPM
Spindle Horsepower - 20 HP
Spindle Nose - A2-6
Approximate Dimensions - 136" L x 78" W x 78" H
Approximate Weight - 9,500 lbs


Equipped With

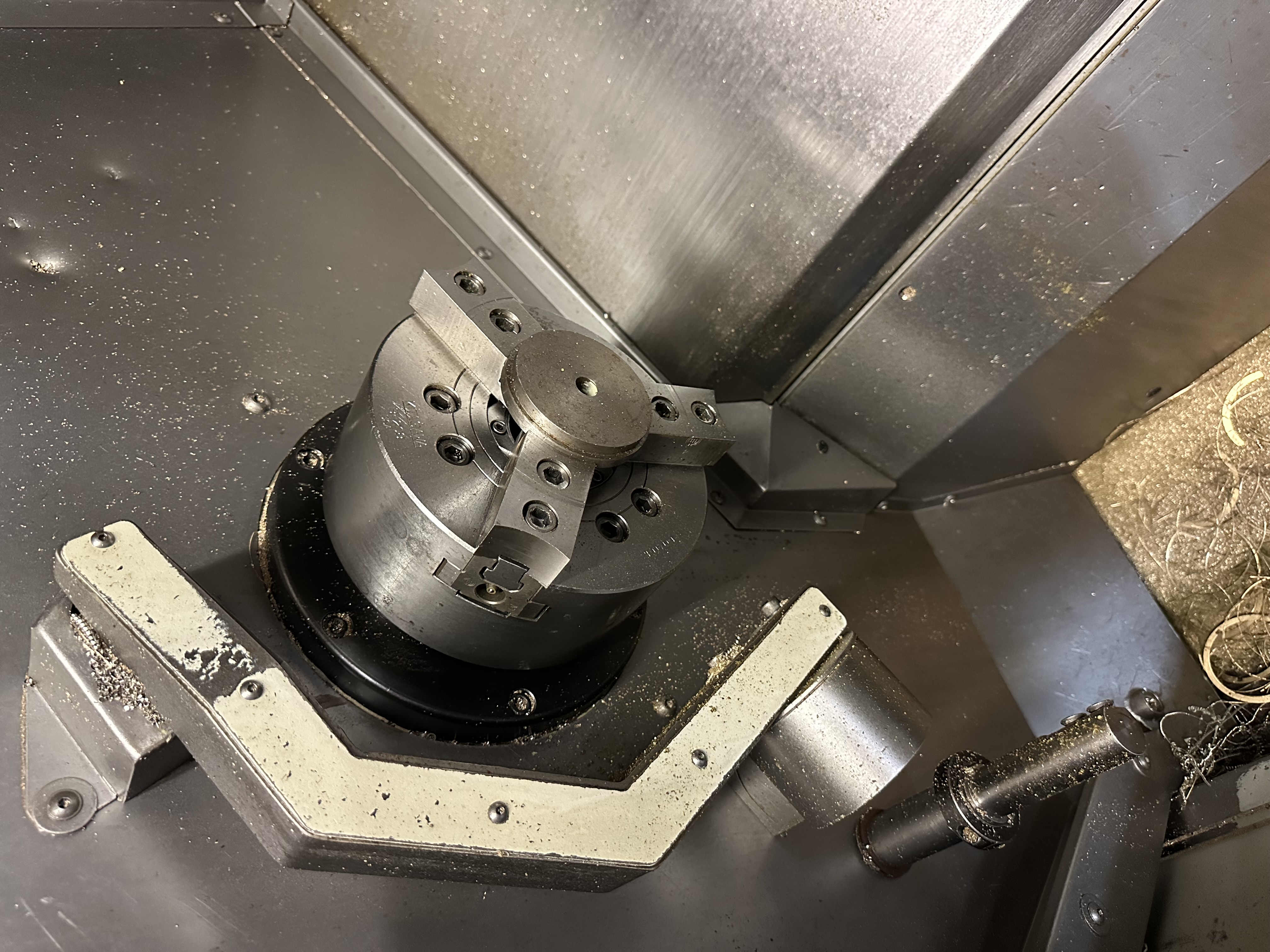

- 8" Hydraulic Chuck
- Live Tooling
- Spindle Orientation
- Floppy Drive
- Chip Auger
- Rigid Tapping
- Quick Code
- Tool Setter
- Parts Catcher
- 1 MB Extended Memory
