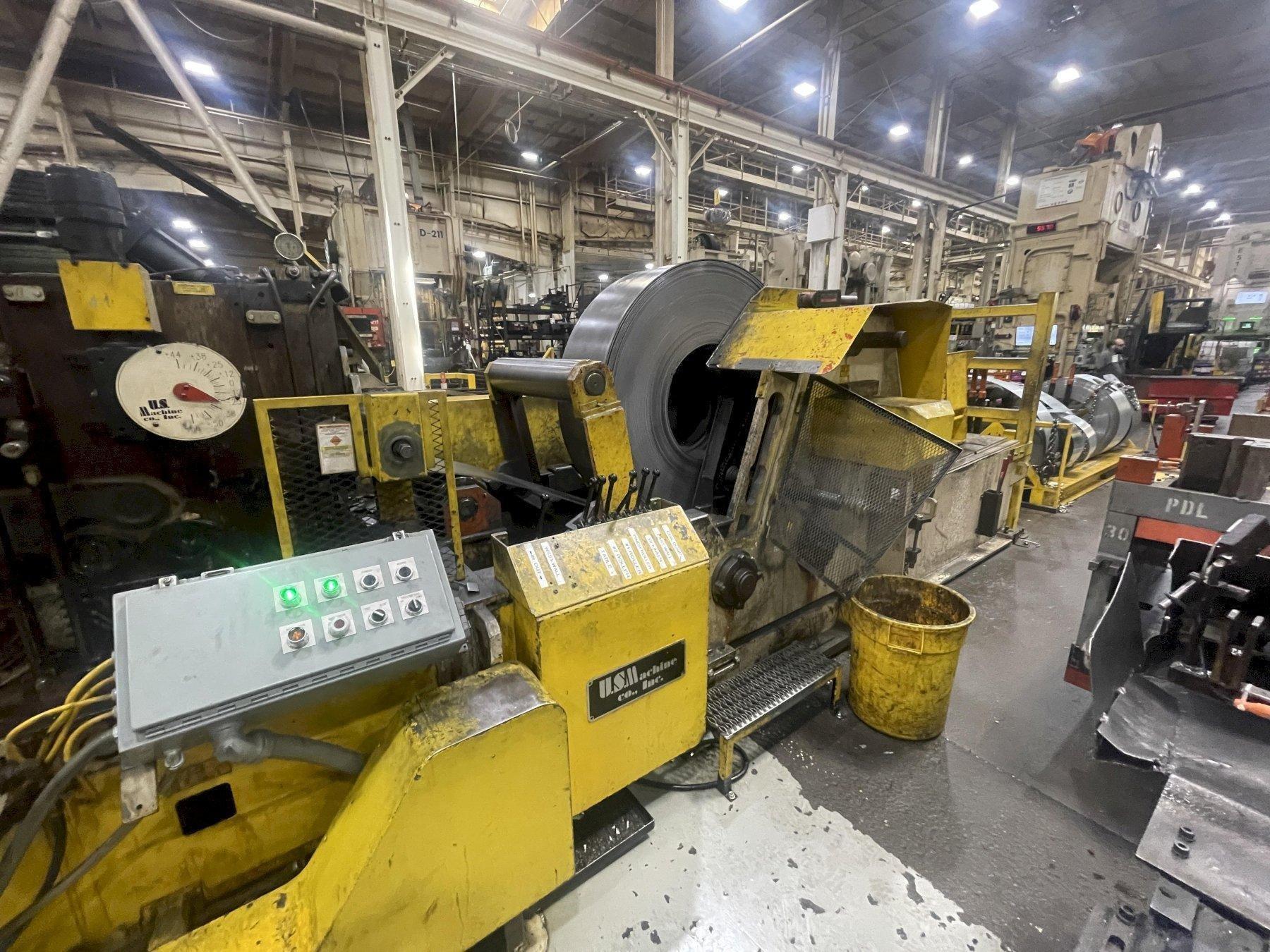

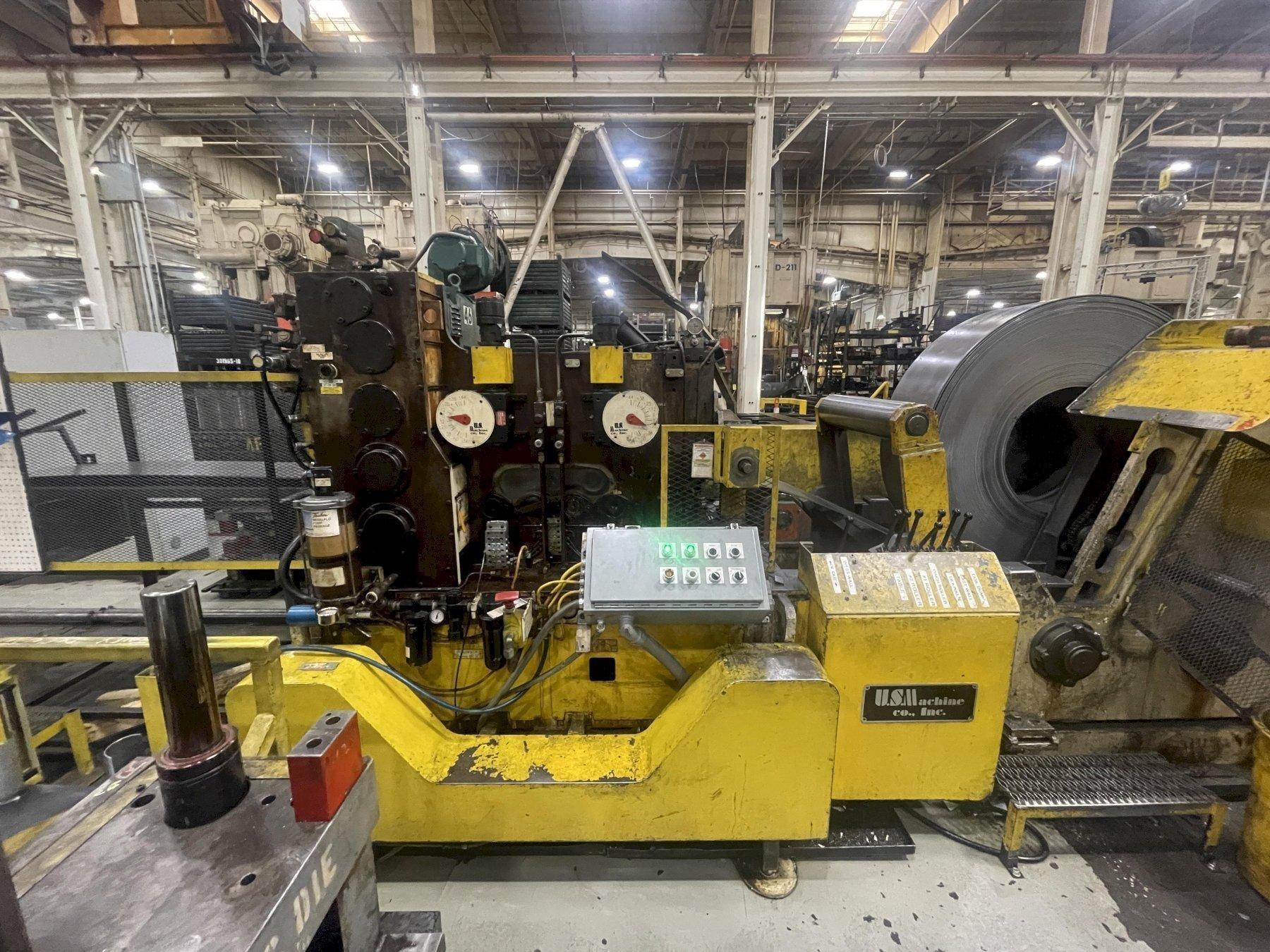

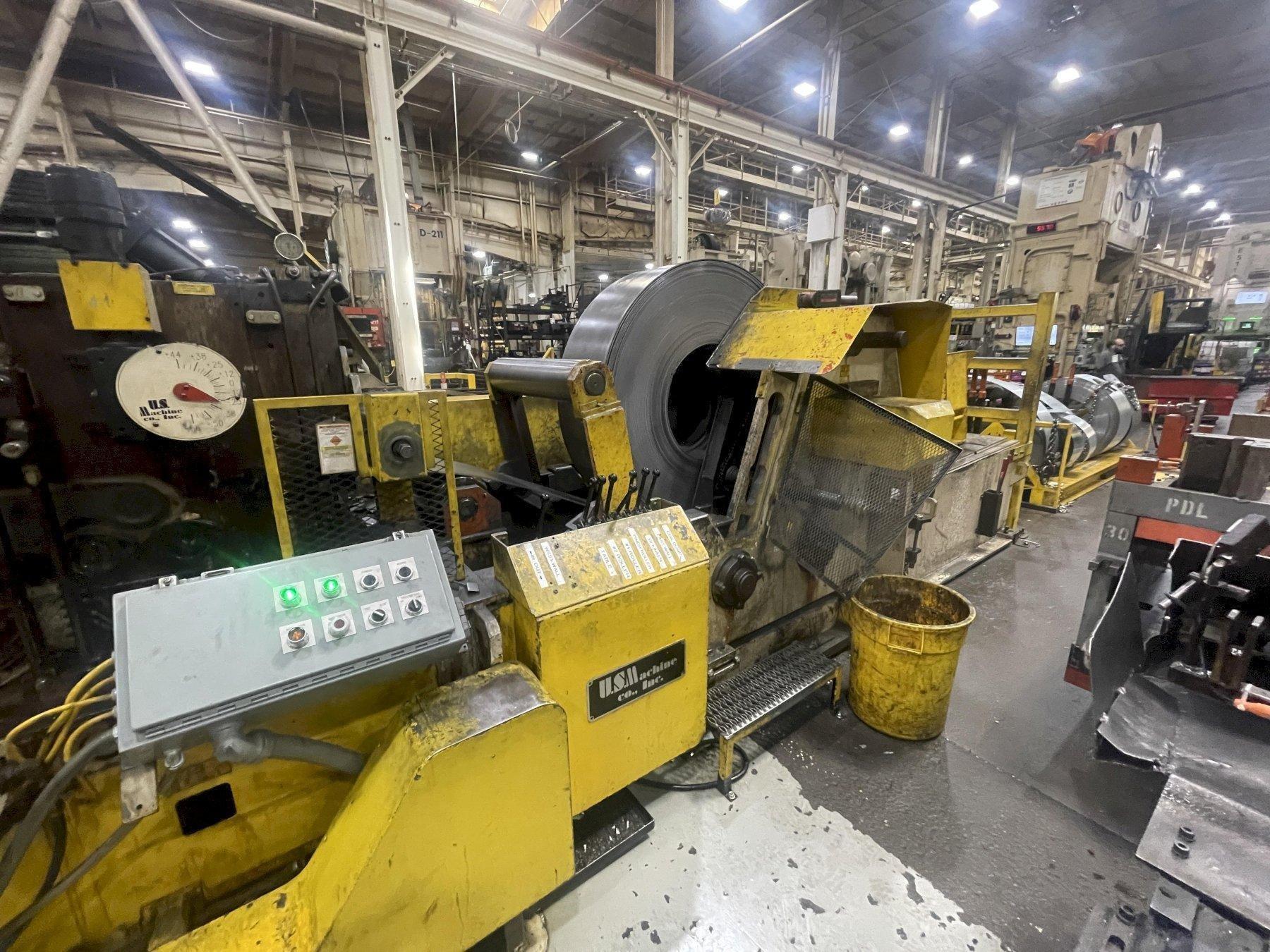

20,000 lbs. x 30" US Machine Heavy Duty Coil Cradle - Straightener with New Controls

Manufacturer

US MACHINE

Category

Coil Processing Equipment

Type

COIL CRADLES & STRAIGHTENERS

Stock

2905 - A

Model

HD 30" Coil Feed Line

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 20000 pounds
Coil Width - 30 inches
Coil Thickness - .150 inches


Standard Specifications

US Machine Heavy Duty Coil Cradle Straightener Combination
Coil weight capacity: 20,000 Lbs.
Coil width capacity: 30"
Stock thickness capacity: .150" @ 30" Wide
Stock thickness capacity: .187" @ 24" Wide
Stock thickness capacity: .300" @ 12" Wide
Stock thickness capacity: .380" @ 10" Wide
Coil O.D. Capacity: 72"


US Machine Heavy Duty Coil Cradle Straightener Combination

Equipment and Features:
Entry pinch rolls
Air operated entry pinch roll adjustments
Seven straightening rolls
Dial indicators for upper straightening roll position
Motorized upper straightening roll adjustment
Heavy duty stock width edge guides
Powered nest rolls in coil cradle
Coil restrictor side plates
Coil restrictor side plate adjustments
Combination Coil stop peeler threading assist and de-kinker assembly
Coil storage / load ramp
Automatic lubrication system
Self contained hydraulic pump unit
Existing Updated AC VFD control system
Laser loop control
Unit offered cleaned and cycling

This Used US Machine Cradle Straightener is quoted "As Is, Cleaned, Sanded and Painted to Customer Specification"  For Details on Reconditioned Pricing with all New Controls please inquire with your sales person.

More Heavy Capacity Coil Cradle Straighteners For Sale at S&G Press

US Machine top-mounted coil cradle straighteners save floor space and streamline material flow. They offer precise straightening for heavy-gauge materials, enhancing part quality. Their elevated design improves safety by reducing ground-level obstructions and simplifies coil loading and threading, boosting overall production efficiency.
