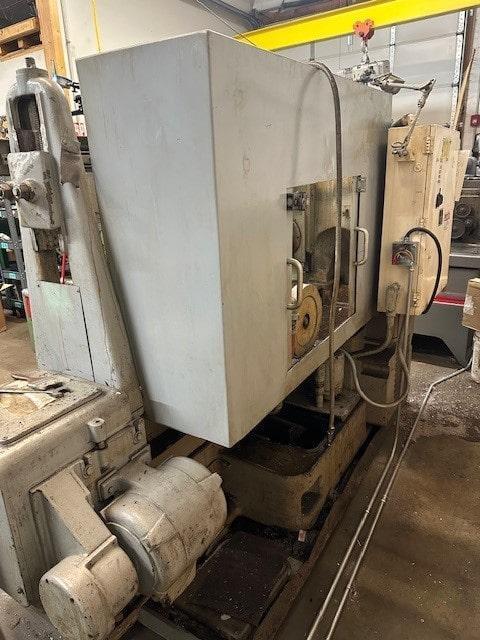

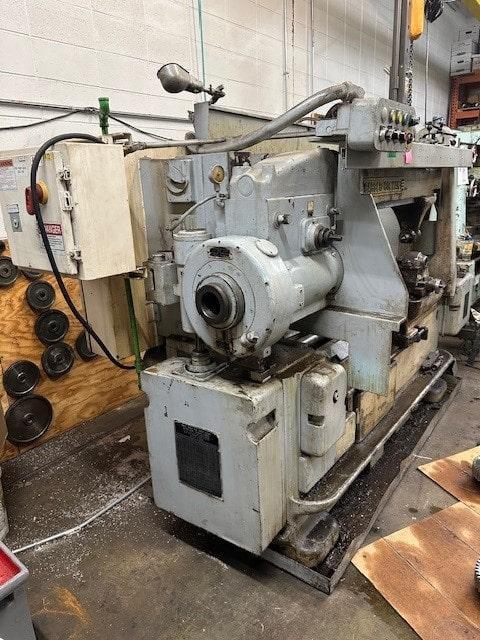

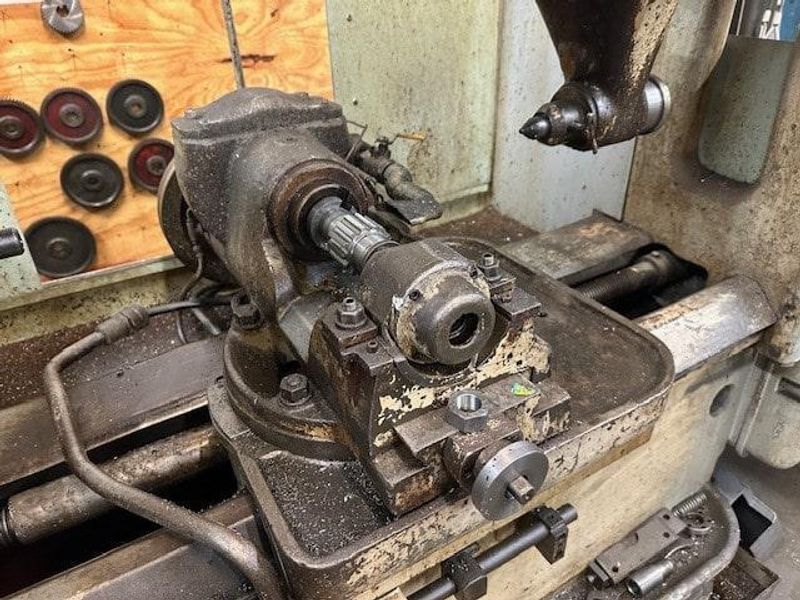

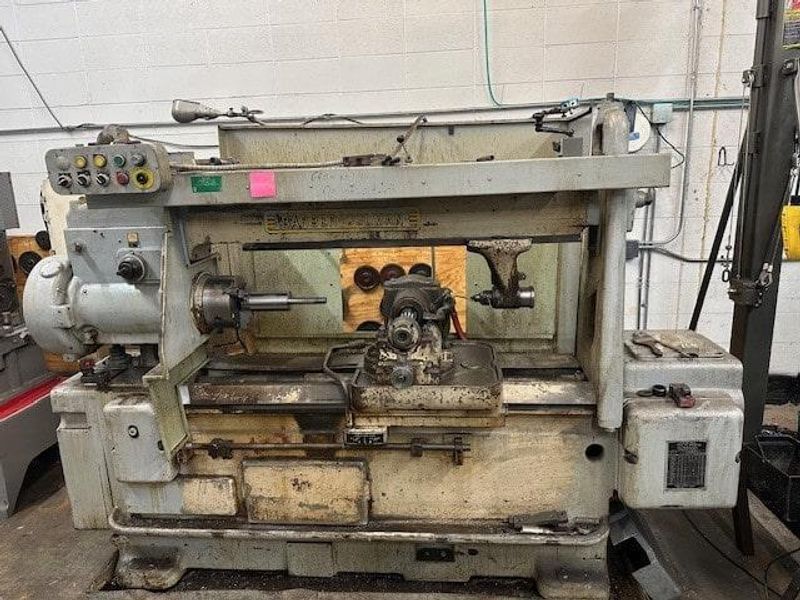

16-36 Barber Colman Universal Gear Hobber

Stock

GH1636AX

Model

16-36

Dealer Location

Illinois

Spec Sheet

Maximum Rated Diameter Pitch (Nominal) - 6DP (4.2 Module)
Maximum Rated Work Diameter - 16”
Maximum Hob Diameter - 5”
Maximum Hob Slide Travel - 36”
Maximum Work Slide Travel - 8”
Main Drive Motor - 5HP
Approximate Dimensions - 108” x 48” x 76” Height
Approximate Weight - 7,000 lbs.


EQUIPPED WITH:
Double Thread Index.
10” 3-Jaw Chuck.
Tailstock.
Rapid Traverse and Jog to the Hob Slide.
Trabon Lubrication System.
Coolant System.
