55" HNK NT-14/16FD, 63" Swing, 2-Rams, (2) 12 ATC, 50/60 HP, Fanuc 18iTB #43872

Manufacturer

HNK

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43872

Model

NT-14/16FD

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43872

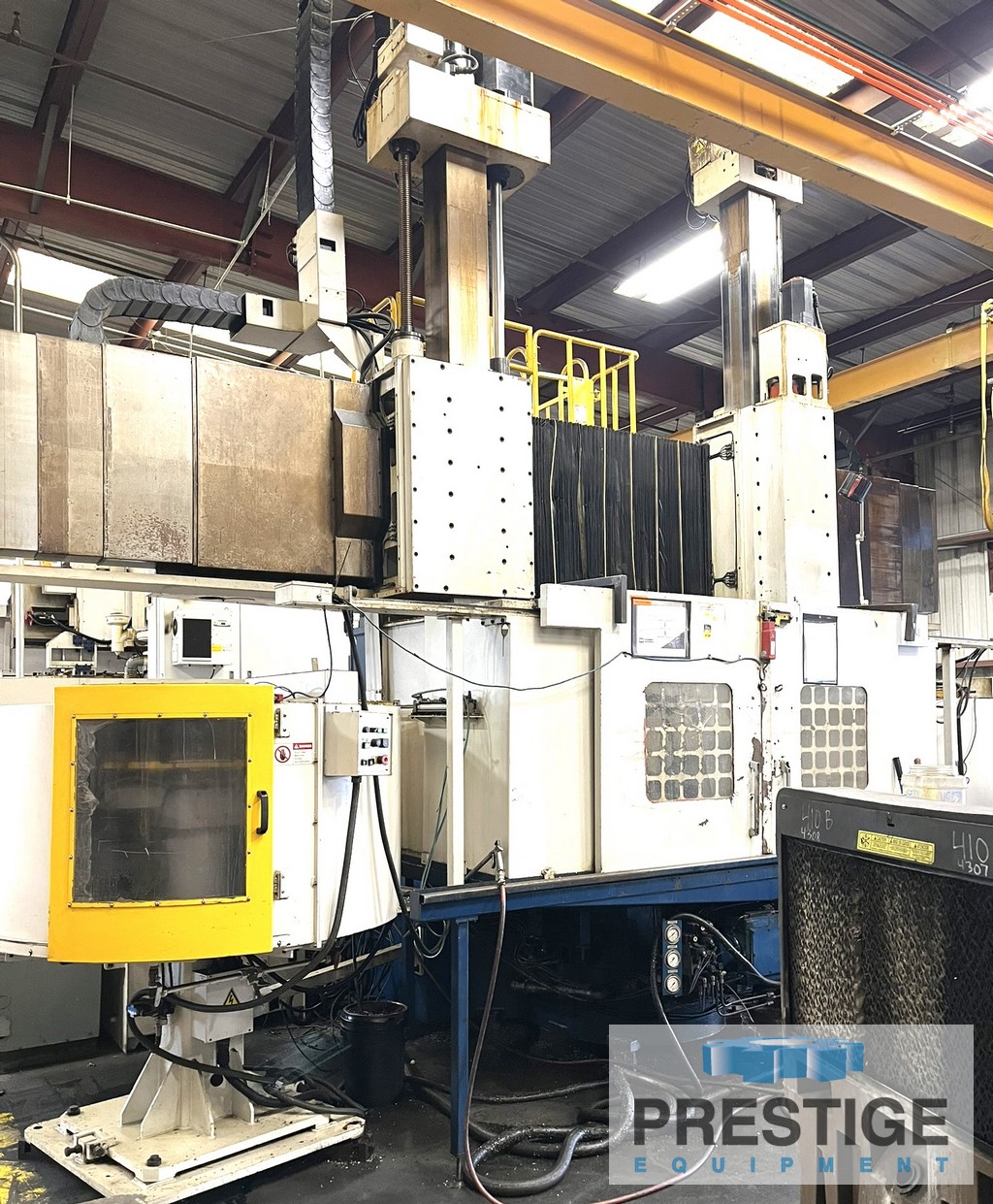

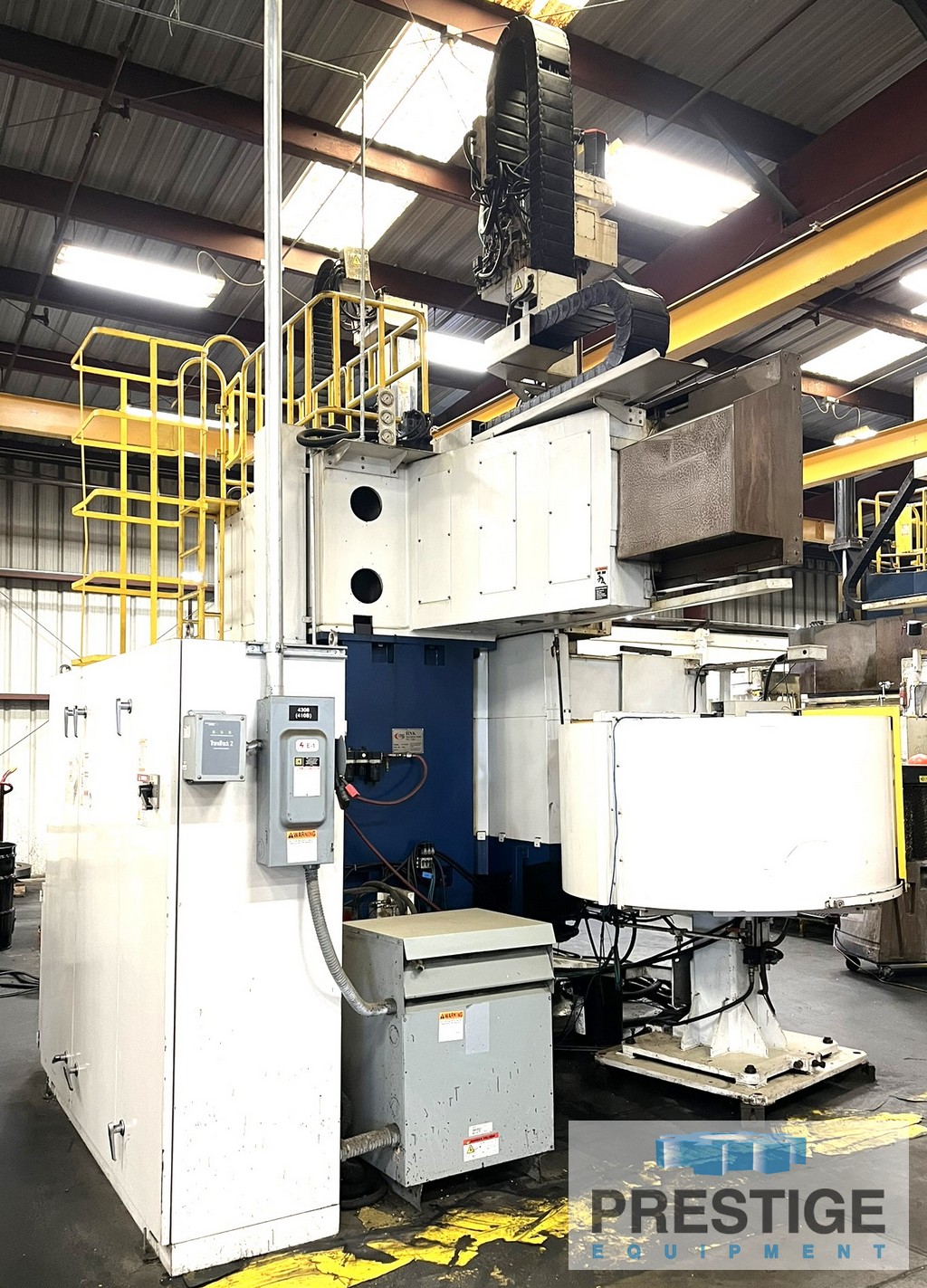

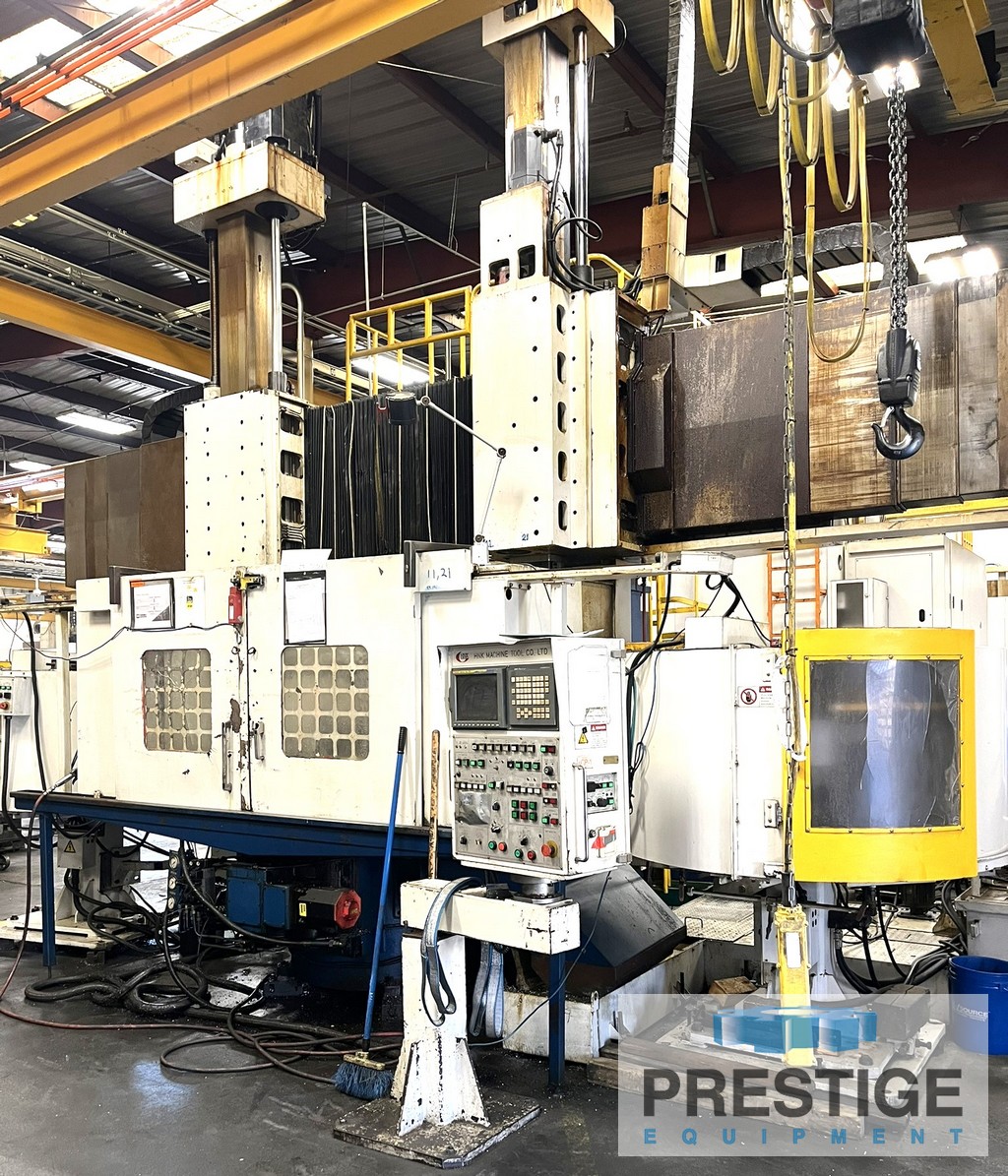

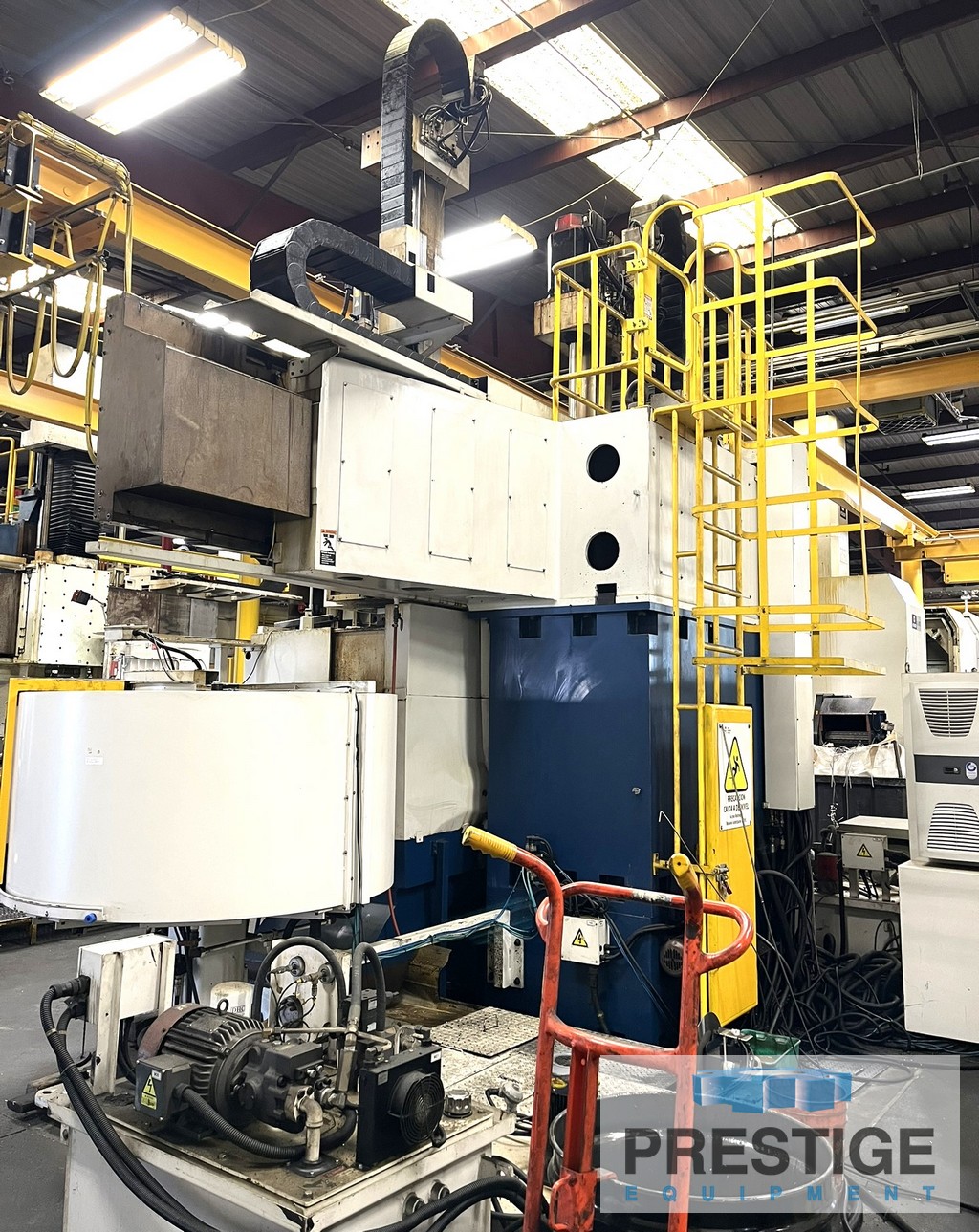

HNK NT-14/16FD CNC Vertical Lathe

FEATURES:

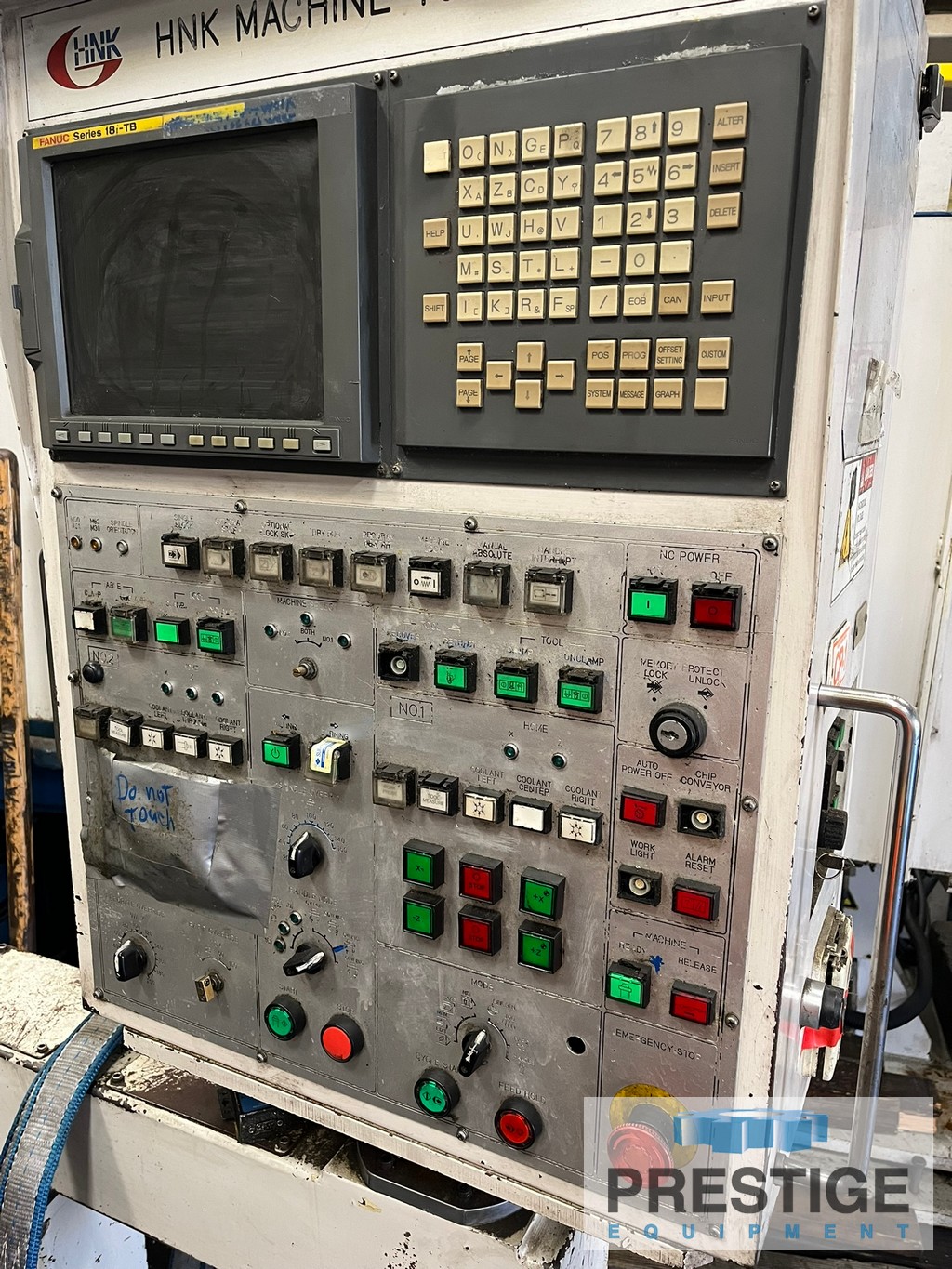

Fanuc 18T CNC Control
(2) Vertical Rams
(2) 12 Position Automatic Tool Changer
Full Chip & Coolant Guards, Chip Conveyor

Specifications:
Table Diameter ........................ 55.11"
Maximum Swing ......................... 63"
Maximum Turning Diameter .............. 63"
Maximum Turning Height ................ 35.43
Ram Horiz. Travel, X-Axis Travel ...... 63"
Ram Stroke, Z-Axis .................... 35.43"
Ram Cross Section ..................... 8.66" x 8.66"
Table Speeds, 2-Ranges ................ .9-360 RPM
Table Motor ........................... 50 HP / 60 HP
Machine Footprint ..................... 192" x 153"
Machine Height ........................ 185"
Machine Weight ....................... 68,300 lbs.
Machine Electics ...................... 220/3/60

Equipped With:
Fanuc 18T CNC Control
(2) Vertical Rams
(2) 12 Position Automatic Tool Changer
Full Chip & Coolant Guards, Chip Conveyor
50/60 HP Main Motor
