49" HNK VTB 12/16, 63" Swing, Ram w/ 12 ATC, 50/60 HP, Fanuc 18iTB #43871

Manufacturer

HNK

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

43871

Model

VTB-12/16

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43871

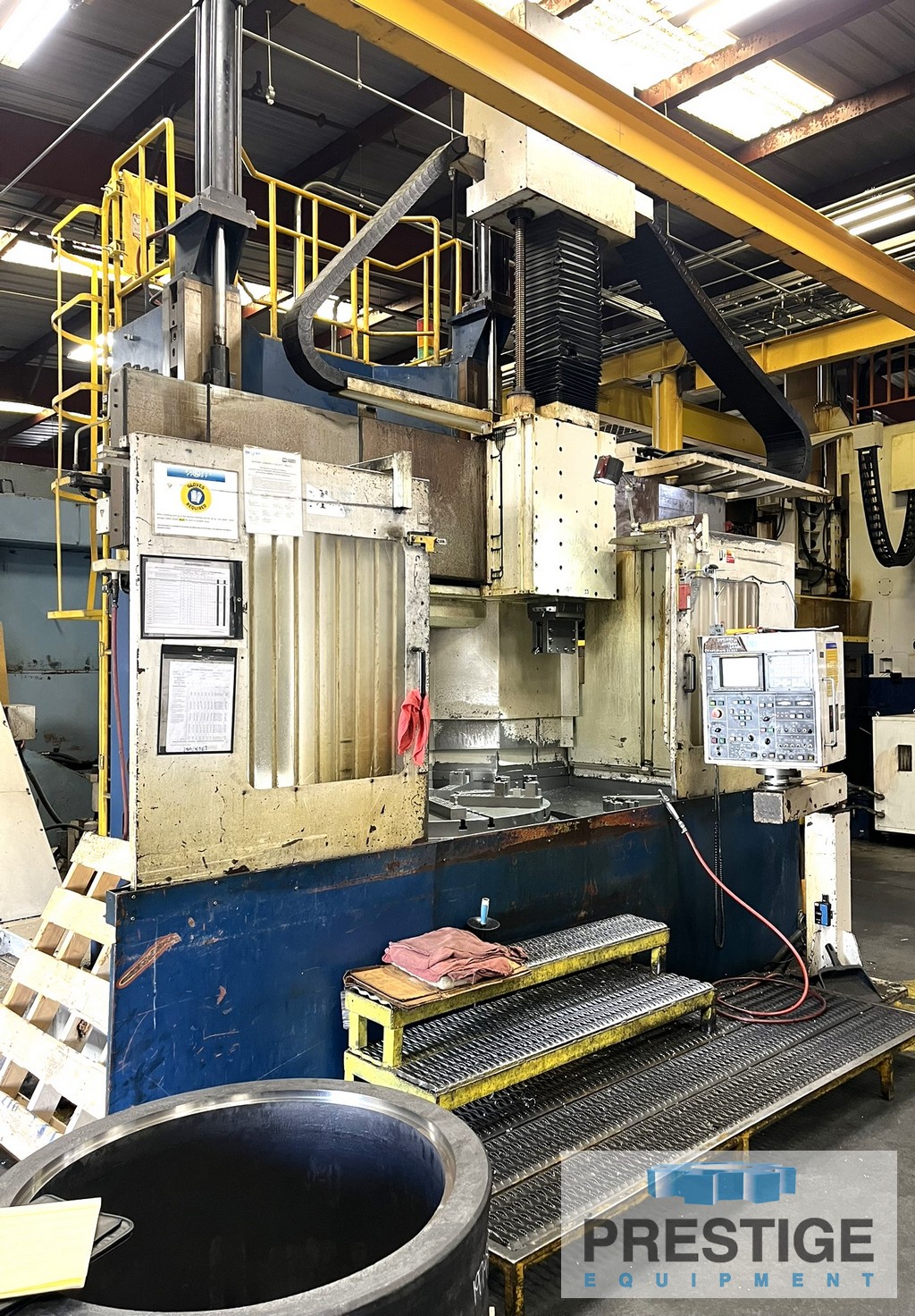

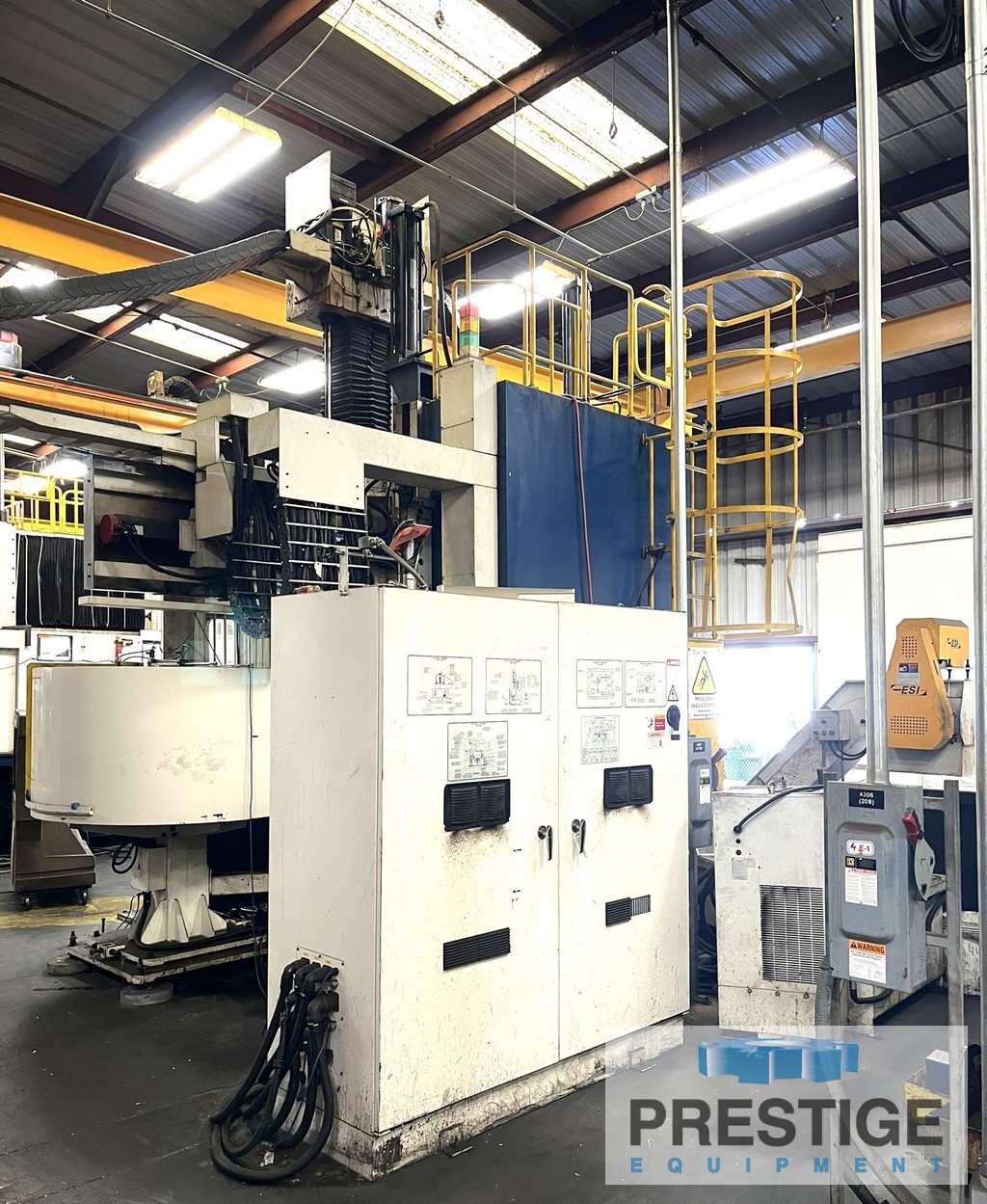

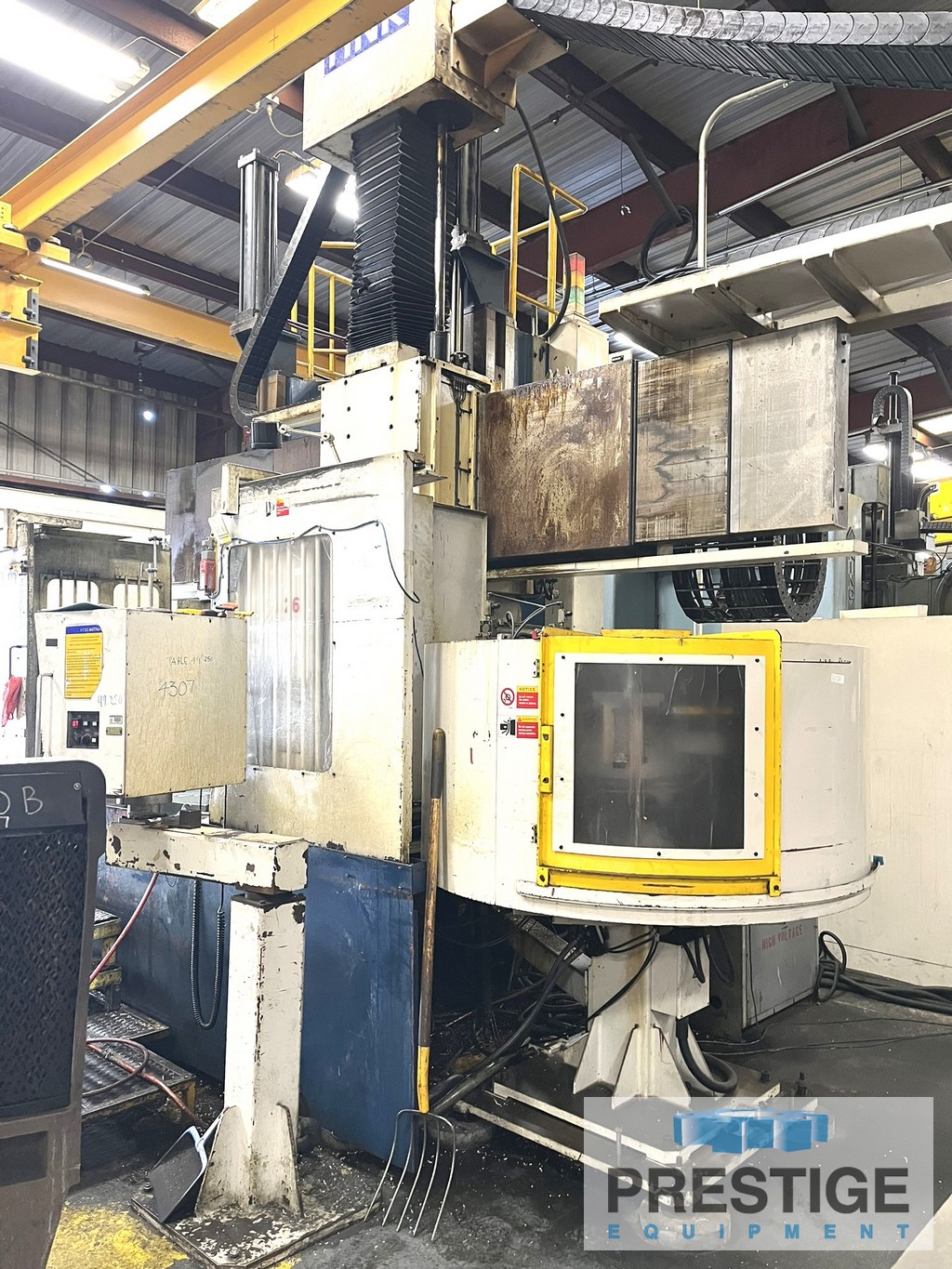

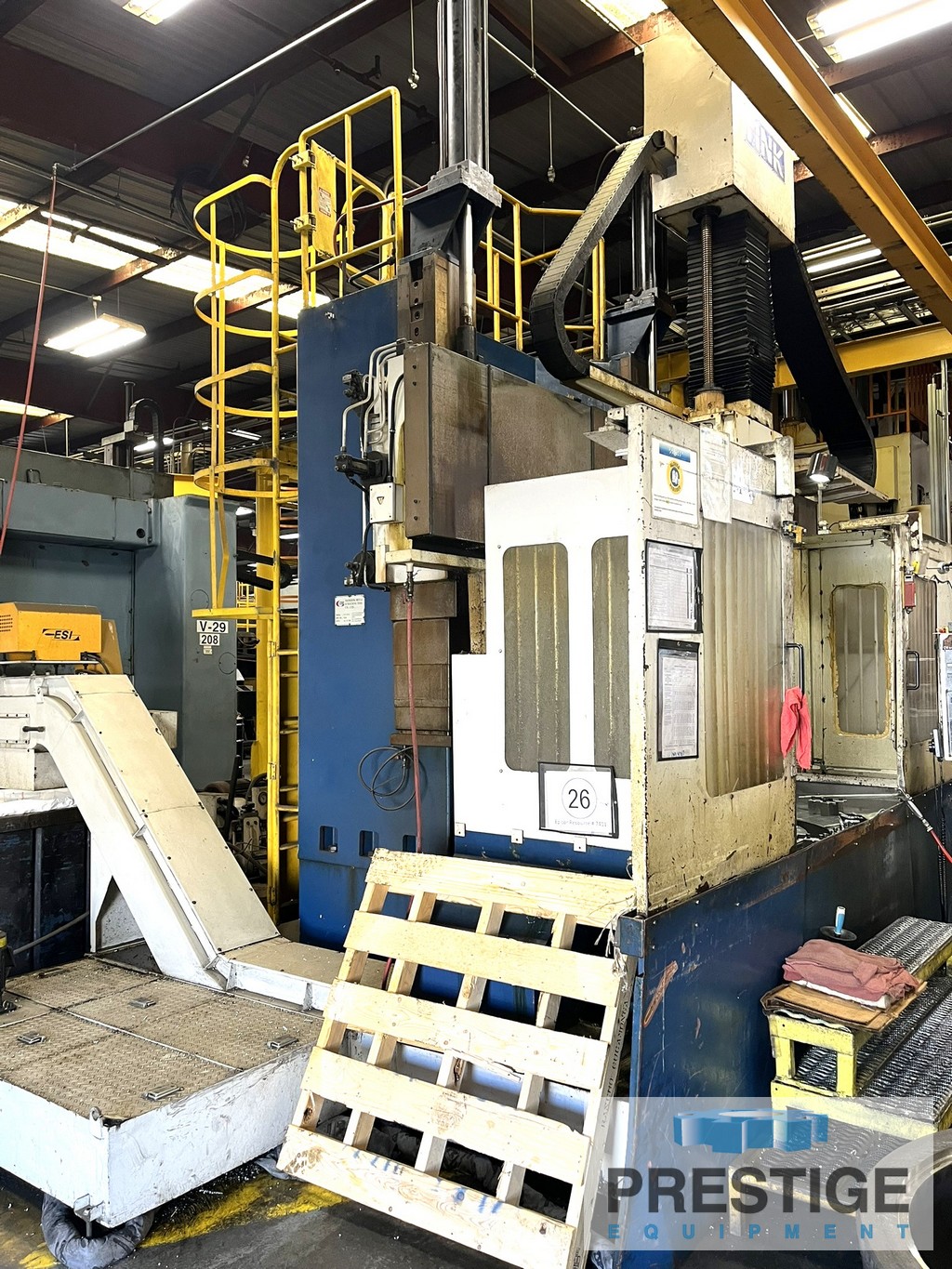

HNK VTB-12/16 47"/63" CNC Vertical Boring Mill

FEATURES:
Fanuc 18T CNC Control
Vertical Ram
12 Position Automatic Tool Changer
Full Chip & Coolant Guards, Chip Conveyor

Specifications:

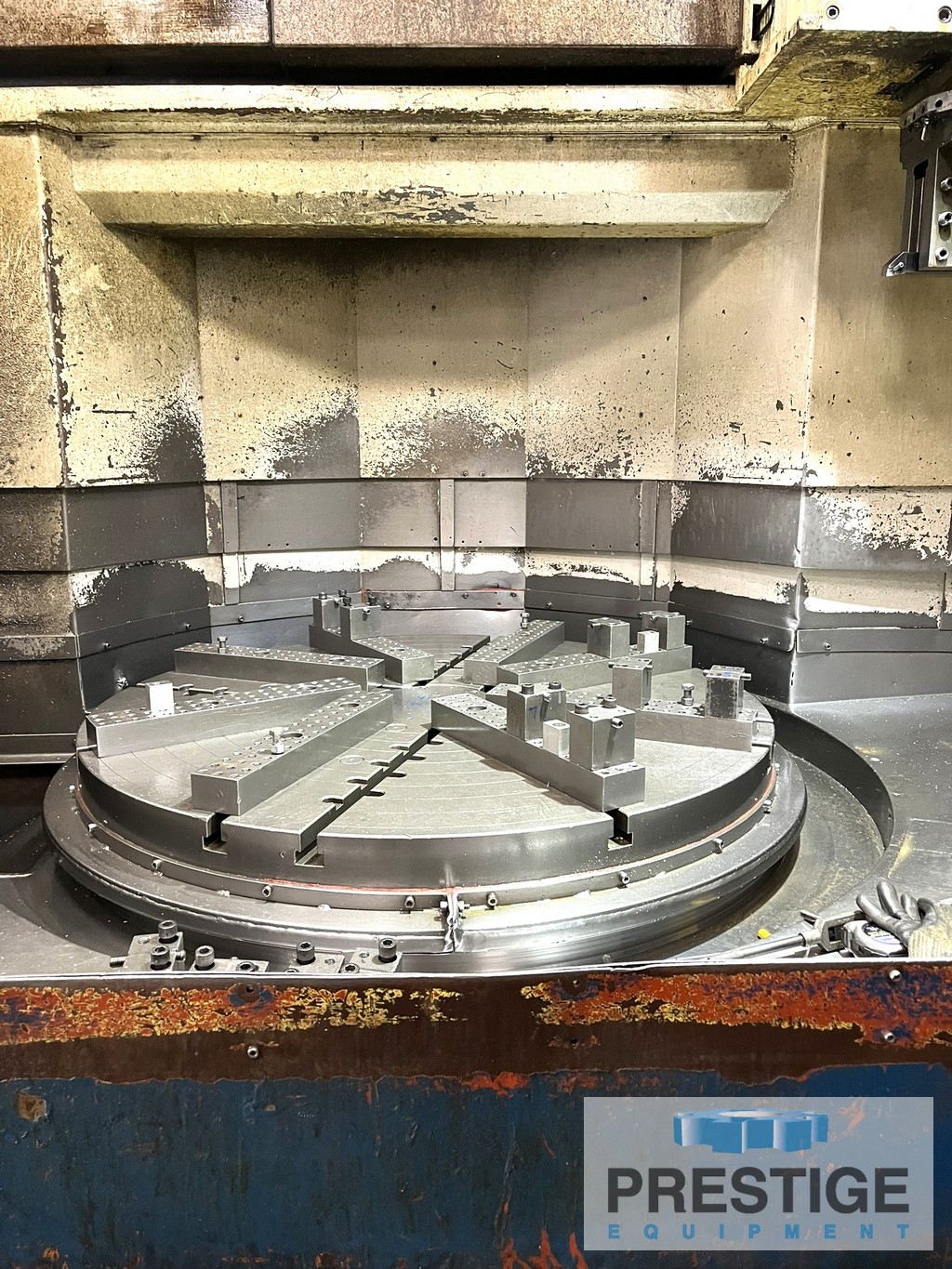

Table Diameter ........................ 49.2"
Maximum Swing ......................... 62.99"
Maximum Turning Diameter .............. 62.99"
Maximum Turning Height ................ 35.43
Ram Horiz. Travel, X-Axis Travel ...... 63"
Ram Stroke, Z-Axis .................... 35.43"
Ram Cross Section ..................... 8.66" x 8.66"
Table Speeds, 2-Ranges ................ .9-360 RPM
Table Motor ........................... 50 HP / 60 HP
Machine Footprint ..................... 192" x 153"
Machine Height ........................ 185"
Machine Weight ....................... 68,300 lbs.
Machine Electics ...................... 220/3/60

Equipped With:

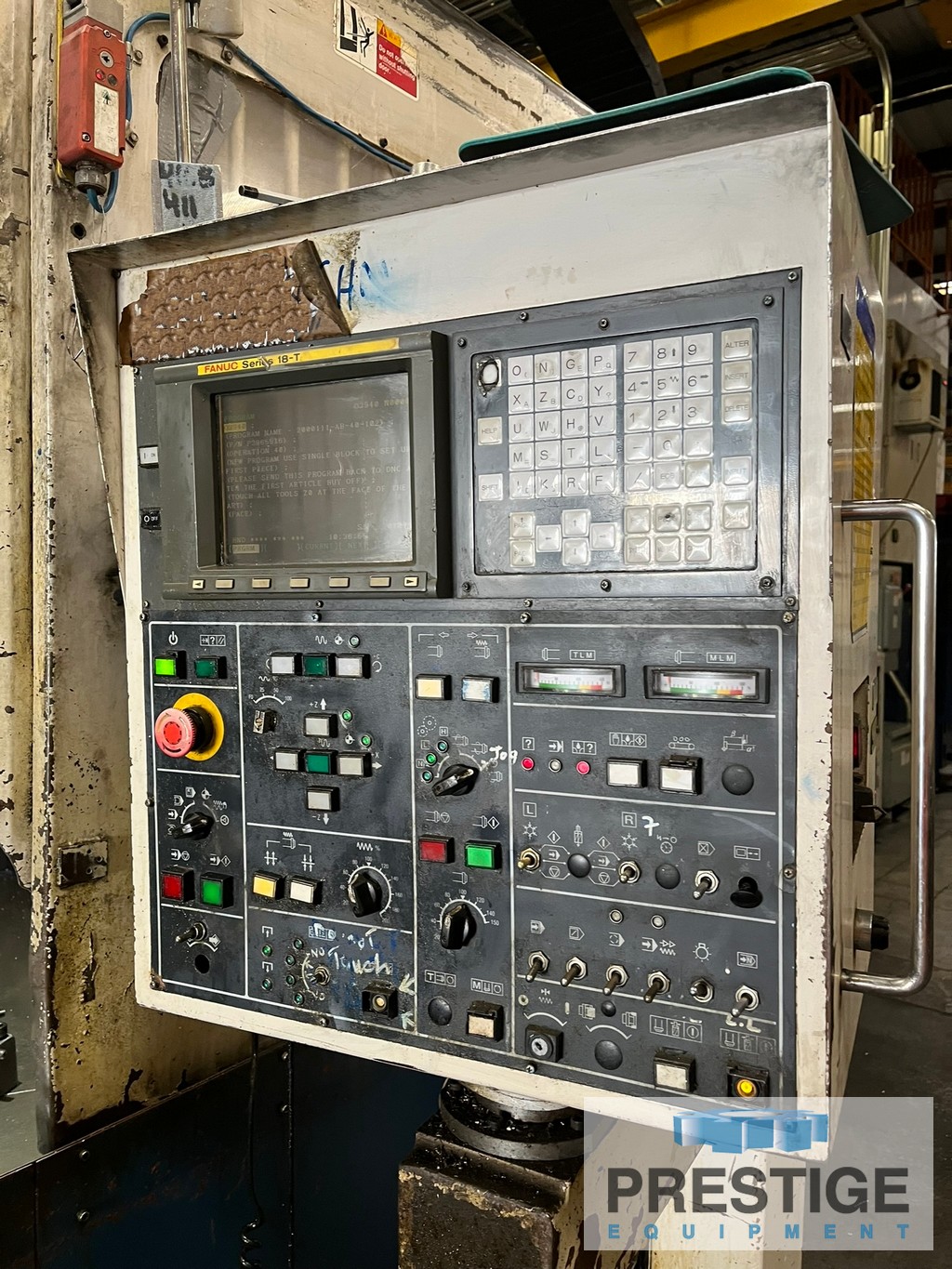

Fanuc 18T CNC Control
Vertical Ram
12 Position Automatic Tool Changer
Full Chip & Coolant Guards, Chip Conveyor
50/60 HP Main Motor
