Doral 6048 Structural Plate Shot Blast System, (6) 25 HP Wheels, 30" x 48" Max. I-Beam, 62" Max Plate Width, 2016 #43956

Manufacturer

Doral

Category

Miscellaneous Machines

Type

SHOTBLAST/SHOT BLAST PEENING, AIRLESS

Stock

43956

Model

6048

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43956

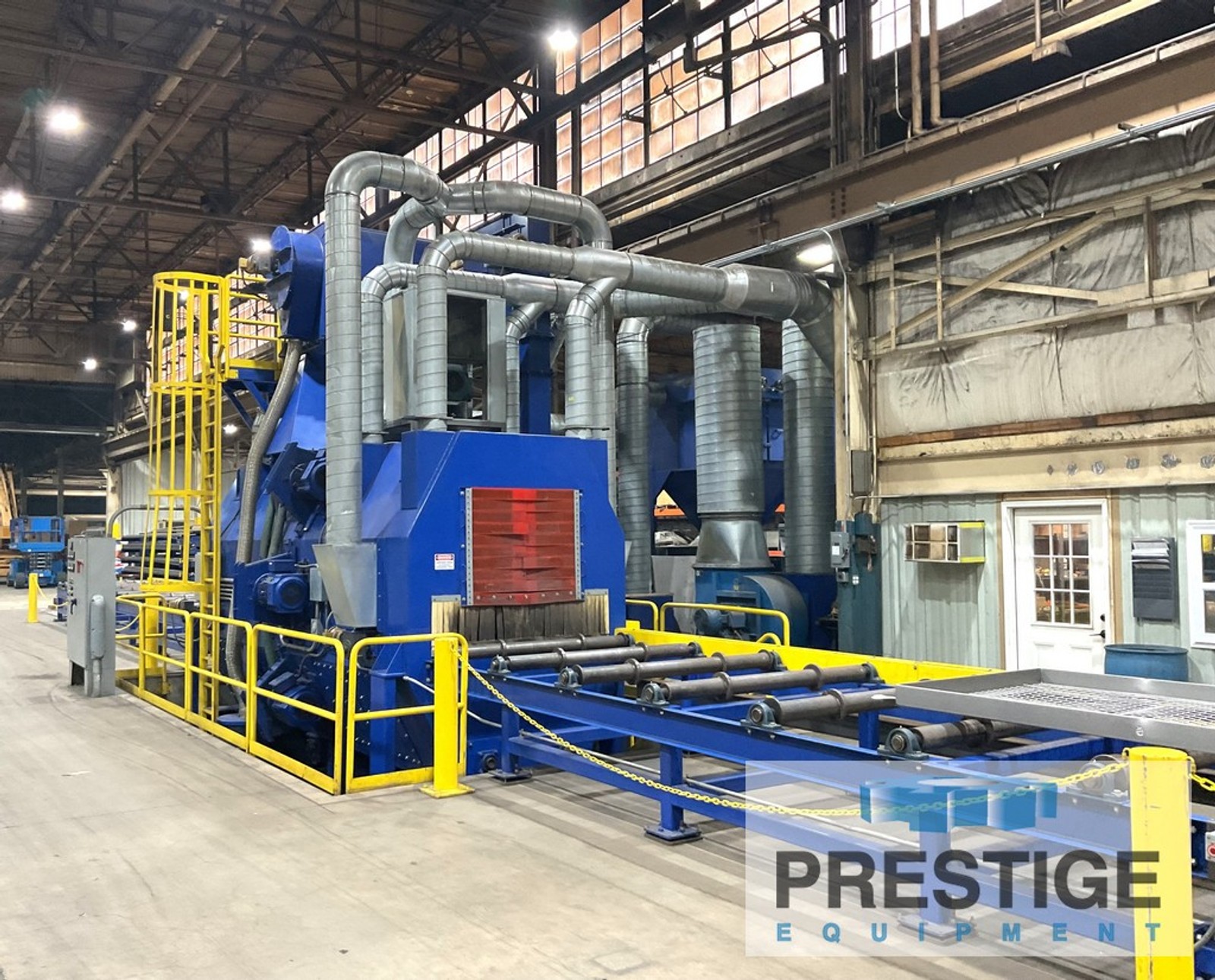

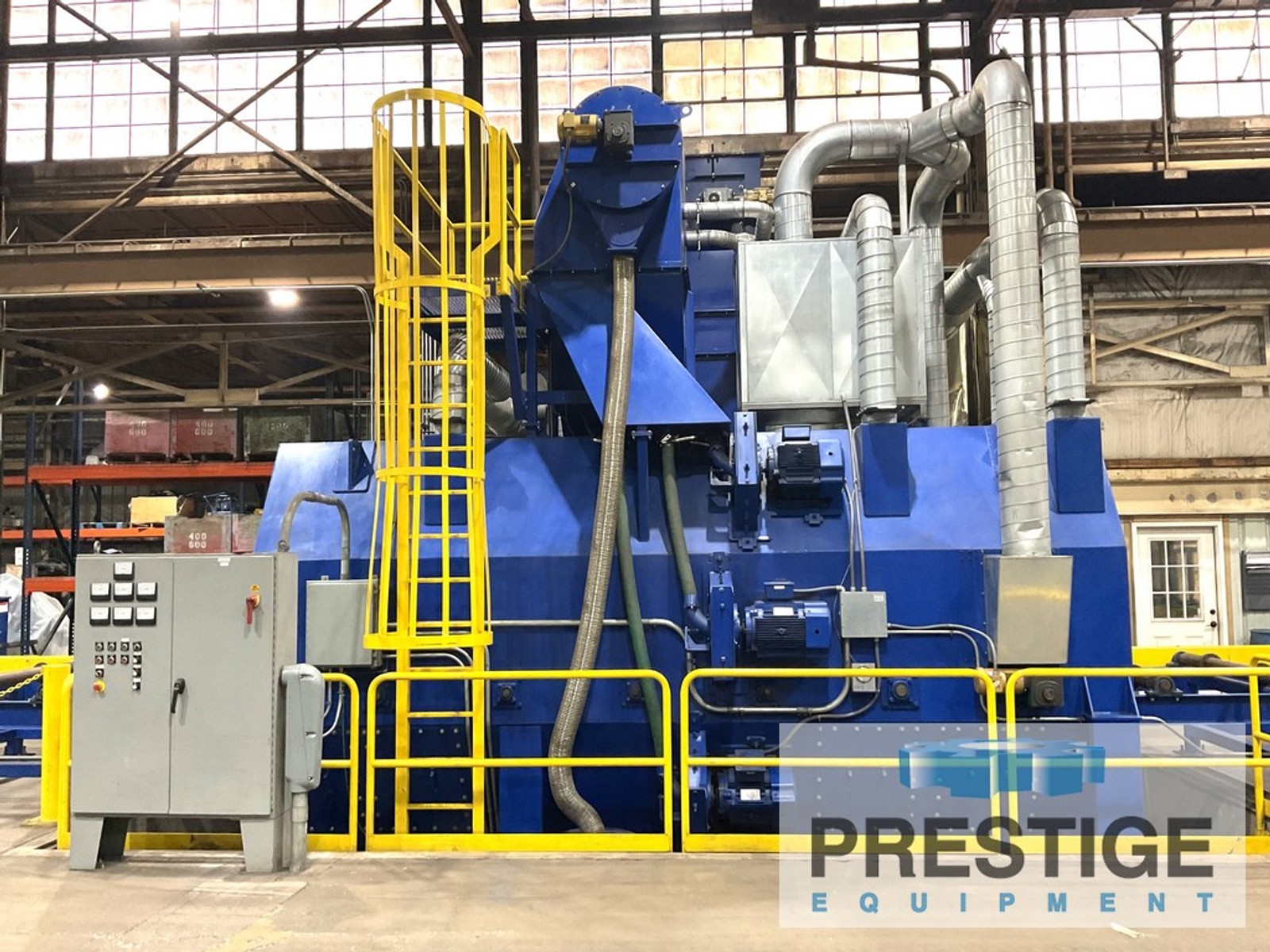

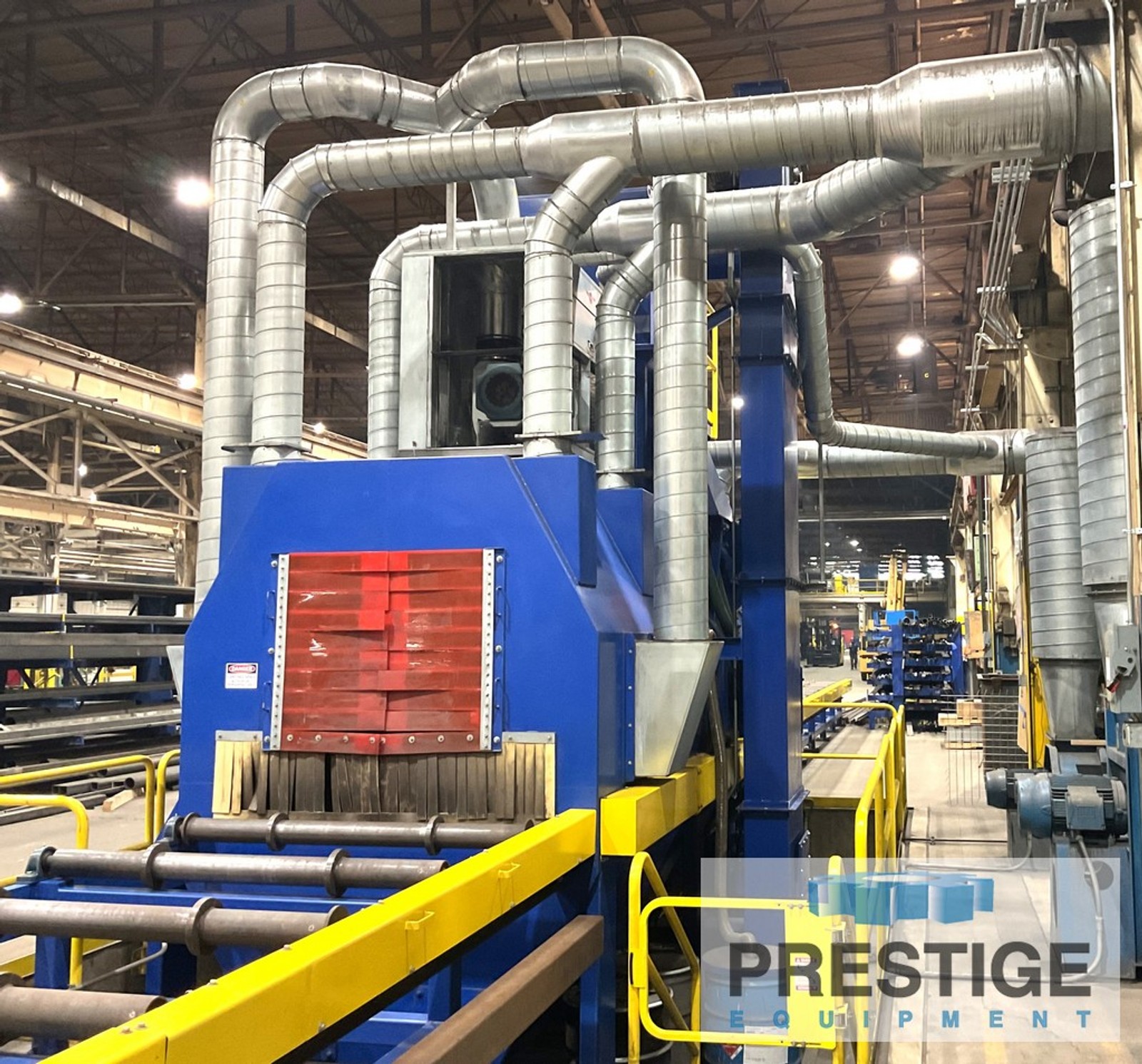

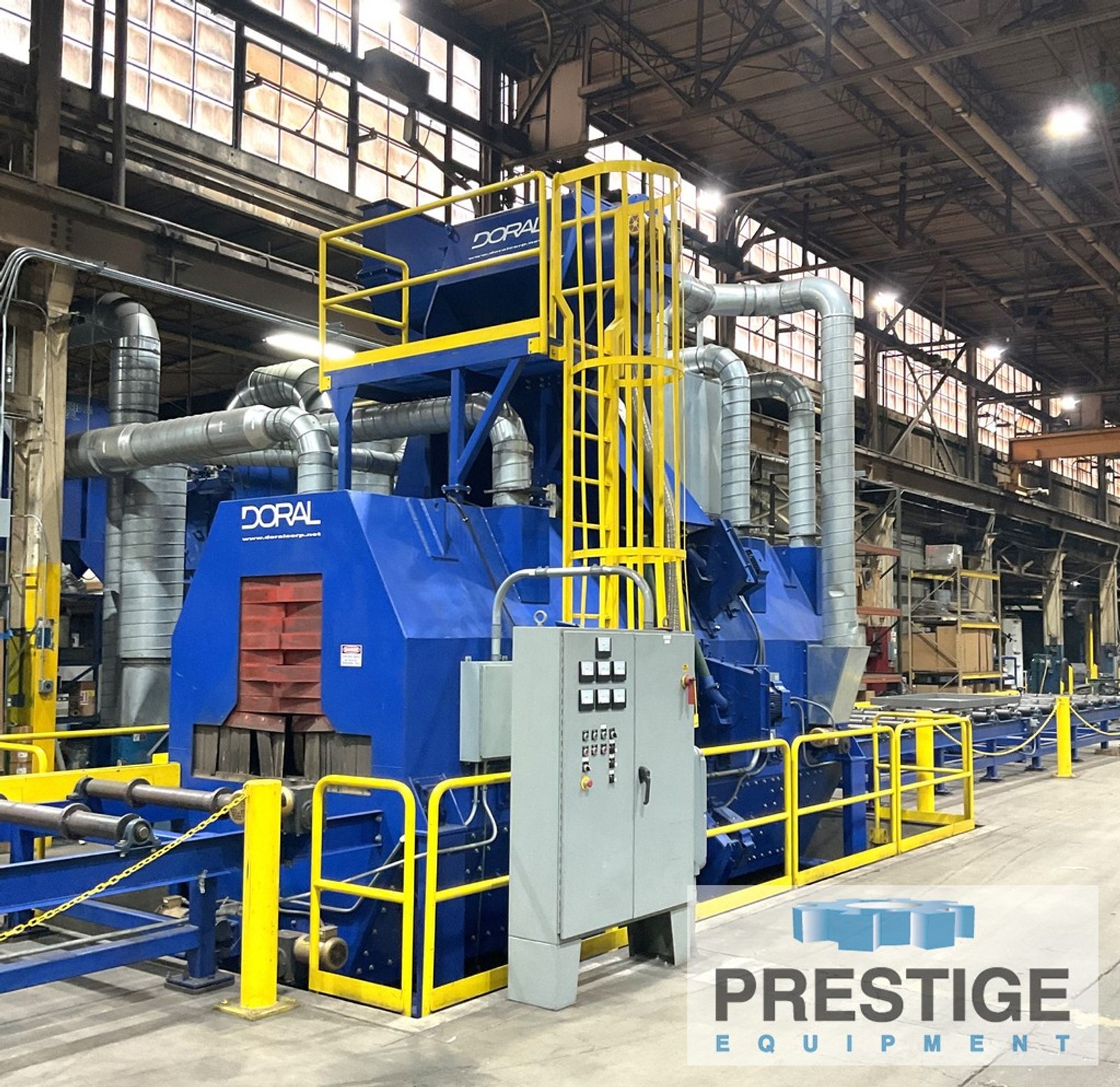

Doral 6048 6-Wheel Structural Plate Shot Blast System

FEATURES:
Less than 100 Hours Blasting Hours!

MAXIMUM WORK:
Maximum Plate Width ................... 62"
Maximum I-Beam ........................ 30" x 48"
Misc Parts ............................ Based On work fixture Design

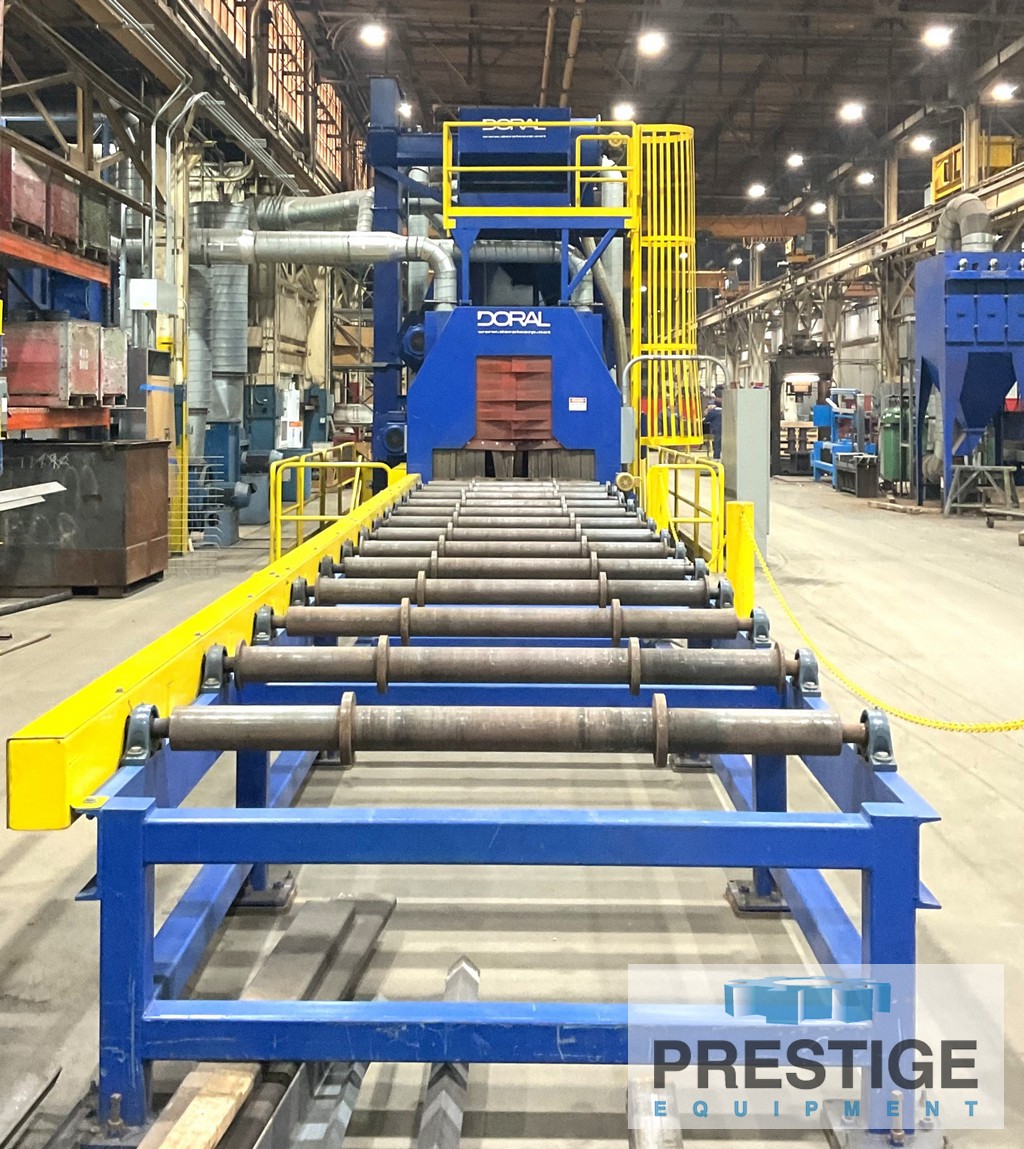

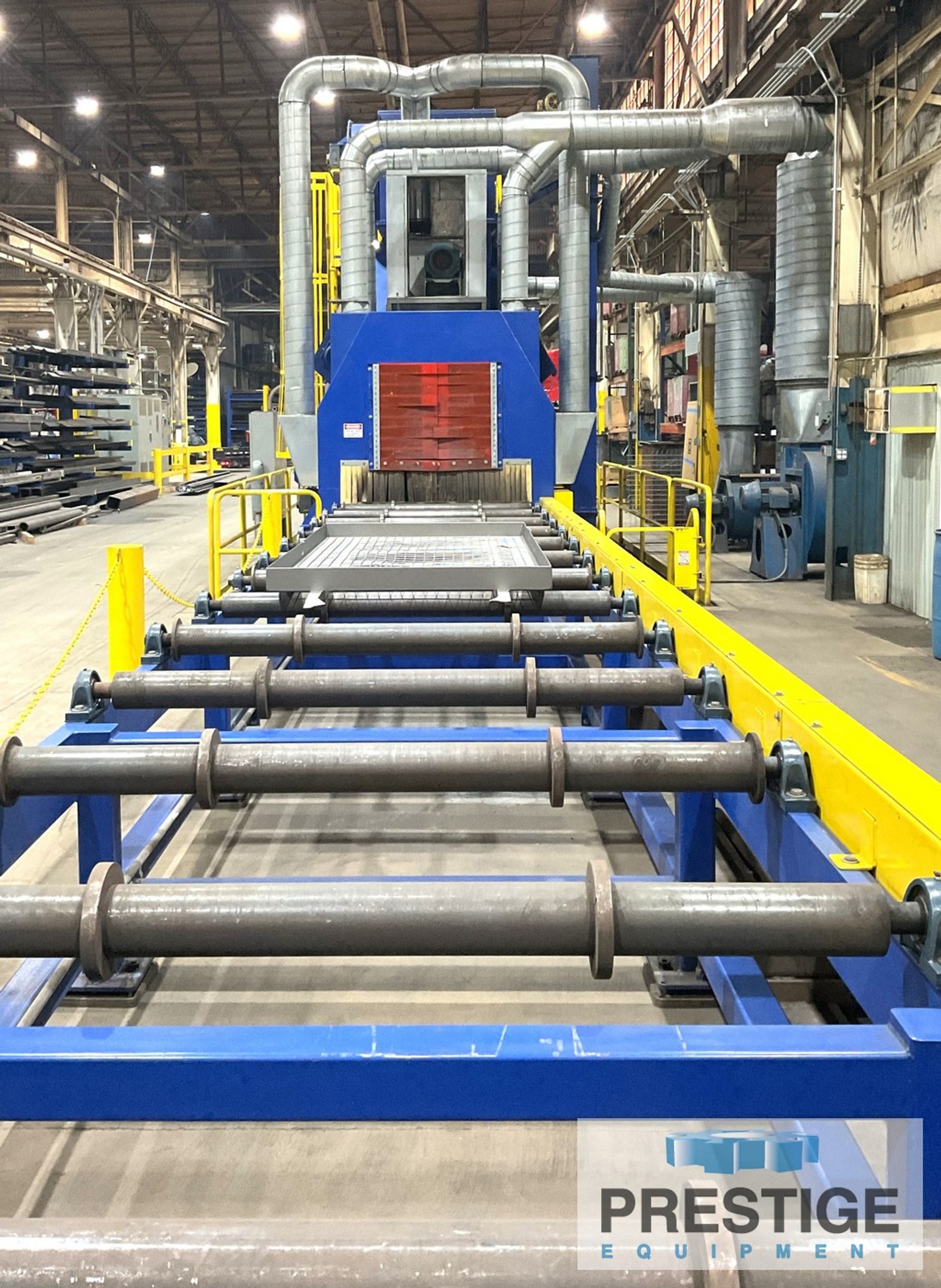

WORK CONVEYORS:
Speed, Variable ....................... Powered
Roller Width .......................... 68"
Total Length, Entry & Exit ............ 103'
Length, Entry ......................... 40'
Length, Machine ....................... 26'
Length, Exit .......................... 40'
Roller Spacing Centerlines ............ 36"
Floor to Top Of Rollers ............... 36"
Roller Diameter ....................... 4.5"

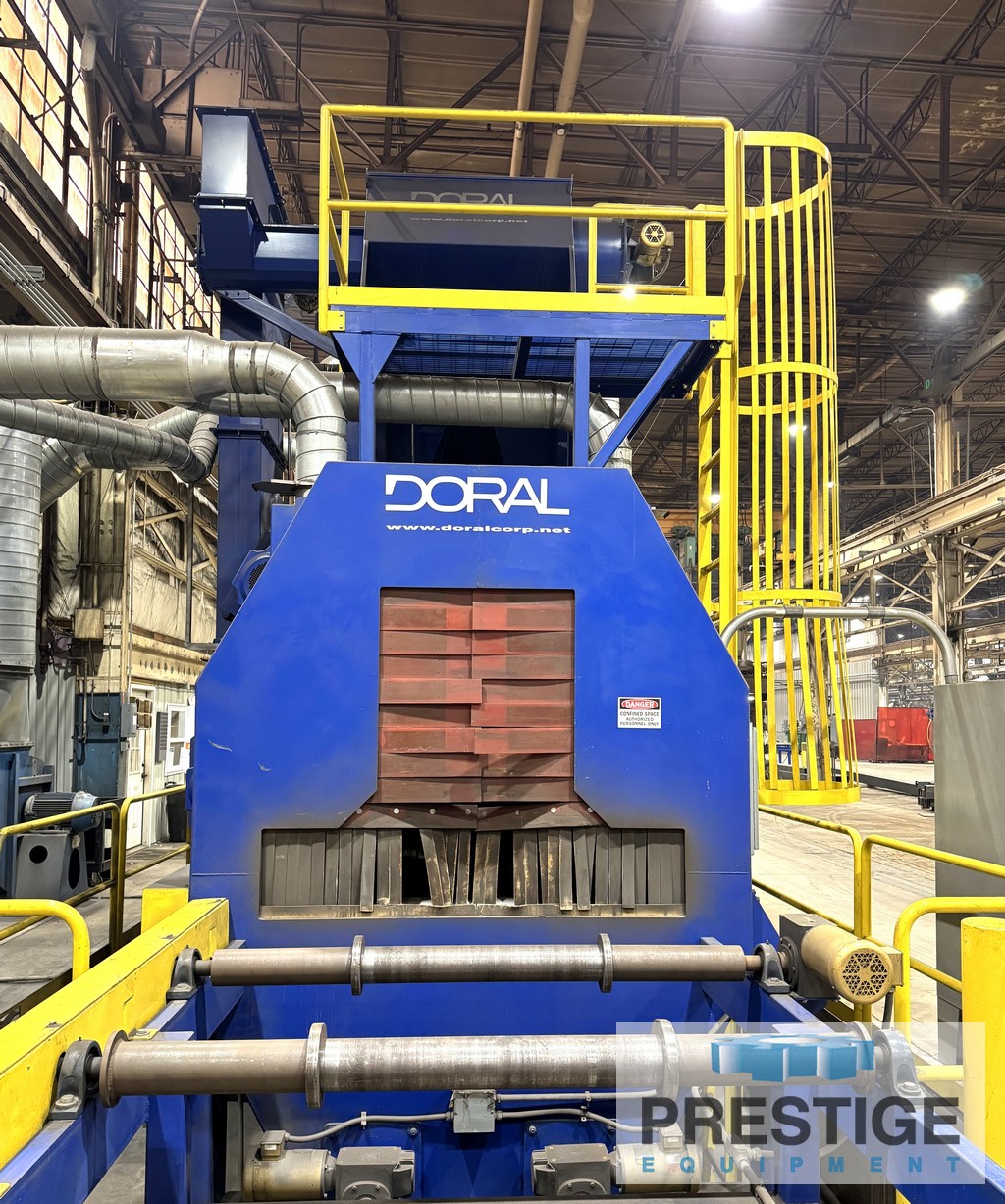

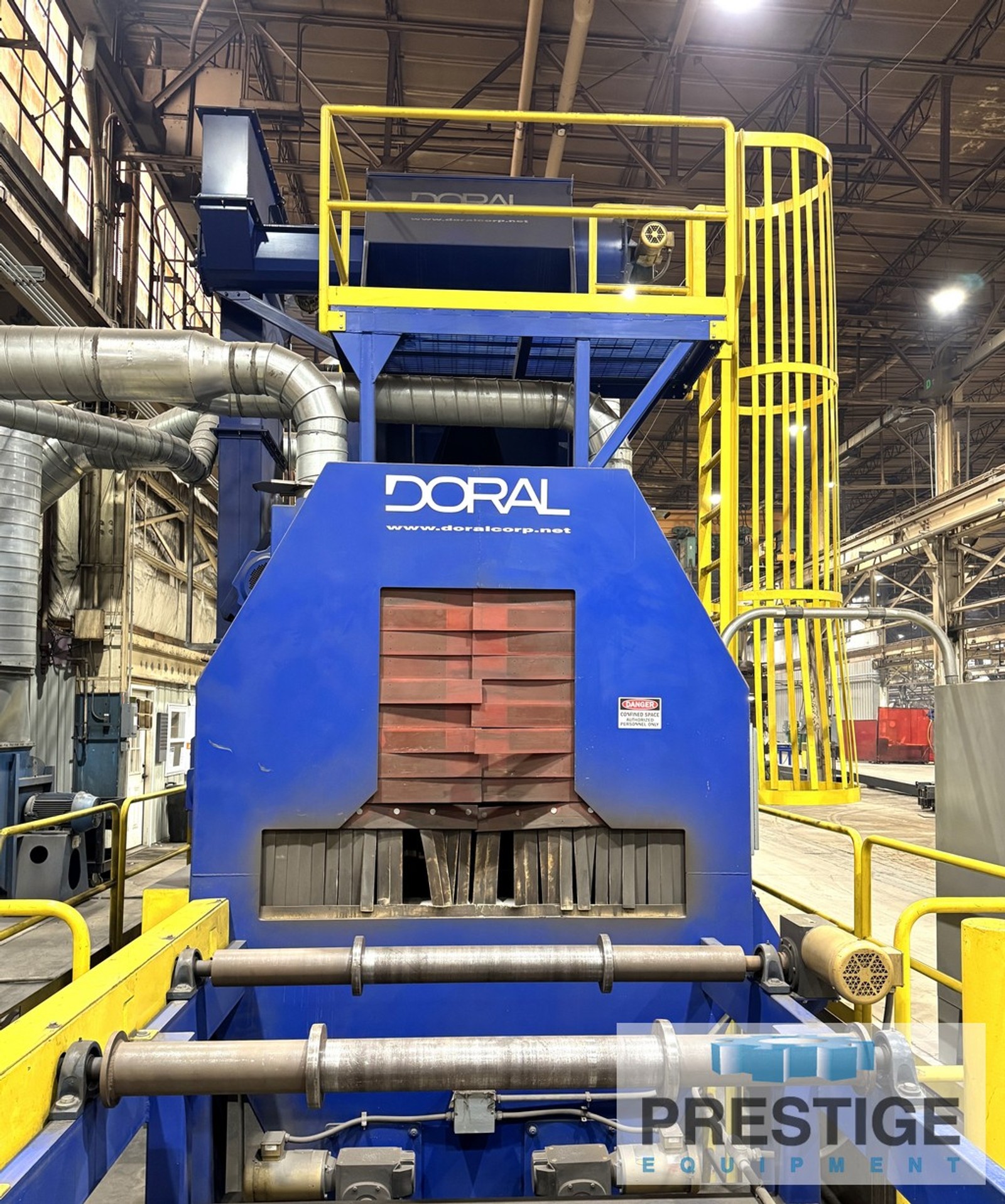

BLAST CABINET DIMENSIONS:
Length ................................ 21'
Width ................................. 15'
Height ................................ 12'6"
Floorline To Top Of Elevator .......... 16'6"
Pit, Width ............................ 15'
Pit, Length ........................... 26'
Height, Bottom to top of Elevator ..... 20'

CABINET CONSTRUCTION:
12 to 14% Manganese Steel 1/2" Thick Blast Zone & Other Abrasive Contact areas
3/16" & 1/4" Thick Mild Steel Entry & Exit Vestibules
Length, Entry Vestibule ............... 5'2"
Length, Blast Cabinet ................. 8'
Length, Exit Vestibule ................ 7'3"
Rubber curtains & cast poly finger seals provide abrasive retention in Vestibules

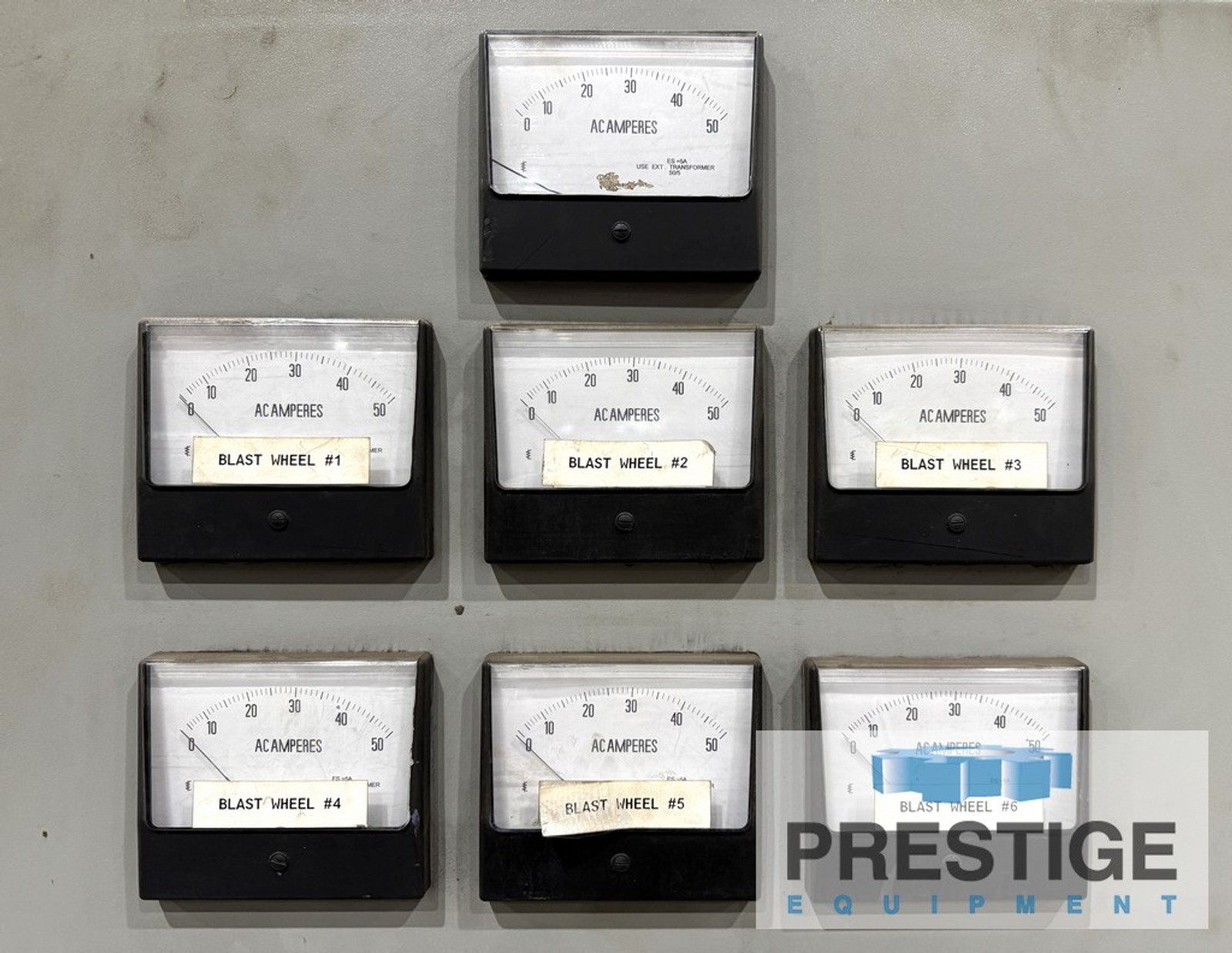

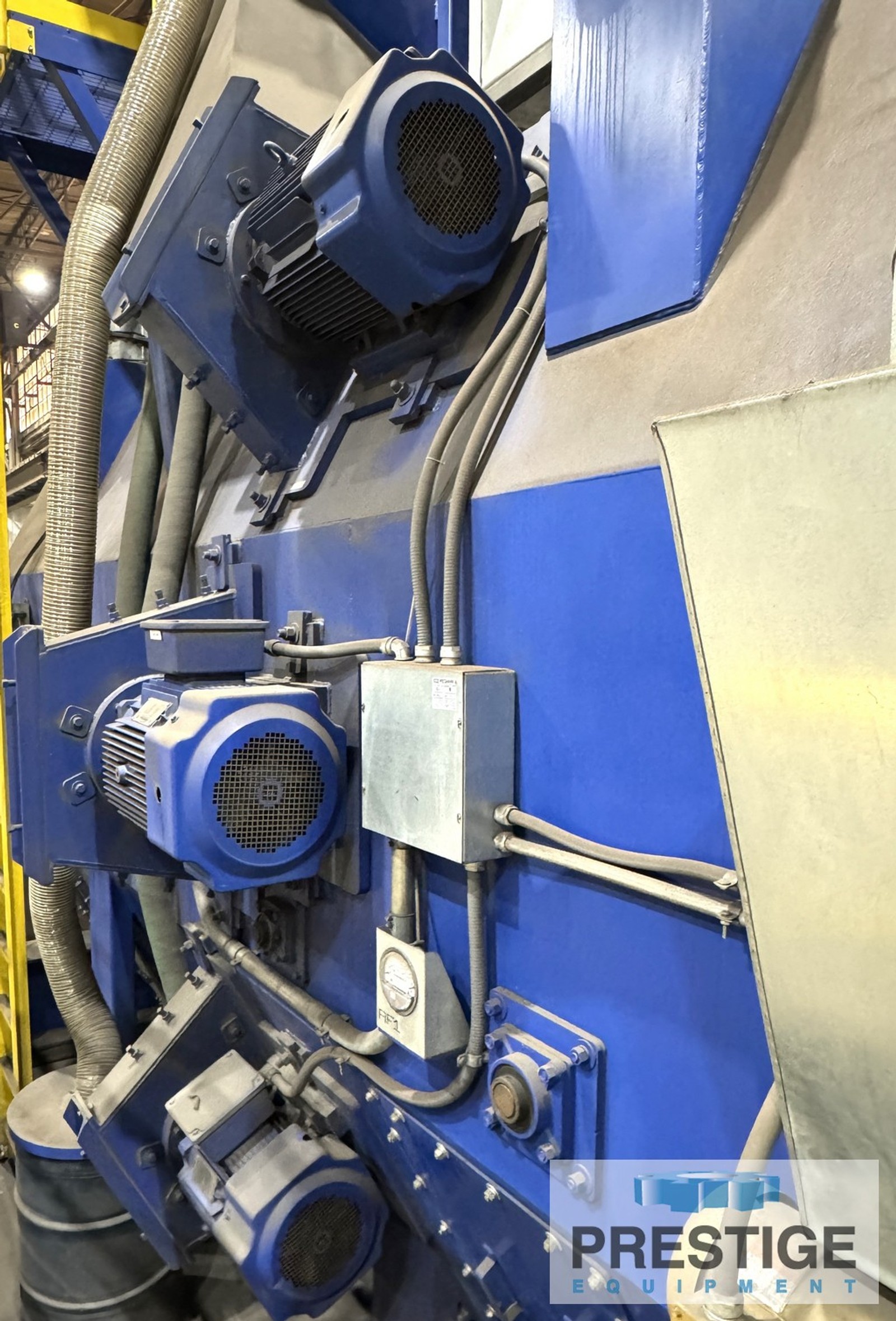

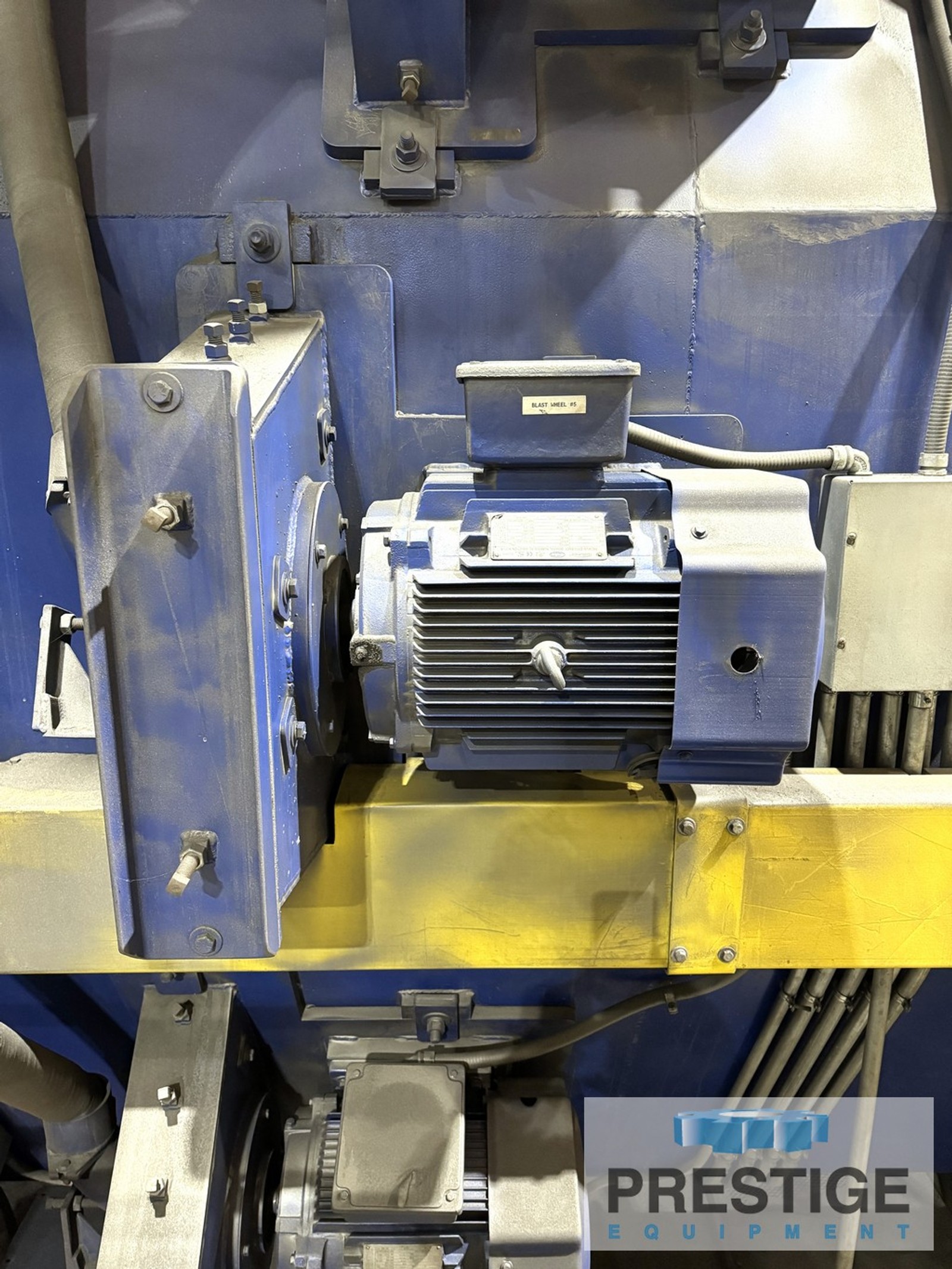

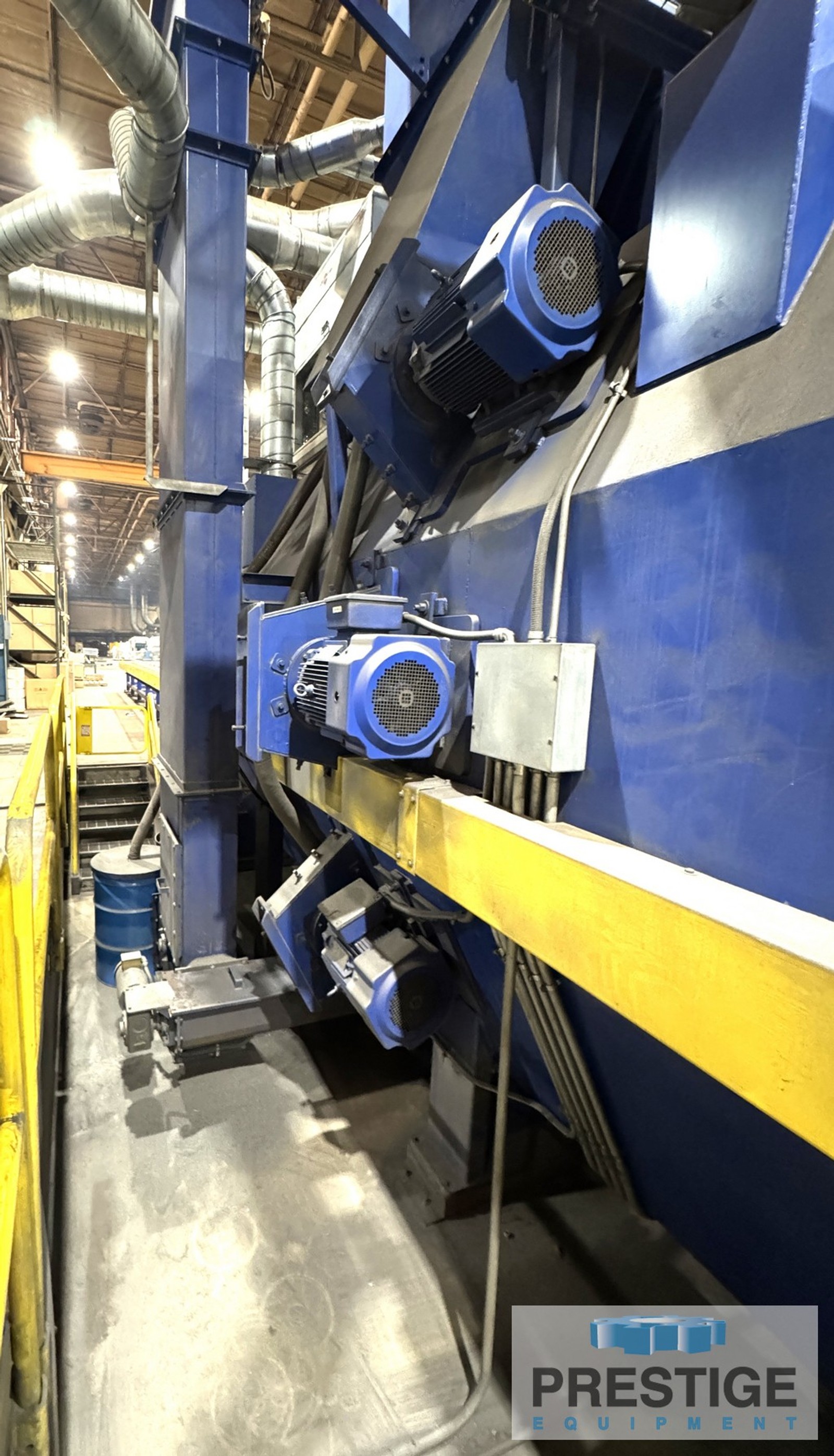

SHOT BLAST WHEELS:
North Star Blast Wheels direct drive premium wear plate package
Horsepower ............................ 25 HP / 3600 PRM
No Of Blast Wheels .................... 6
Position, top, bottom, center ......... 2,2,2
Diameter .............................. 16"
(8) Blades Center Feed
1/2" Thick 1-Piece front & rear Manganese steel liners
1" Thick cat wear alloy liners top & end liners 5-piece
Air Force One 30 HP Abrasive Blow Off

ABRASIVE RECOVERY SYSTEM:
Lower & upper screw conveyors

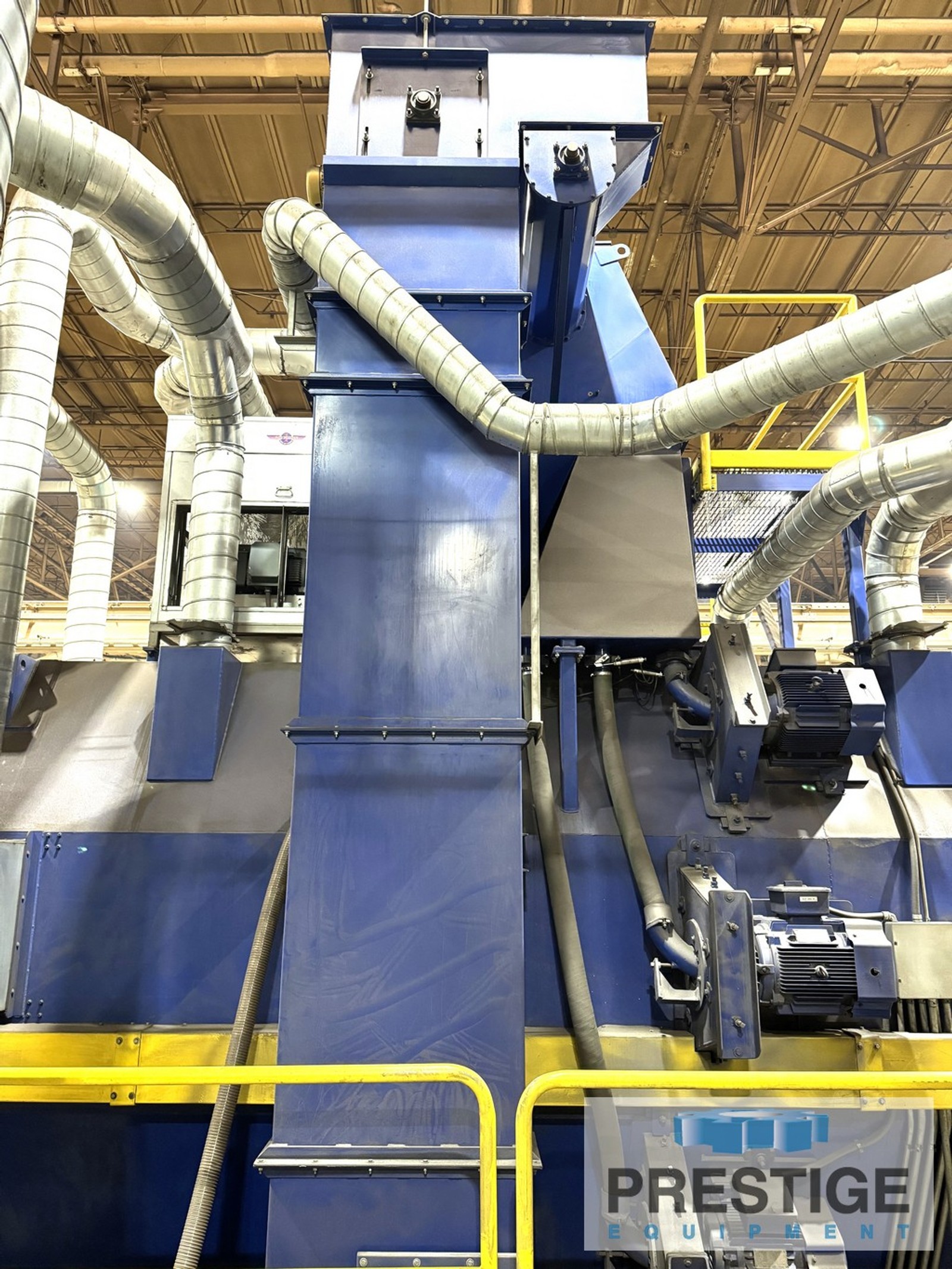

Bucket elevator with cast iron buckets
Single lip airwash Seperator with screen trays
Adjustable air volume
2 HP Screw conveyor
5 HP Bucket Elevator

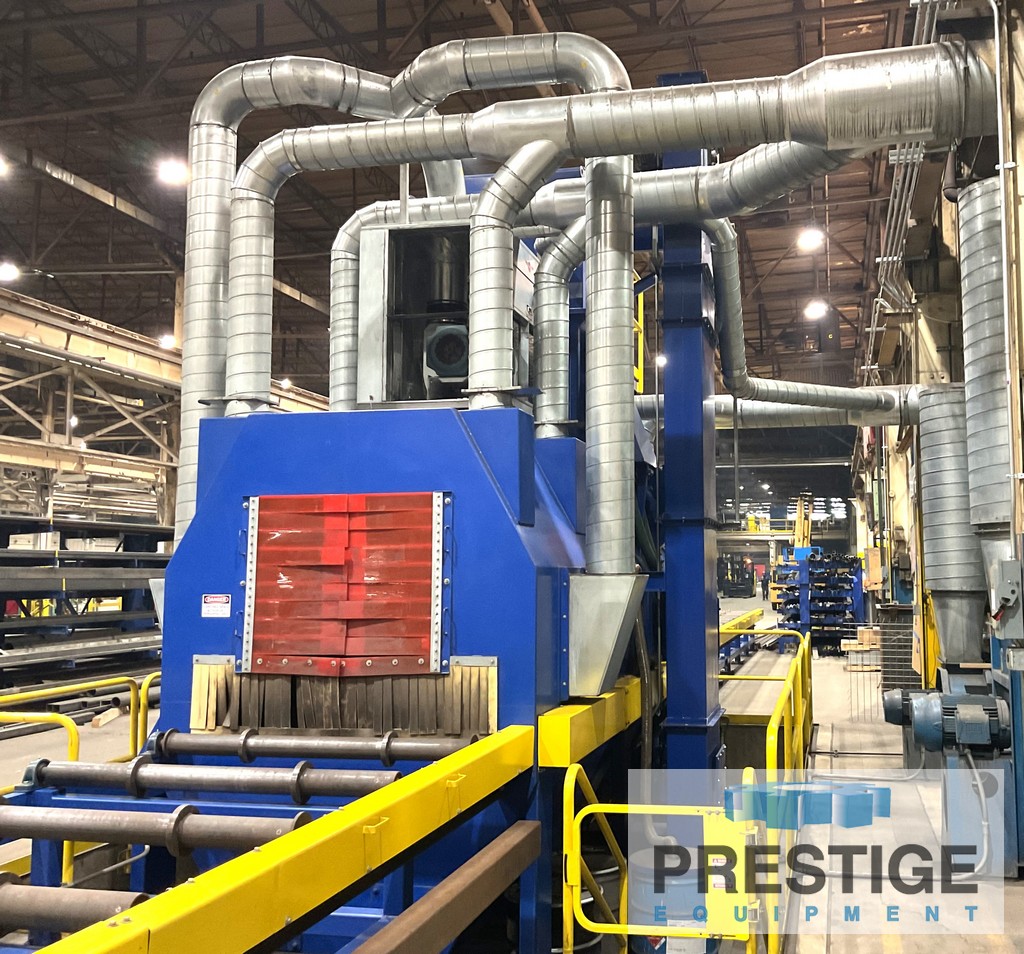

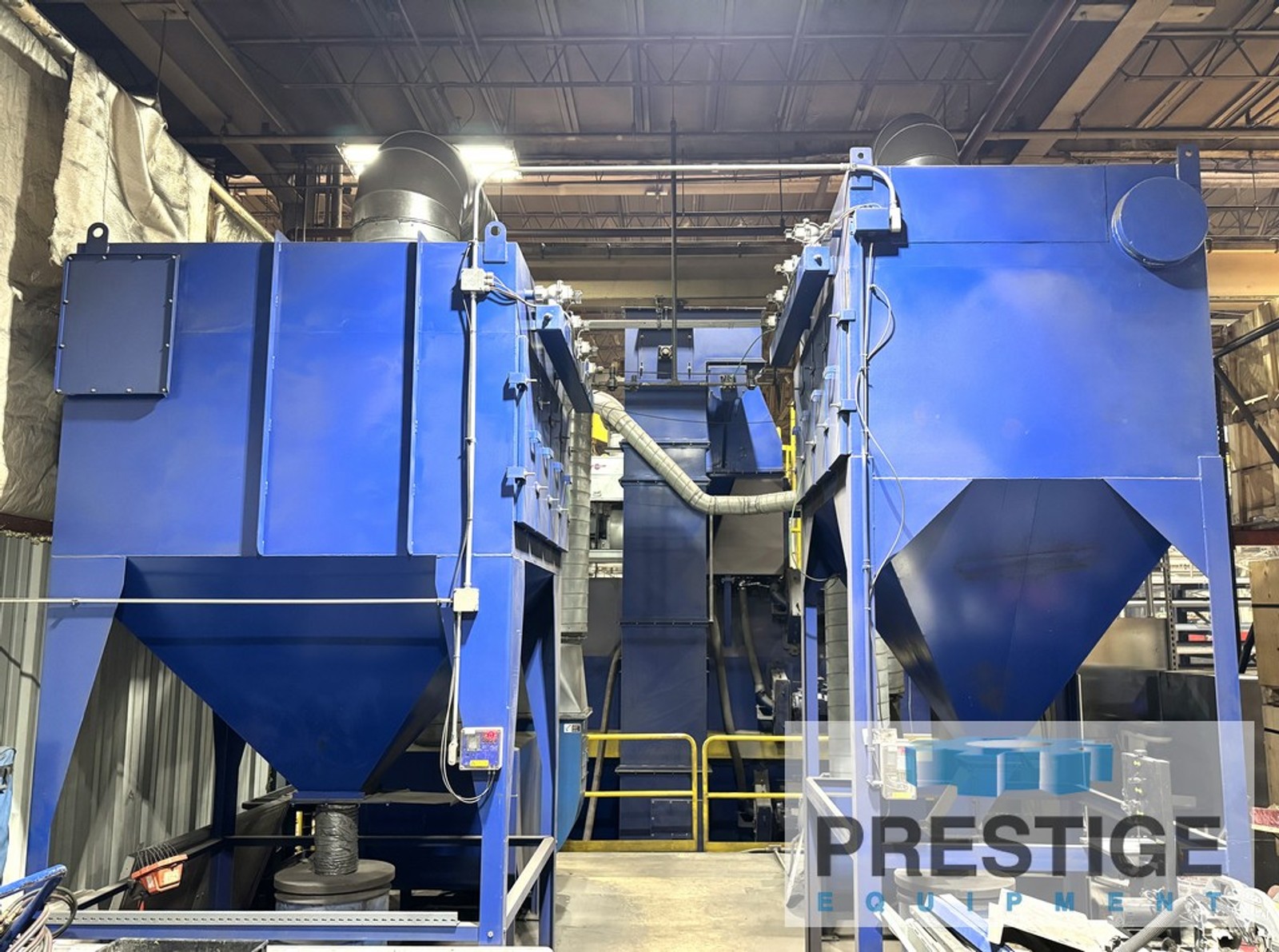

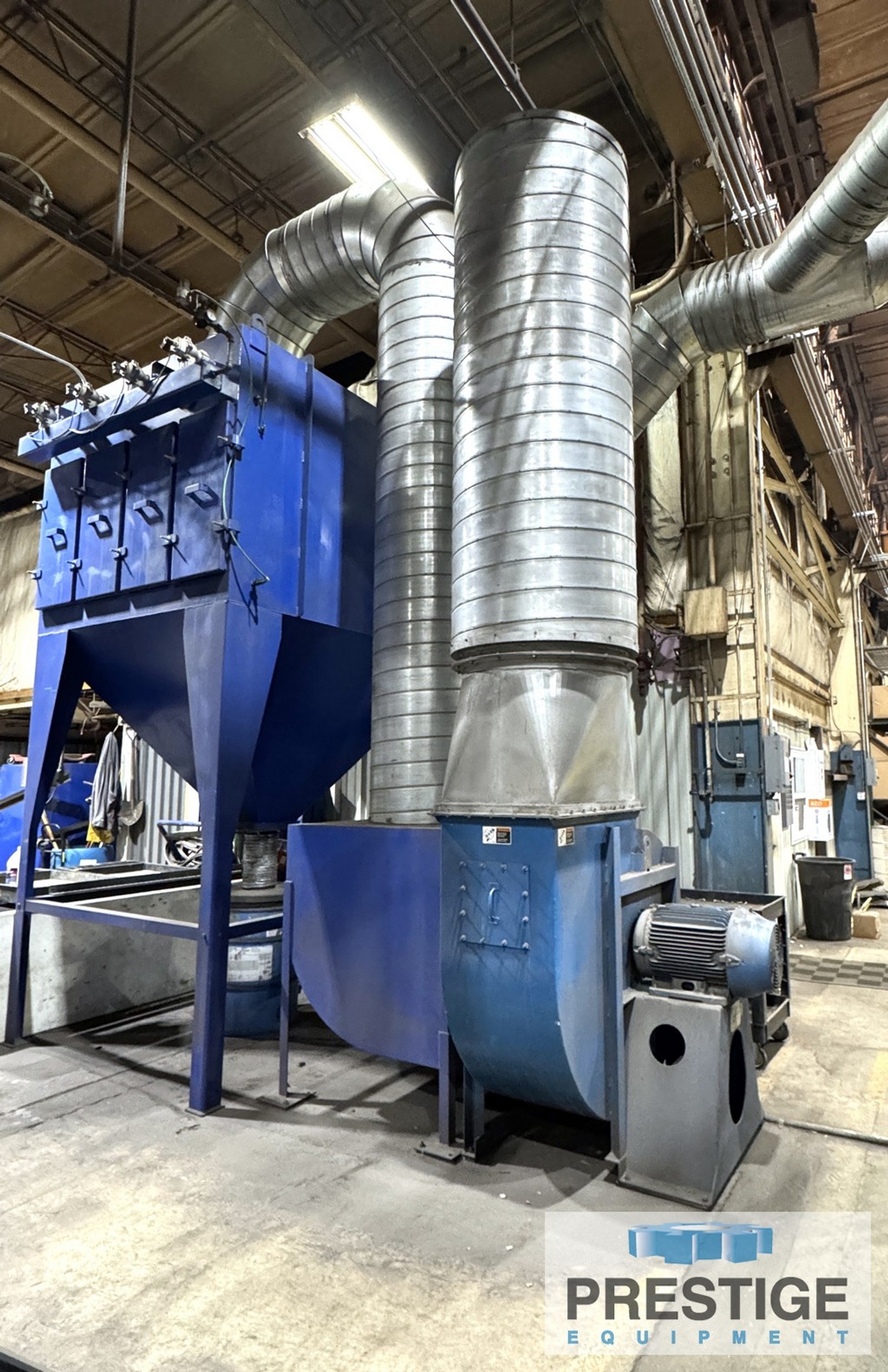

DUST COLLECTION:
SSC-12 SOC Cartridge Dust Collector Blower 20 HP, 7,200 CFM
SSC-20 SOC Cartridge Dust Collector Blower 25 HP, 10,000 CFM

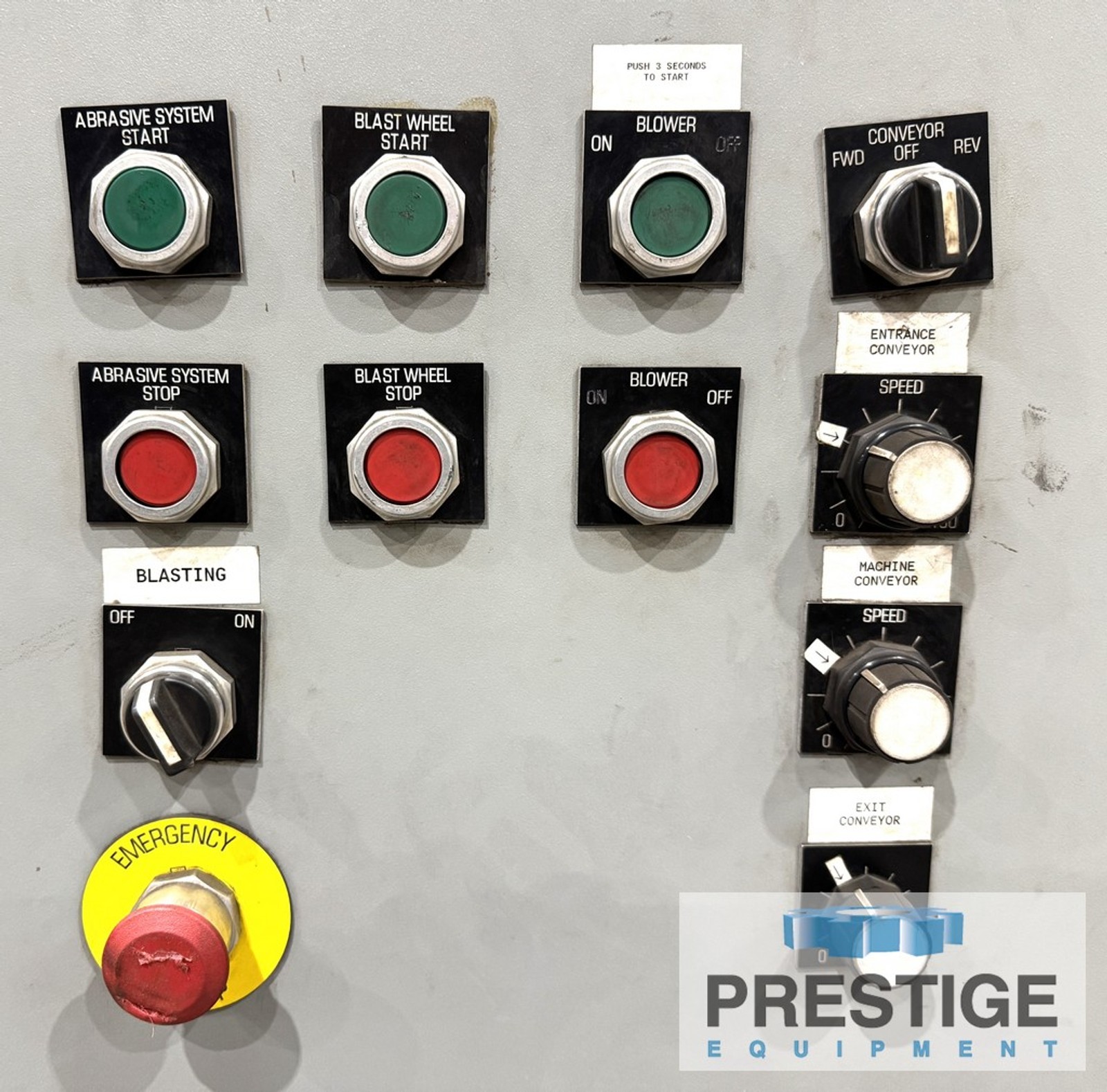

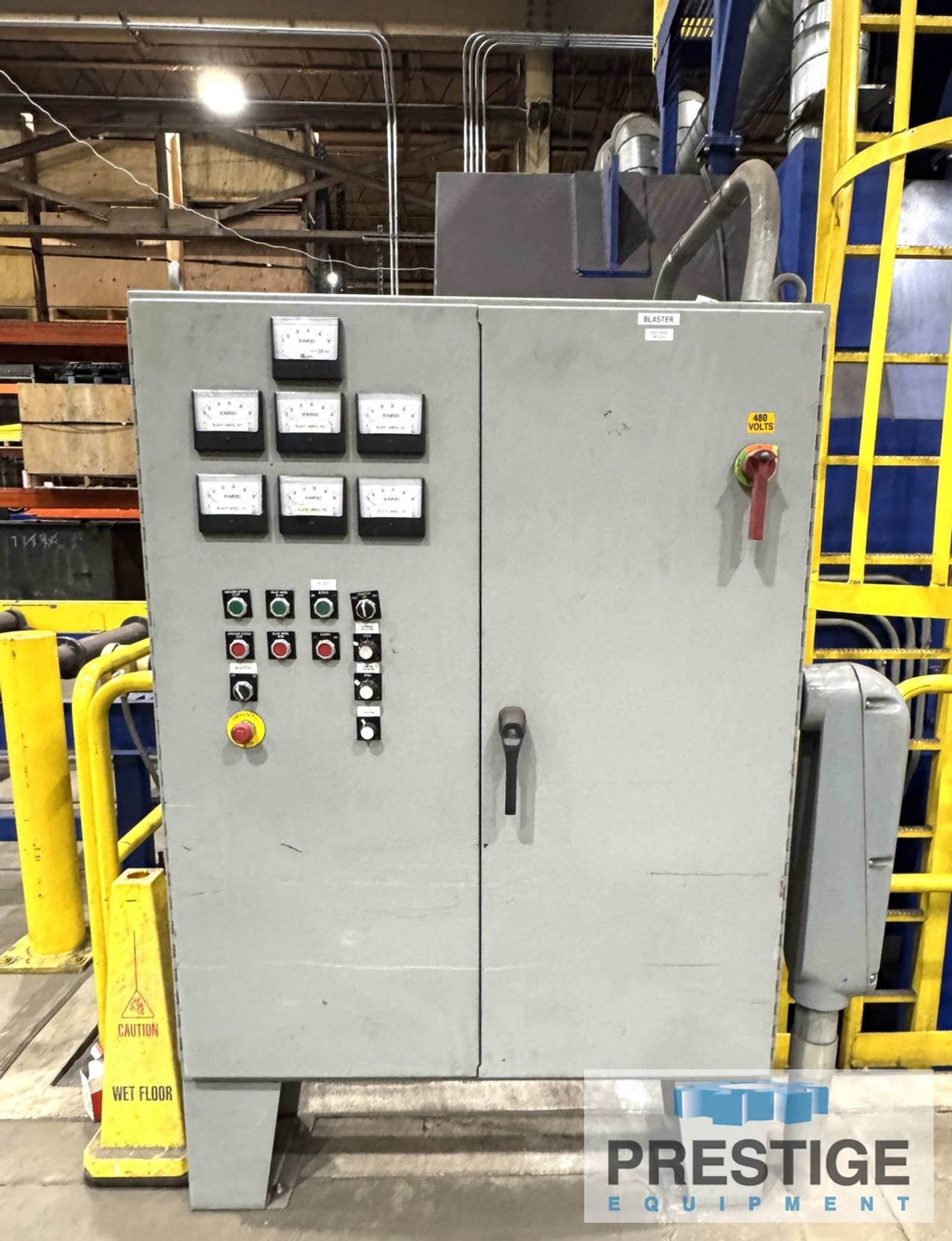

ELECTRICAL CONTROLS:
Nema 12 floor mounted cabinet, 72" H x 48" W
Main Breaker, 480 V, 3 PH,60HZ, 400 AMP, All IE Control Components
120 V Control Voltage
E-STOPS Located On main Panel & Work Conveyors

NOTE:
Excellent Condition, Under 100 Blasting Hours
