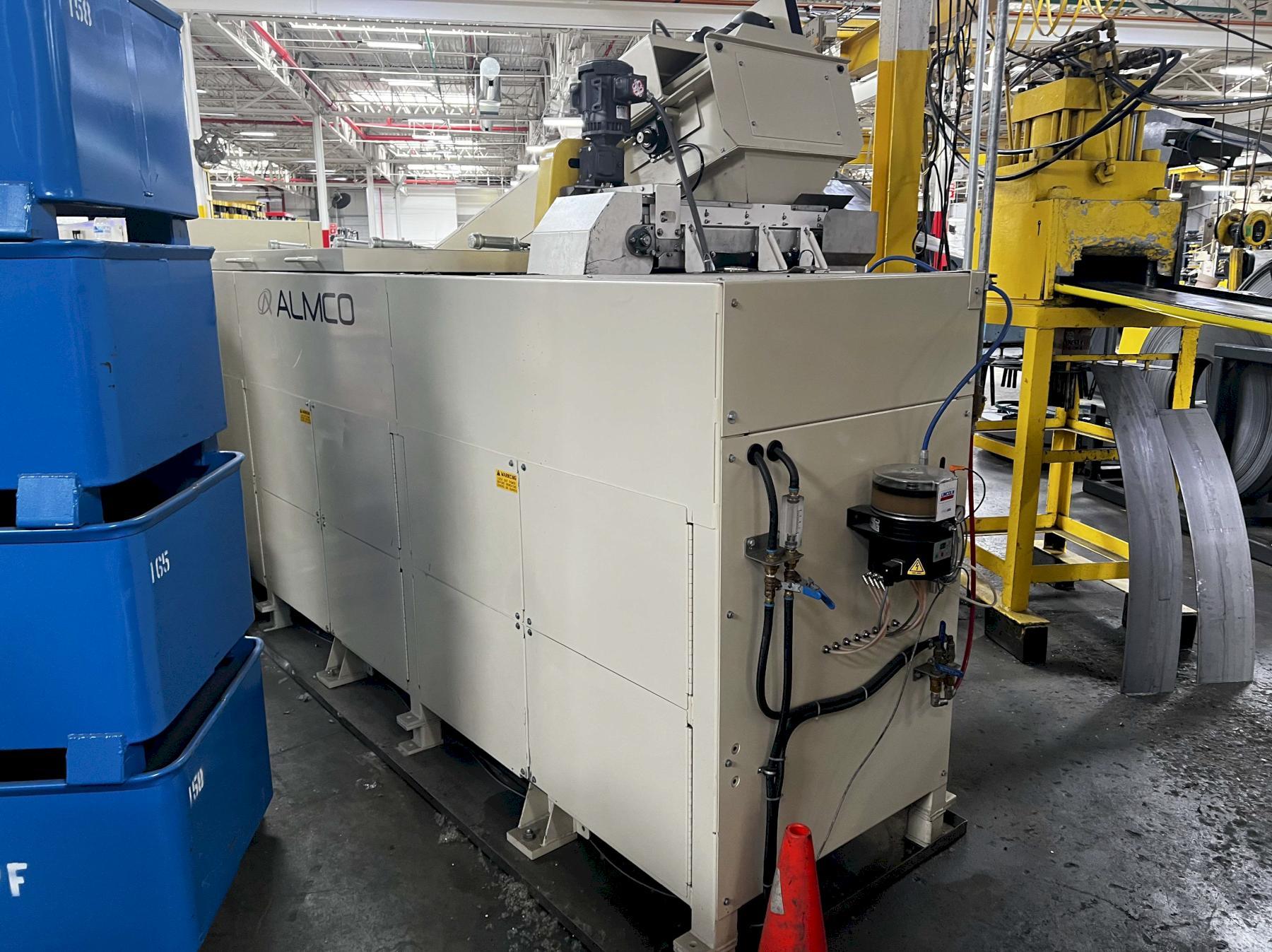

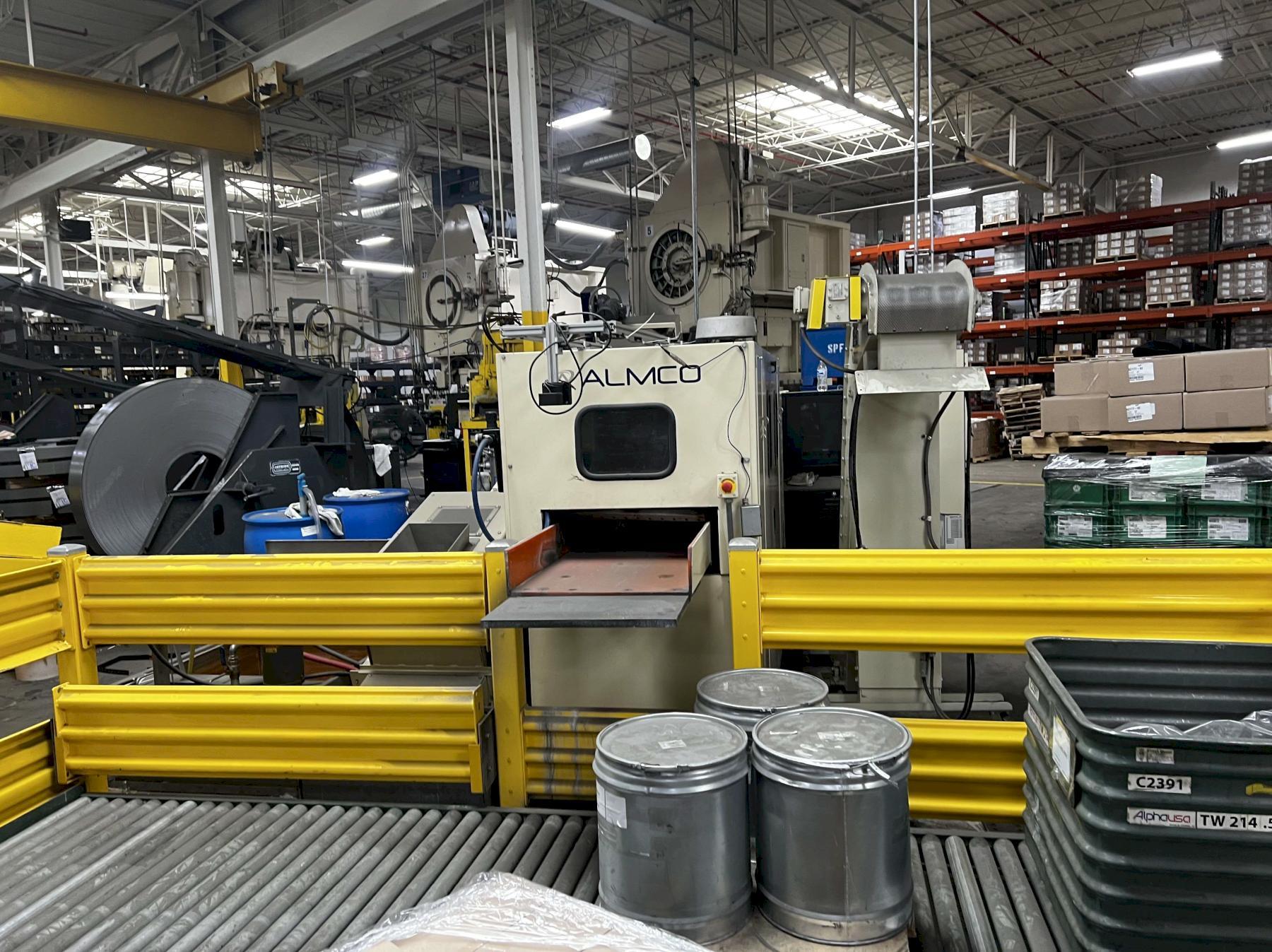

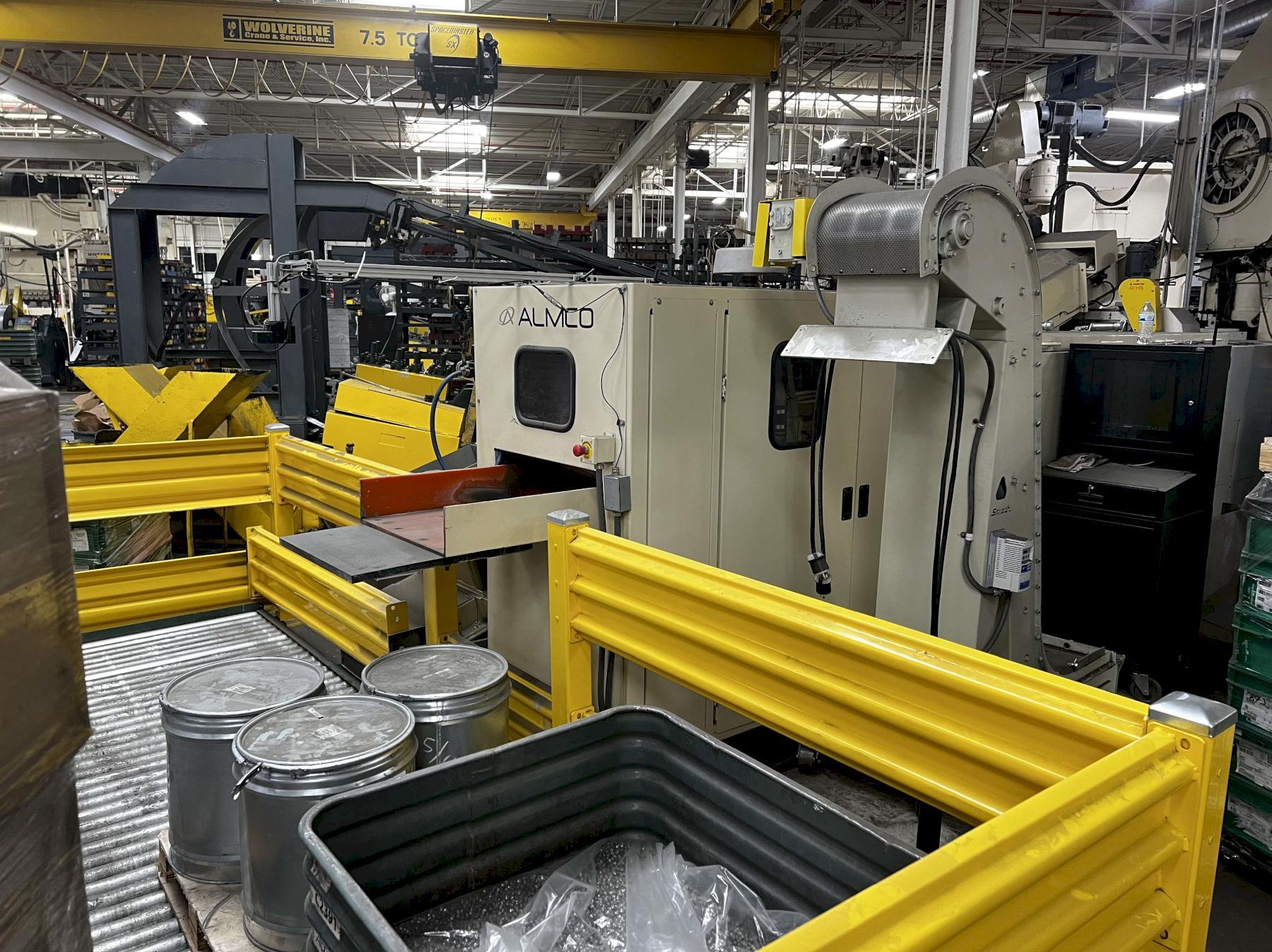

USED ALMCO MODEL V-14120 CONTINUOUS THRU-FEED VIBRATORY FINISHING SYSTEM, Stock# 11131, Year: 20

Manufacturer

ALMCO

Stock

11131

Model

V-14120

Dealer Location

Michigan

Spec Sheet



Brand: Almco
Model: V-14120

Specifications:
Tub working capacity: 13.8 cu. ft.
Full load amp draw @ 460 volt: 35.1
Tub drive motor: 10 H.P.
Tub vibratory frequency: 1075 - 2300 RPM
Blow-off motor: 5 H.P.
Separator motor: 2 H.P.

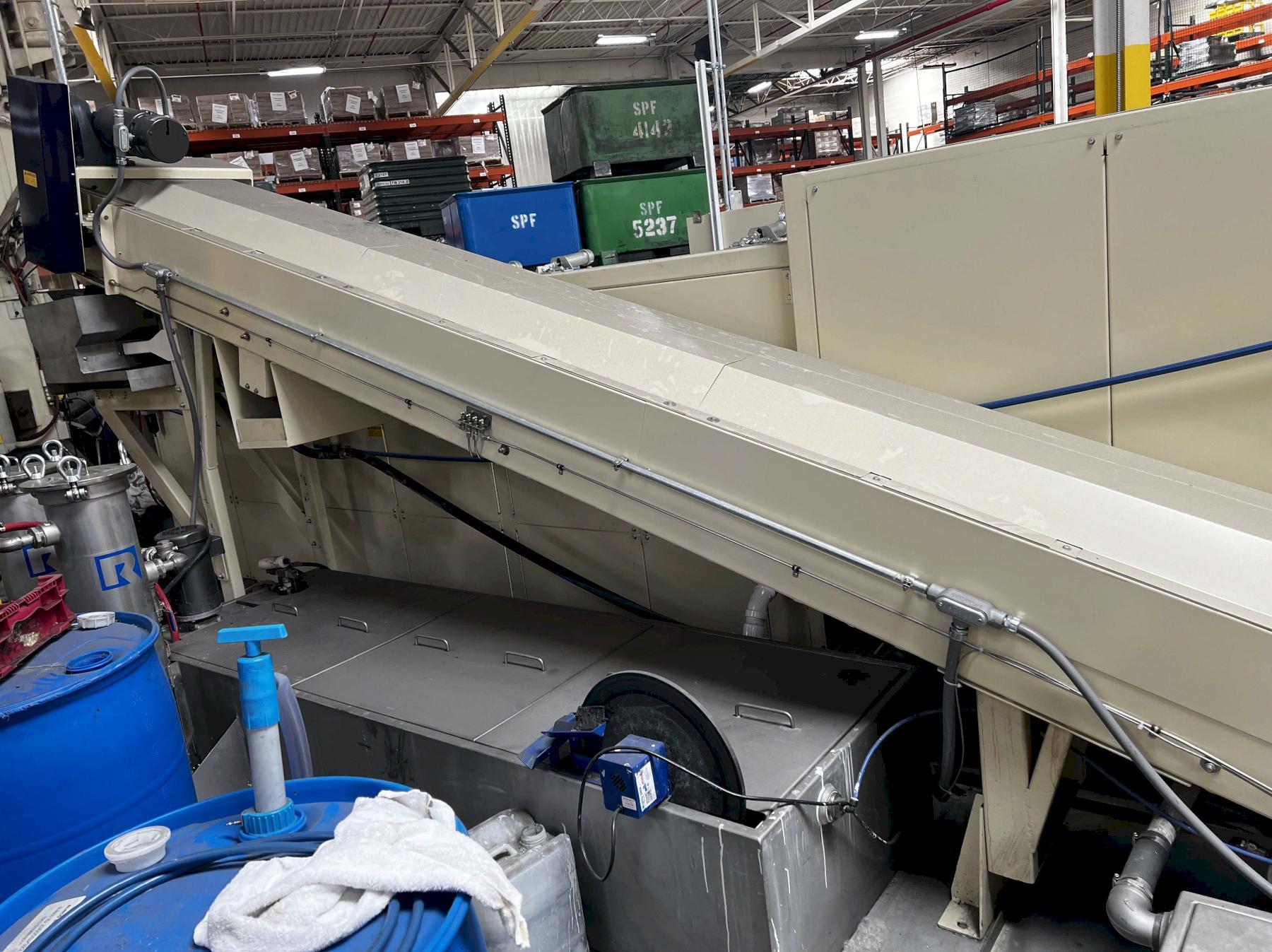

Media conveyor motor: 2 H.P.
ST-4 tank motor: 2 H.P.
Recirc pump motor: 1 H.P.

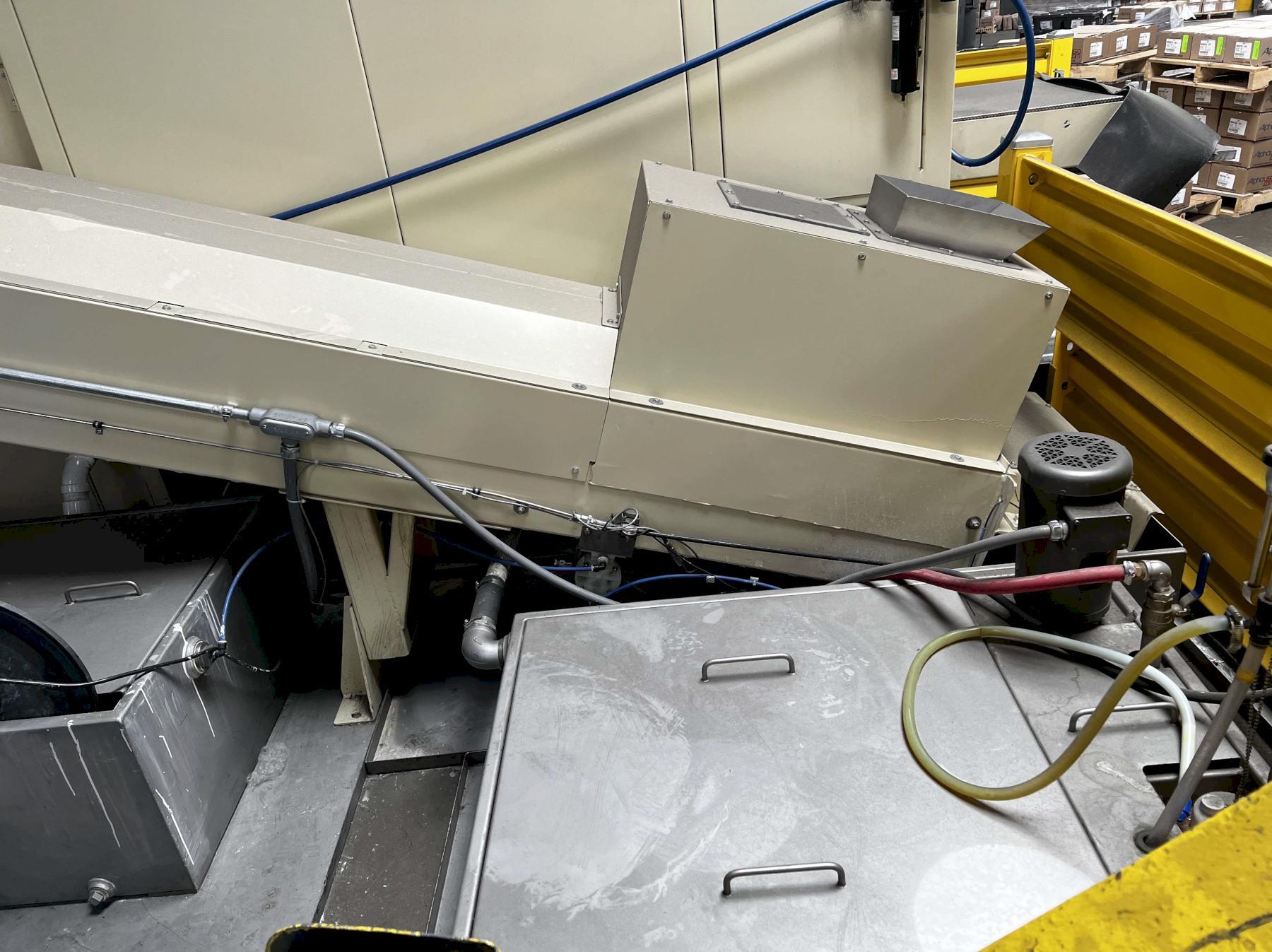

Transfer conveyor motor: 1/2 H.P.
Maximum number of counterweight segments: 24
Product load height: 57.01"
Product discharge height: 34.52"
Tub dimensions: 120" x 14" x 15-1/2"
Machine dimensions: 279.74" x 118.89" x 98.35"

Equipped with:
Stainless Steel tanks and catch pans for complete coverage
4" lift from original height to allow for taller parts hopper

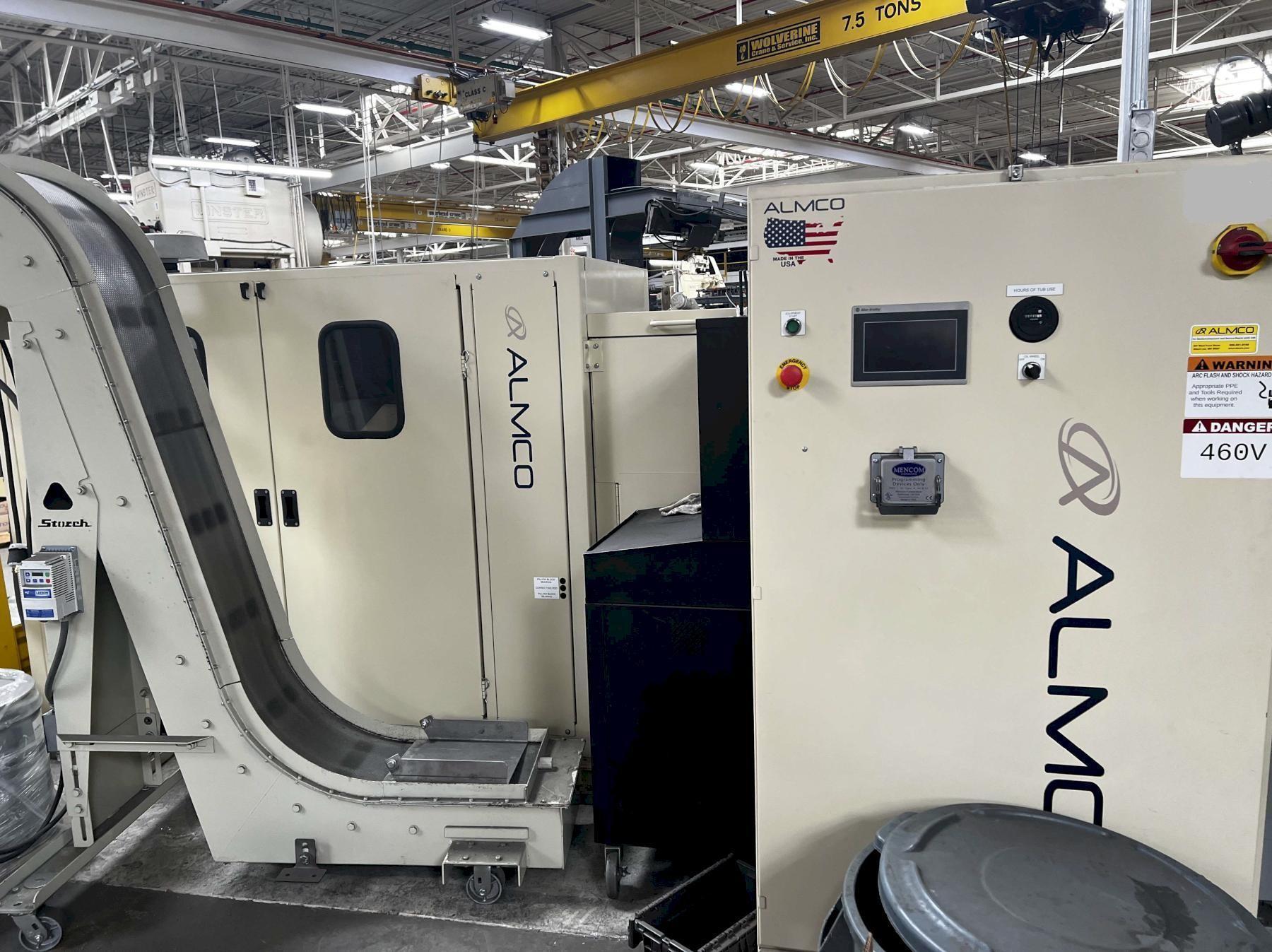

Touch screen HMI control

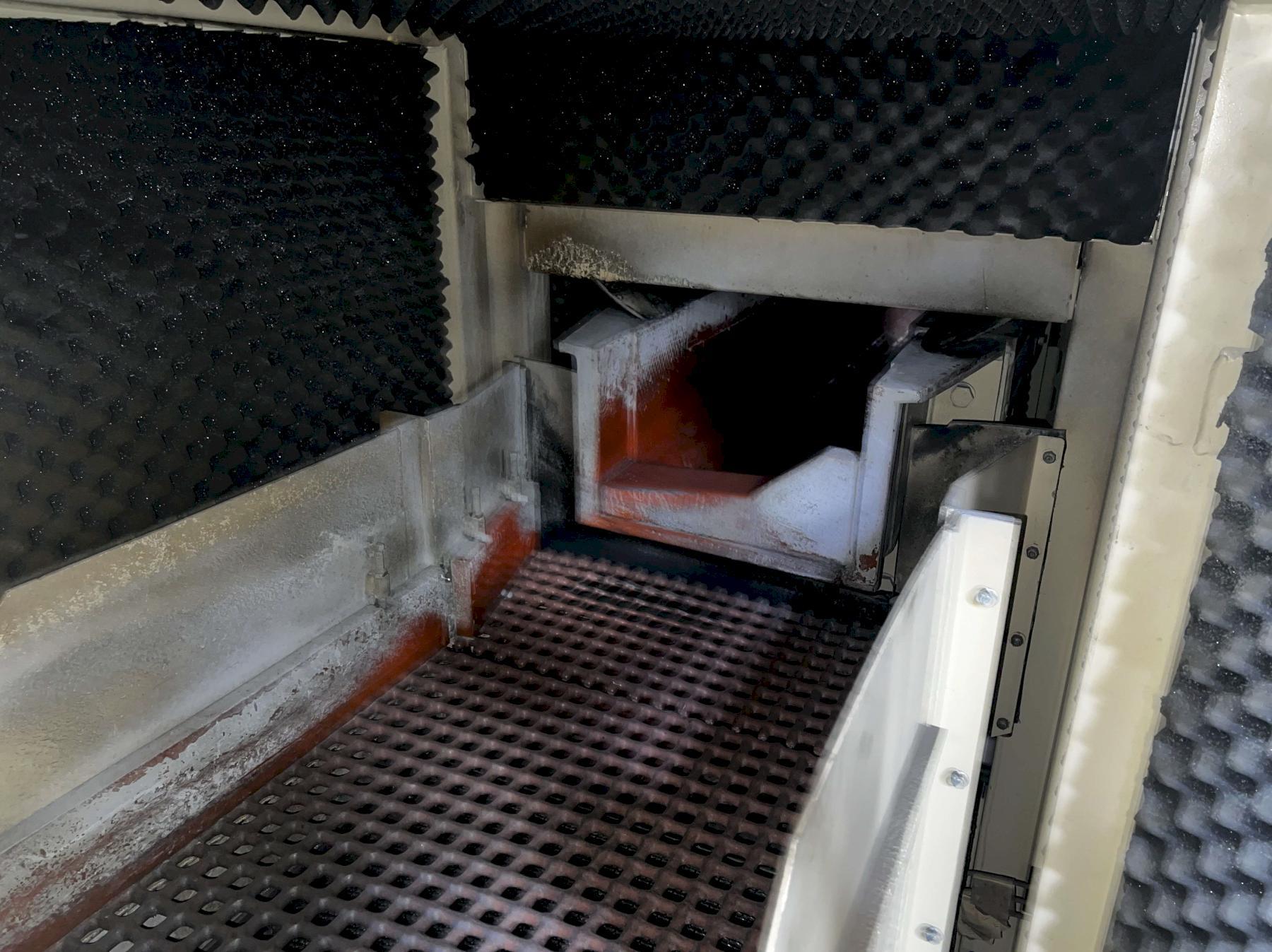

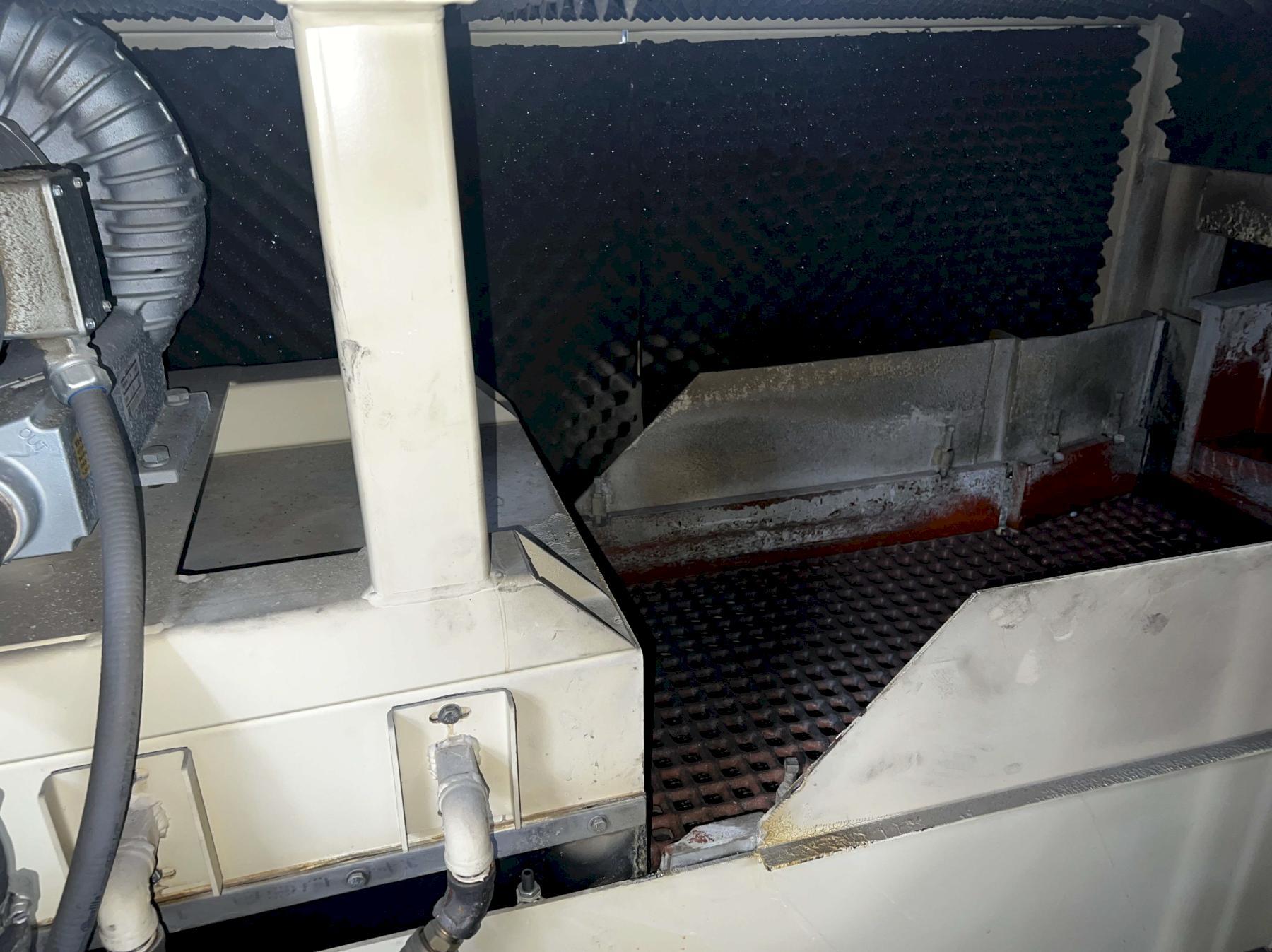

Total system sound enclosure

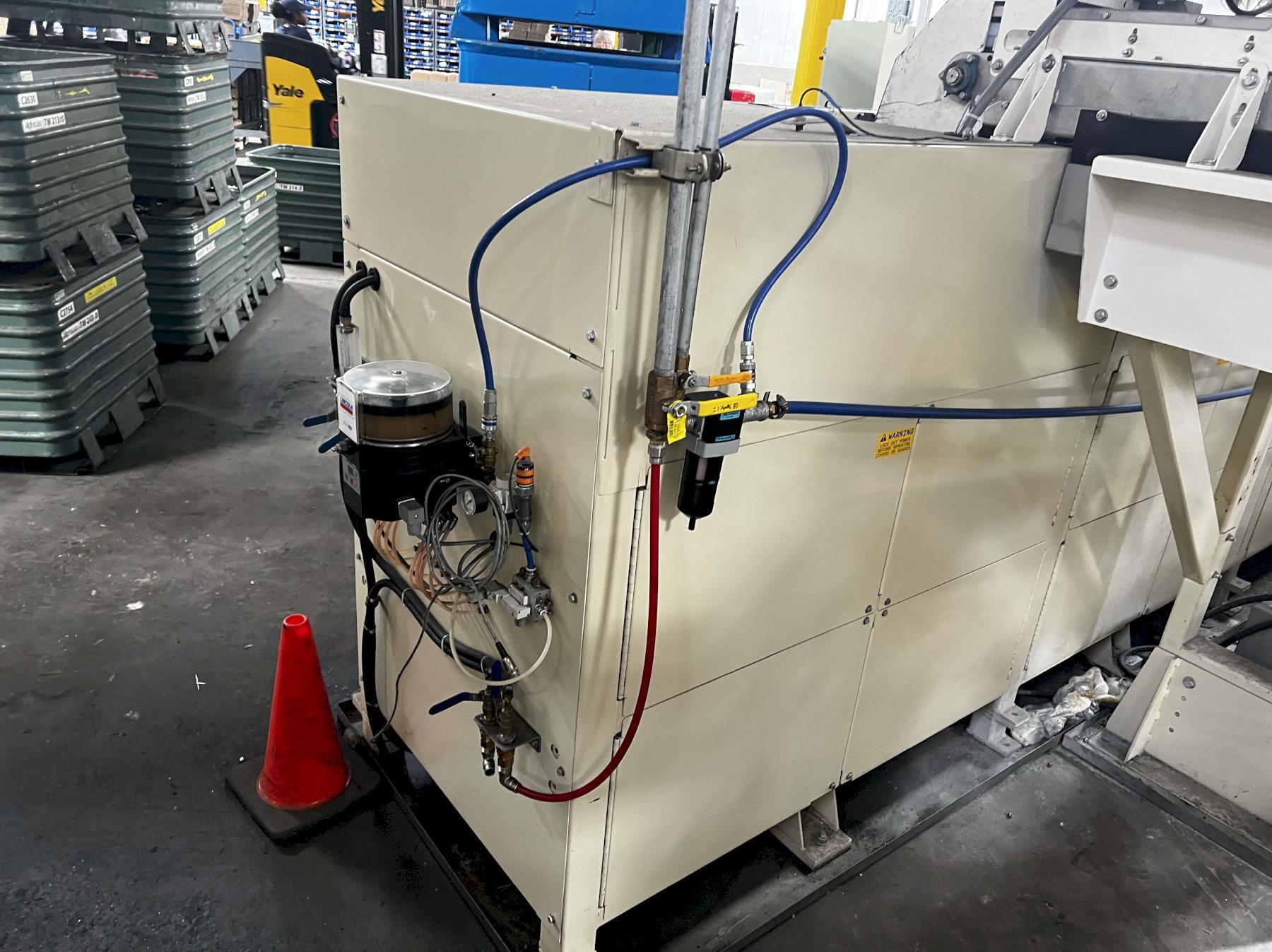

Automatic lubrication system
Tachometer
Time recorder

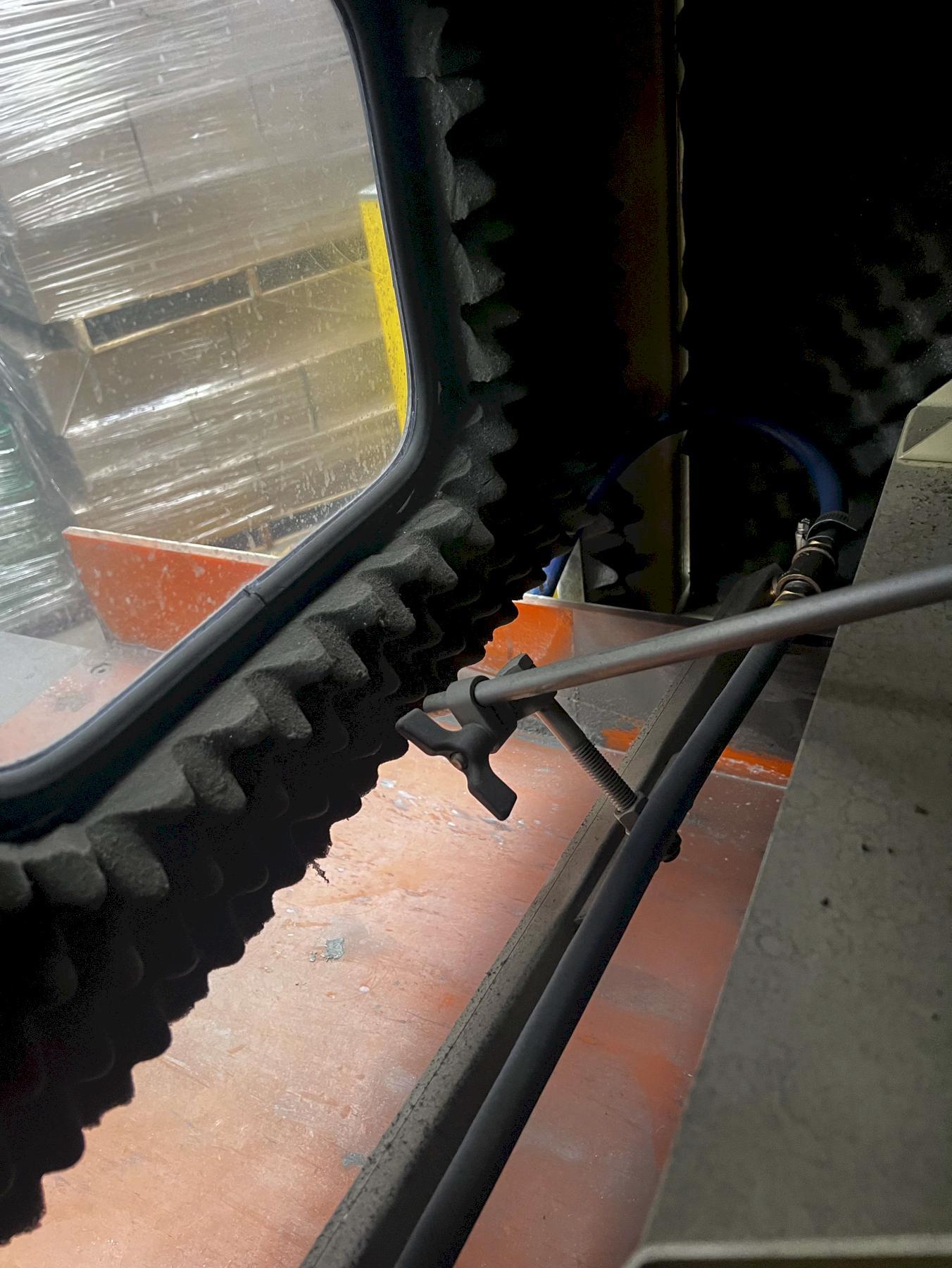

Spray rinse
Rust inhibitor tank sprayer
Heated air blow off

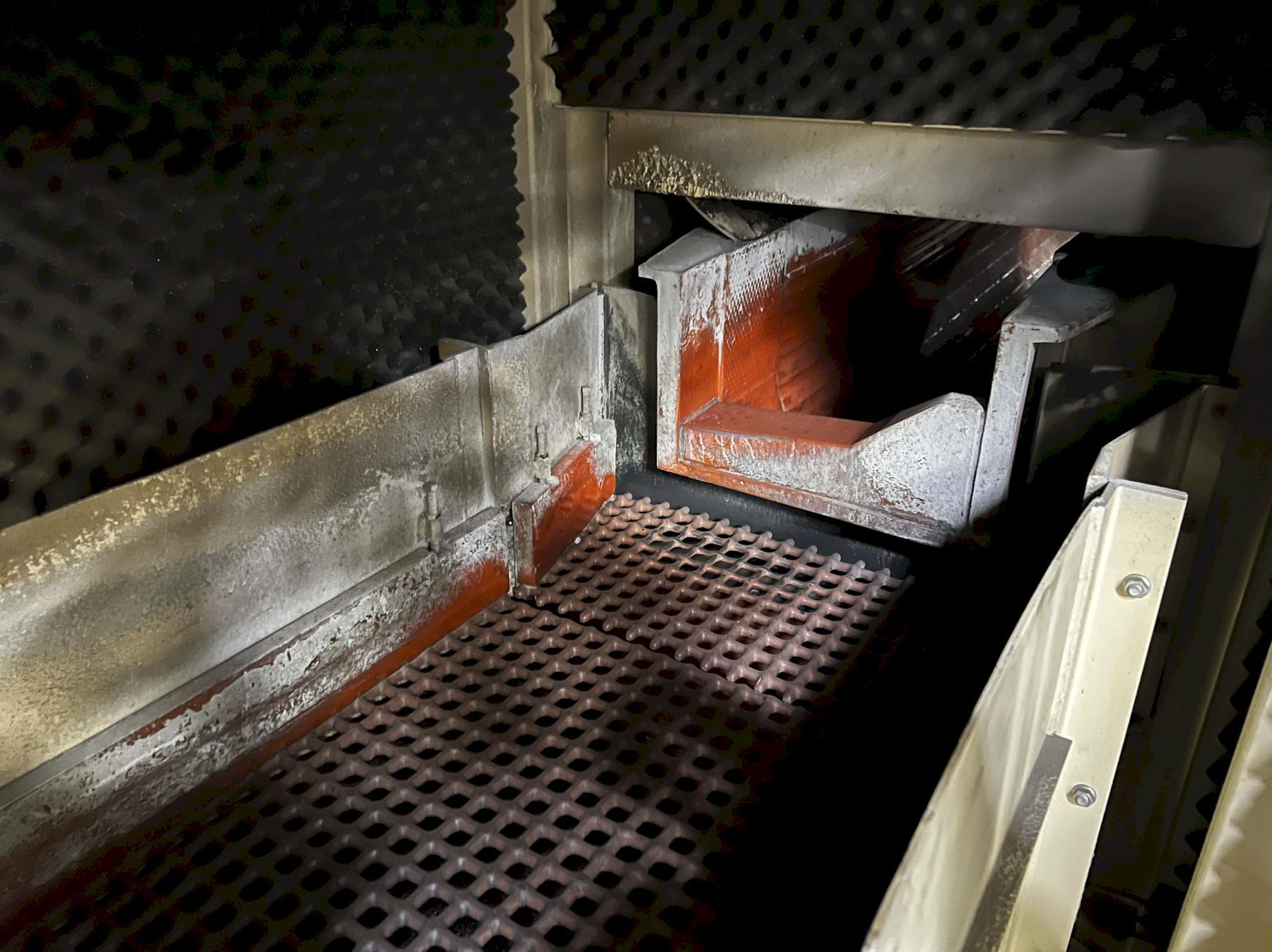

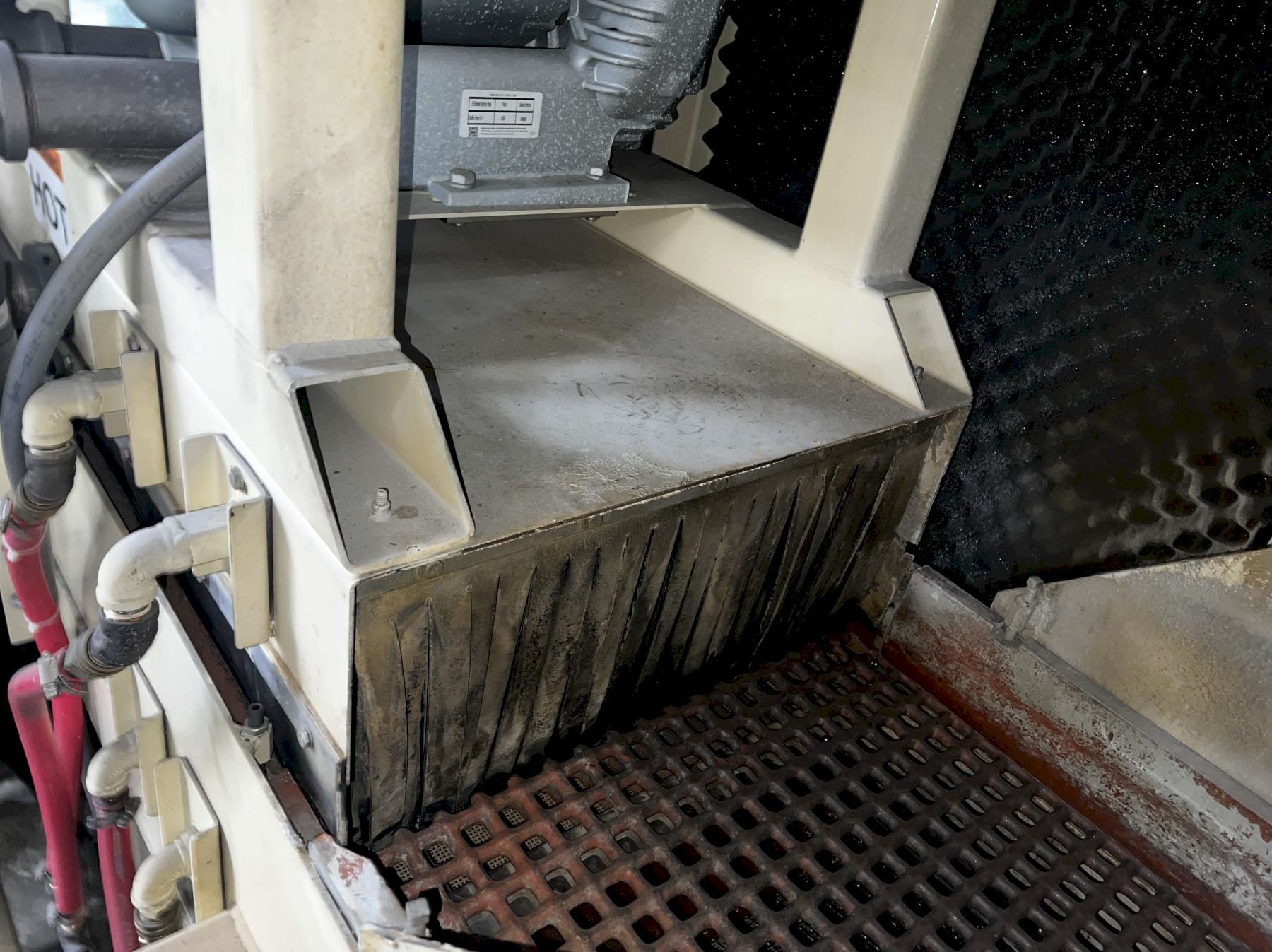

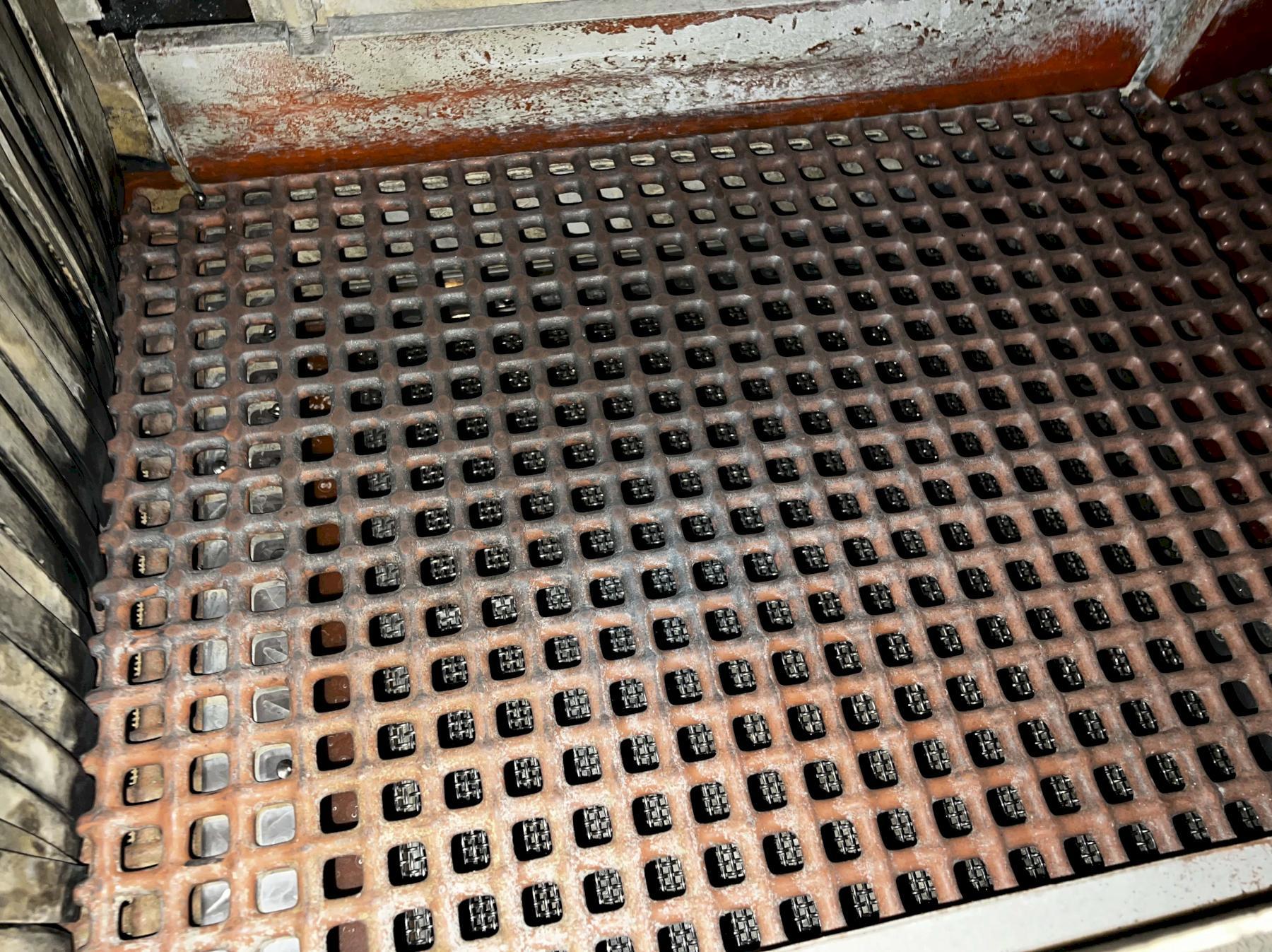

Urethane separator panels (can be changed for different size media / parts)

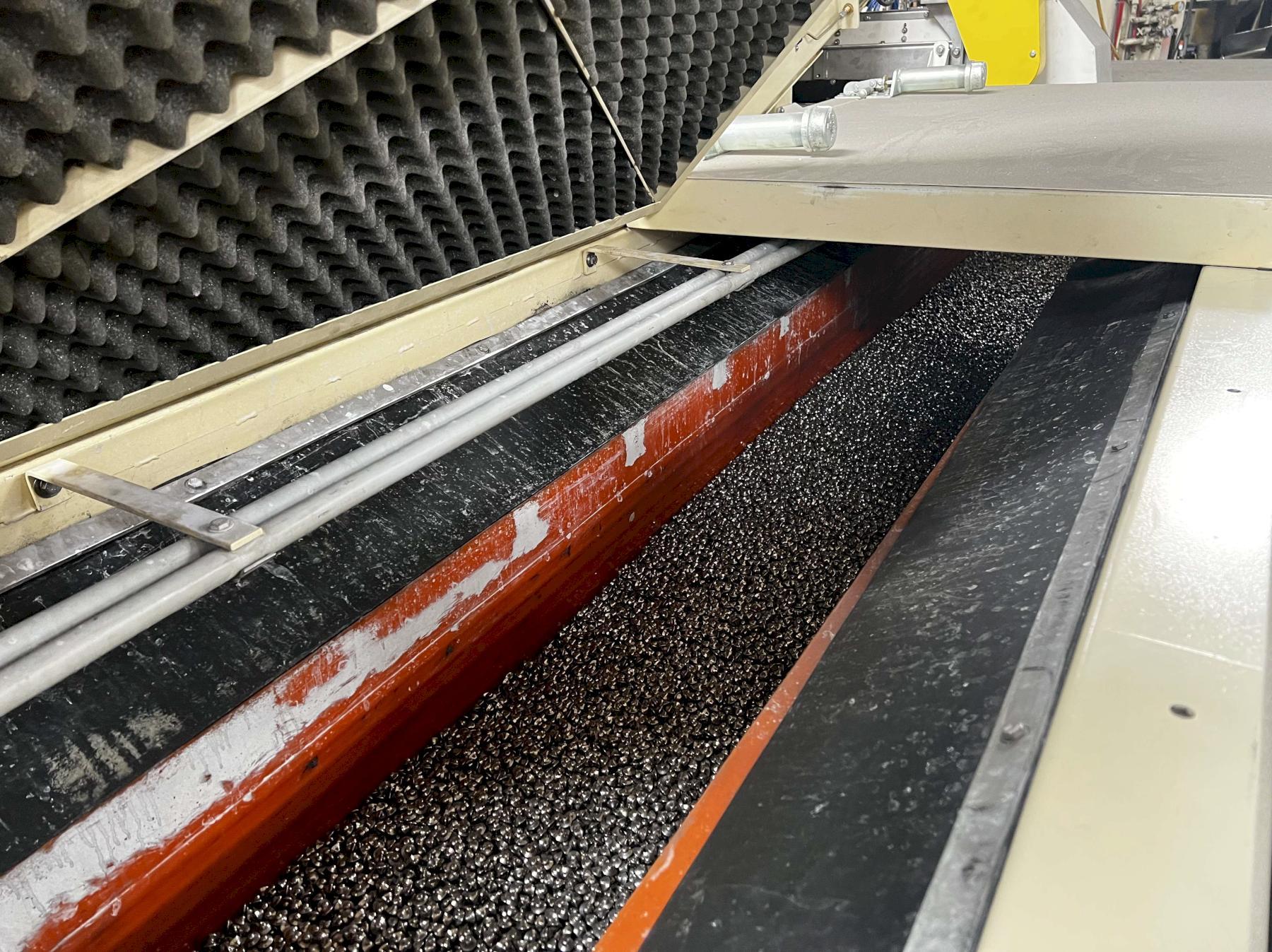

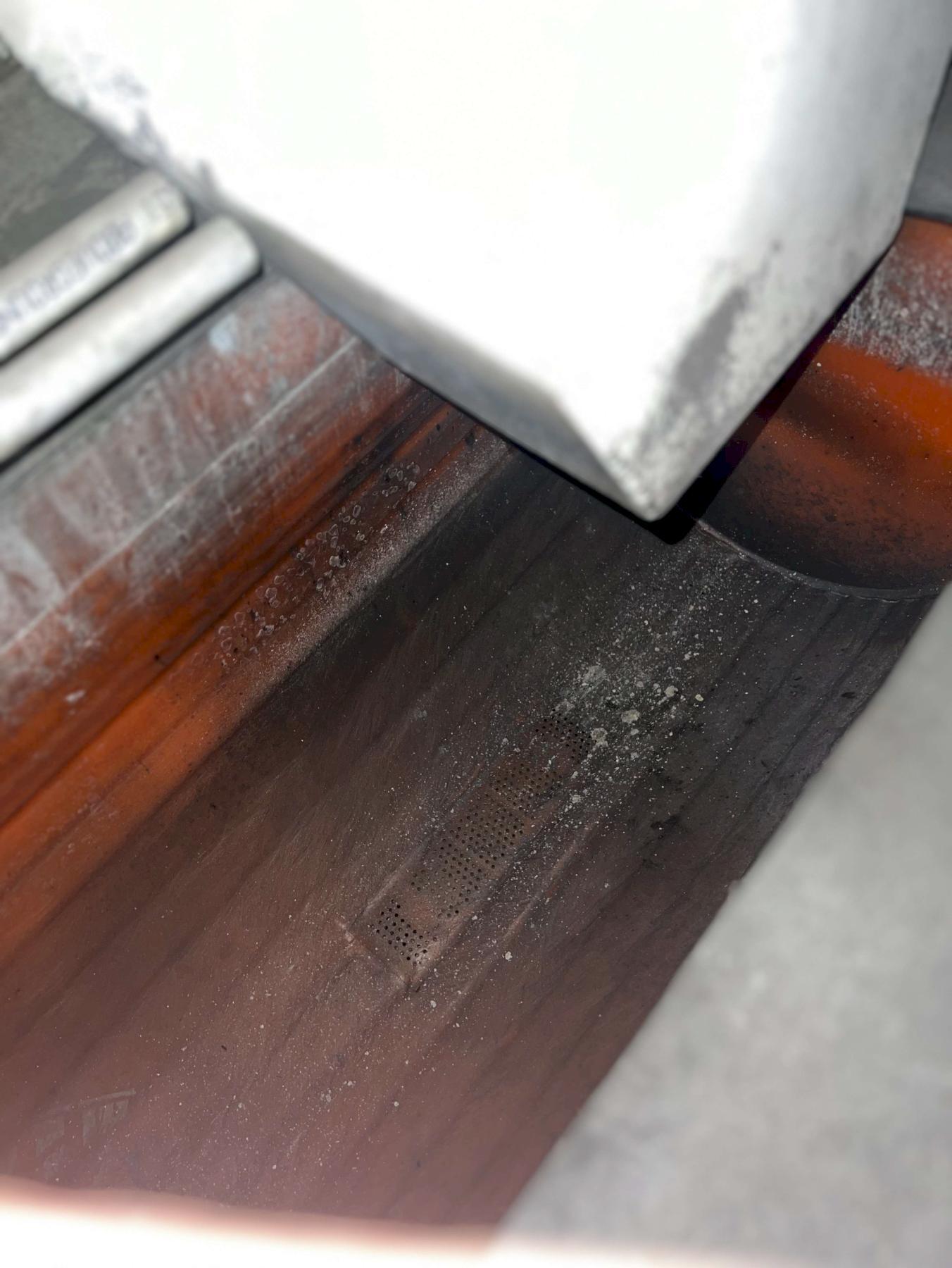

Grooved tub sidewalls

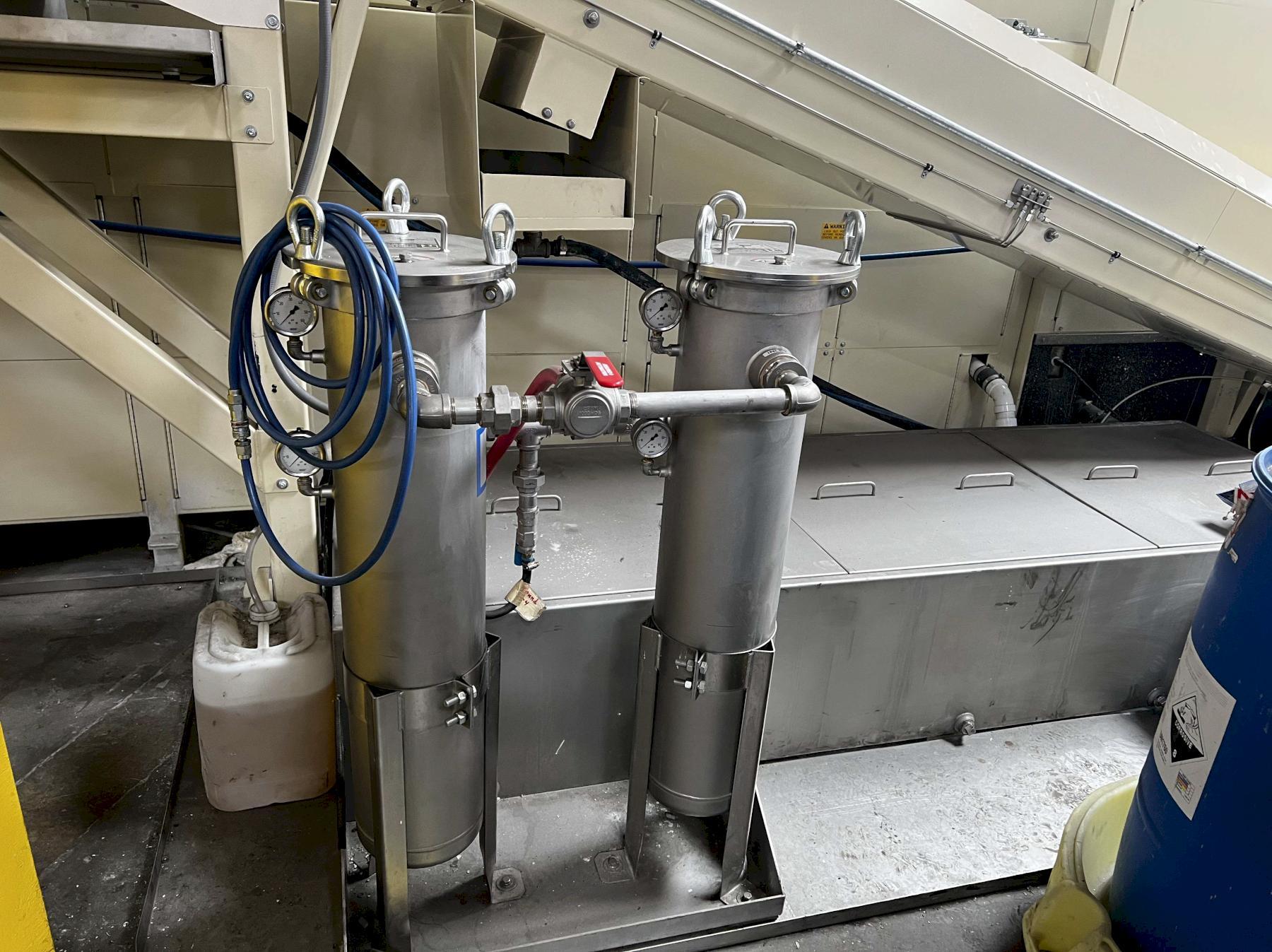

Dual .05 micron poly filter bag system

System has approximately 150 total hours on it.

Machine sold As-Is loaded on truck

No Video Available
