Doosan DHP-4000, X-23", Y22", Z-23", 1 Deg. Indexing, 15" x 15" Pallet, 2-APC, 60-ATC, Fanuc 18i-MB CNC, 2006, #43865

Manufacturer

DOOSAN

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

43865

Model

DHP-4000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43865

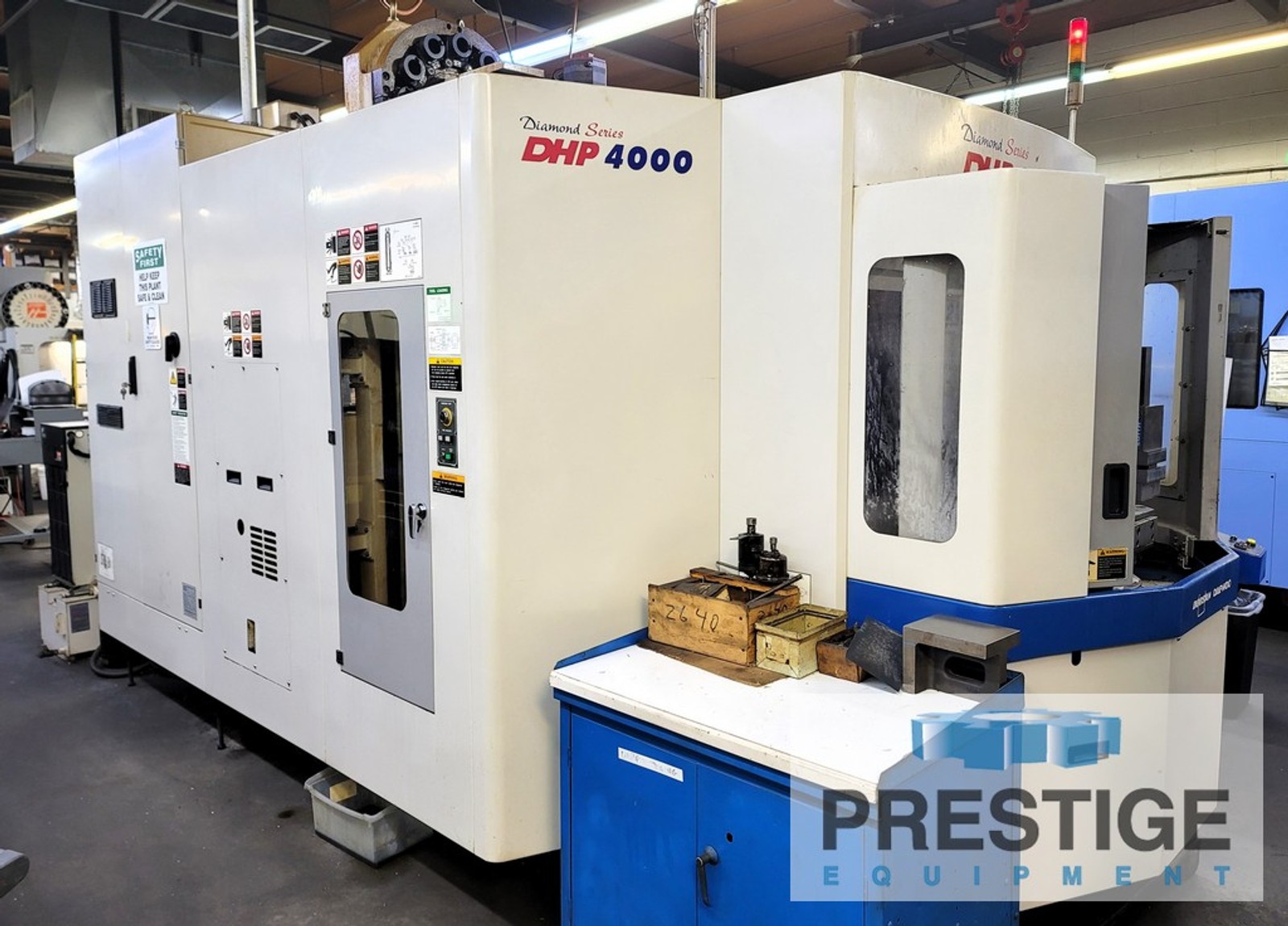

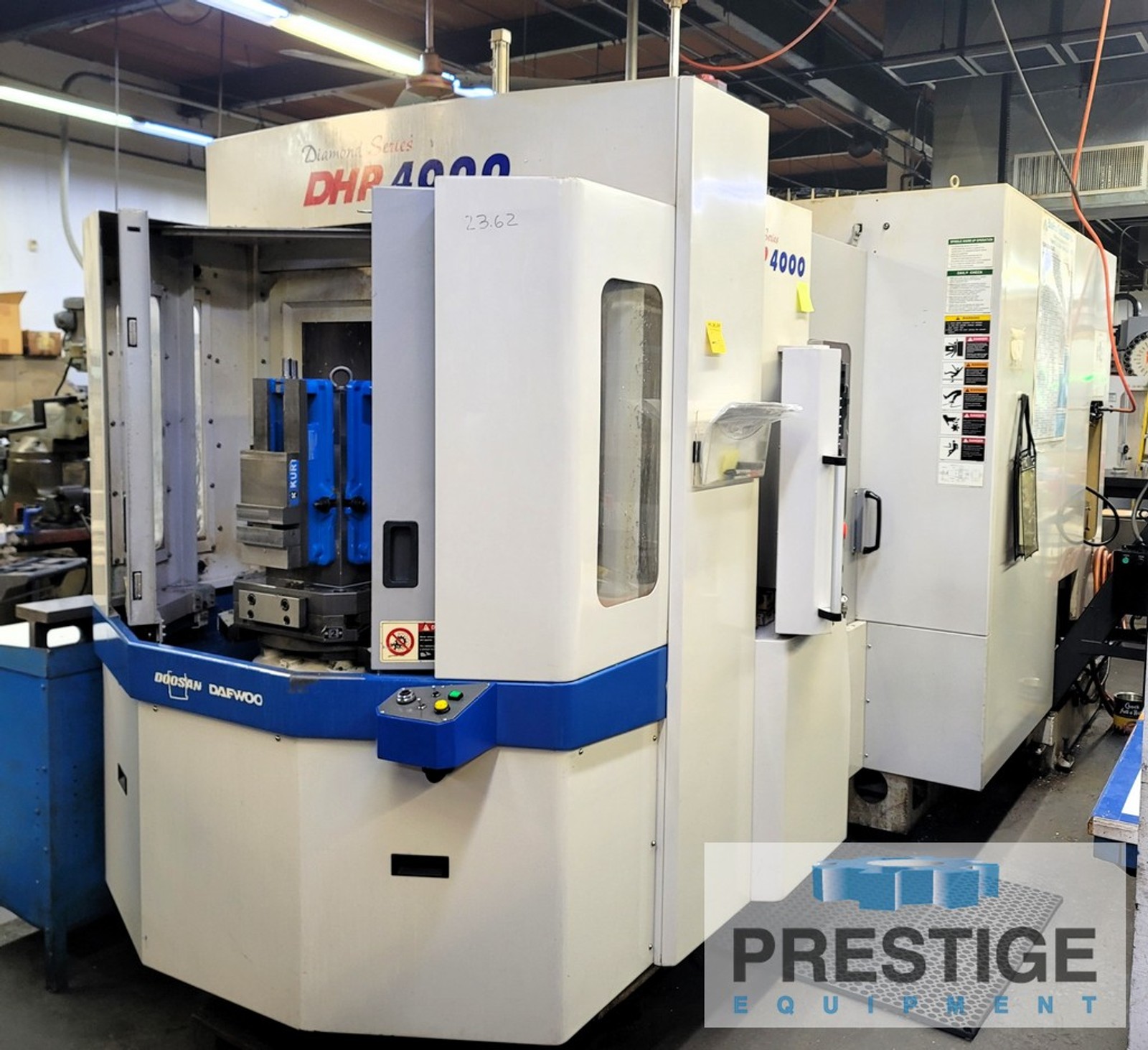

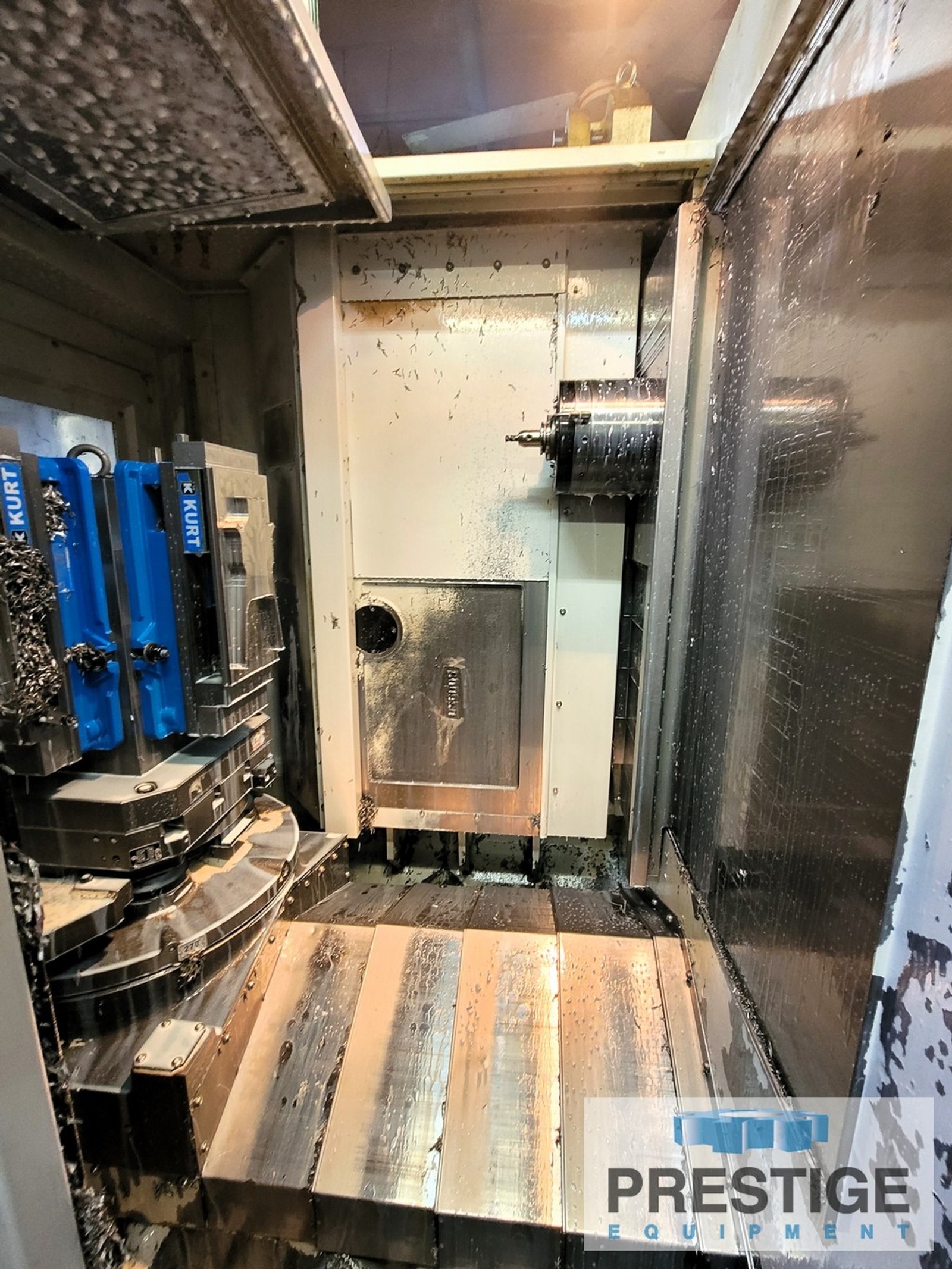

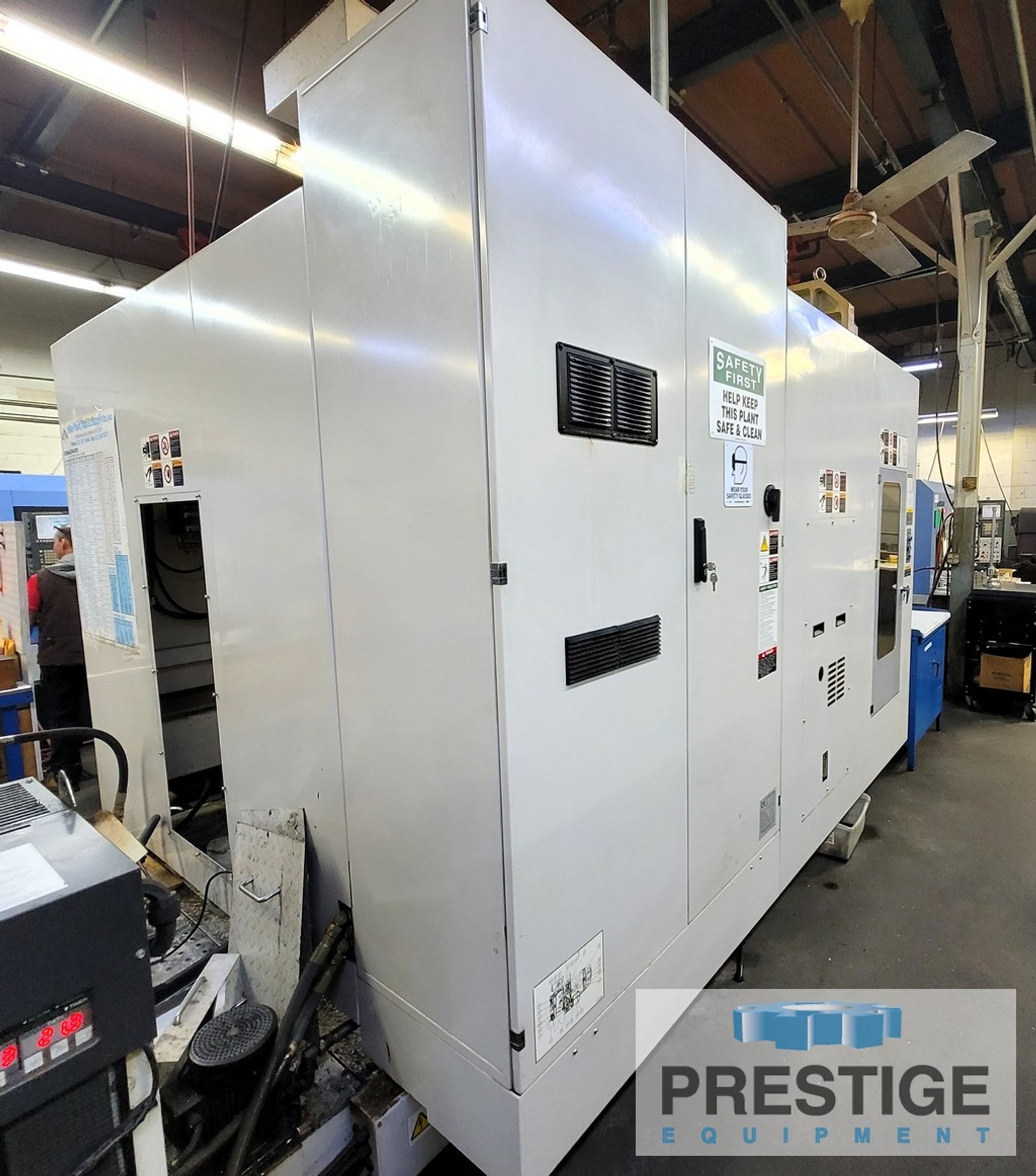

Doosan DHP-4000 CNC Horizontal Machining Center

FEATURES:

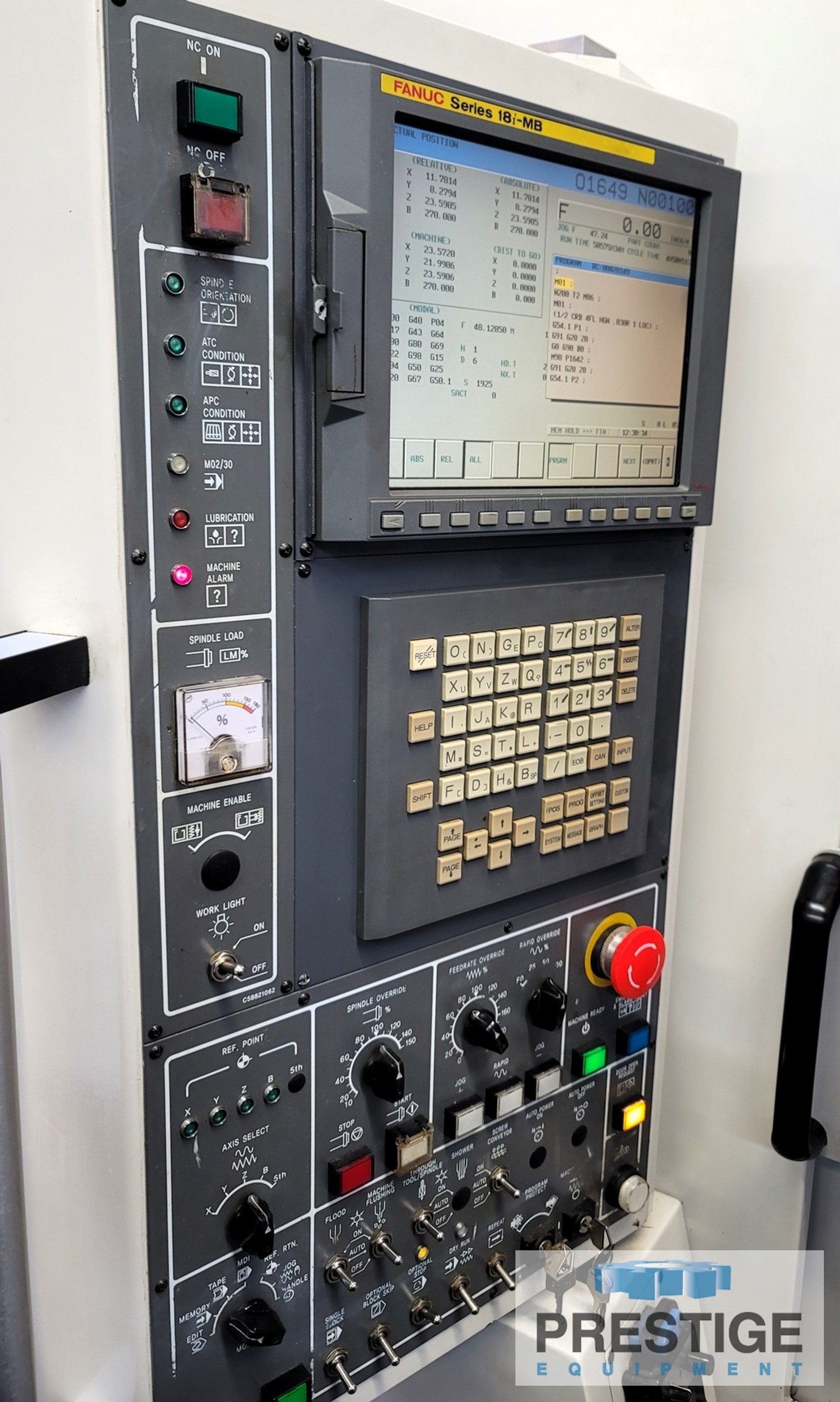

Fanuc 18i-MB CNC Control

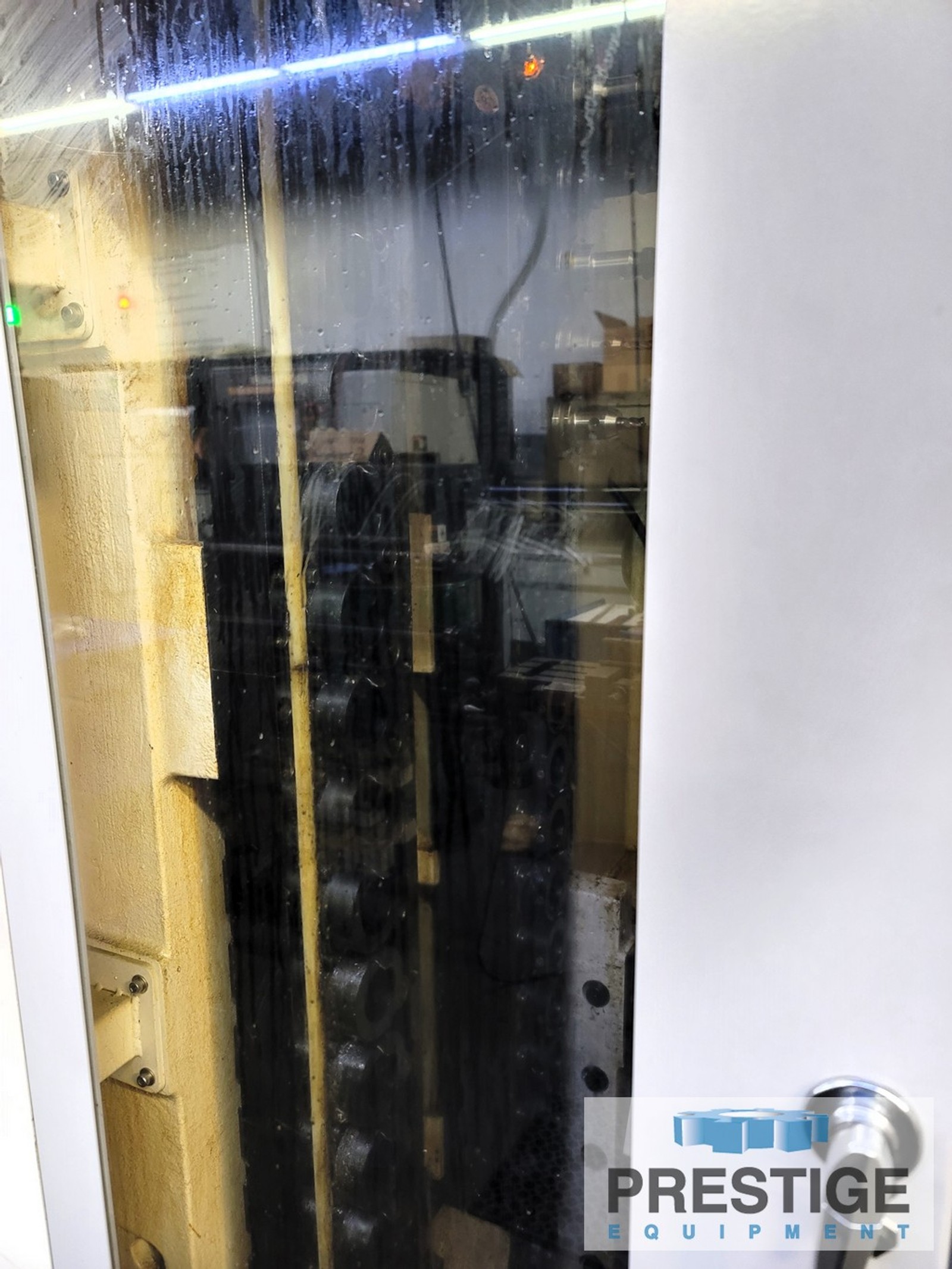

60-Station Automatic Tool Changer

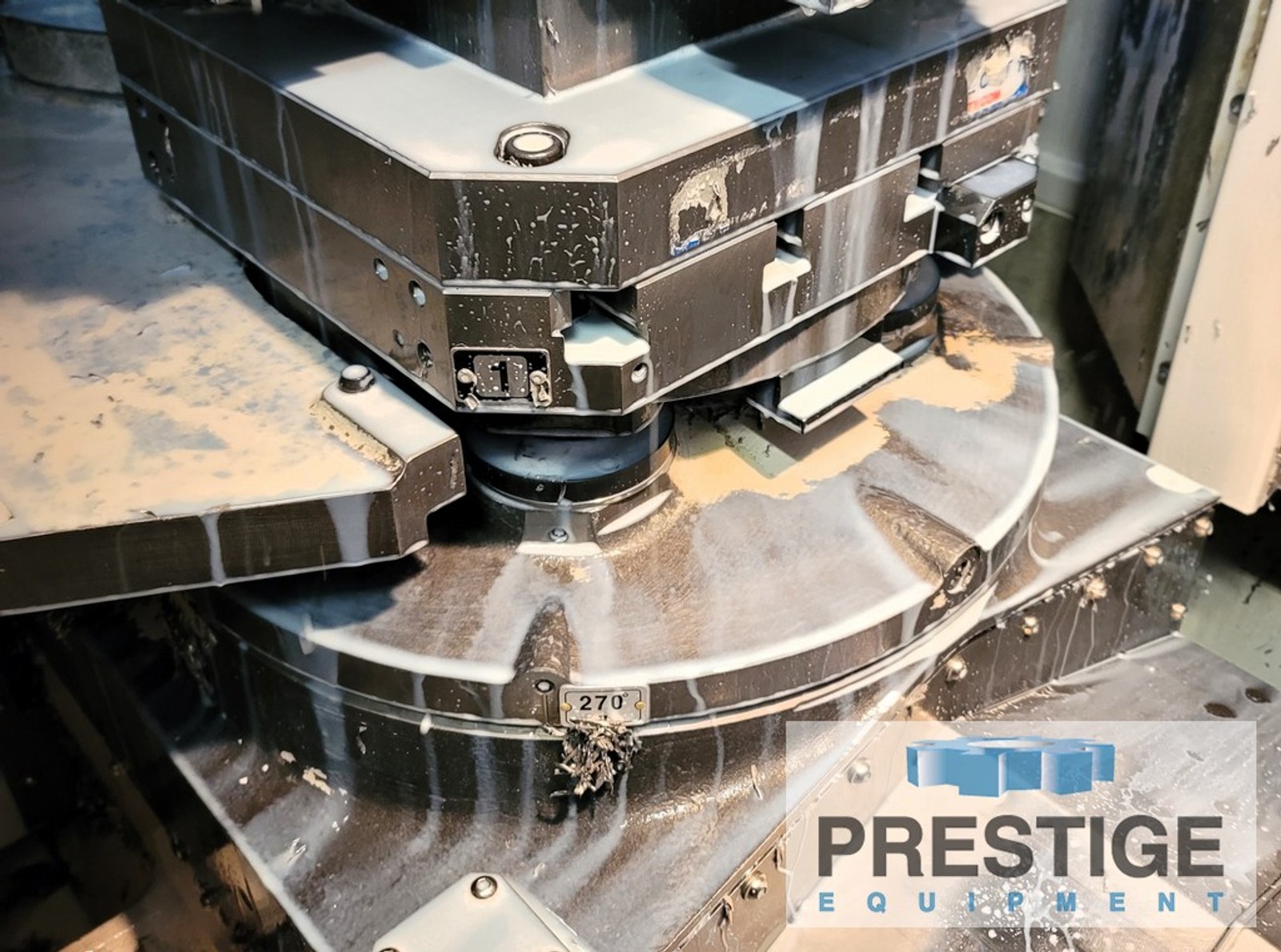

2-Station Automatic Pallet Changer

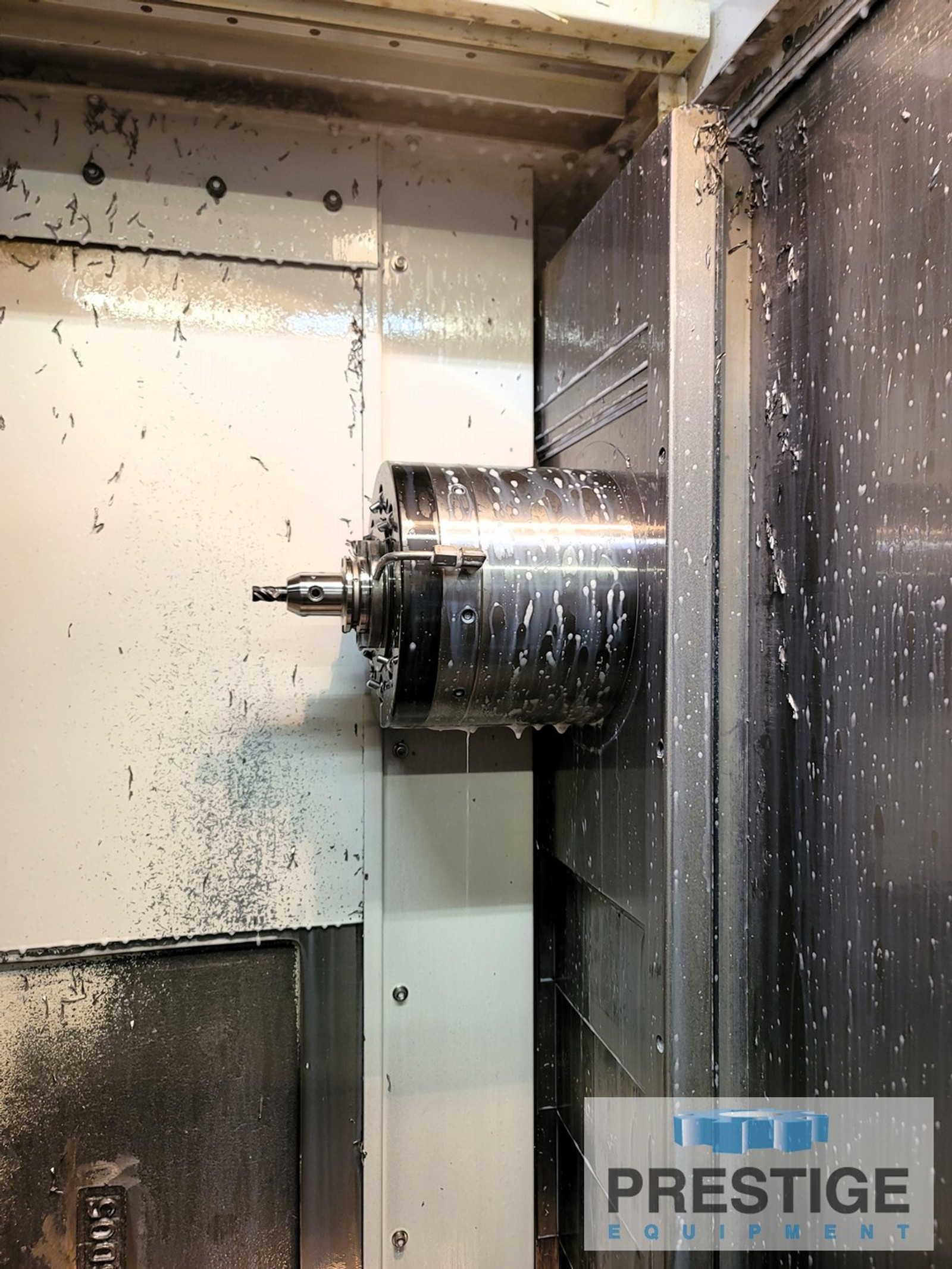

14,000 RPM Spindle
Coolant Thru Spindle (284 PSI)

SPECIFICATION:
X-Axis Travel ......................... 23.62"
Y-Axis Travel ......................... 22.05"
Z-Axis Travel ......................... 23.62"
B-Axis Pallet Rotation ................ 1°
Pallet Dimensions, 2 .................. 15.75" x 15.75"
Max. Workpiece Weight ................. 1,100 Lbs
Spindle Speeds ........................ 14,000 RPM
Spindle Taper ......................... CAT 40
Spindle Nose - Table Center ........... 5.91" - 29.53"
Spindle Center - Pallet Top ........... 1.97" - 24.02"
Cutting Feedrate ...................... .04 - 1181.1 IPM
Rapid Traverse ........................ 2362.2 IPM
Positioning Accuracy .................. +/- .0002
Repeatability ......................... +/- .00008
Max. Tool Length ...................... 11.81"
Max. Tool Weight ...................... 22 Lbs
Approx. Machine Dimensions ............ 224" x 104" x 113"
Approx. Machine Weight ................ 30,000 Lbs

EQUIPPED WITH:
Fanuc 18i-MB CNC Control
60-Station Automatic Tool Changer
2-Station Automatic Pallet Changer
14,000 RPM Spindle
Coolant Thru Spindle (284 PSI)

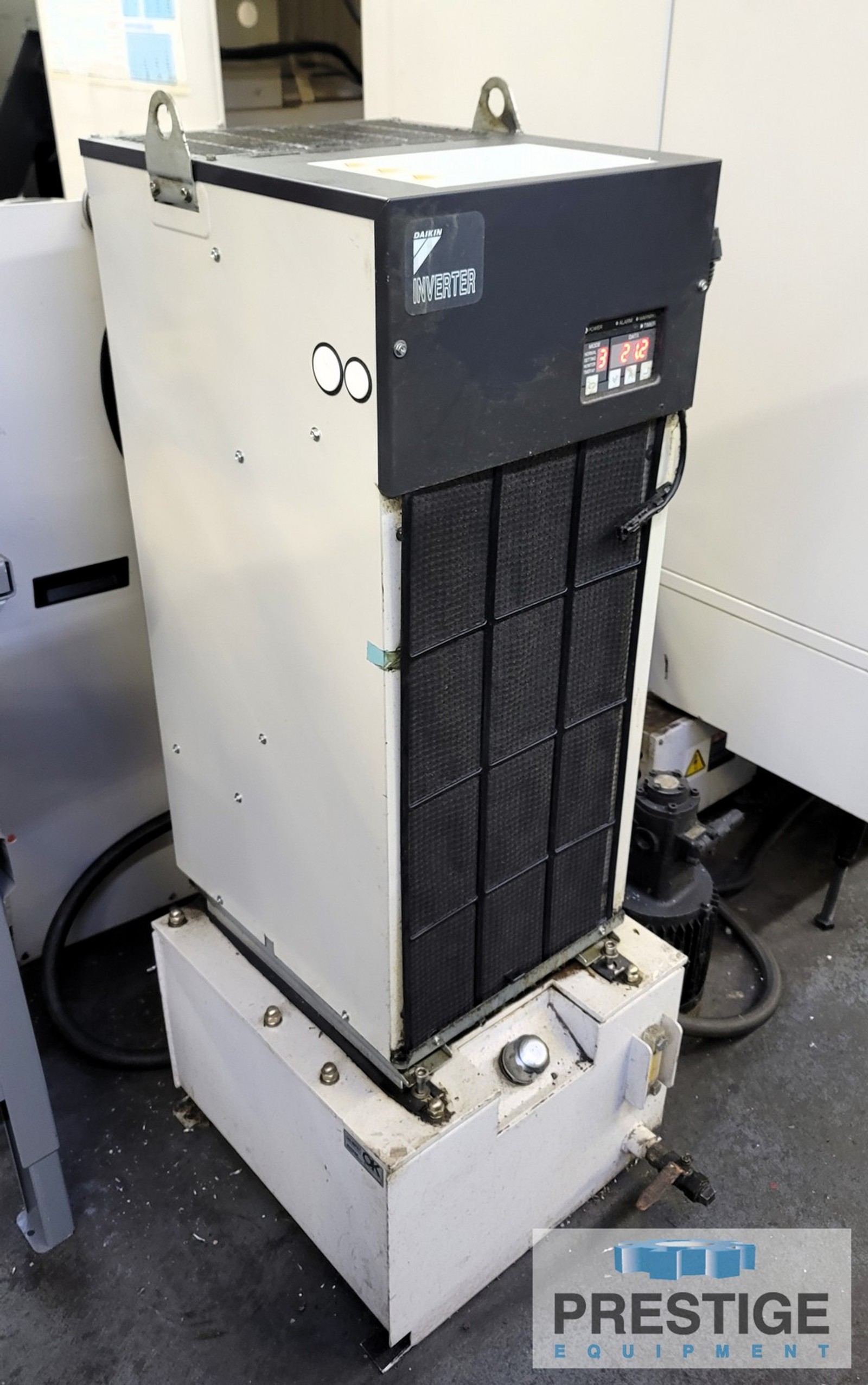

Daikin Chiller Unit
Chip Conveyor
All Available Manuals & Documentation

NOTE:

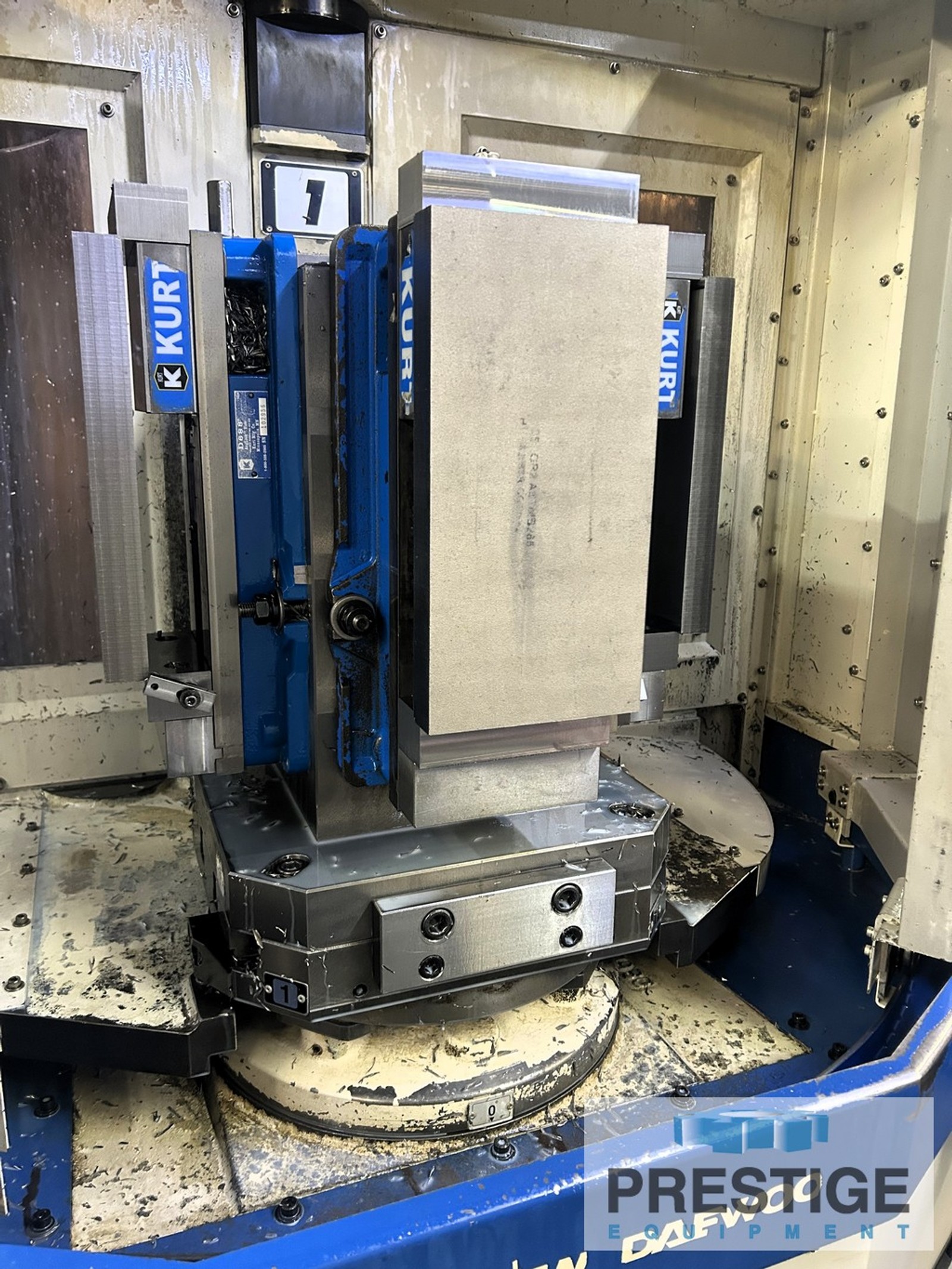

Vises & Tombstones Not Included with Machine
