157" x 393" Poreba TZG 400, 100 RPM, 30 Ton Capacity, Threading, Taper, 100 HP, '80 #27429

Manufacturer

POREBA

Category

Lathes

Type

LATHES, ENGINE

Stock

27429

Model

TZG 400B x 10M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #27429

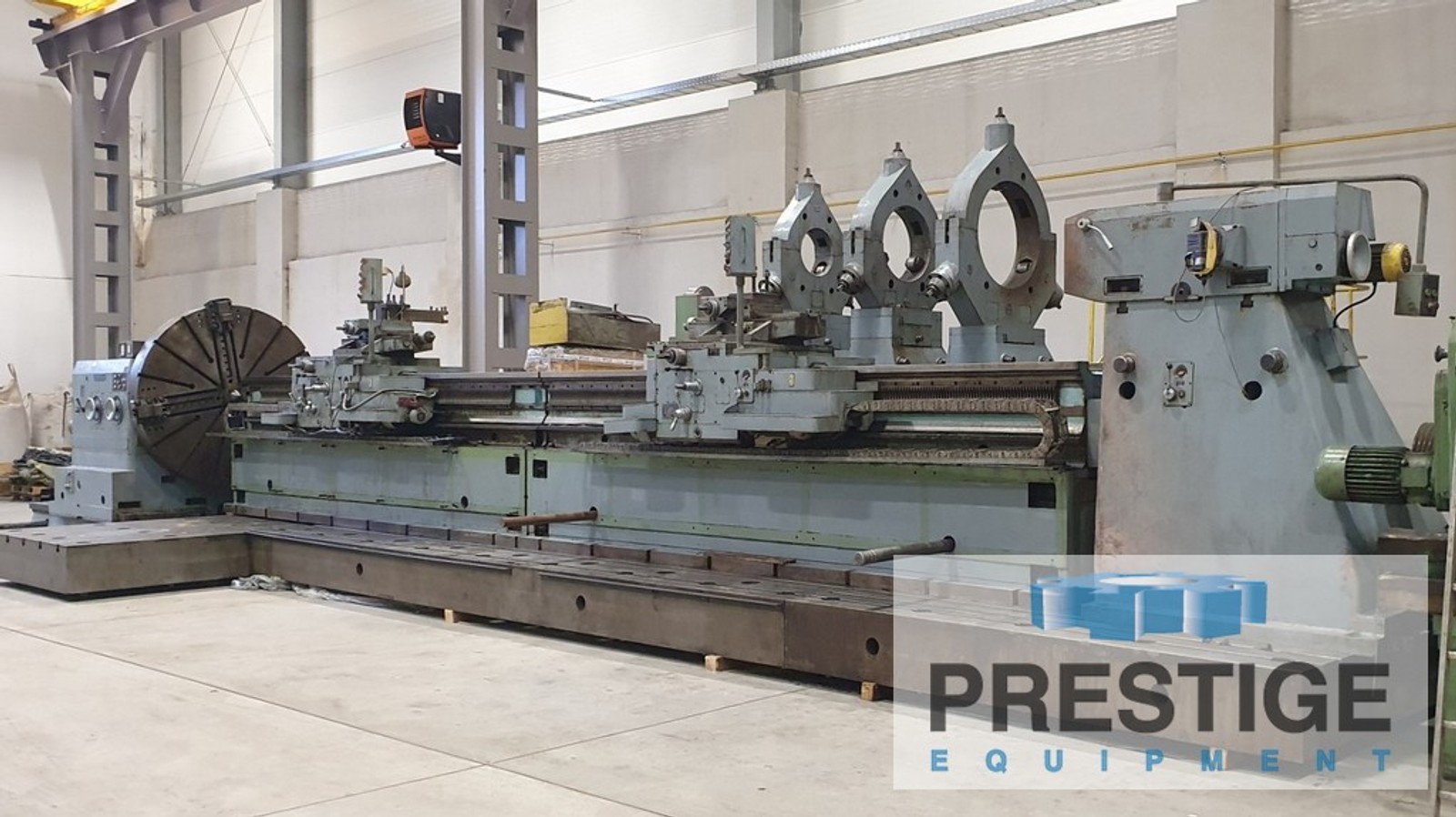

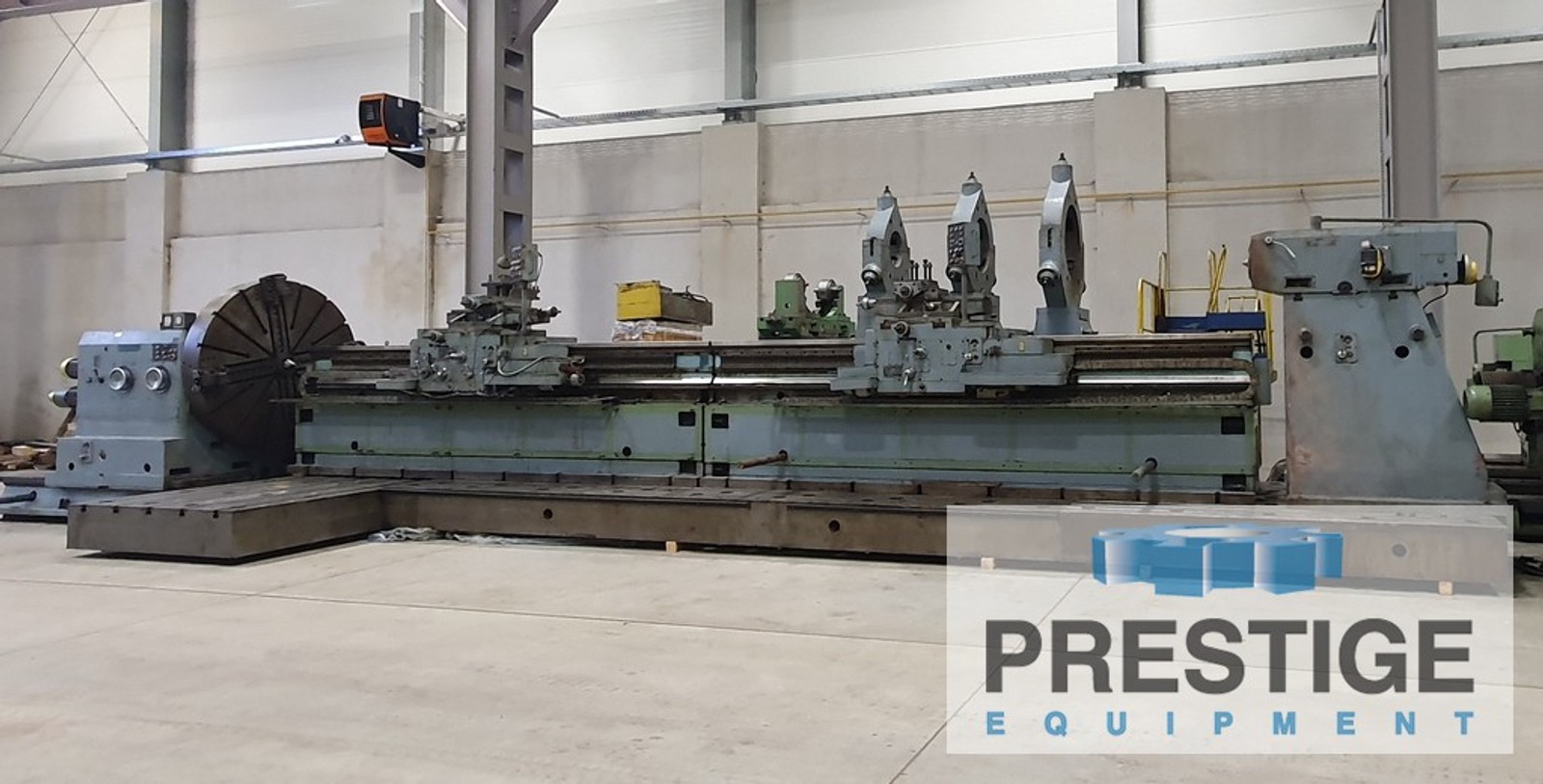

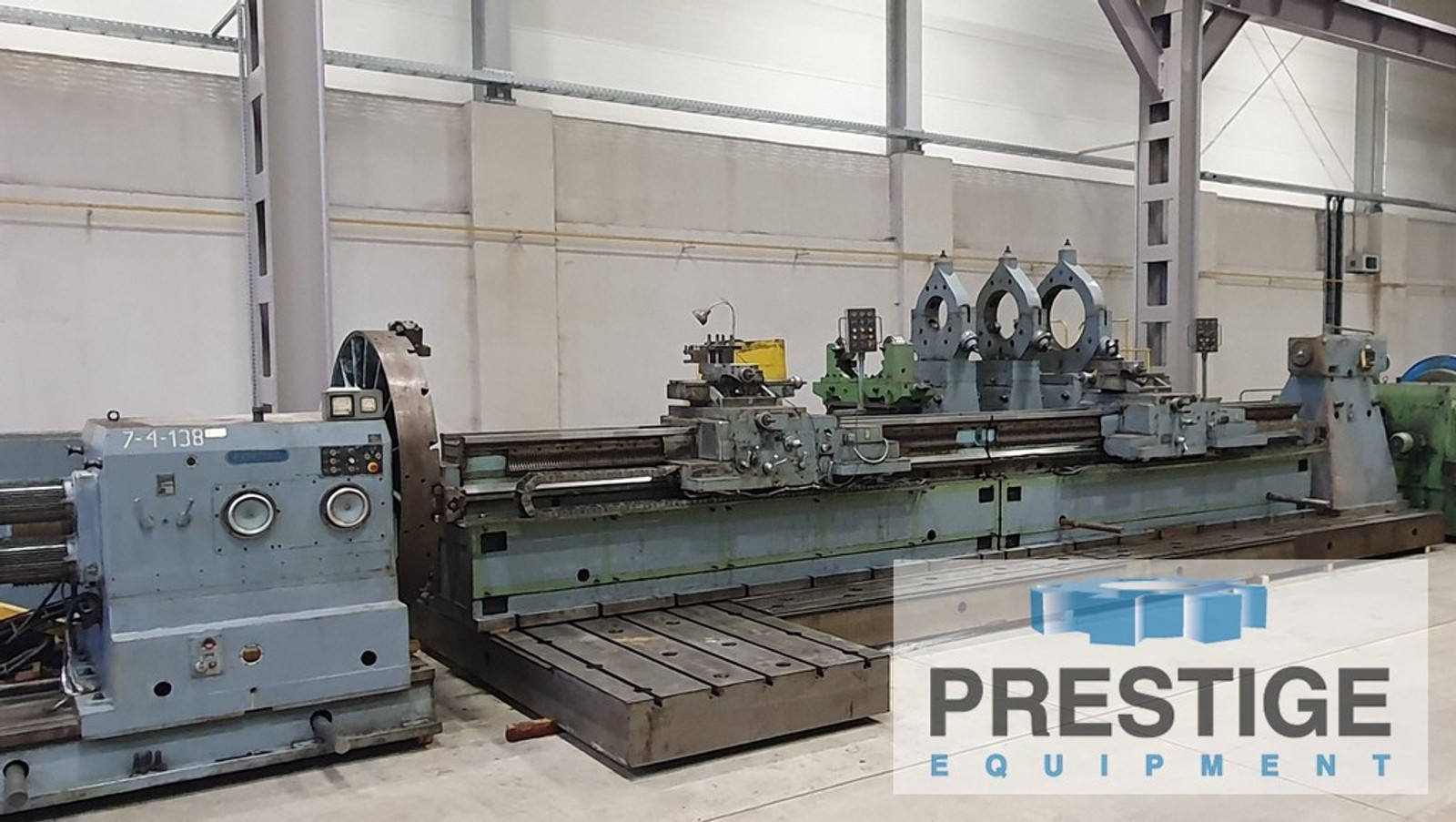

Poreba TGZ 400B x 10M, 157" x 393" Universal Lathe

FEATURES:
Component Style
Displaceable Headstock
Displaceable Tailstock
30 Ton Weight Capacity

CAPACITY:
Maximum Turning Dia.Over Floor Plate .. 157.48"
Maximum Swing over Headstock Bedways .. 98.42"
Face Plate Diameter ................... 78.74"
Turning Length ........................ 314.96"
Distance Between Centers .............. 393.7"
Headstock Travel ...................... 39.37"
Spindle Speeds (24).................... .8-100 RPM
Weight Capcity Between Centers ........ 66,000 lbs
Weight Capacity With One Steady Rest .. 77,000 lbs
Weight Capacity With Two Steady Rest .. 88,000 lbs
Tailstock Quill Diameter .............. 11"
Quill Travel .......................... 7.87"
Quill Travel .......................... 7.87"

EQUIPPED WITH:
78" Face Plate Type Chuck with 4-Chuck Jaws
(5) 78.74" x 275.59" T-Slotted Floor Plates
Carriage With 2-Portable Bed Sections
Hardened Steel Way Inserts
Inch/Metric Threading
Taper Cutting By Change Gears
Heavy Duty Tool Post
Tailstock
Tailstock Axial Force Indicator
(3)Roller Type Steady Rests
Grinding Attachment
Auto Lubrication
100 HP Main Motor (380/3/50)
NOTE:
Universal Facing & Turning Lathe Designed for machining large Diameter work
pieces. Especially useful for machining paper drums, boiler cylinders,
turbines.
