Gould & Eberhardt 96H, 1.5 DP, 125"/96" Max. Dia., 78" Table, Change Gears, Hob Arbor, Chip Conv, S/N 9670A-1, #19028

Manufacturer

GOULD & EBERHARDT

Category

Gear Machines

Type

GEAR HOBBERS, HORIZONTAL

Stock

19028

Model

96H

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #19028

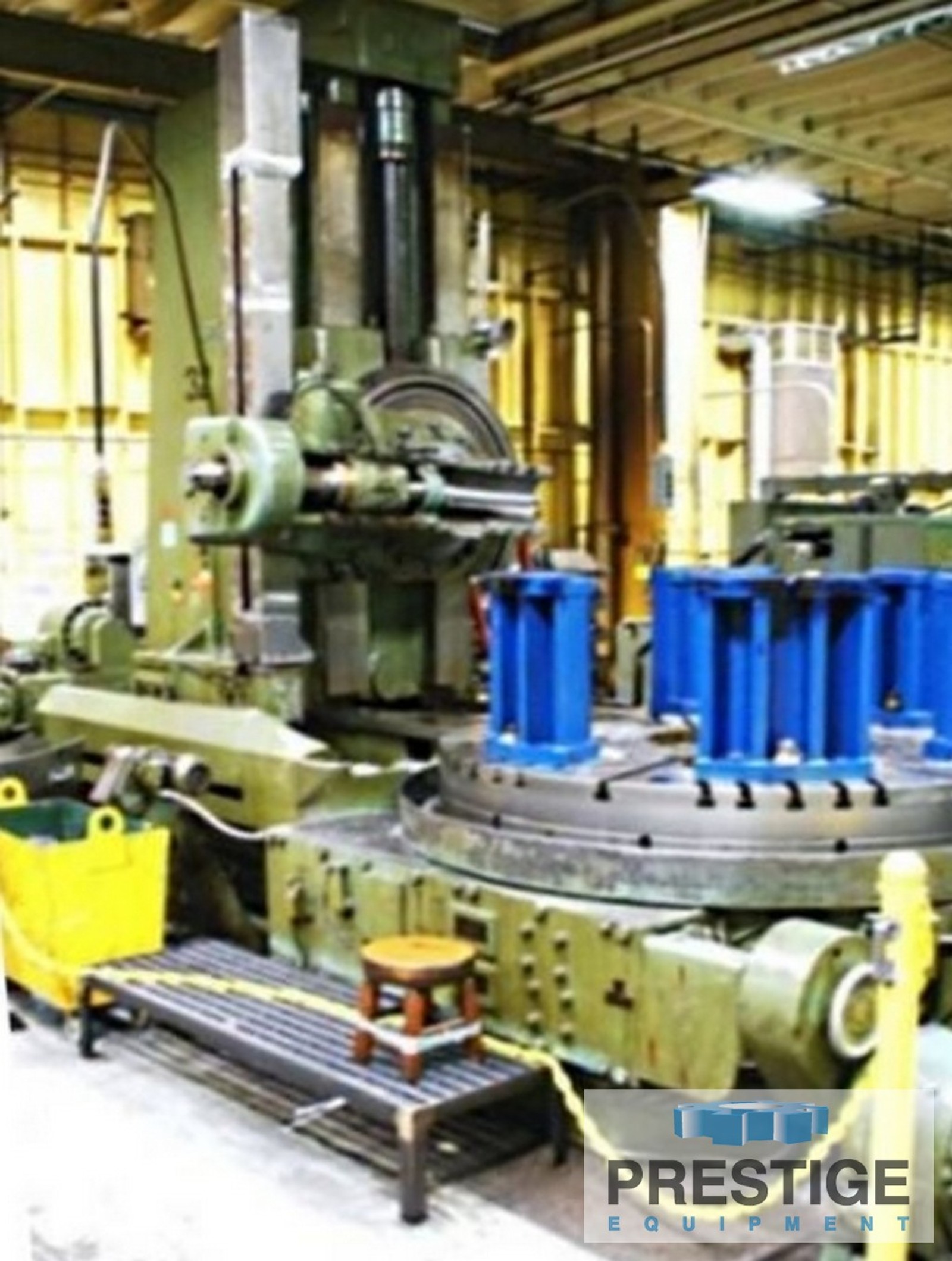

GOULD & EBERHARDT 96H Gear Hobber

FEATURES:
125" Maximum Diameter Capacity
78" Diameter Work Table

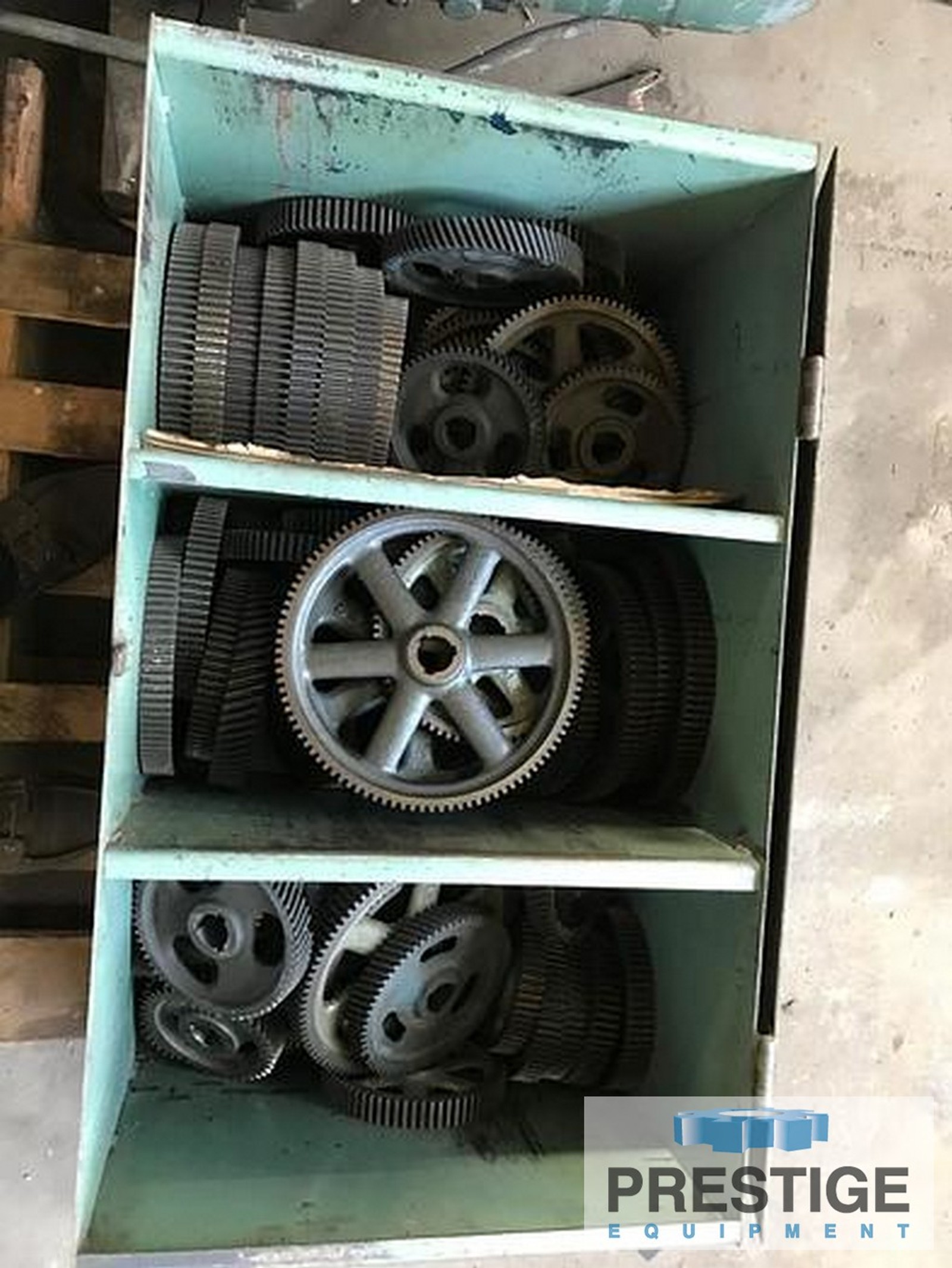

Large Assortment of Change Gears
(1) HOB ARBOR
Chip Conveyor
Miscellaneous Guarding

CAPACITIES:
Diametral Pitch Rating, Maximum ....... 1.5 DP
Max. Dia. With Outboard Support ....... 96"
Max. Dia. With Support Removed ........ 125"
Face capacity, Spur Gears ............. 42"
Table Load Capacity, Maximum .......... 75,000 LBS
Center Distance Work & Hob Arbor ...... 8"-76"
Work Table Diameter ................... 78"
Work Table Hole Diameter .............. 26"
Hob Diameter Range .................... 1.875"-7.0"
Index Worm Gear Diameter .............. 76"
Worm Shaft Speed, Maximum ............. 400 RPM
Range of (14) Hob Speeds .............. 6-100 RPM
Range of Cutter Feeds ................. .45-8 IPM
Feed Range ............................ .003-.020 IPR
Floor Space Required .................. 312" x 108"
Overall Height ........................ 180"
Approx. Weight ........................ 85,000 LBS

EQUIPPED WITH:
Large Assortment of Change Gears
(1) Hob Arbor
Chip Conveyor
Miscellaneous Guarding

NOTE:
This Machine Came From A High-Accuracy U.S. Naval Facility

LOCATION:
Cincinnati, OH
