Ficep Excalibur 1201DE, 5000 RPM Spindle, ATC, 47" x 47" Max Section, 50' Beam Processing, Pegaso CNC, 2021 #43947

Stock

43947

Model

Excalibur 1201DE

Dealer Location

New York

Spec Sheet

Reference #43947
Ficep Excalibur 1201 DE CNC Single Spindle Traveling Column Drill with Automatic Tool Changer

FEATURES:
Ficep Pegaso PC Based CNC Control
Monospindle Horizontal Drill Head
6-Station Automatic Tool Changer
50' Beam Processing
Milling
Low Hours

CAPACITY:
Section Volume of Beams, Max .......... 47" x 47"
Beam Processing Length ................ 50'
Drill Heads ........................... 1
Spindles .............................. 1
Drilling Diameter, Max ................ 1-9/16"
X-Axis Positioning Speed .............. 115 FPM
Y-Axis Positioning Speed .............. 470 IPM
Spindle Motor ......................... 25 HP
Programmable Spindle Speed, Max ....... 5000 RPM
Maximum Beam Size ..................... 47"
Total Vise Clamping Pressure .......... 10 Tons
Electrics ............................. 460 V, 3 PH, 60 HZ

EQUIPPED WITH:

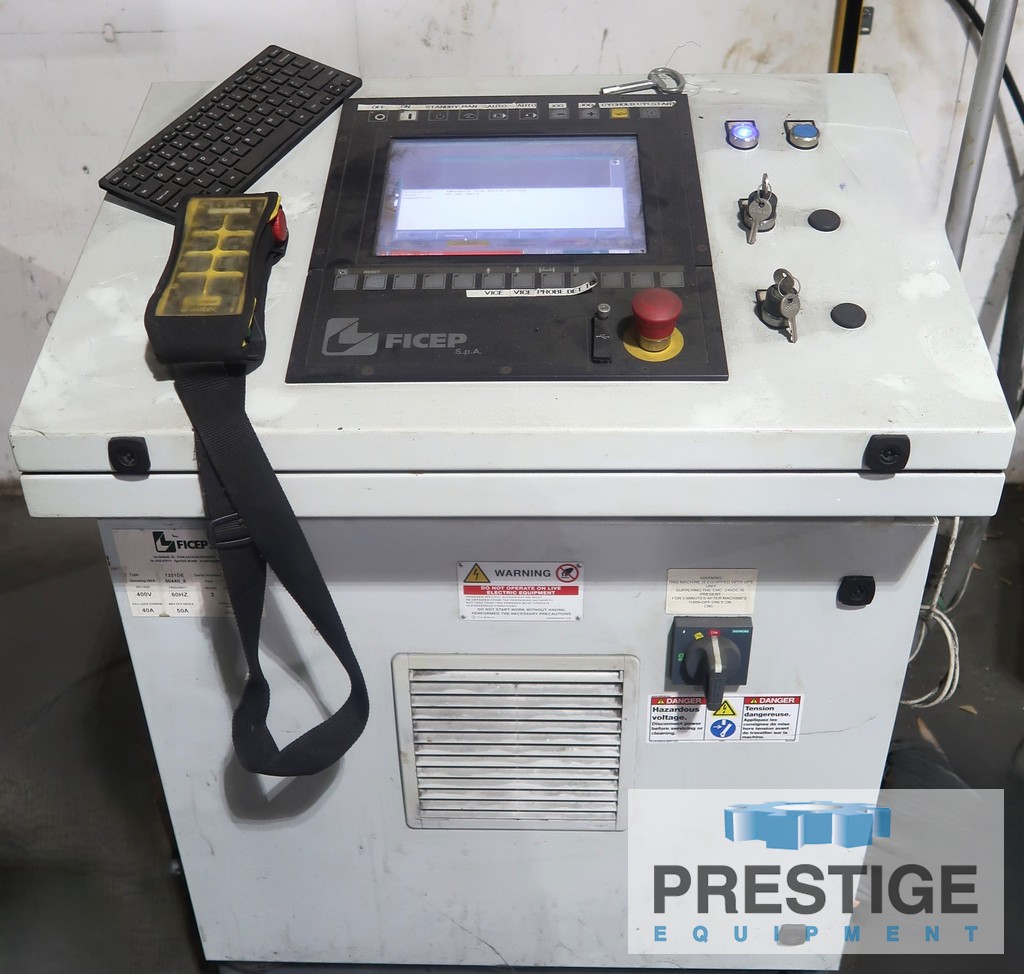

Ficep Pegaso PC Based CNC Control with Remote
Monospindle Horizontal Drill Head
6-Station Automatic Tool Changer
Milling
Servo Driven Ball Screw Spindle Feed
Internal/External Drill Coolant

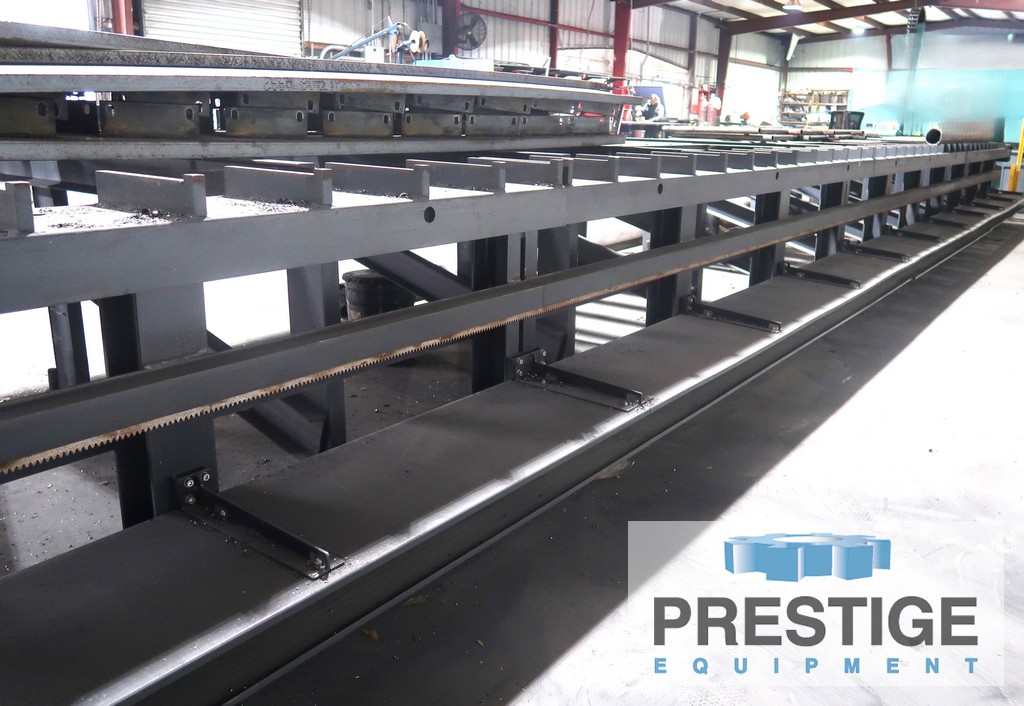

Fixed Bed (Note: Rollers on Bed Not Included)
Low Hours

NOTE:
Inspect In Plant

No Video Available
