12,000 lbs. x 18" x .375" Coe Press Equipment Coil Cradle Straightener, Heavy-Duty Model # CPCC-

Manufacturer

COE

Category

Coil Processing Equipment

Type

COIL CRADLES & STRAIGHTENERS

Stock

2928

Model

CPCC-12018 and CPPS-500-18

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 12000 pounds
Coil Width - 18 inches
Coil Thickness - .312 inches

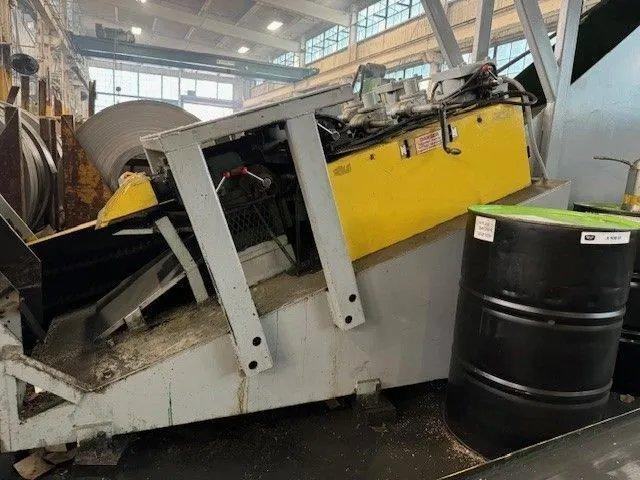

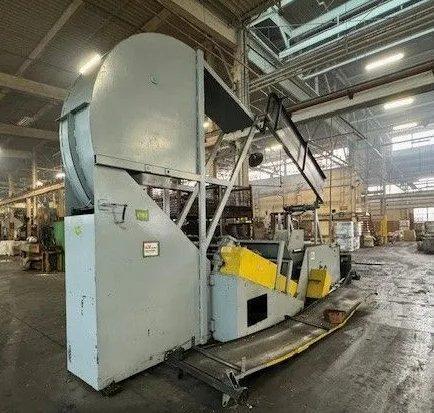

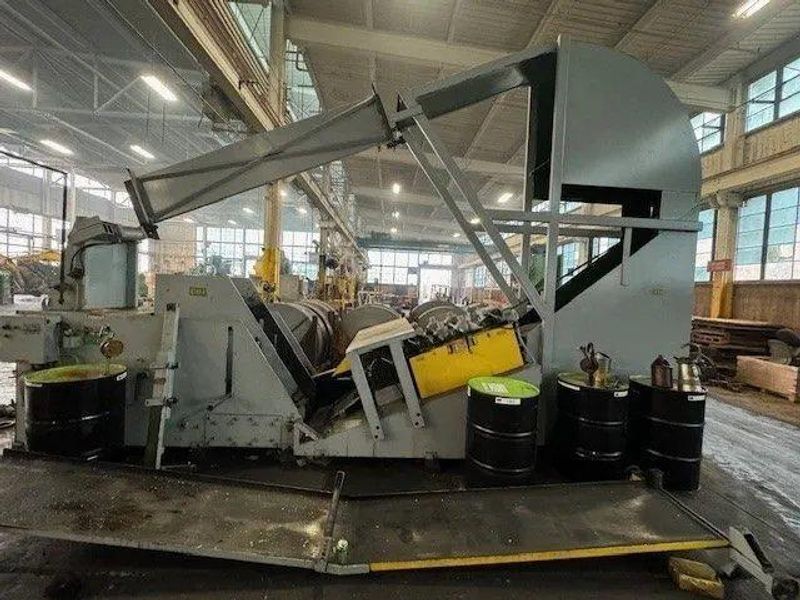

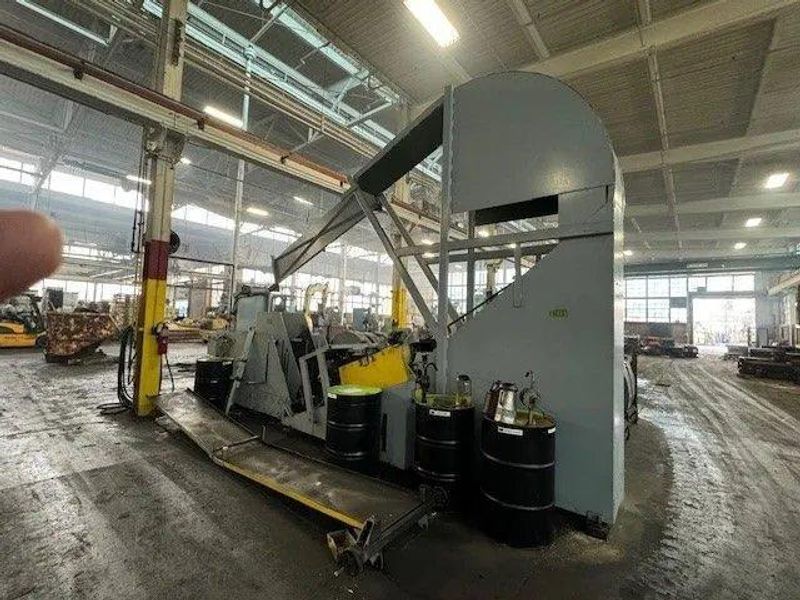

Coe Press Equipment Coil Cradle Straightener
Special Heavy Duty
Model CPCC-12018 & CPPS-500-18
Serial Number - D111448
12,000 lbs. Maximum Coil Weight
18" Maximum Coil Width
72" Maximum Coil O.D.
.312" Maximum Stock Thickness @ 18" Width
.375" Maximum Stock Thickness @ 12" Width
Right To Left Feed Direction

Equipment and Features
(5) 5" Diameter Straightening Rolls
Air Operated Entrance Threading Roll - 6" Bore Cylinders
Air Operated Exit Threading Roll - 8" Bore Cylinder
6" Diameter Nest Rolls with 3" Journals
Heavy Duty Design 5" Bore Air Operated Stock Peeler
3" Thick Adjustable Side Plates with Rolls
Central Lubrication System
14' Material Deflector
15 H.P. Variable Speed Drive
Jog, Forward and Reverse
Remote Pendant Jog Control
Air Operated Material Ramp and Extension Model CPMD-12018
Independently Adjustable Inside Plates - 60" High
15-45 FPM Pay Off Rate
Exit Vertical Edge Guides
Independently Adjustable Breaker Rolls
Loop Control Arm - Automatic Operation

Can be seen under power in the S&G Press Livonia Warehouse!

Heavy Duty Coe Press Equipment Coil Cradle Straightener - Used Coil Feed Equipment For Sale

More Thick Capacity Coil Cradle Straighteners From S&G Press

Heavy Duty Coe Press Coil Cradle Straighteners excel in robust material handling. They offer superior straightening, reduced downtime, and enhanced precision for thick gauge coils. Their durable build increases production efficiency and ensures consistent, high-quality output in demanding manufacturing environments.  Reverse Loop Coil Cradle Straighteners aid in safe processing of thick, high-strength materials.
