Marvel 380A-PC-60, 15" x 20" capacity, PC3 Programmable control, bar feed w/48" stroke, 2010 #43918

Manufacturer

MARVEL

Category

Saws

Stock

43918

Model

380A-PC-60

Dealer Location

New York

Spec Sheet

Reference #43918

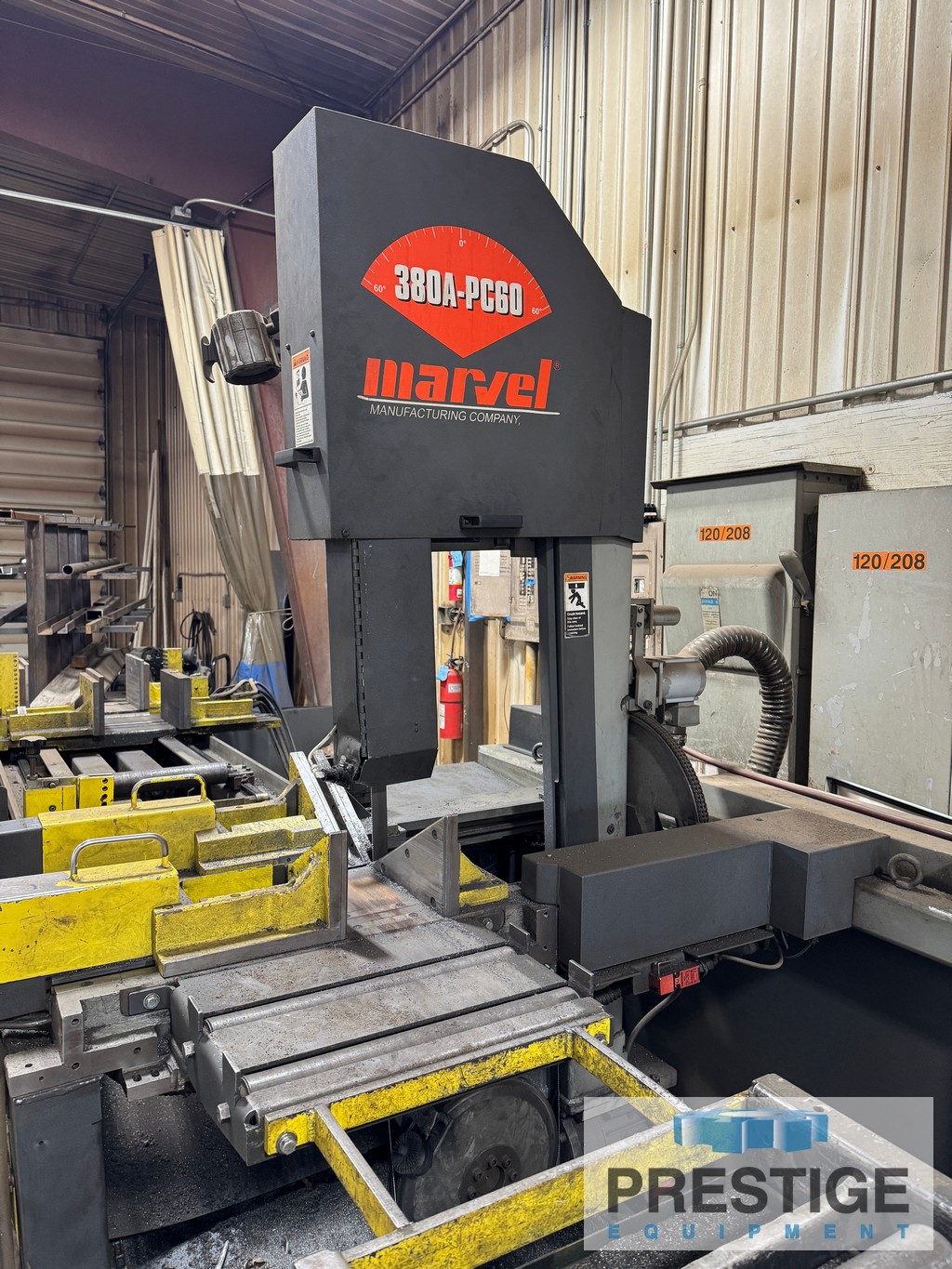

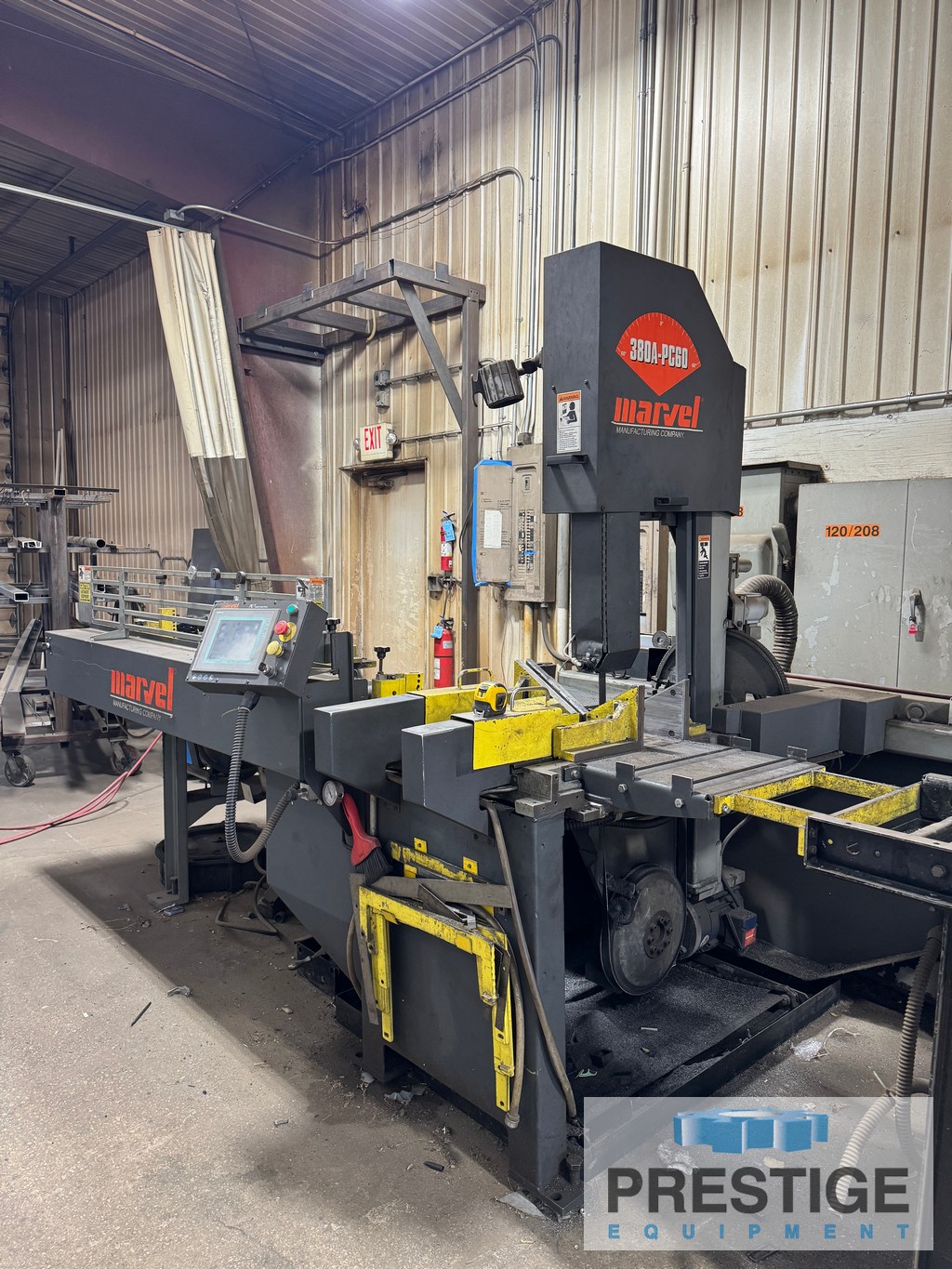

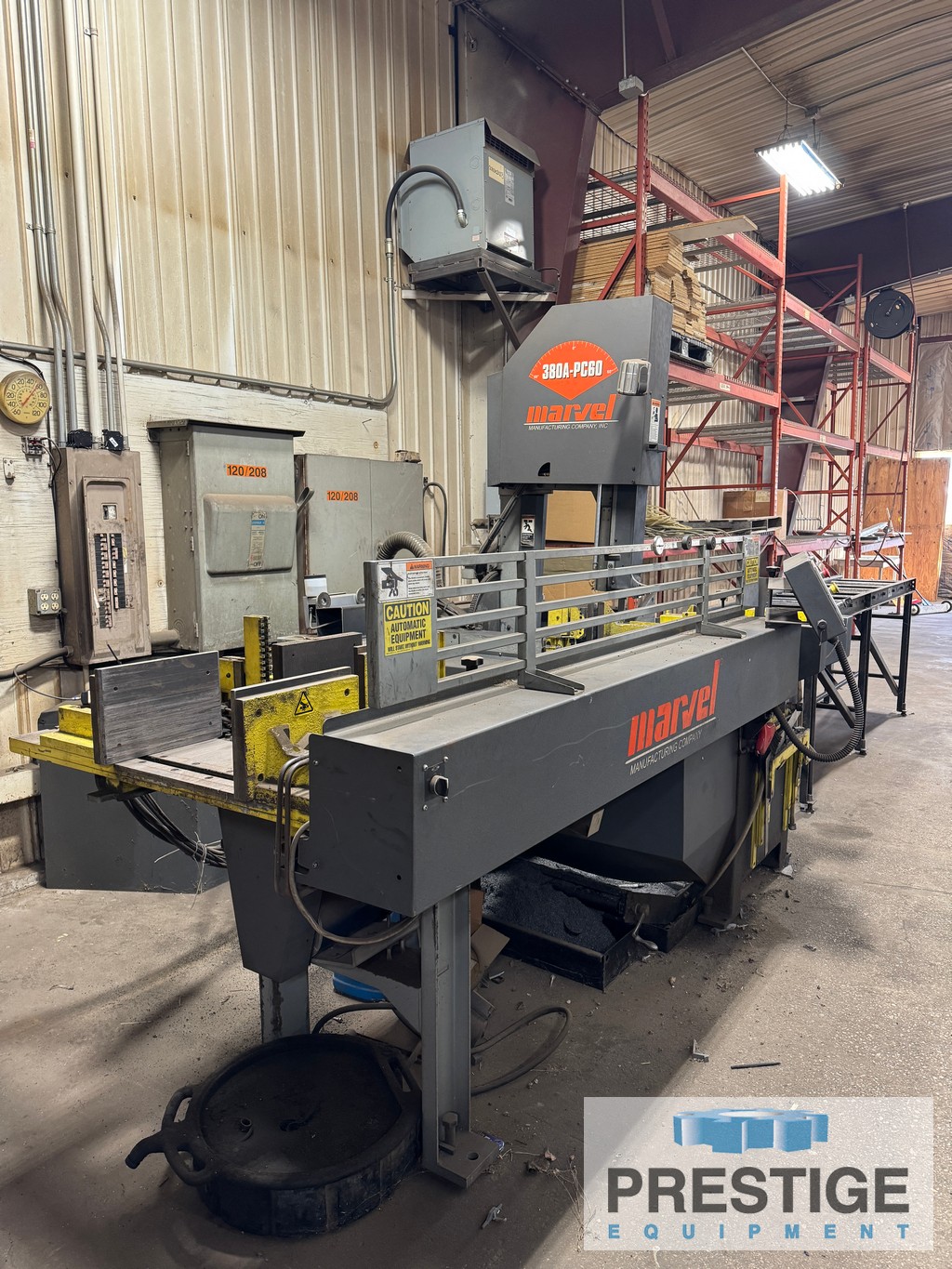

Marvel 380A-PC-60 Automatic CNC Vertical Band Saw

FEATURES:
Marvel PC3 Programmable Control with 10" Display and Color Touch Screen
Tilting Column for Miter Cutting 60 Deg. Left and Right
Hydraulically Controlled Blade Tension
Automatic Bar Feed with 48" Stroke

CAPACITY:
Nominal Capacity ...................... 15" x 20"
Capacity, Blade at 60 Deg. ............ 15" x 9.25"
Capacity, Rounds ...................... 15"
Blade Length........................... 16'
Blade Width ........................... 1.25"
Blade Thickness........................ .042"
Blade Speeds .......................... 60-400 FPM
Work Height ........................... 20"
Main Motor ............................ 5 H.P.
Hydraulic Pump Motor .................. 2 H.P.
Approximate Dimensions ................ 117" x 89" x 95"
Approximate Machine Weight ............ 5,900 Lbs.

EQUIPPED WITH:

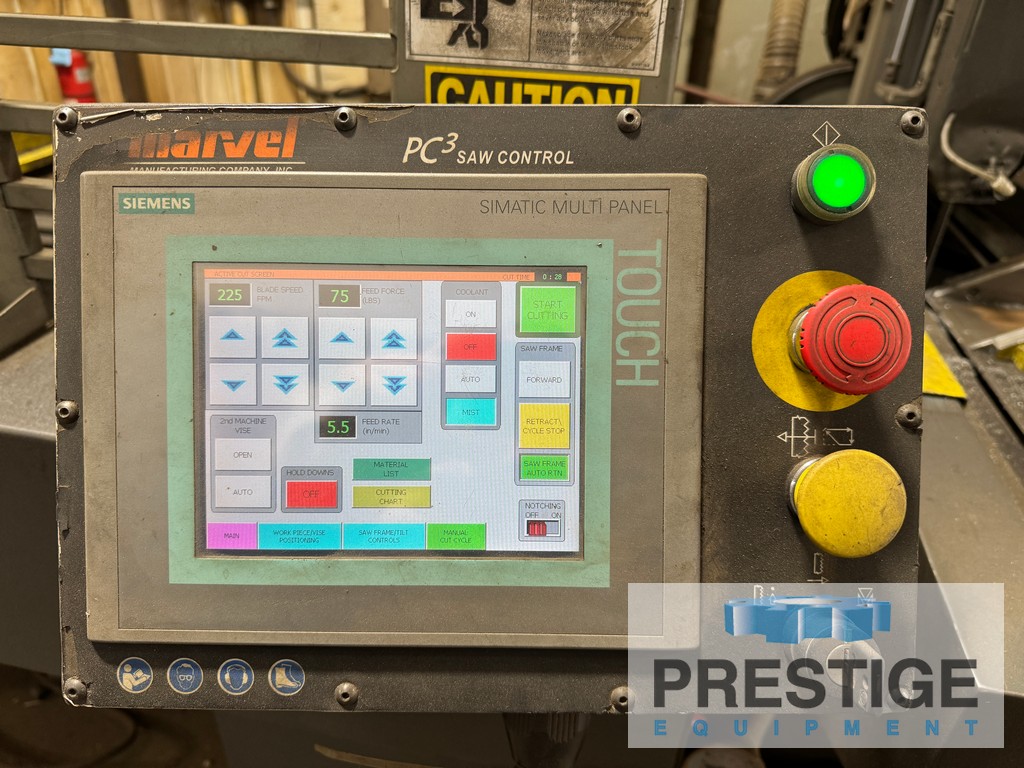

Marvel PC3 Programmable Control with 10" Display and Color Touch Screen

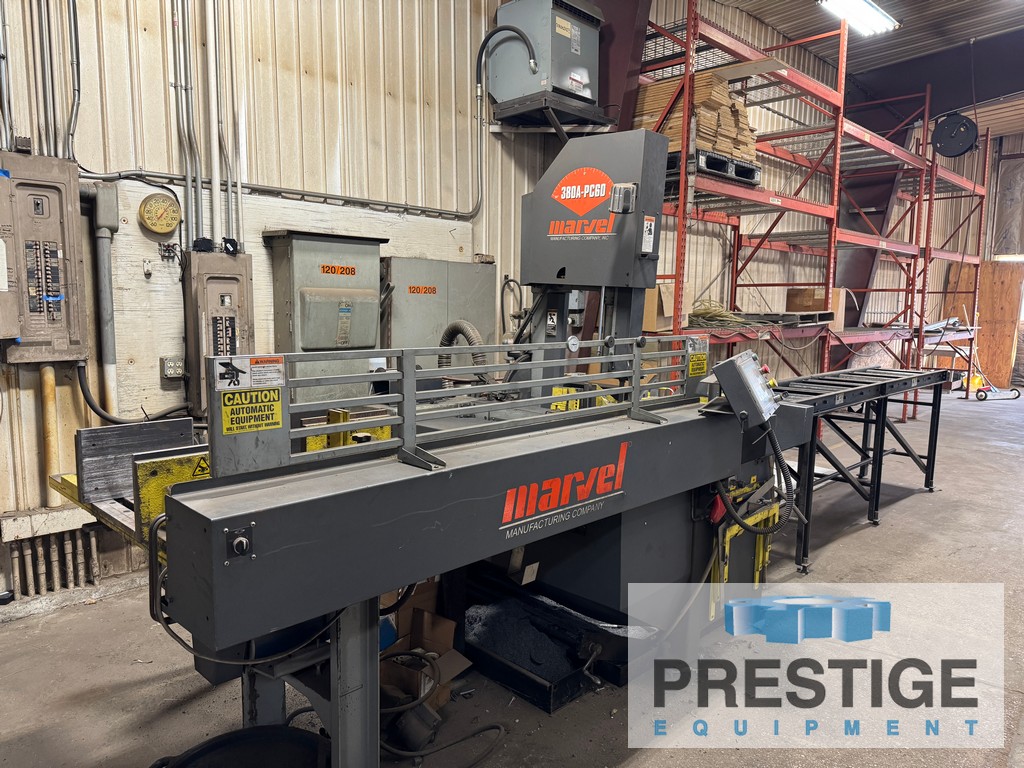

Automatic Bar Feed with 48" Stroke

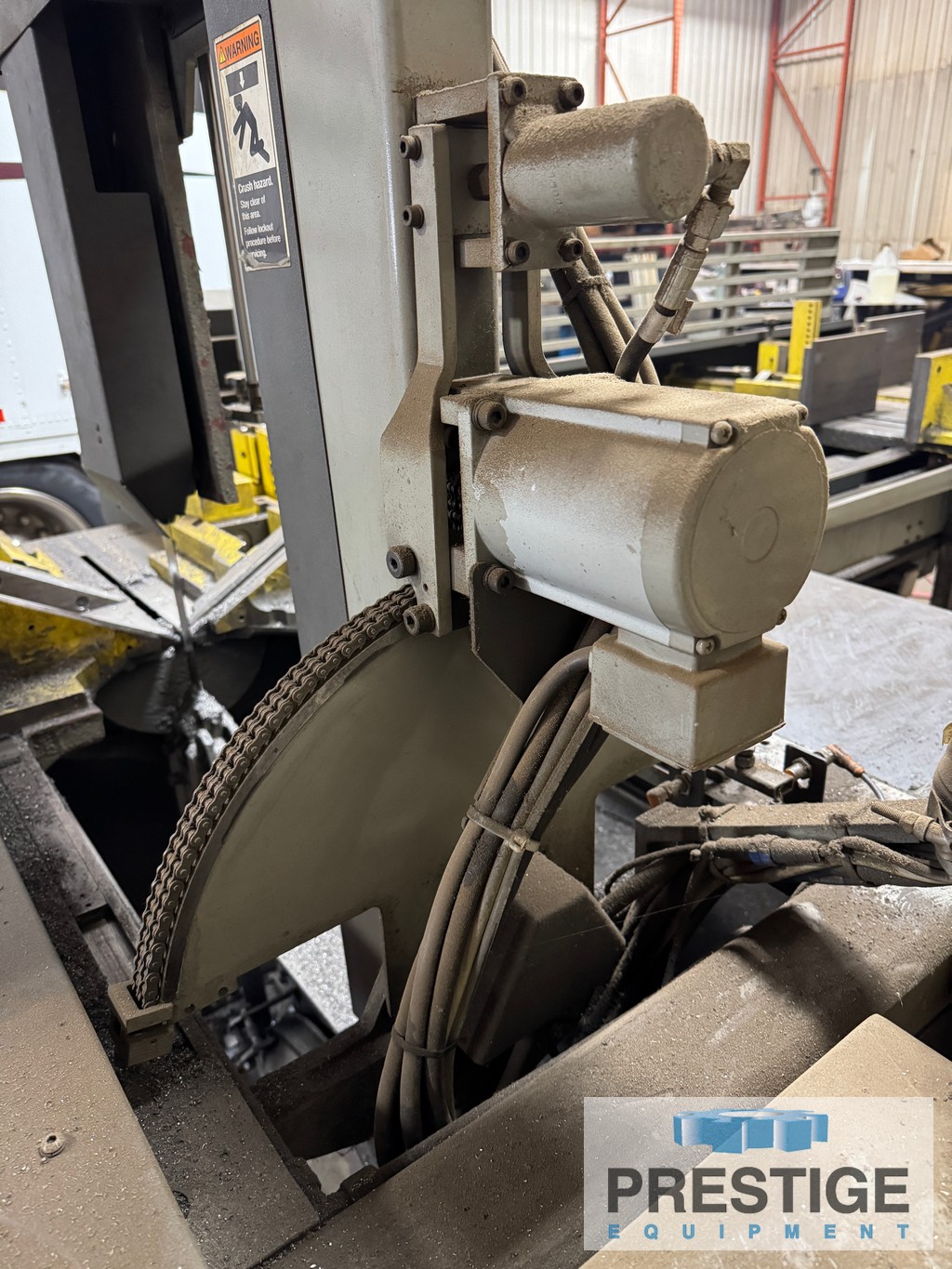

Electric Blade Drive with
Tilting Column for Miter Cutting 60 Deg. Left and Right of Vertical
Direct Force Sensing Electric Ball Screw Blade Feed
Hydraulically Controlled Blade Tension

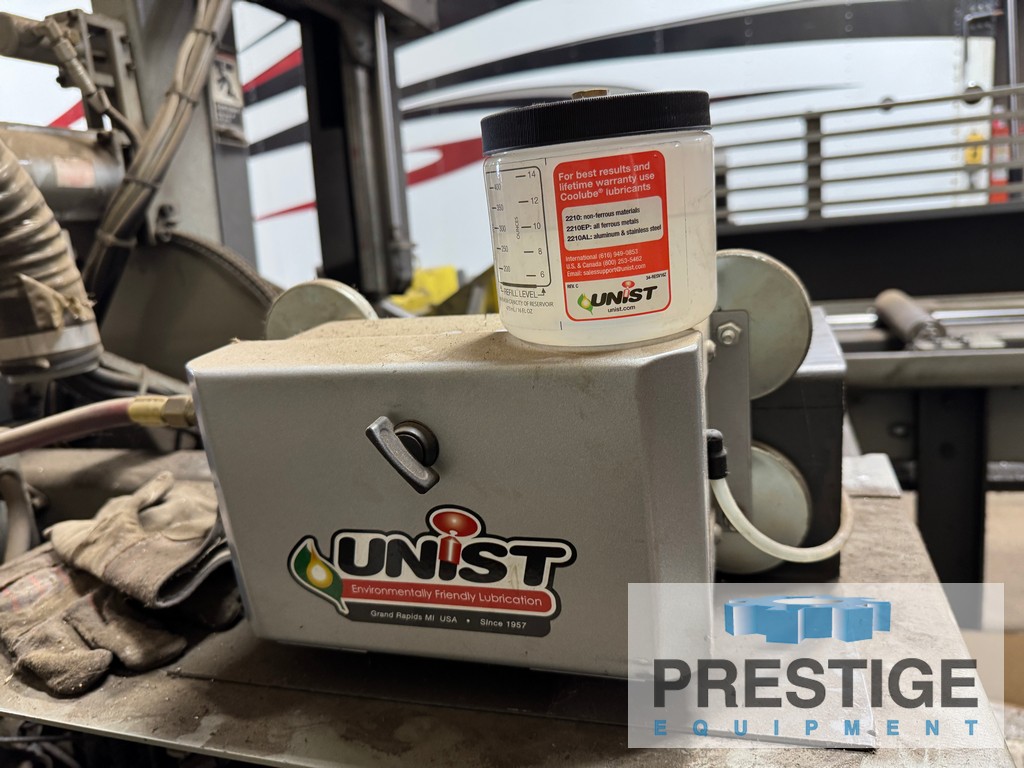

Built-in Flood Coolant System

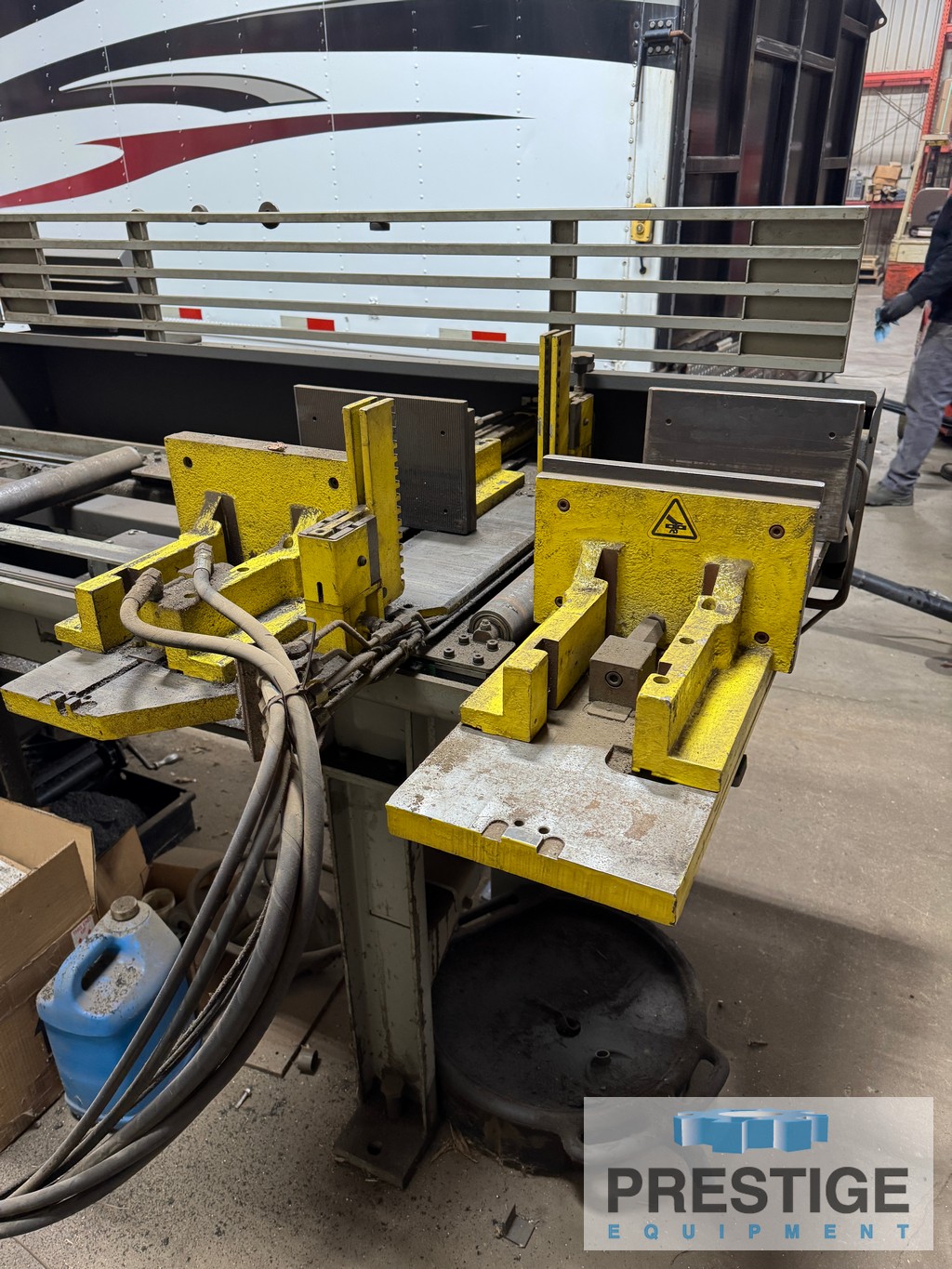

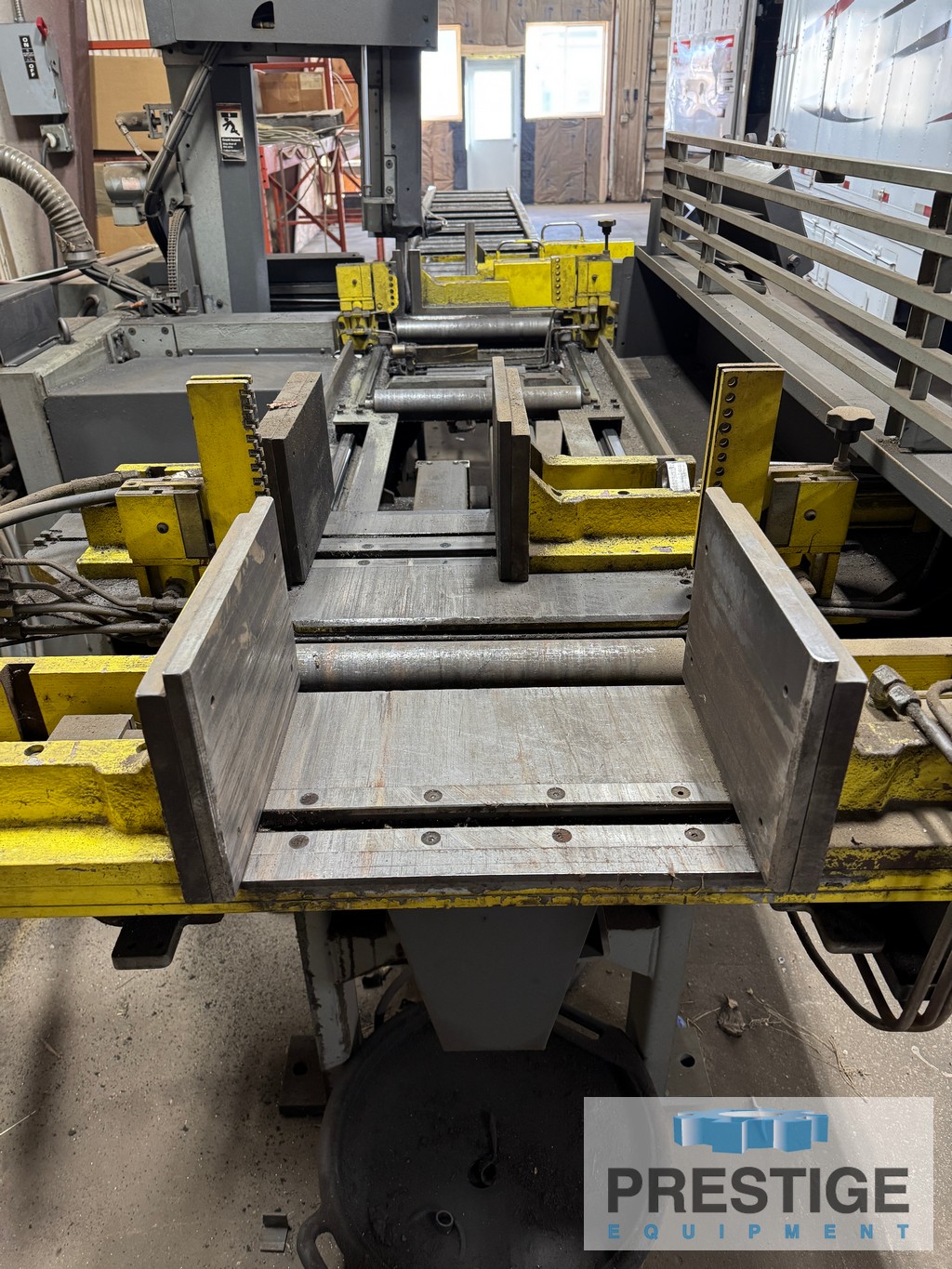

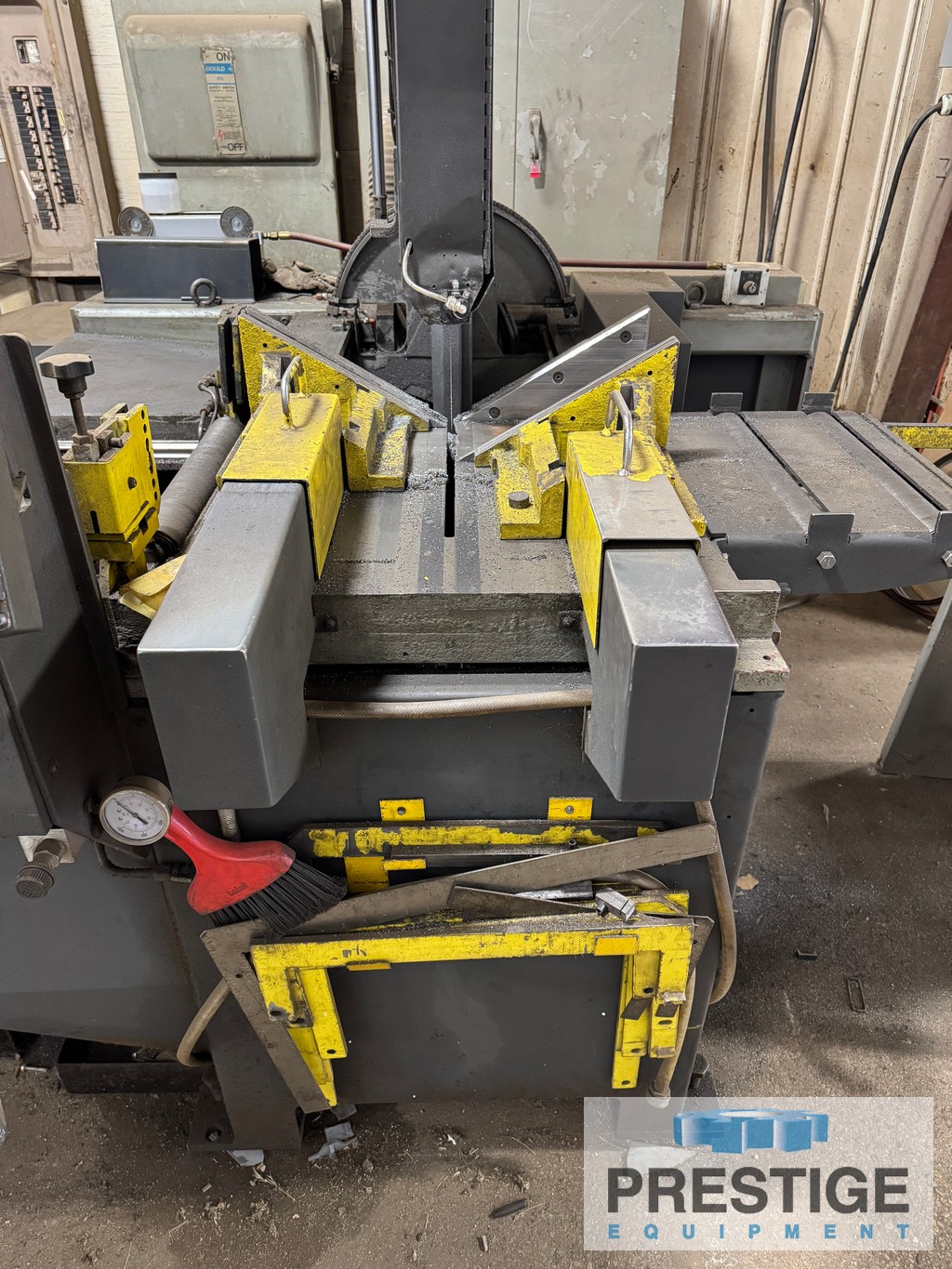

Bundle Clamping

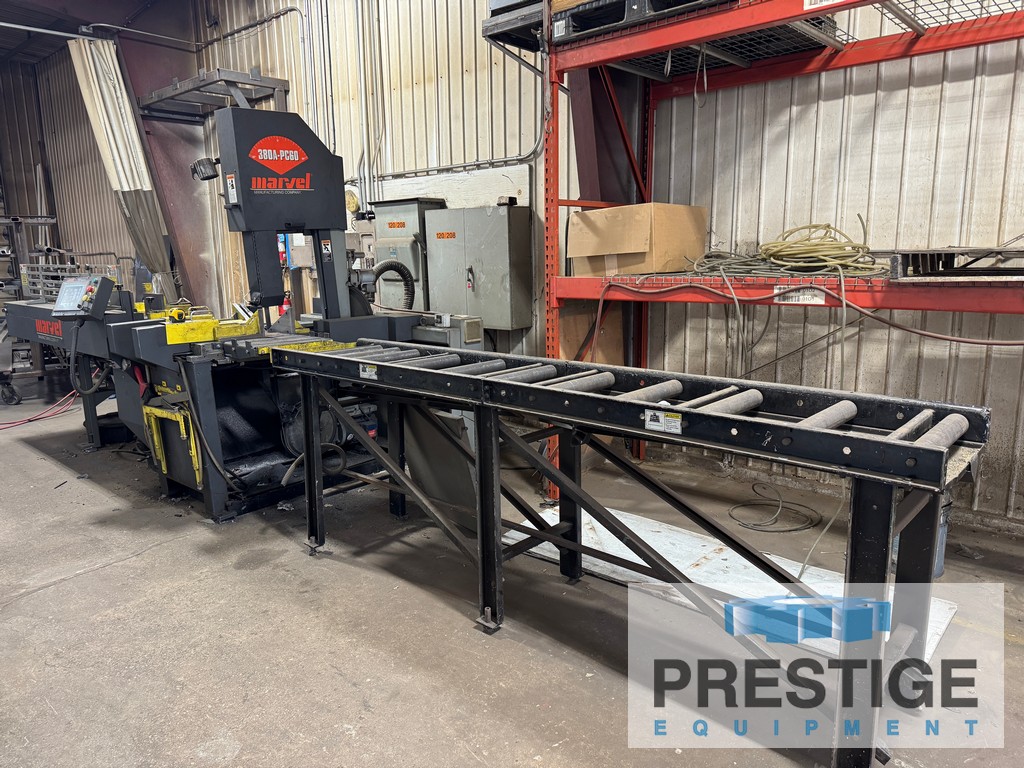

20' In-Feed Roller Conveyor
10' Out Feed
