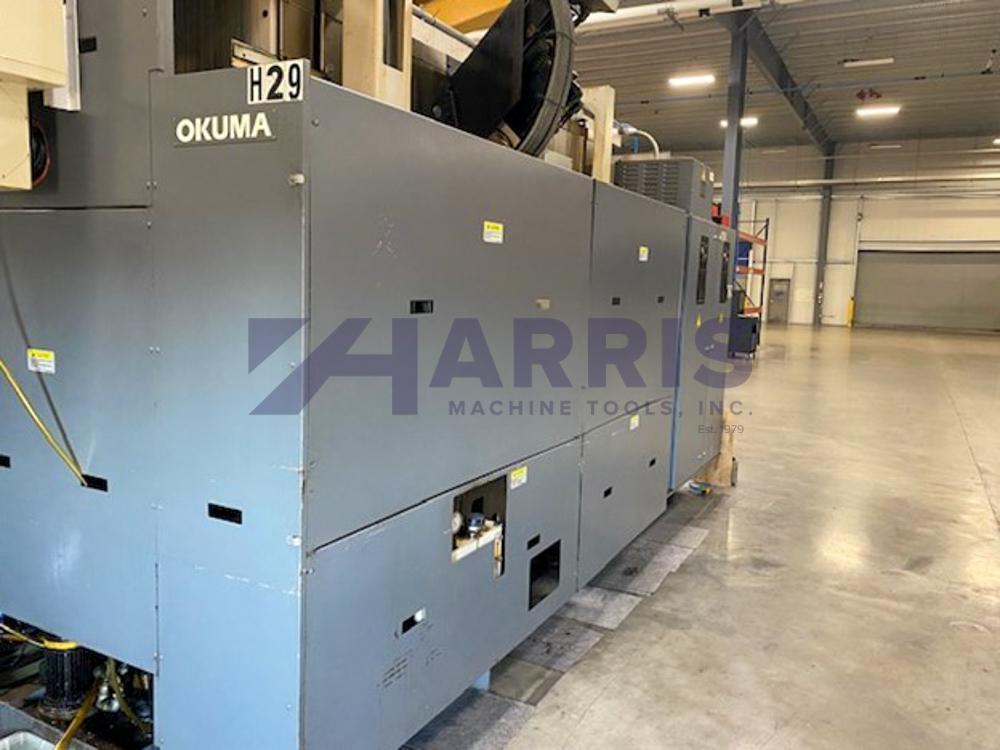

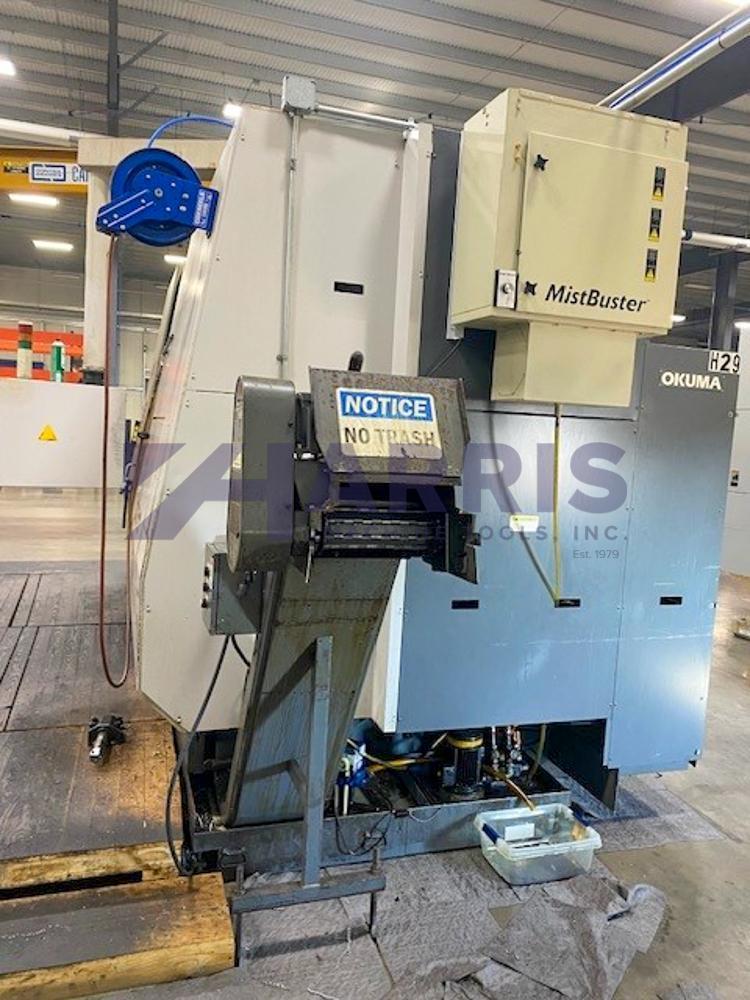

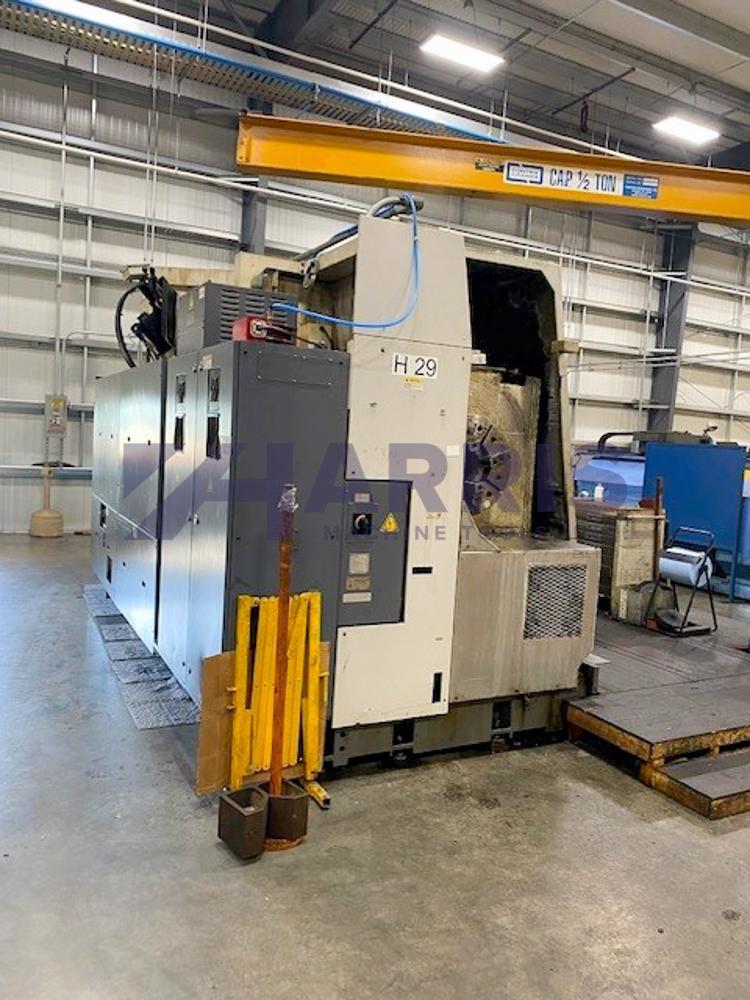

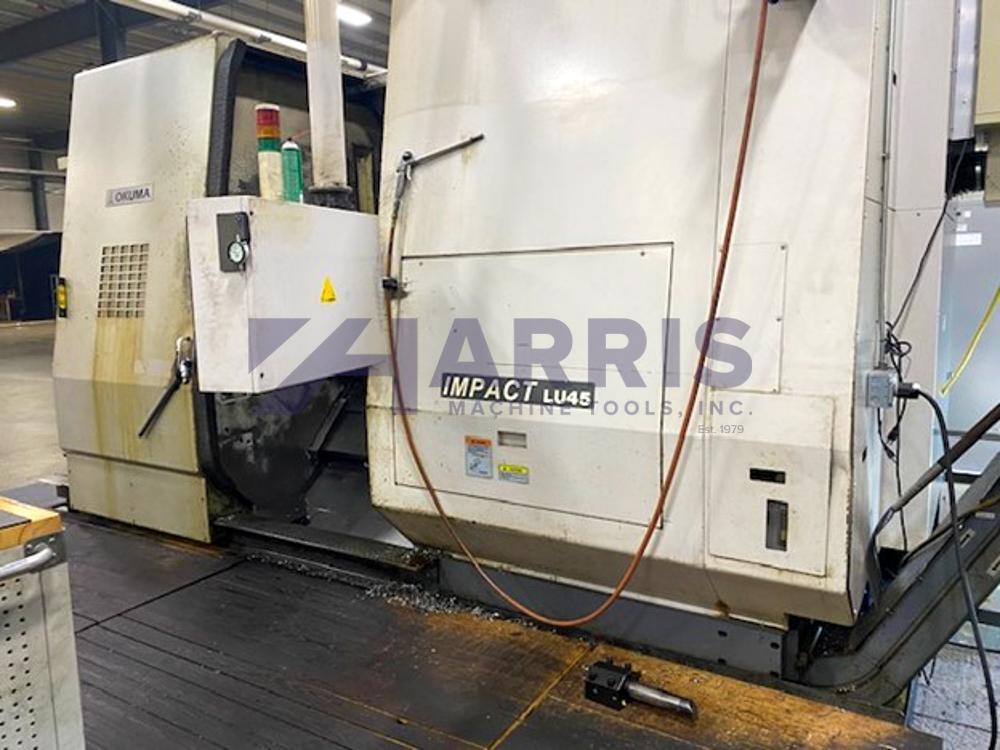

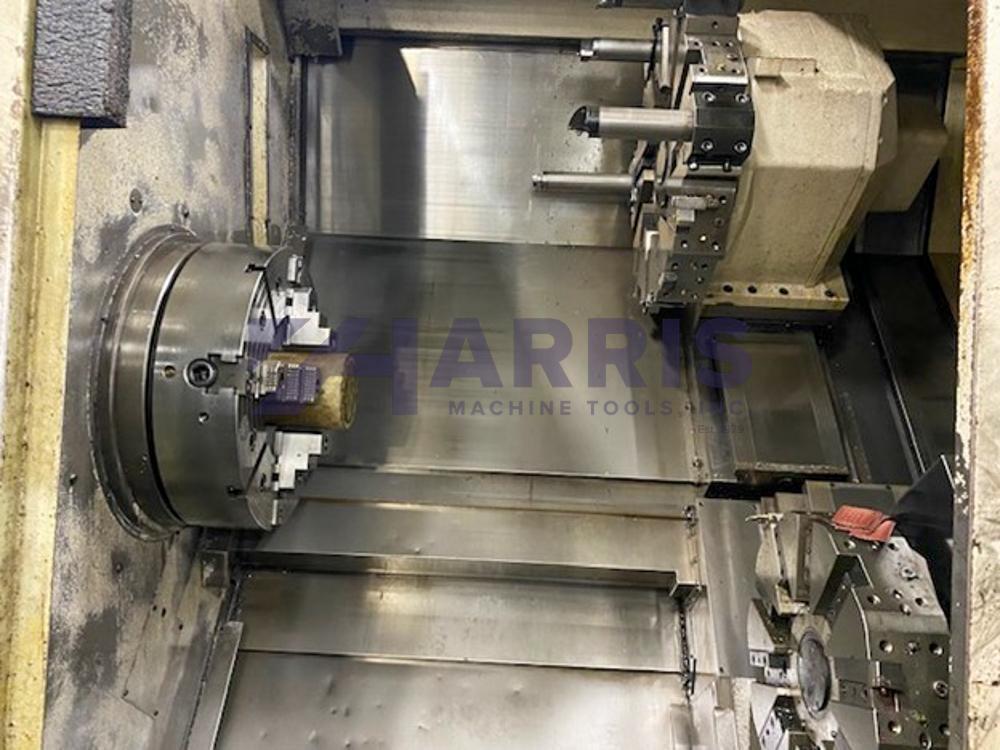

Okuma LU45 CNC Turning Center

Manufacturer

OKUMA

Category

Lathes

Type

LATHES, CHUCKING, CNC, (3-Axis Or More)

Stock

20602

Model

Impact LU45

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

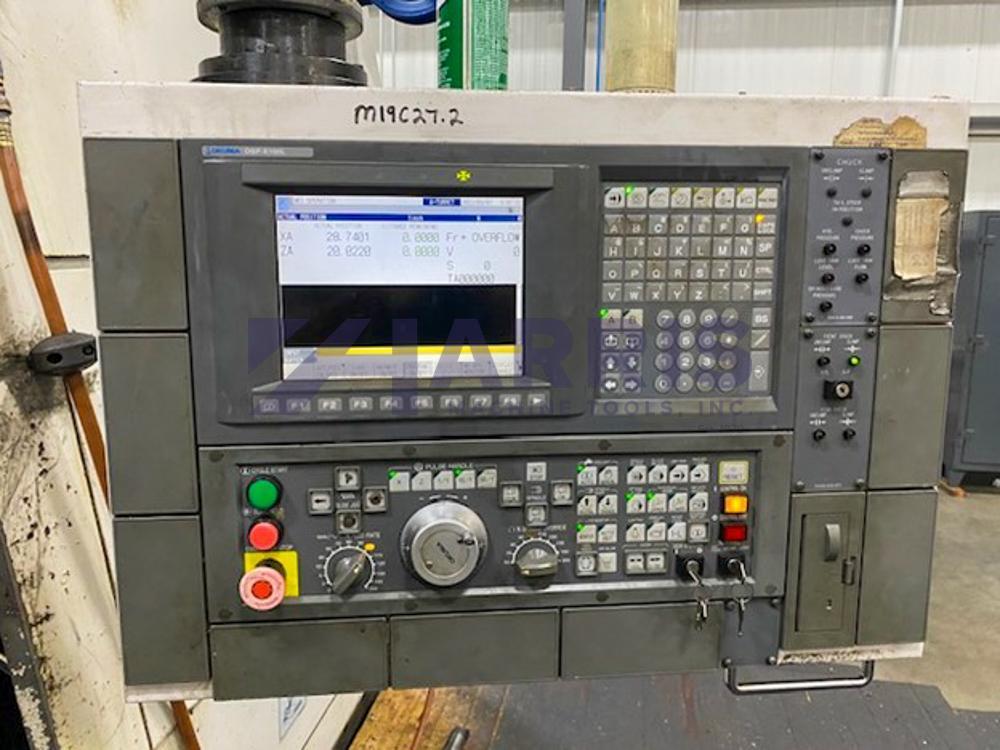

CNC Control - yes
Swing - 31.5 inches
Turning Diameter - 25.59 inches
Spindle Bore - 22 inches
Spindle Nose - A2-28
Spindle Speed (RPM) - 500
X-Axis Travel (Upper/Lower) - Upper 12.99" / -5.51" Lower 10.04" / -0.59"
Z-Axis Travel (Upper/Lower) - Upper 80.31" - Lower 39.9"
Y Axis (Yes / No) - yes
Y-Axis Travel - 5.51"
Turret Capacity (Upper/Lower) - Upper 12 / Lower 8
X Axis Rapid Feedrate - 196 inches-per-minute
Z Axis Rapid Feedrate - 393 inches-per-minute
Tailstock (Yes/No) - yes
Dimensions - 205"L x 90"W x 94"H
Weight - 51260 pounds
Power - 30 horsepower
Tailstock Taper - MT #6
Tailstock Stroke - 7.87
Tailstock Diameter - 7.09
Spindle Motor - 50/60HP


NO CHUCKS INCLUDED BUT CHUCKS AVAILABLE AT ADDITIONAL COST
