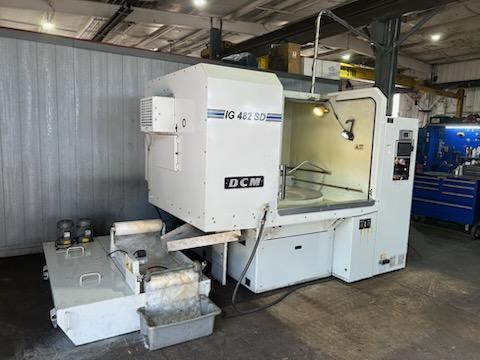

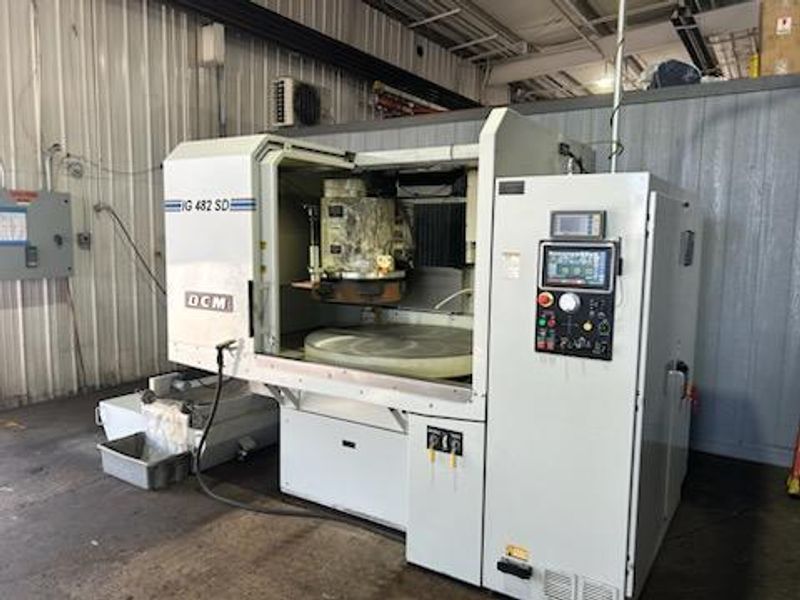

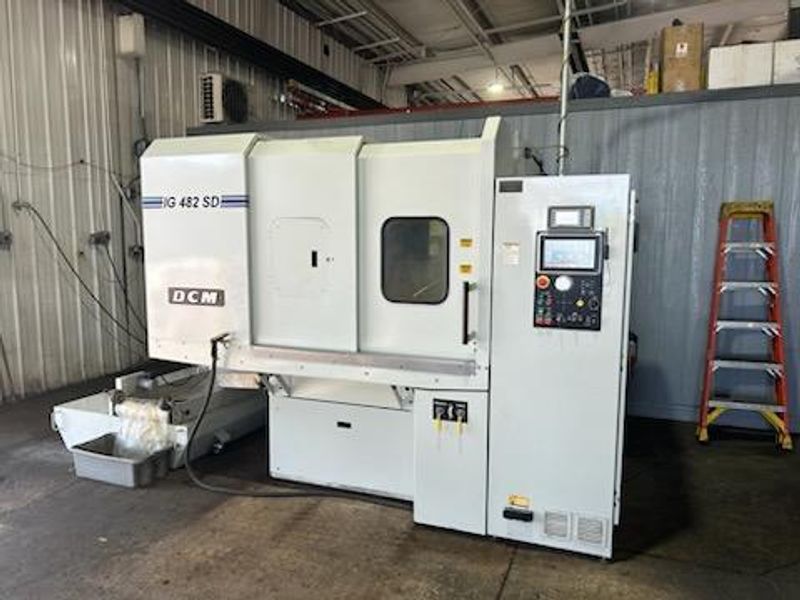

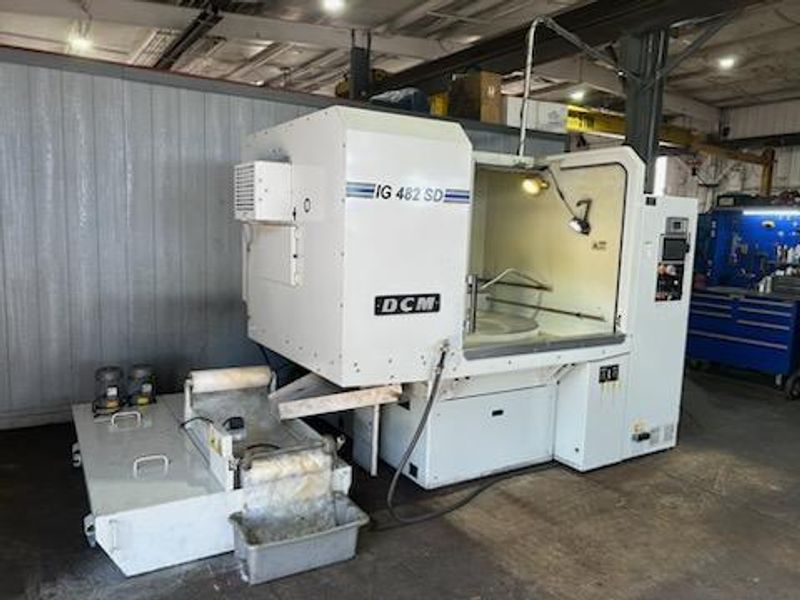

Used DCM 48" Vertical Spindle Rotary Surface Grinder

Manufacturer

DCM

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

JOM000

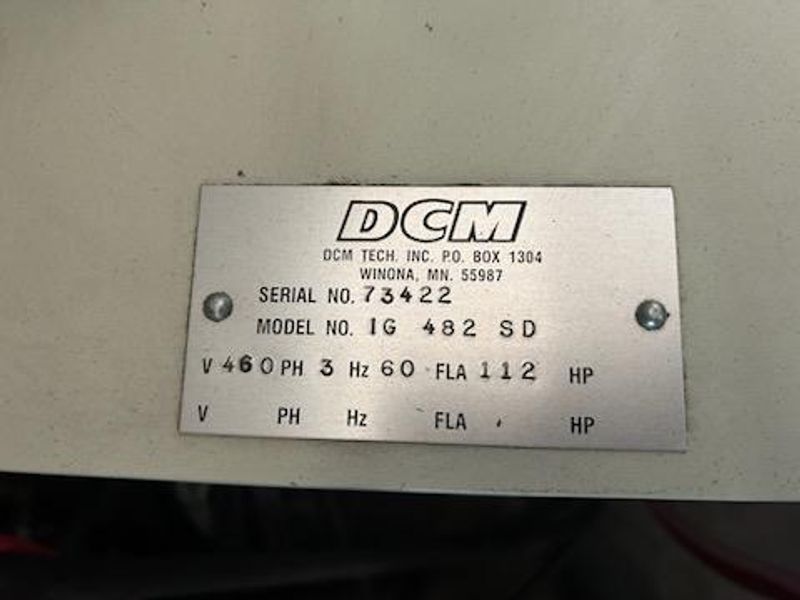

Model

1G 482 SD

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet



- 48” variable speed electromagnetic chuck w/ auto demag cycle

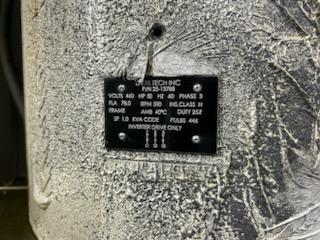

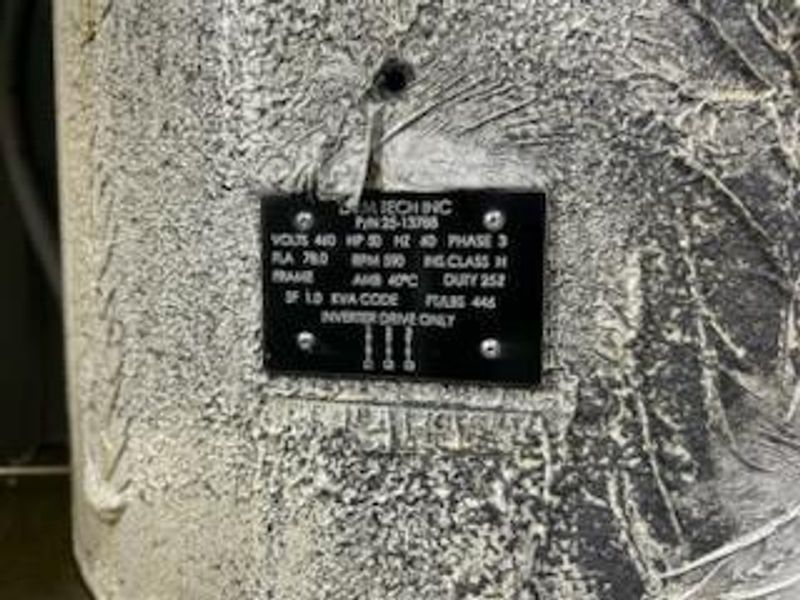

- 50HP grinding spindle motor

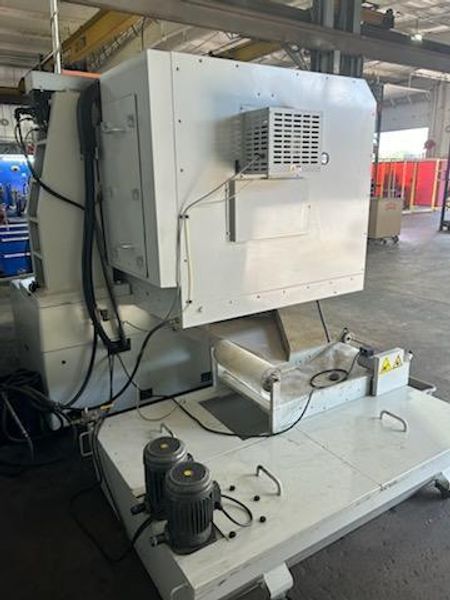

- Integral coolant filtration & mist collection systems

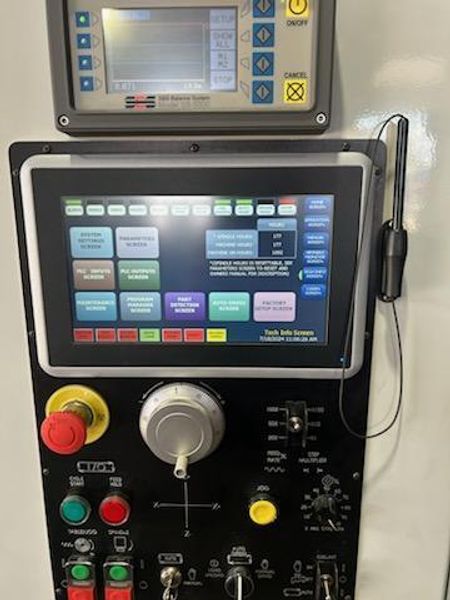

- Easy to operate touchscreen controls

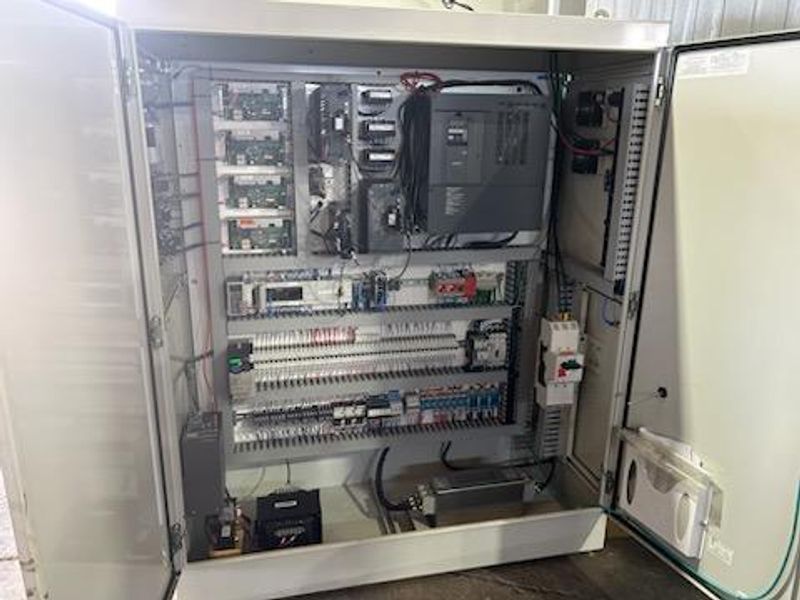

- Mitsubishi FX5U PLC
- 3 Grinding Modes - Conventional, Incremental and Grind to Height
- Regrind feature allows re-running previous grind sequence with reprogramming
- Continuous grind – the machine can automatically cycle through grind 1, 2 & 3
 - Servo-driven precision control of both Z and X-axis with absolute home positioning
- The cross slide X-axis moves with manual pulse generator
- Backlash compensation on both axes
- Password protection & operator lockout features
- Ethernet switch connection for SECS/GEM or Scada type software interfacing
-  Data logging and HMI audit trail capability
