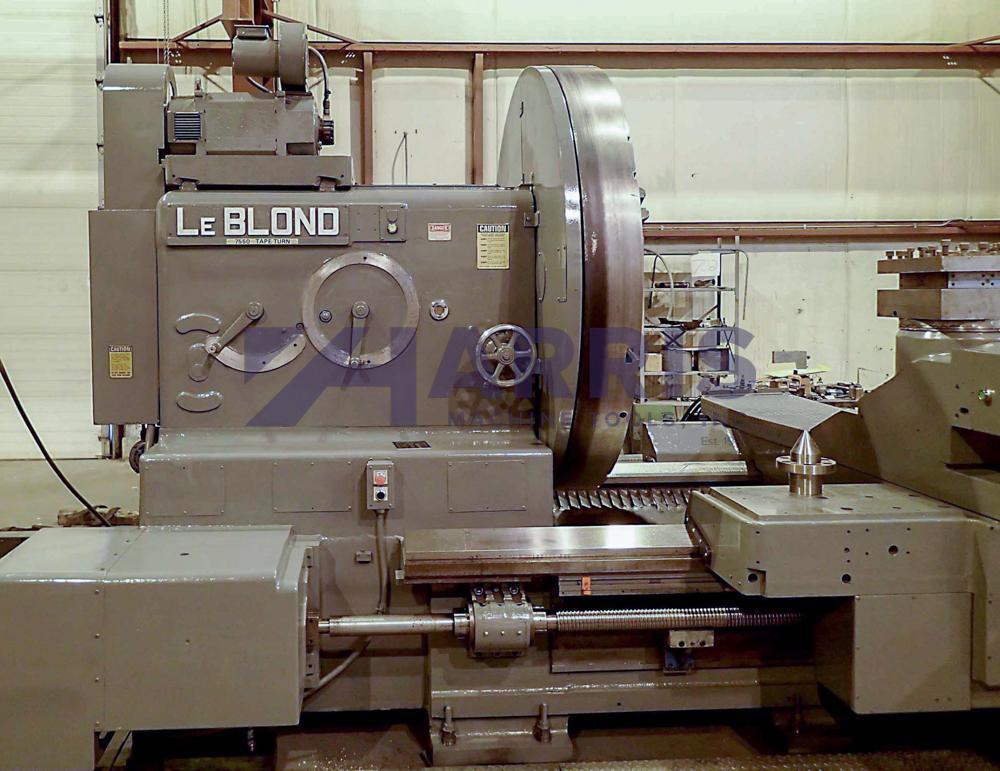

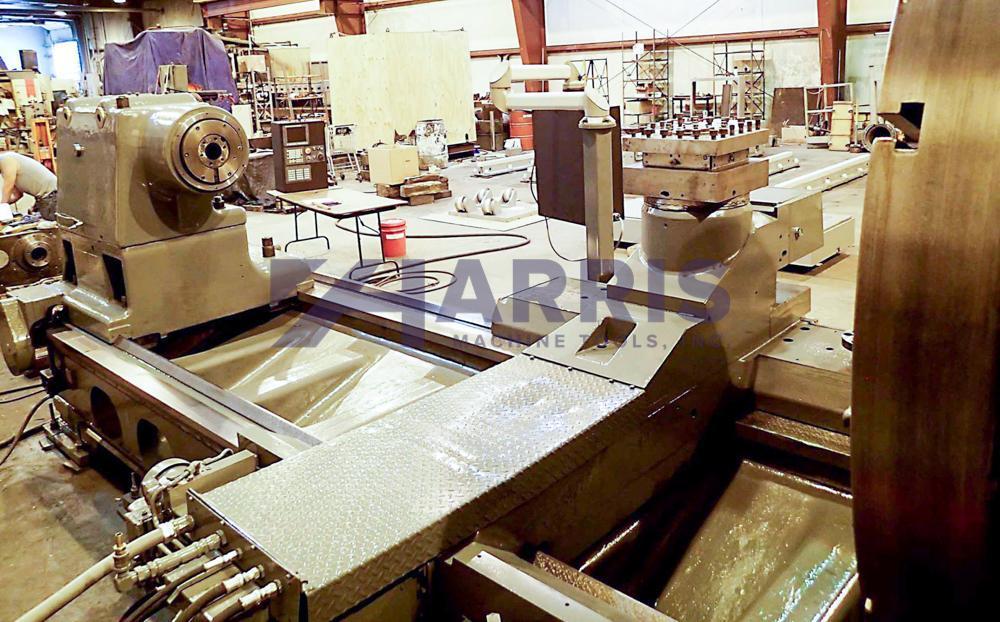

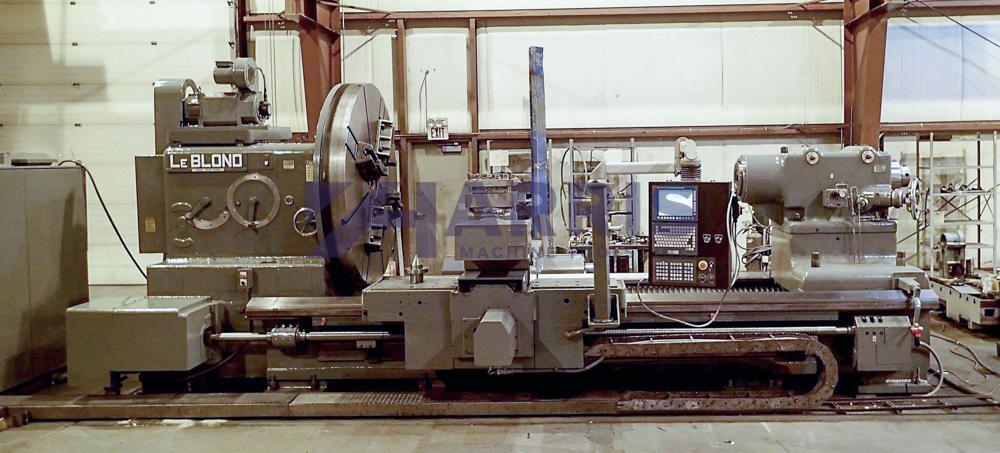

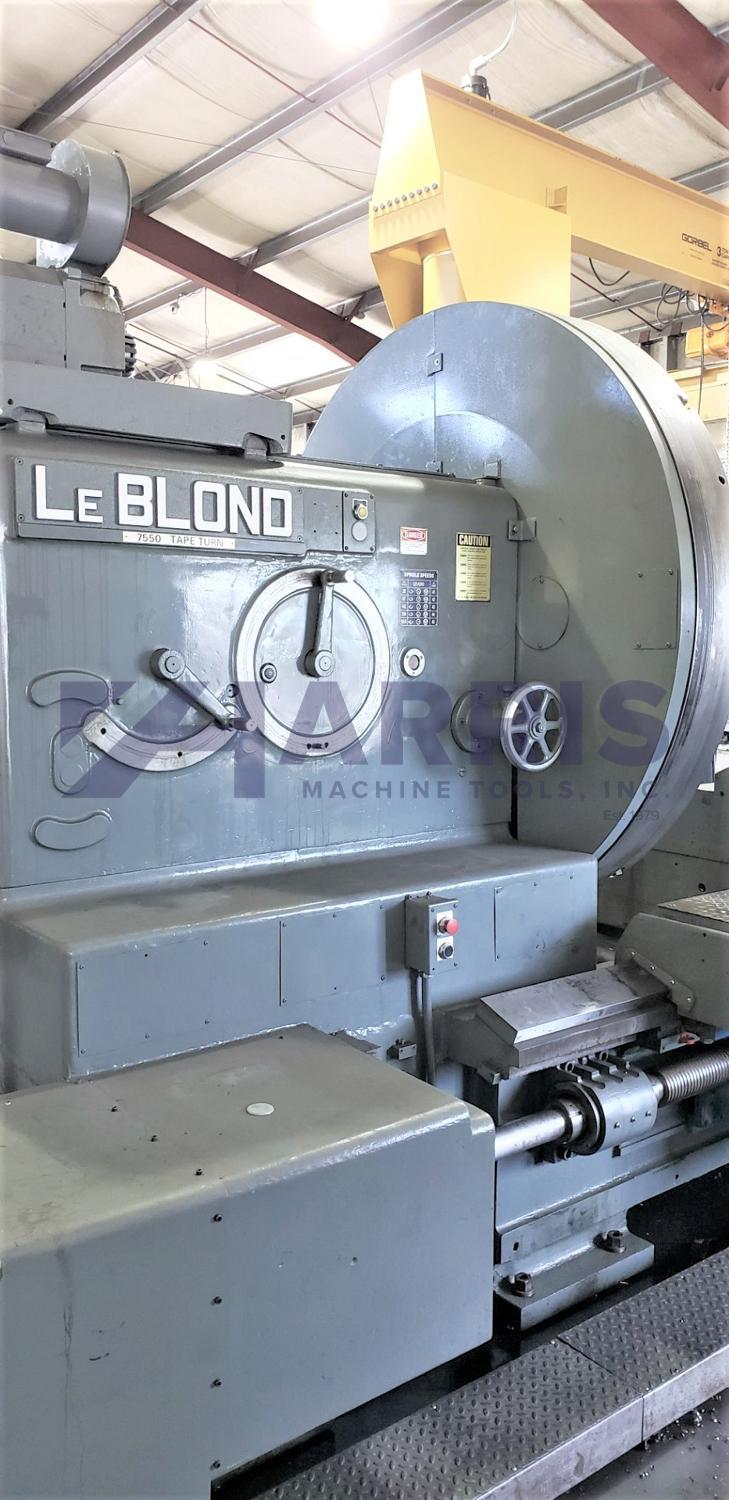

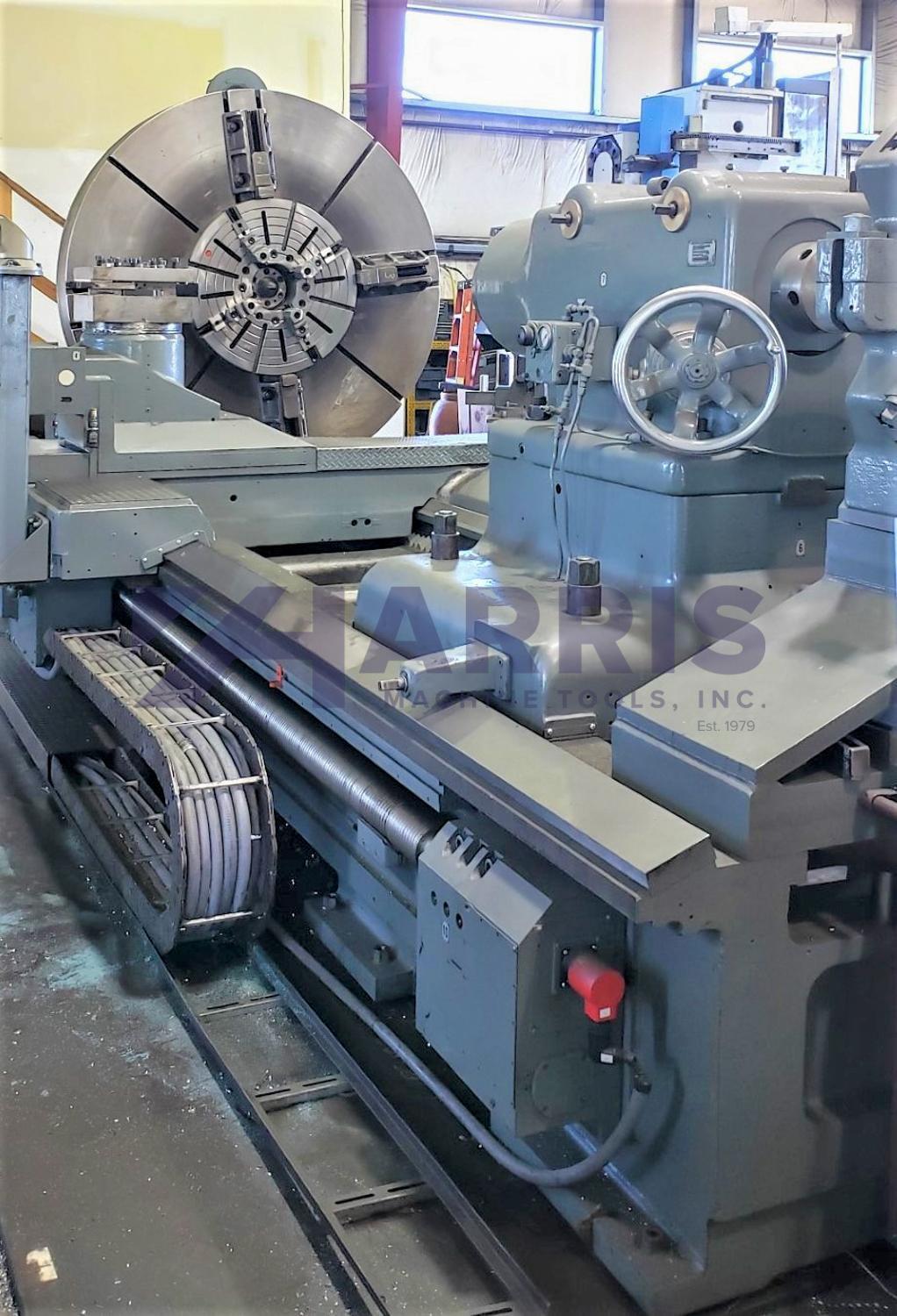

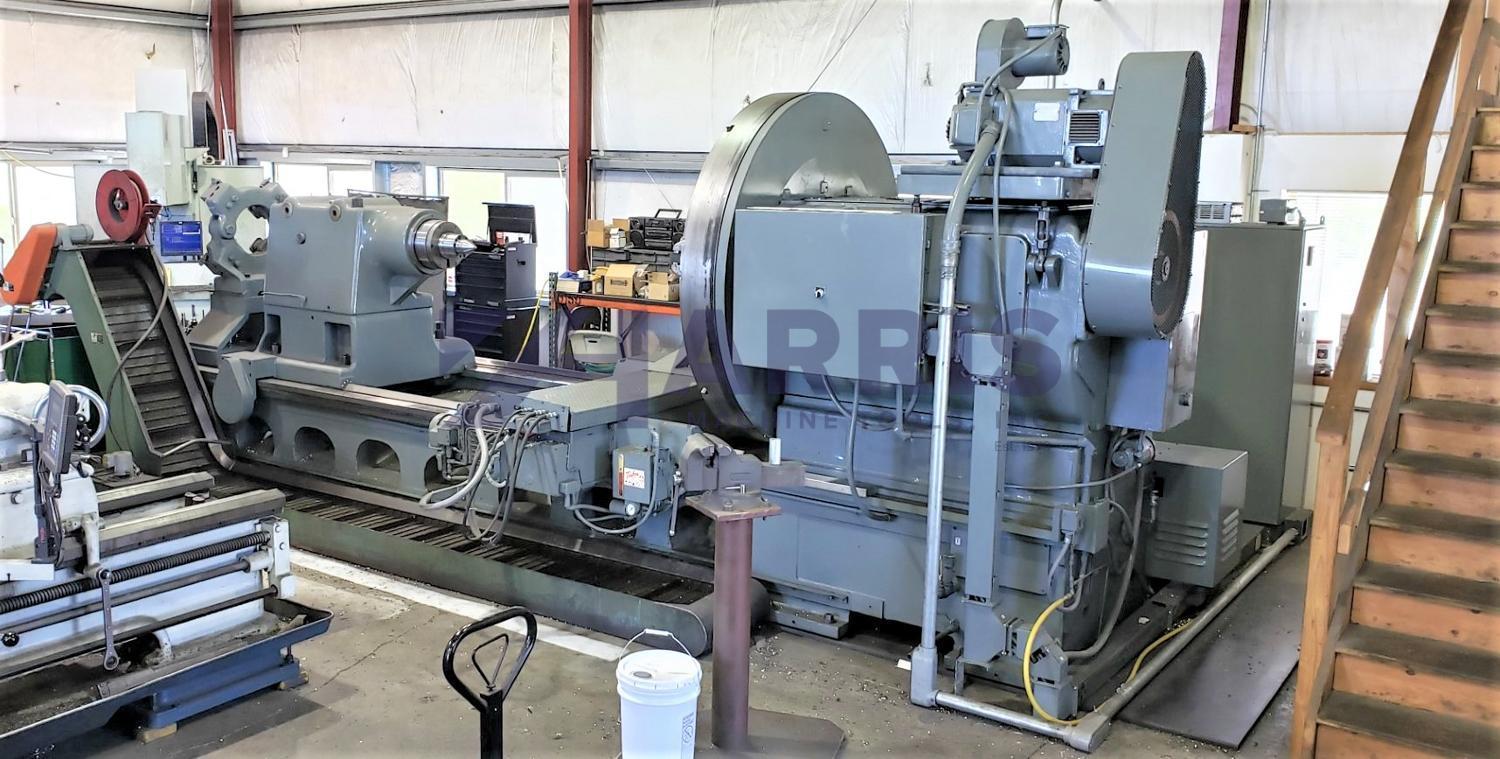

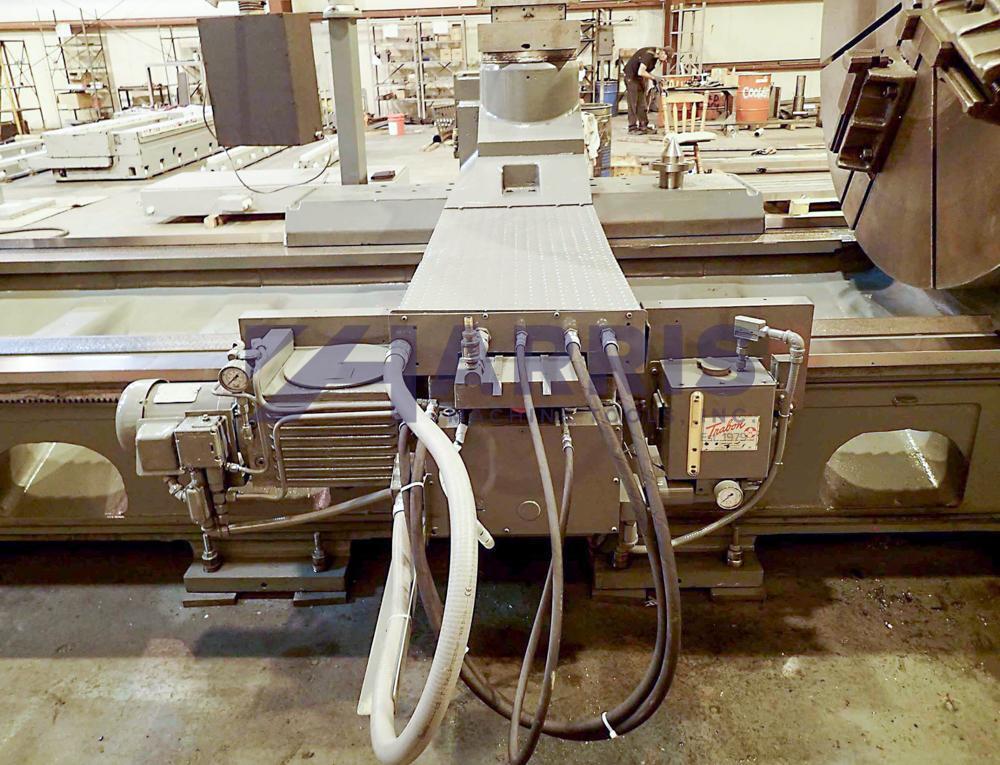

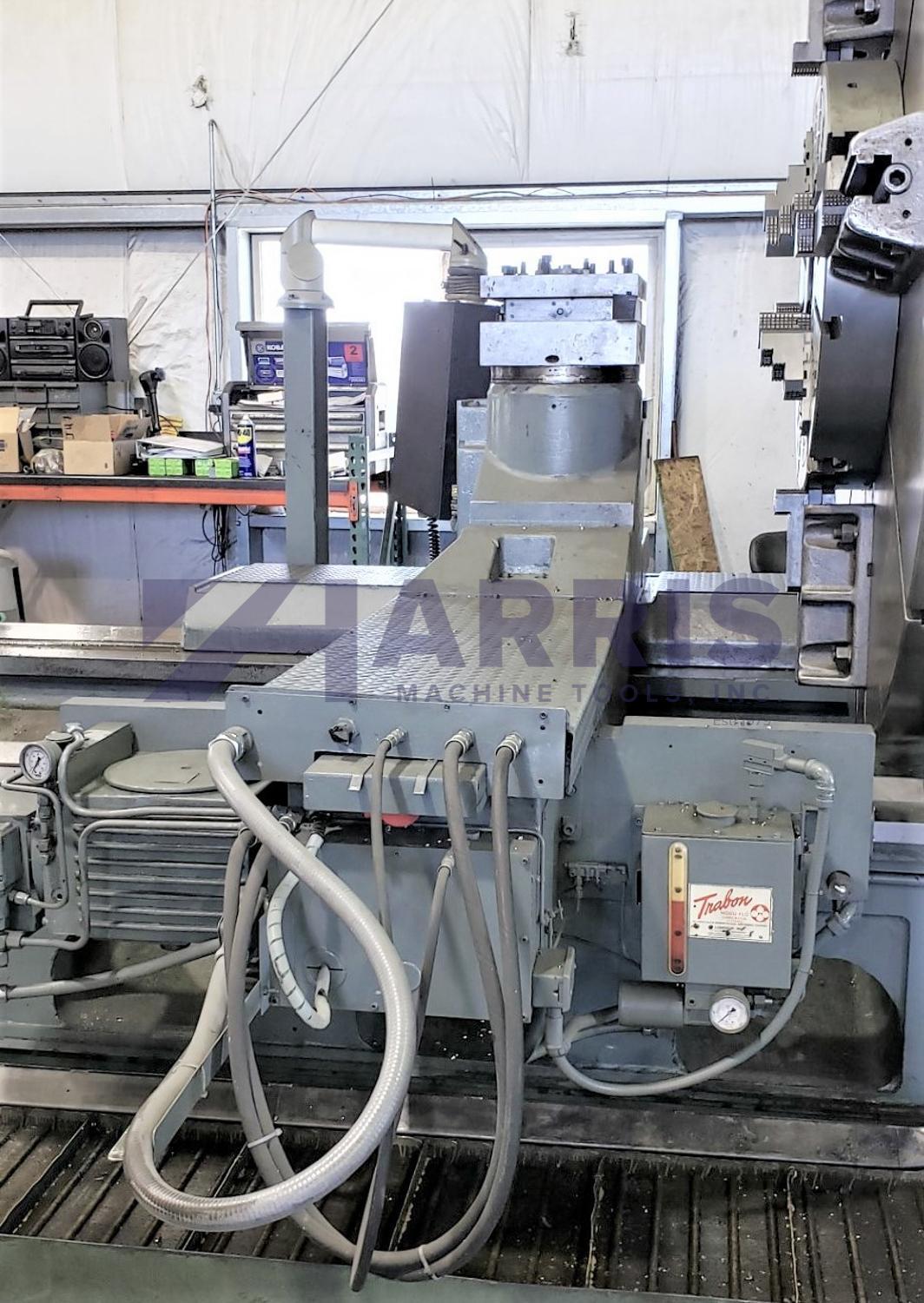

75" x 120" LeBlond Wide Bed Heavy Duty CNC Lathe

Manufacturer

LEBLOND

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

20605

Model

7550 Tape Turn

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

CNC Control - yes

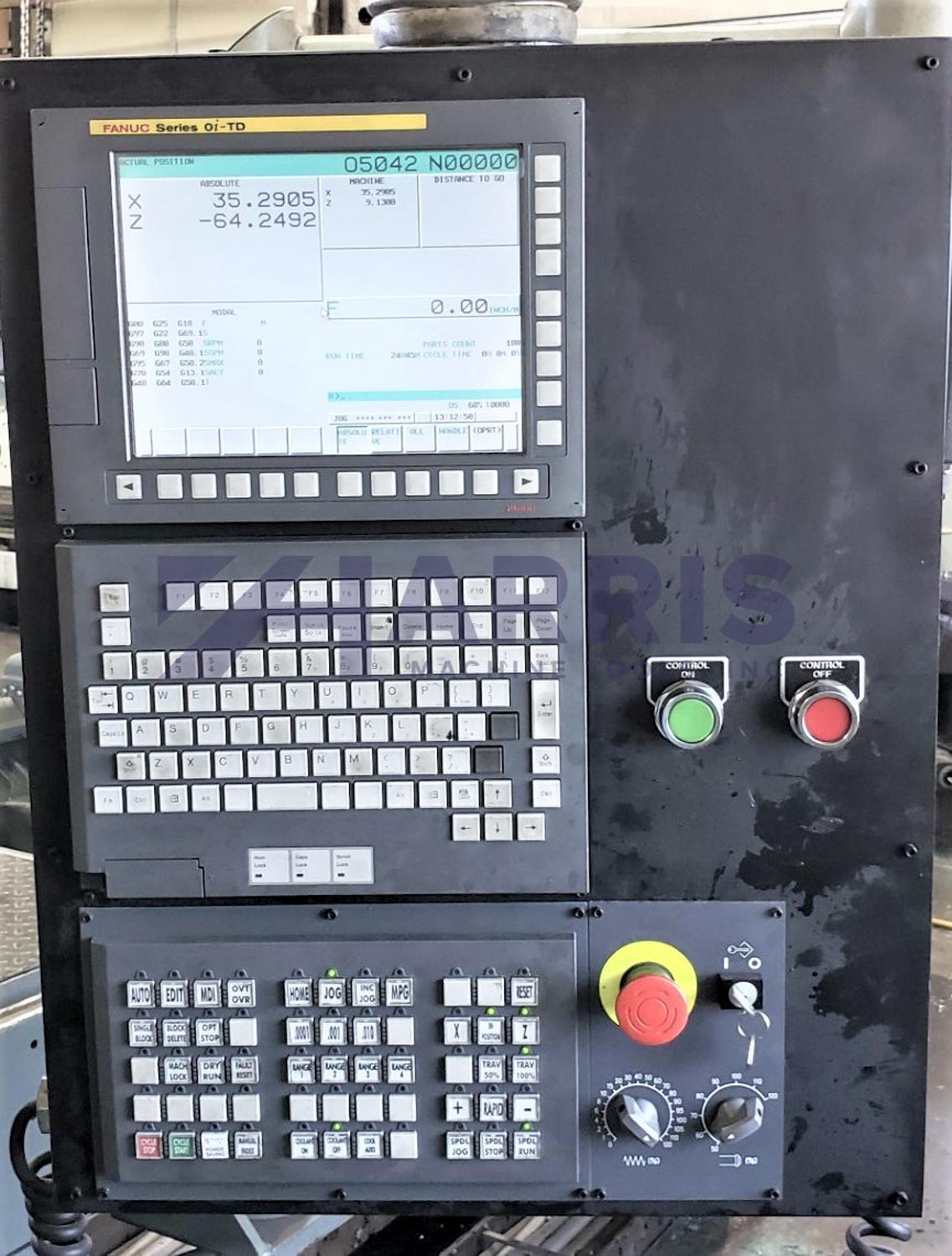

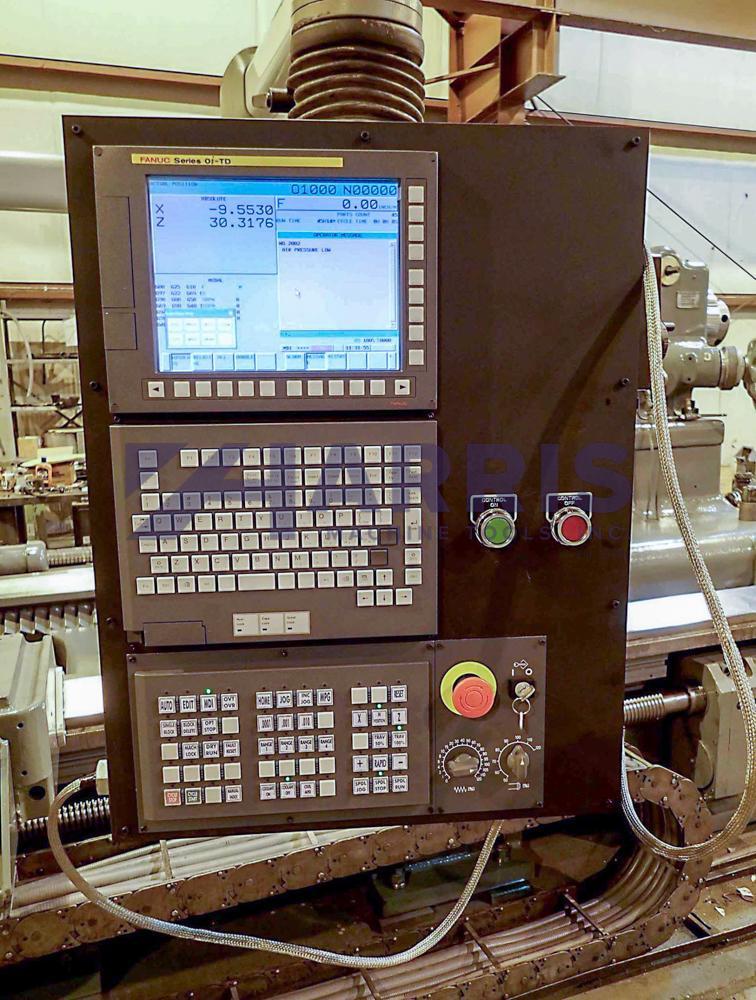

Type of CNC Control - Fanuc 0iTD

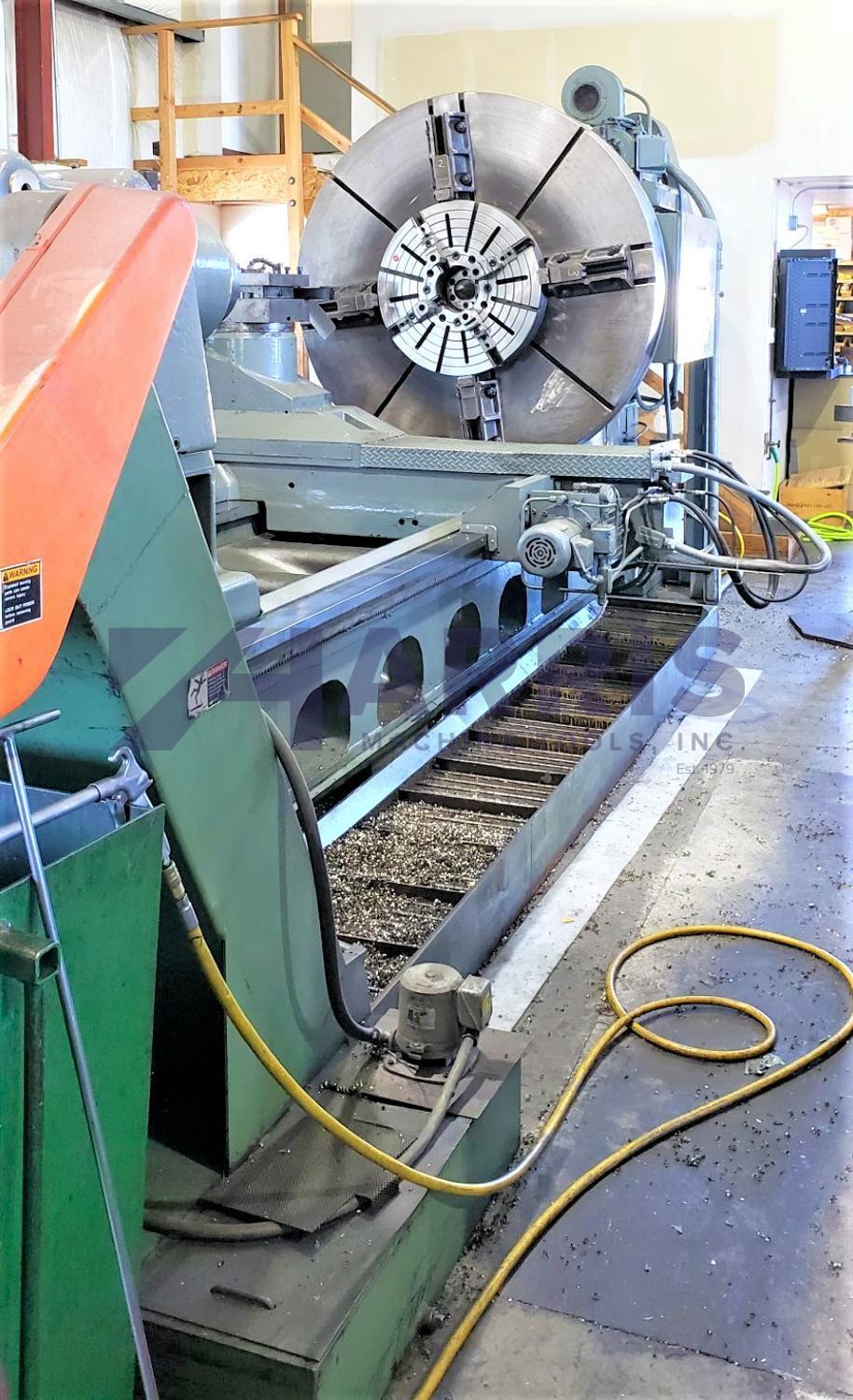

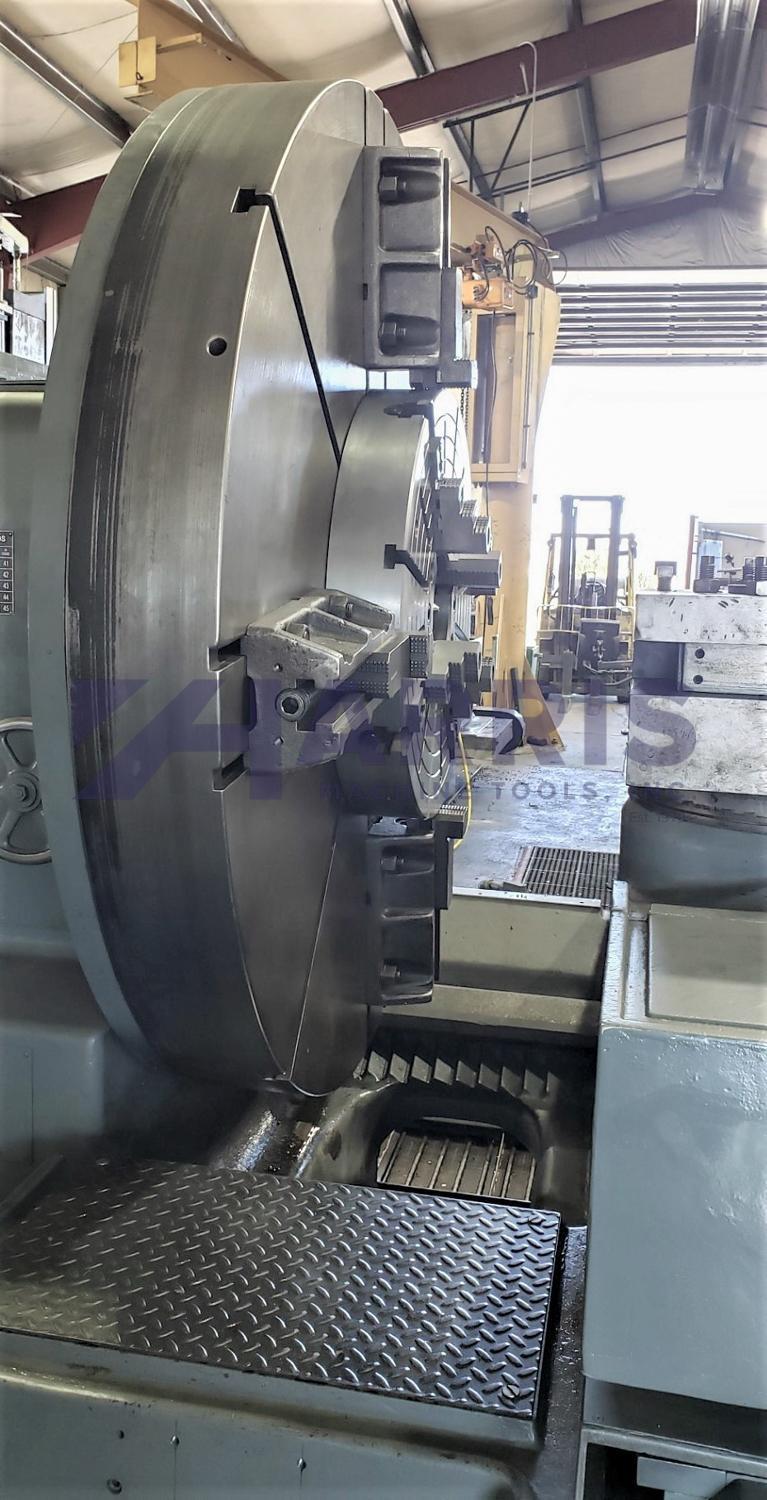

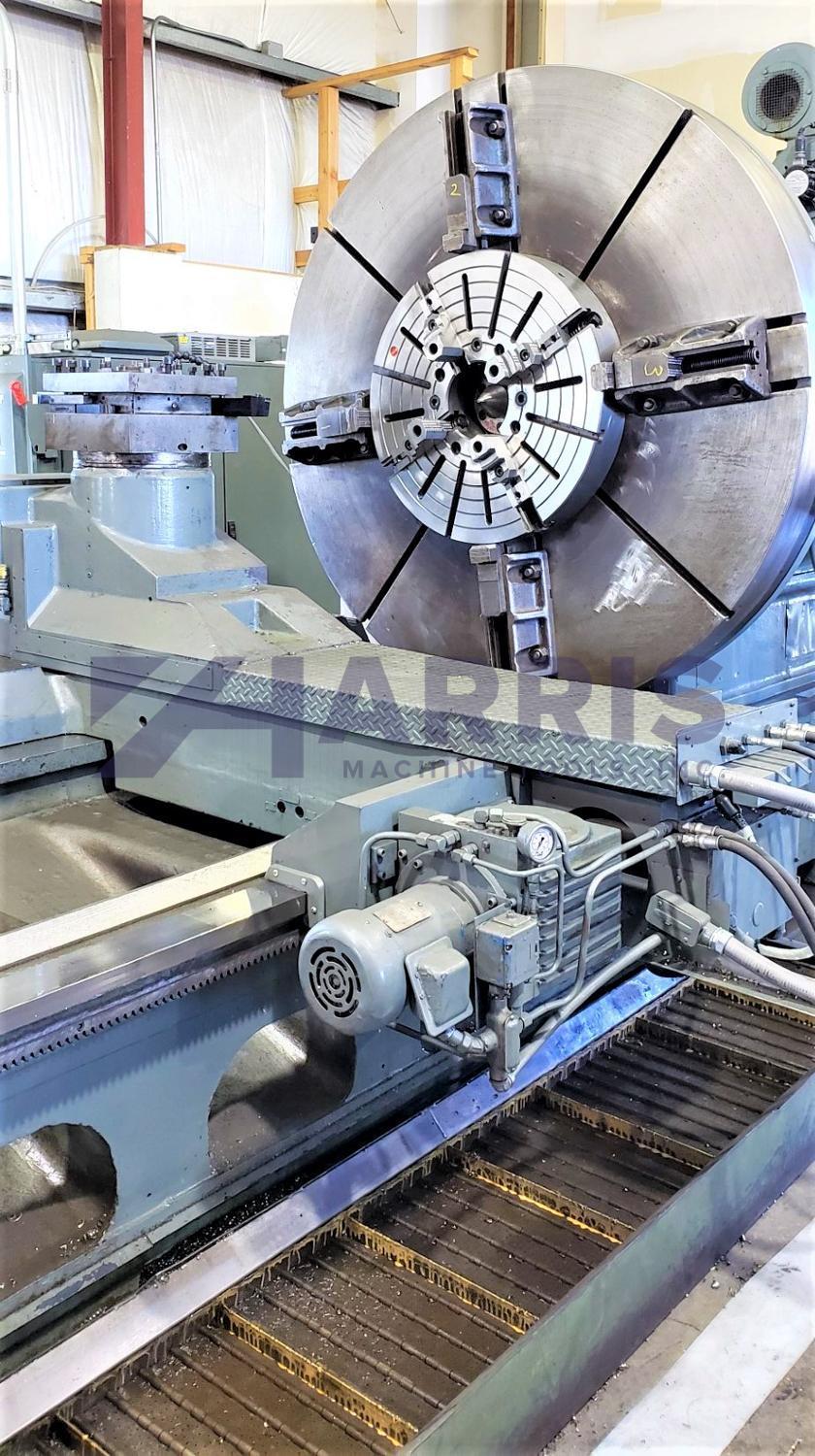

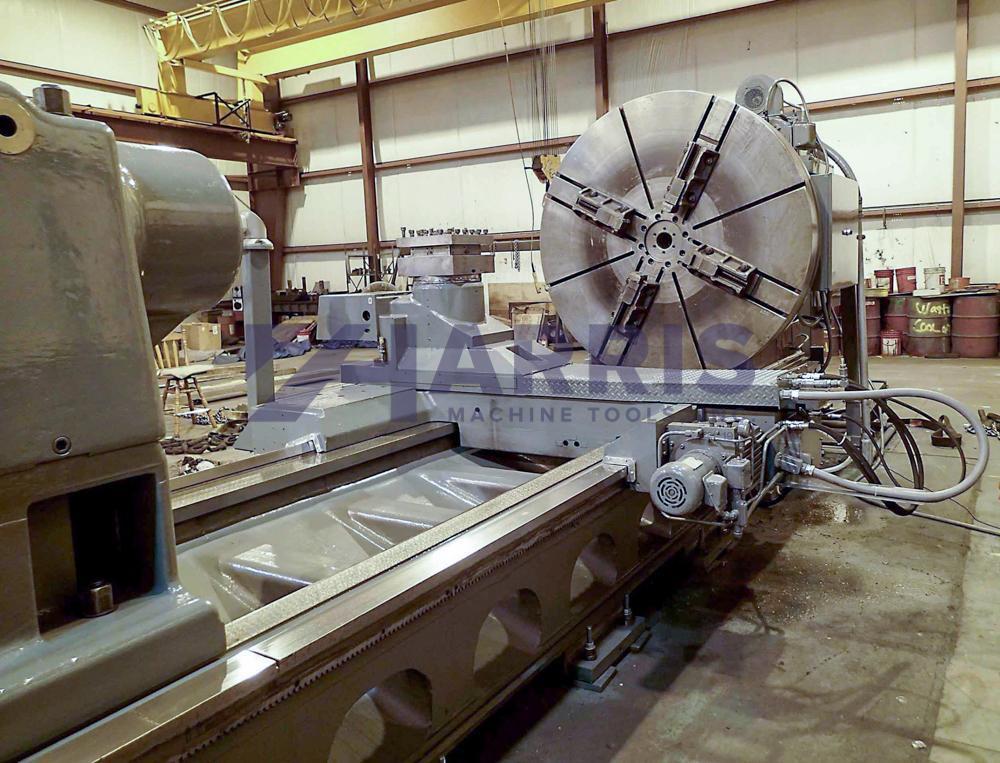

Face Plate Diameter - 72 inches
Swing - 75 inches
Center Distance - 120 inches

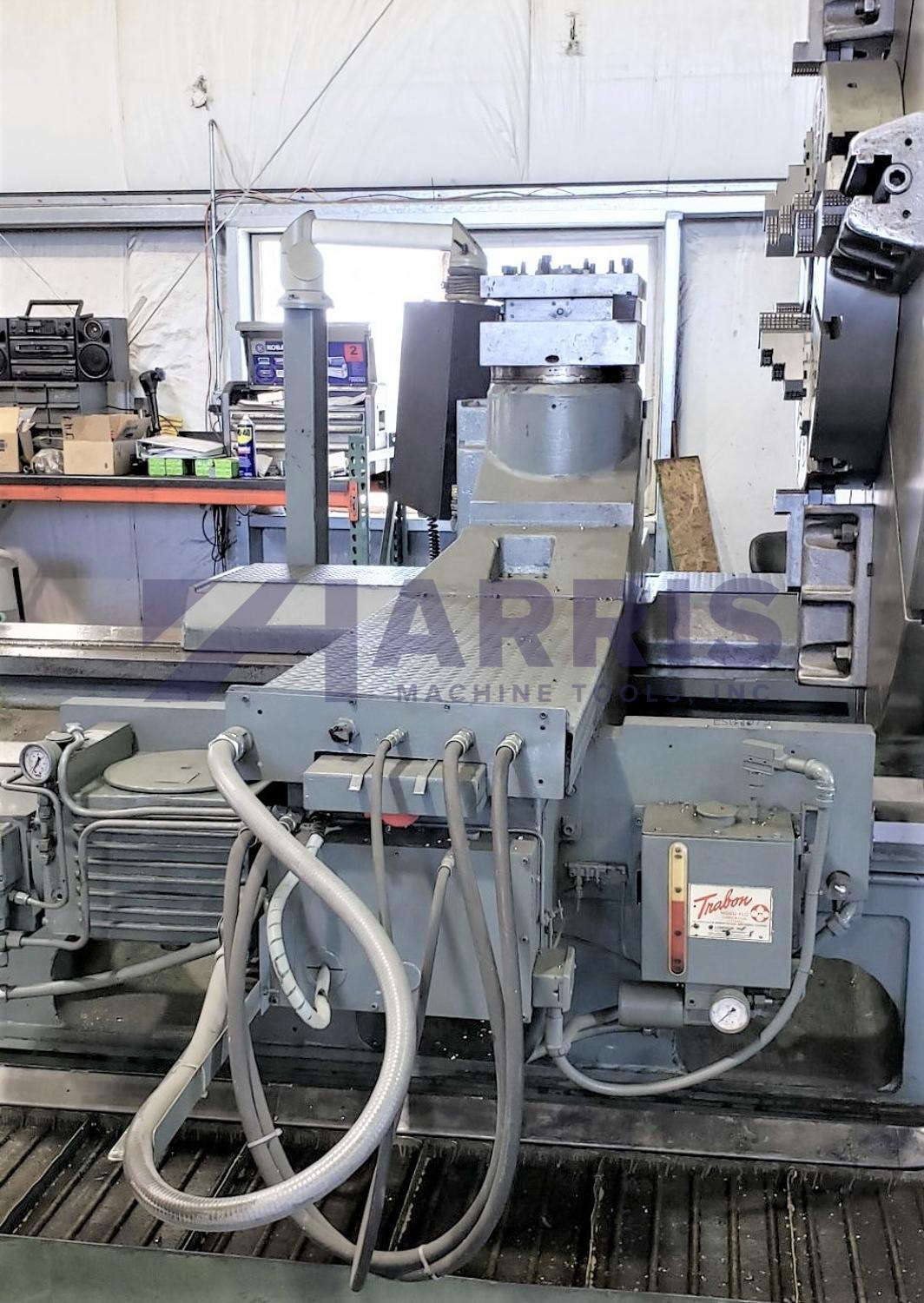

Turret Capacity - 12
Dimensions - 343 x 112 x 116
Weight - 75000 pounds
Swing Over Cross Slide - 52 inches
Travel-Cross - 42.5 inches

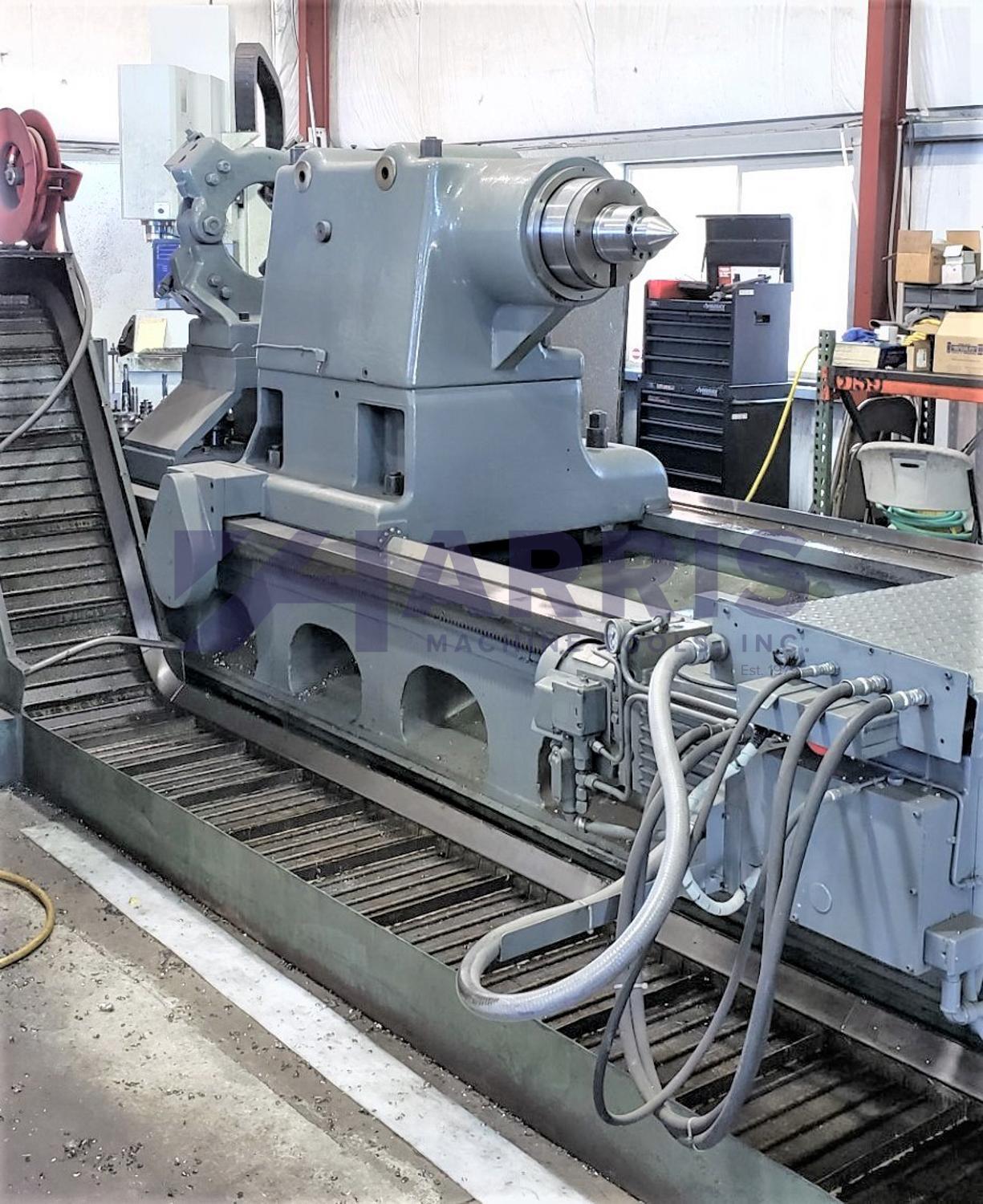

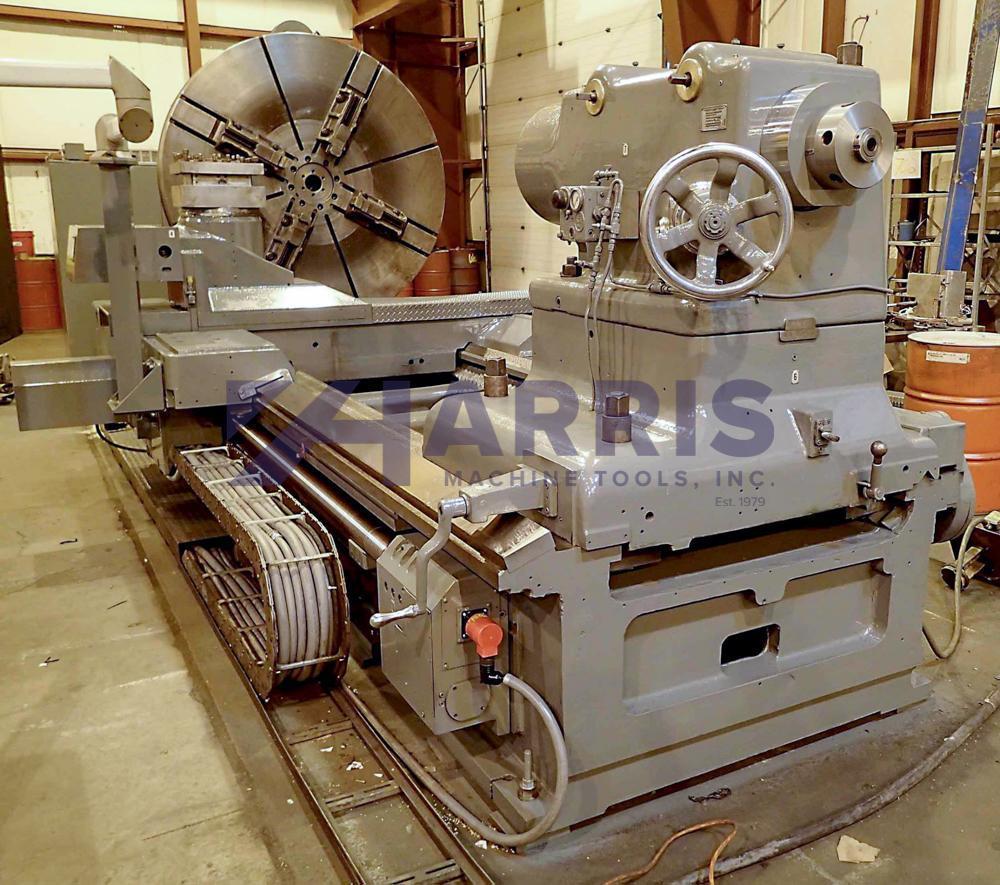

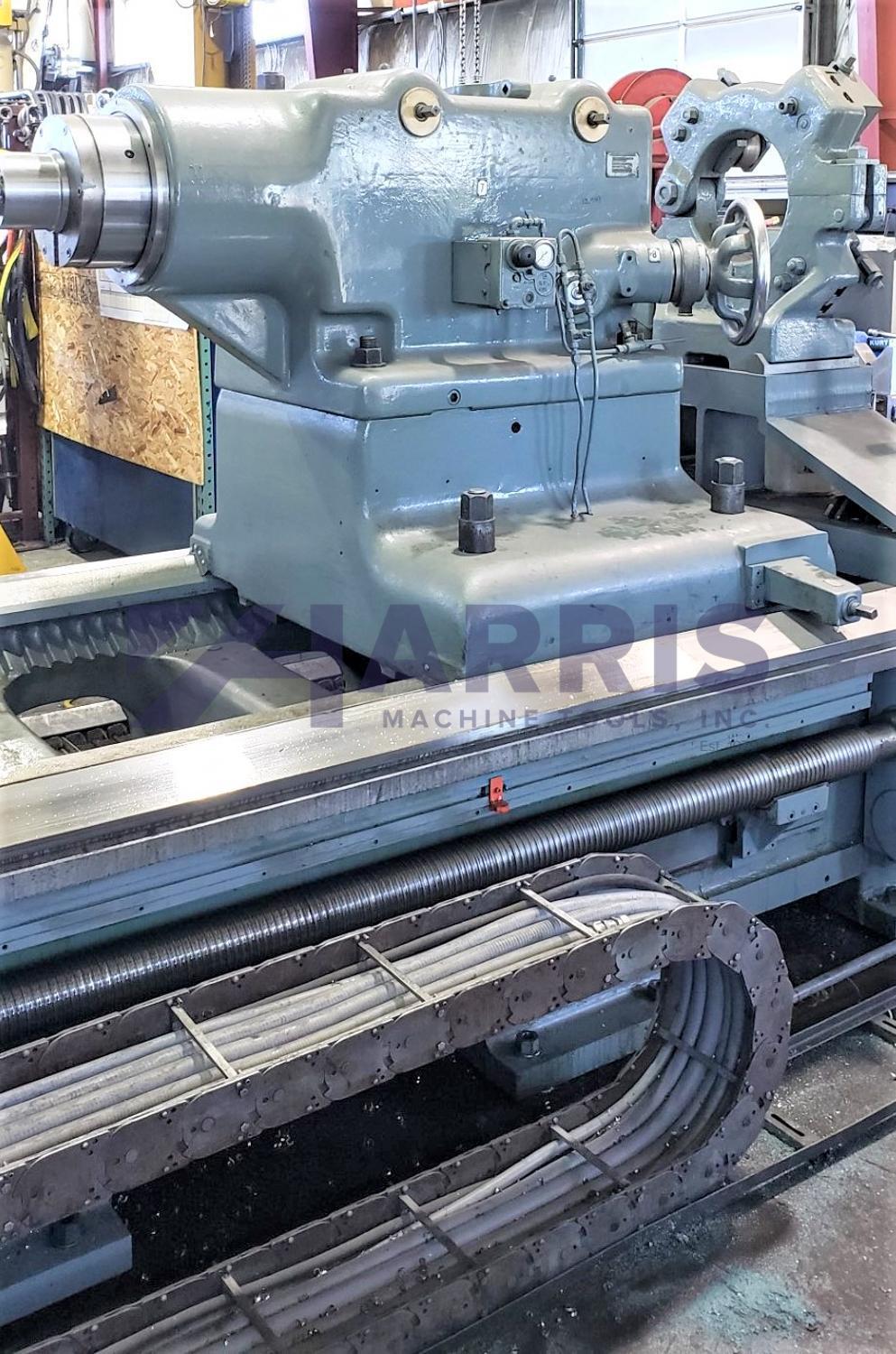

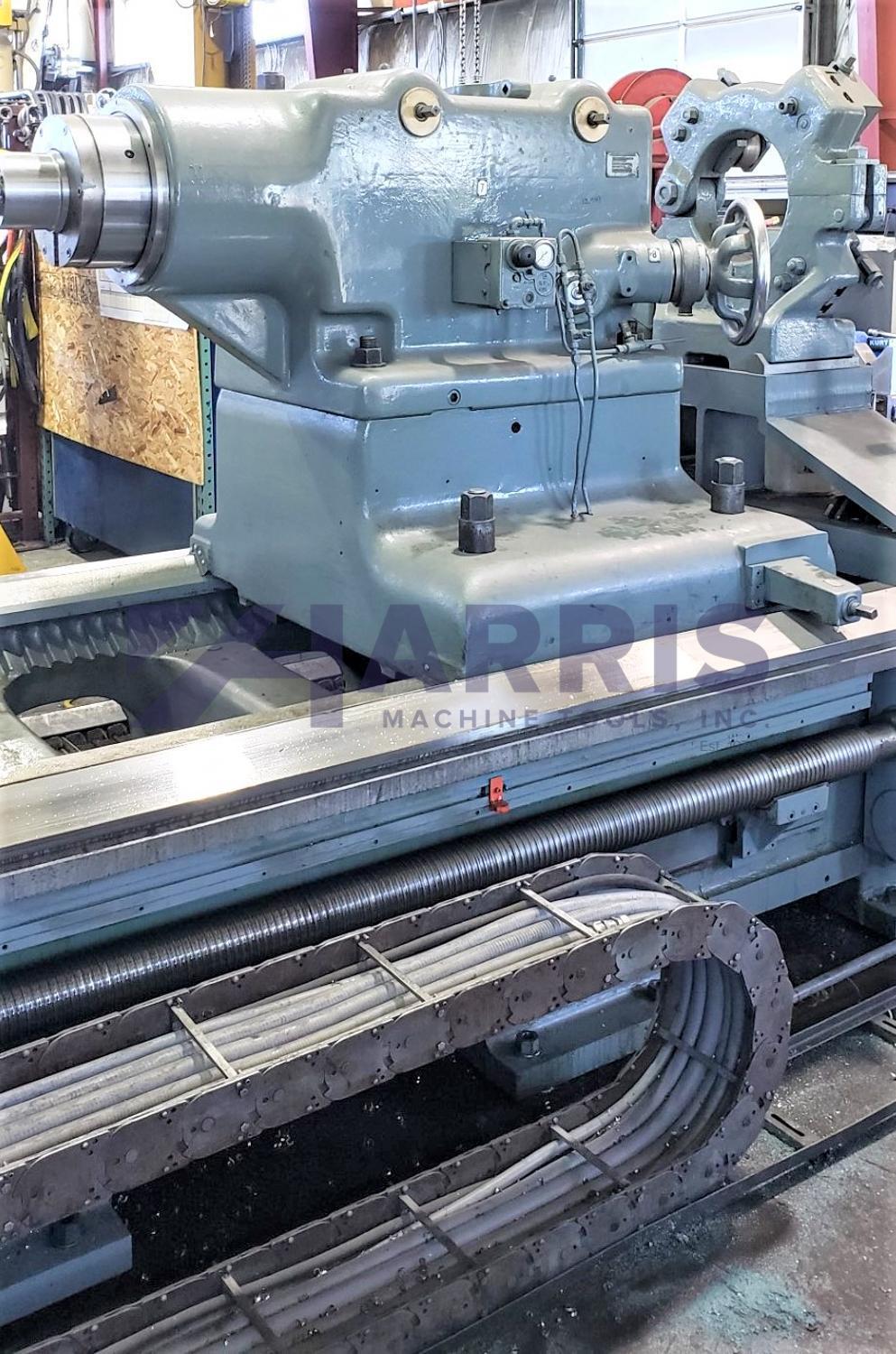

Tailstock - Quill Diameter 12"
Max Work Piece Weight - 100,000lbs at 13RPM / 77,600lbs at 175 RPM / 61,500lbs at 300 RPM
Bed Width - 60 inches

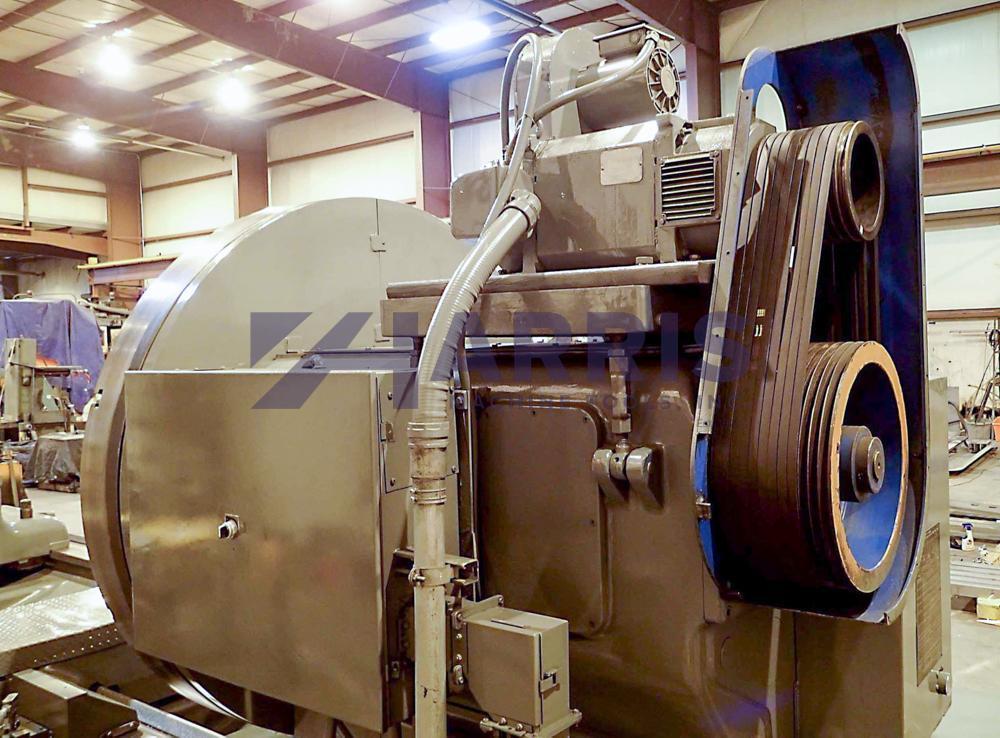

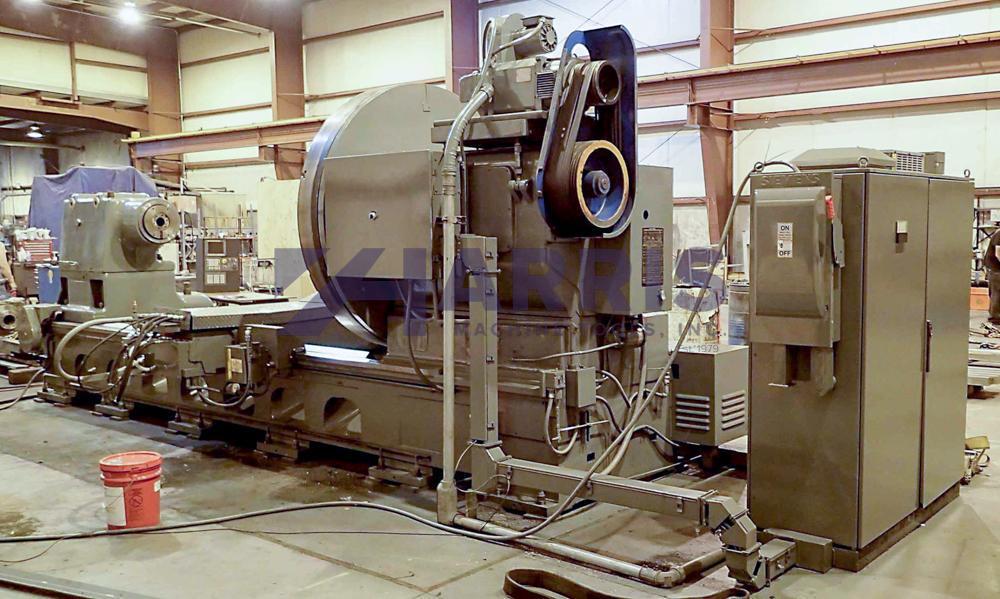

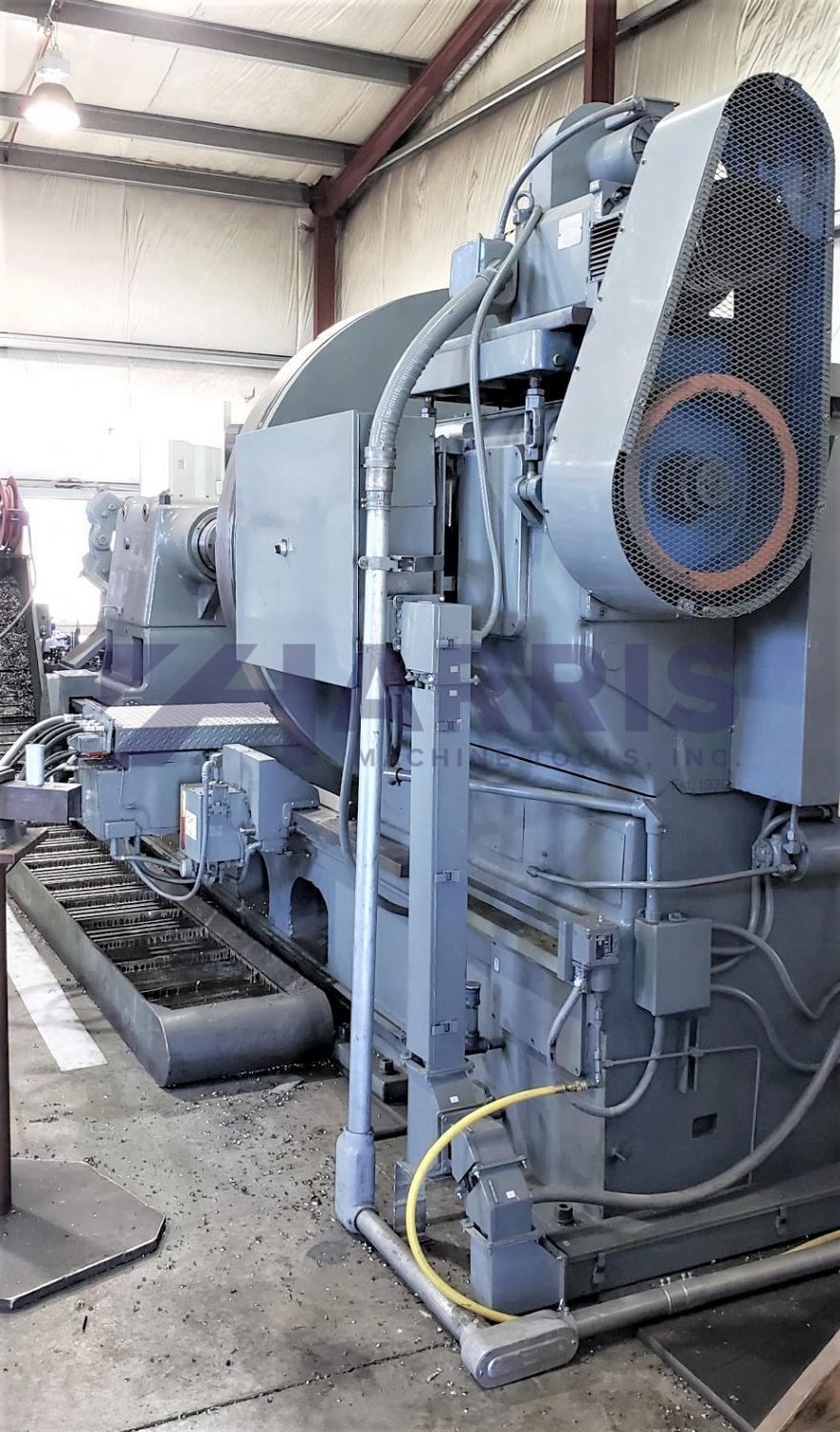

Spindle Motor - 80HP
Spindle Speed (RPM) - 300
Feed Ranges - infinite up to 200 IPM

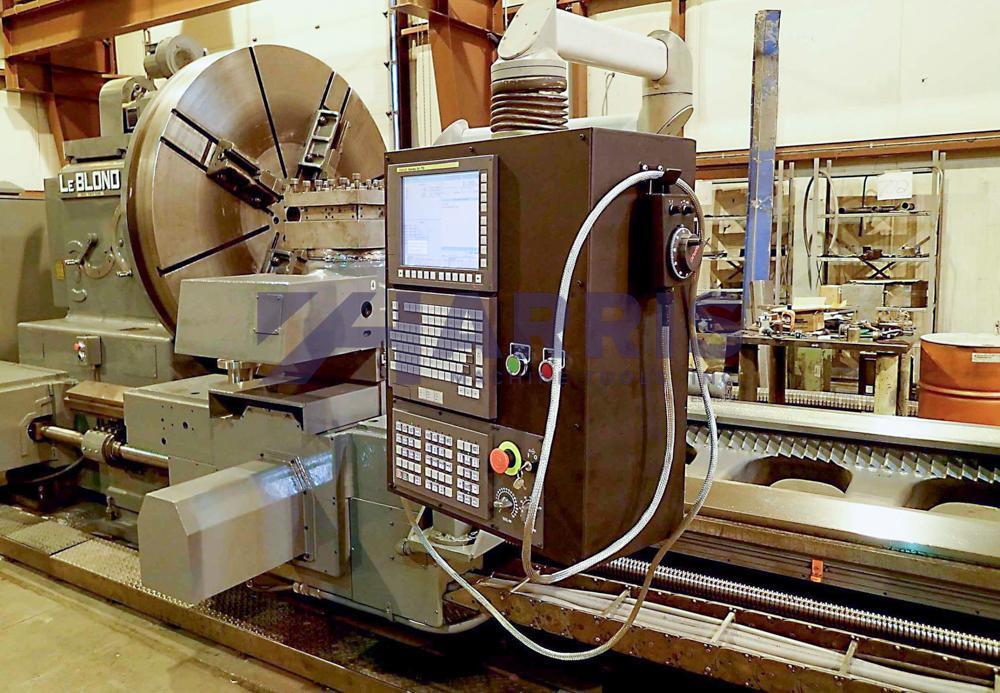

  • Swivel pendant control on carriage
  • Description of retrofit / reconditioning work performed:

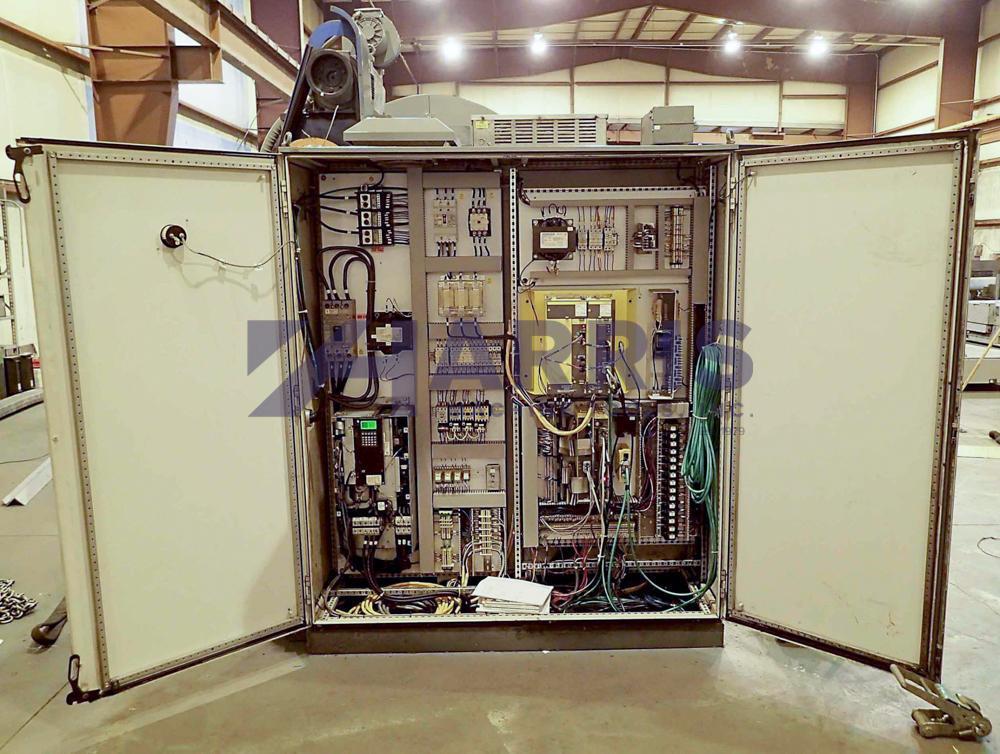

    Complete new Fanuc control/servos/drives.
    New Spindle Drive package.
  • All mechanical remanufacturing done:

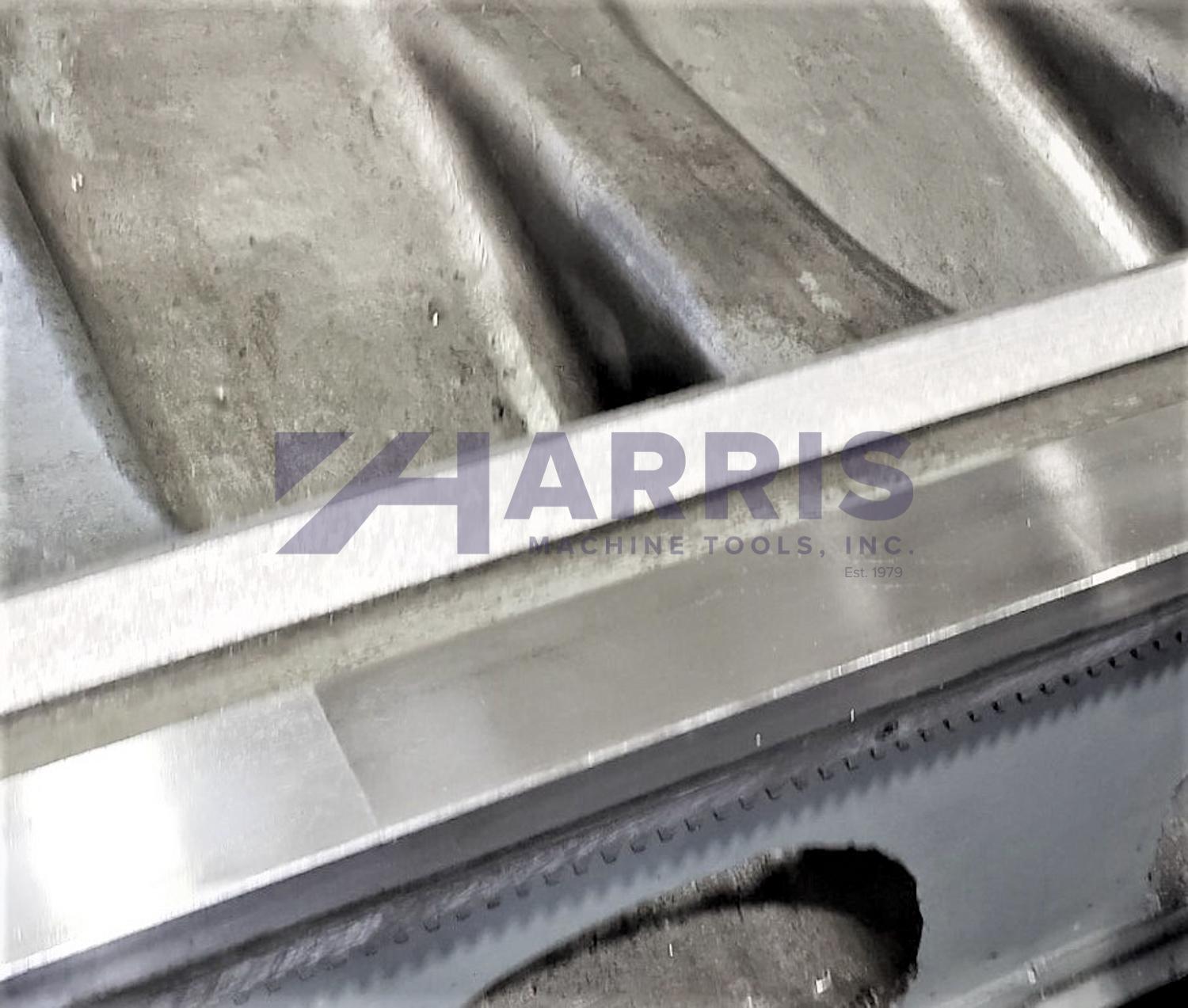

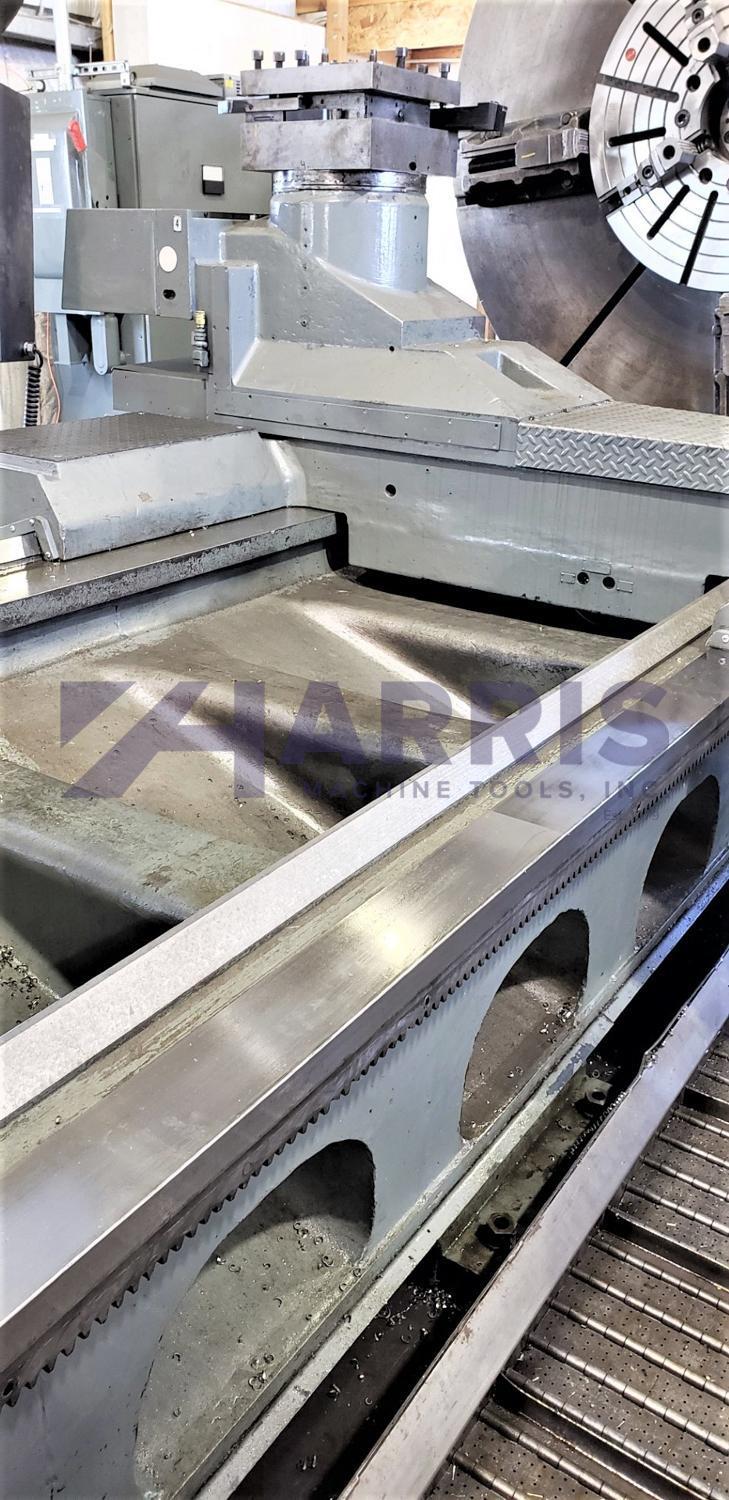

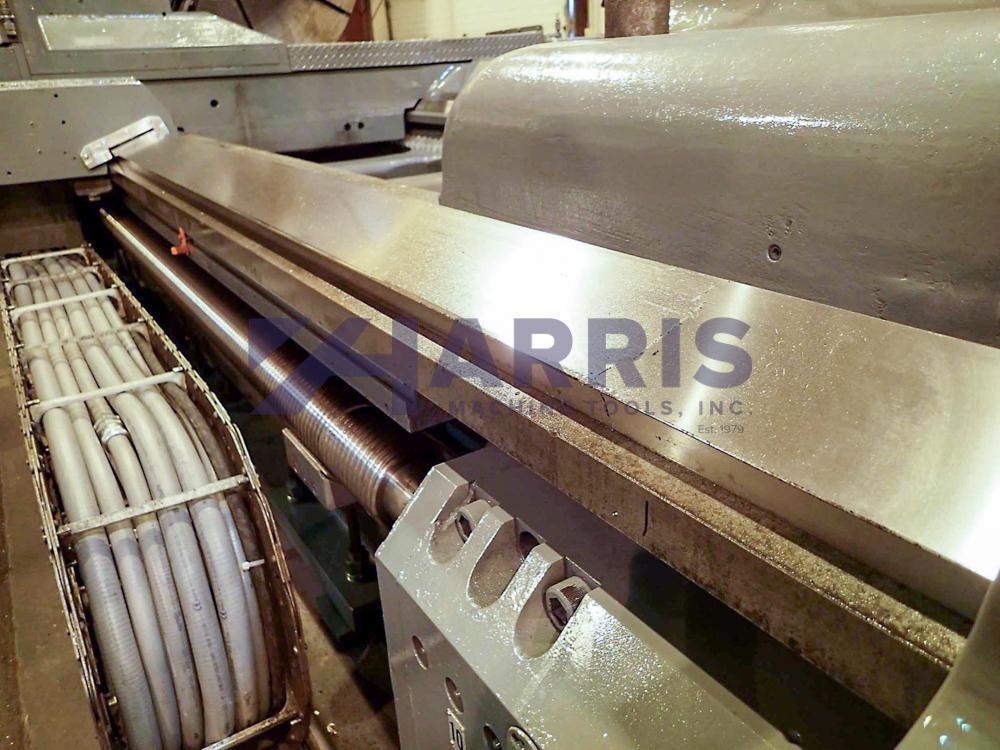

    new ballscrews, ground and scraped ways, tailstock rebuilt complete, spindle head rebuilt, new bearings, etc., turret completely rebuilt, new axis and spindle feedback (absolute encoders) all new electrics and wiring warranty complete.
  • This is a great candidate for a roll turning application
*All specifications are subject to buyer verification.
