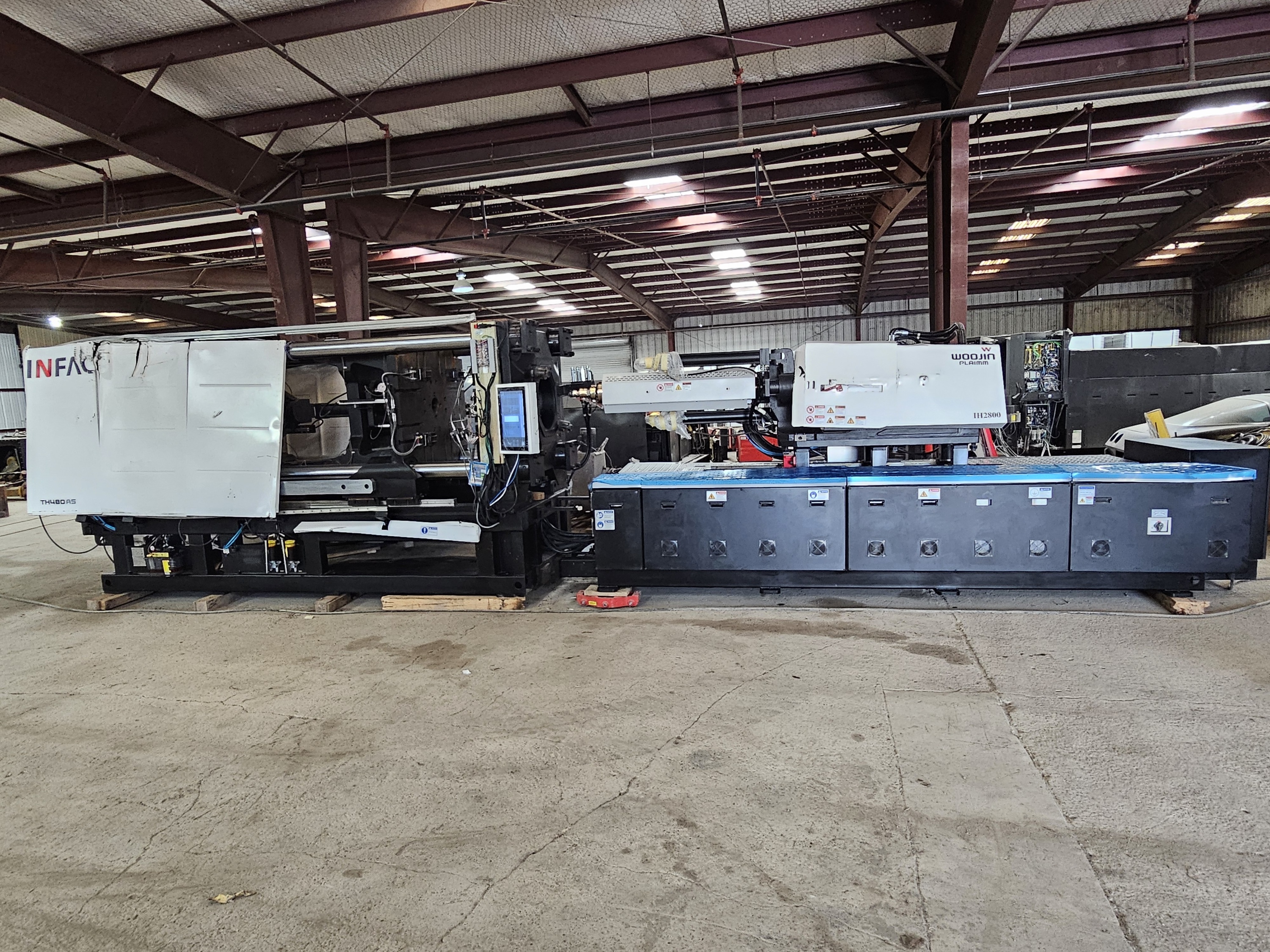

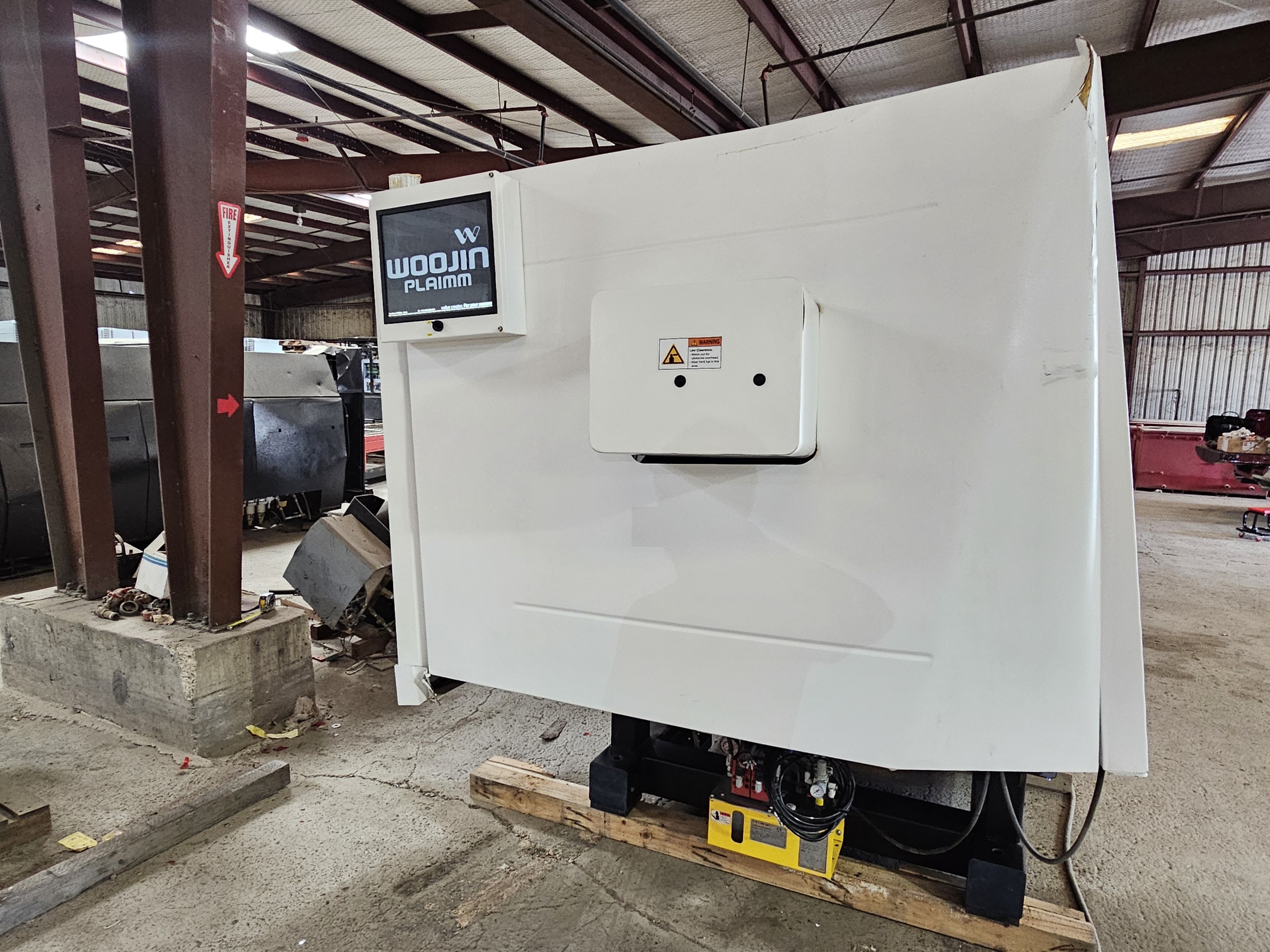

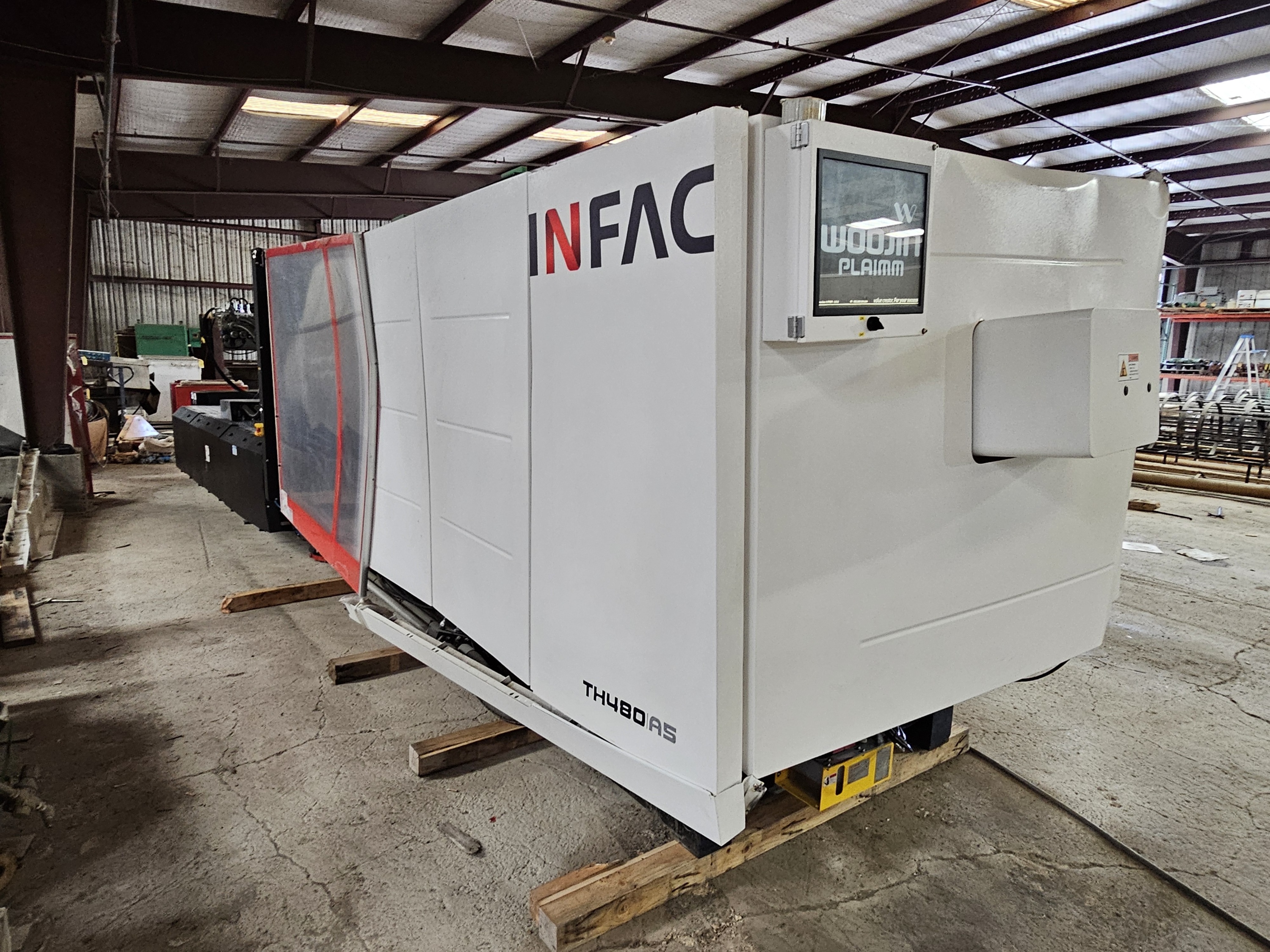

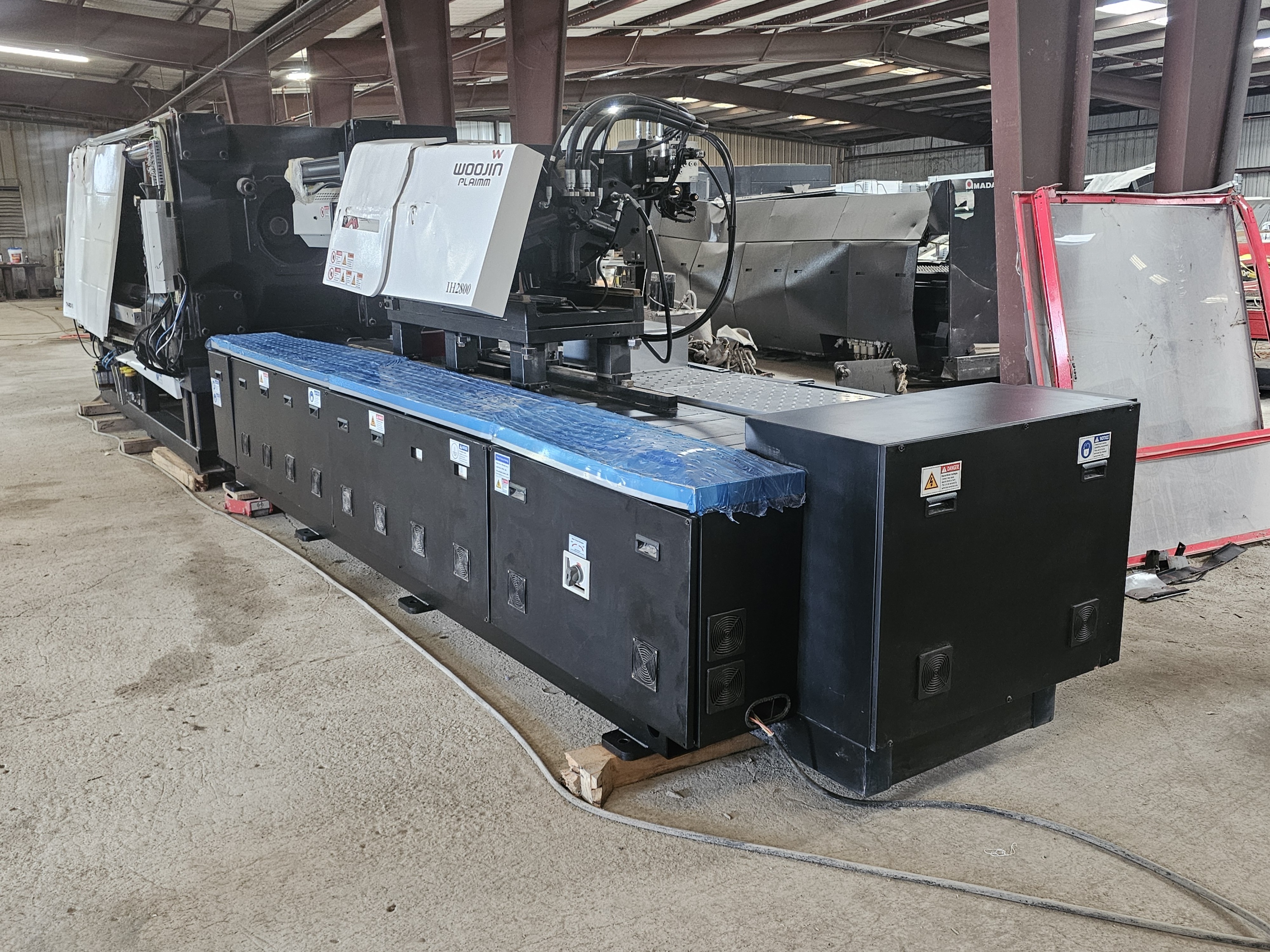

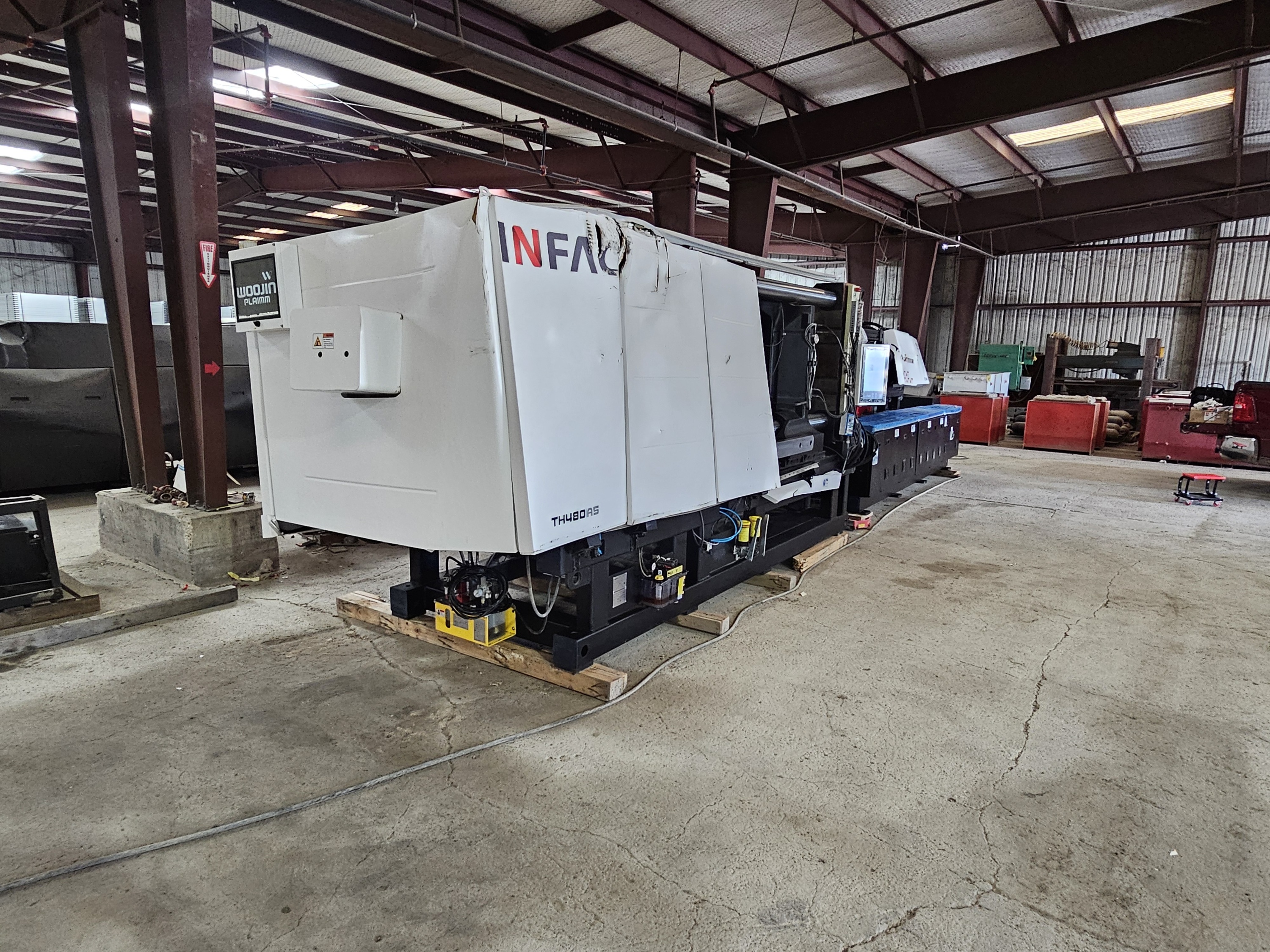

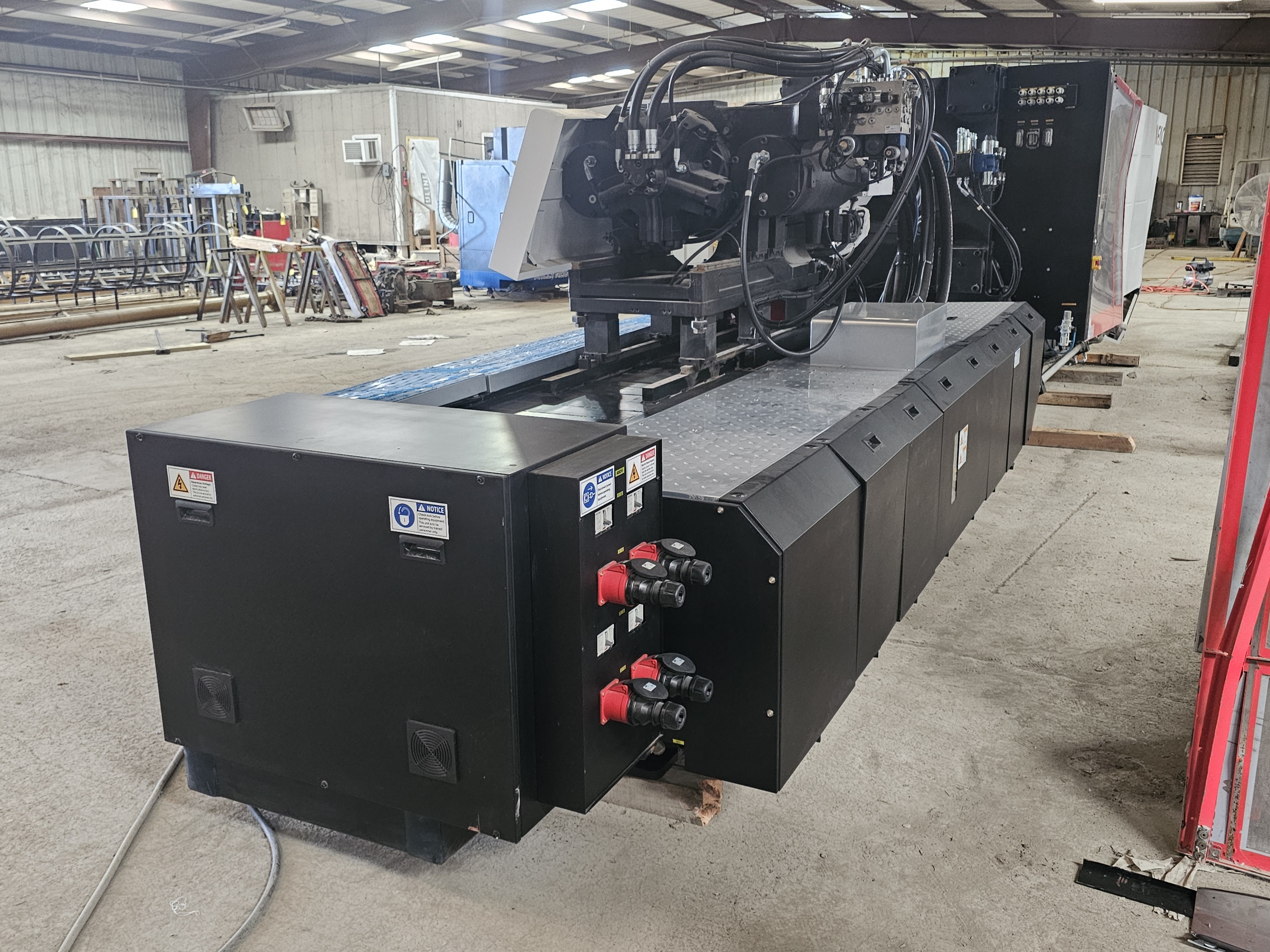

2023 WOOJIN PLAIMM 480 TONS TH480A5 INJECTION MOLDING UNIT

Manufacturer

WOOJIN

Category

Injection Molding

Type

INJECTION MOLDING, HORIZONTAL/VERTICAL

Stock

None

Model

TH480A5

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet

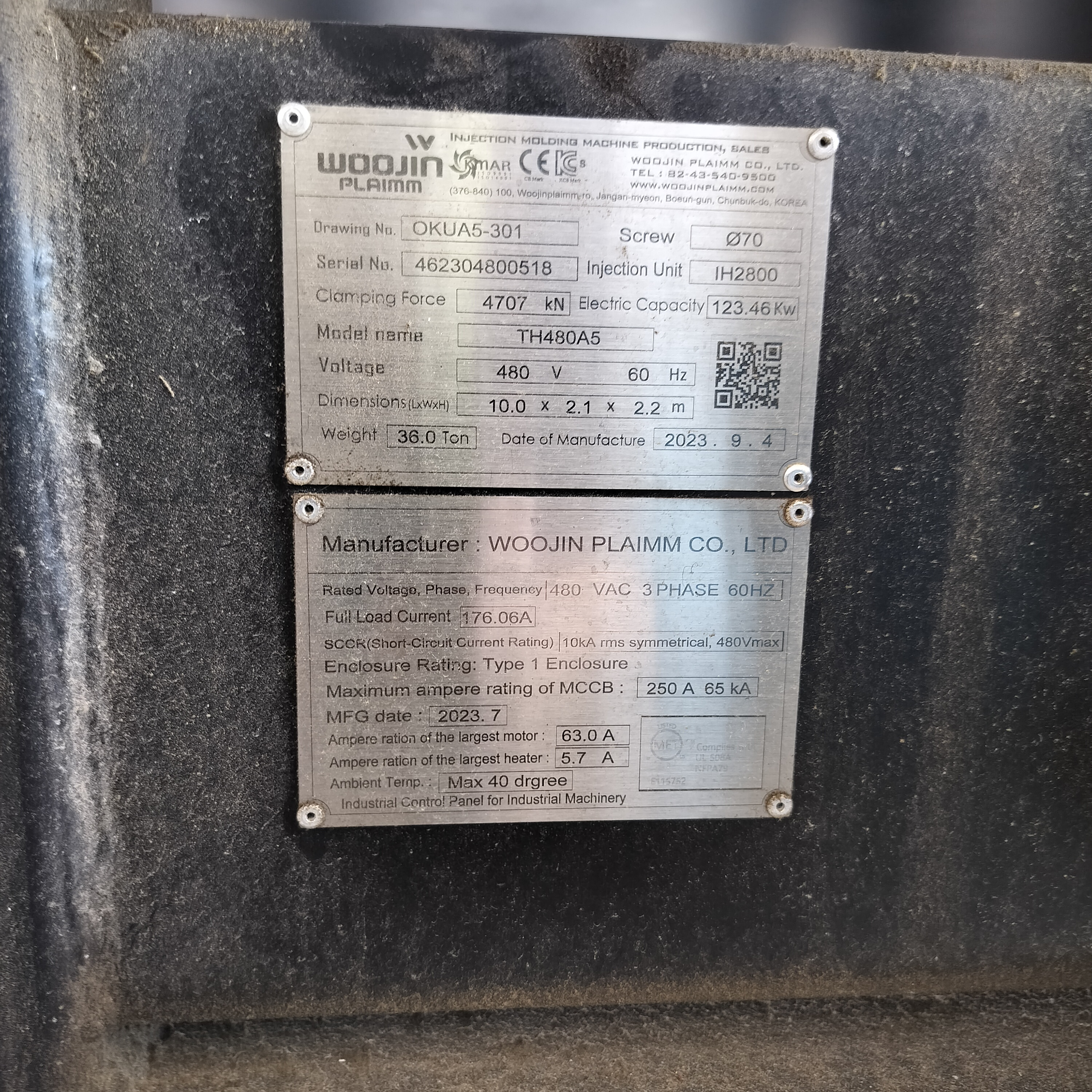

MAKE: WOOJIN PLAIMM
MDL: TH480A5
S/N: 462304800518
YR: 2023

CLAMPING UNIT-
CLAMPING FORCER: 480 TON
DISTANCE BETWEEN TIE-BAR (HXV): 870 X 870 MM
PLANTEN DIMENSION (HXV: 1270 X 1190 MM
DAYLIGHT: 800 MM
MAX. DAYLIGHT: 1600 MM
MIN. MOLD HEIGHT: 350 MM
MAX. MOLD HEIGHT: 800 MM
EJECTOR FORCE: 14.9 TON
EJECTOR STROKE: 230 MM

INJECTION UNIT-
SCREW DIAMETER: 70 MM
INJECTION PRESSURE: 2048KG / 201 MPA
THEORETICAL INJECTION VOLUME: 1347 CM
SHOT WEIGHT (PS): 1240 G
INJECTION RATE: 363 CM
SCREW STROKE: 350 MM
INJECTION SPEED: 94 MM
PLASTICIZING CAPACITY: 244 KG
SCREW ROTATION SPEED: 175 RPM

GENERAL-
HEATER CAPACITY: 20.6 KW
MOTOR CAPACITY: 32.7 KW
TOTAL ELECTRIC POWER CAPACITY: 53.3 KW
HYDRAULIC OIL TANK CAPACITY: 500 L

-BRAND NEW PURCHASED FROM AN INSURANCE COMPANY CLAIM.
-MINOR TRANSIT DAMAGE, IN RUNNING CONDITION.

PRICE: $149,500.00

***SPECIFICATION SHOWN ARE TO BE
USED AS A GUIDELINE ONLY. IT IS
THE CUSTOMER RESPONSIBILITY TO
CHECK FOR SIZE AND FEATURES BEFORE
PURCHASING WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
