78" HNK VTC-2025, 12-ATC, Live Spindle, C-Axis, TSC, 98" Turning Dia., 78" Height, 75 HP, Fanuc 31i, 2013 #43921

Manufacturer

HNK

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43921

Model

VTC-2025

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43921

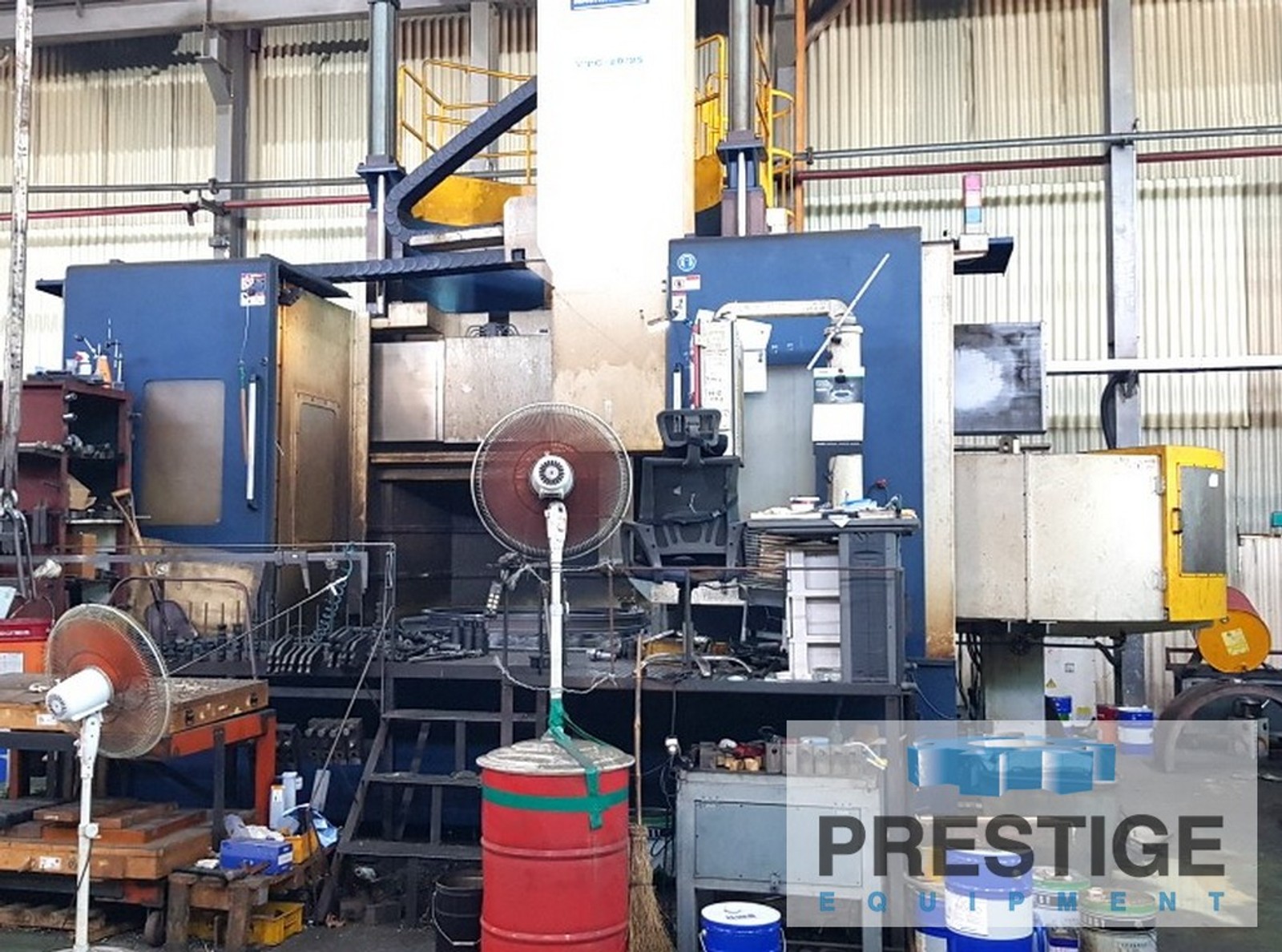

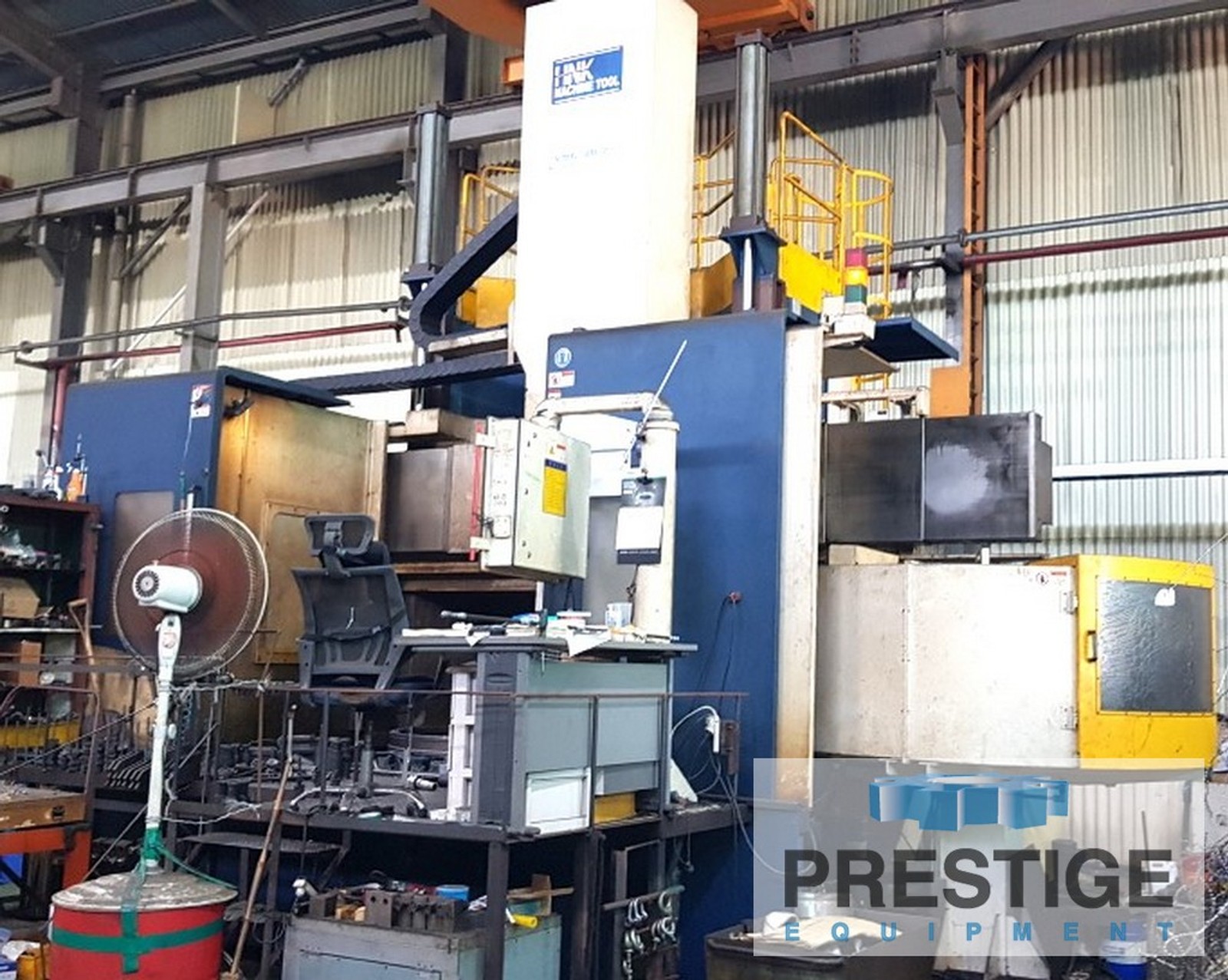

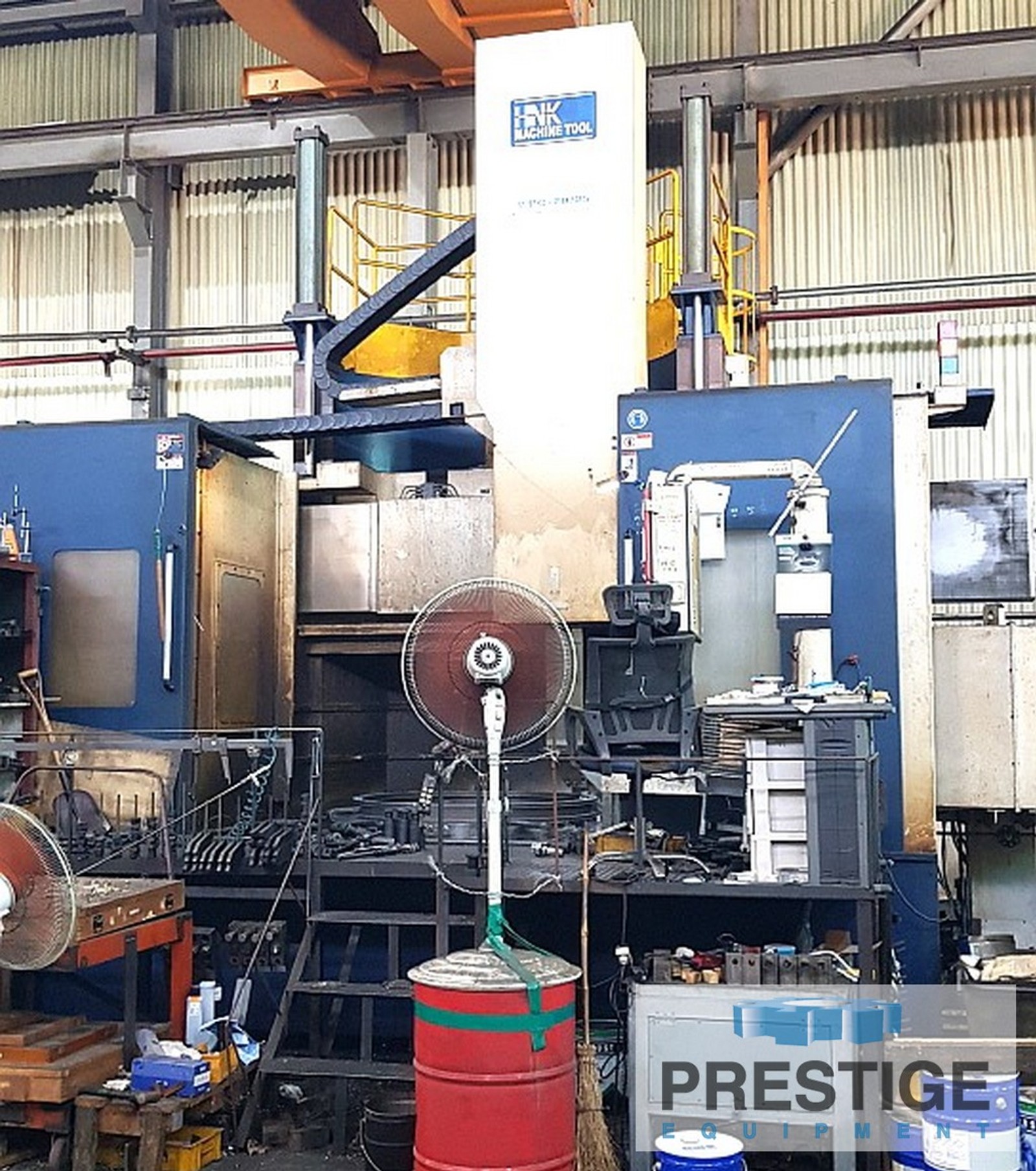

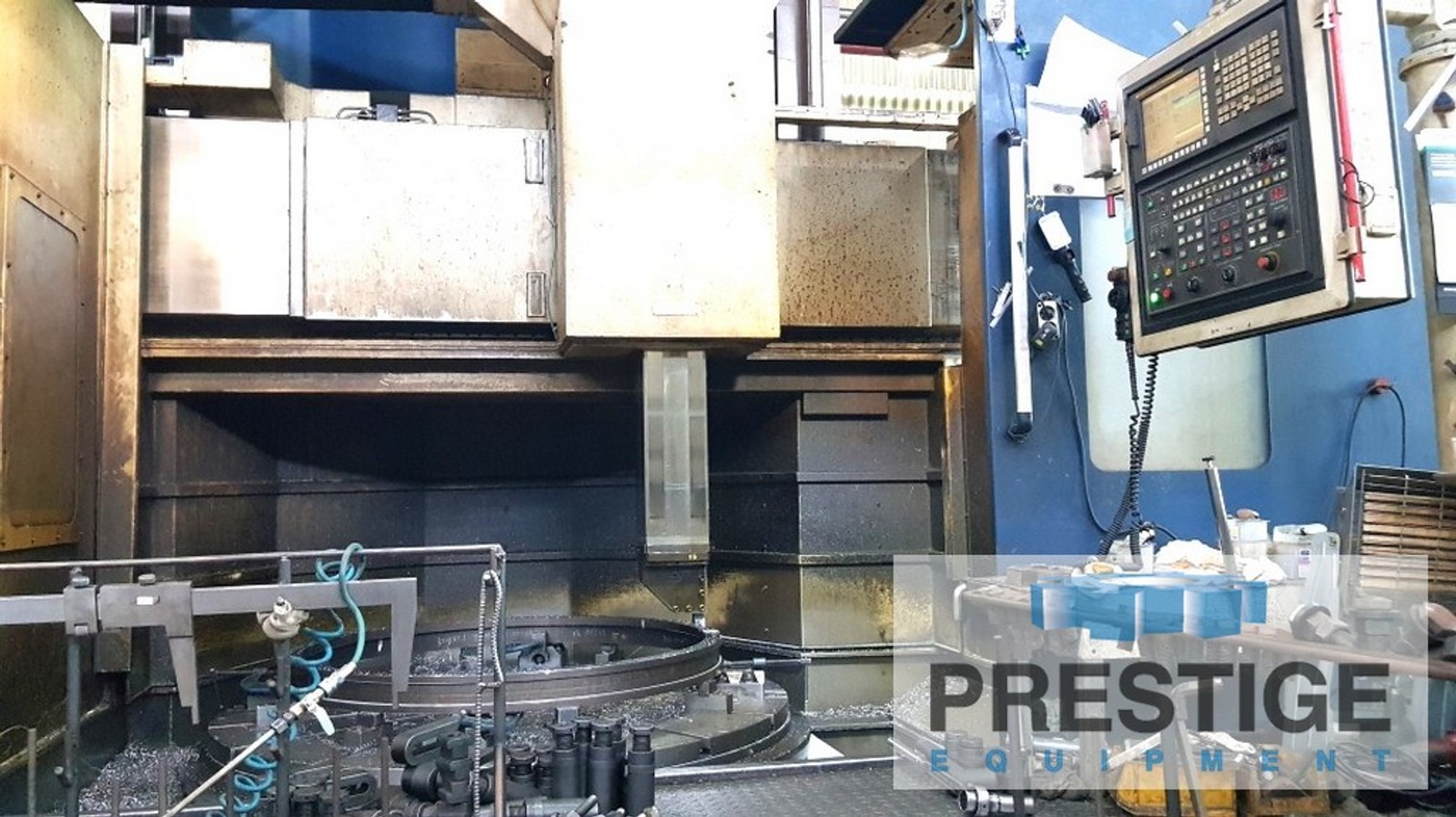

HNK VTC2025 CNC Vertical Boring Mill with Milling Spindle

FEATURES:

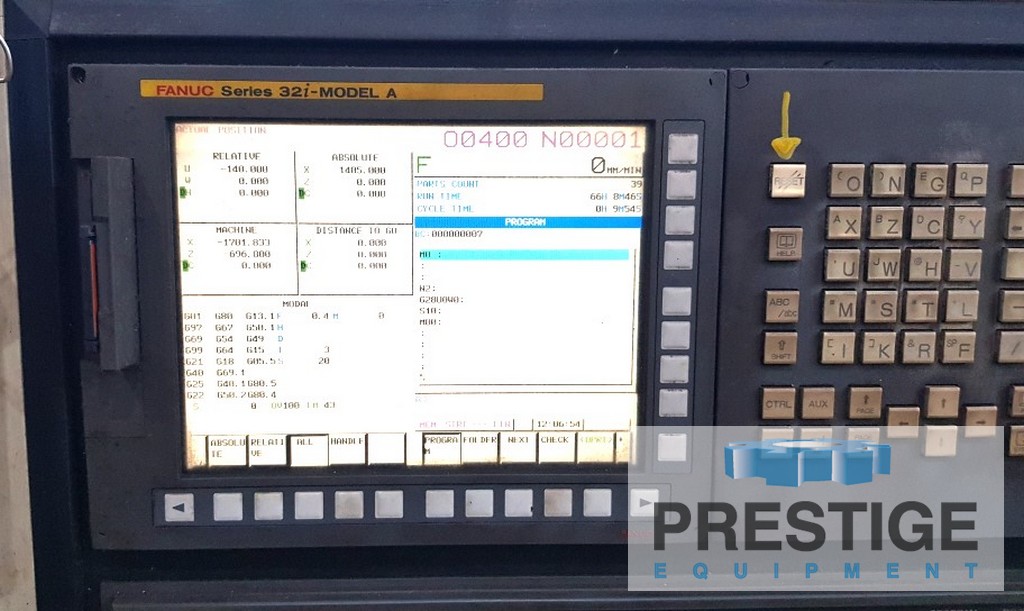

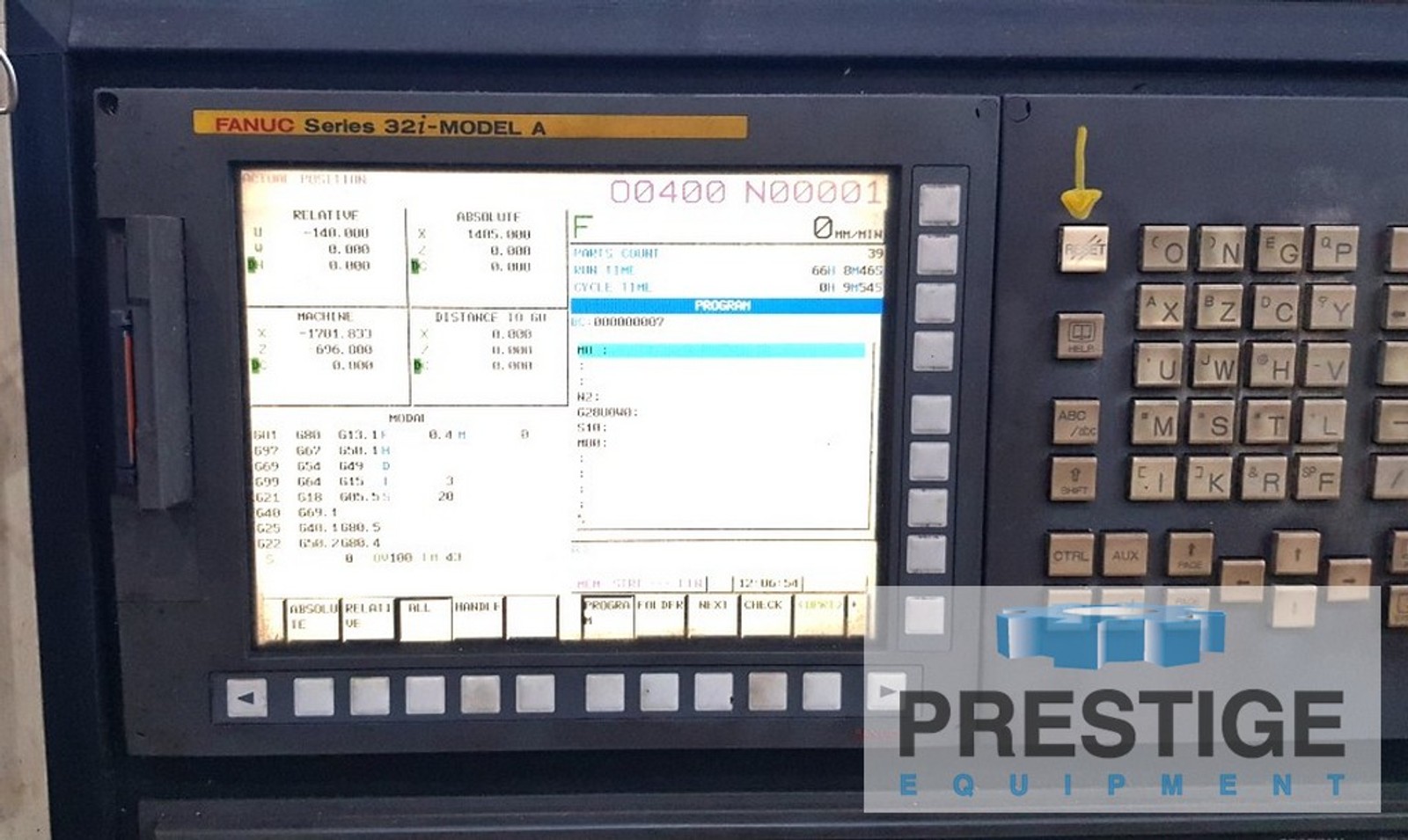

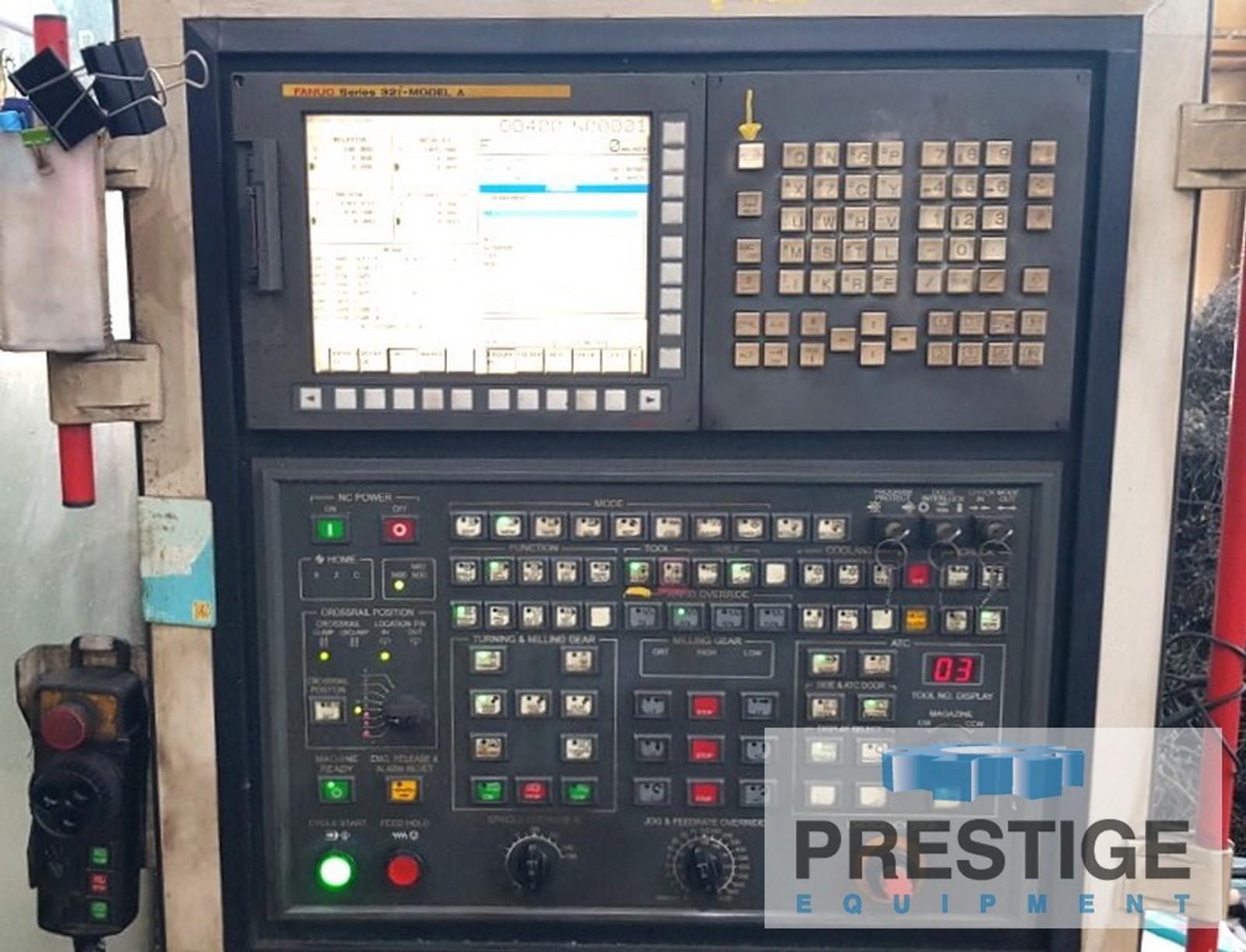

Fanuc 31iA CNC Controls

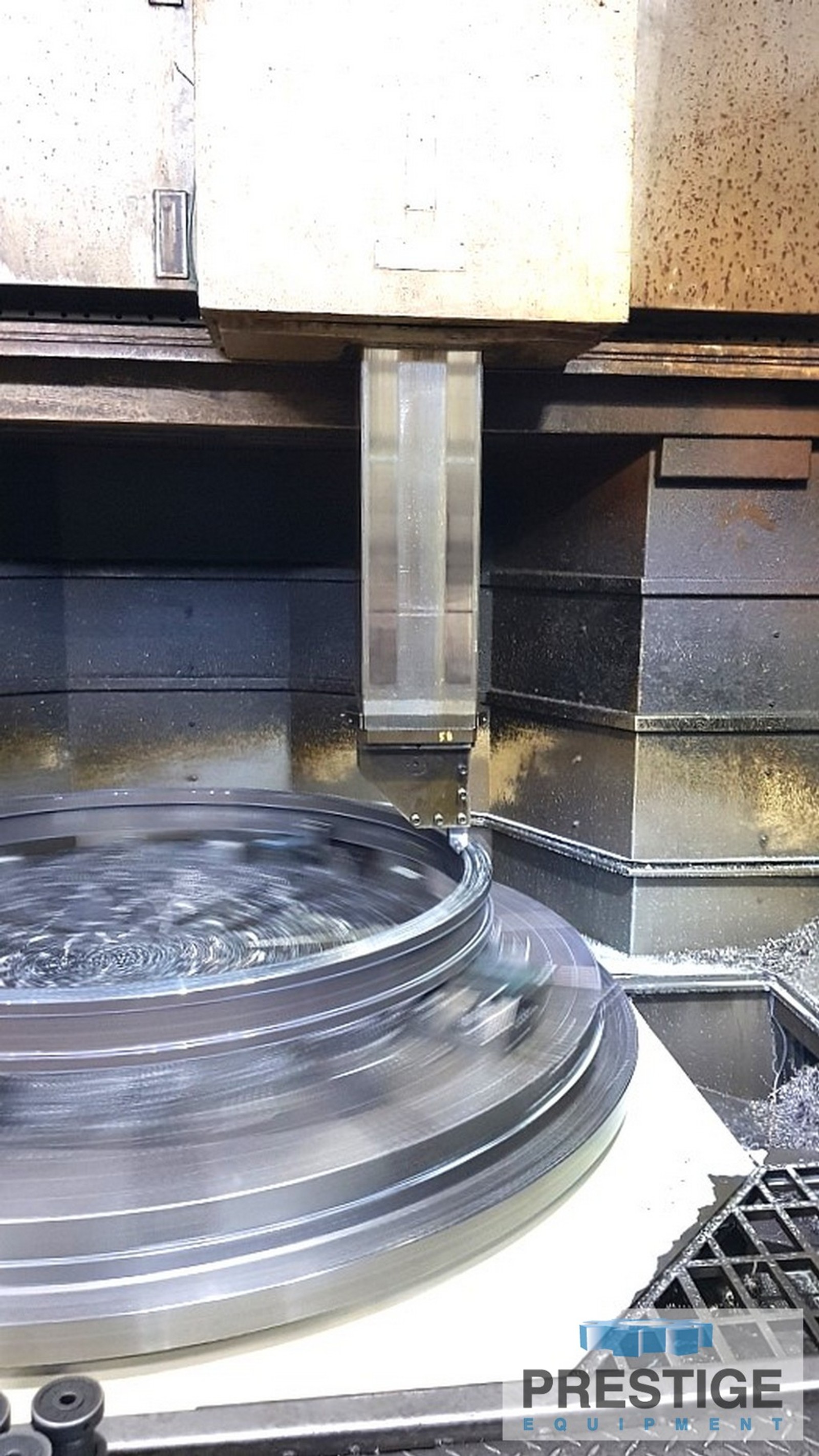

78.74" Face Plate Chuck With 4-Jaws
24-Station Automatic Tool Changer
C-Axis Table
Live Milling Spindle
Through Spindle Coolant
Scales on X,Z & C Axis
Full Chip and Splash Enclosure
Chip Conveyor

CAPACITY:
Table Diameter ........................ 78.74"
Maximum Swing ......................... 98.42"
Maximum Turning Height ................ 78.74"
Vertical Ram Travel, Z-Axis ........... 47.24"
Ram Cross Section .................... 9.44" x 9.44"
Table Speeds .......................... 1-200 RPM
Table Indexing ........................ .001 Degree
Table Load Capacity ................... 26,460 LBS
Table Motor ........................... 60 HP / 75 HP
Milling Spindle Speeds ................ 15 - 2000 RPM
Milling Spindle Taper ................. #50
Milling Spindle Motor ................. 20 HP / 25 HP

EQUIPPED WITH:
Fanuc 31iA CNC Controls
78.74" Face Plate Chuck With 4-Jaws
24-Station Automatic Tool Changer
C-Axis Table
Live Milling Spindle
Through Spindle Coolant
Scales on X,Z & C Axis
Full Chip and Splash Enclosure
Chip Conveyor
