5.12" Toshiba BTD-130H.R22, X-118", Y-90", Z-63", W-27.5", 70" x86" Tbl, 2,500 RPM, 38-ATC, Tosnuc 999 CNC, 2020 #43911

Manufacturer

Toshiba

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43911

Model

BTD-130H.R22

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43911

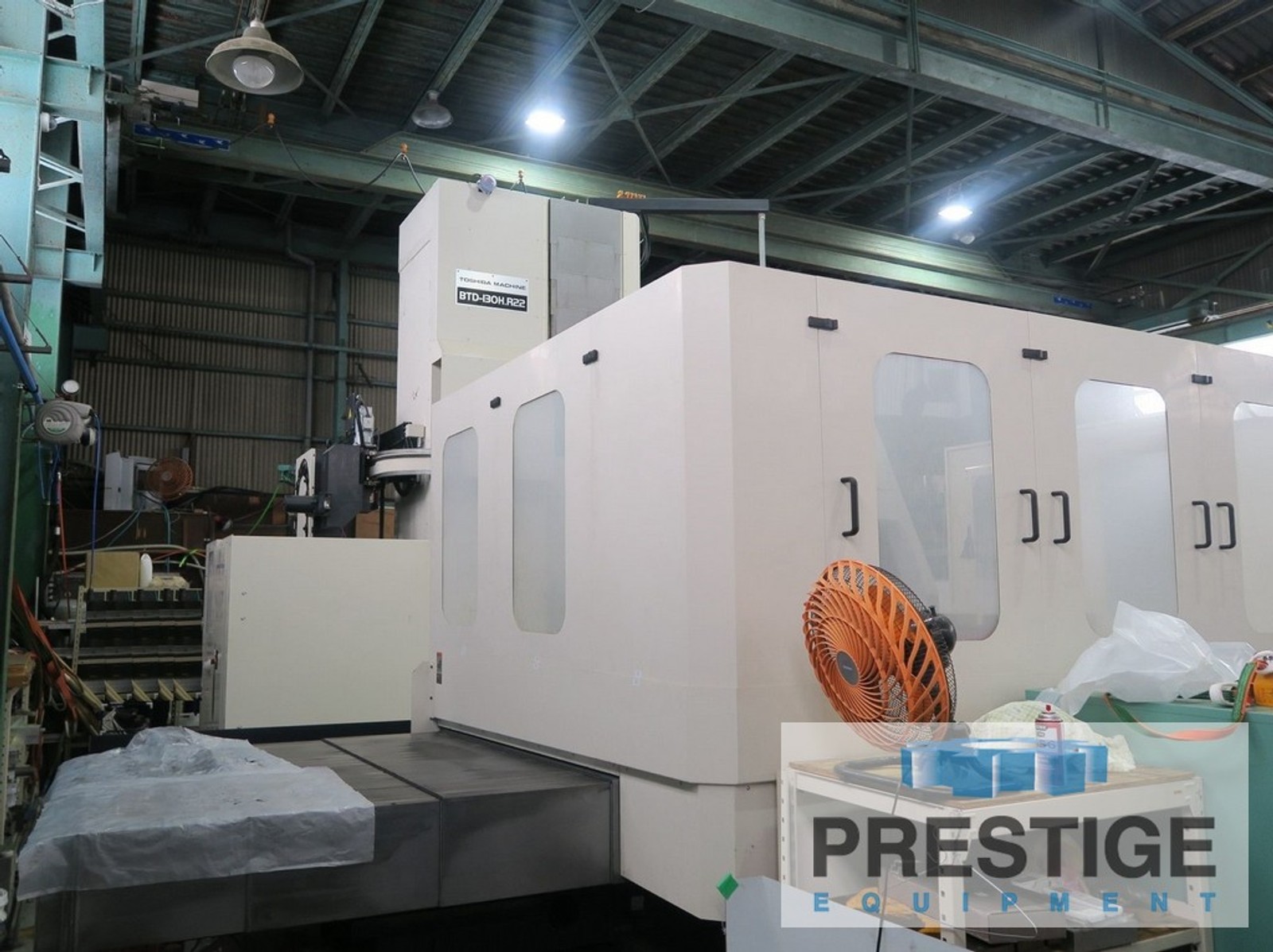

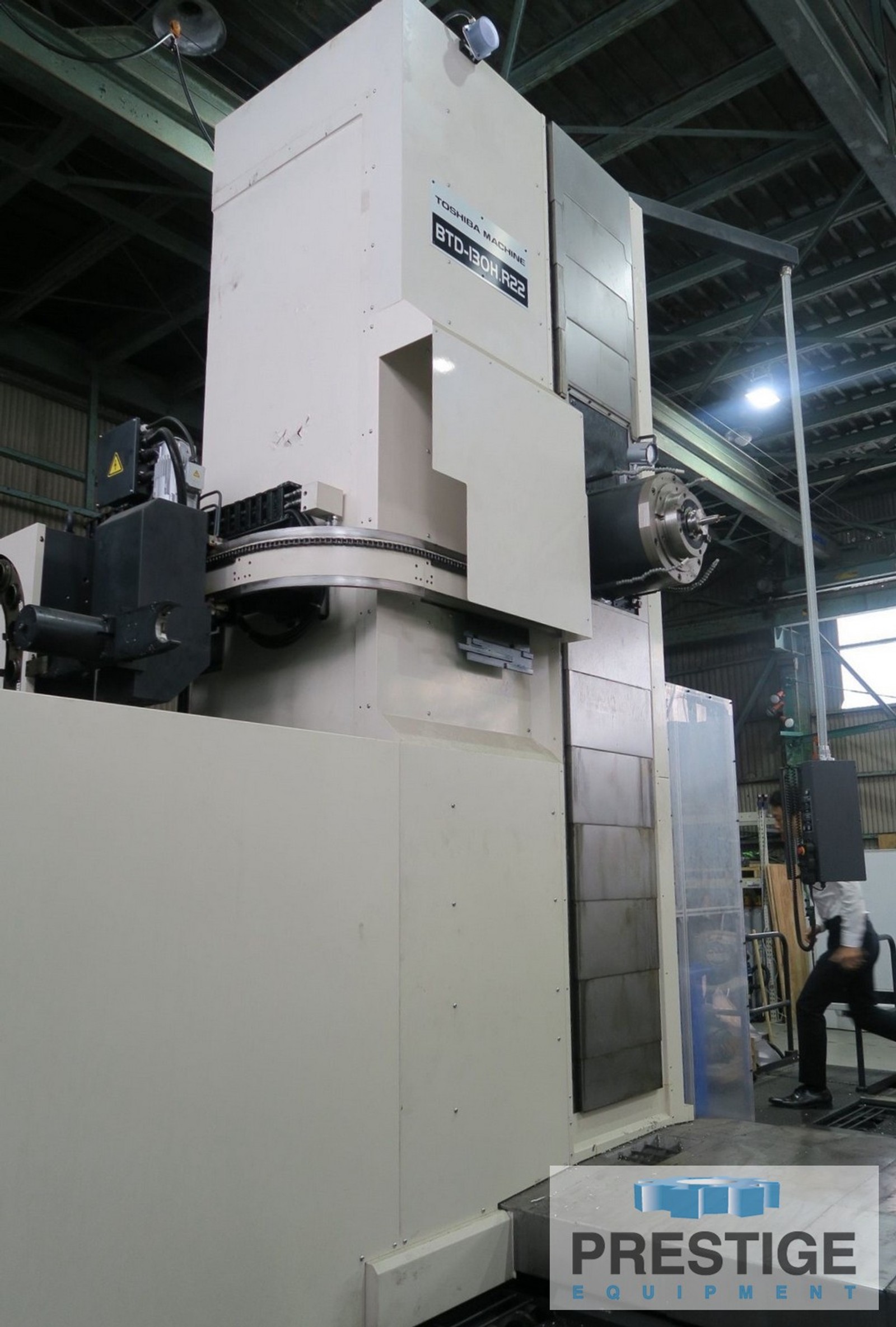

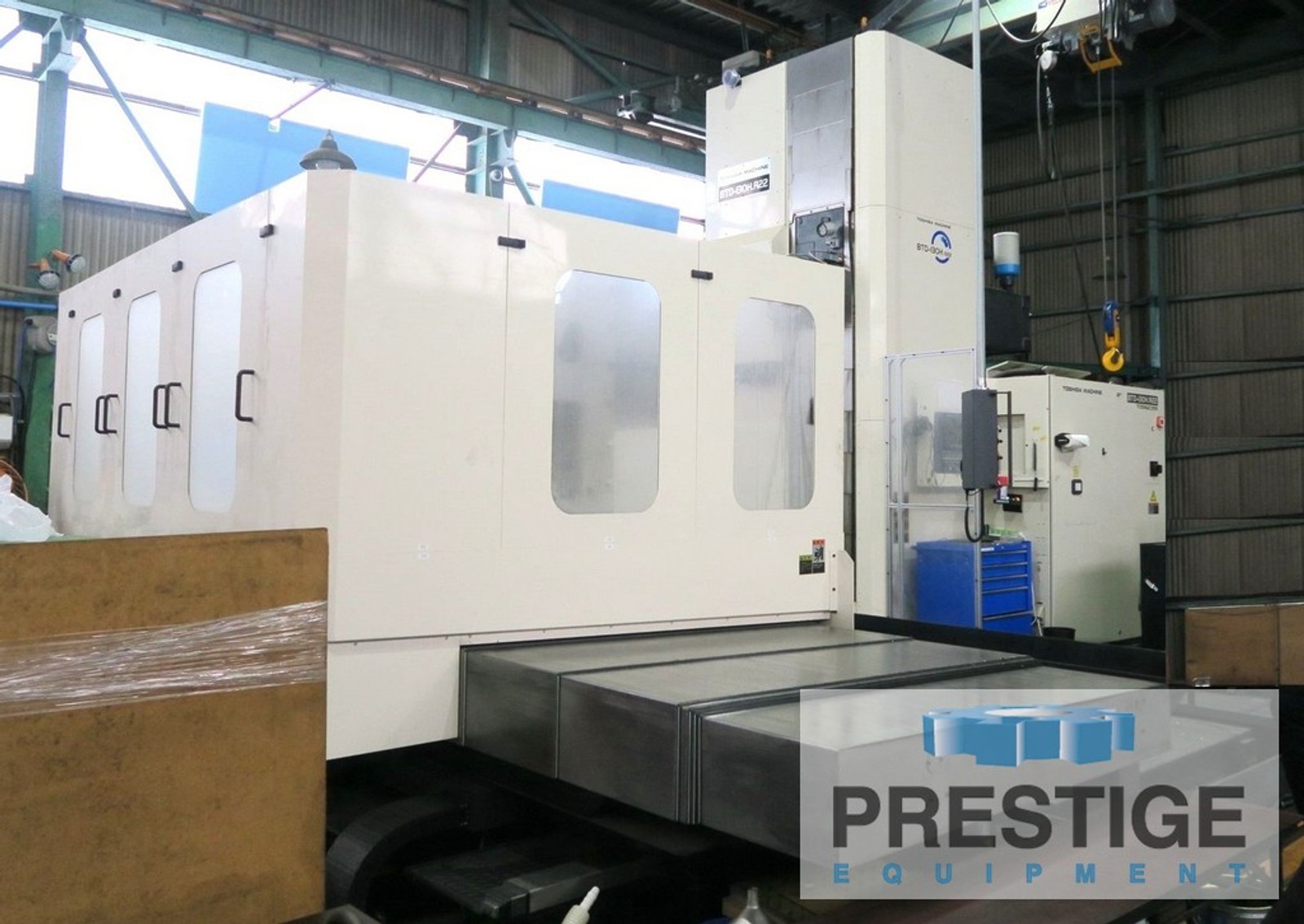

Toshiba BTD-130H.R22 5.12" CNC Table Type Horizontal Boring Mill

FEATURES:

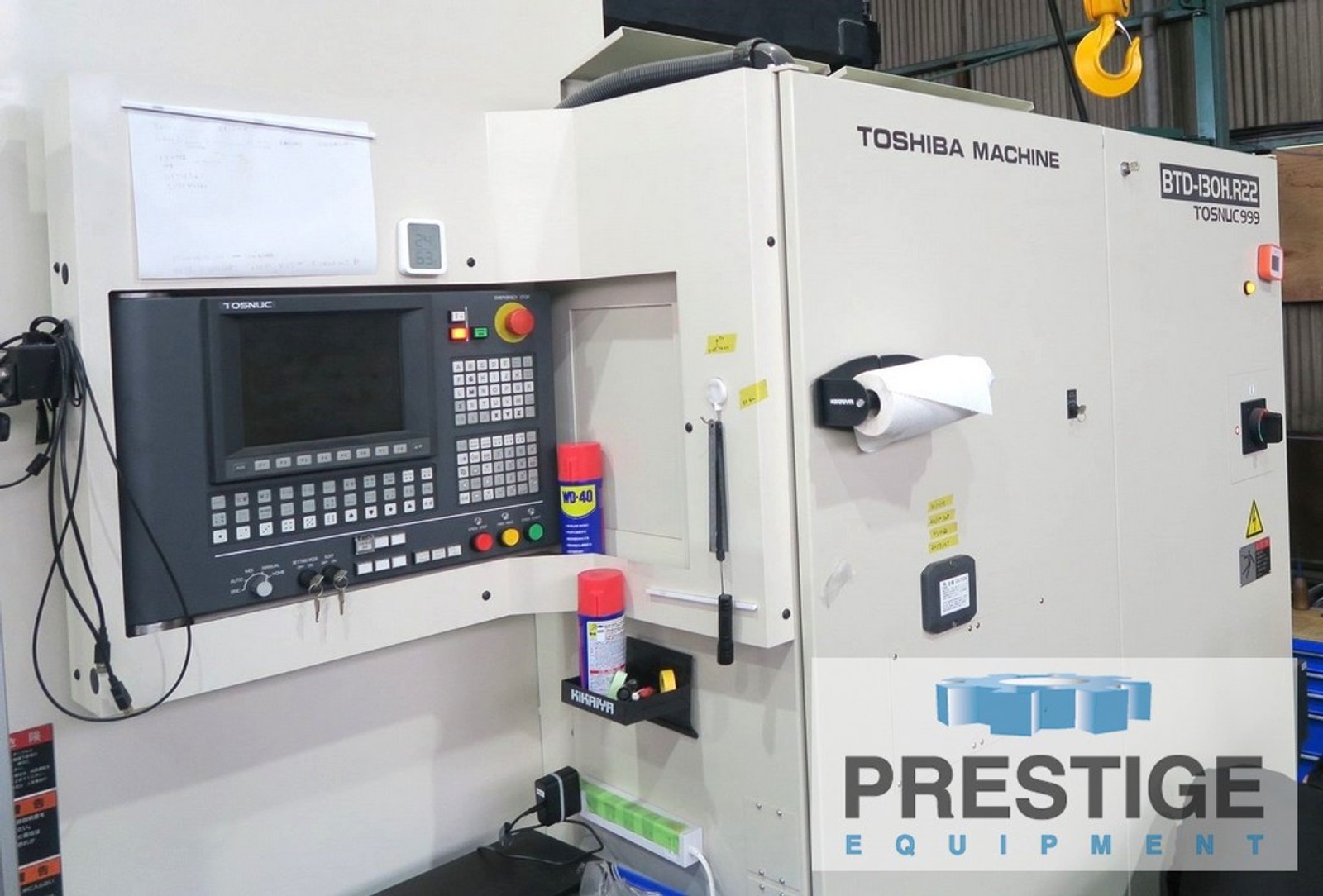

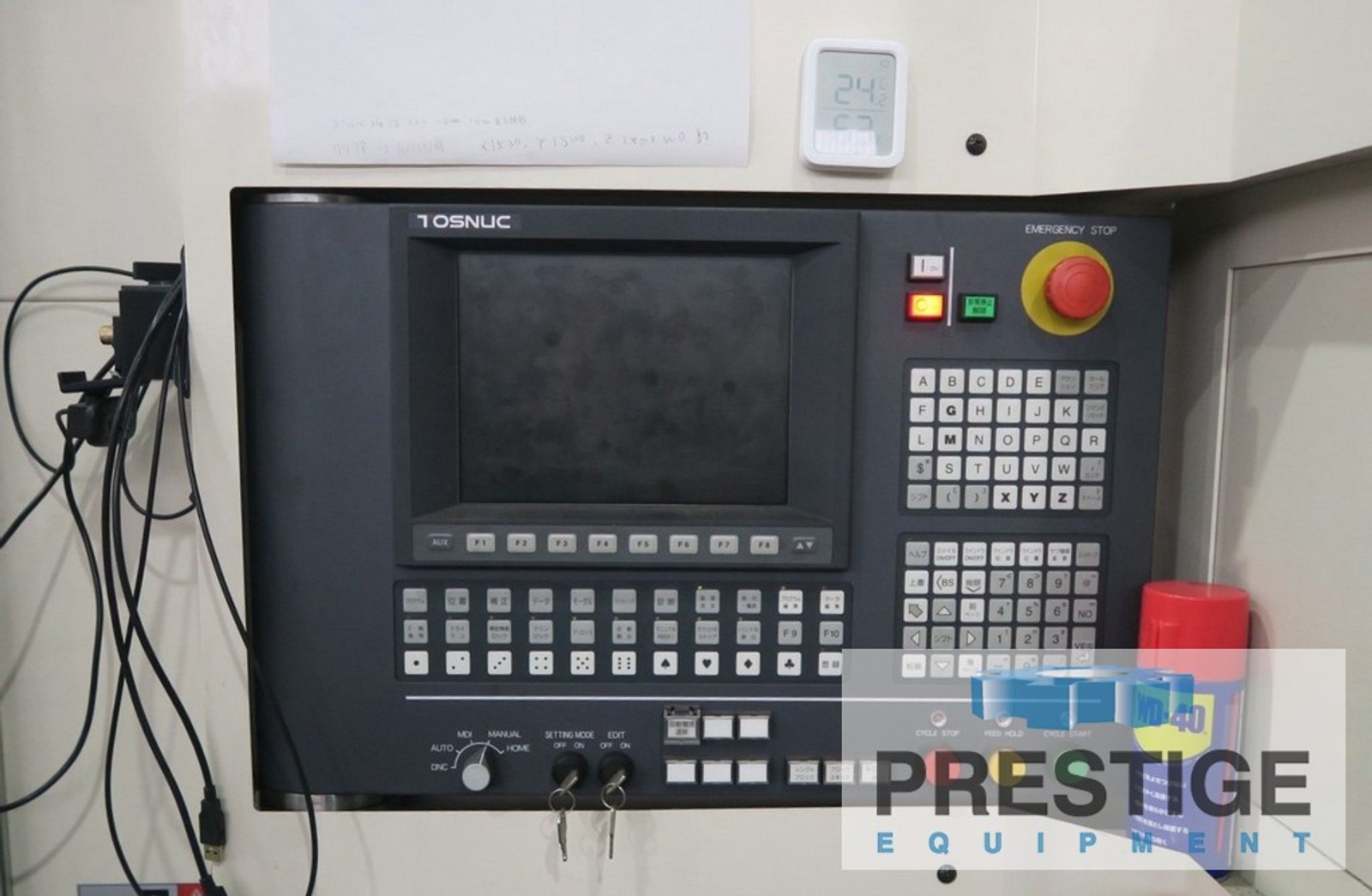

Tosnuc 999 CNC Control

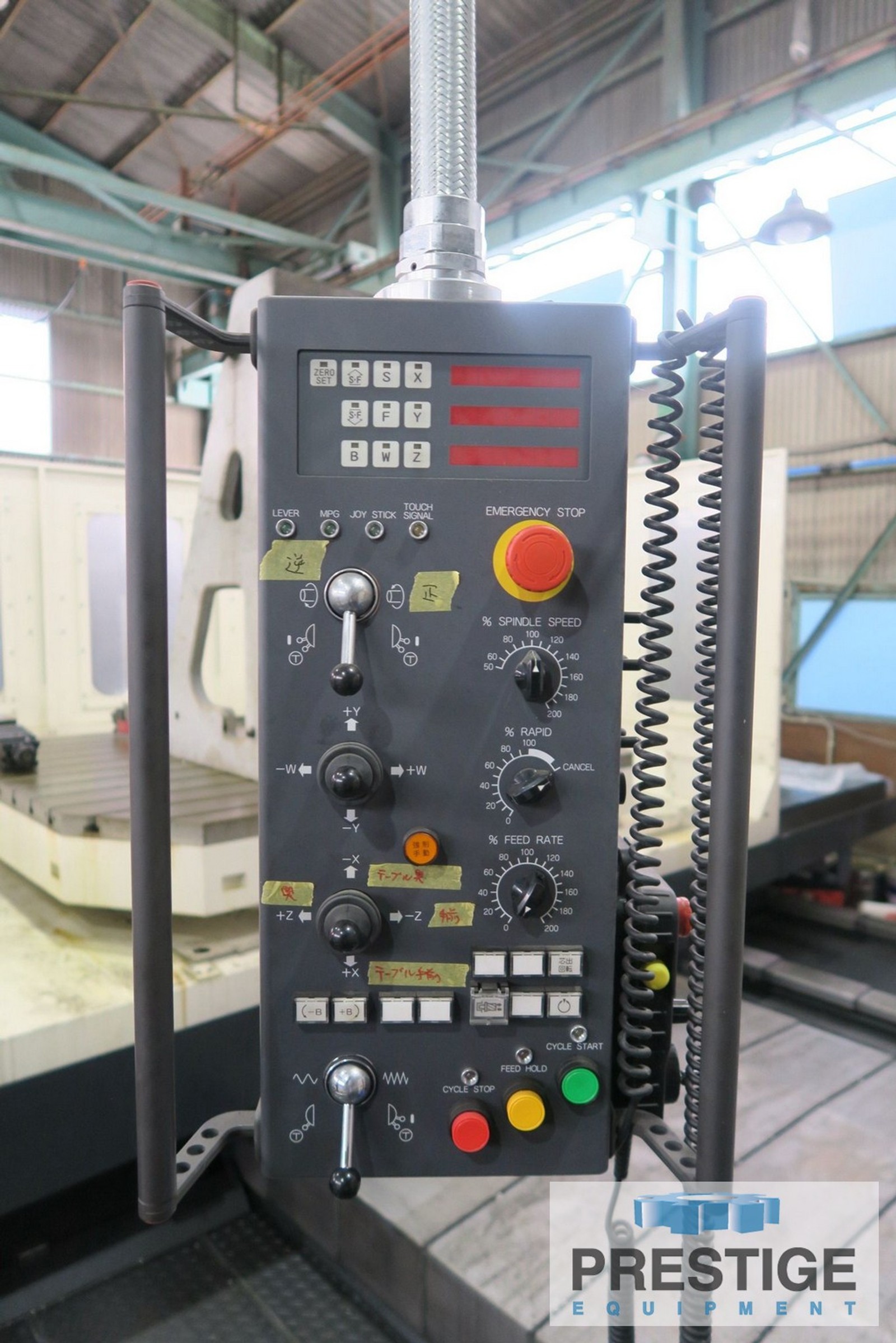

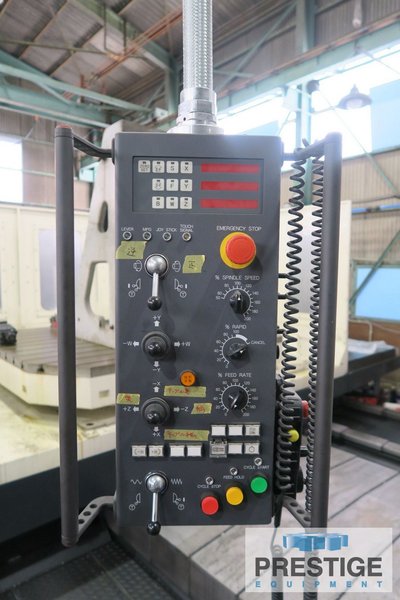

Operator Pendant Control
38-Station Automatic Tool Changer

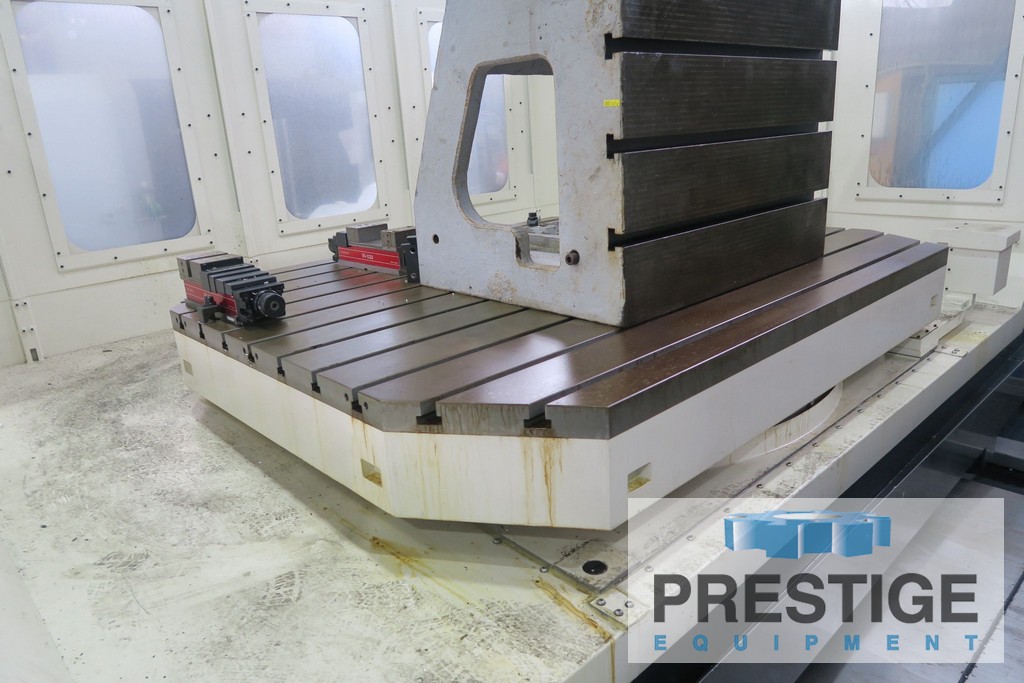

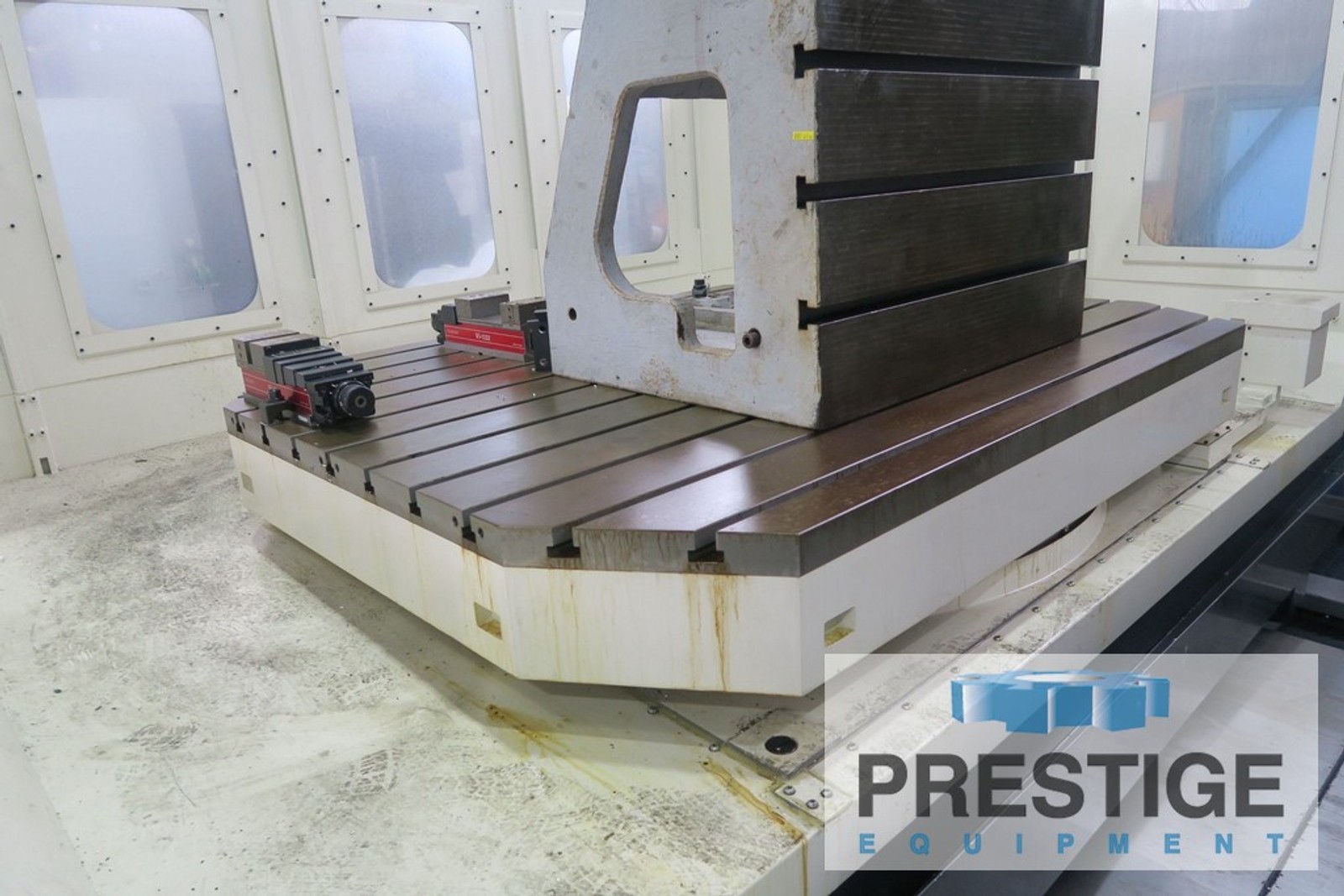

Built-In B-Axis Rotary Table

SPECIFICATION:

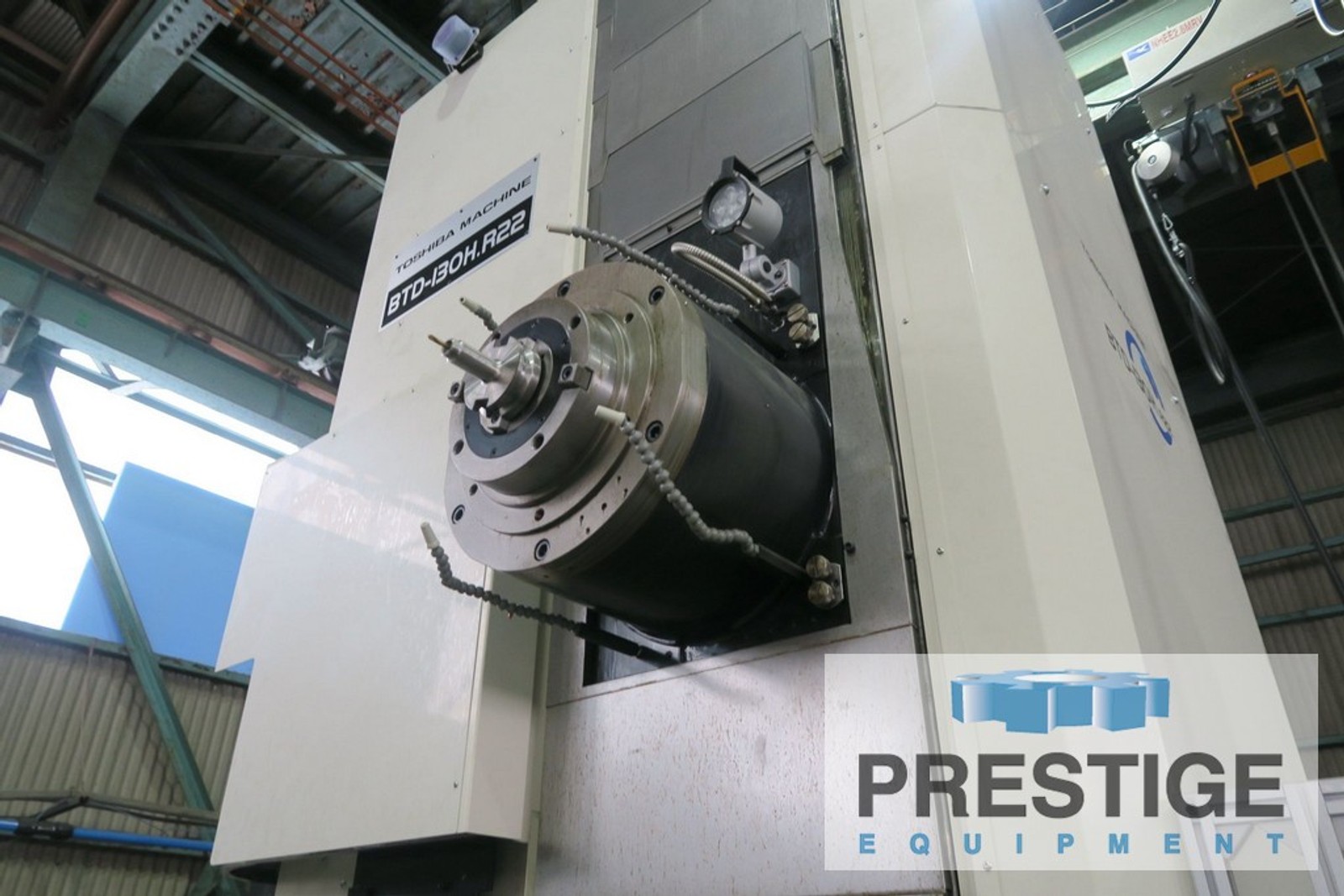

Spindle Diameter ...................... 5.12"
X-Axis Travel ......................... 118.11"
Y-Axis Travel ......................... 90.55"
Z-Axis Travel ......................... 62.99"
W-Axis Travel ......................... 27.55"
Table Dimensions ...................... 70.86" x 86.61"
Table Weight Capacity ................. 26,400 Lbs
Table Rotation, B-Axis ................ .001°
Spindle Taper ......................... BT-50
Spindle Motor ......................... 30 HP

EQUIPPED WITH:
Tosnuc 999 CNC Control
Operator Pendant Control
38-Station Automatic Tool Changer
Built-In B-Axis Rotary Table
Chip Conveyor
