Teledyne Readco UPC 160, 16,000 Lbs. Cap., Variable Speed, Power Tilt, Remote Pendant, 1974 #43796

Manufacturer

TELEDYNE READCO

Category

Welding Machines

Type

WELDING POSITIONERS

Stock

43796

Model

UPC 160

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43796

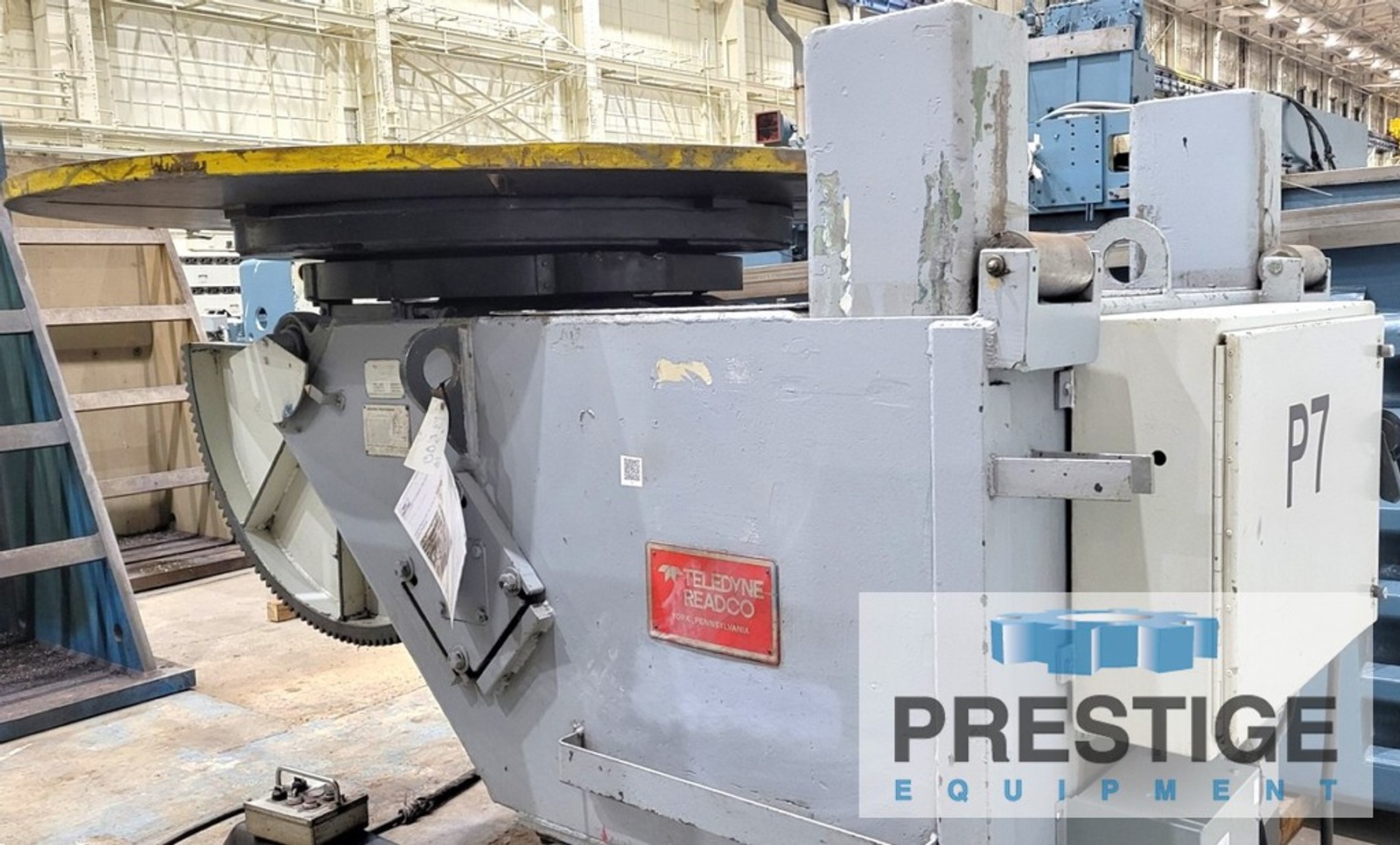

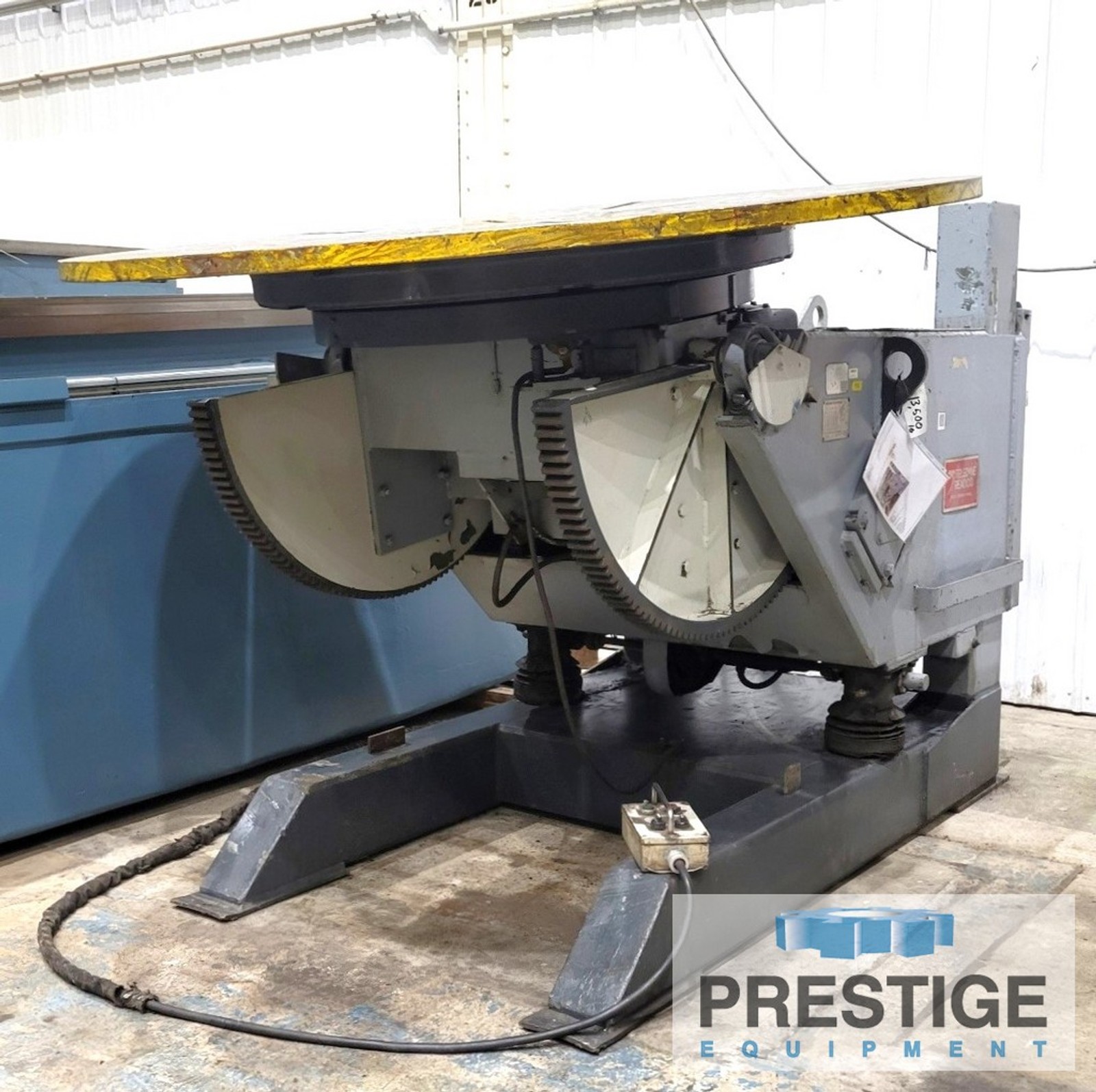

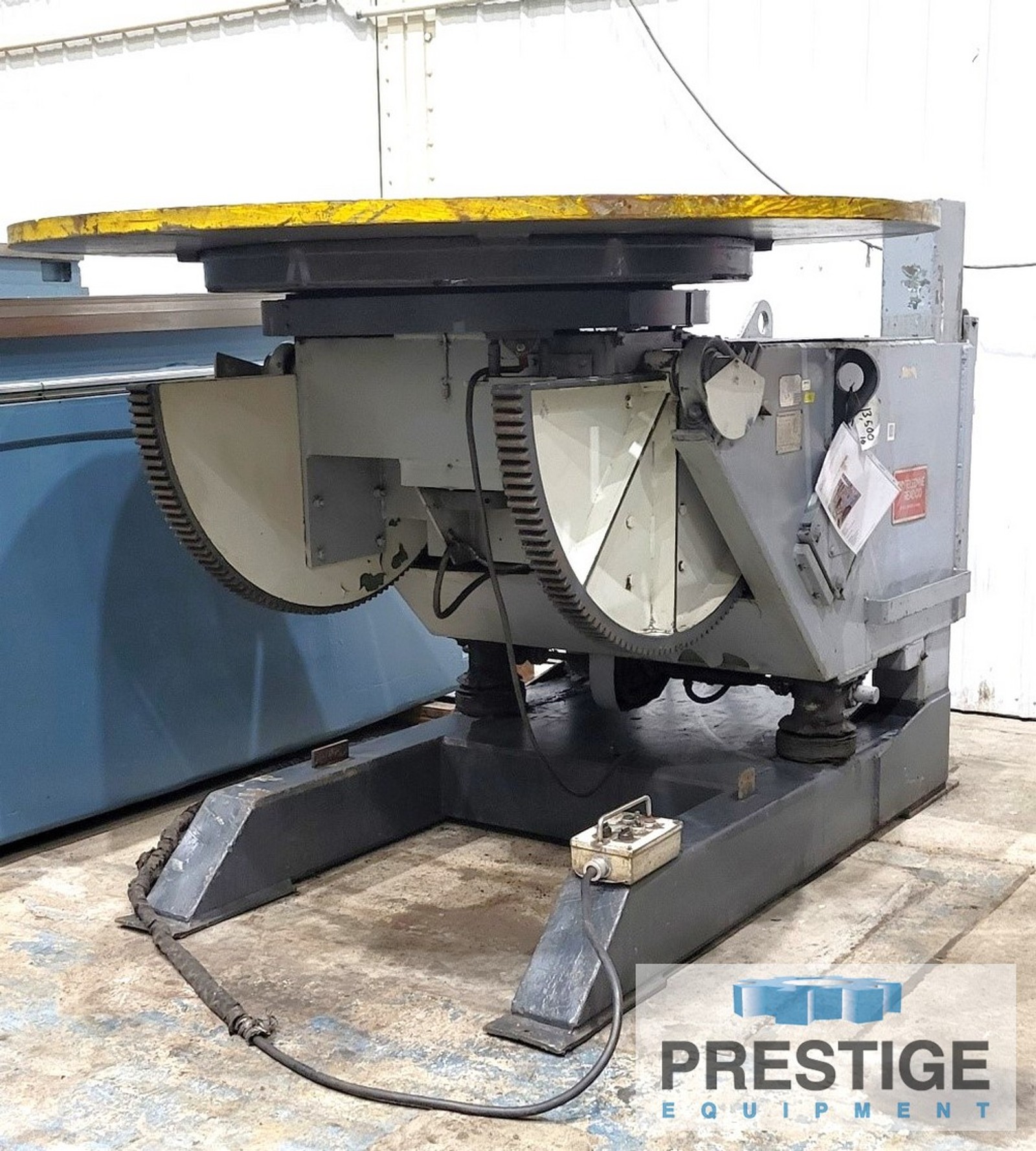

Teledyne Readco UPC 160 16,000 Lbs. Variable Speed Welding Positioner

FEATURES:

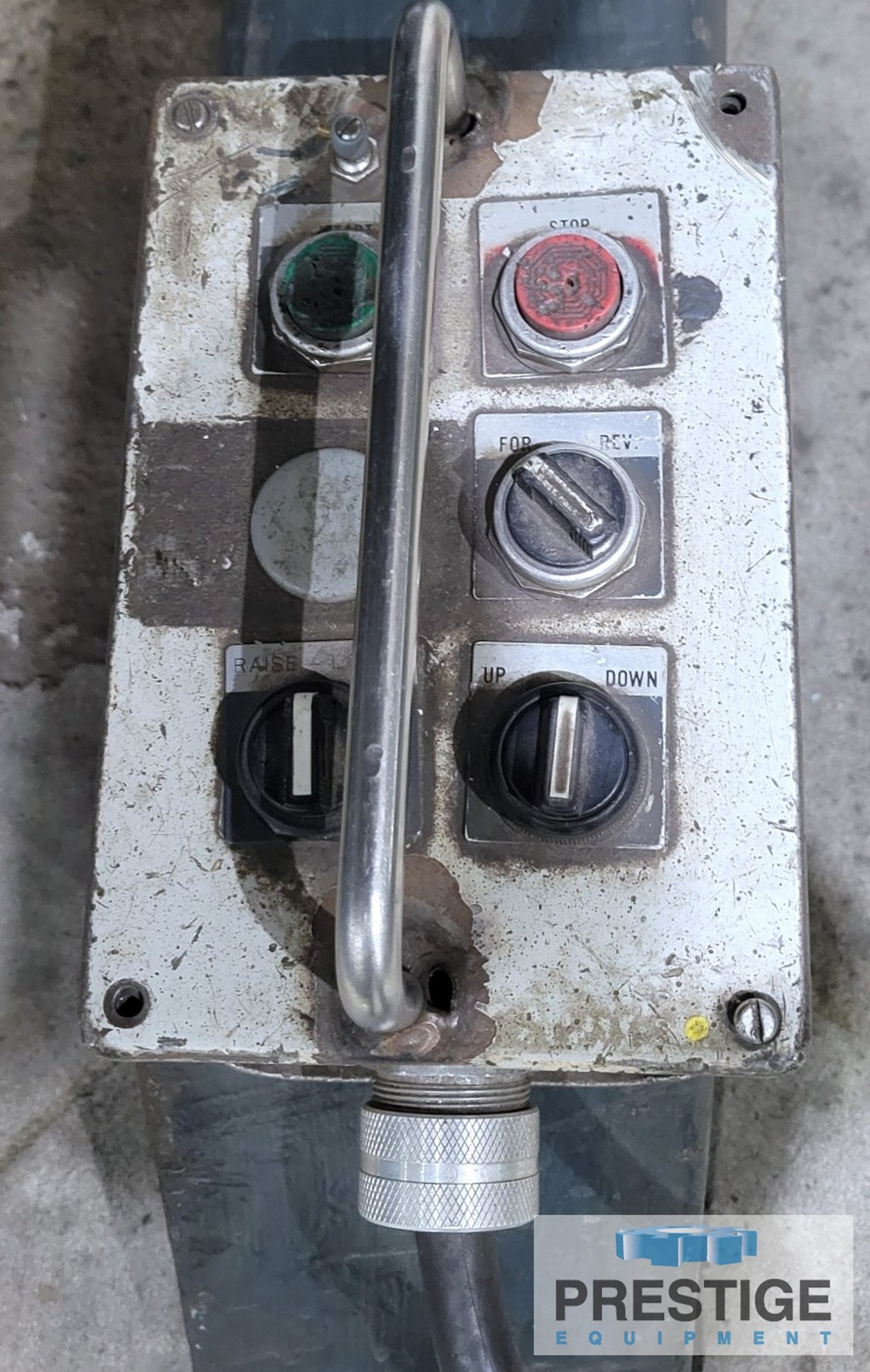

Remote Pendant Control
Variable Speed Drive
Power Rotation
Power Tilt
Power Elevation

CAPACITY:
Max. Load Capacity .................... 16,000 Lbs.
Table Diameter ........................ 88"
Max. Table Speed, Variable ............
Tilt, Forward ......................... 90 Deg
Tilt, Back ............................ 45 Deg
Voltage................................ 480 Volt
Approx. Overall Weight ................ 15,000 Lbs.

EQUIPPED WITH:
Remote Pendant Control
Variable Speed Drive
Power Rotation
Power Tilt
Power Elevation

NOTE:
Inspect in our Philadelphia PA Warehouse
