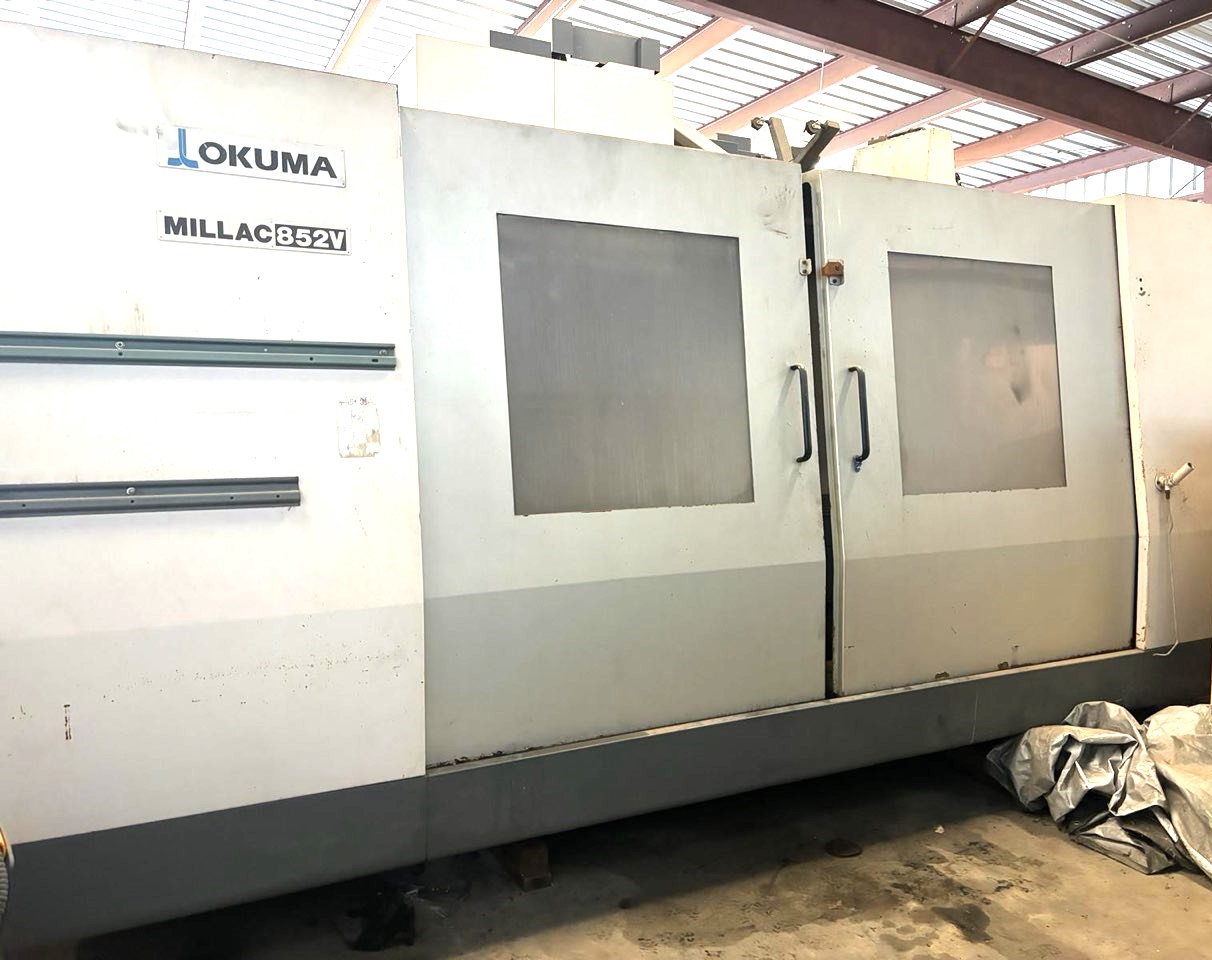

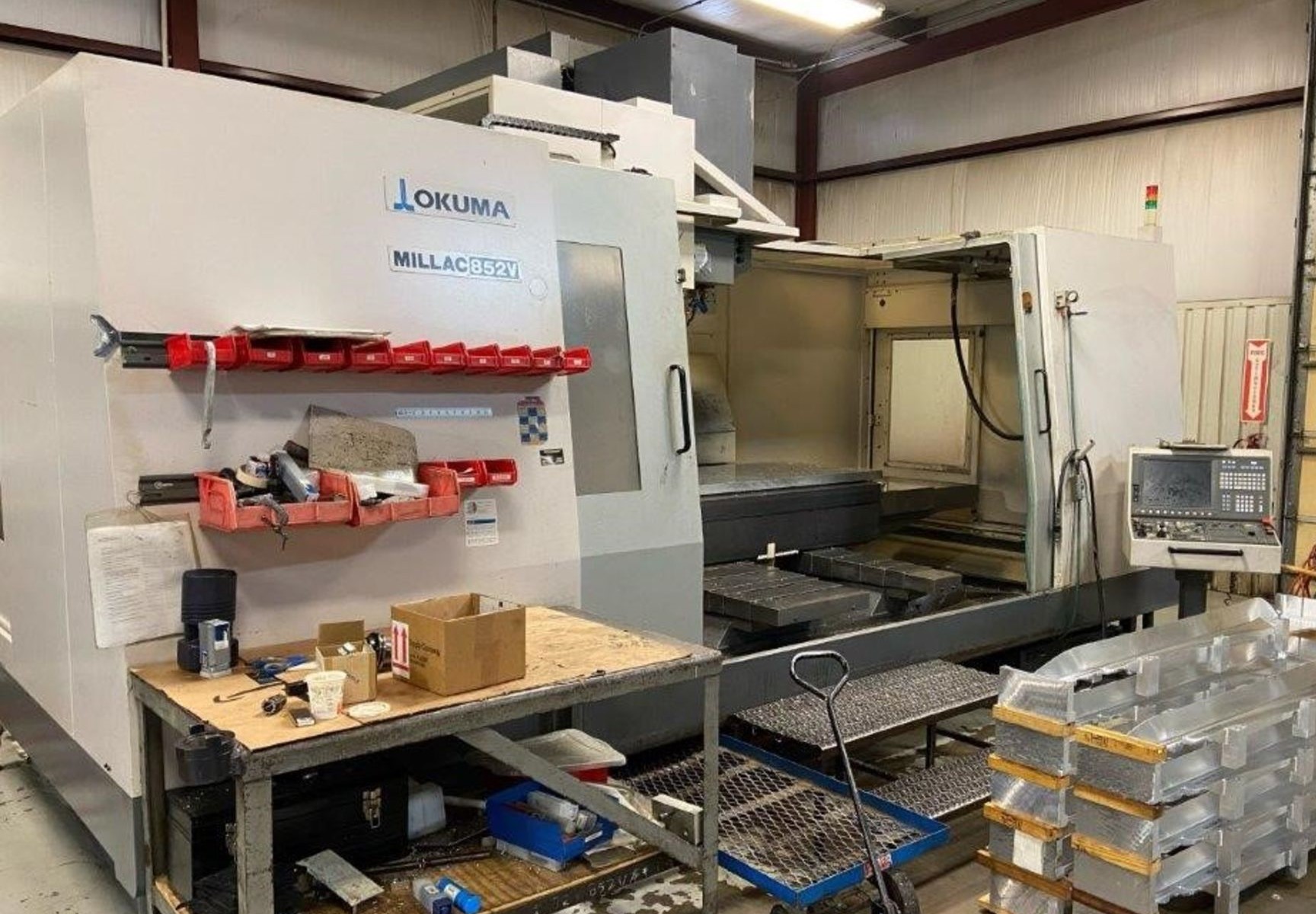

OKUMA MILLAC 852V LARGE CNC 3-AXIS 50 TAPER VERTICAL MACHINING CENTER, 86" X 35" TABLE SIZE, 81" X, 33.5" Y, 29.5" Z, 6000RPM 50 TAPER, 36 ATC OKUMA OSP P200M CNC CONTROL

Manufacturer

OKUMA & HOWA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

13412

Model

MILLAC 852V

Dealer Location

Illinois

Request a Quote
View Contact Information

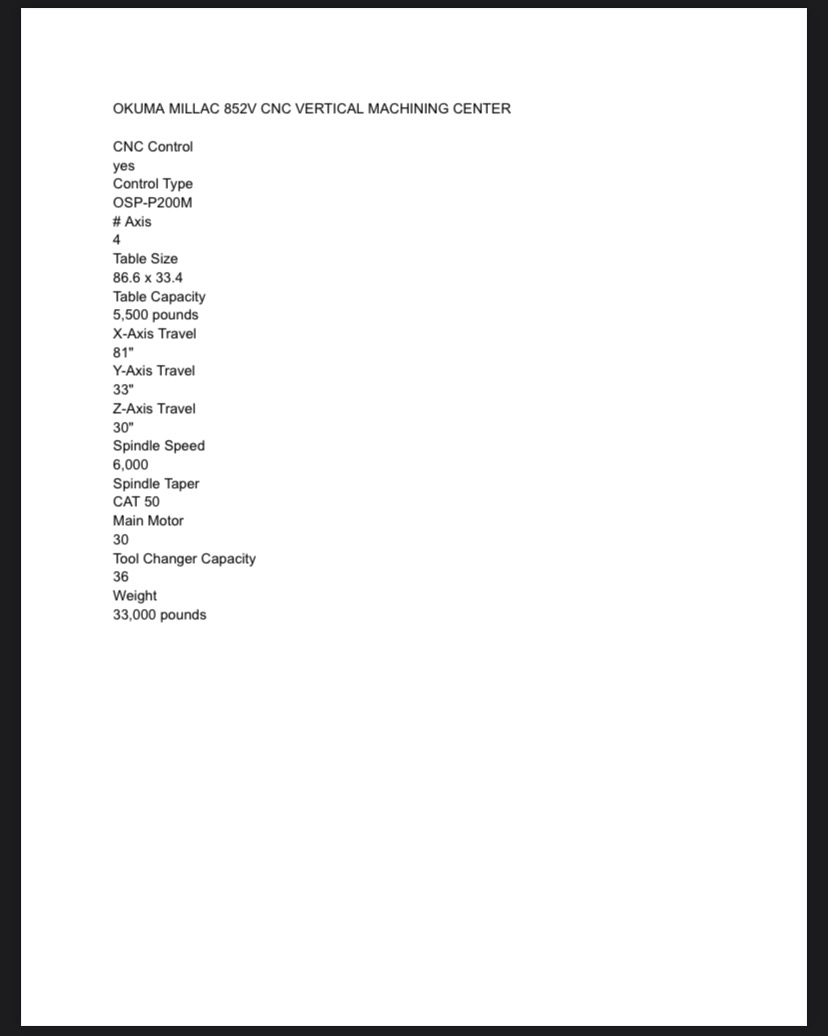

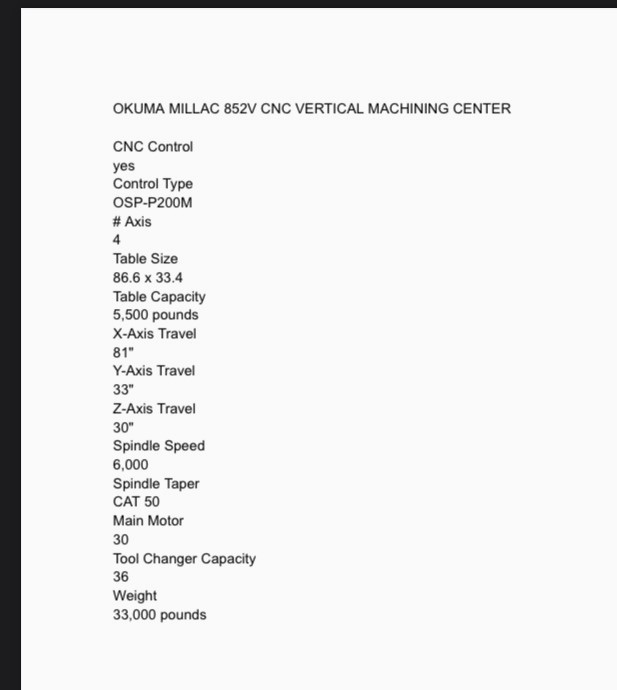

Spec Sheet

OKUMA MILLAC 852V LARGE CNC 3-AXIS 50 TAPER VERTICAL MACHINING CENTER, 86" X 35" TABLE SIZE, 81" X, 33.5" Y, 29.5" Z, 6000RPM 50 TAPER, 36 ATC
OKUMA OSP P200M CNC CONTROL


Specifications
Year:
2008
X axis travel:
80.71"
Y axis travel:
33.46"
Z axis travel:
29.53"
Spindle motor:
30 HP
Spindle speed:
6,000 RPM
Spindle taper:
50 CT
Tool changer:
36 ATC
Rapid rate x axis:
630 IPM
Rapid rate y axis:
630 IPM
Rapid rate z axis:
630 IPM
Max tool weight:
44.0 LBS
Max tool diameter:
4.72" Full
Tool change time:
2.5 Sec
Spindle nose to table:
7.87 – 37.4" Max
Spindle center to column:
35.43
Table size:
86.6" x 35.24"
Dimensions:
205.4" x 166.8" x 124.44"
Weight:
33,069 LBS


Equipped With

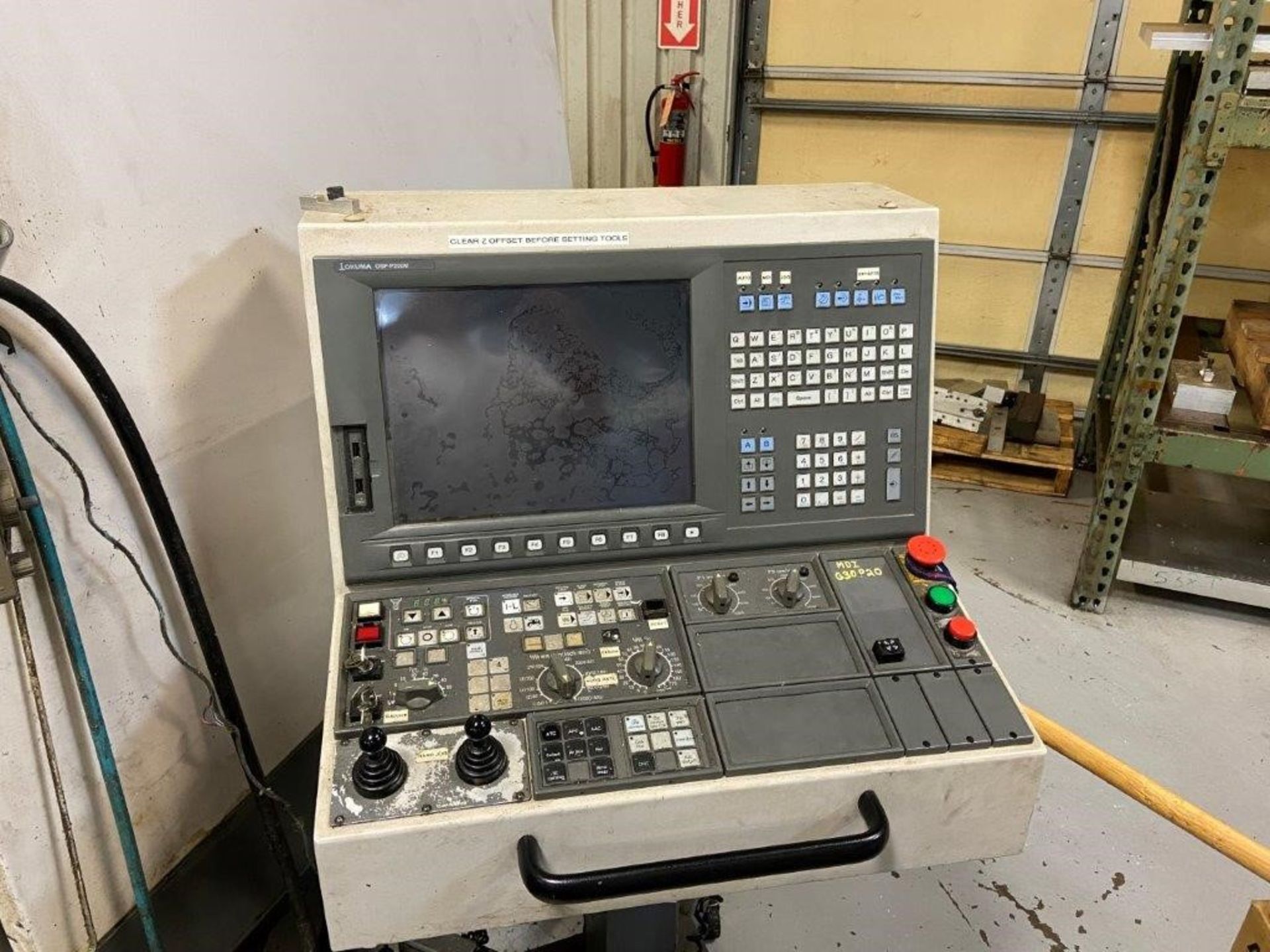

OKUMA OSP P200M CNC CONTROL

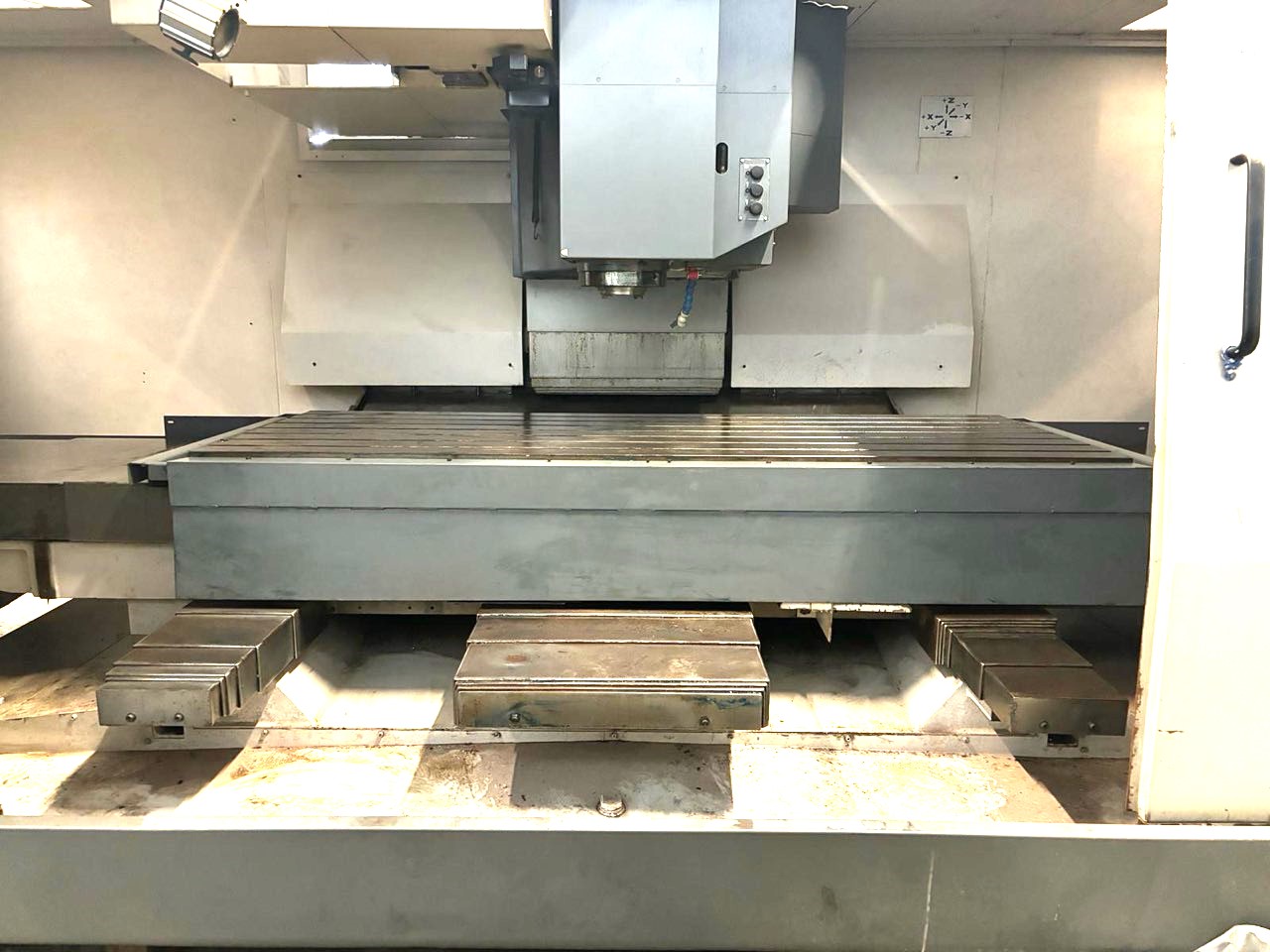

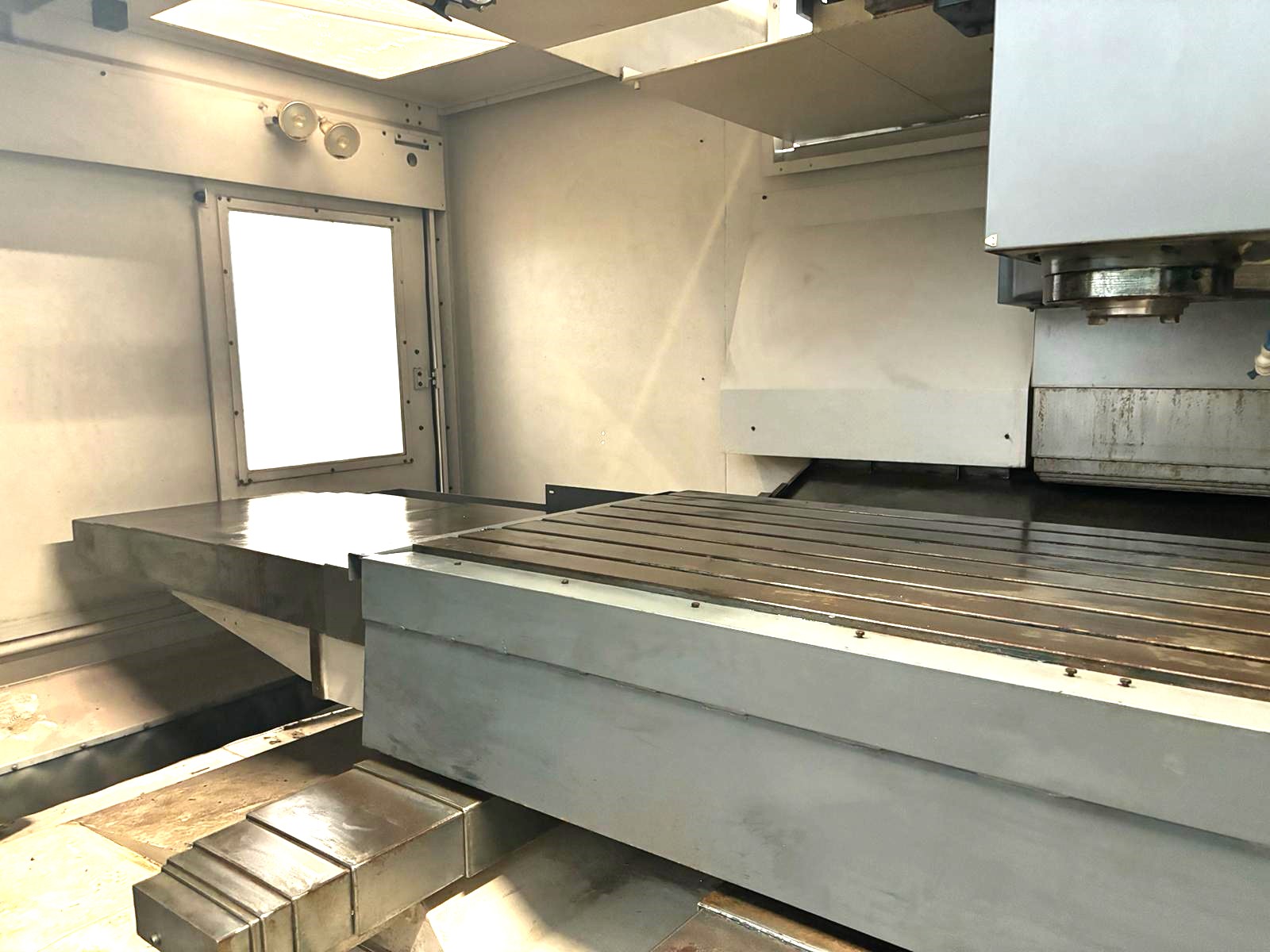

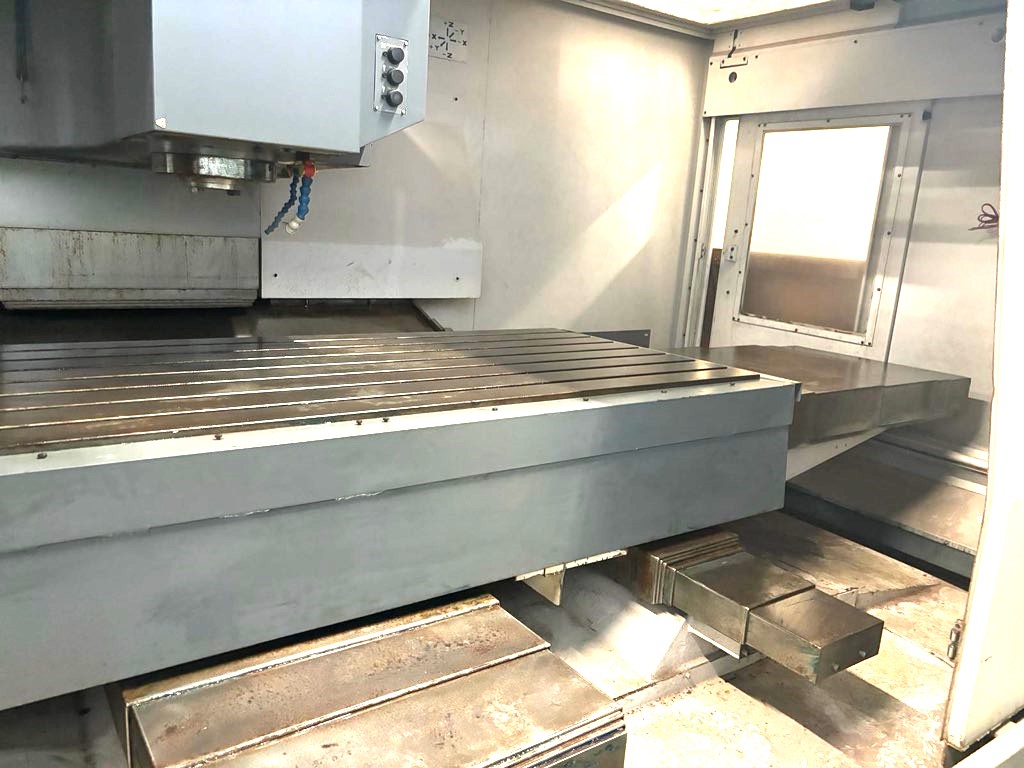

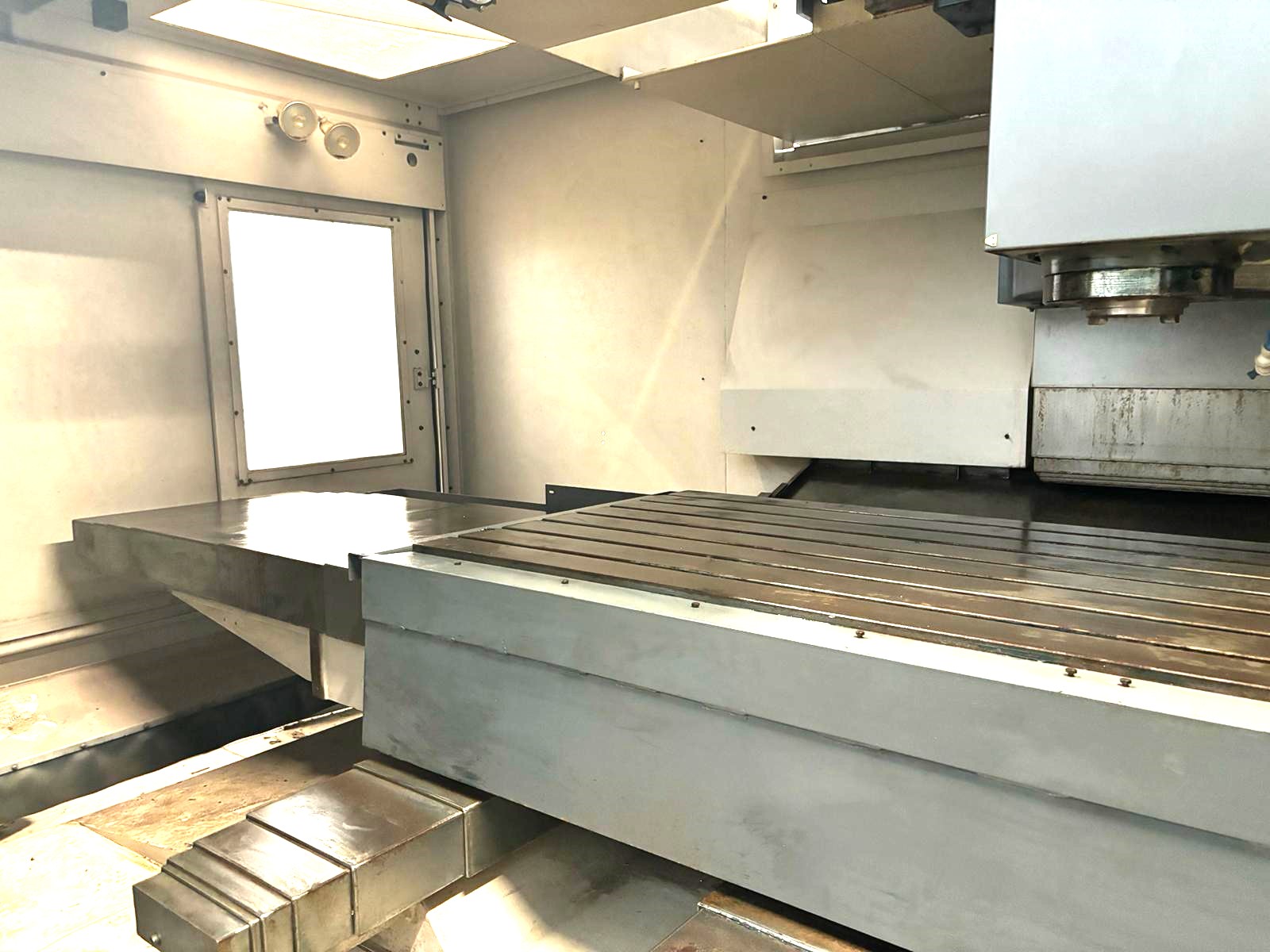

86" X 35" TABLE
6000 RPM 50 TAPER SPINDLE

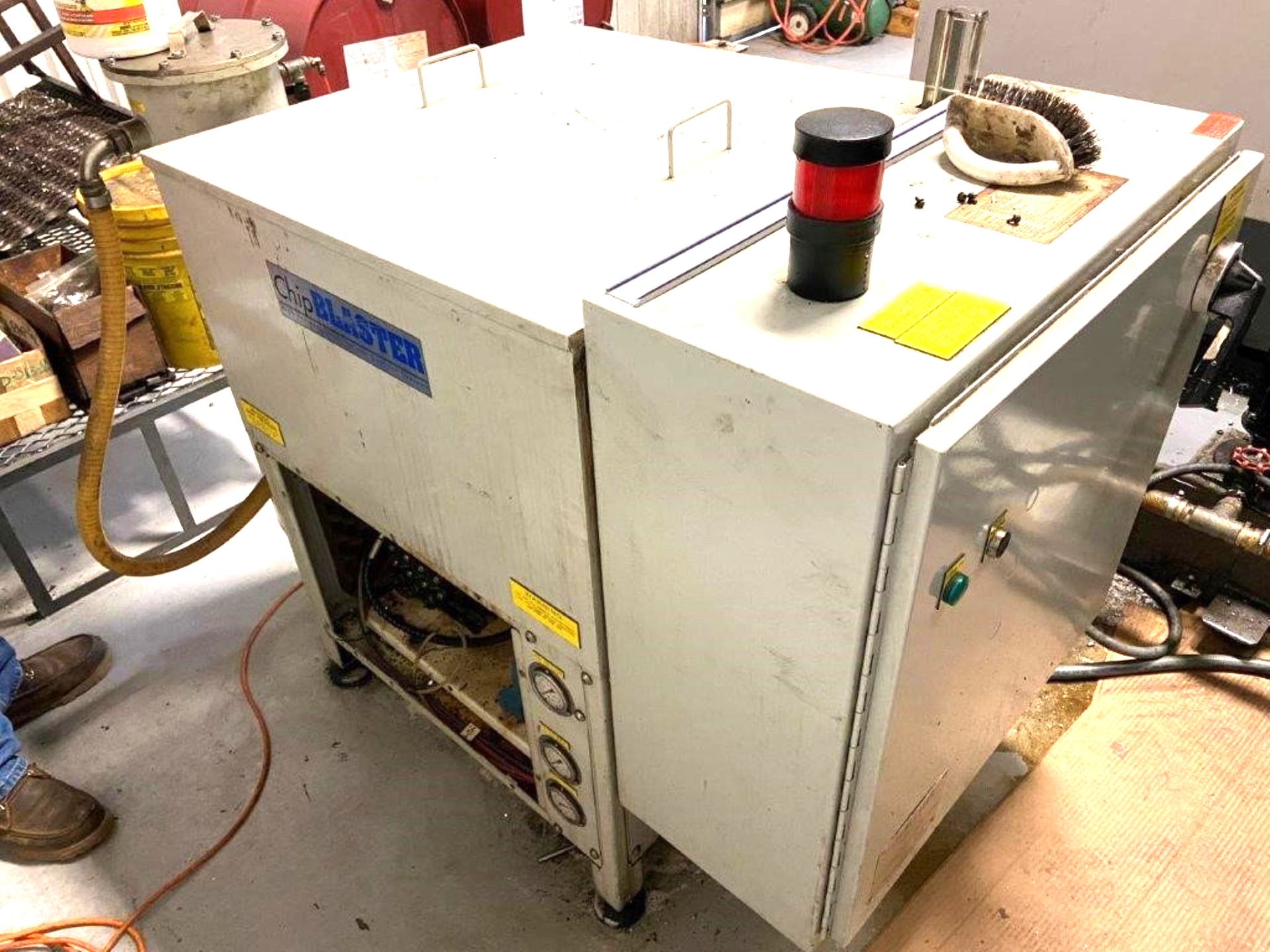

HIGH PRESSURE COOLANT
36 POSITION TOOL CHANGER
CHIP CONVEYOR

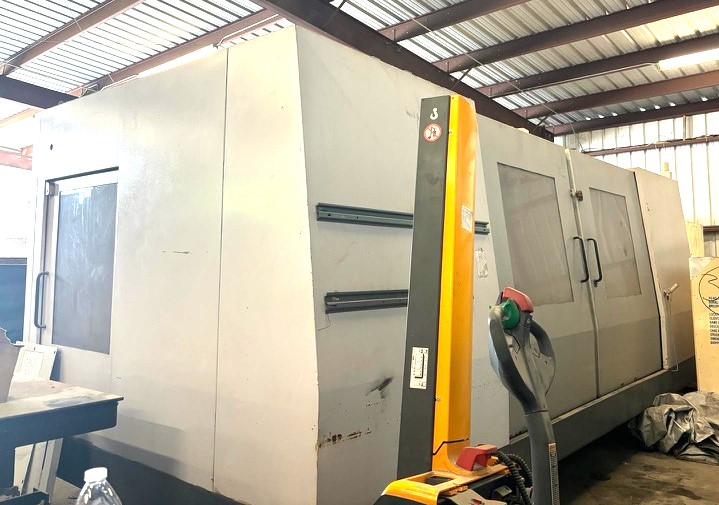

FULL ENCLOSURE
