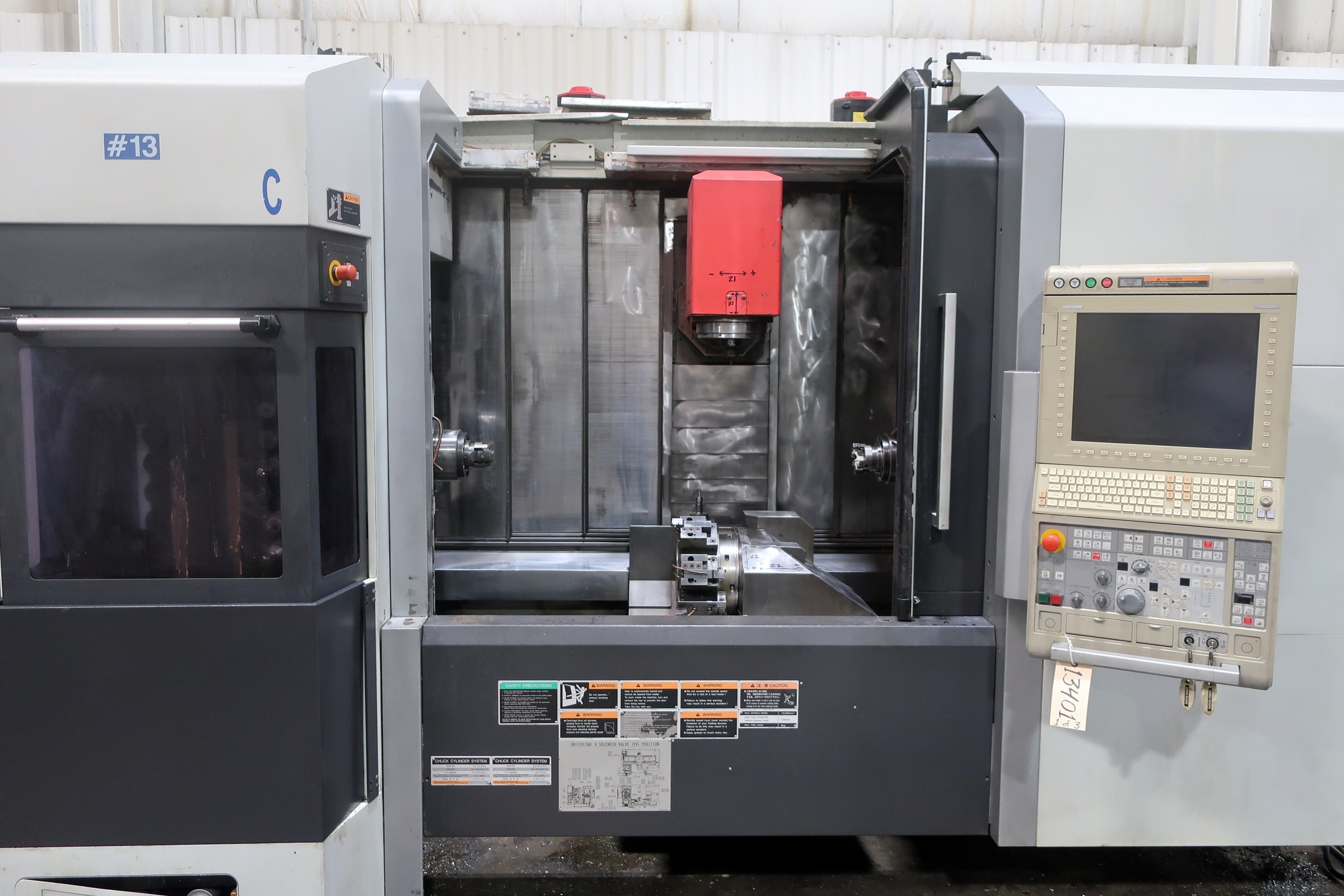

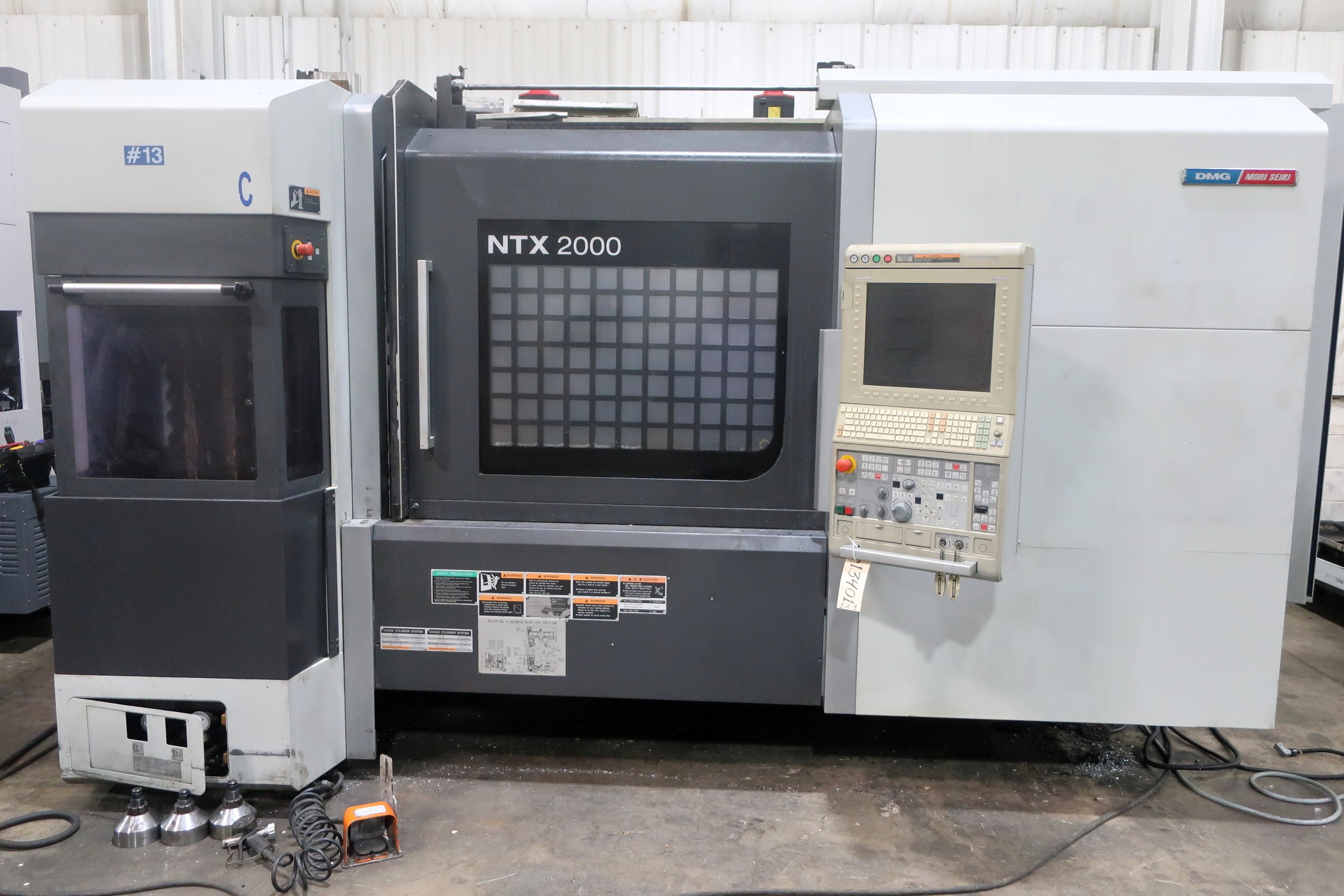

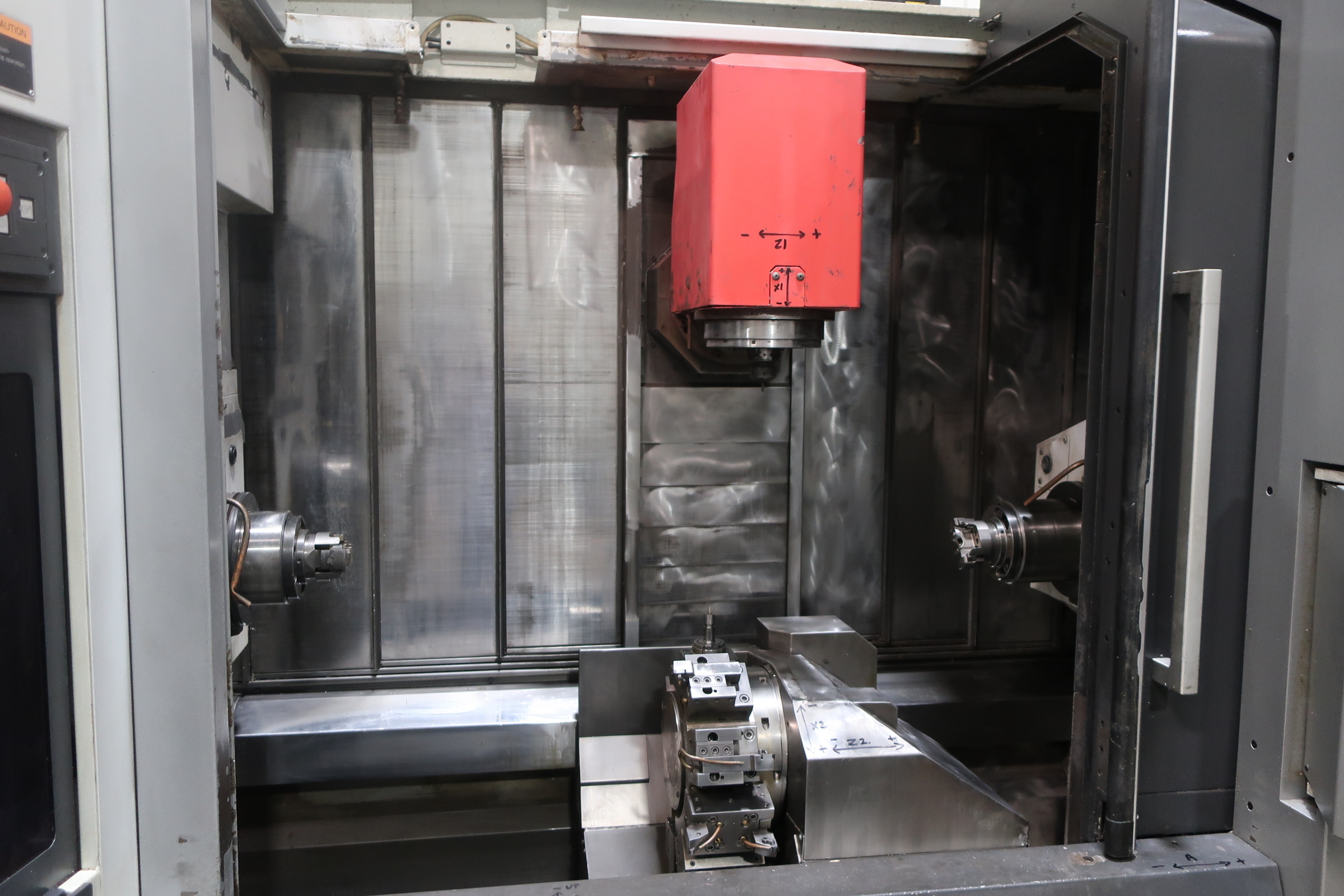

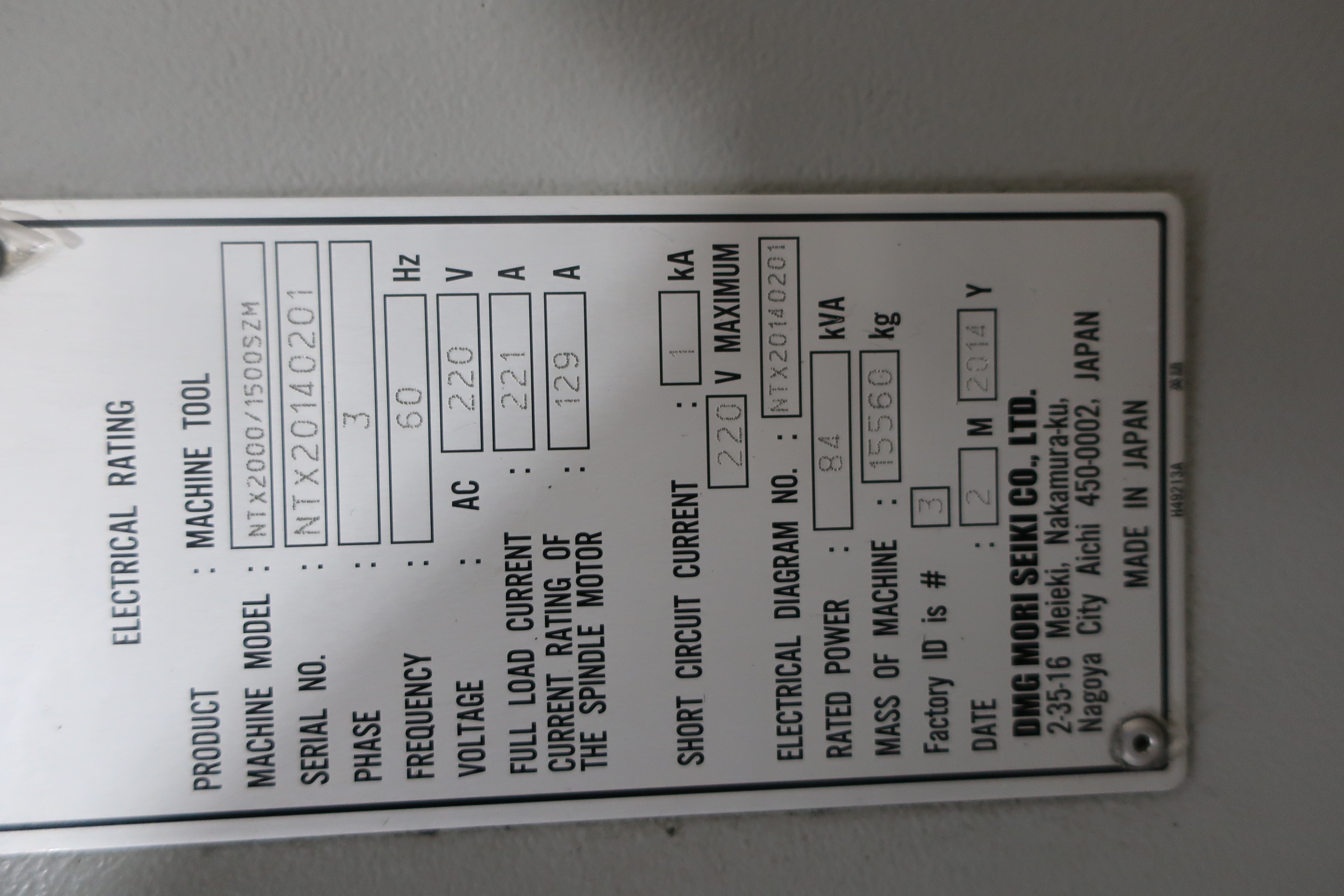

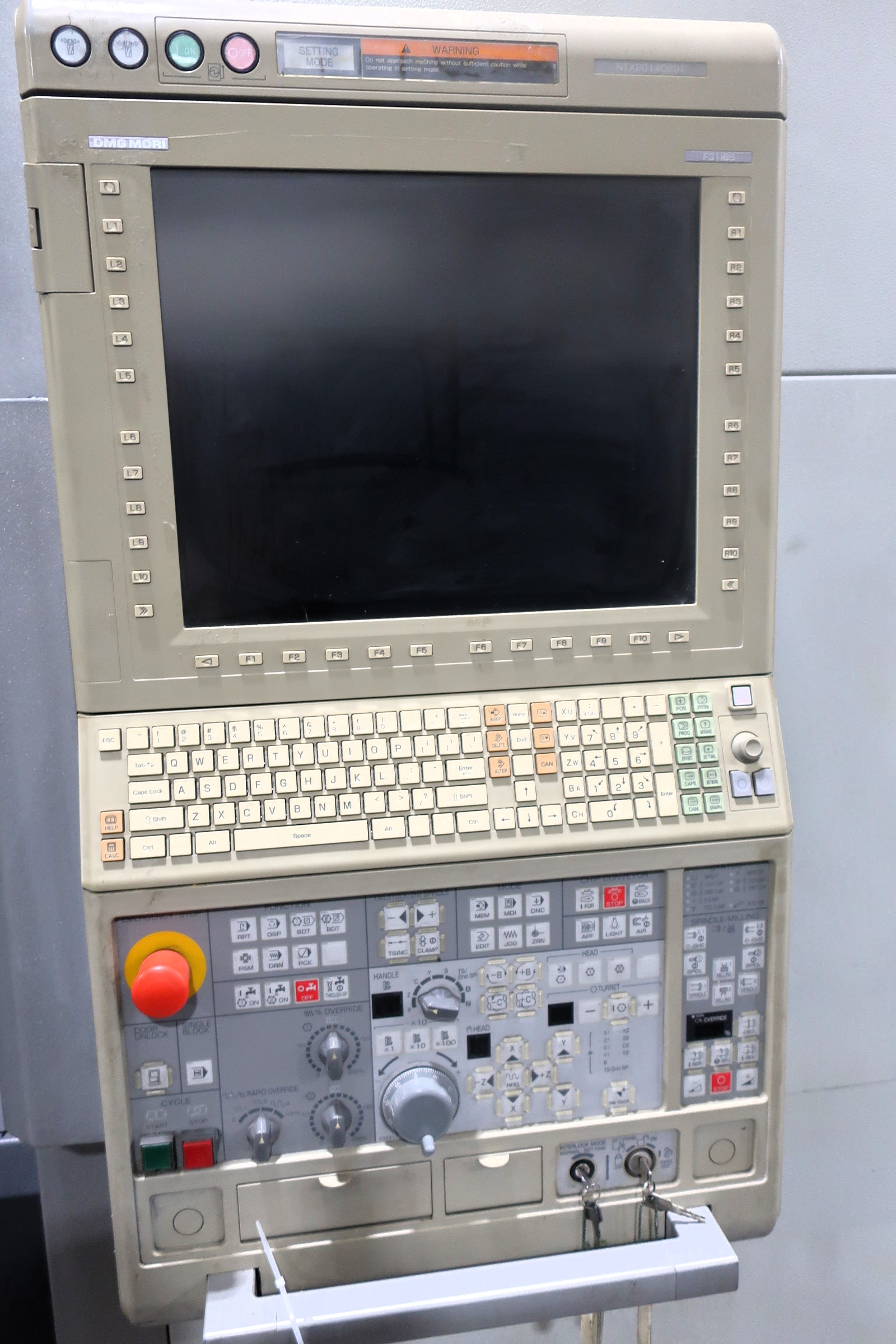

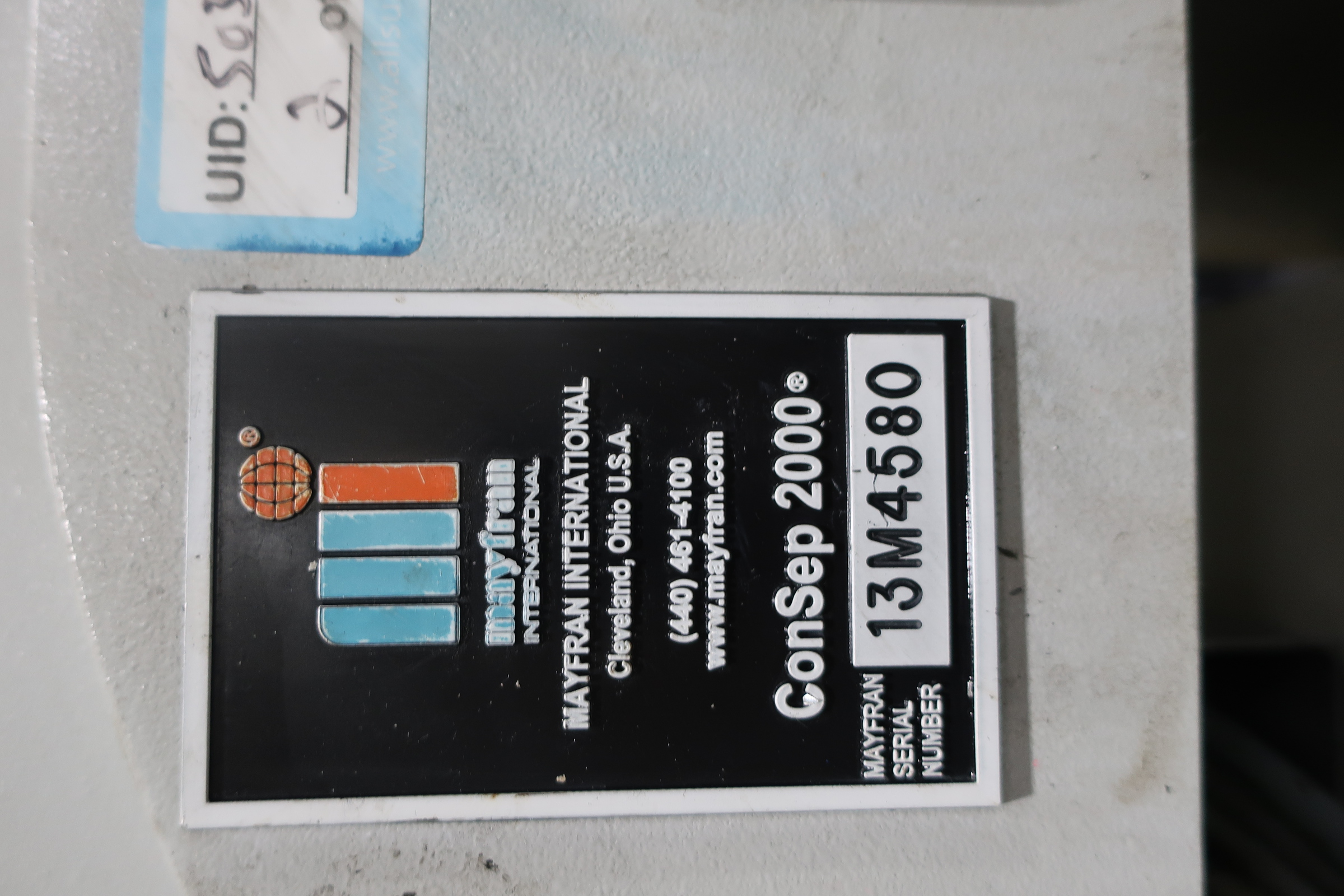

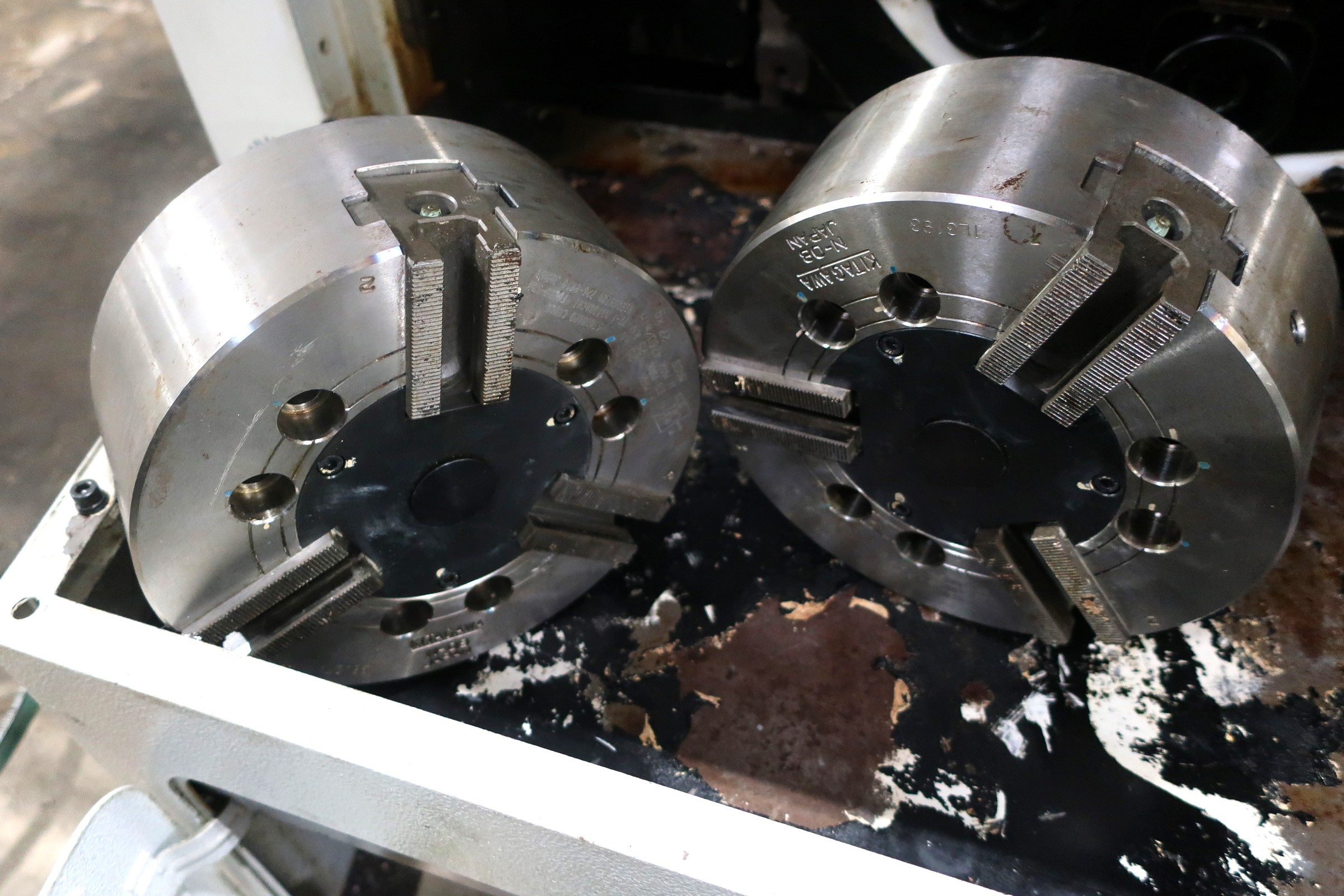

DMG MORI SEIKI NTX2000/1500SZM CNC MILL TURN CENTER NEW 2014, 5-Axis with lower turret live tooling

Manufacturer

DMG MORI SEIKI

Category

Lathes

Type

LATHES, TURNING, CNC

Stock

13401

Model

NTX2000/1500SZM

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

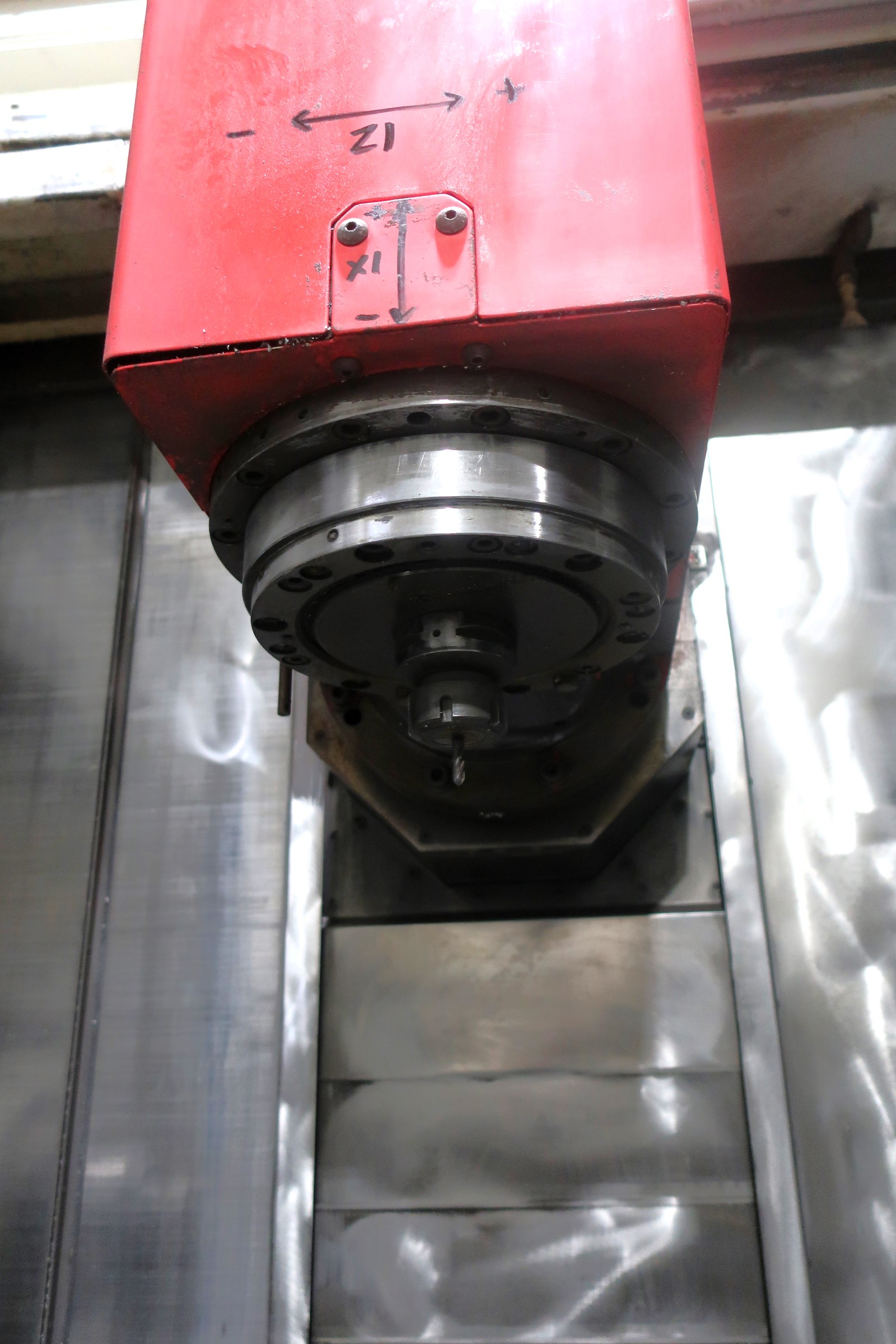

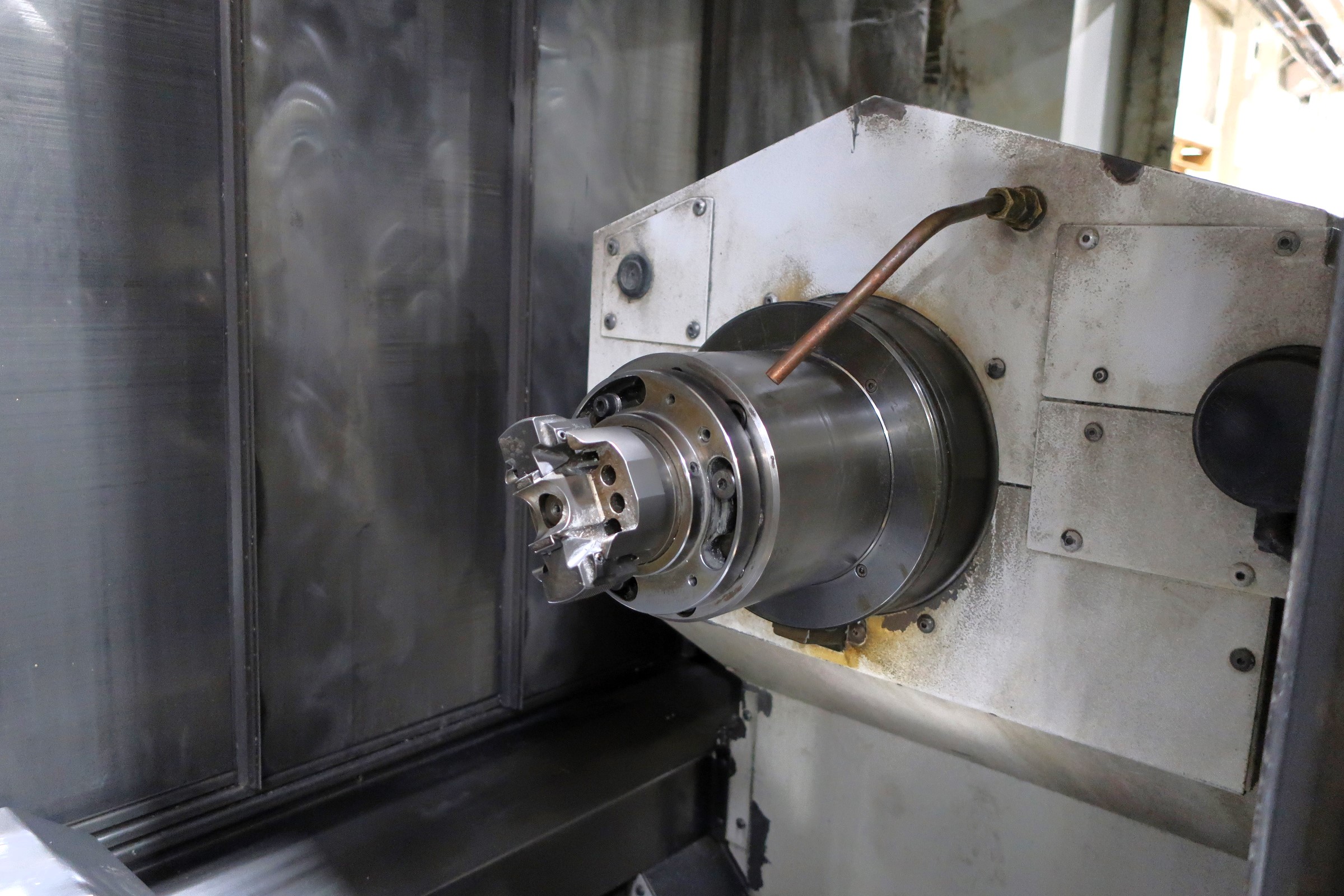

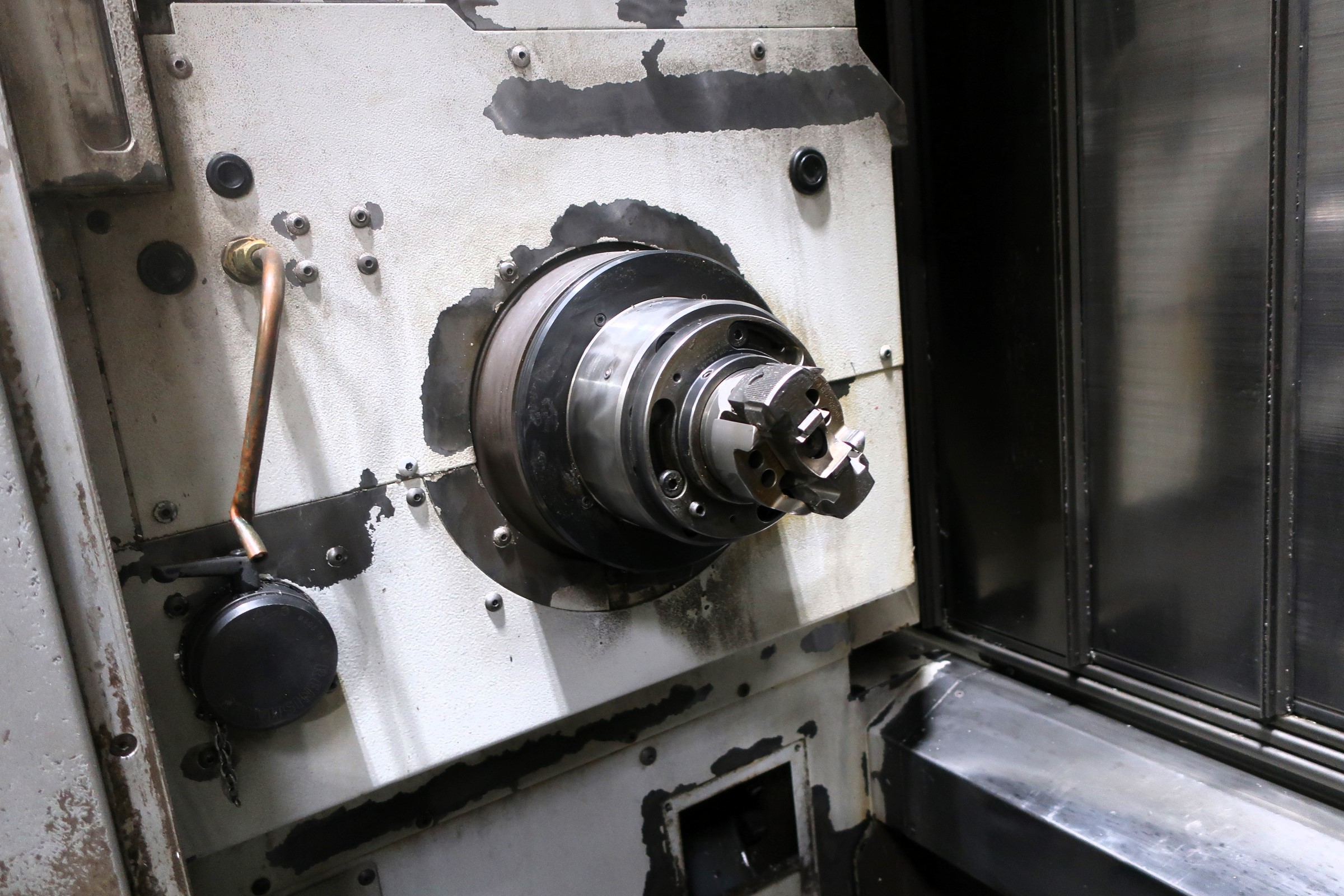

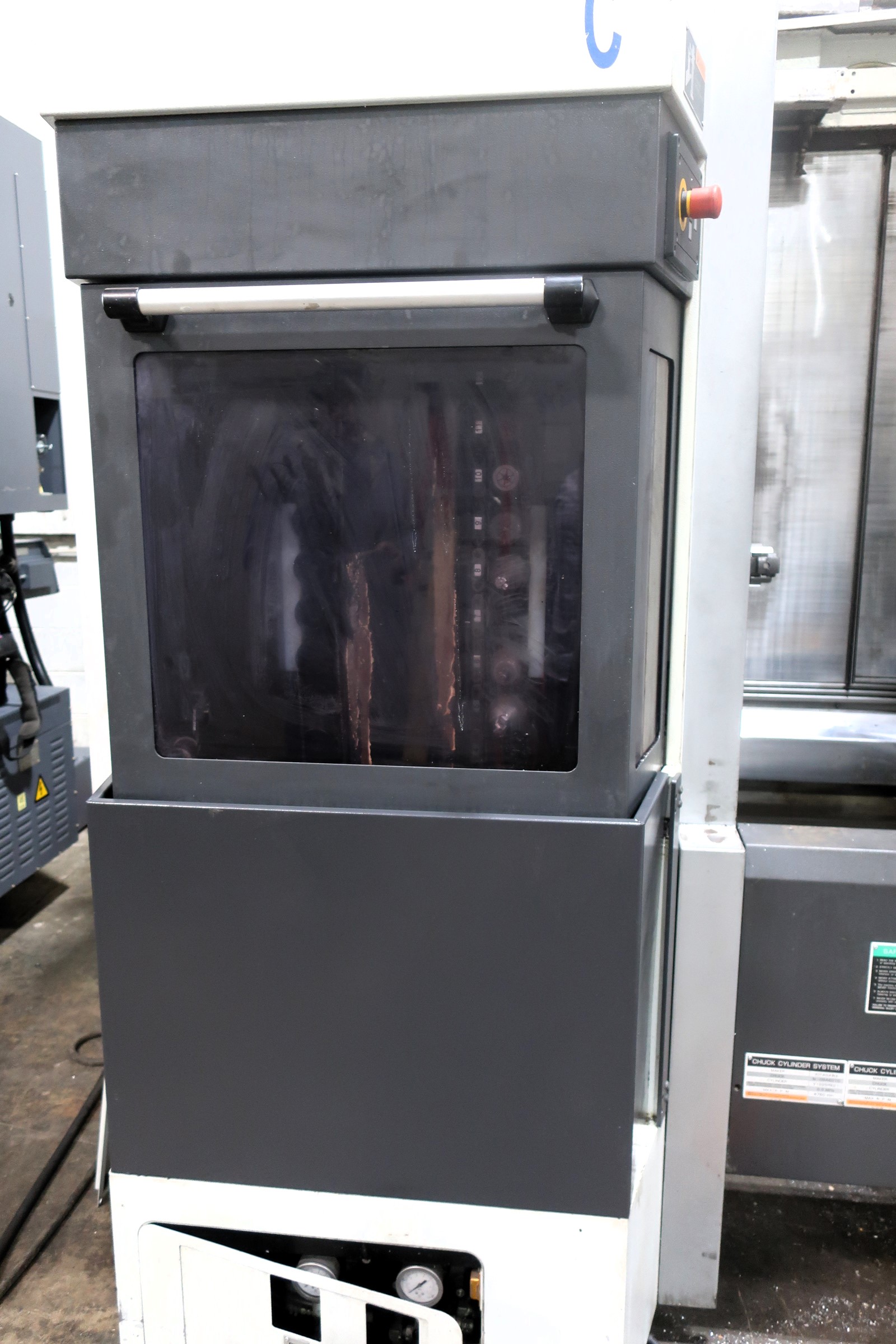

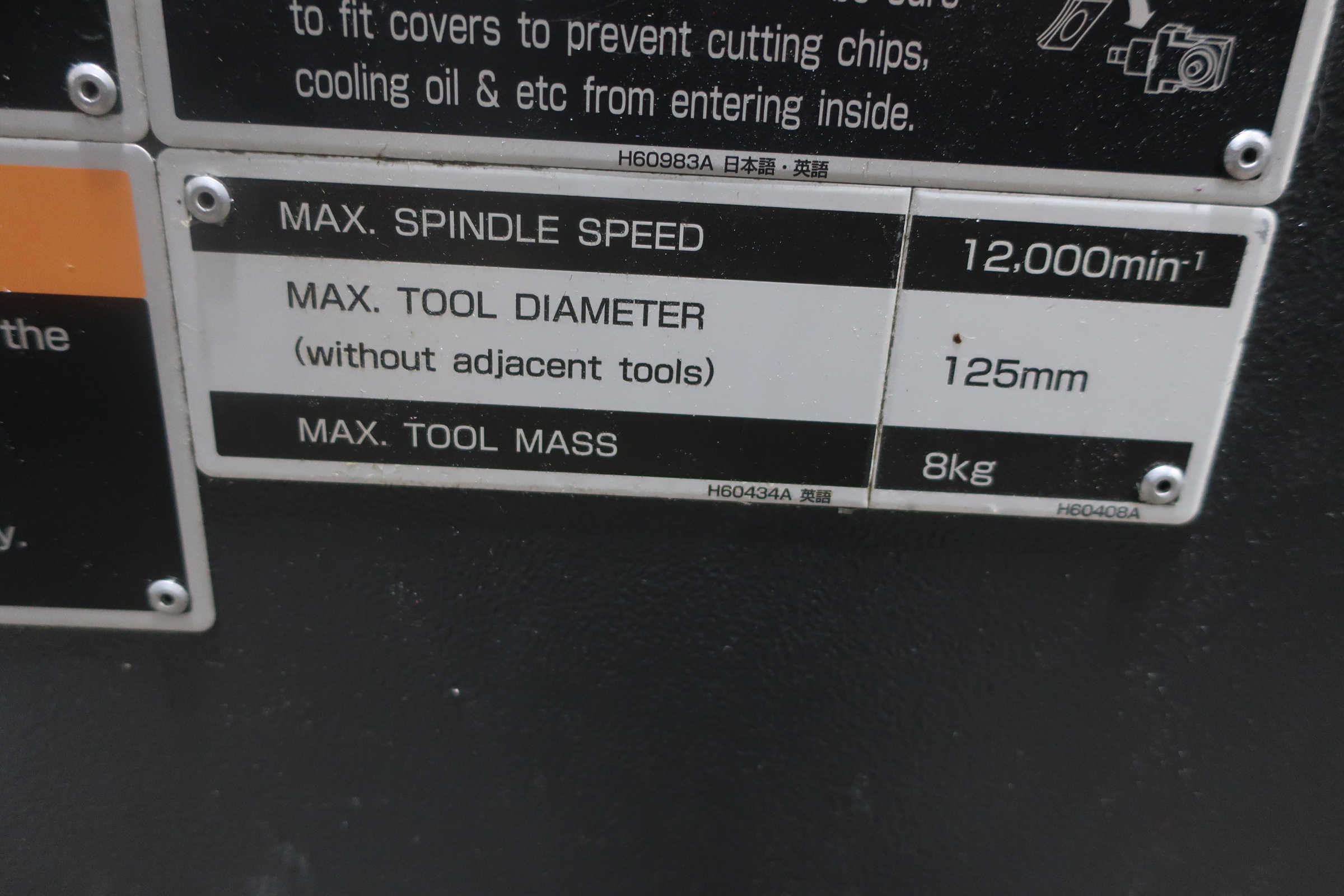

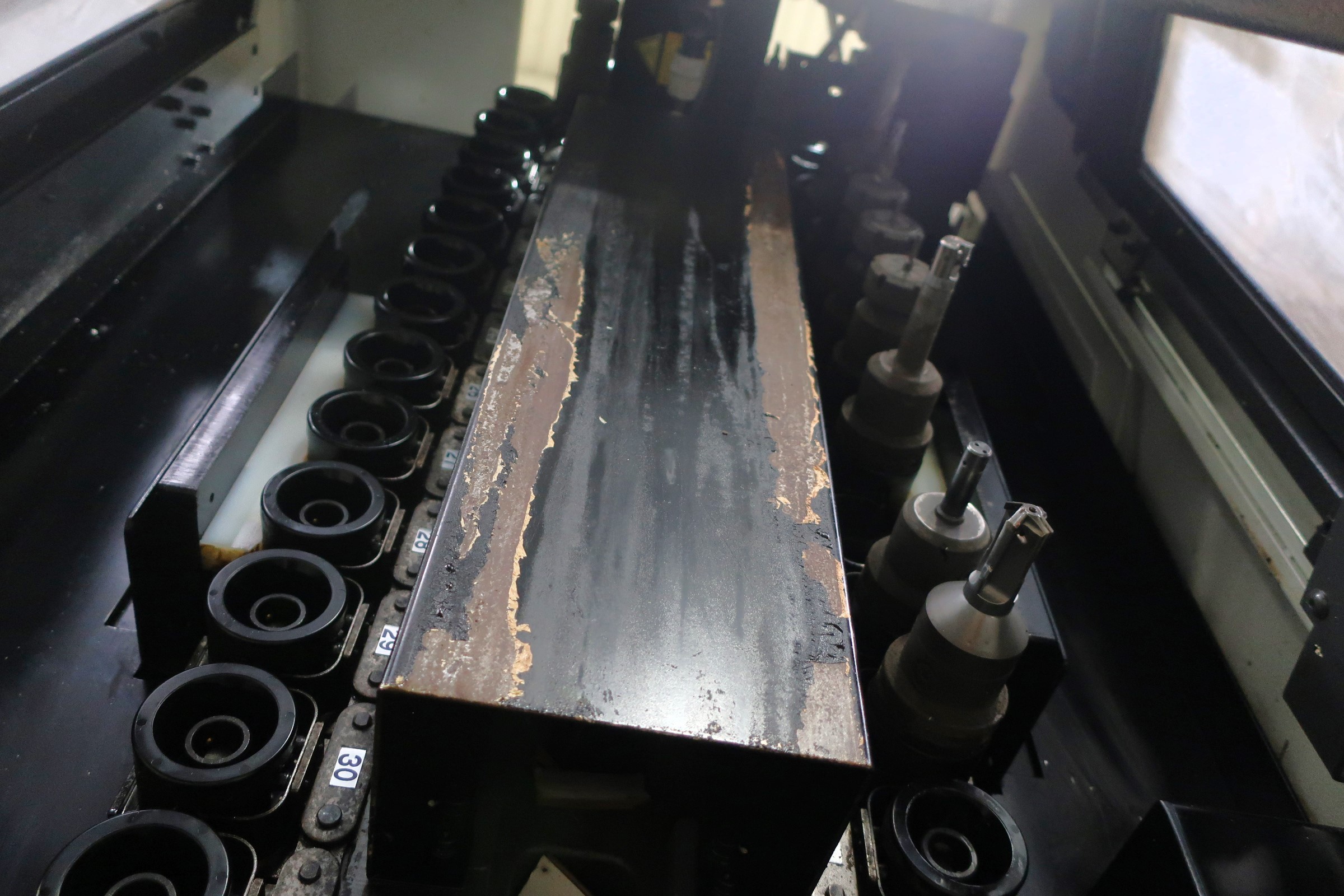

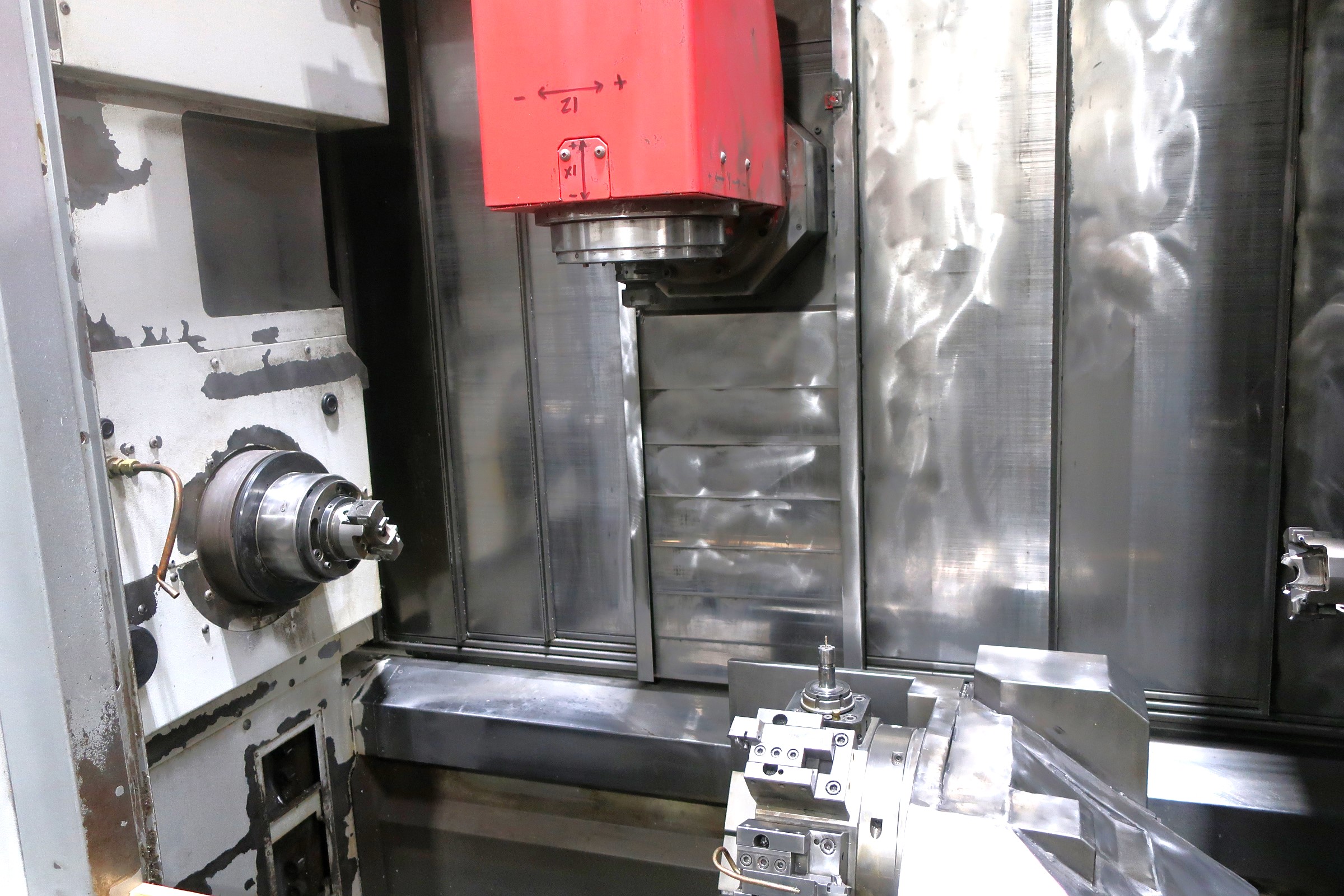

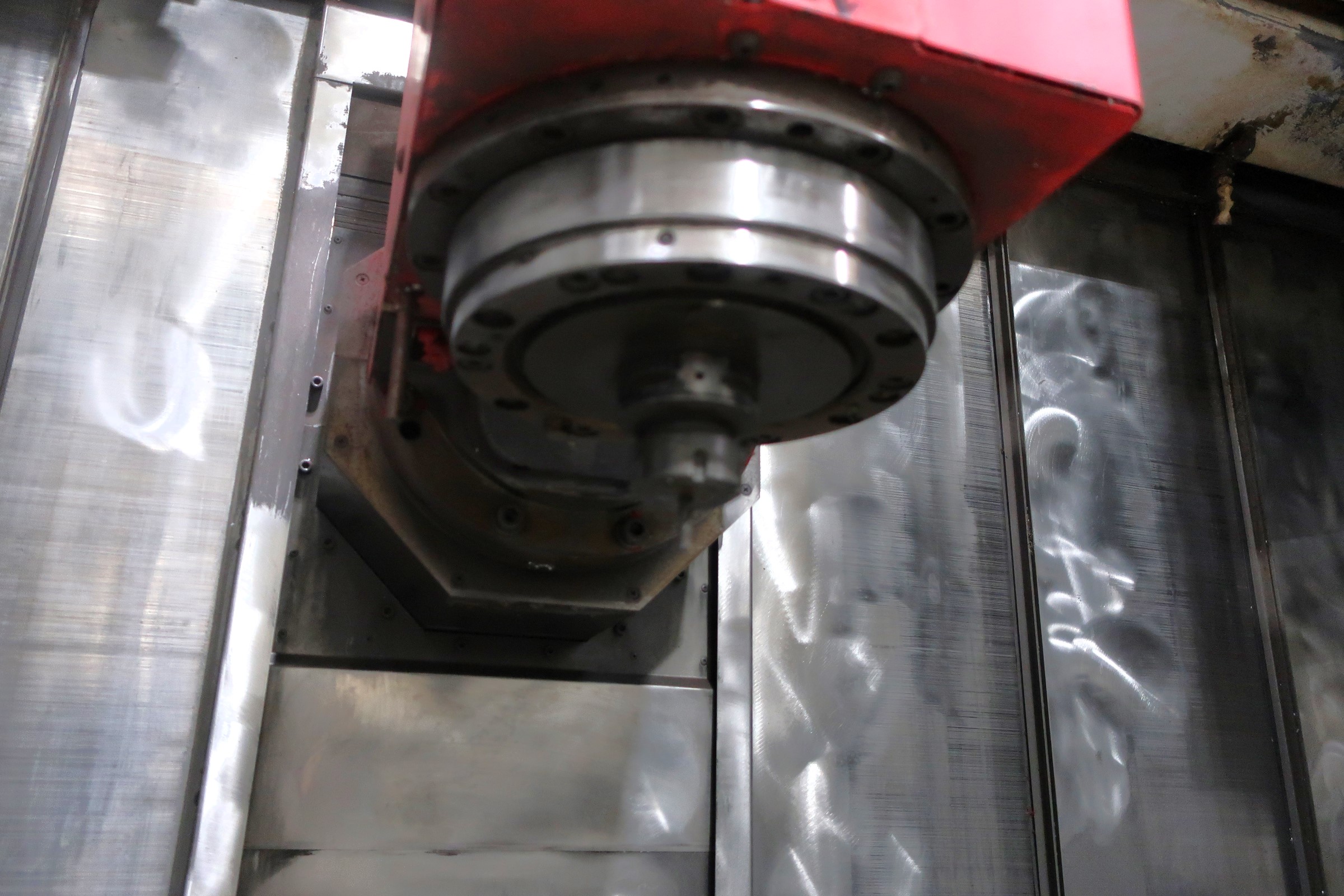

NTX2000/1500SZM CNC MILL TURN CENTER NEW 2014, Main and Sub spindle, lower turret with live tooling, Milling spindle, 40 atc Specifications Technical Description Basic machine: NTX 2000 | 1500SZM The specifications below apply to a basic machine without additional options. Specifications in square brackets [ ] are values or features for a machine with additional options. Capacity Maximum workpiece swing diameter mm (in.) 660 (25.9) Swing over cross slide: - Standard mm (in.) 660 (25.9) - Turret 2 mm (in.) 300 (11.8) Maximum turning diameter: - Standard mm (in.) 610 (24.0) - B-axis 90 mm (in.) 660 (25.9) - Turret 2 mm (in.) 274 (10.7) Maximum turning length mm (in.) 1,540 (60.6) Bar work capacity: - Standard mm (in.) 65 (2.5) - For 80 mm (?3.1 in.) bar work capacity specifications mm (in.) [80 (3.1)] Travel X-axis mm (in.) 495 <470+25> (19.5 <18.5+1.0>) Y-axis mm (in.) ?125 (?4.9) Z-axis mm (in.) 1,560 (61.4) +215 (8.5) B-axis 120 X2-axis mm (in.) 160 (6.3) Z2-axis mm (in.) 1,402 (55.2) Spindle 1 Maximum spindle speed: - Standard min-1 5,000 - For 80 mm (3.1 in.) bar work capacity specifications min-1 [4,000] Number of spindle speed ranges 1 Type of spindle nose: - Standard A2-6 - For 80 mm (3.1 in.) bar work capacity specifications [A2-8] Through-spindle hole diameter: - Standard mm (in.) 73 (2.9) - For 80 mm (3.1 in.) bar work capacity specifications mm (in.) [91 (3.6)] Minimum spindle indexing increment 0.0001 Spindle bearing inner diameter: - Standard mm (in.) 120 (4.7) - For 80 mm (?3.1 in.) bar work capacity specifications mm (in.) [140 (?5.5)] Spindle torque <15%ED/30 min/cont>: - Standard Nm (ftlbf) 230/178/159 (169.6/131.3/117.3) - High-torque Nm (ftlbf) [358/231/214 (264.0/170.4/157.8)] Spindle 2 Maximum spindle speed min-1 5,000 Number of spindle speed ranges 1 Type of spindle nose A2-6 Through-spindle hole diameter mm (in.) 73 (2.9) Minimum spindle indexing increment 0.0001 Spindle bearing inner diameter mm (in.) ?120 (?4.7) Spindle torque <15%ED/30 min/cont> Nm (ftlbf) 230/178/159 (169.6/131.3/117.3) Tool spindle Number of tool stations 1 Minimum B-axis indexing increment 0.0001 Maximum tool spindle speed min-1 12,000 Taper hole of rotary tool spindle Capto C6 [BT40] [CAT40] [HSK-A63] [KM-63] Type of retention knob DMG MORI SEIKI 90 Inner diameter of rotary tool spindle bearing mm (in.) 70 (2.7) Tool storage capacity 38 [76] Maximum tool diameter mm (in.) 70 (2.7) Maximum tool diameter mm (in.) 125 (4.9) Maximum tool length mm (in.) 300 (11.8) Maximum tool mass kg (lb.) 8 (17.6) [10 (22)] Tool changing time sec 1.25 Spindle torque <10%ED/cont> Nm (ftlbf) 120/44 (88.5/32.5) Turret 2 Number of tool stations 10 Turret Indexing time <1-station> sec 0.19 Shank height for square tool mm (in.) 20 (0.8) Diameter of boring bar shank part mm (in.) Max. 32 (1.2) Live tooling on turret Feedrate Rapid traverse rate: - X-axis mm/min (ipm) 40,000 (1,574.8) - Y-axis mm/min (ipm) 40,000 (1,574.8) - Z-axis mm/min (ipm) 40,000 (1,574.8) - X2-axis mm/min (ipm) 30,000 (1,181.1) - Z2-axis mm/min (ipm) 38,000 (1,496.1) - A-axis mm/min (ipm) 30,000 (1,181.1) Motors Spindle 1 drive motor <30 min/cont> kW (HP) 22/18.5 (30/24.7) Spindle 2 drive motor <30 min/cont> kW (HP) 22/18.5 (30/24.7) Tool spindle drive motor <10 min/cont> kW (HP) 18.5/11 (24.7/15) Power Sources Electrical power supply kVA 79.9 Compressed air supply MPa (psi), L/min (gpm) 0.5 (72.5), 650 (171.6) Tank Capacity Coolant tank capacity L (gal.) 675 (178.2) Machine Size Machine height mm (in.) 2,621 (103.2) Floor space mm (in.) 4,080 x 2,980 (160.6 x 117.3) Mass of machine: - Tool storage capacity: 38 tools kg (lb.) 15,270 (33,594) - Tool storage capacity: 76 tools kg (lb.) [15,780 (34,716)] Equipped With Fanuc 31iB5 CNC control Main and Sub Spindle Milling Spindle 12,000 RPM Lower turret with Live tooling coolant system chip conveyor
