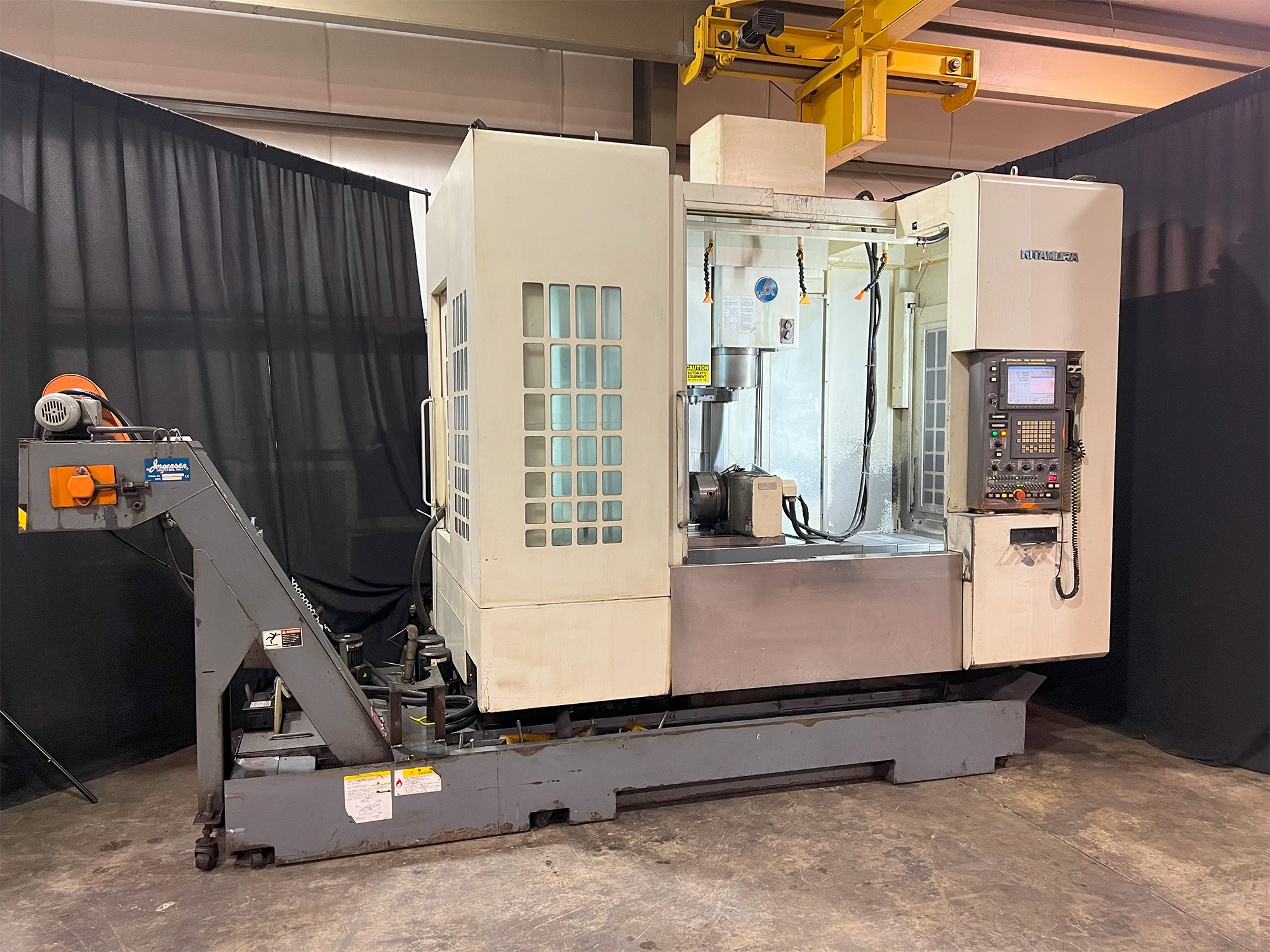

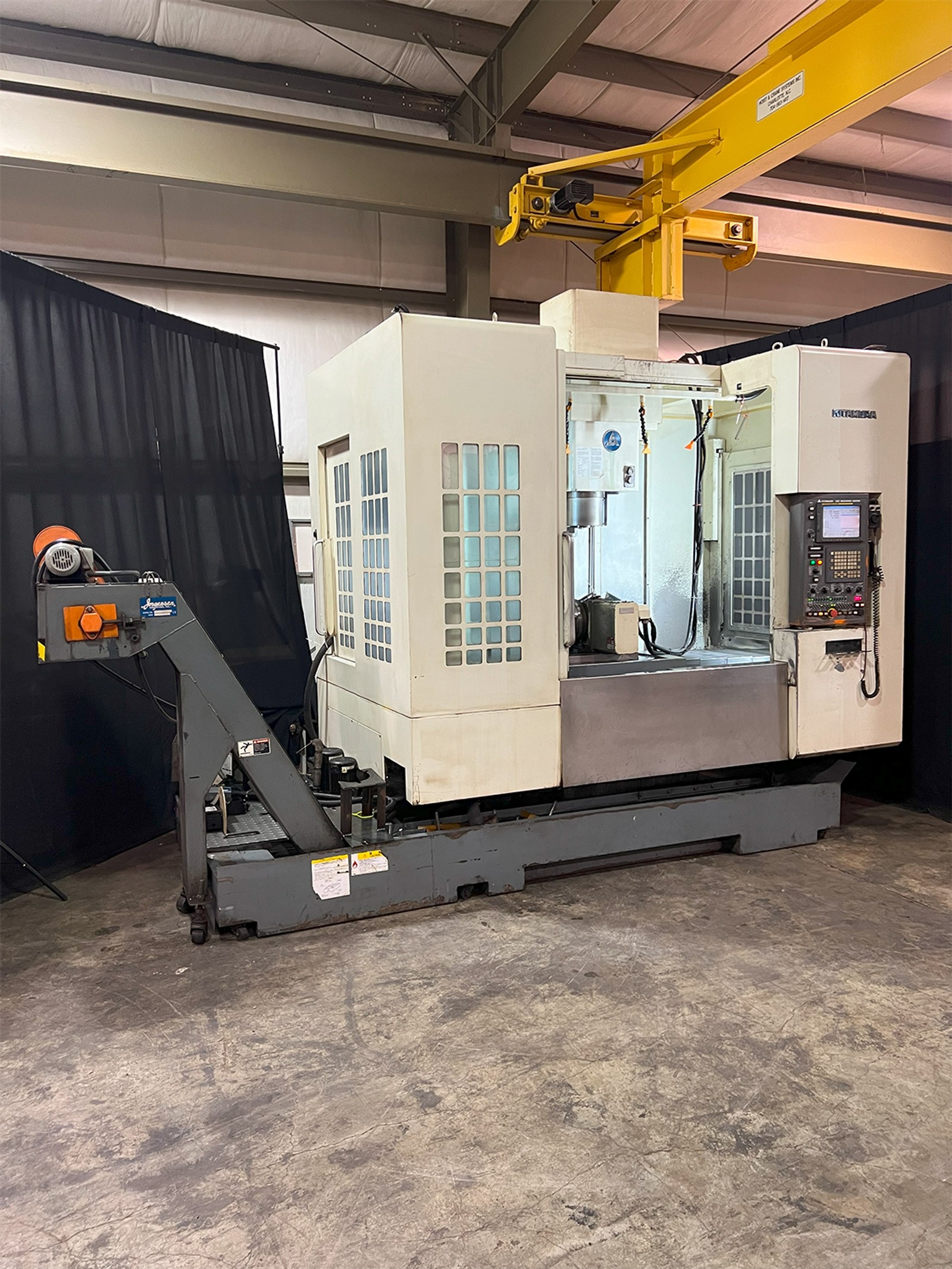

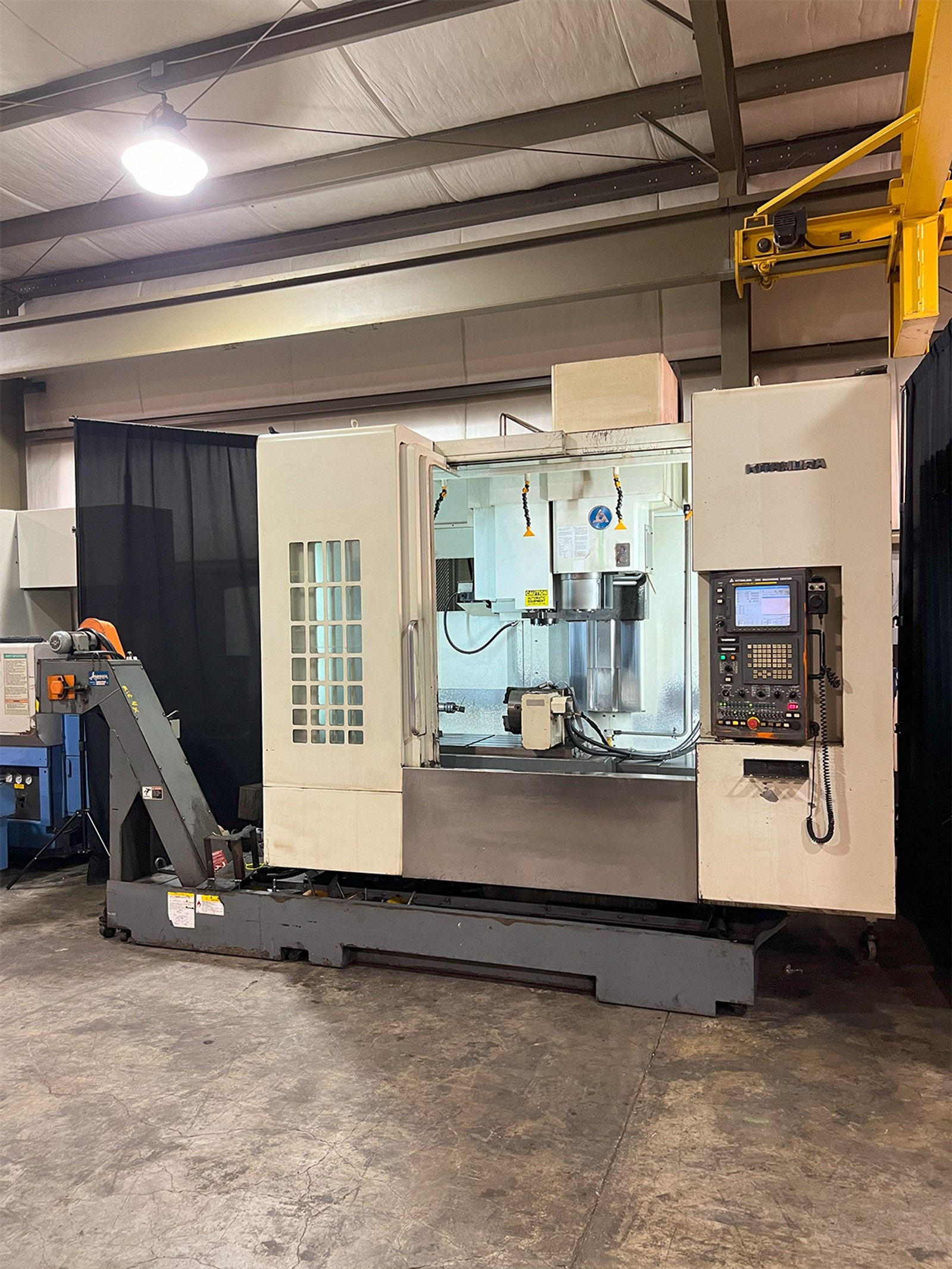

Kitamura MyCenter 4XiF 4-Axis CNC Vertical Machining Center

Manufacturer

KITAMURA

Category

Machining Centers

Type

MACHINING CENTERS, HORIZ/VERT, CNC

Stock

22488

Model

MyCenter 4XiF

Dealer Location

North Carolina

Request a Quote
View Contact Information

Spec Sheet

22488 Kitamura MyCenter 4XiF 4-Axis CNC Vertical Machining Center

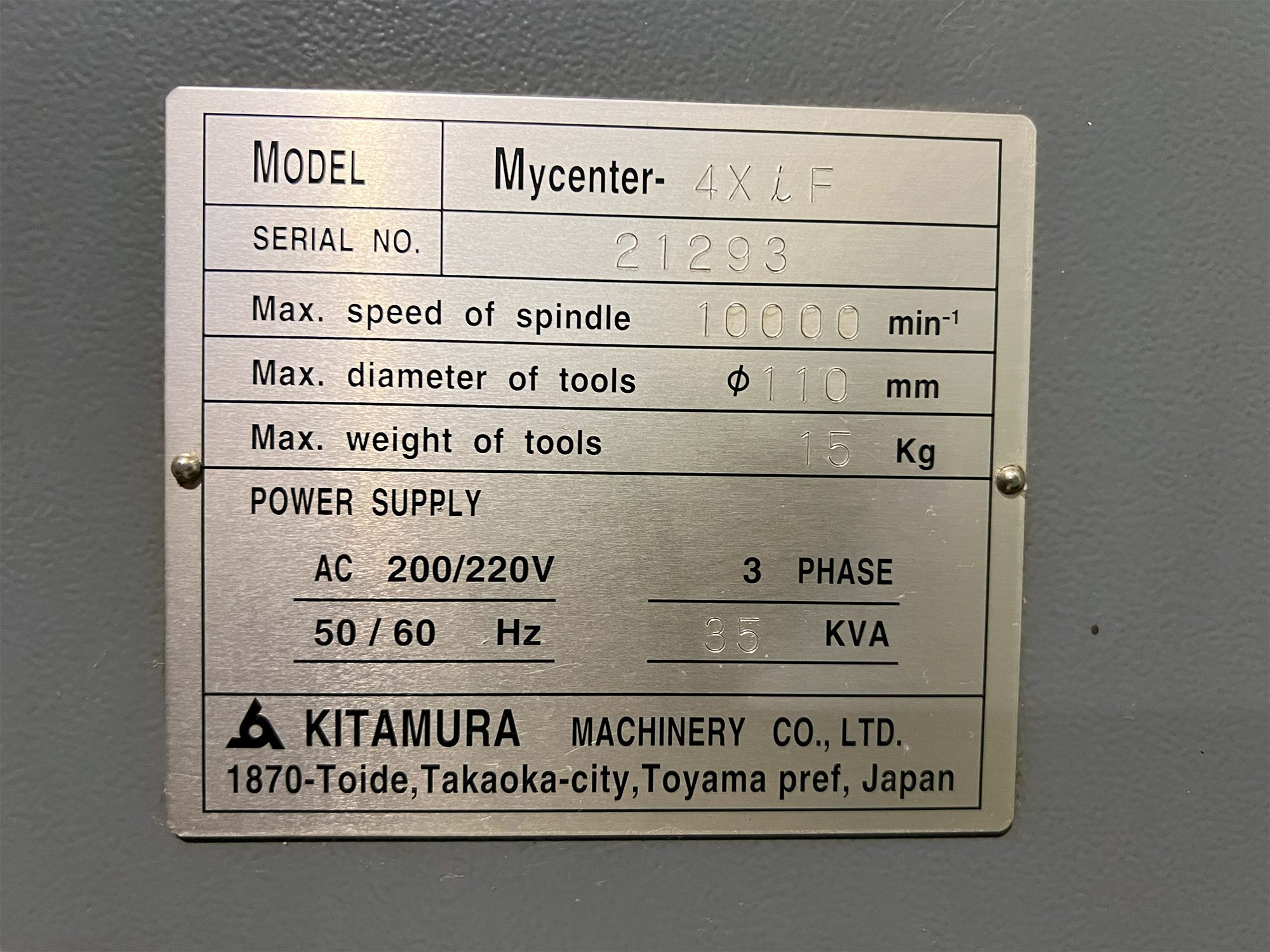

Model : MyCenter 4XiF sn : Mfg.: 2009

#50 BIG PLUS Spindle Speeds: to 10,000 RPM
Table Size: 43.3" x 20.6" | 18mm T-Slotted
X/Y/Z-Axis Travels: 40.0"/20.1"/20.1"
Spindle Nose to Table: 6.9" - 27.0"
Column Slide Away to Center Line: 10.4" - 30.4"
Table Capacity: 2,200 lbs.

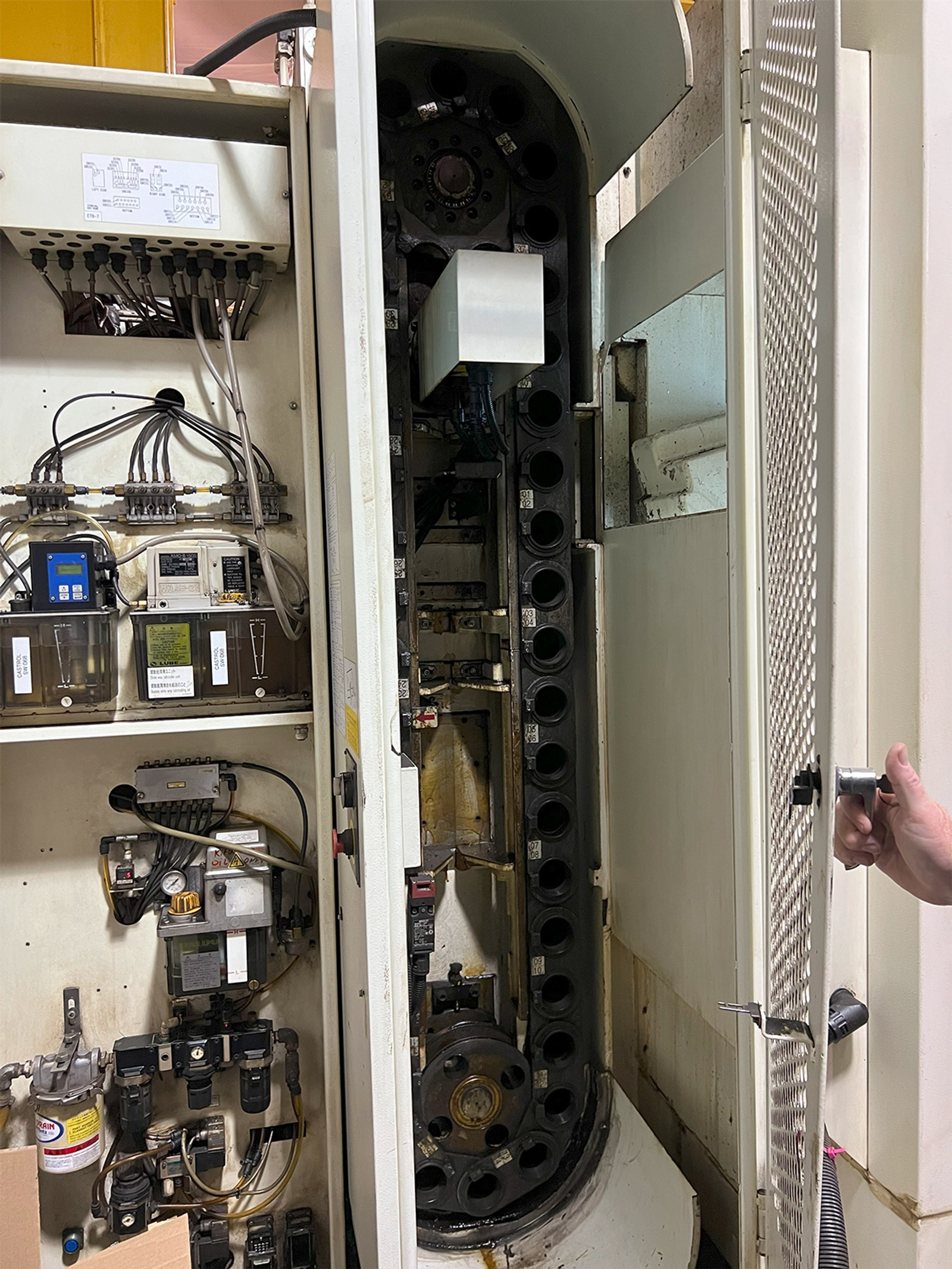

ATC: 40 Position
Description

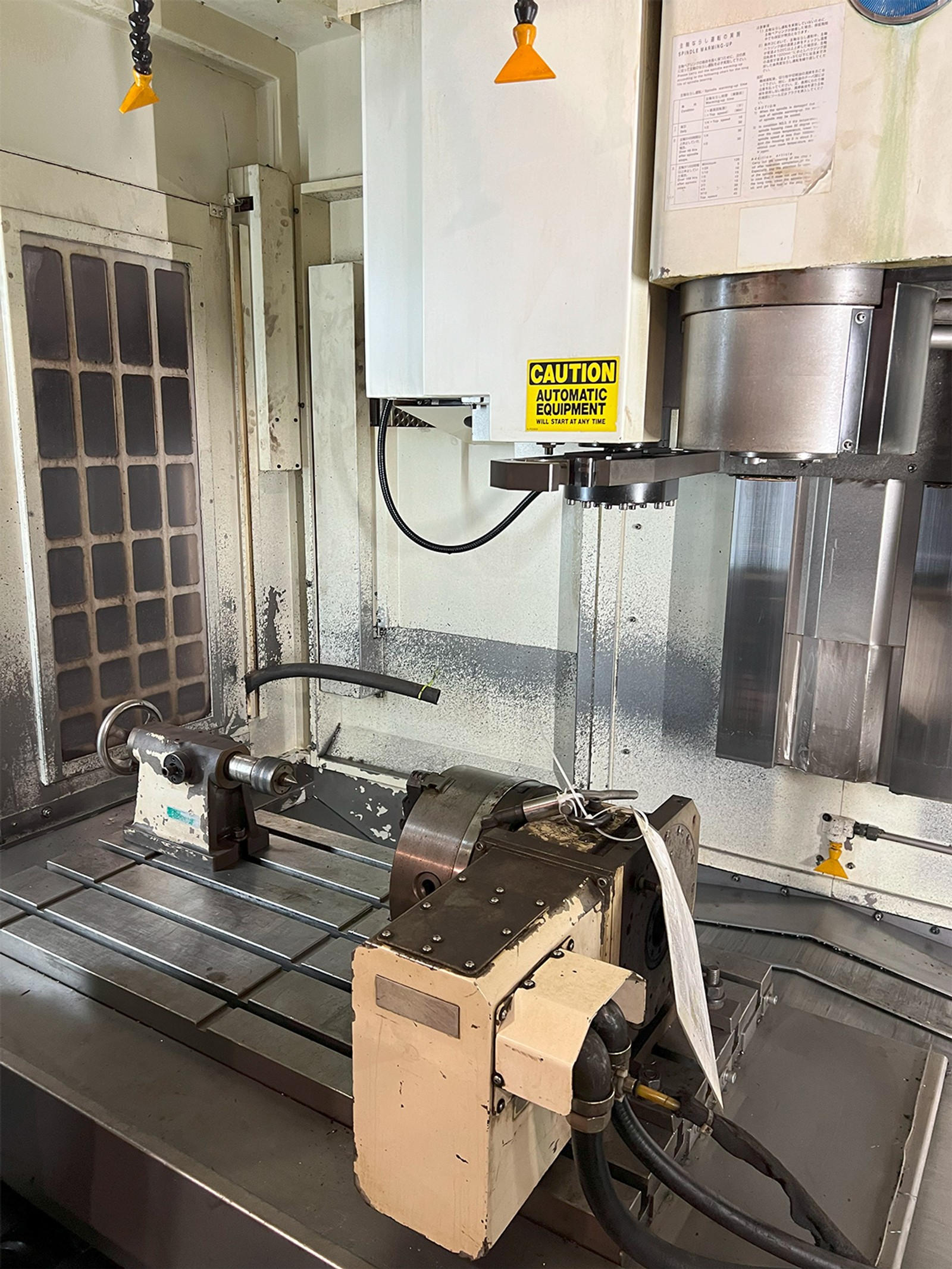

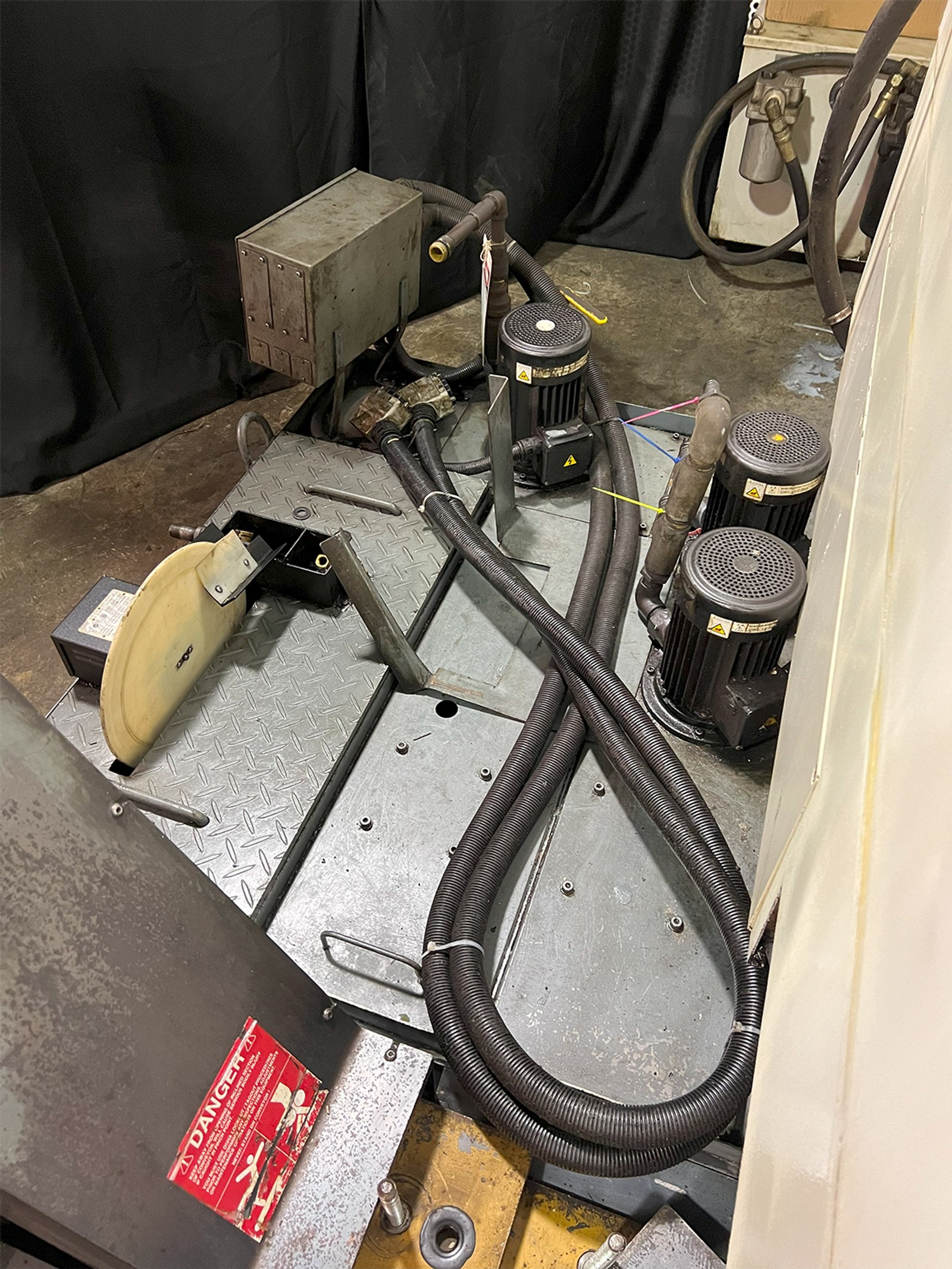

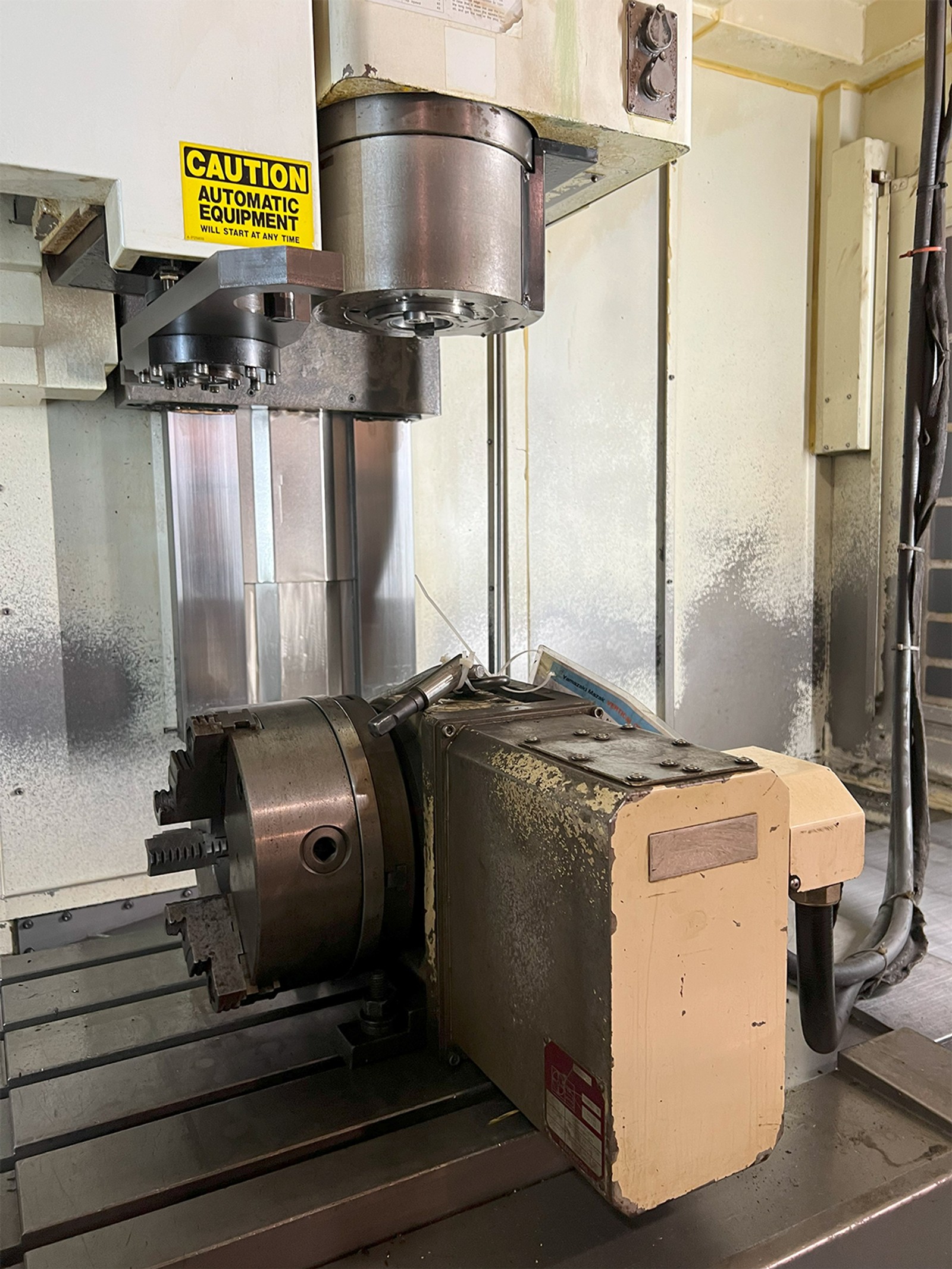

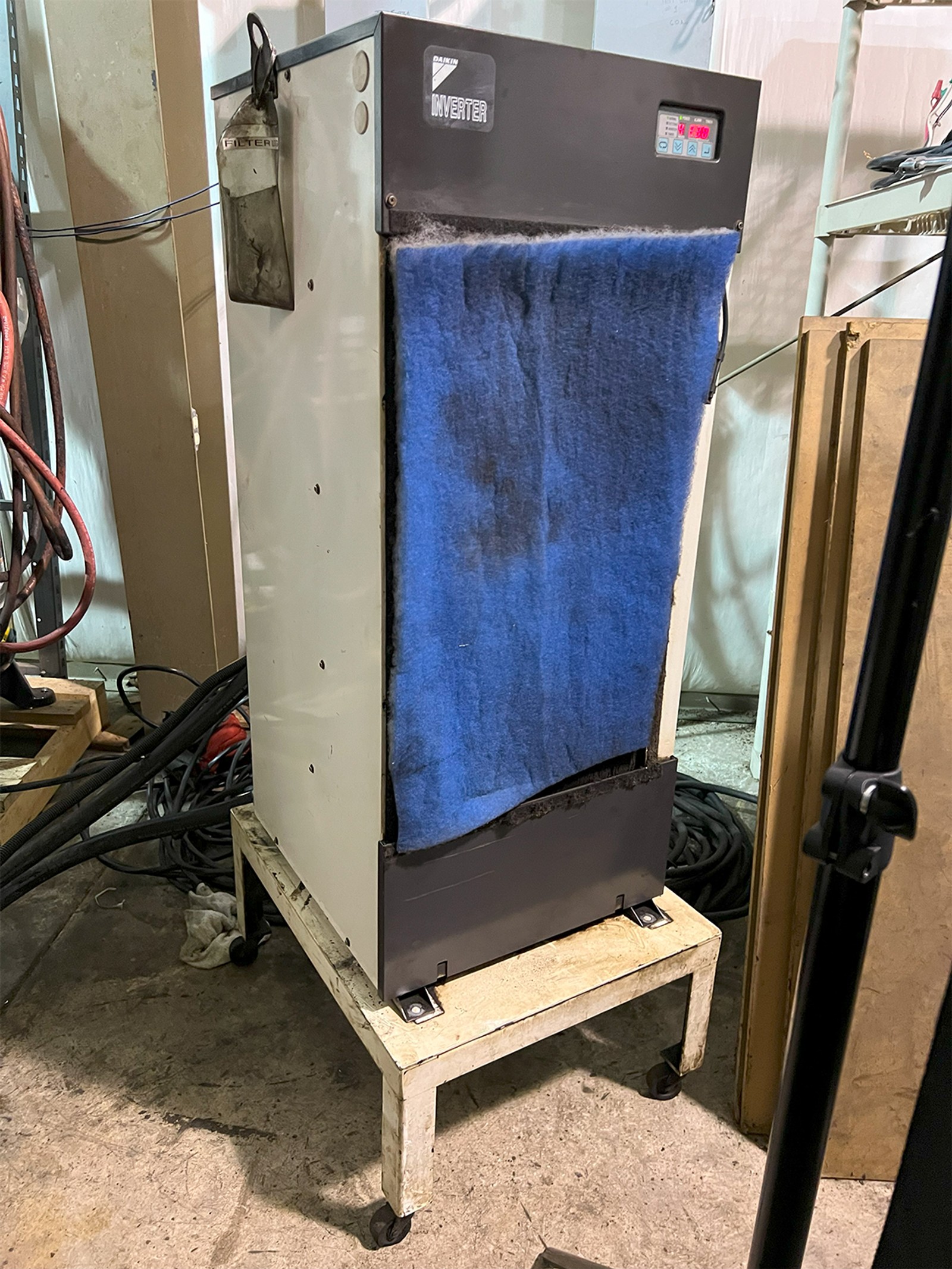

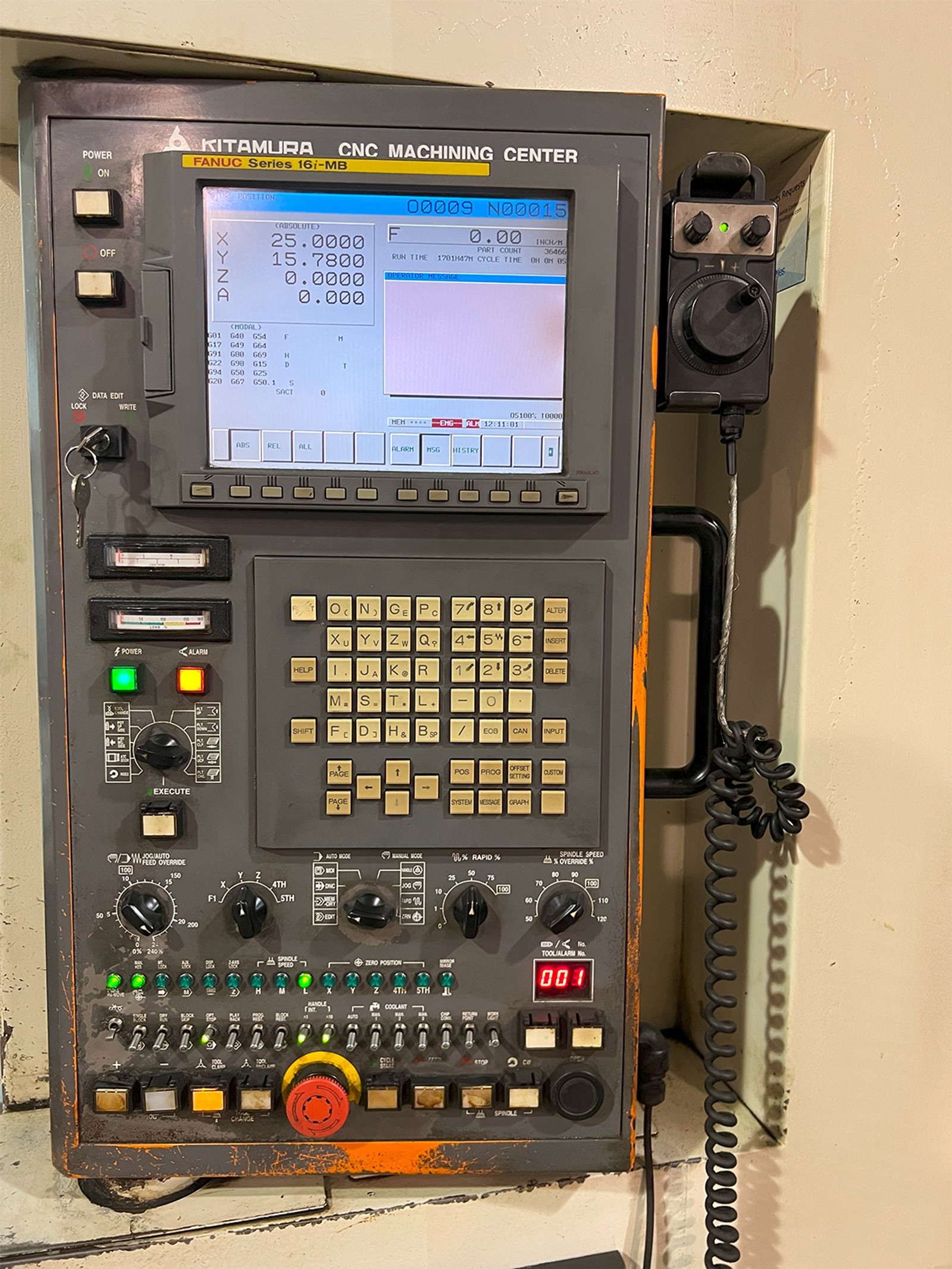

FANUC 16-iMB CNC Control with Custom Macro B, Ethernet CAT5, FANUC Data Server, PCMCIA Card Adapter, RPM | TSUDAKOMA Model RNA-250 10" 4th-Axis Rotary Table with Scroll Chuck, Tailstock | Full Box Way Construction | Spindle Oil Chiller | 500 PSI TSC | Standard Coolant | Enclosure Flush Coolant | 120 Gallon Coolant System | Dual Chip Augers (Y-Axis) | Chip Conveyor | Hydraulic Z-Axis Counterbalance

26,072 OPERATING HOURS

Approx. 140" (L) x 116" (W) x 120" (H), 18,370 lbs.
