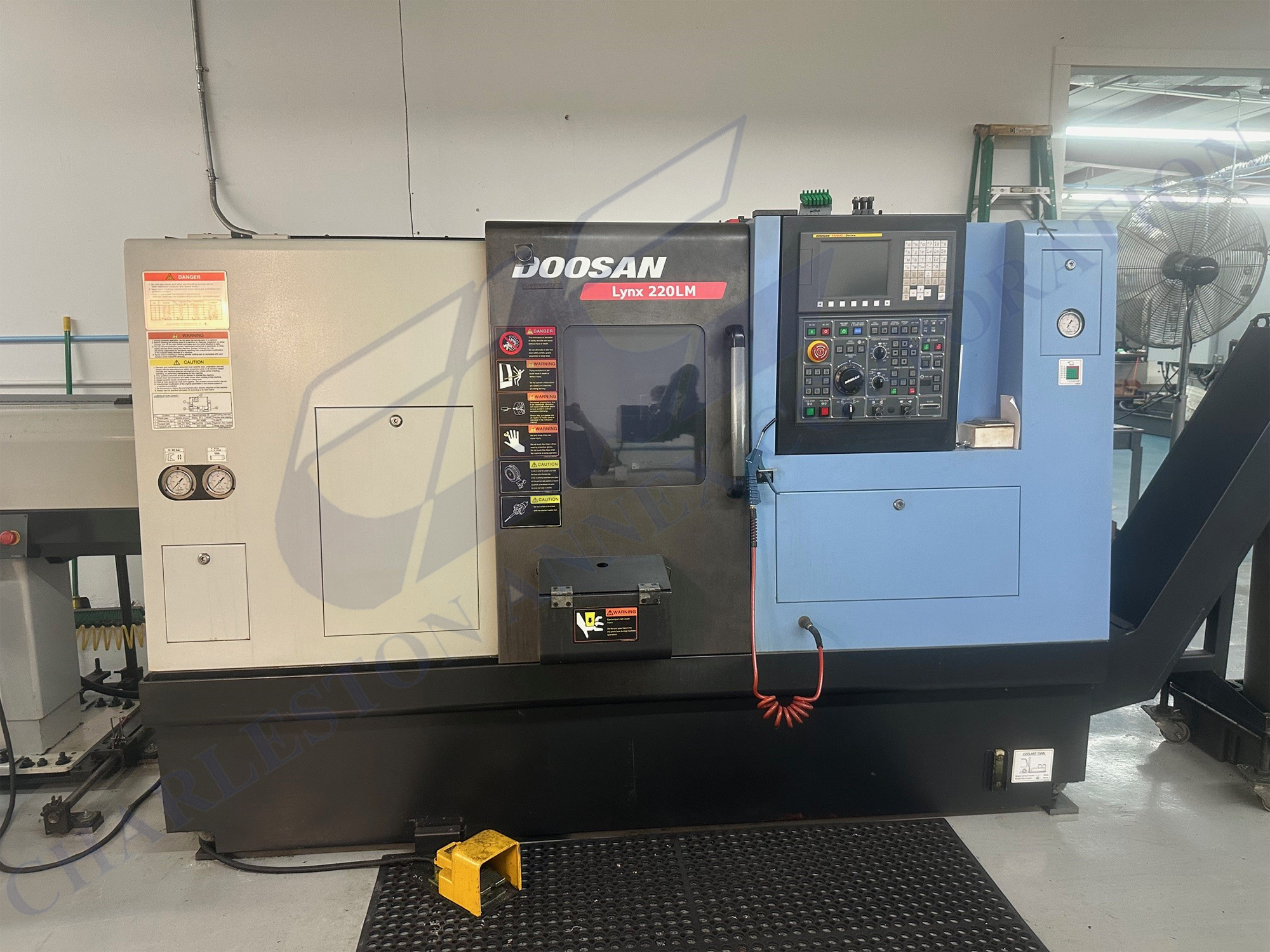

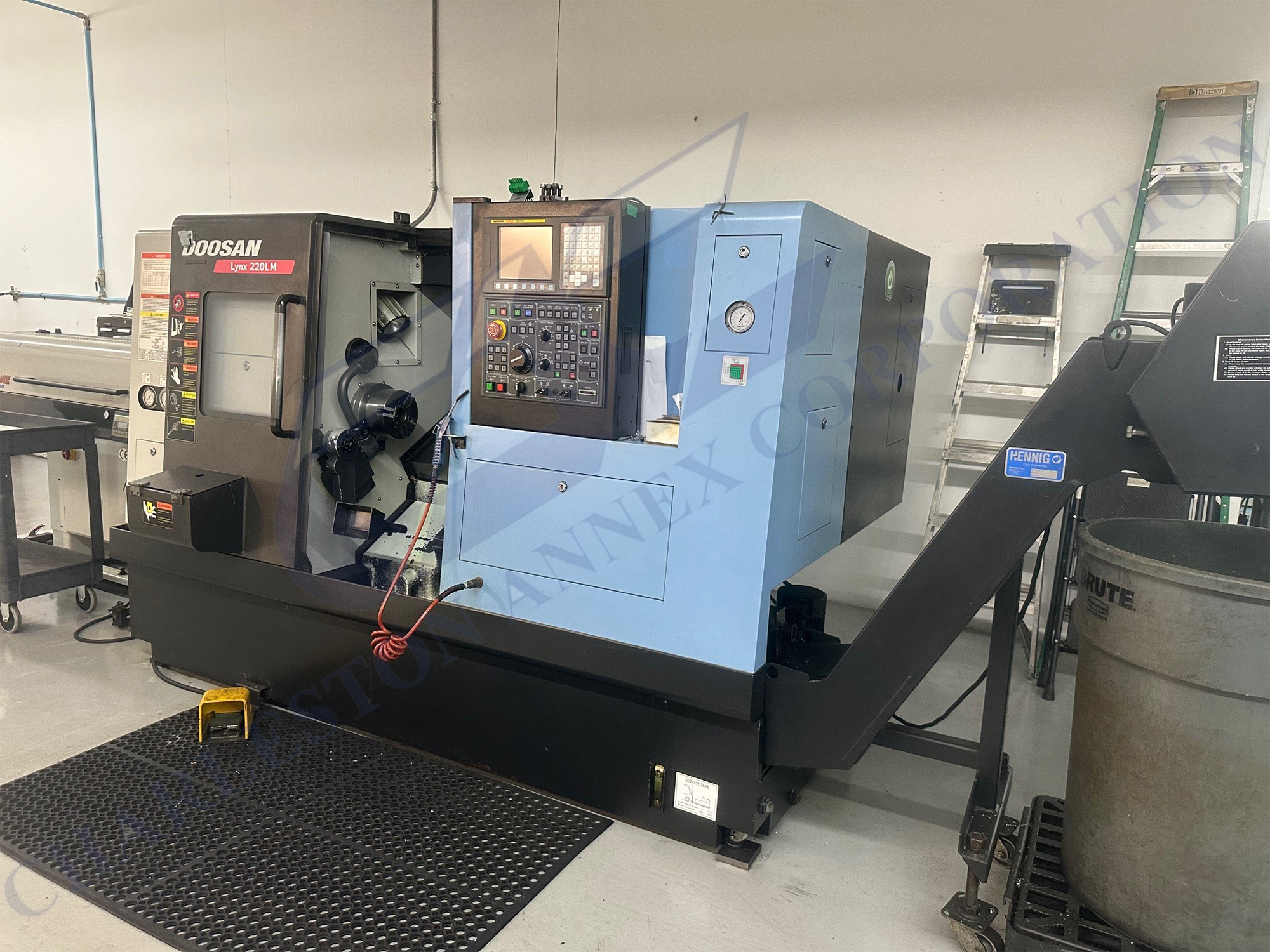

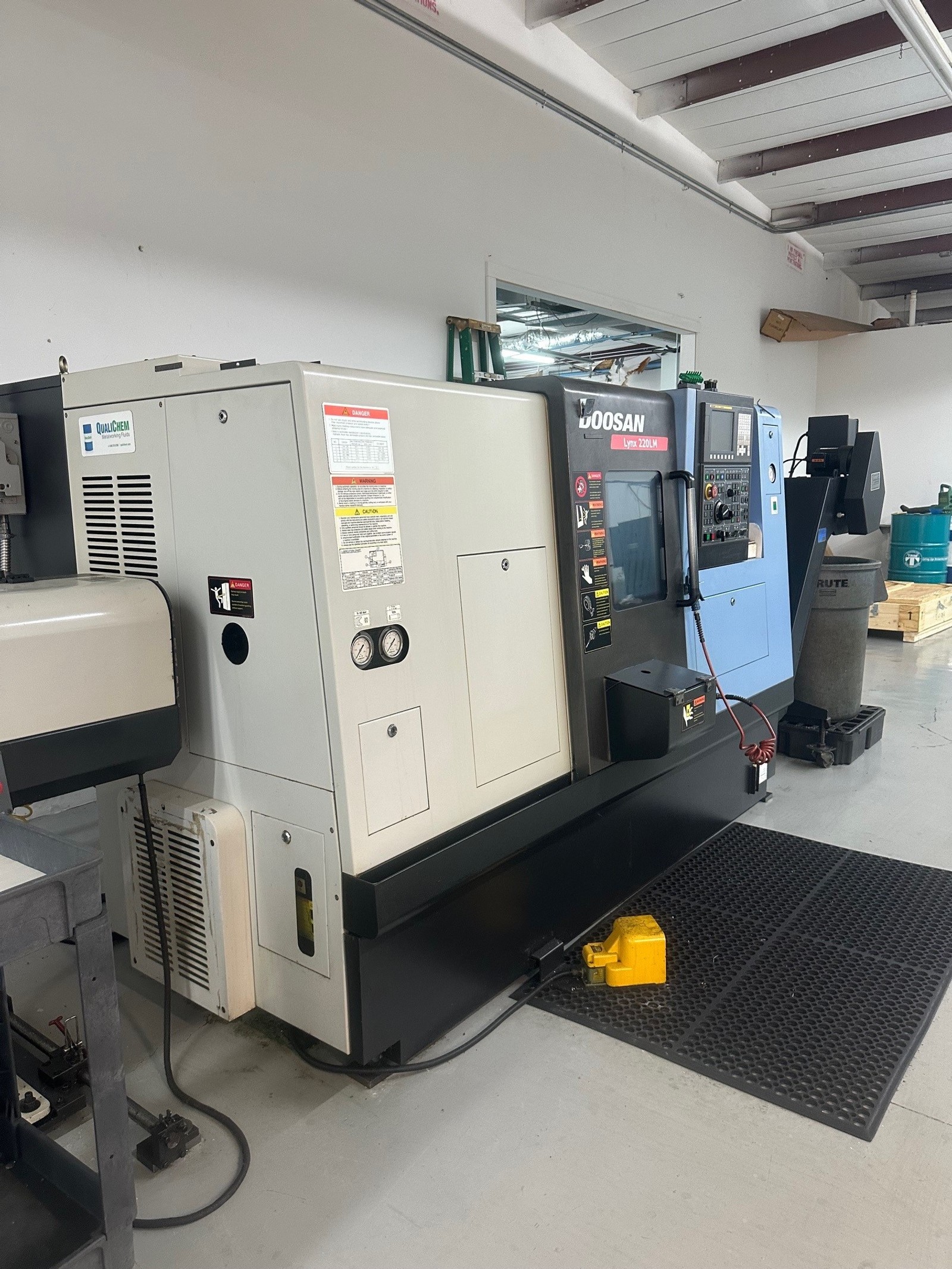

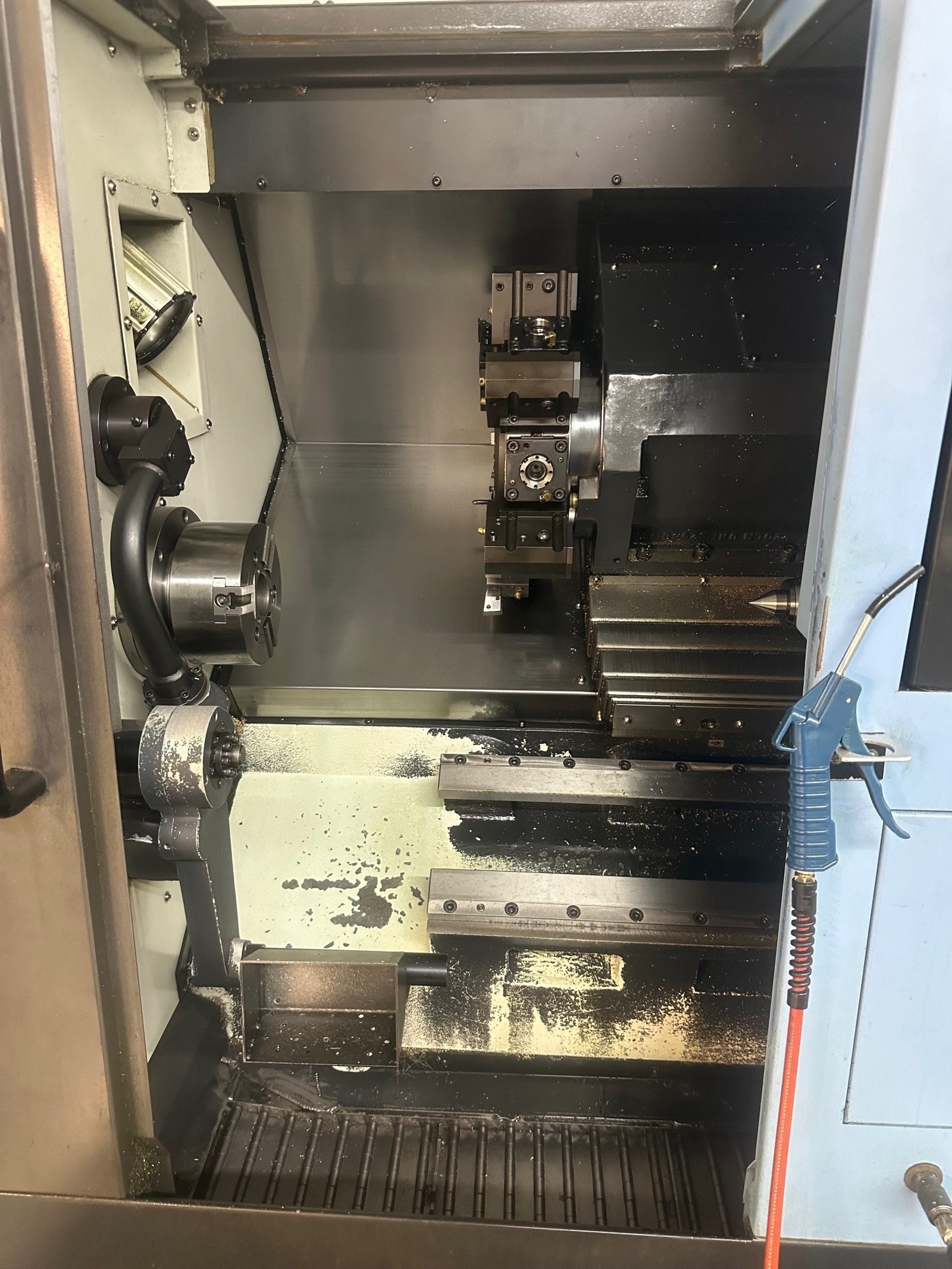

Doosan Lynx 220LMA CNC Turning Center with Live Milling

Manufacturer

Doosan

Category

Lathes

Stock

22487

Model

Lynx 220LMA

Dealer Location

North Carolina

Spec Sheet

22487 Doosan Lynx 220LMA CNC Turning Center with Live Milling

Model : Lynx 220LMA sn : Mfg.: 2010

Max. Turning Diameter: 9.84"
Max. Turning Length: 20.1"
Bar Capacity: 2.0"
Swing Over Carriage: 11.4"
Swing Over Bed: 20.1"
X-Axis Travel: 17.7"
Z-Axis Travel: 13.0"
Spindle Bore: 2.4"
Spindle Motor: 20 HP
Spindle Speeds: to 6,000 RPM
Live Tooling Motor: 5 HP
Live Tooling Speeds: to 6,000 RPM

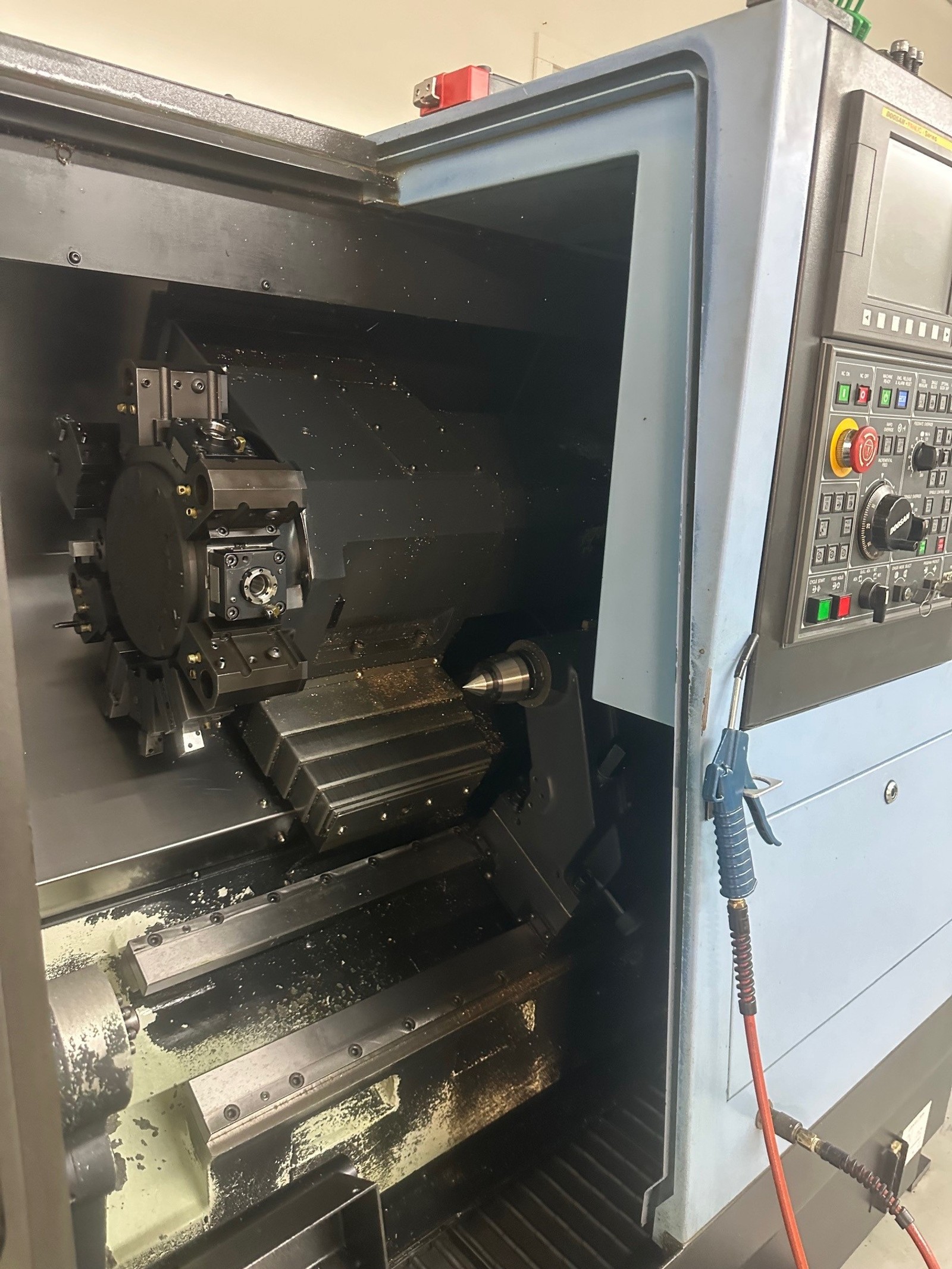

Turret Positions: 24 Position
Description

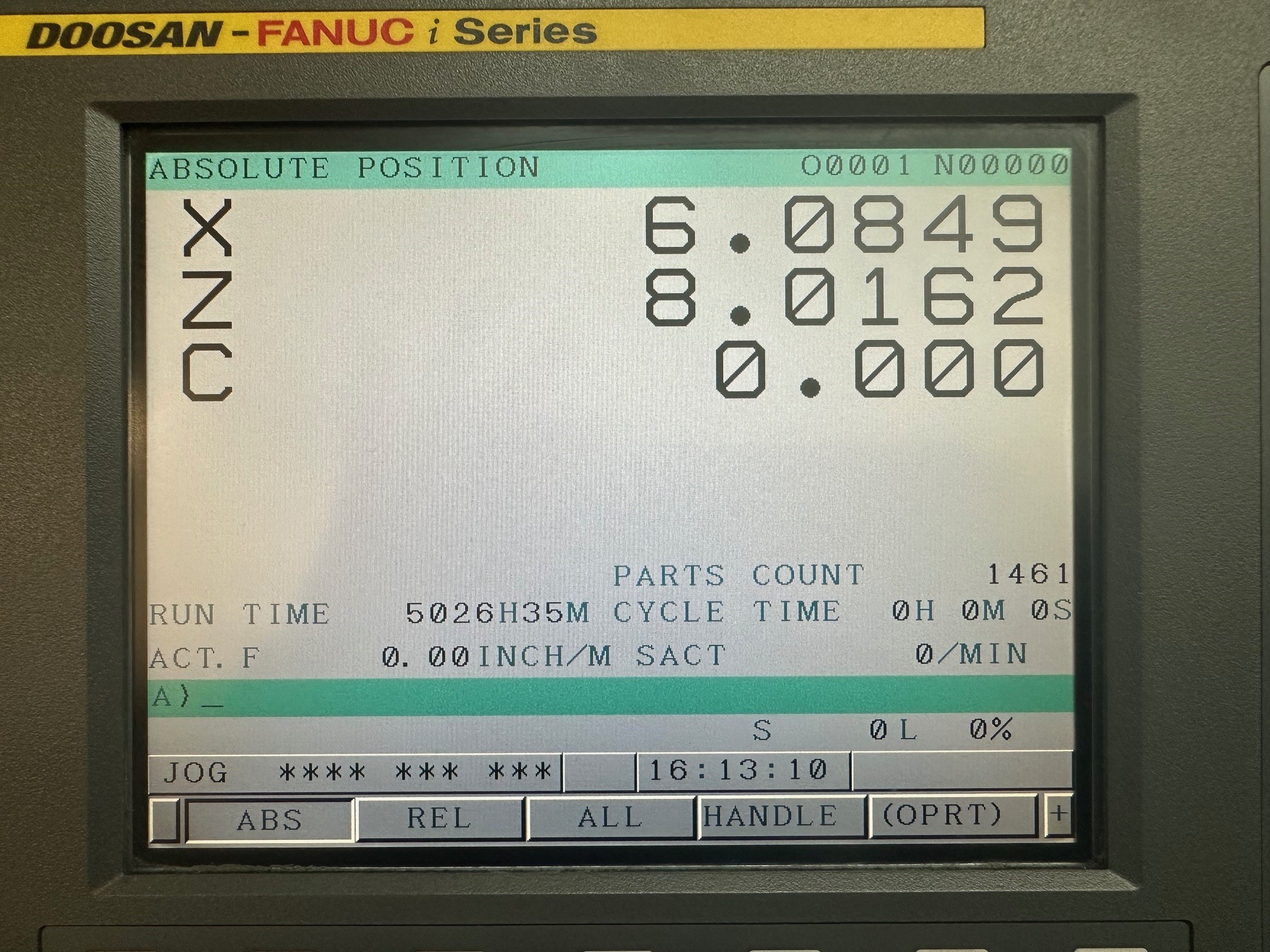

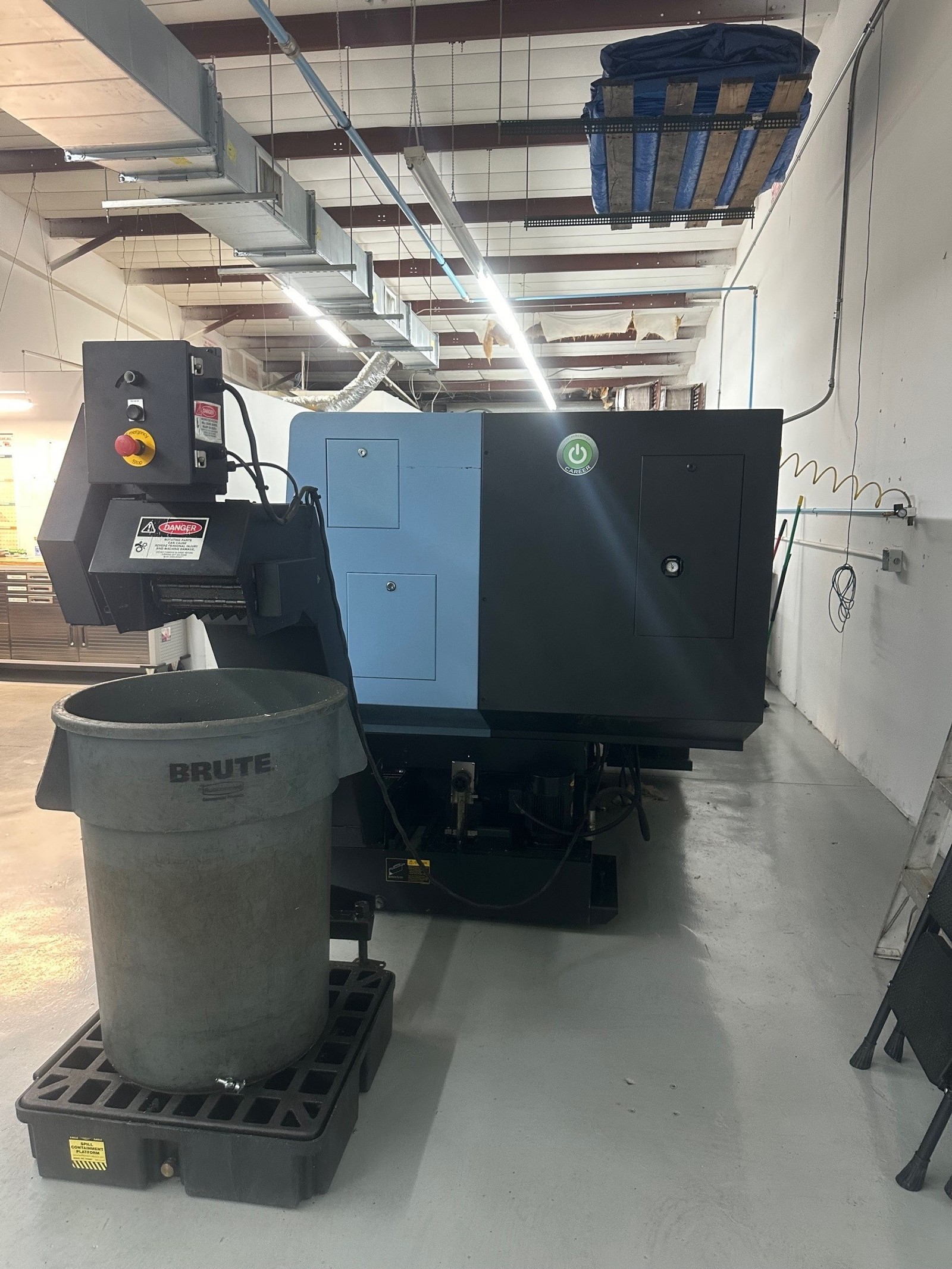

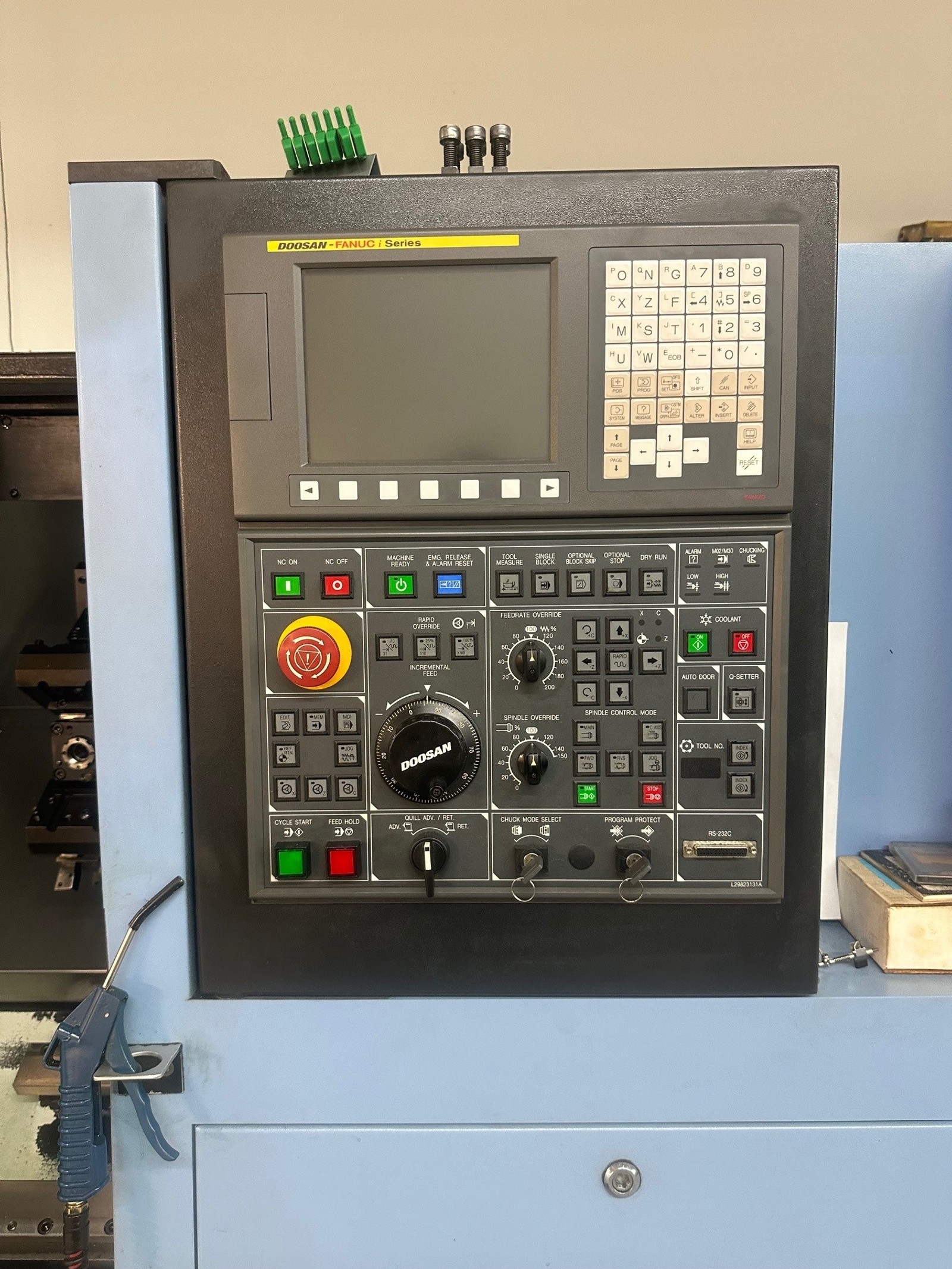

FANUC i-Series CNC Control | C-Axis & Live Milling | Tailstock | 6.5" 3-Jaw Chuck | Parts Catcher | Chip Conveyor | Pictured Barfeeder Not Included | LOW HOURS: Approx. 5026 Operating Hours

No Video Available
