Doosan BM2740, X-157", Y-106", 106.29" B/C, 12,000 RPM, Fanuc 31iB, 40 HP, Thru Spind Coolant, 60 ATC, 2018, #43887

Manufacturer

DOOSAN

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43887

Model

BM2740

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43887

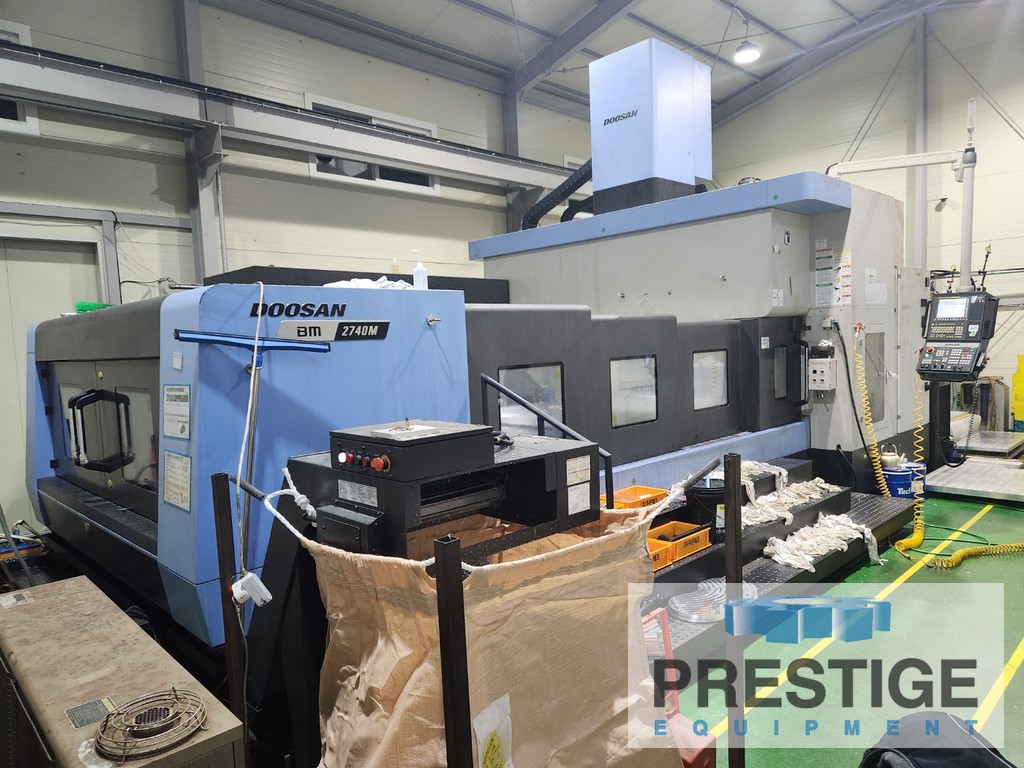

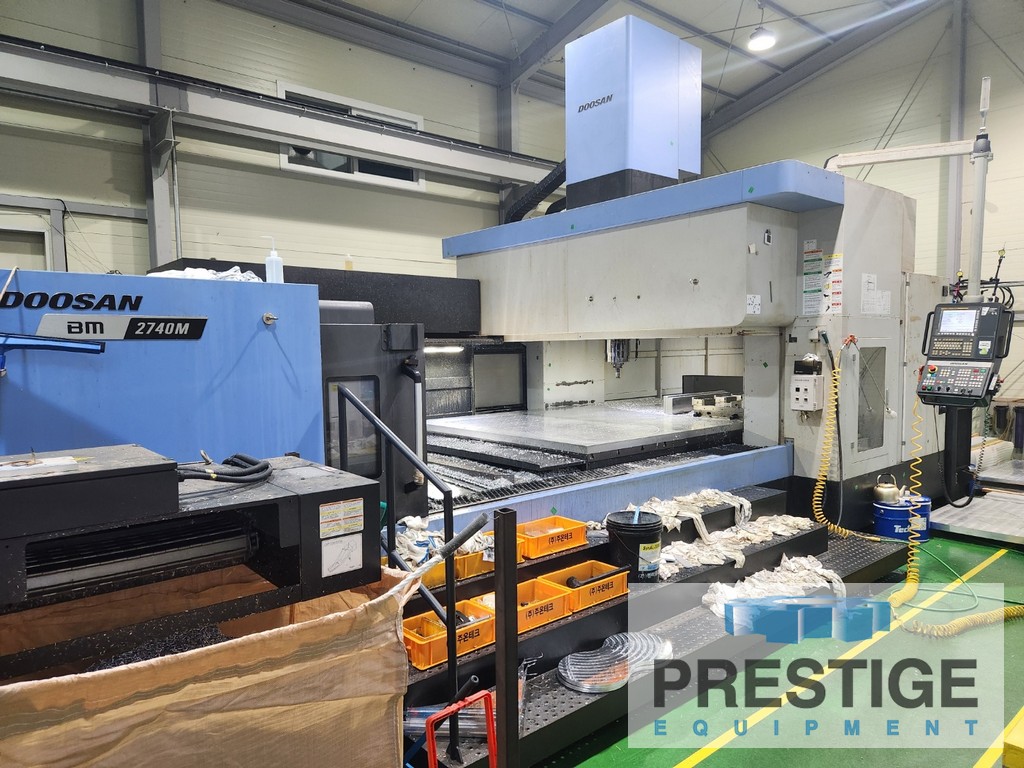

Doosan BM-2740M CNC Bridge Type Vertical Machining Center

FEATURES:

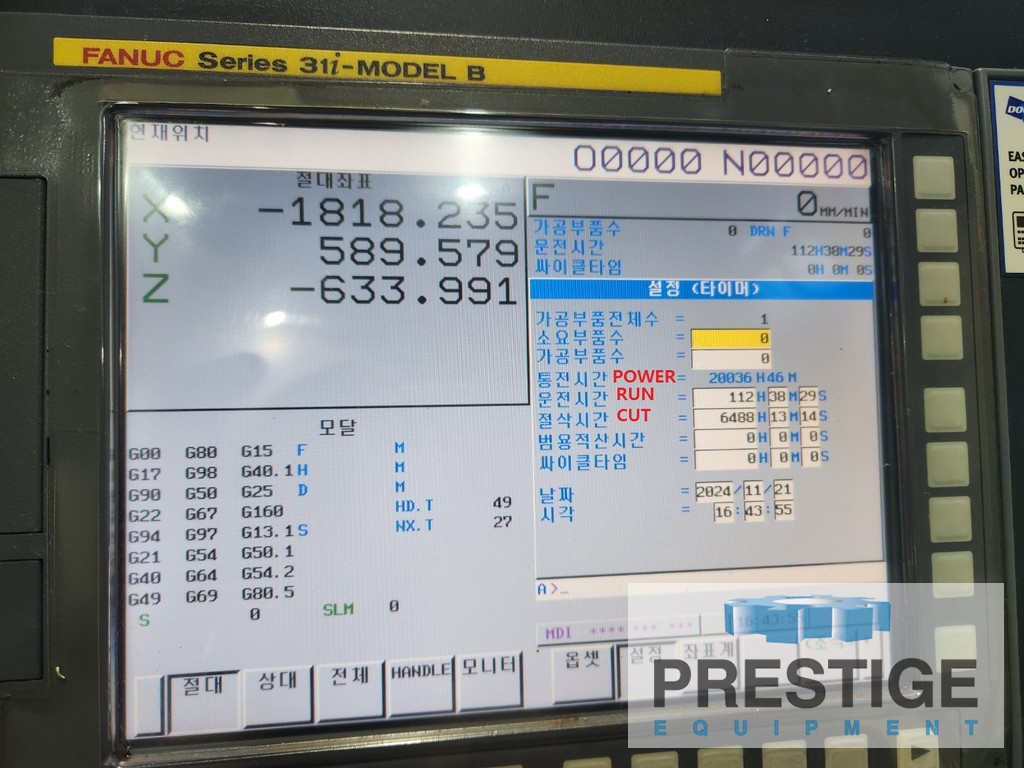

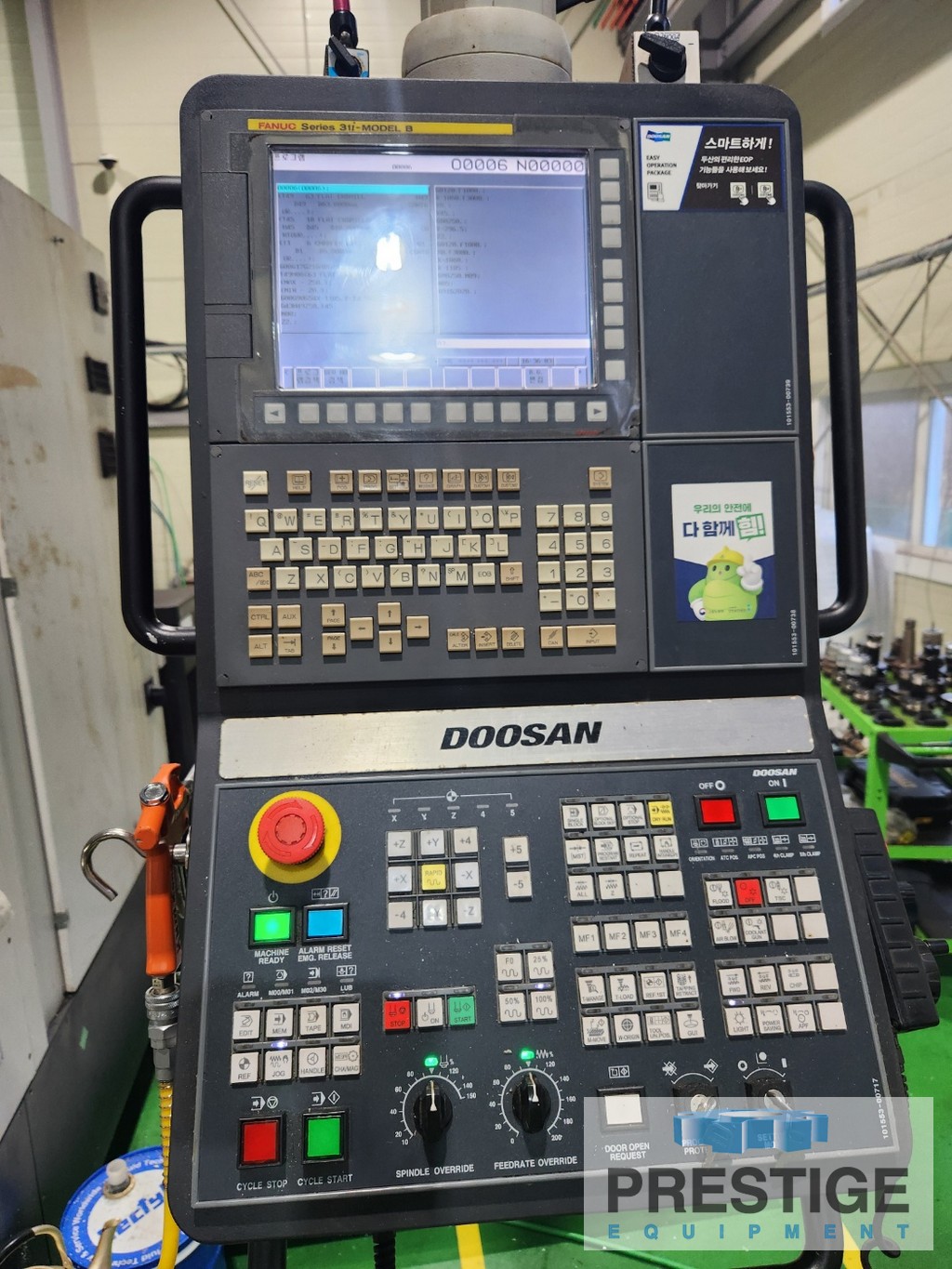

Fanuc 31iB CNC Control
60-Station Automatic Tool Changer
Thru Spindle Coolant

SPECIFICATIONS:
X-Axis Travel ......................... 157.48"
Y-Axis Travel ......................... 106.29"
Z-Axis Travel ......................... 31.49"
Distance Between Columns .............. 106.29"
Distance Spindle Nose to Table ........ 5.90"-37.40"

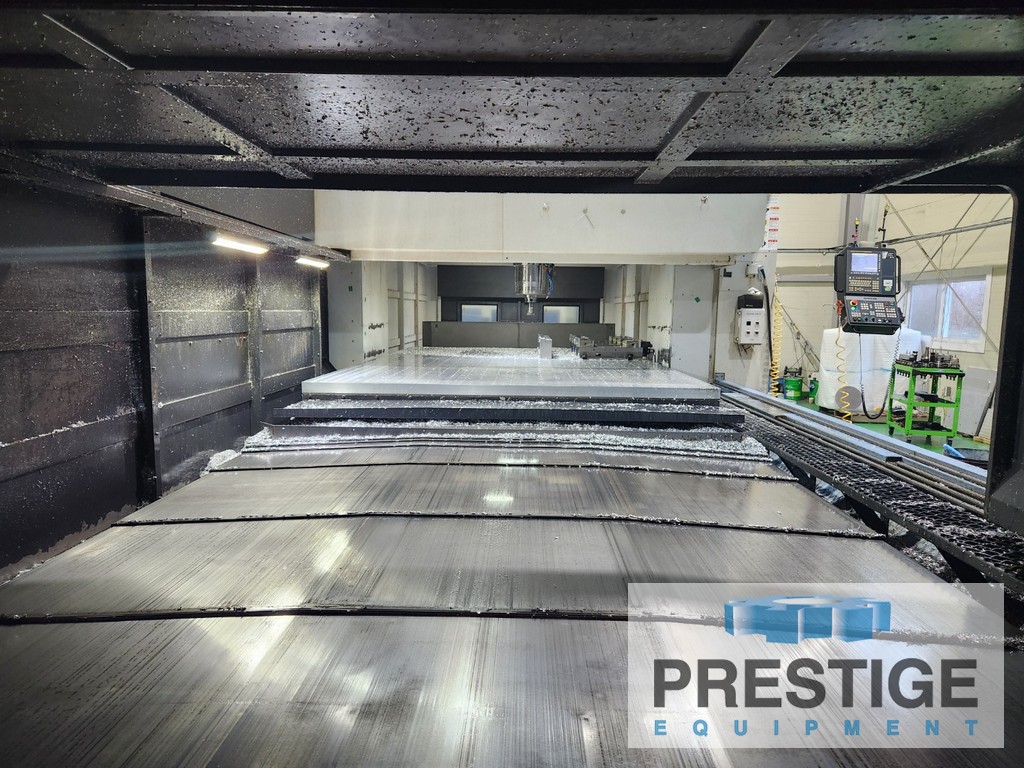

Table Size ............................ 157.48" x 98.42"
Table Capacity ........................ 33,000 lbs
Spindle Speeds ........................ 12,000 RPM
Spindle Drive Motor ................... 40 HP
Spindle Taper ......................... BT #50
Approximate Machine Weight ............ 105,600 Lbs.

EQUIPPED WITH:
Fanuc 31iB CNC Control
60 Automatic Tool Changer
Scales for XYZ axis
Coolant Thru Spindle
40 HP Spindle Motor
Chip Conveyor
