120" New Century, 12-Station ATC, 124" Swing, 84" Under Rail, 70 RPM, 40 HP, Fanuc 18T, #43801

Manufacturer

New Century

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43801

Model

Double Column

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43801

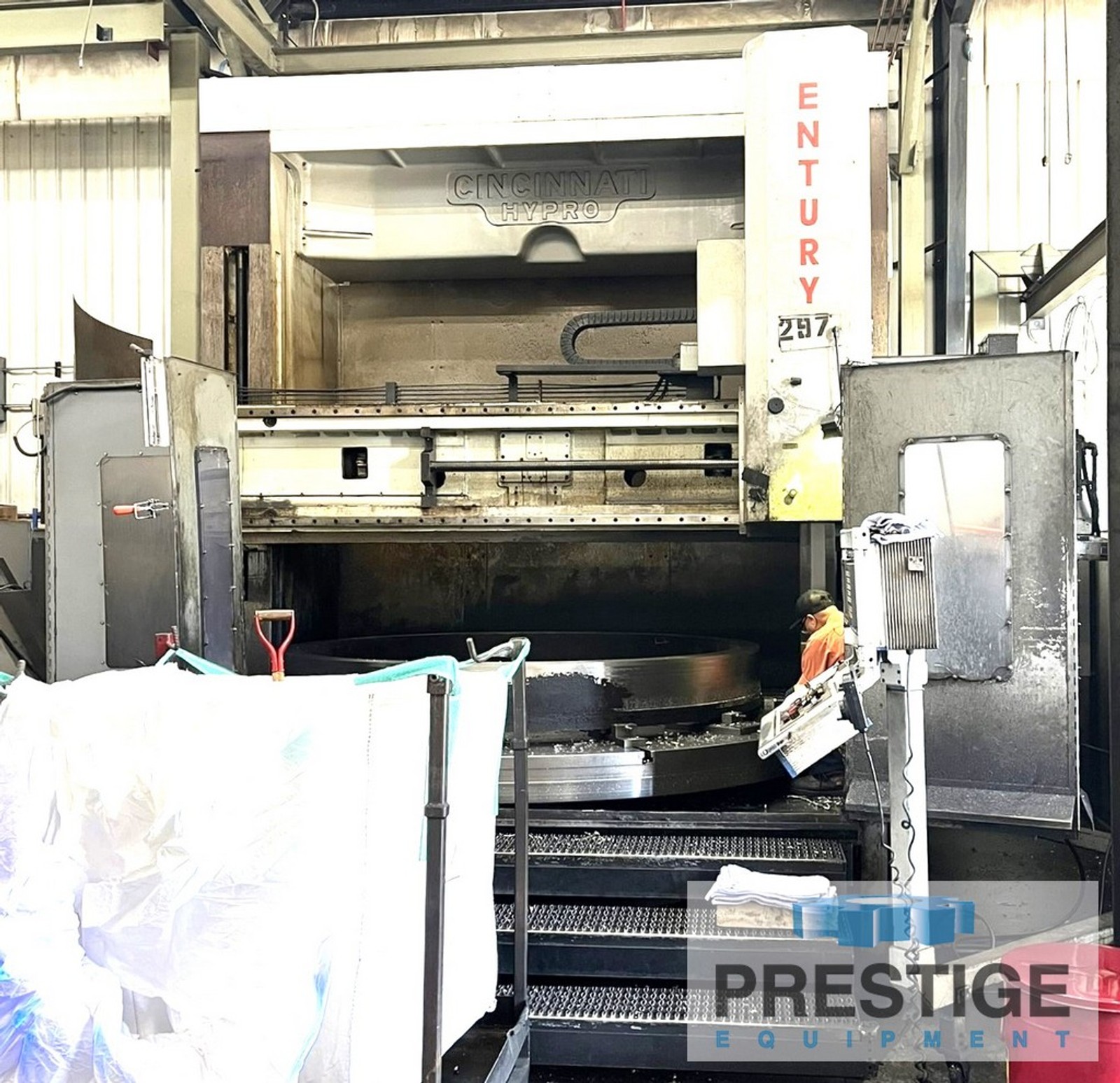

New Century 120" CNC Vertical Boring Mill

FEATURES:
Fanuc 18i-TB CNC Control
12-Position ATC
Coolant Thru-Tool

SPECIFICATIONS:
Table Diameter ........................ 120"
Maximum Swing ......................... 124"
Height Under Rail .................... 84"
X-Axis Travel of Ram .................. 100"
Z-Axis Ram Stroke ..................... 40"
Ram Cross Section, Octagonal .......... 9" x 9"
Table Speeds .......................... 0-70 RPM
Table Speed Ranges .................... 2
Table Weight Capacity ................. 40 Ton
X & Z Axis Cutting Torque ............. 11000#
X & Z Axis Position Accuracy .......... +/- .0005
X & Z Axis Repeatablitiy .............. +/- .0002
X & Z Axis Motors Fanuc AC Digital .... #30
Electrics ............................. 440/3/60 Cycle

EQUIPPED WITH:

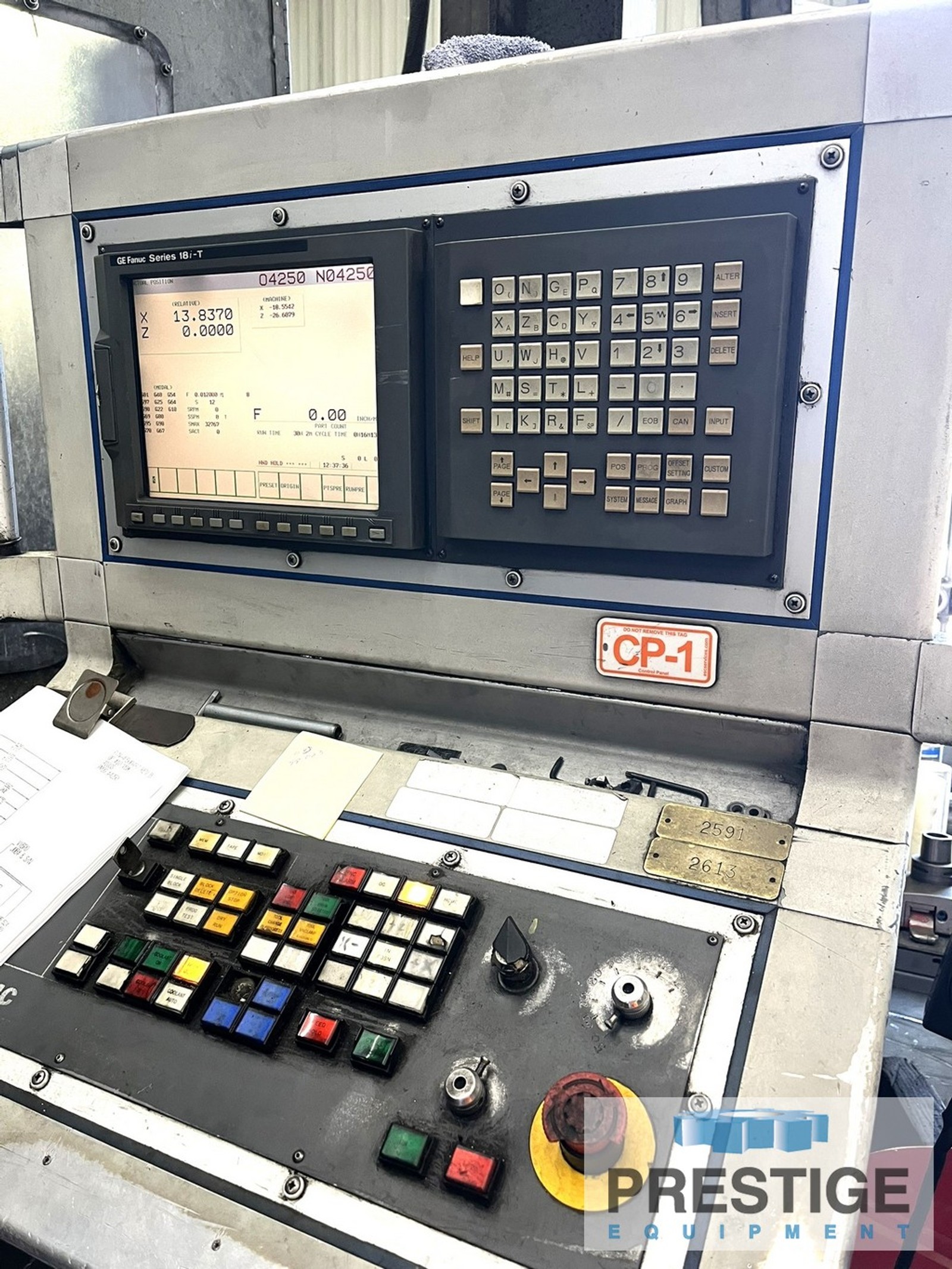

Fanuc 18i-TB CNC Control
Ram w/ 12-Position ATC
Sandvik Coromant Capto 80 MM Taper Tooling

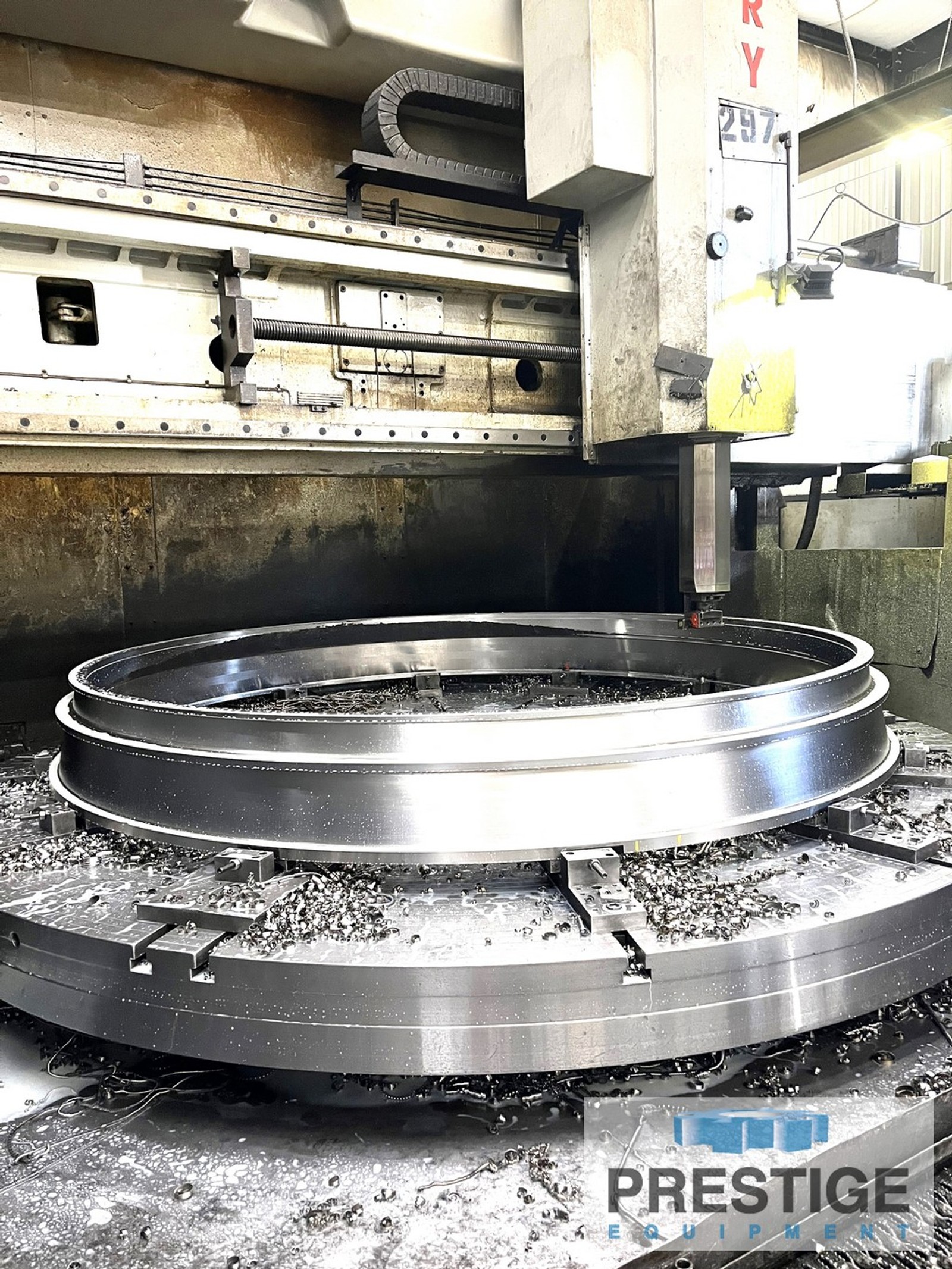

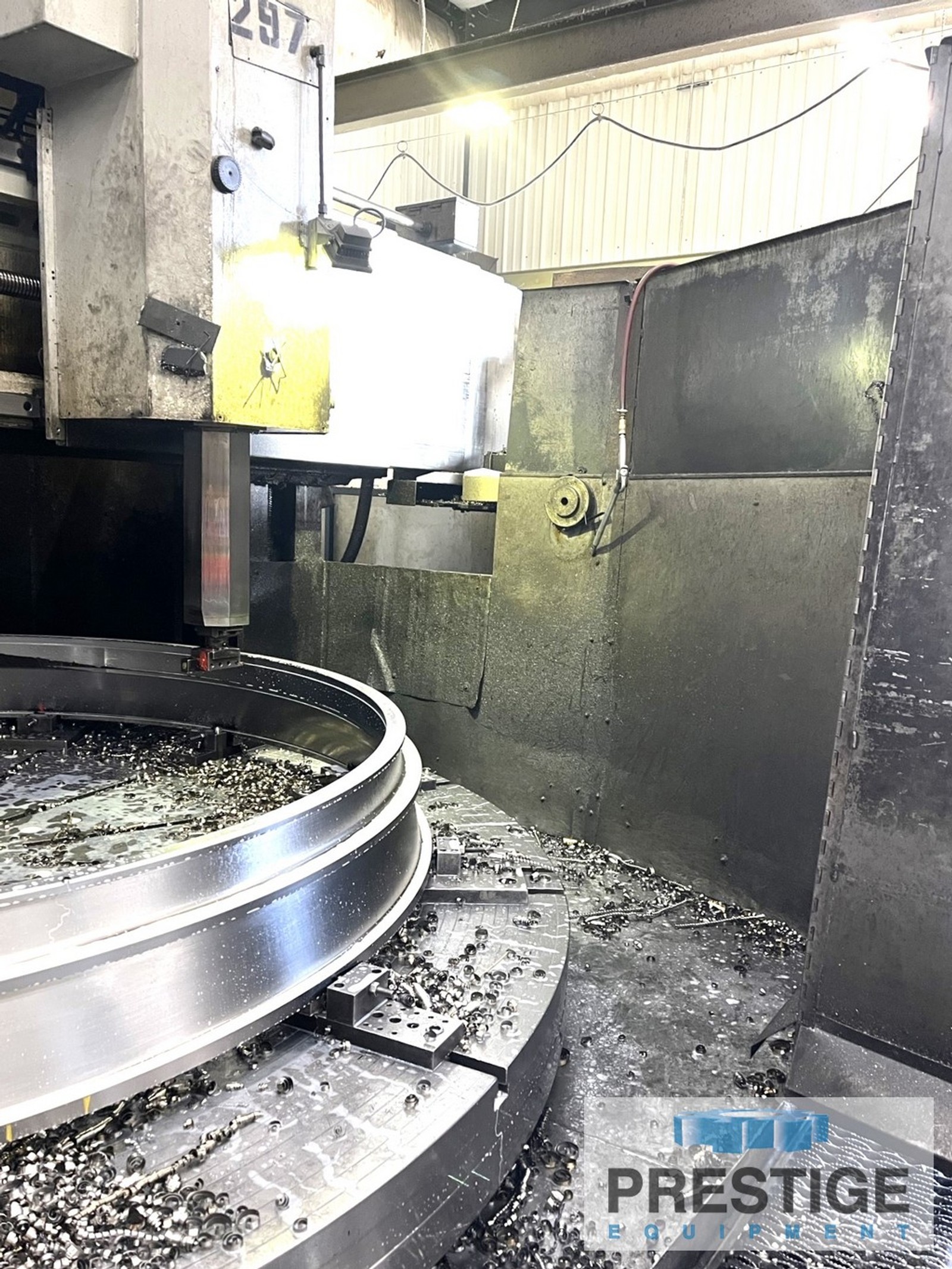

120" T-Slotted Table with (4) Face Plate Jaws
Base, Column & Cross Rail Heavy Duty Cast Iron
Precision Linear Ways on X-Axis
X & Y Axis Precision Ball Screws 63 MM Diameter
Coolant Thru Tools
Full Enclosure Chip Guards
ZF 2-Speed Transmission Mfg in Germany
Sliding Steel Way Covers on Cross Rail

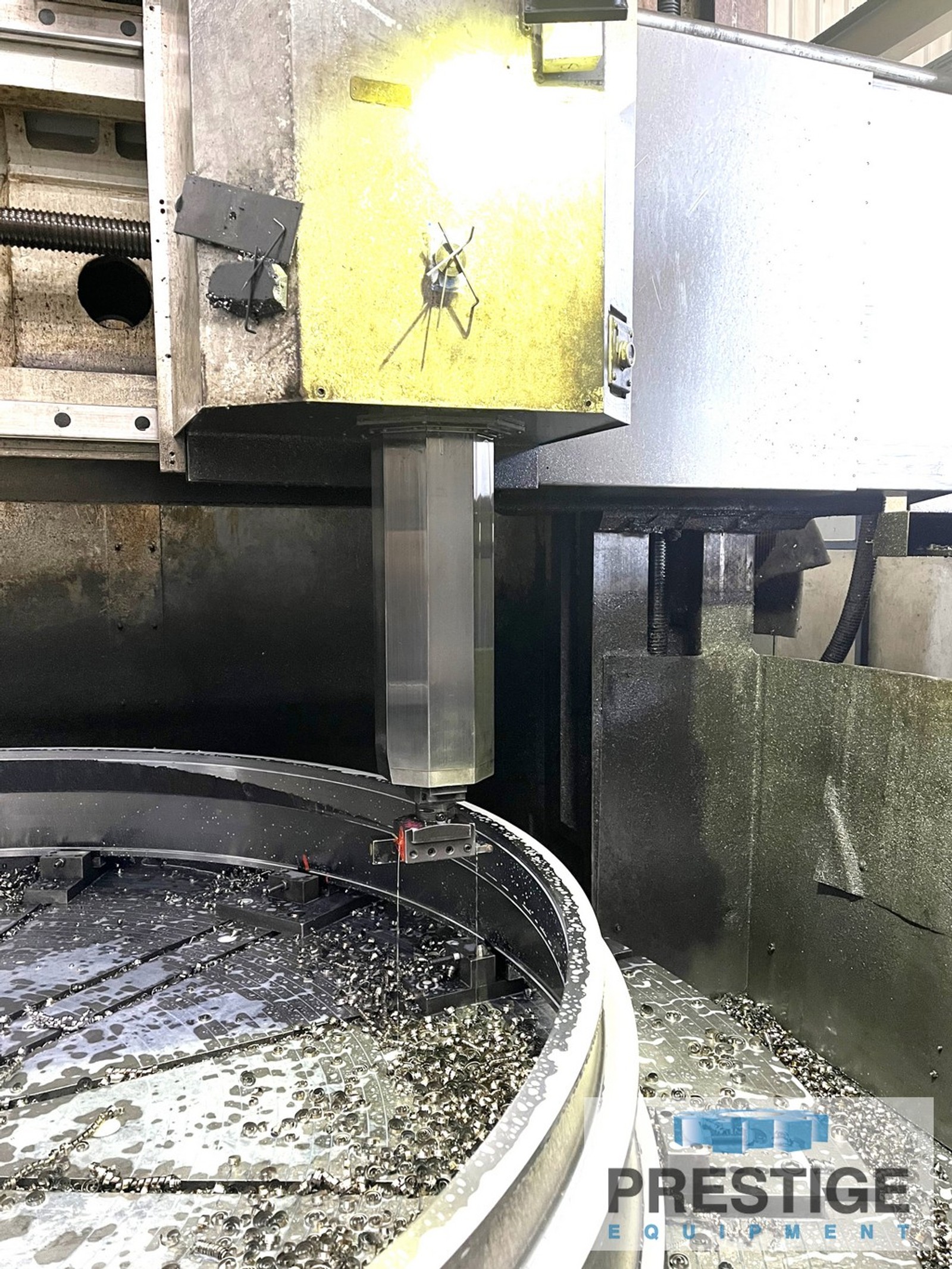

Octagon Ram 4142 Heat Treated
Fanuc Servo Motors & Drives on All Axis
40 HP Fanuc AC Digital Spindle Drive Motor
