Karats LR-15N, 63" Swing, 314" C.C, 77,000Lb Weight Cap, Fanuc 31i-B CNC, 134 HP, 2017, #43819

Manufacturer

Karats

Category

Lathes

Type

LATHES, ENGINE

Stock

43819

Model

LR-15N

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43819

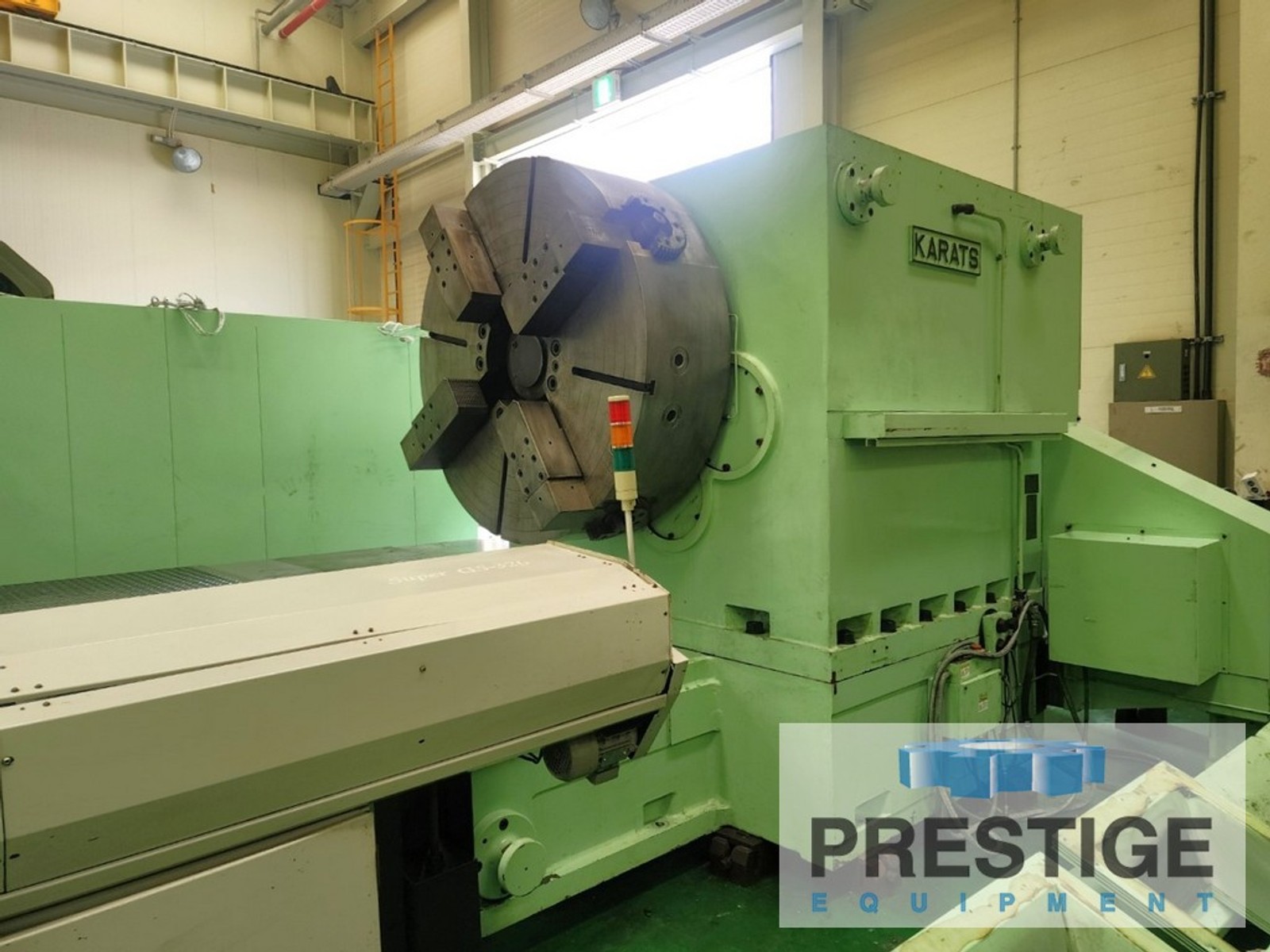

86" x 314" Karats LR-15N Heavy Duty CNC Lathe

FEATURES:

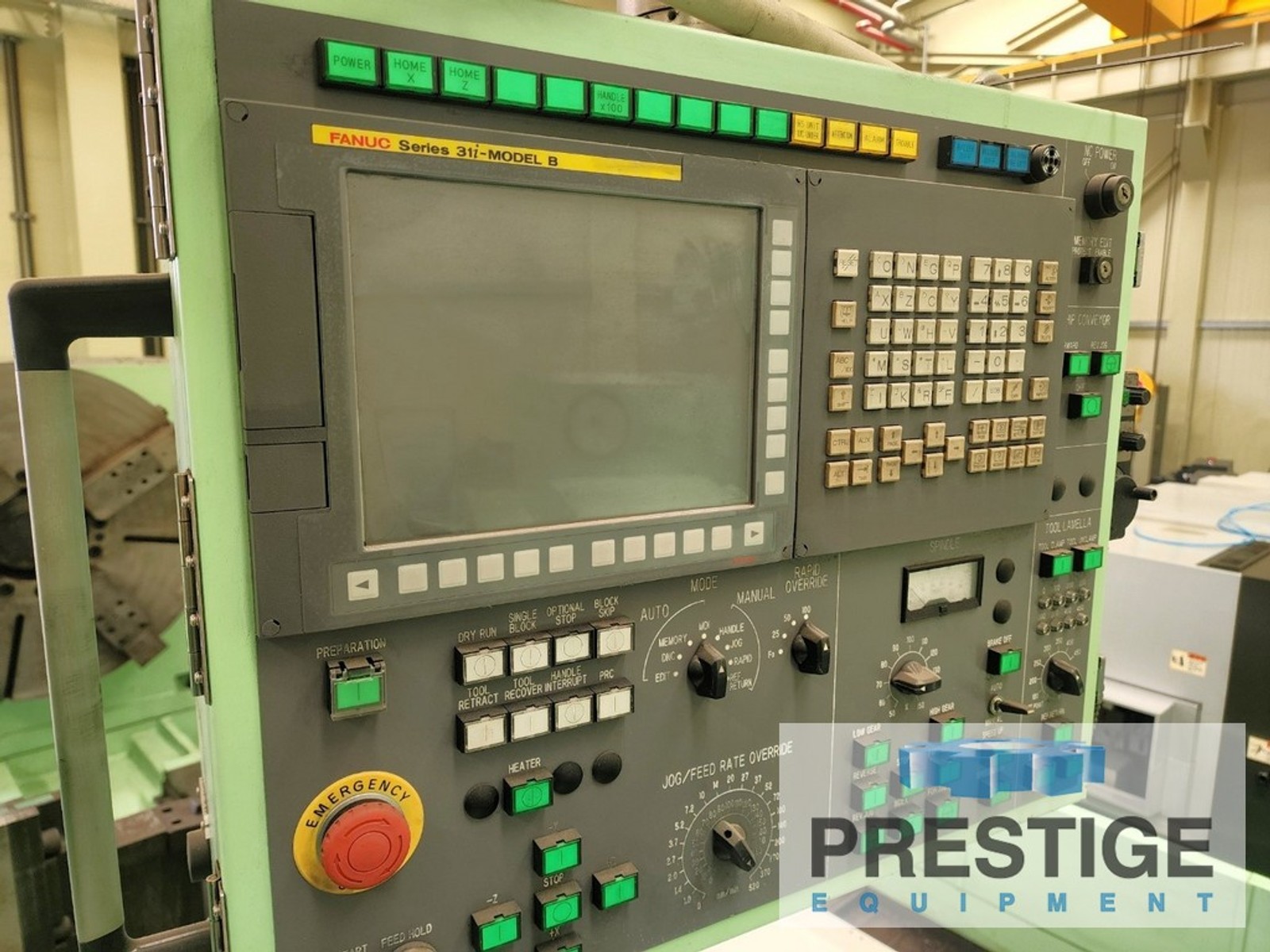

Fanuc 31i-B CNC Control
Lamellar Type Tool Post

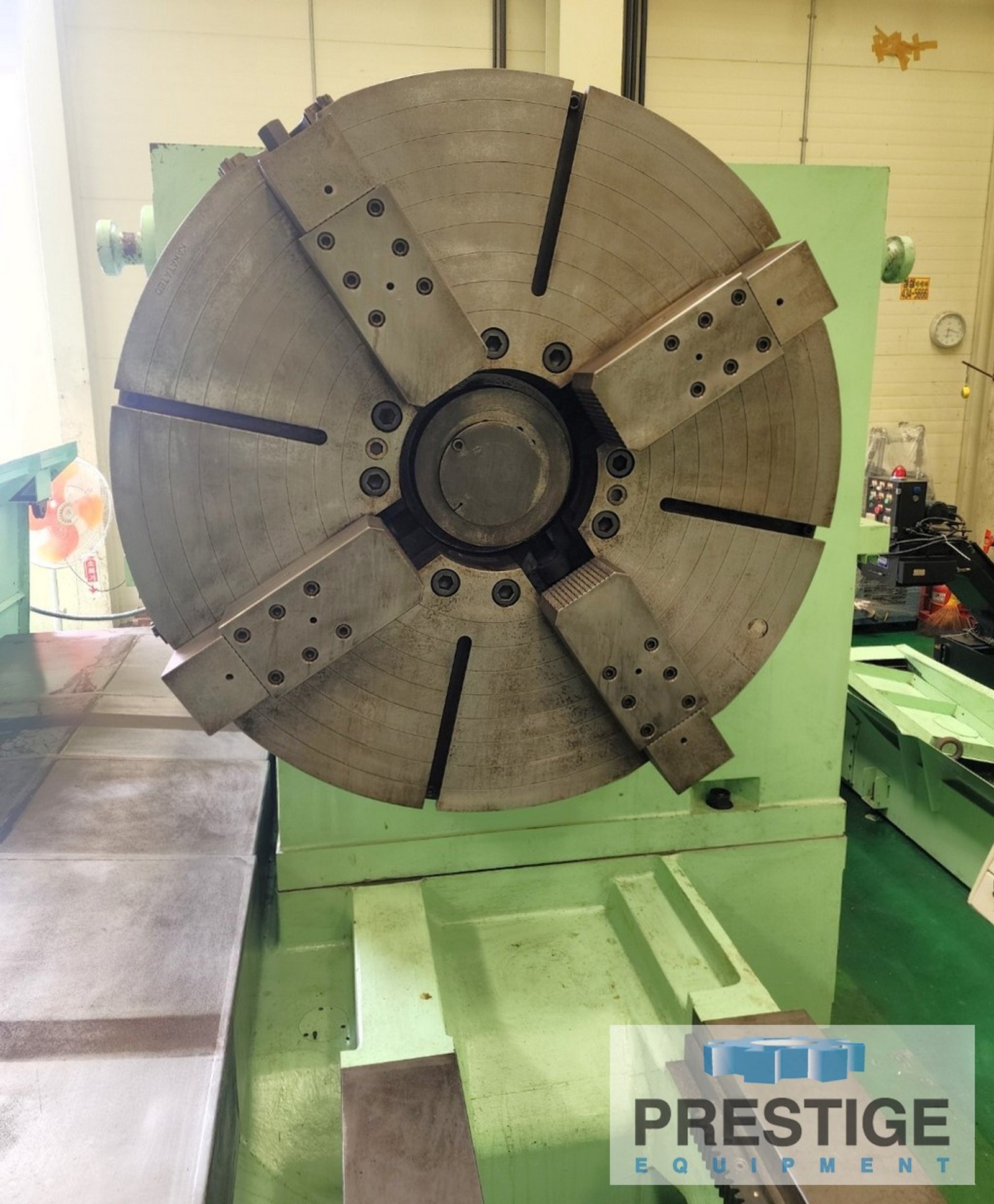

55" 4-Jaw Chuck
77,000 Lb Weight Capacity

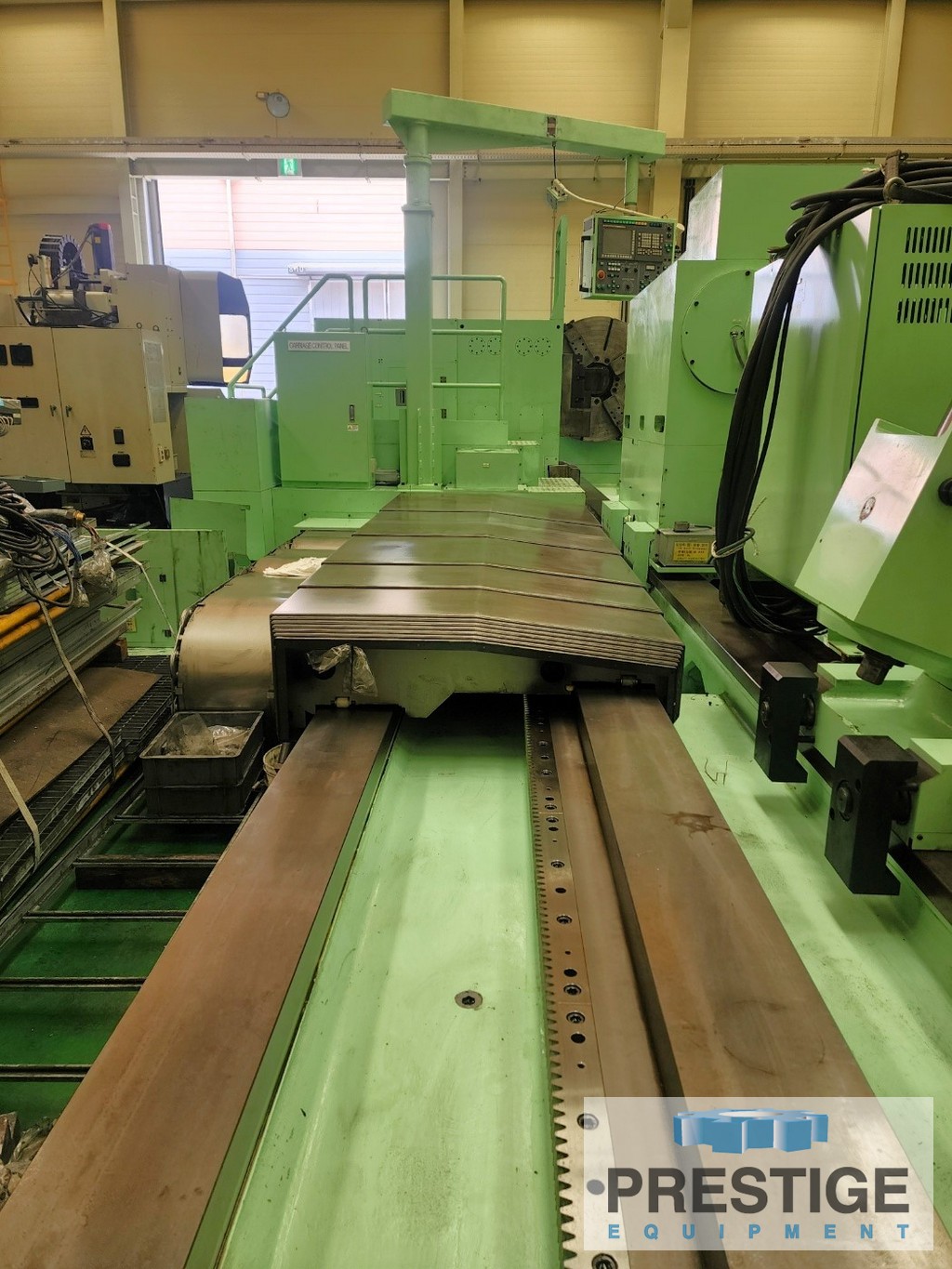

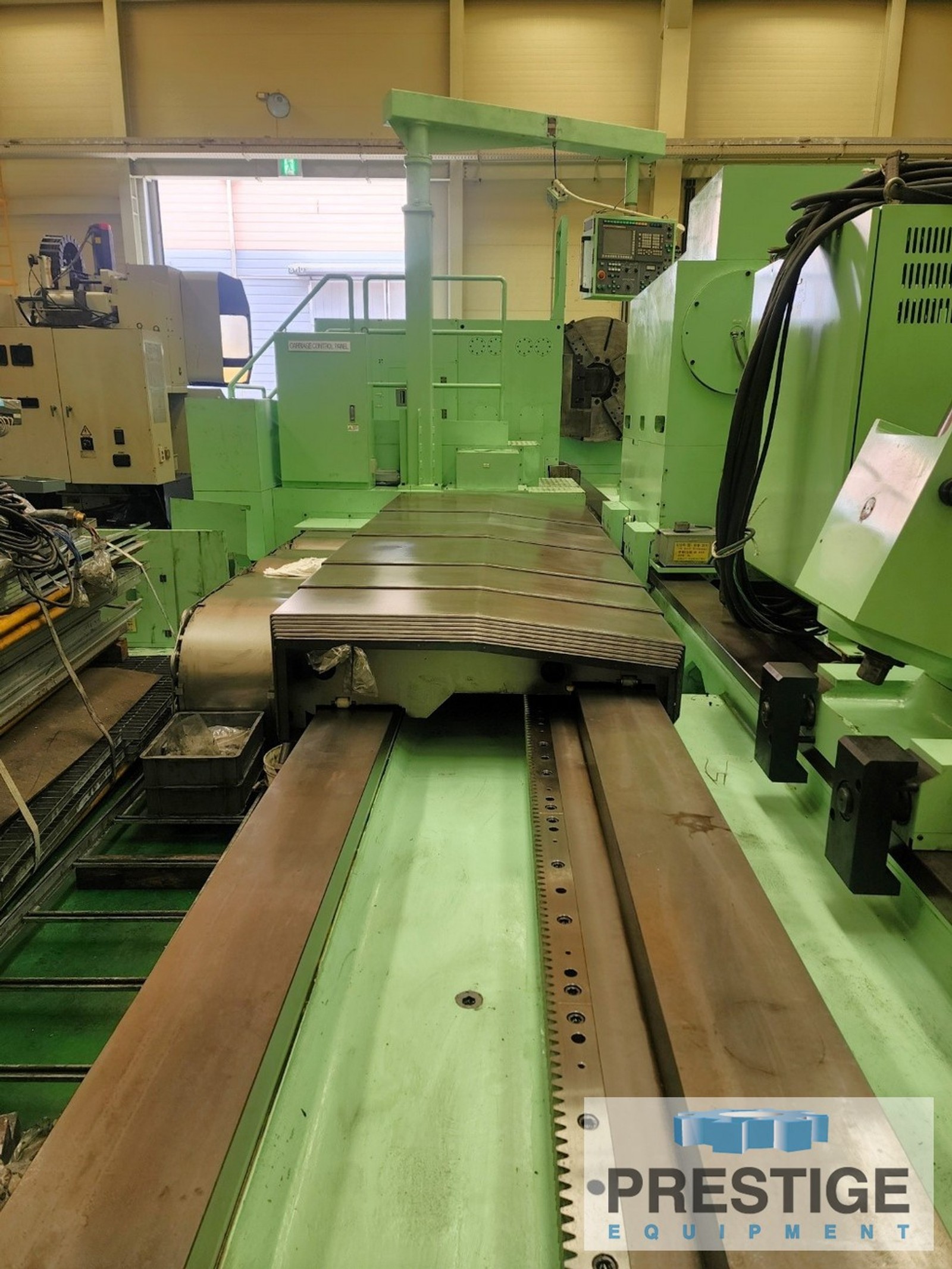

4-Way Bed Design (Carriage can Pass Tailstock)
134 HP Spindle Motor

SPECIFICATION:
Swing Over Bed ........................ 86.61"
Swing Over Carriage ................... 62.99"
Distance Between Centers .............. 314.96"
Weight Capacity ....................... 77,000 Lbs
Spindle Speeds, 2-Range ............... 1 - 145 RPM
Rapid Traverse, Carriage .............. 196.85 IPM
Rapid Traverse, Cross Slide ........... 98.42 IPM
Longitudinal Feed, Z-Axis ............. 314.96"
Longitudinal Feed Rate, Z-Axis ........ .03 - 98.42 IPM
Cross Slide Feed, X-Axis .............. 27.55"
Cross Slide Feed Rate, X-Axis ......... .03 - 98.42 IPM
Tailstock Quill Diameter .............. 17.71"
Tailstock Quill Travel ................ 7.87"
Bed Width ............................. 86.61"
Bed Height ............................ 23.62"
Bed Length ............................ 475.78"
Approx. Footprint ..................... 221" x 689"
Approx. Machine Weight ................ 165,000 Lbs

EQUIPPED WITH:
Fanuc 31i-B CNC Control
55" 4-Jaw Chuck
Lamellar Type Tool Post
4-Way Bed Design (Carriage can Pass Tailstock)

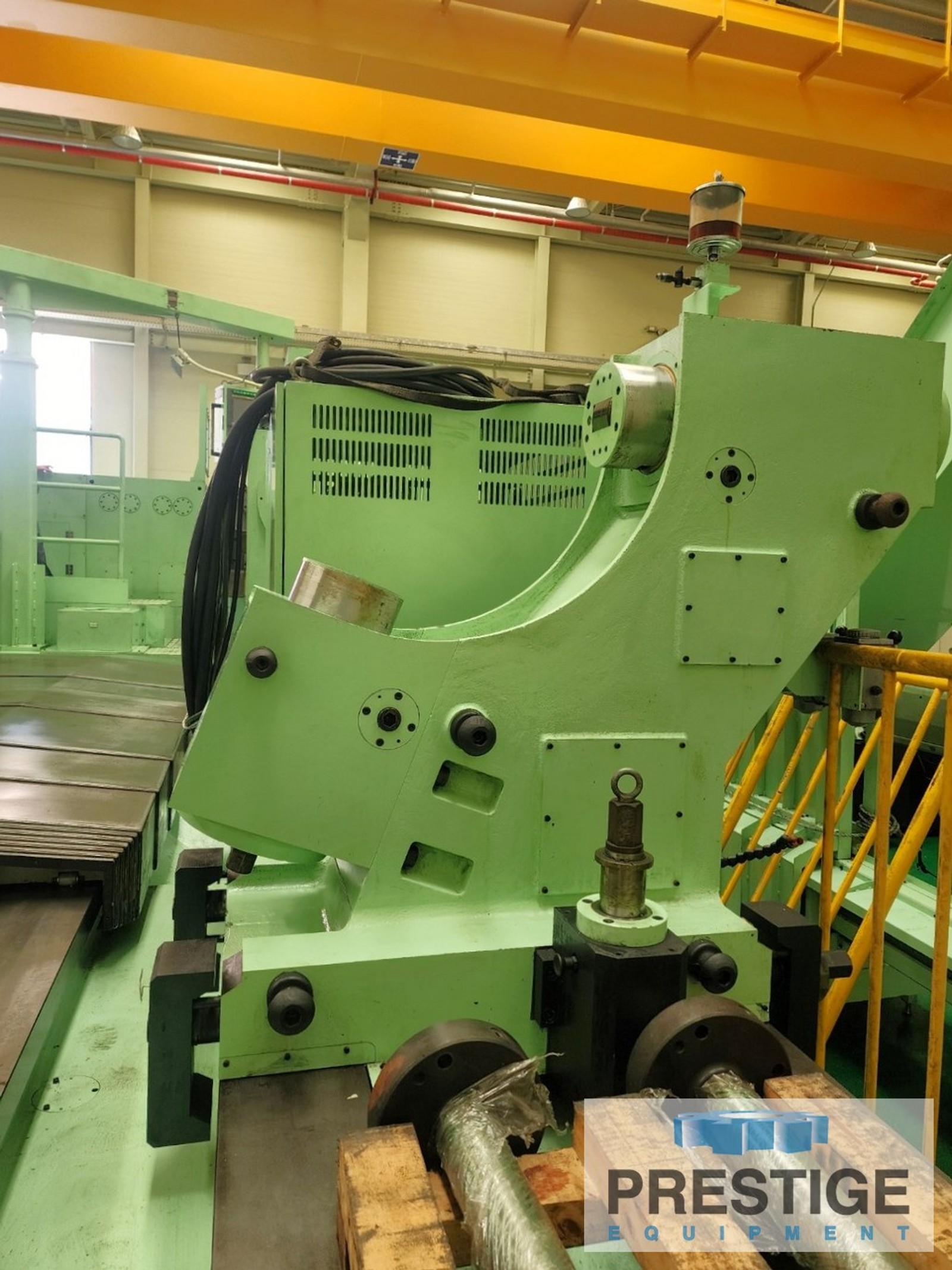

27.55" Roller Type Follow Rest

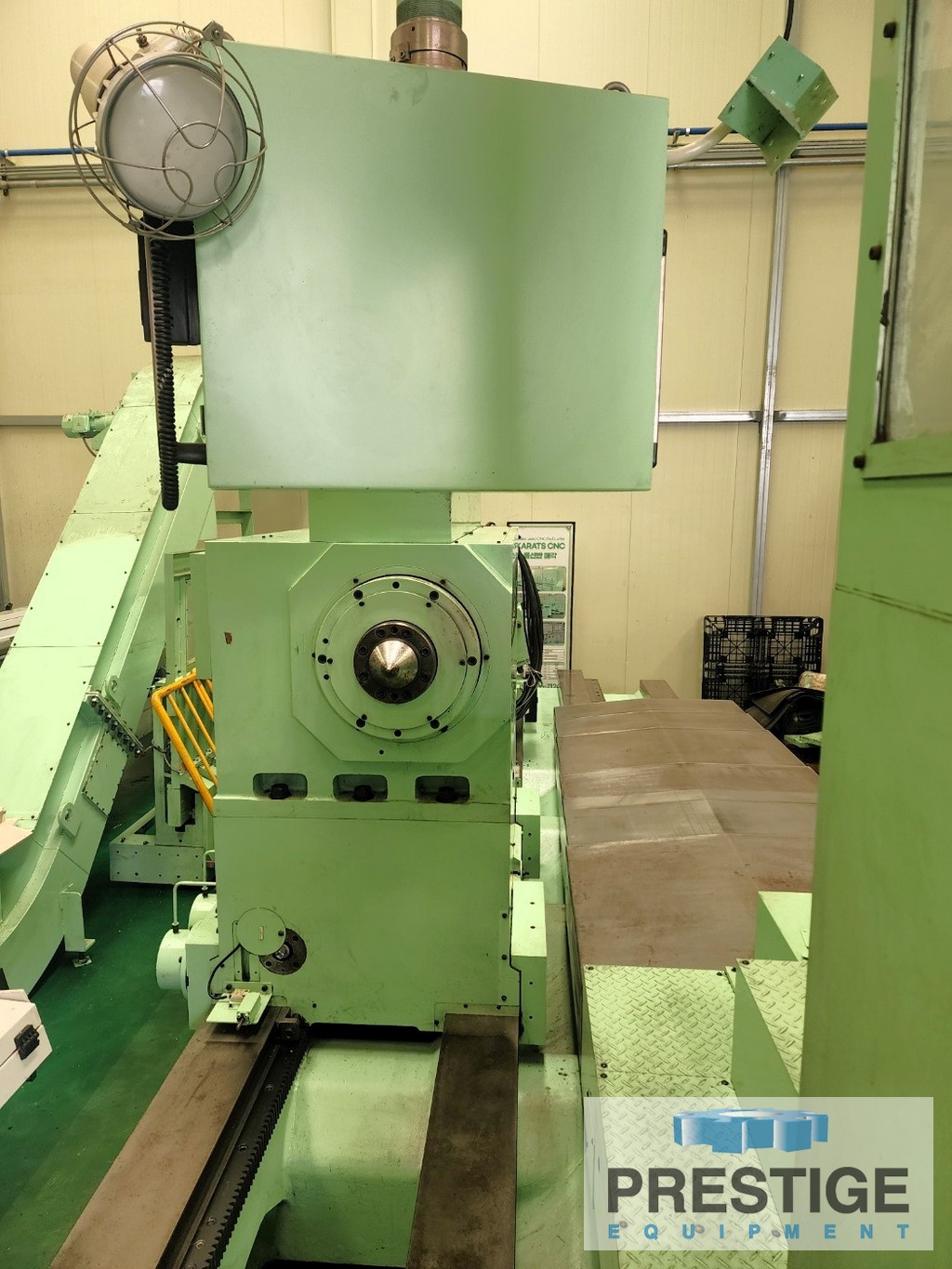

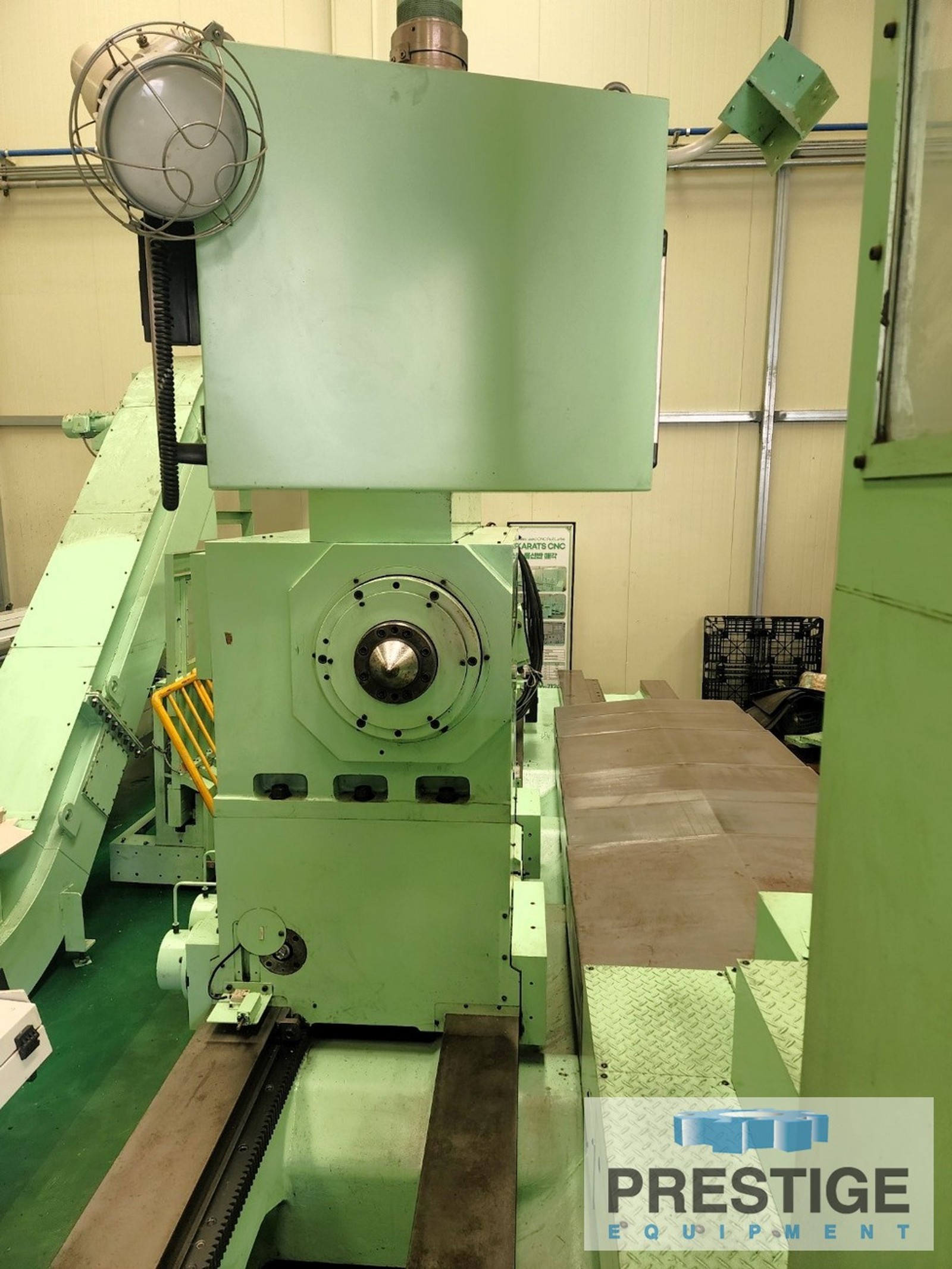

Heavy Duty Tailstock with Live Center

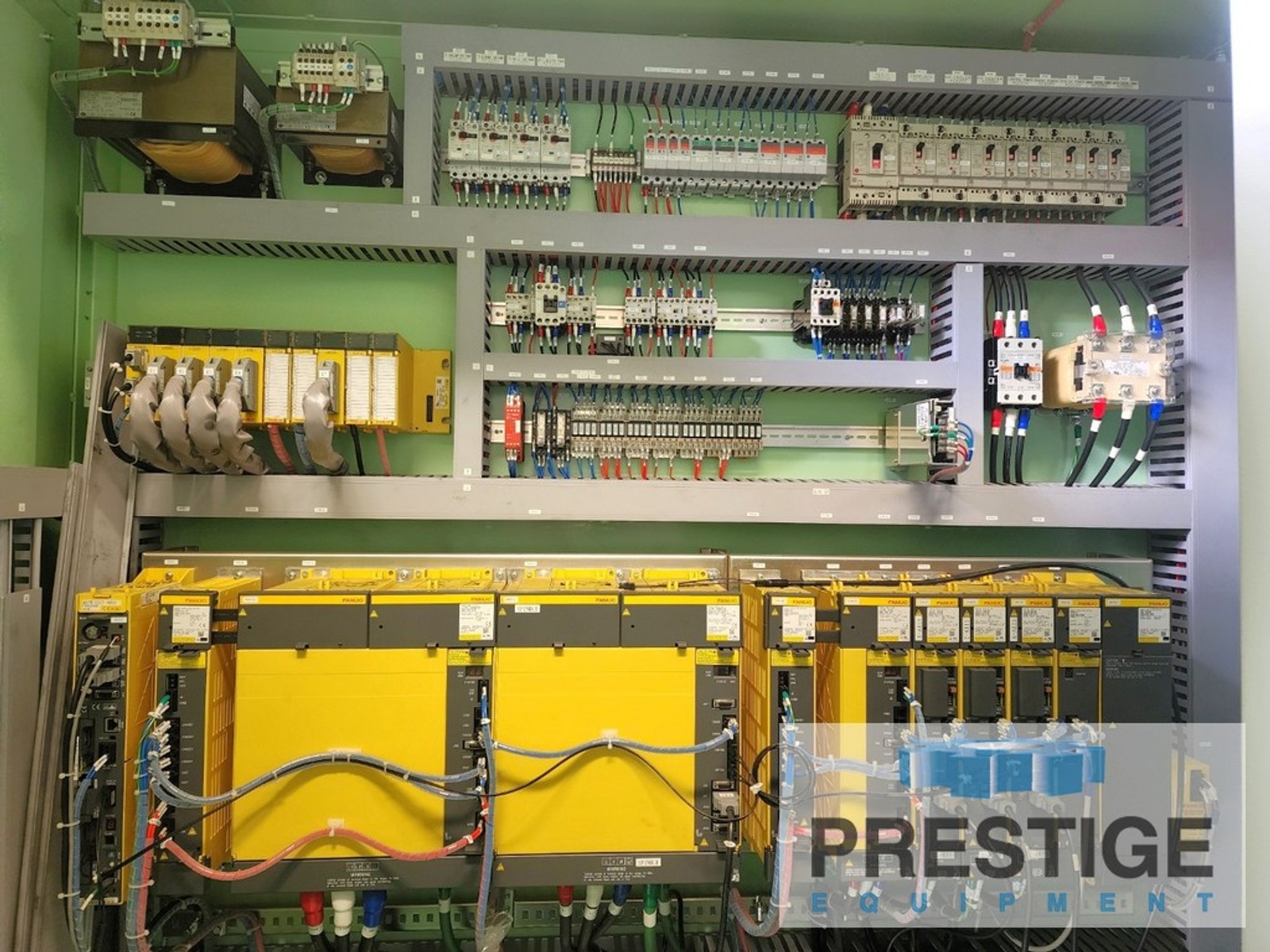

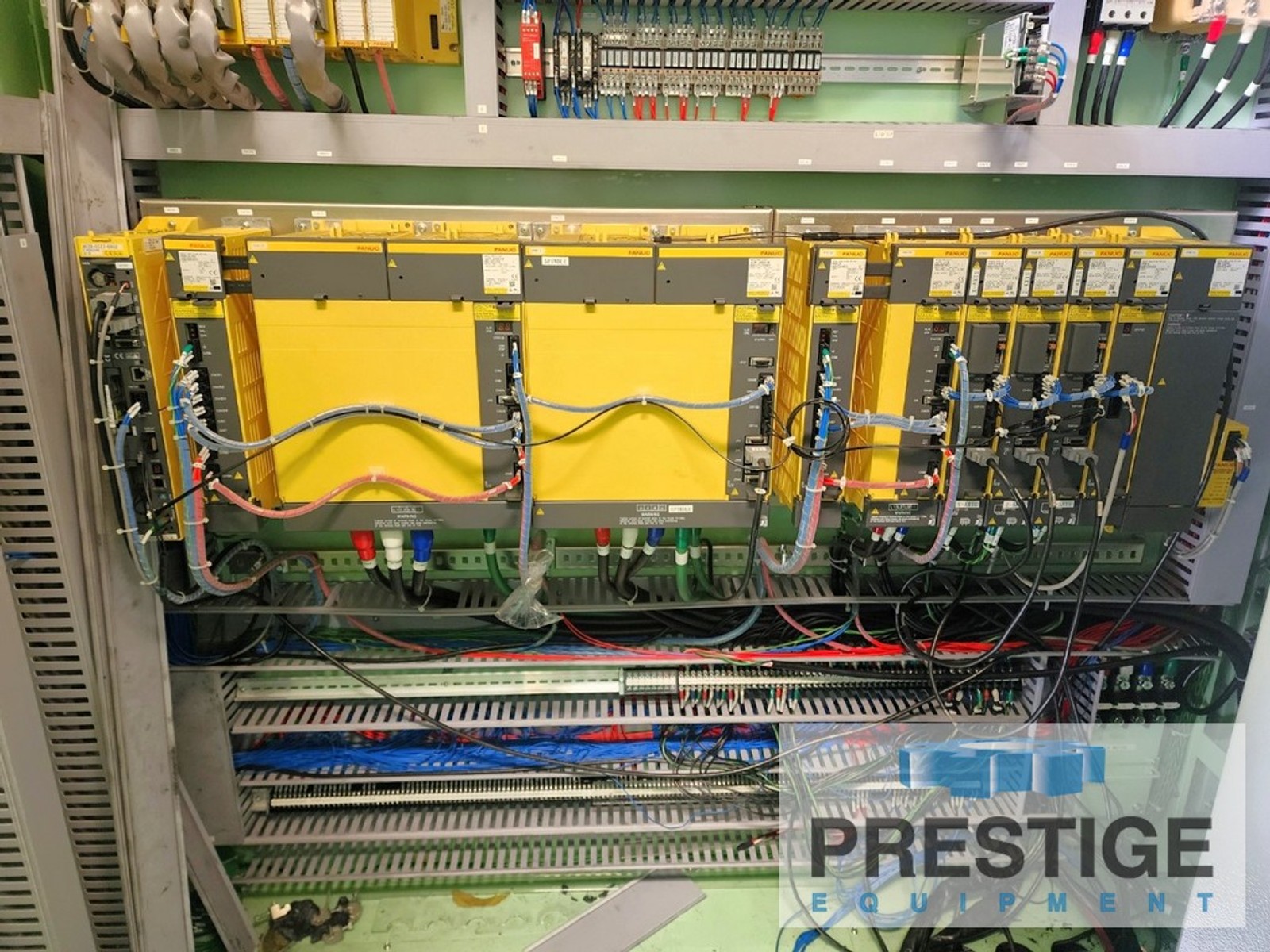

Fanuc Drive Motors
134 HP Spindle Motor

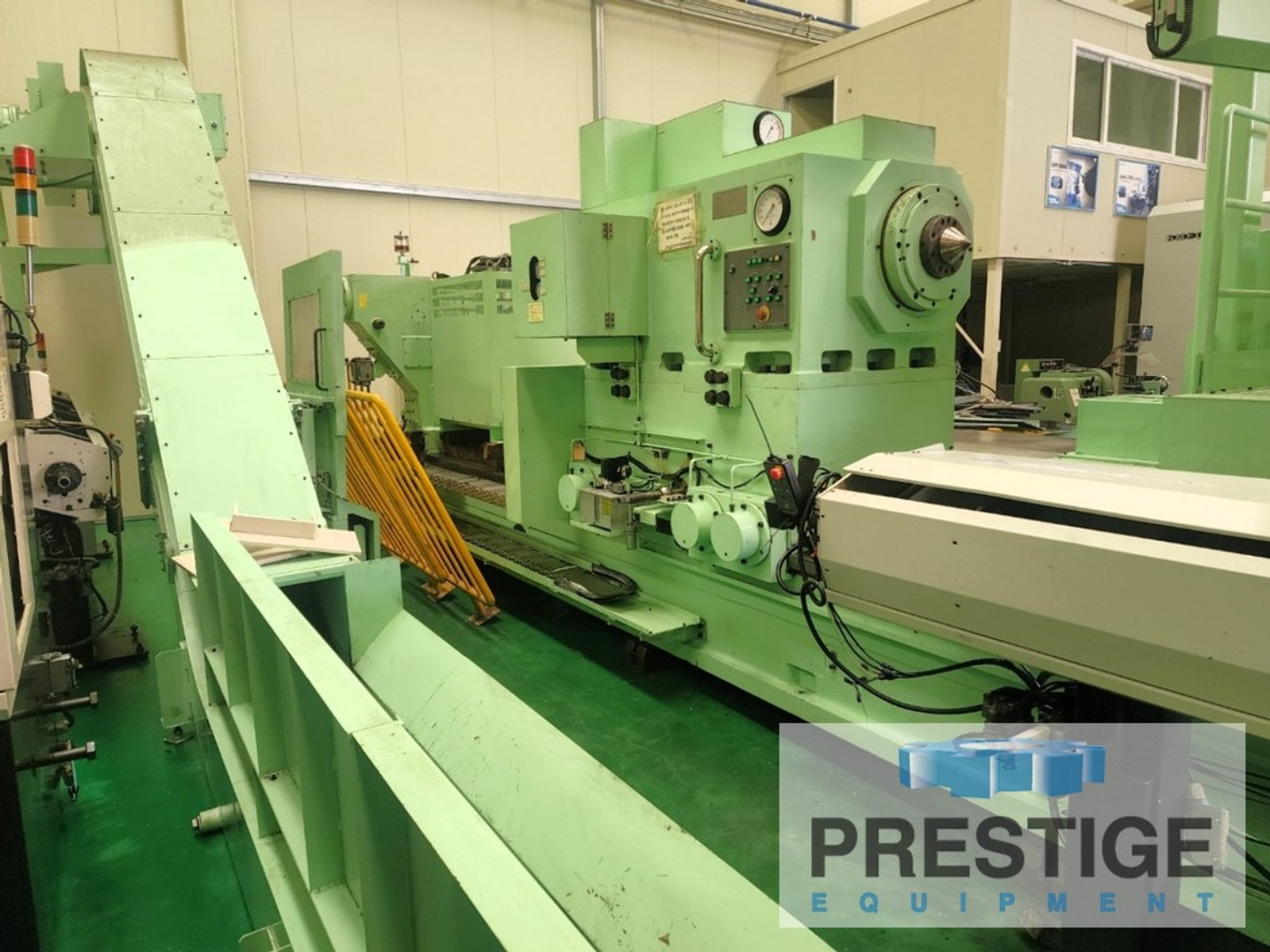

Chip Conveyor
