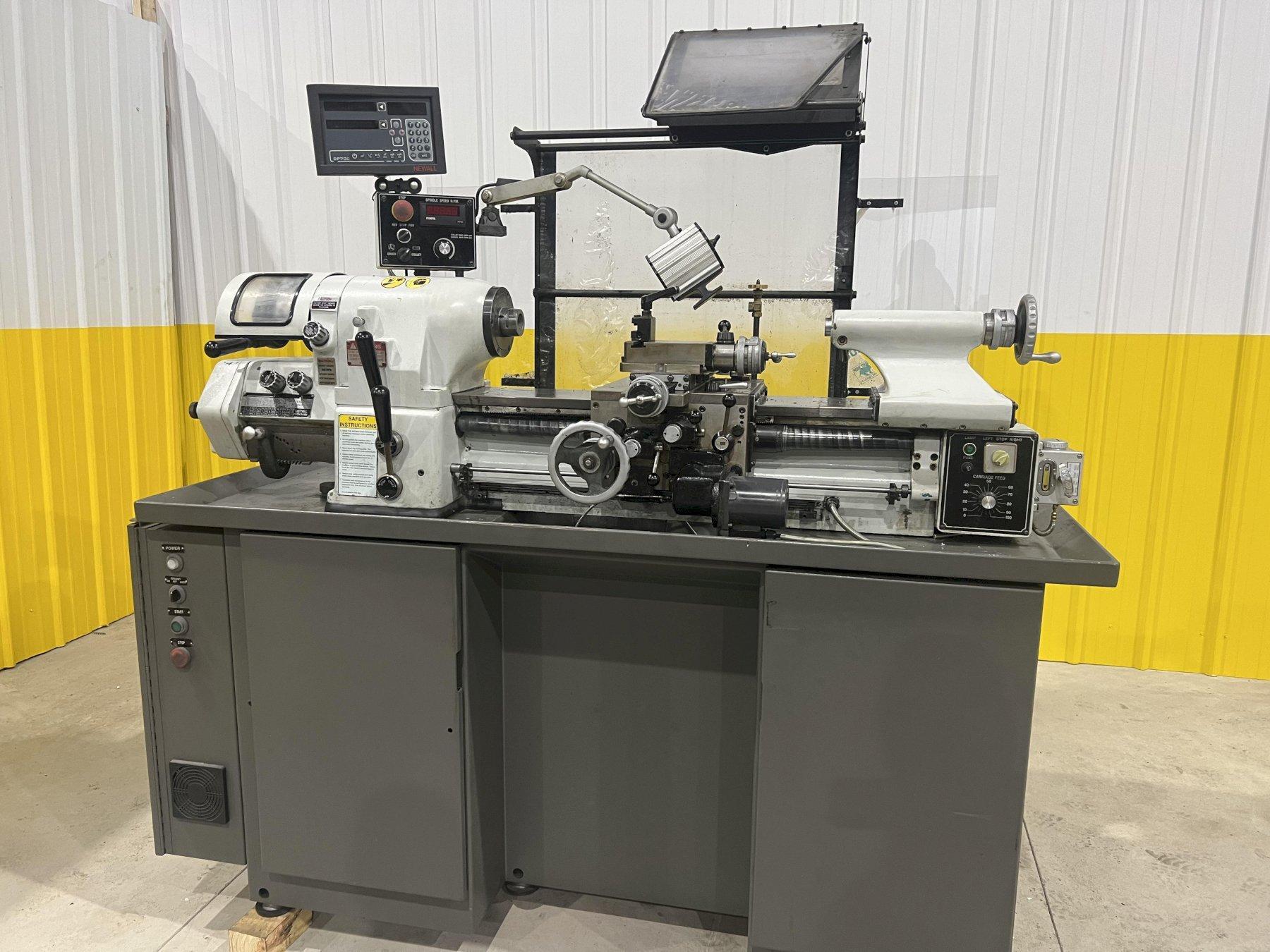

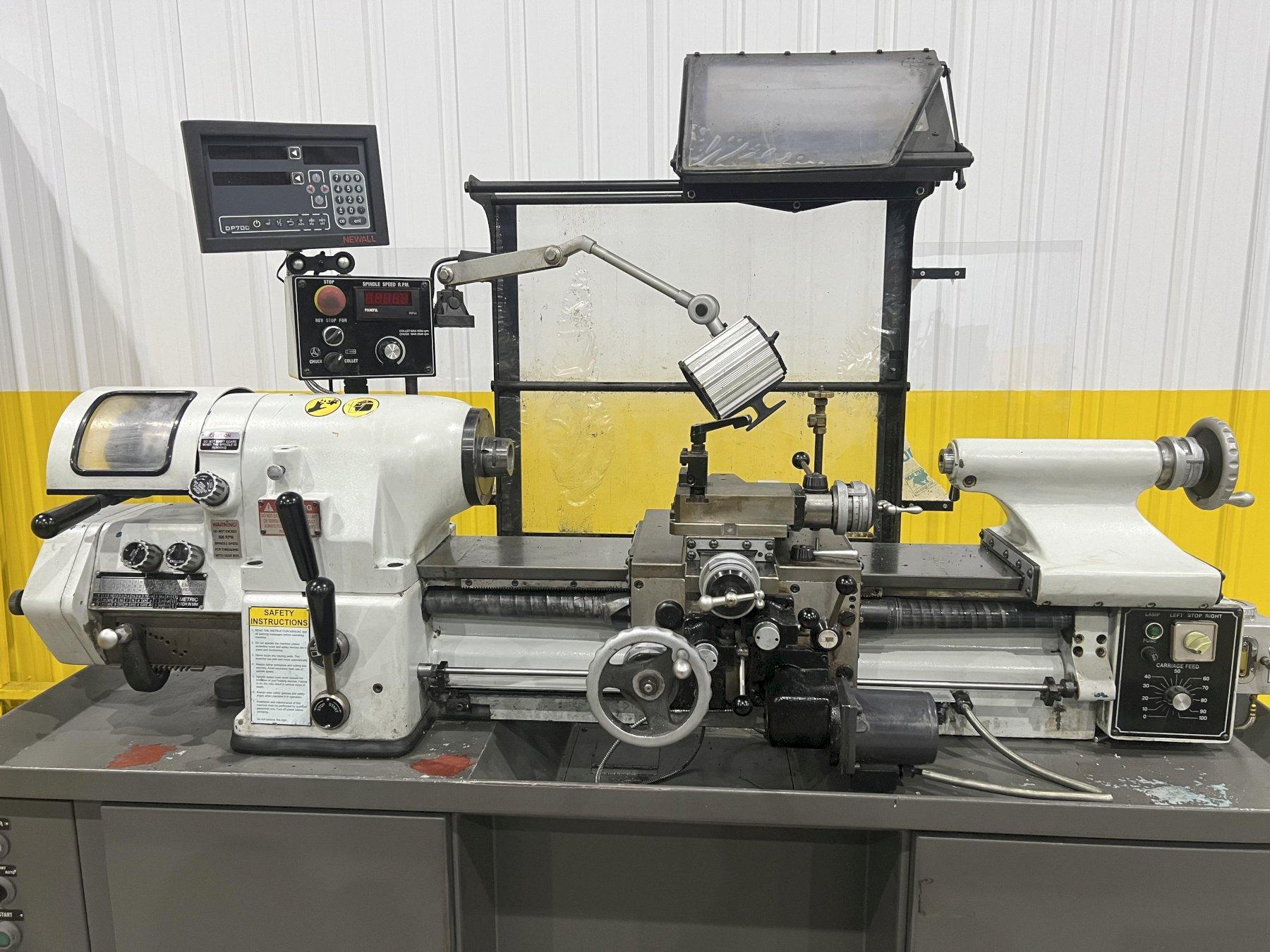

GMC Model TL-618EVS Precision Toolroom Lathe with Electronic Variable Speed, 6" x 18" Capacity, 4,000 RPM, 1.25" Spindle Hole, Inch/Metric Threading, Newall 2-Axis DRO, 3 HP

Manufacturer

GMC

Category

Lathes

Type

LATHES, TOOLROOM

Stock

4334

Model

TL-618EVS

Dealer Location

Massachusetts

Request a Quote
View Contact Information

Spec Sheet

Maximum Swing Over Cross Slide - 6"
Distance Between Centers - 18"
Maximum Swing Over Bed - 11"
Swing Over Carriage - 9"
Spindle Nose Diameter - 2.189"
Spindle Nose ID/OD - 5C / 4 degree taper
Spindle Thur Hole - 1.25"
Variable Spindle Speeds - 0 - 4,000 RPM
Leadscrew Diameter /Pitch - 1" / 8 TPI
Carriage Power Feed Speed Range - 5/16" to 7" per minute
Cross Slide power Feed Range - 3/16" to 4" per minute
Cross Slide Travel - 6"
Compound Slide Travel - 3"
Inch Threads (36) - 11 - 118 TPI
Metric Threads (36) - 0.275 - 2.7mm
Tailstock Quill Diameter - 1-3/8"
Tailstock Quill Taper - MT#2
Tailstock Quill Travel - 3-3/4"
Spindle Motor - 3HP / 220V / 3 Phase
Approximate Machine Weight - 2,530 lbs
Approximate Machine Dimensions - 73"L x 30" W x 67"H

Equipped With;
- Coolant System
- Newall 2-Axis DRO
- Work Light
