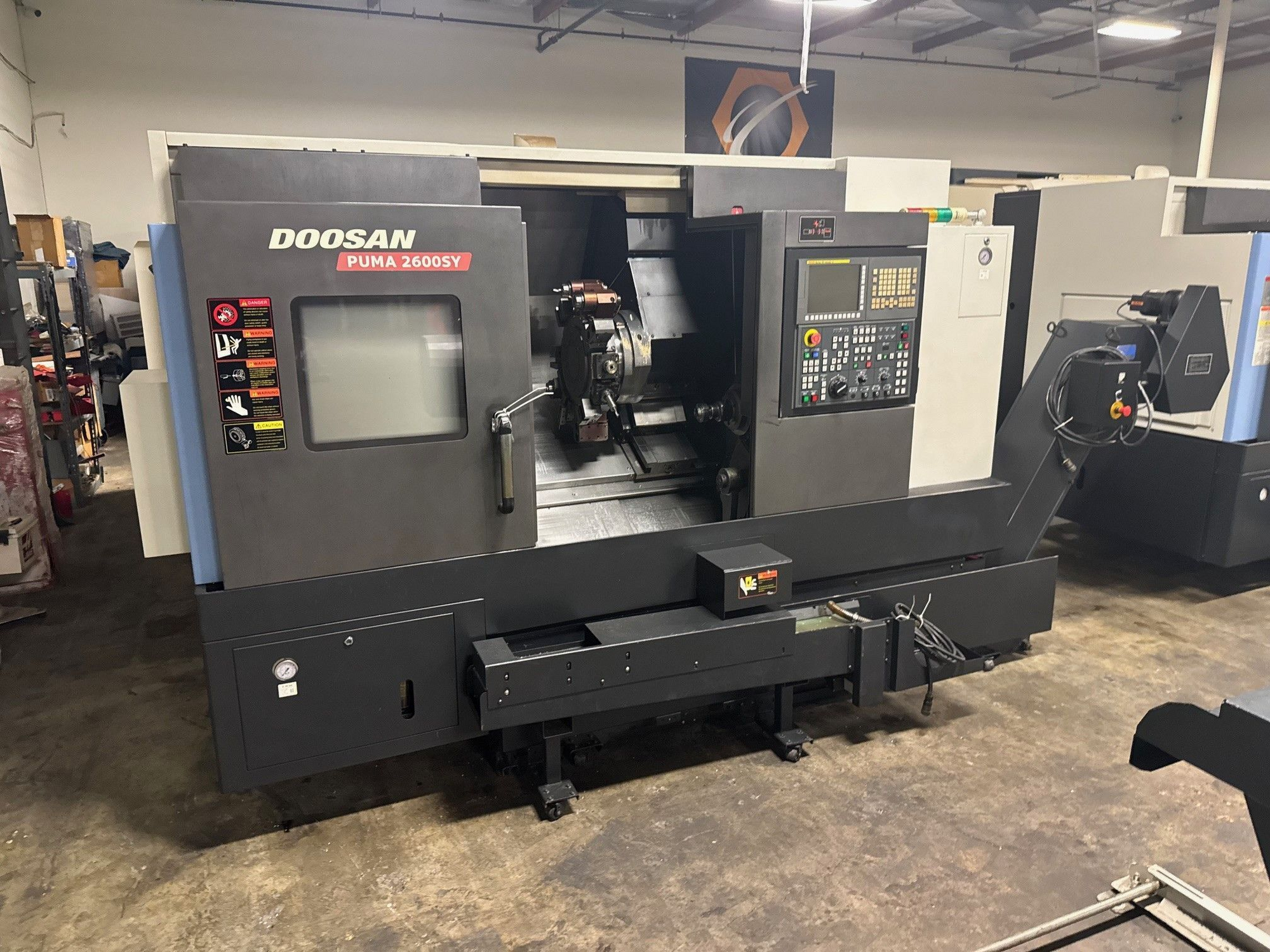

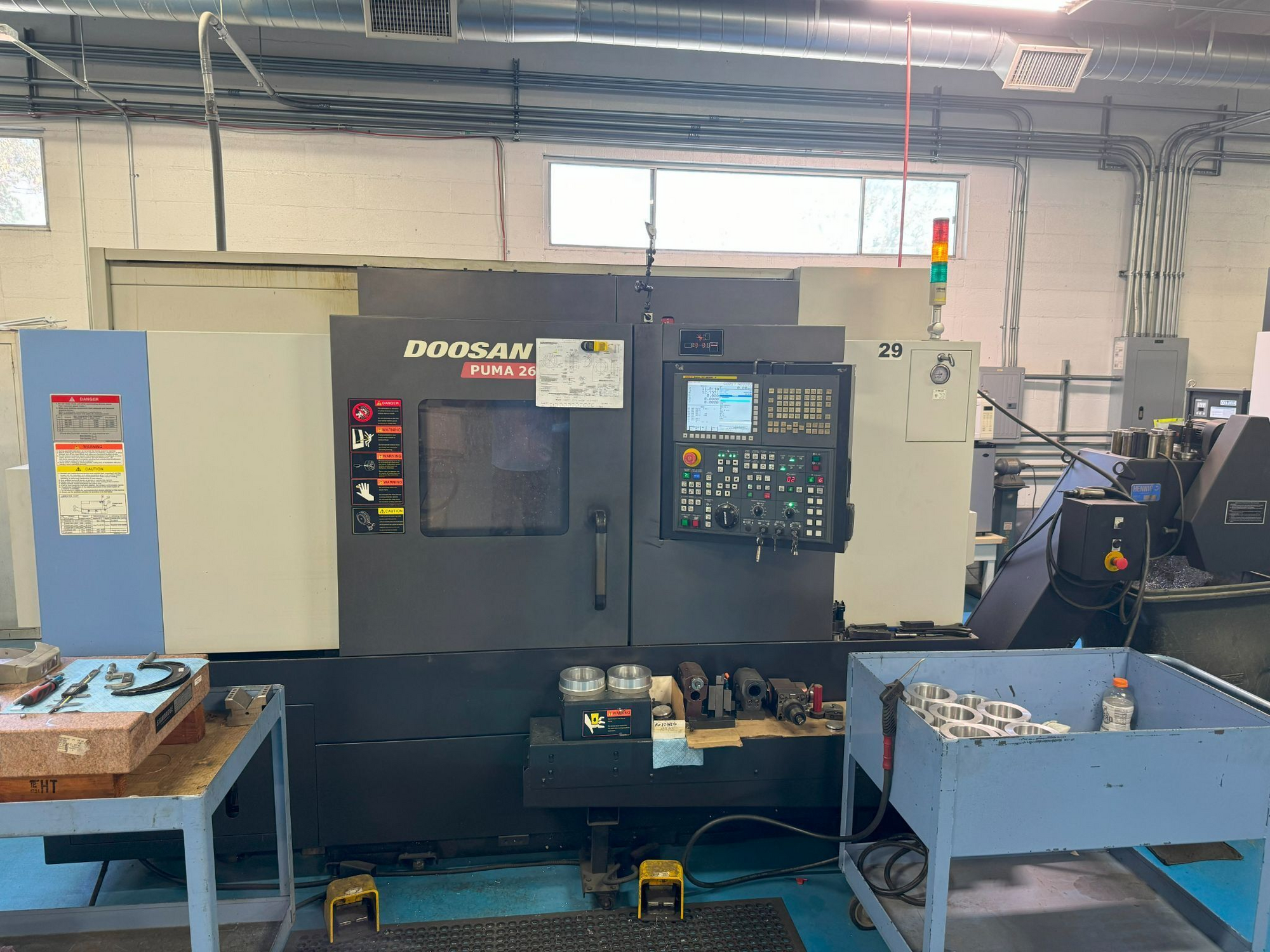

DOOSAN PUMA 2600SY CNC TURNING CENTER - NEW: 2011

Manufacturer

DOOSAN

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

69128

Model

PUMA 2600SY

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Specifications
Capacity:
Swing Over Bed 30.7"
Swing Over Front Door 26.8"
Swing Over Saddle 24.8"
Max. Turning Diameter 14.8"
Maximum Turning Length 29.9"

Travels:
X-Axis 10.2"
Z-Axis 32.7"
Y-Axis 4.13"
B-Axis 32.7"

Main Spindle:
Spindle Speed 3,500 RPM
Spindle Nose A2#8
Spindle Trhough Hole Diameter 3.4"
Bar Calacity 3.0"
Mimimum Spindle Indexing Angle (C-Axis) 0.001 Degree
Main Spindle Motor 30 HP

Sub-Spindle:
Spindle Speed 4,500 RPM
Spindle Nose A2-5
Spindle Through Hole Diameter 2.4"
Minimum Spindle Indexing Angle (C-Axis) 0.001 Degree
Sub Spindle Motor 10 HP

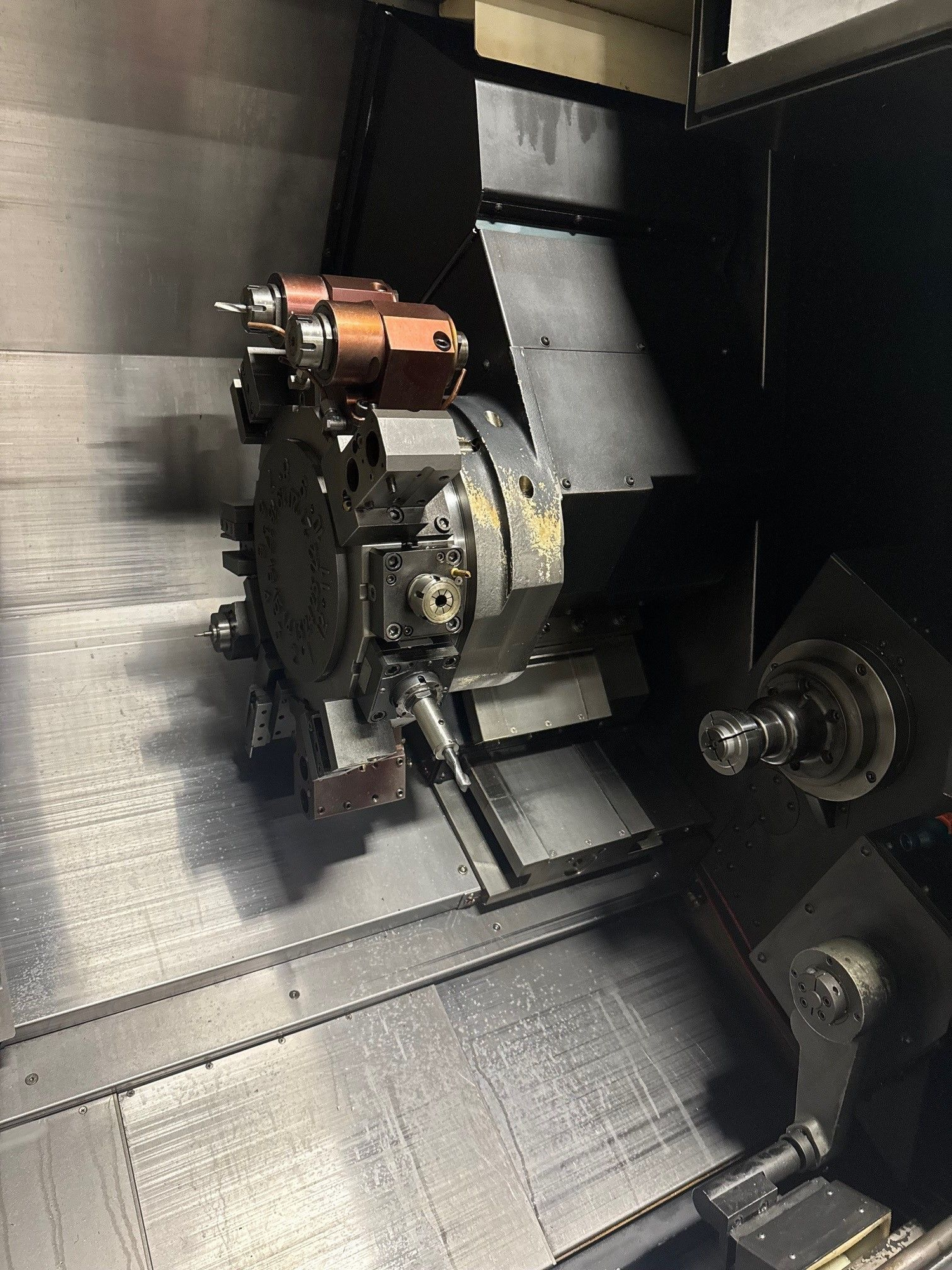

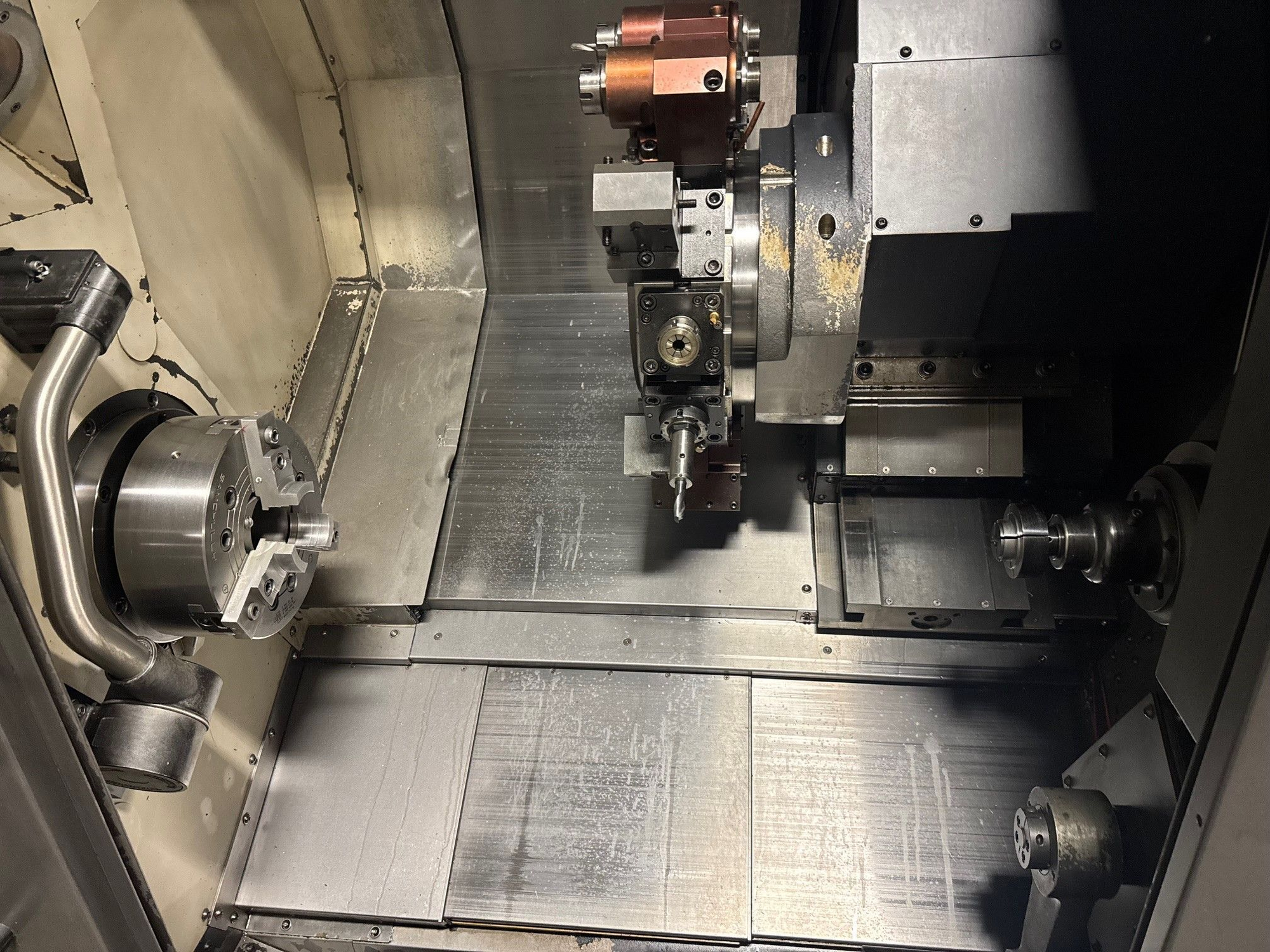

Turret:
Number of Tool Stations 12 (24 positions)

Live Milling:
Rotary Tool Spindle Speed 5,000 RPM
Rotary Tool Spindle Motor 7.3 HP

Machine Dimensions:
142" L, 73.3" W, 85" H
Approximate Machine Weight 14,500 Lbs

Equipped With

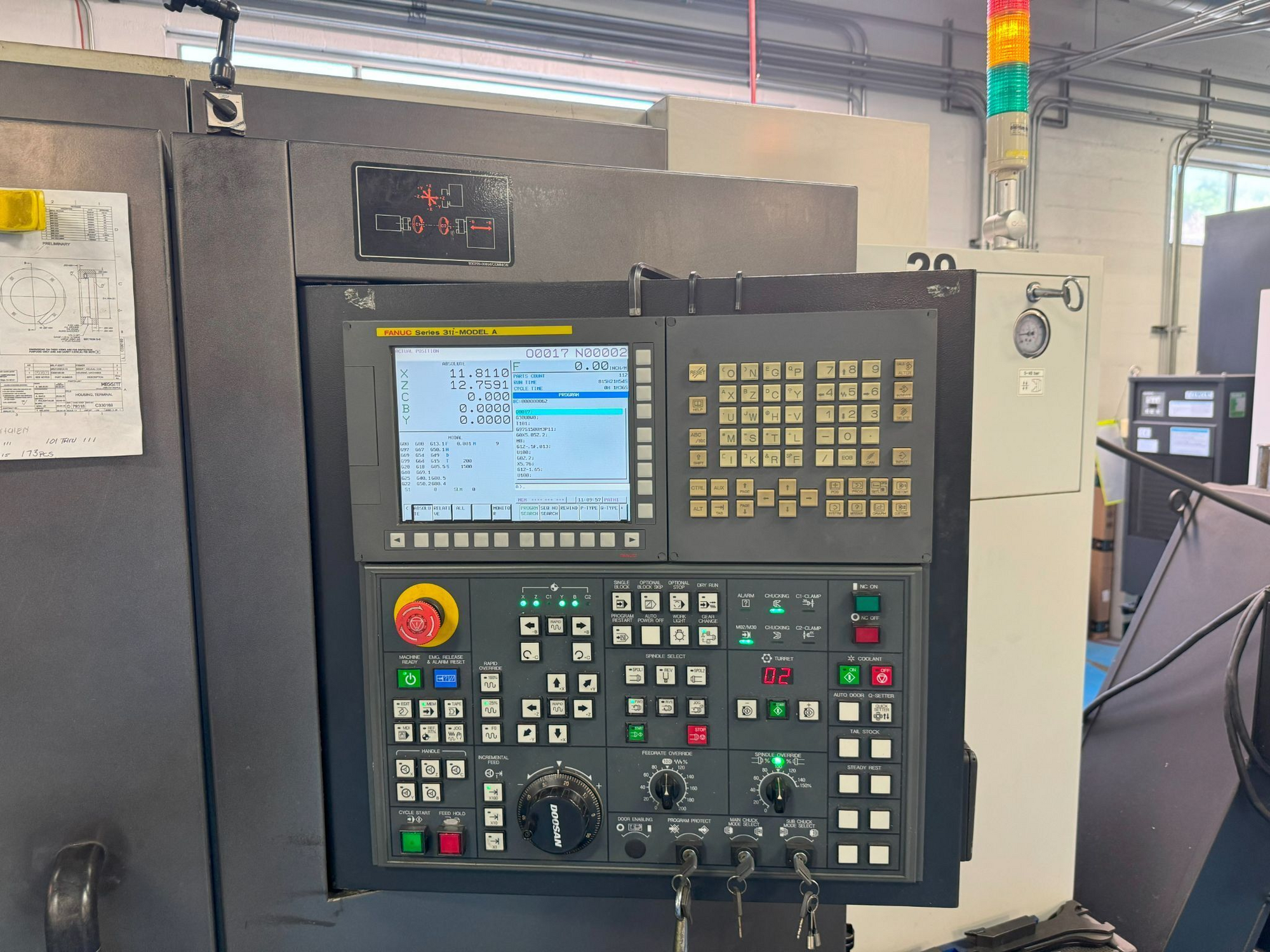

Fanuc 31i CNC Control with Easy Guide i
Tool Setter
Chip Conveyor
Box Ways
Parts Catcher and Parts Conveyor
10" & 6" 3-jaw chucks and one Collet
Four Live holders and and Turning tooling
