Mollart PRB 3000, Fanuc 18iMB CNC, X-120", Y-60", 79" x 67" 4th-Axis Table, Auxiliary Spindle, 82" Stroke, 2004, #43717

Manufacturer

MOLLART

Category

Drilling Machines

Type

DRILLS, GUN

Stock

43717

Model

PRB 3000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43717

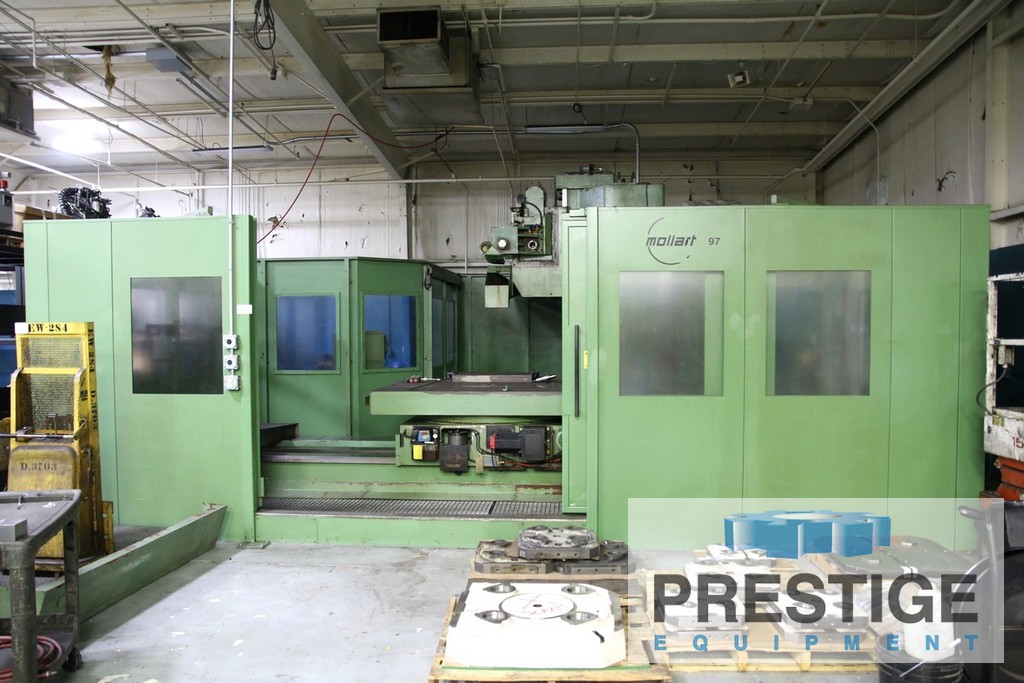

Mollart Prismabore PRB 3000 2" x 80" CNC Gun Drill

FEATURES:

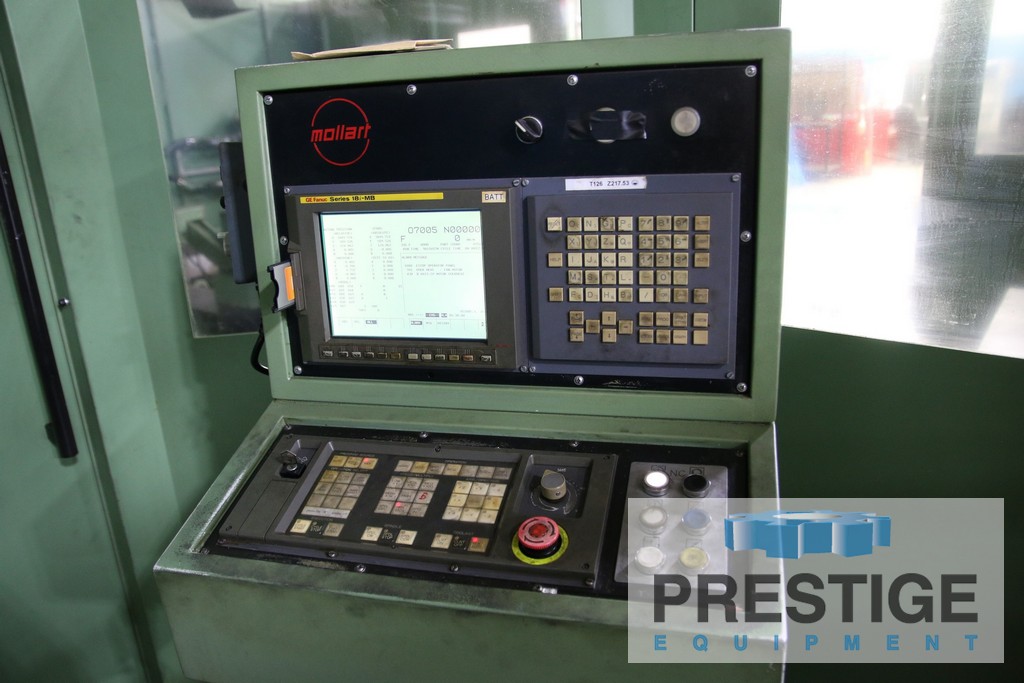

Fanuc 18-M CNC Control
Auxiliary Spindle
79" x 67" B-Axis Rotary Table

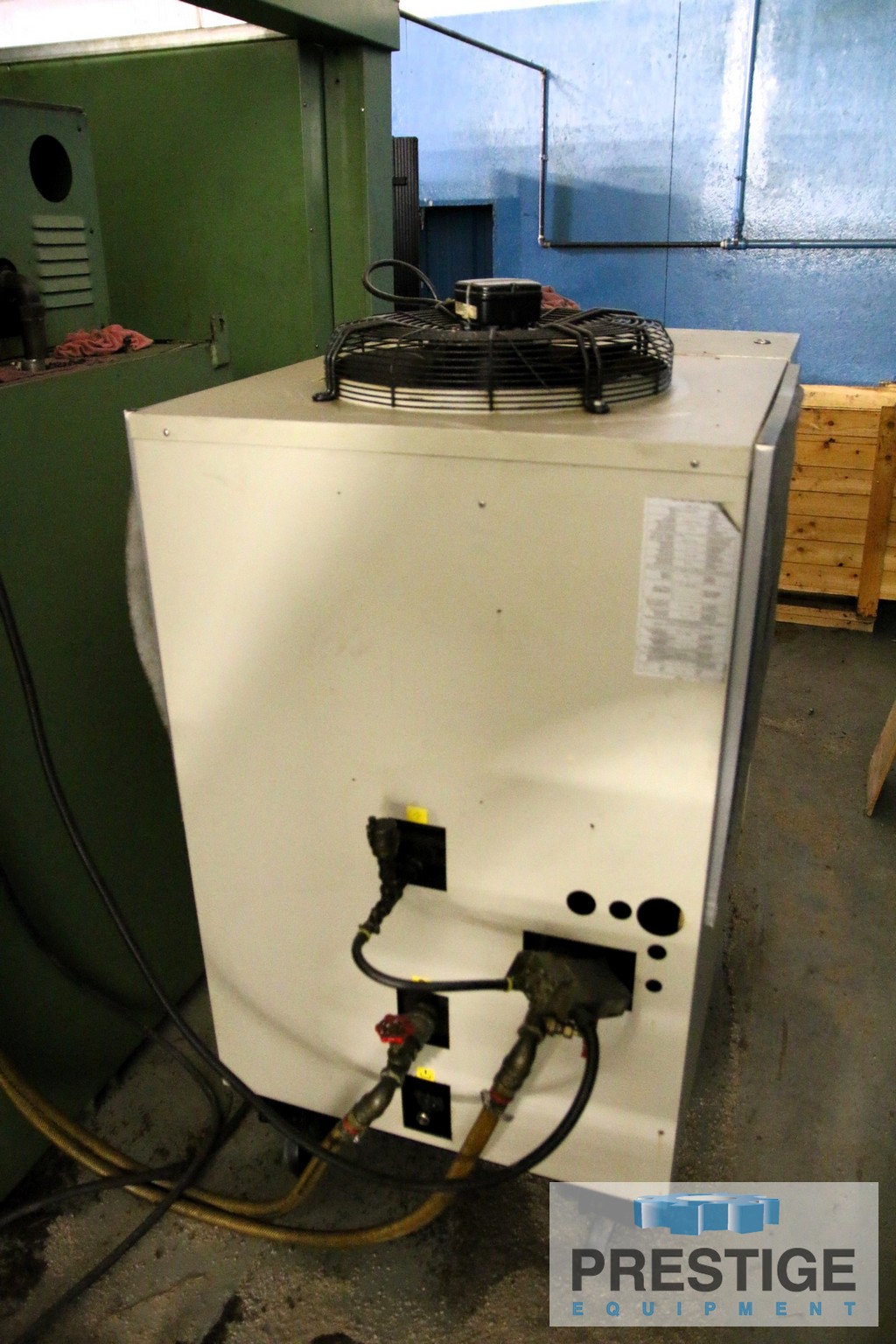

Chiller Unit

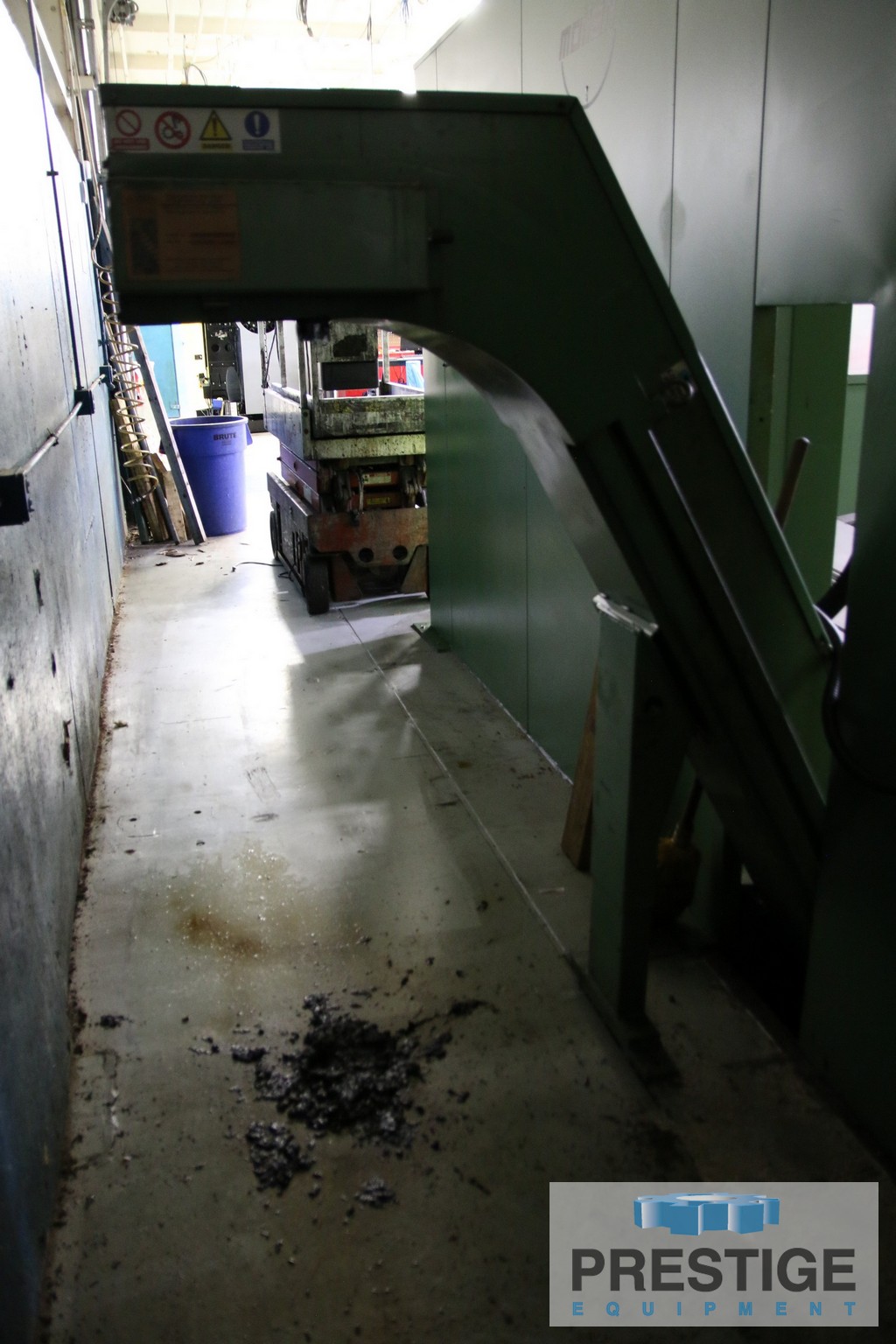

Chip Conveyor

TRAVELS:
X-Axis Travel, Table Horizontal ....... 118.11"
Y-Axis Travel, Spindles Vertical ...... 59.05"
Z-Axis Travel, Ram .................... 39.37"
U-Axis Travel, Spindle Stroke ......... 82.67"
B-Axis Table Rotation ................. Unlimited
Milling Spindle, Horizontal ........... 0-7.87"-19.7"

DRILLING SPINDLE:
Drilling Spindle Diameter ............. 1.96"
Drilling Spindle Speed ................ 6,000 RPM
Drilling Spindle Motor ................ 29 HP

MILLING SPINDLE:
Quill Diameter ........................ 3.54"
Quill Spindle Speed ................... 2,500 RPM
Quill Spindle Taper ................... #50
Quill Spindle Motor ................... 14.75 HP

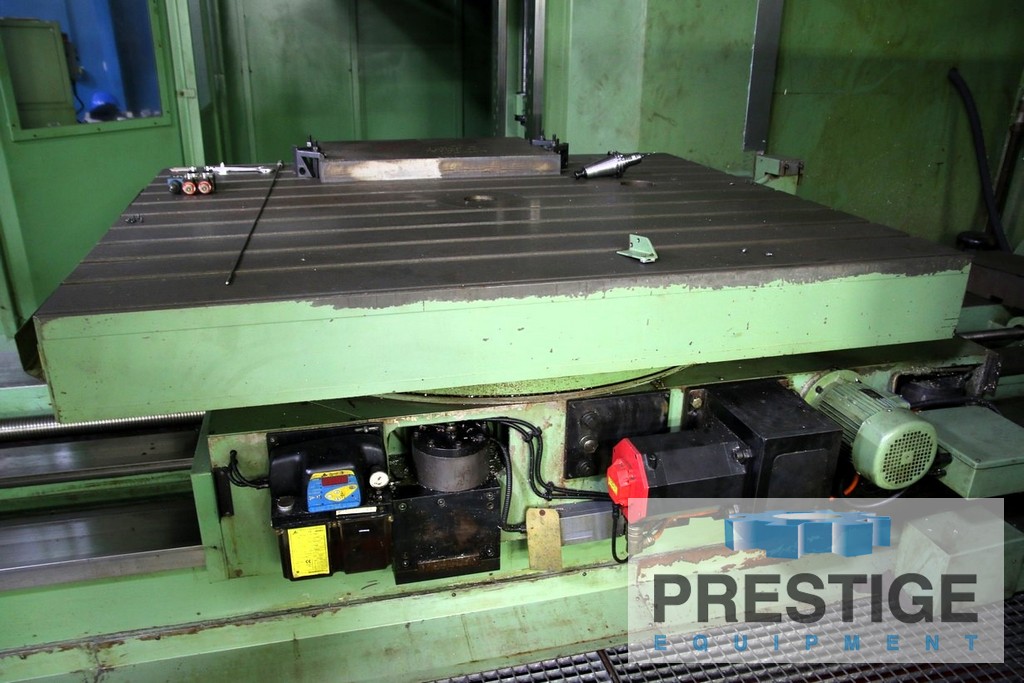

BUILT-IN ROTARY TABLE:
Table Dimensions ...................... 79" x 67"
Table Rotation, B-Axis ................ Unlimited
Maximum Table Load .................... 33,000 Lbs.

FEED RATES
Feed Rate, All Axes ................... 0 - 196 IPM
Machine Length ........................ 310.43"
Machine Width ......................... 247"
Machine Height ........................ 149.2"
Approximate Weight .................... 44,000 Lbs.

EQUIPPED WITH:
Fanuc 16-M CNC Control
Auxiliary Milling Spindle
79" x 67" B-Axis Rotary Table
Chiller Unit
Chip Conveyor
Enclosure

NOTE:
Inspect Under Power
