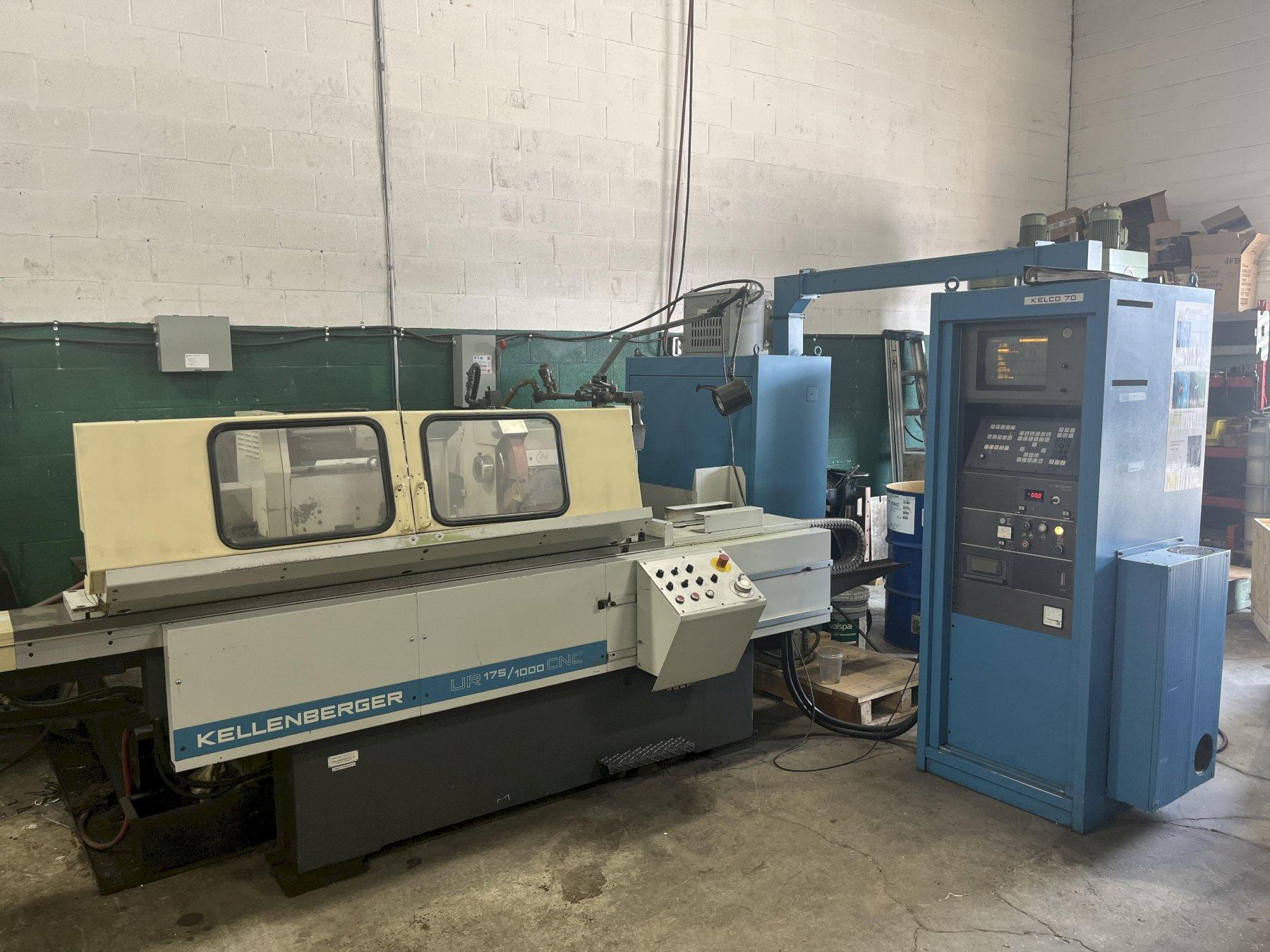

1998 Kellenberger CNC Cylindrical Grinder - 3 Spindles

Manufacturer

KELLENBERGER

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, UNIVERSAL, CNC

Stock

None

Model

UR175/1000

Dealer Location

Ontario

Request a Quote
View Contact Information

Spec Sheet

Z-Axis Travel - 43.9 inches
X-Axis Travel - 10.24 inches
Internal Griding Attachment - yes
Swing - 13.74 inches
Type of CNC Control - Kelco 70
CNC Control - yes
Plunge (Yes/No) - yes
Grinding Wheel Dia. - 16 inches
Centers - 39.37 inches


Kellenberger UR175 / 1000
Year:                                                            1998
  • Maximum Swing:                                             13.74"
  • Maximum Distance Between Centers:             39.37"
  • Maximum Grinding Capacity:                           13.74"
  • Height of Centers:                                              6.89"
  • Power Requirements:                                         13.4HP
  • Z-Axis Travel:                                                    43.9"
  • Table Swivel:                                                      9°
  • X-Axis Travel:                                                    10.24"

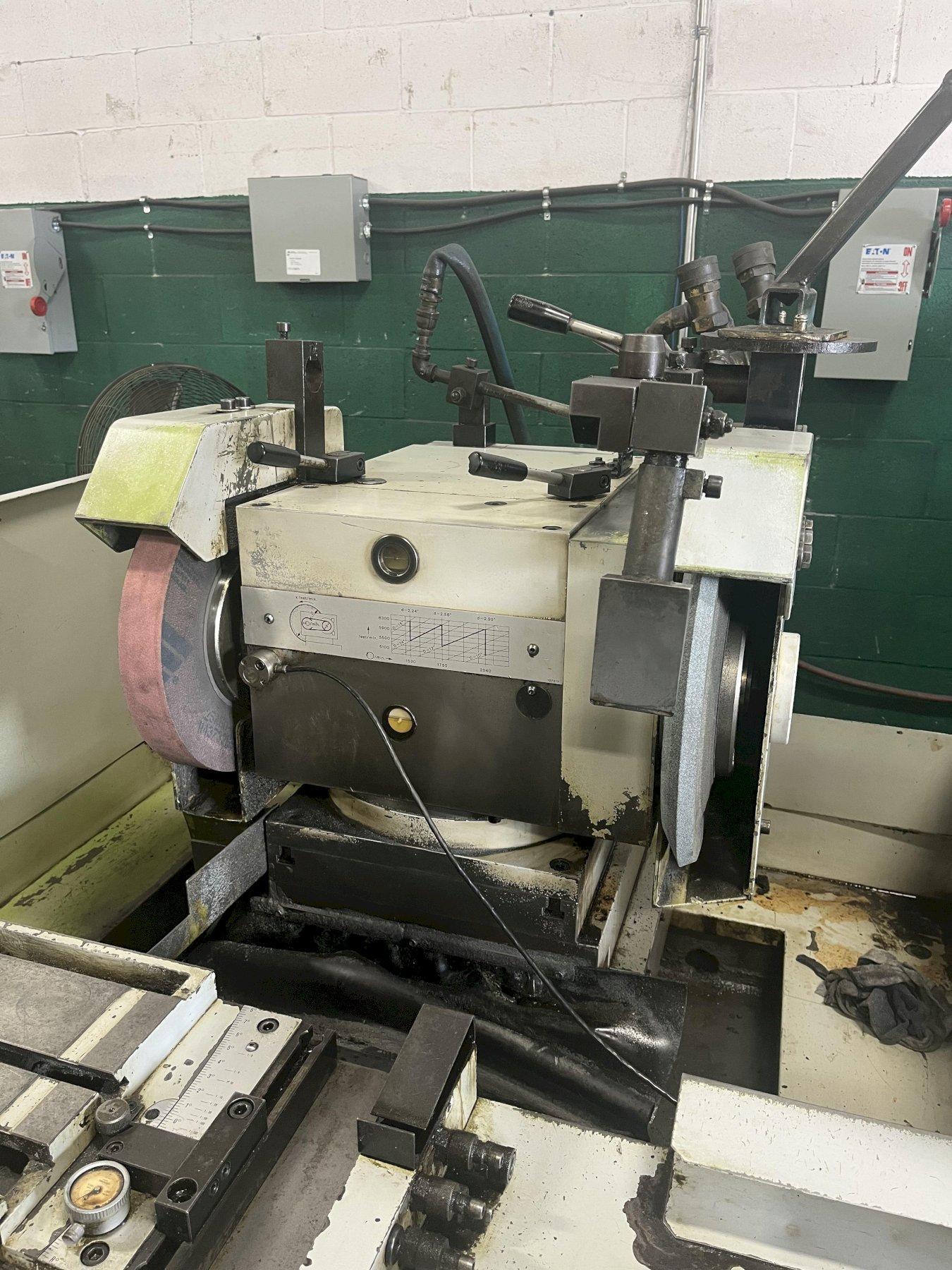

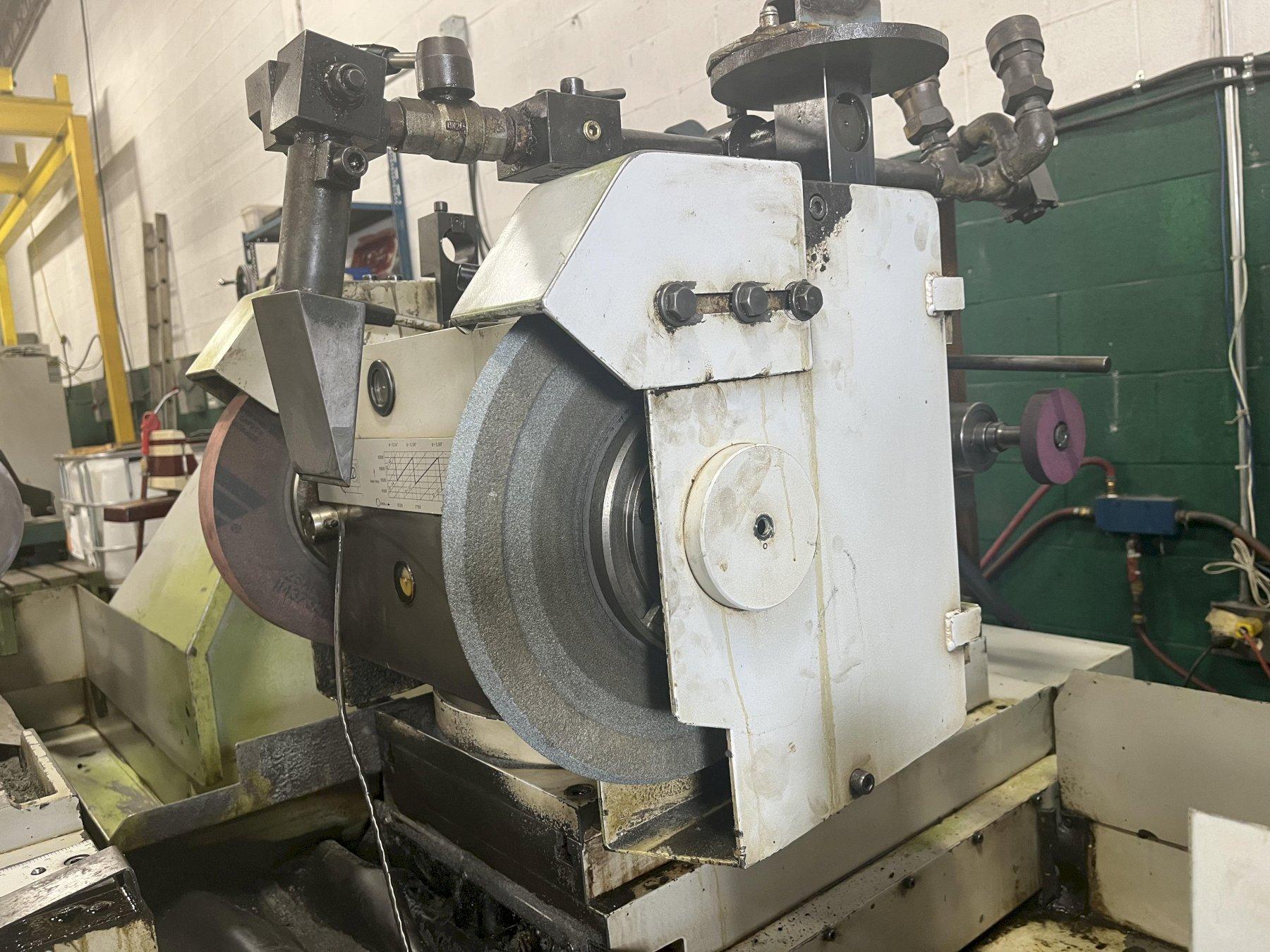

  • Number of Grinding Wheels:                     2x External + 1x Internal
  • Max Grinding Wheel (External Left):                         14" DIA
  • Max Grinding Wheel (External Right):                       16" DIA

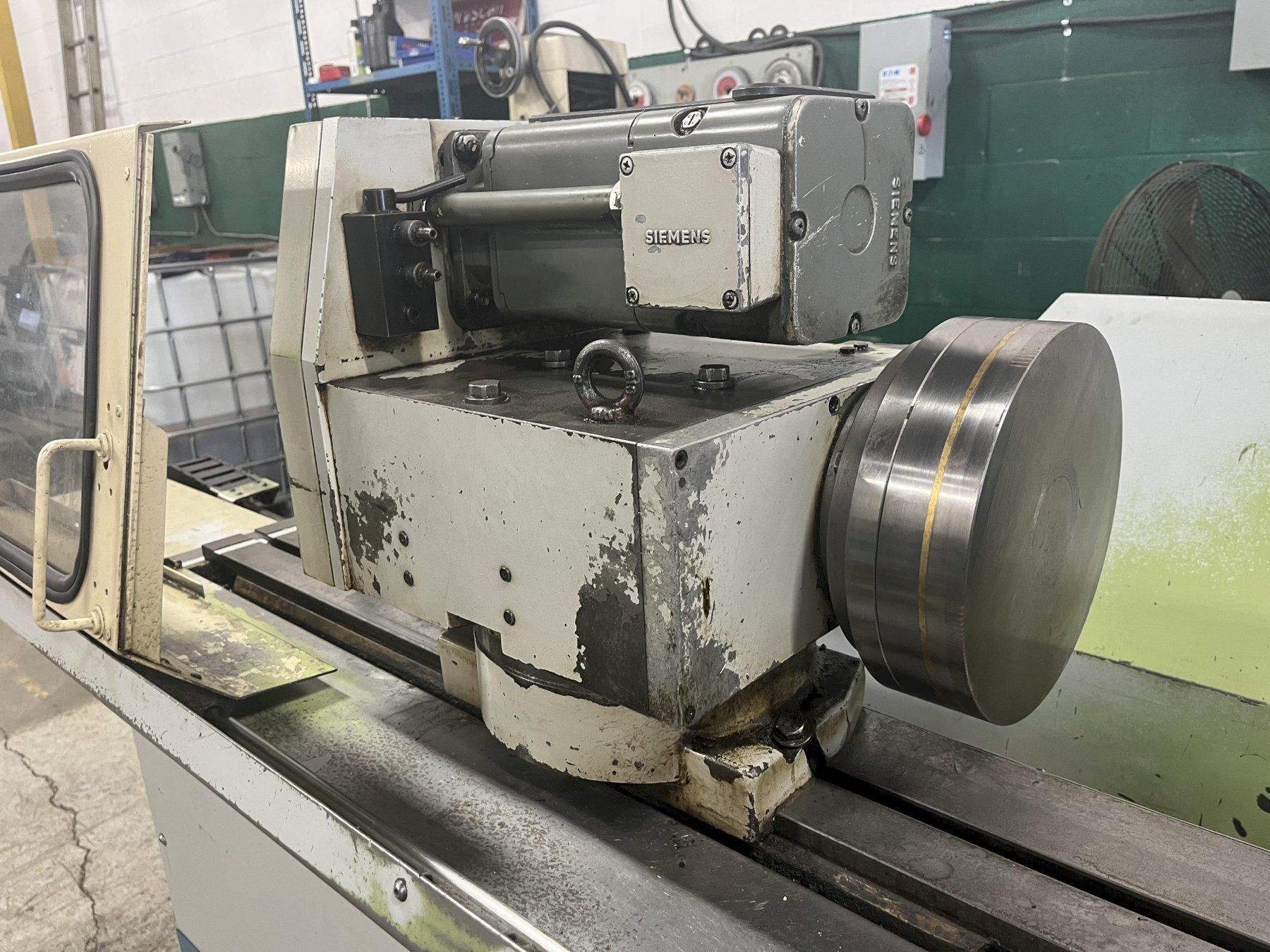

  • Wheelhead Motor Output:                                 5.9HP
  • Wheelhead Swivel:                                            200°

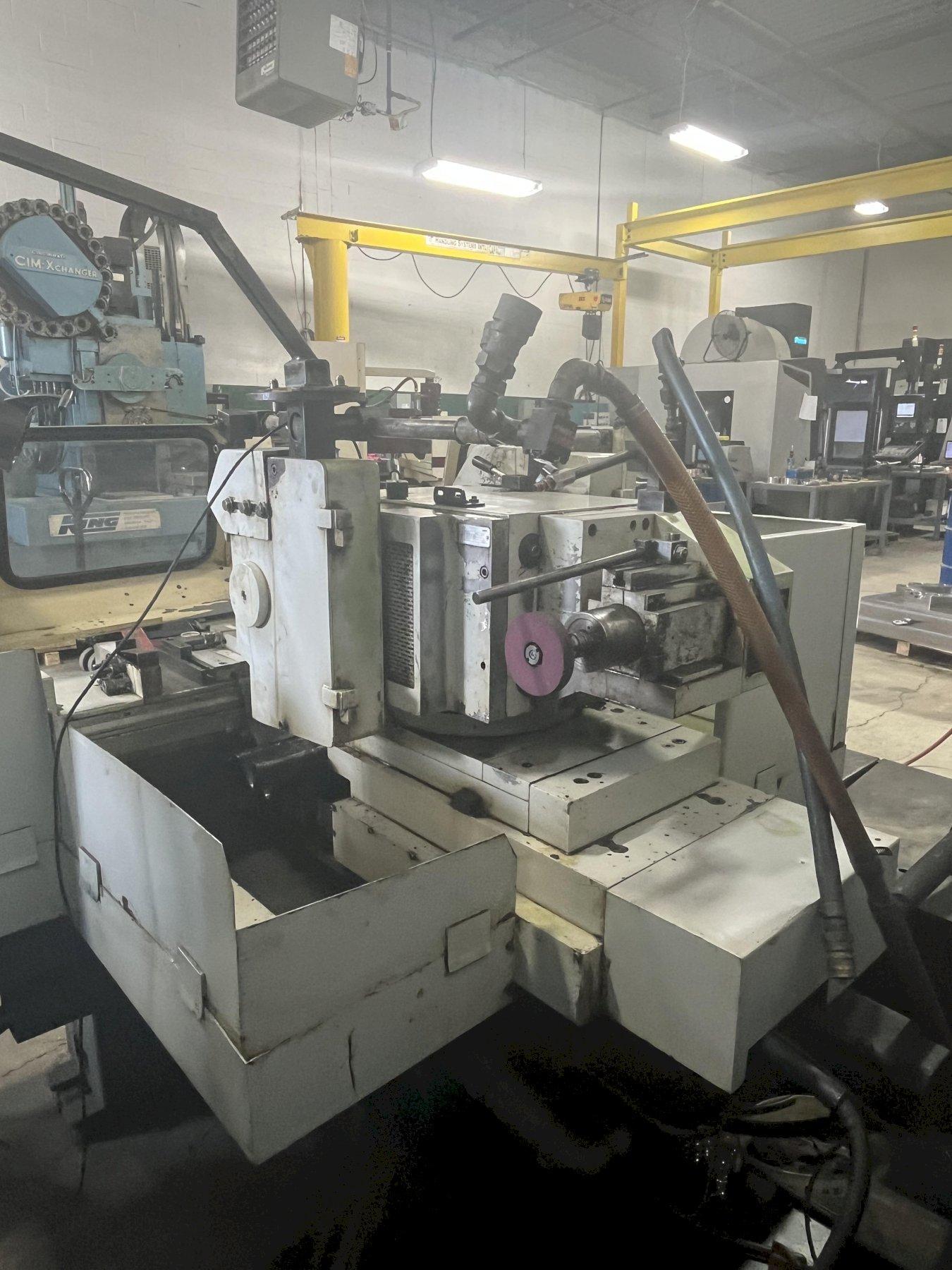

  • Internal Spindle Carrier:                                     3.15"

Equipped With:

  • Kelco 70 CNC control
  • Coolant system
  • CSA electrics
  • Extra spindle
  • Extra grinding wheel
