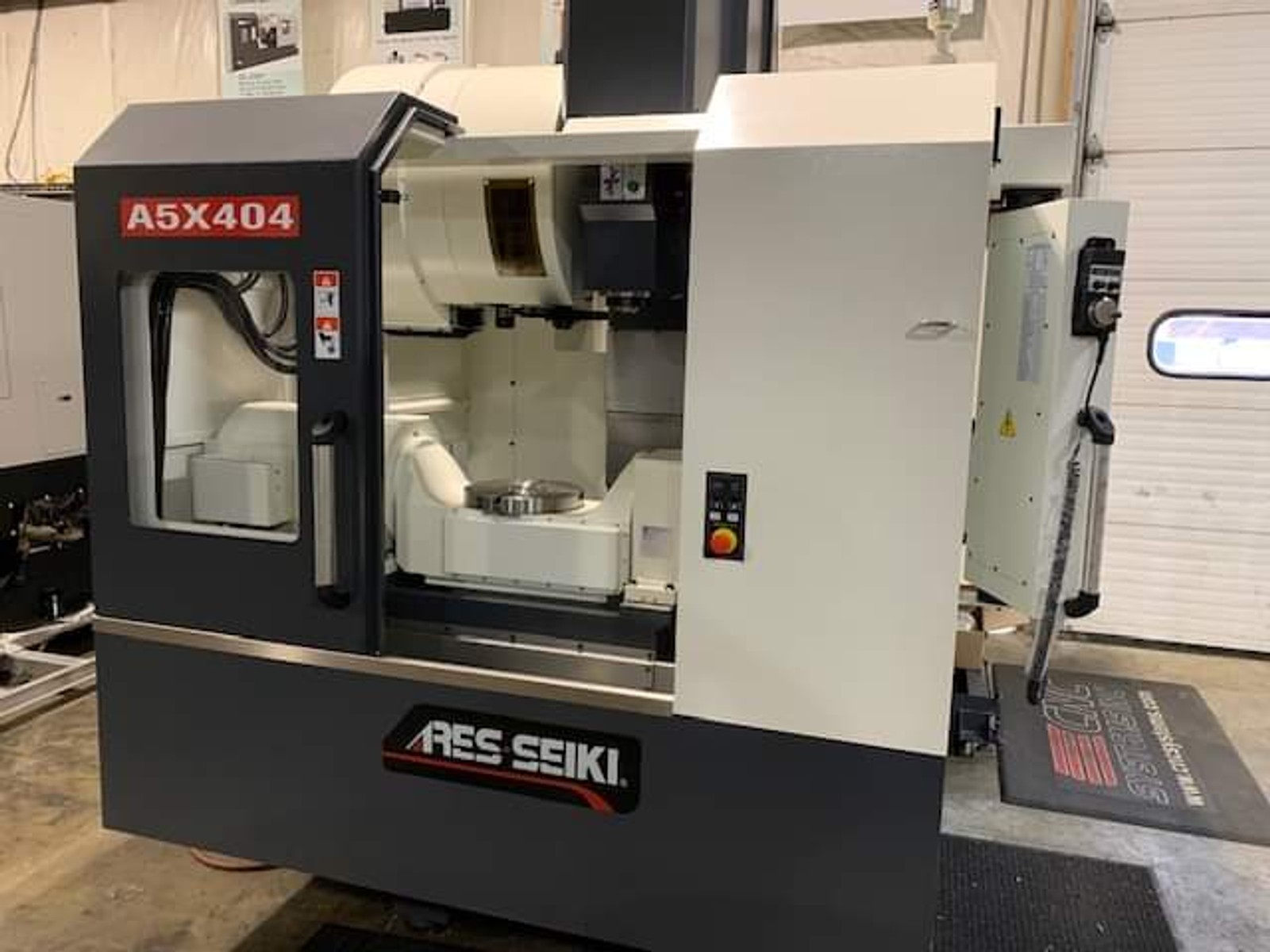

2018 5-axis CNC machining center Showroom display model 12” table, Fanuc control, BT40 taper, 24 tools, 12K rpm spindle FOB Kennebunk ME Lance Norman lance@cncsystems.com 207-577-8699

Manufacturer

Ares Seiki

Category

Machining Centers

Type

MACHINING CENTERS, CNC, 5-AXIS or MORE

Stock

A5X404

Model

A5X404 3+2 5 axis

Dealer Location

California

Price

$109,900.00

Request a Quote
View Contact Information

Spec Sheet

https://youtu.be/hkHE0Uwps7A?si=1_Zmu2yA5n55IgG4

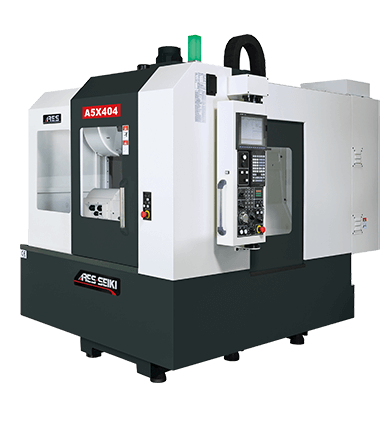

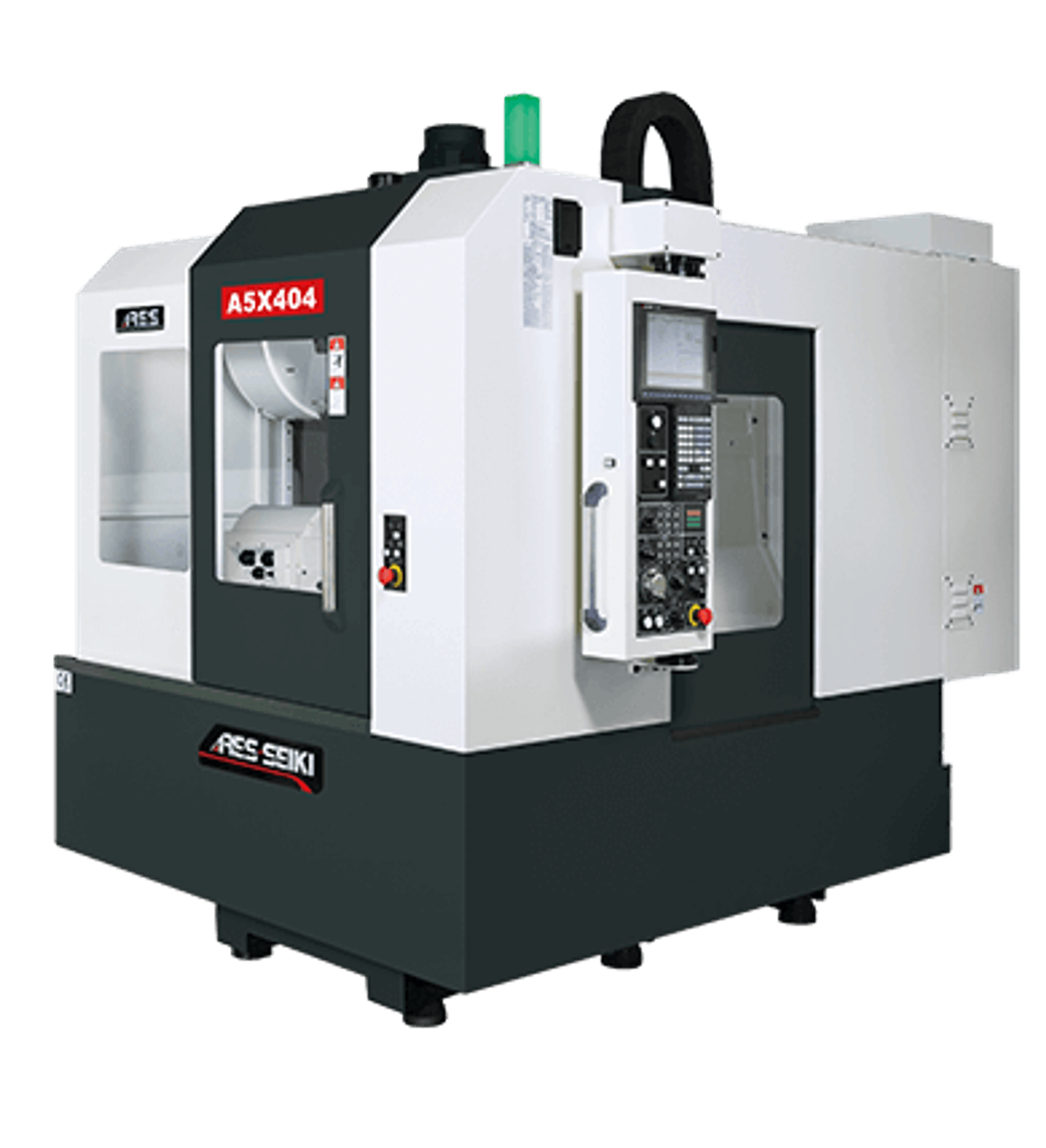

Ares Seiki A-5X404
5-Axis Machining Center
Direct Drive 12,000 rpm Spindle
CNC 3 + 2 Vertical Machining Center

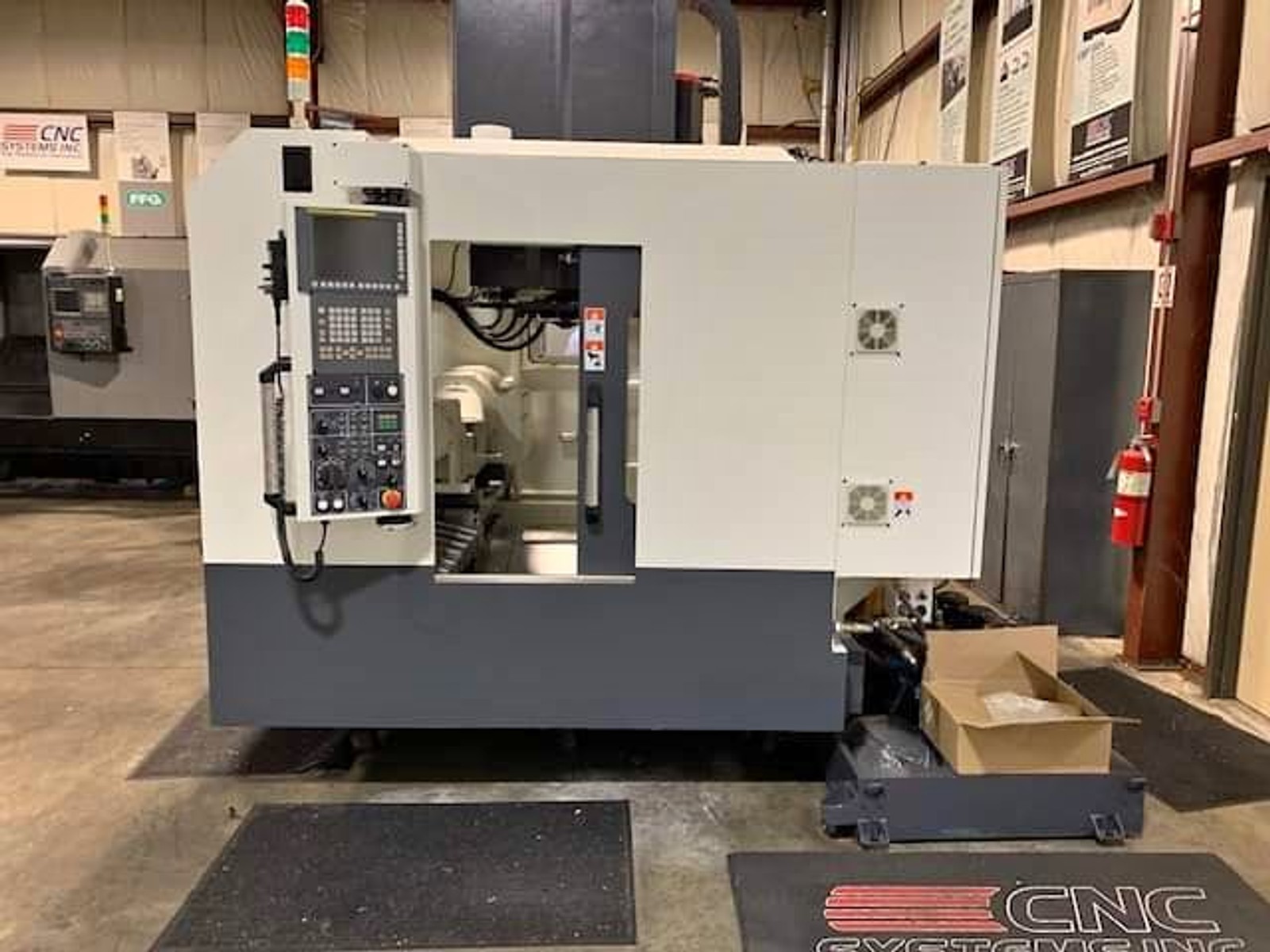

· Fanuc 0-IMF Control with 10.4" monitor
· Data Server
. Ethernet Function
· Axis Travel of 15.75" (X Axis), 19.7" (Y Axis), 17.7" (Z Axis)

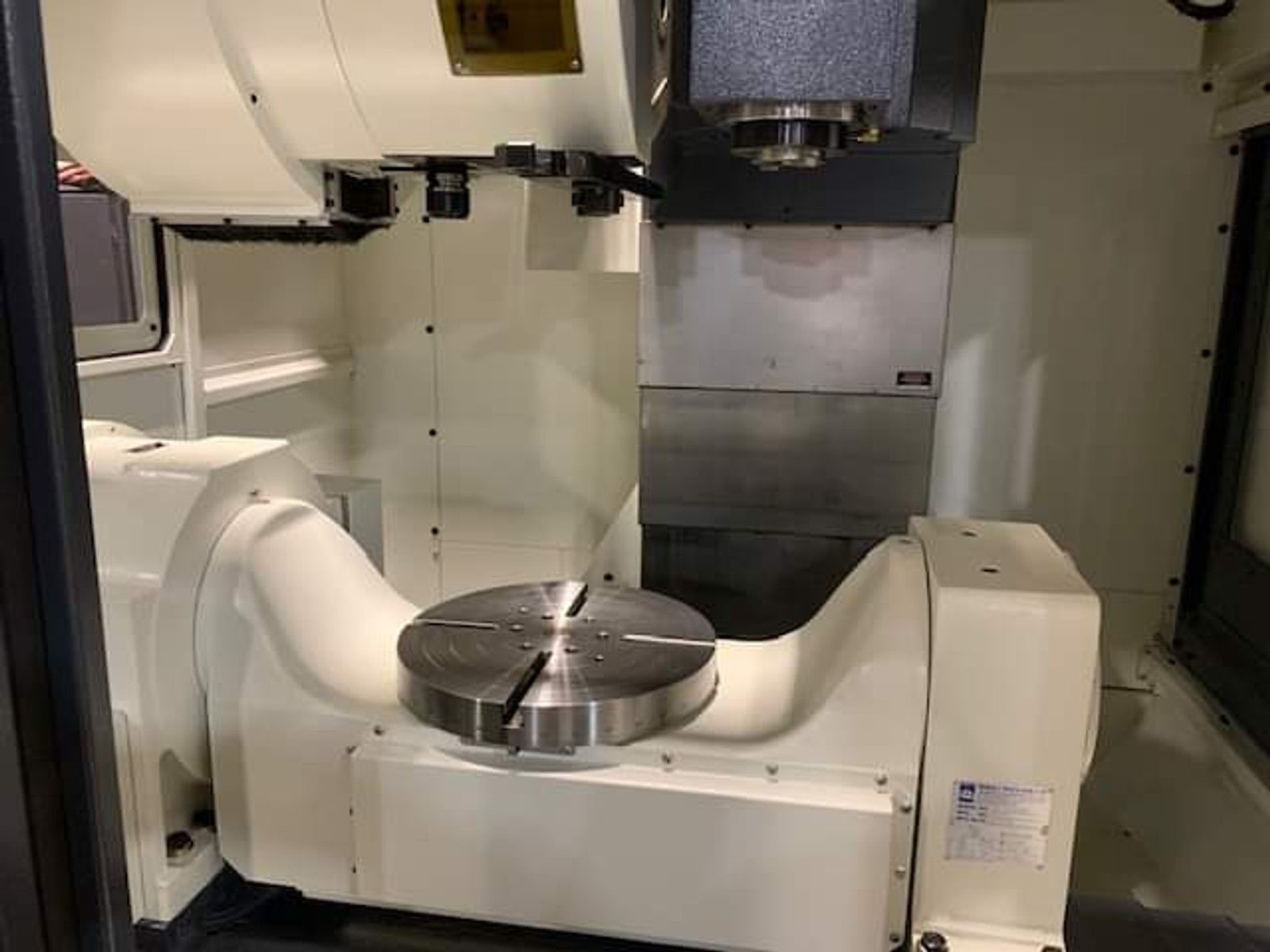

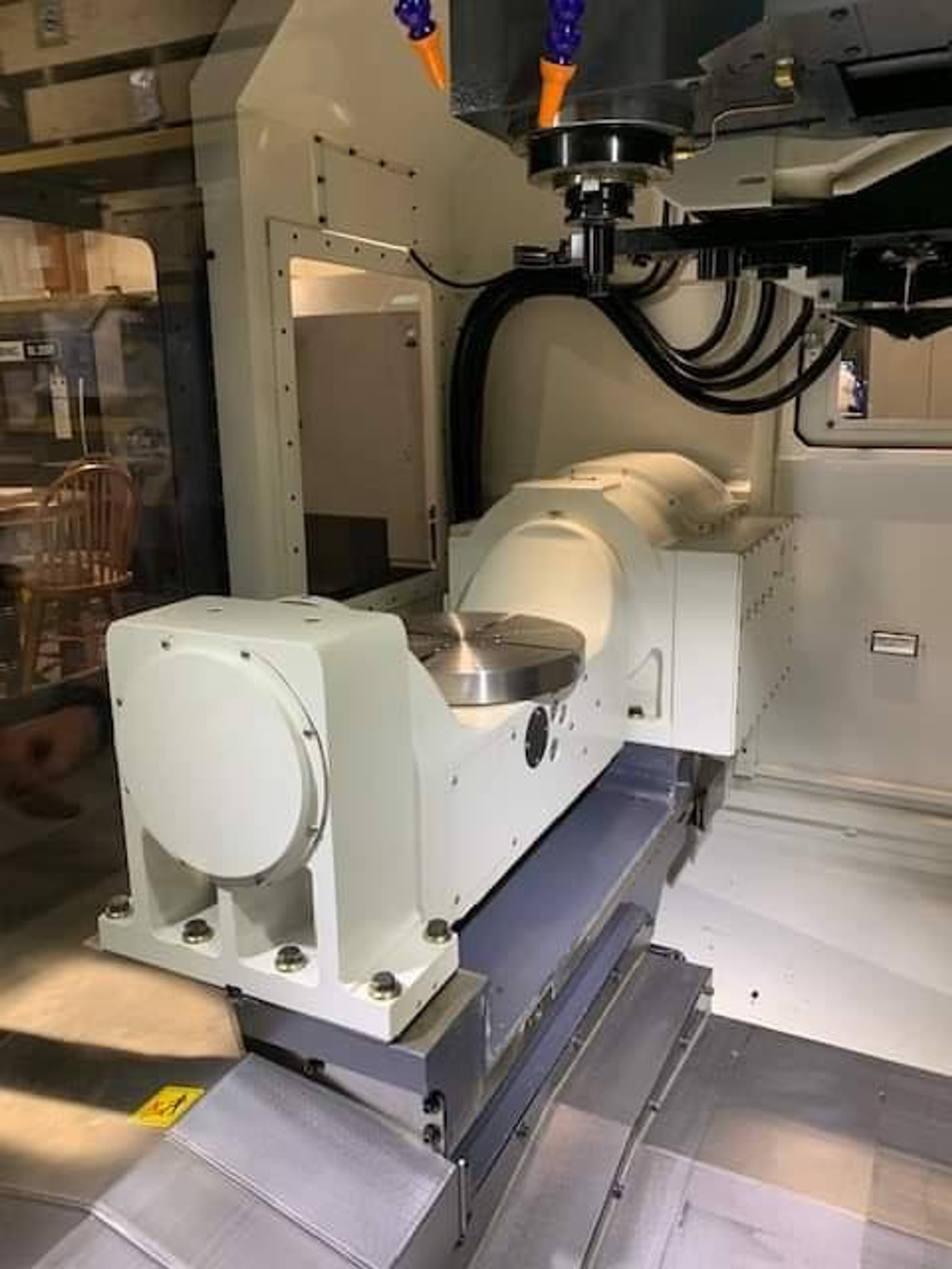

. 12.6" (320mm) Rotary Table Size with 165 Lbs. Load Capacity
. 12,000 RPM BT-40 Taper Direct Drive Spindle
. Through Spindle Coolant TSC Canister Type (300PSI)
. Oil Spindle Chiller
. Full Top Cover
· Simple Oil Mist Collector System
· 24 Position, Bi-Directional Tool Changer (Double Arm Type)
. Heavy Duty 35 mm Roller Ways
. Easy ATC Recovery System
· Rigid Tapping up to 4,000 RPM

Thread Milling
. High Speed Reverse Tapping
. 260 Liter Coolant Tank and Coolant Wash Nozzle
. Coolant & Chip Splash Guard
. Tilted Work Plane
.
Helical and Linear Interpolation
· 1 Millisecond Servo Response Time
· Program Check
. High Speed High Accuracy Positioning
· 4 Axis Simultaneous ATC / Table Positioning
. 1900 IPM Rapid Rate - X, Y, Z Axis
· Feed Rates to 393 IPM X, Y, Z
· Ultra Precise 16,000,000 Pulses/Rev encoders
. 1.5 G Acceleration

ARES A5X404 Series 5-axis machining enables to machining 5 machining surface or intricate shapes with ease,reducing the need for manual adjustments and contributes to an overall improvement in the accuracy of the manufactured part.

A5X404 5 axis vertical machining center allows the cutting tools to not only approach the workpiece more closely but also be positioned at a 90° angle to the surface of the part. This enables optimal cutting conditions at all times. Furthermore, allows for the use of shorter cutting tools, resulting in reduced vibrations and an enhanced surface finish.

The utilization of A5X404 5 axis vertical machining centers yields several cost-saving benefits

Improved tools life reduces the frequency of tools replacements.
Enhanced accuracy minimizes the risk of costly mistakes or material wastage.
Reduce the floor space requirements, increase flexibility and spindle usage.
Decrease the need for expensive fixtures, and lower the overall inventory investment.

ARES A5X404 5 axis VMC machine centers are frequently used in sectors like aerospace, automotive, medical device manufacturing and hydraulic systems that call for intricate and exact machining. A maker can produce intricate parts and components with high precision and accuracy using a 5 axis vertical machining center.
