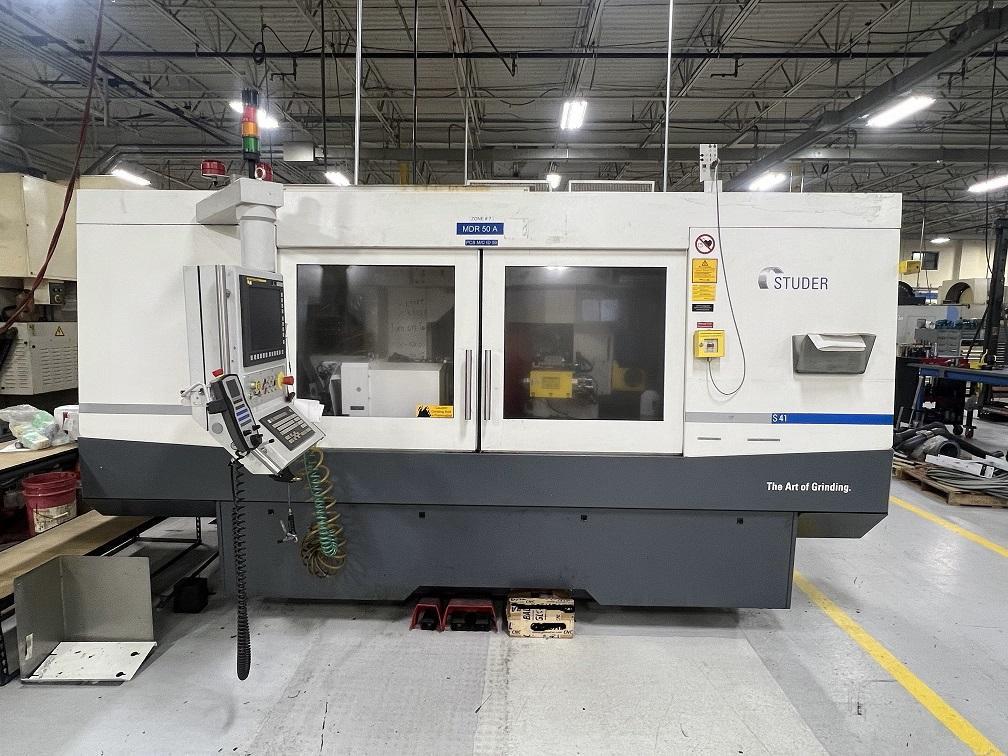

2015 Studer S41 CNC Cylindrical OD/ID Grinder For Sale

Manufacturer

STUDER

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, UNIVERSAL

Stock

K91225

Model

S41

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

CNC Control - yes
Type of CNC Control - Fanuc 31i-Model A
Center Height - 8.9 inches
Center Distance - 39.4 inches
Max Weight Between Centers - 550 pounds
X Axis Travel - 13.8 inches
Z Axis Travel - 45.3 inches
Workhead Speed - 1,500 rpm
Workhead Power - 13.6 horsepower
C Axis - yes
C Axis Index - 0.0001°
B-axis Indexing - -45° to +225°
Grinding Wheel Dimensions - 20" x 3.54" x 8"
Wheel Speed (RPM) - 4,500 rpm
Wheel Head Motor - 20 hp
ID Spindle Speed - (2x) 42,000 rpm
Dimensions - 154" x _ x 99"
Weight - 20000 pounds

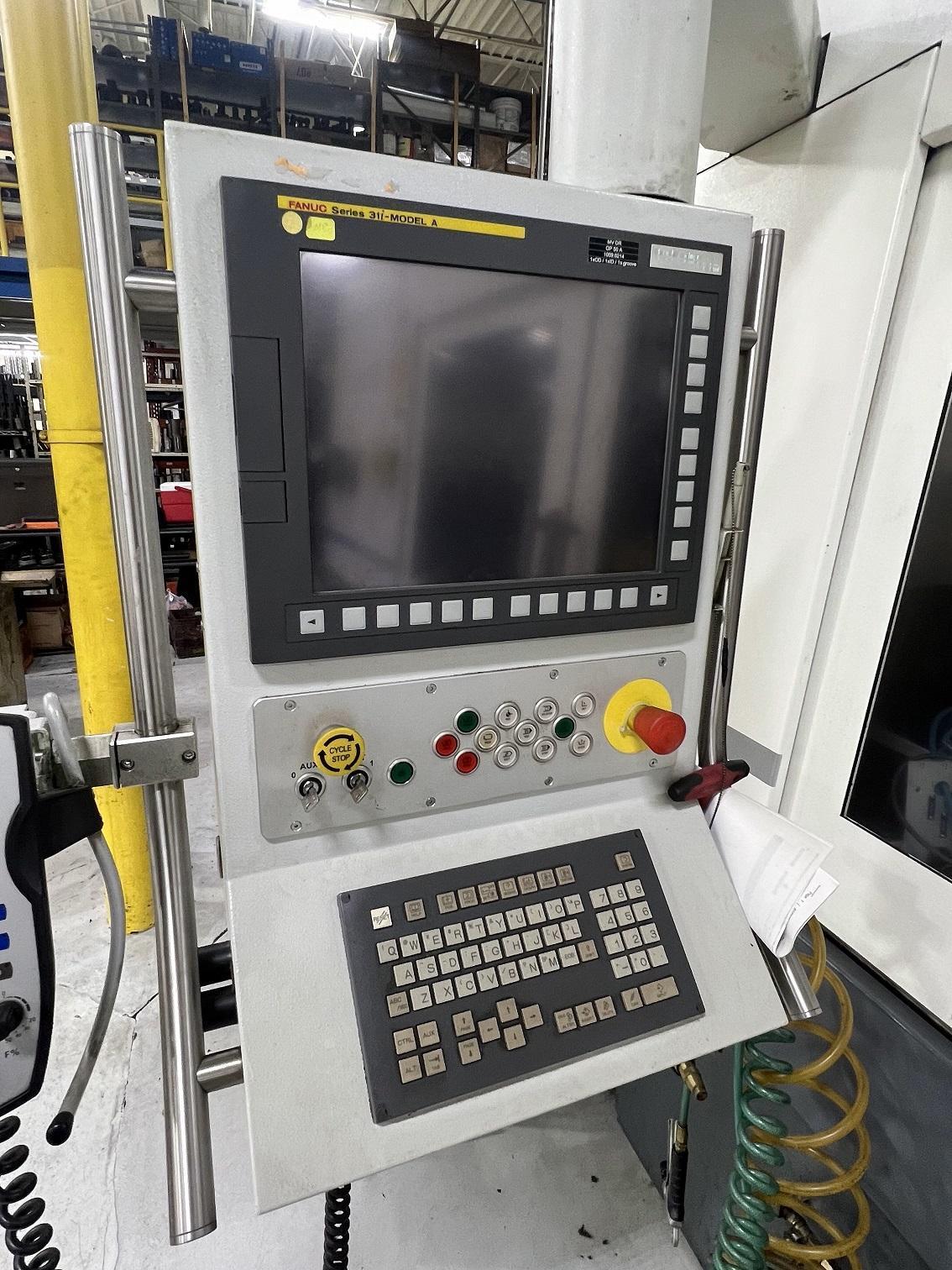

- Fanuc 31i-Model A Control

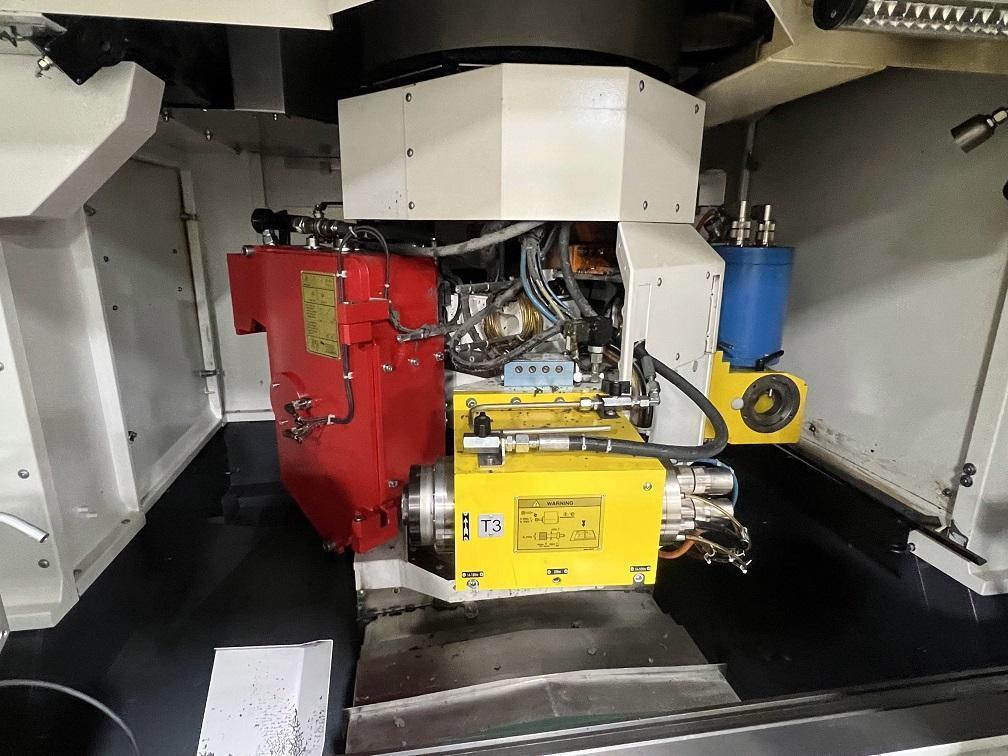

- (1) Fischer ID Spindle - 42,000 rpm T3

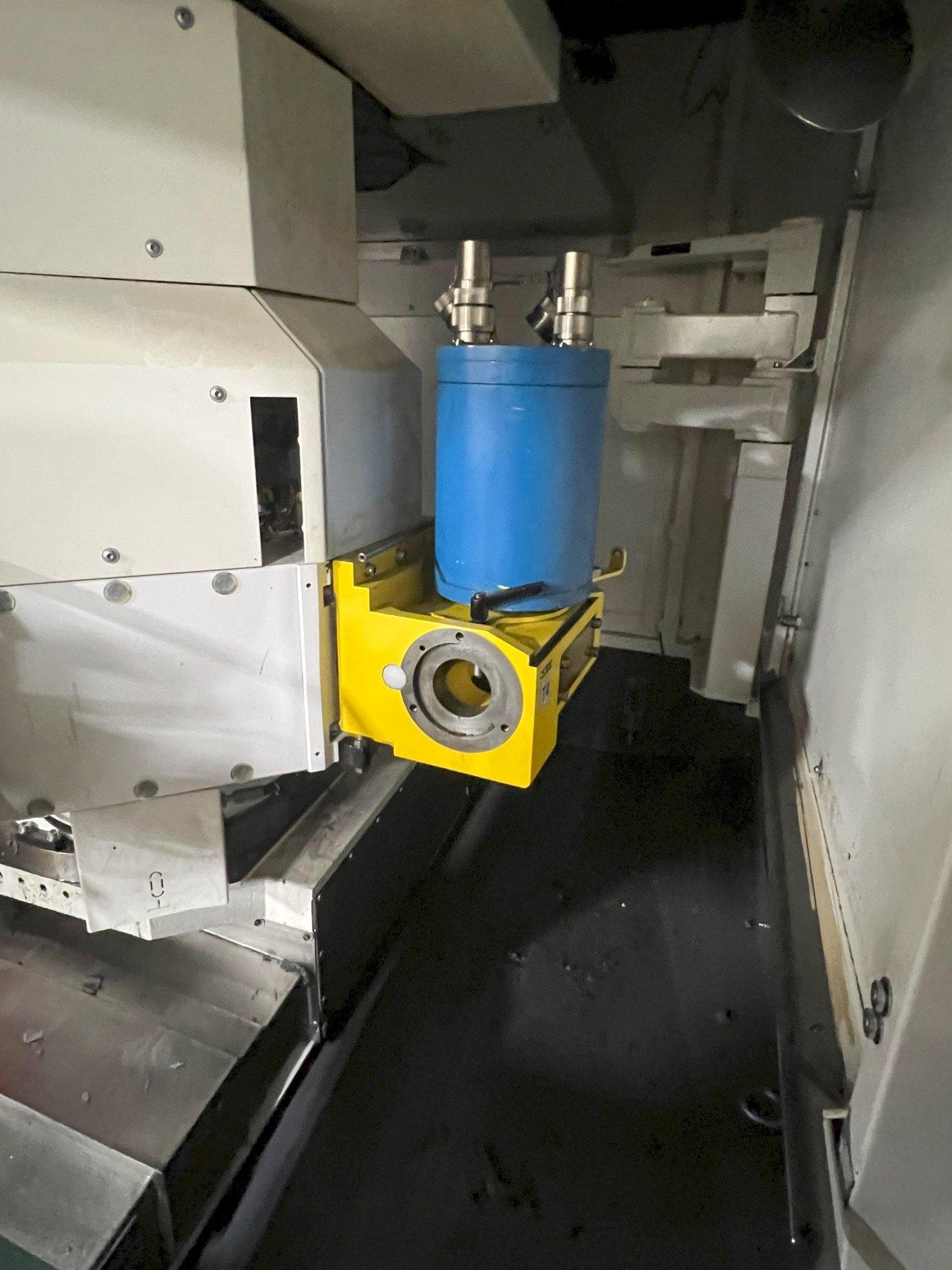

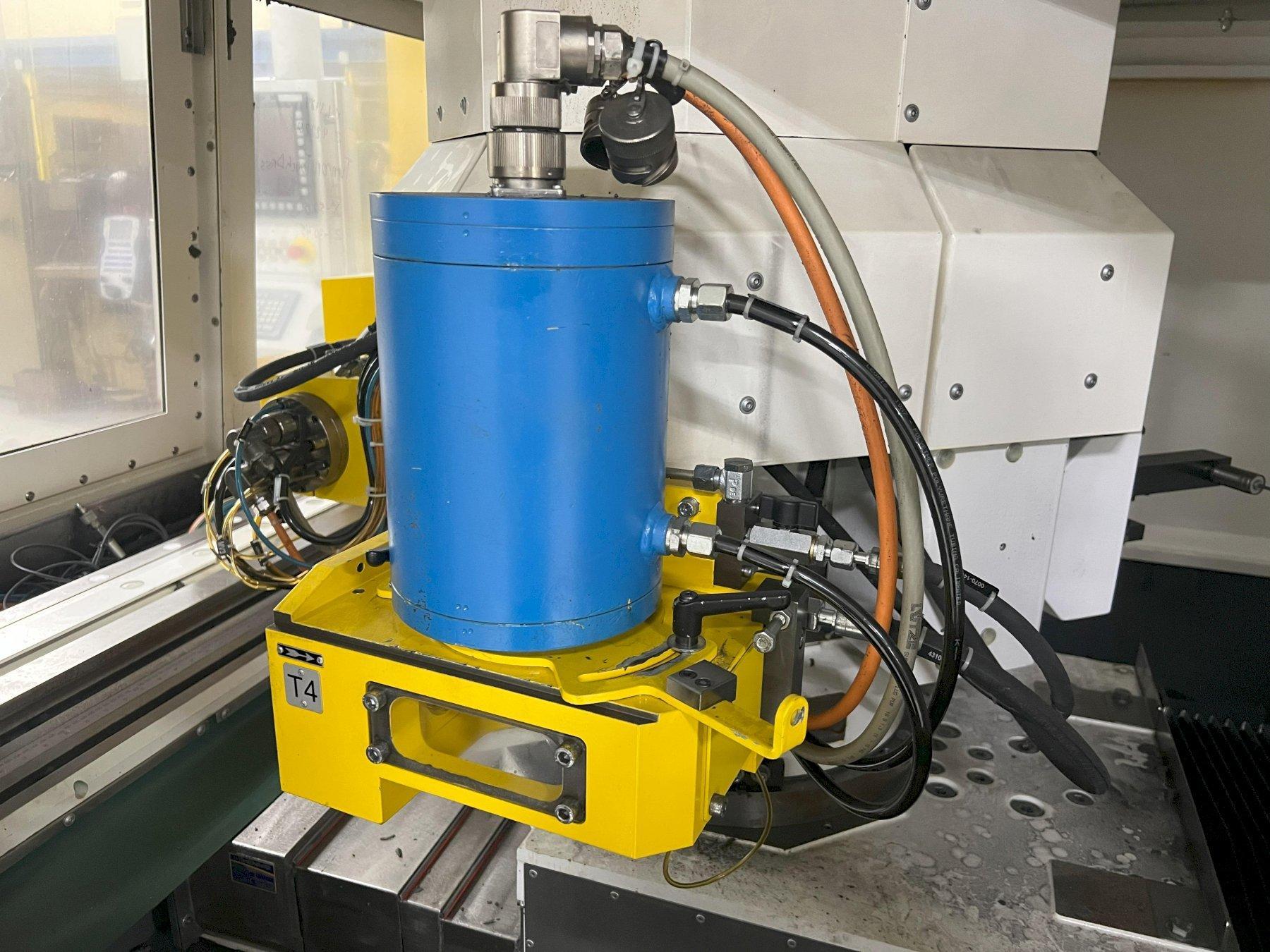

- (1) Grooving Spindle T4
- (1) OD Grinding Wheel 15748 sfpm T2

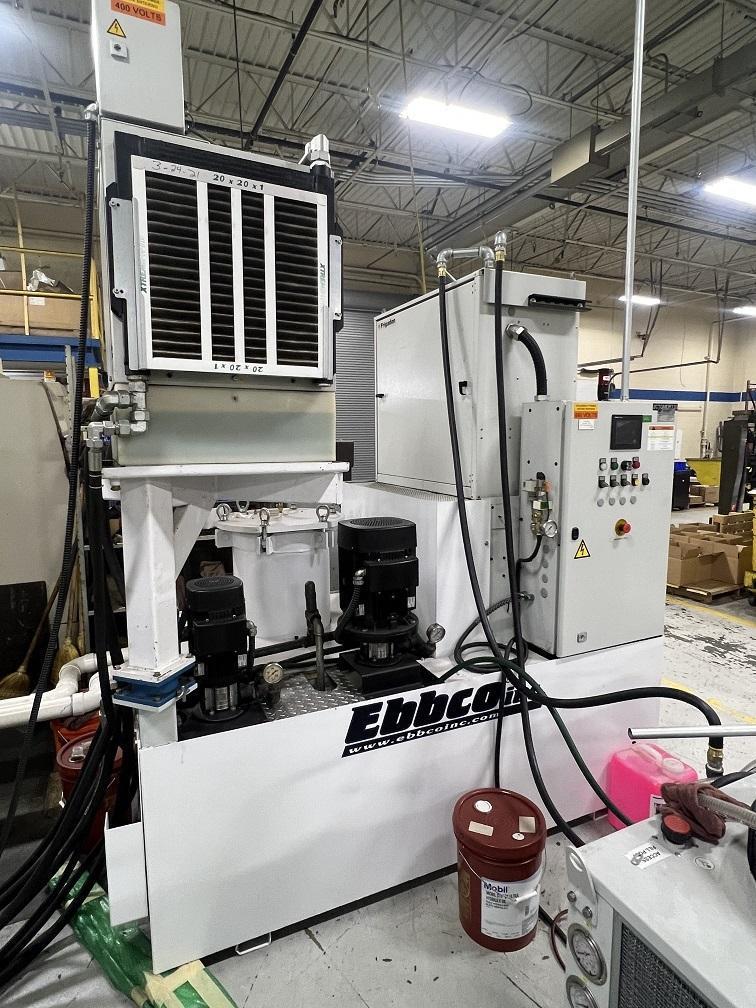

- Transor Filtration System
- Marposs Gauging
- Dittell Balancing M6000
- Workhead w/C Axis
- B Axis Wheelhead
- No Tailstock
- Probing H1 Touch Probe
- Rotary Dresser
