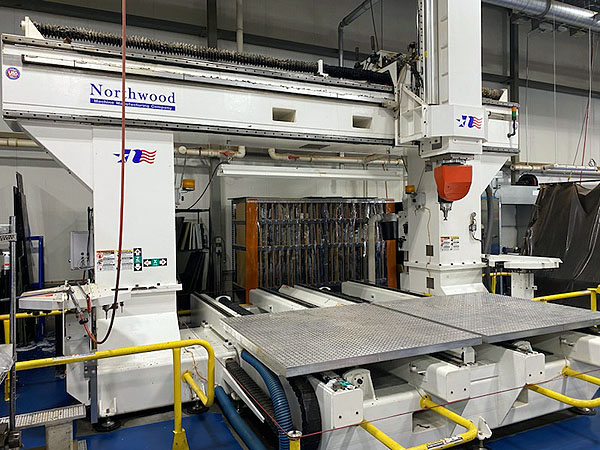

Northwood 5 Axis, 108"x192"x50" Z CNC Router, 2011 Very Low Hours- 3195

Manufacturer

Northwood

Stock

3191

Model

255 FAMT

Dealer Location

Connecticut

Spec Sheet

Very Low Hours 3900
Model 255-FAMT
Axes Travel
Y Axis (Left to right) bridge 192”
X Axis (Front to back) Worktable 108”
Z Axis (up and down) 50”
C Axis +517°/-115°
A Axis +/- 115°

Axis Traverse/Feed Rates

X Axis Rapid Traverse Rate 2,150 IPM
Y Axis Rapid Traverse Rate 2,150 IPM
Z Axis Rapid Traverse Rate 500 IPM
X Axis Maximum Machining Feed Rates 2,150 IPM
Y Axis Maximum Machining Feed Rates 2,150 IPM
Z Axis Rapid Maximum Machining Feed Rates 500 IPM
C Axis continuous positioning speed 30 dps
A Axis continuous positioning speed 30 dps

X, Y and Z Heidenhian Optical Scales


Equipped with:

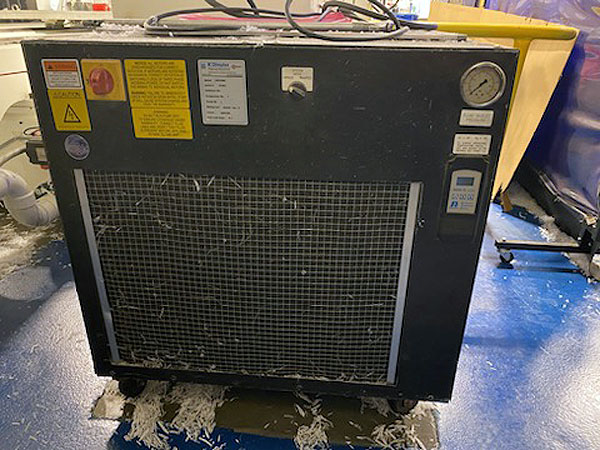

Coolant Kooler Chiller
20,000 RPM

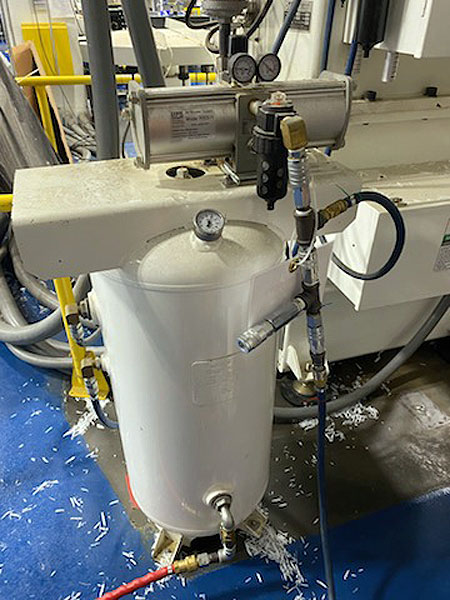

Booster System to 300 psi,

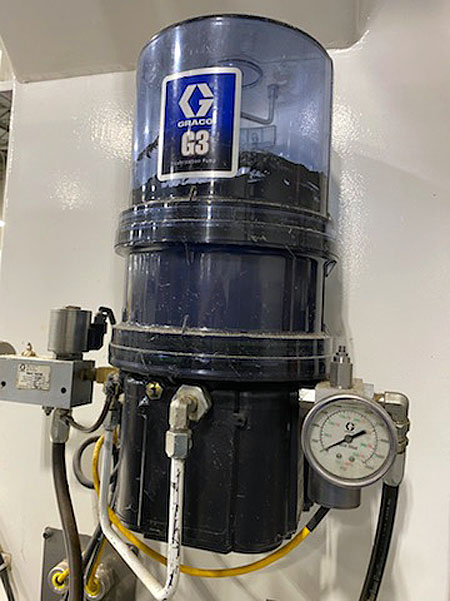

Graco Auto Grease System

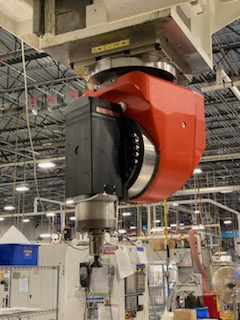

HSK-63F Spindle

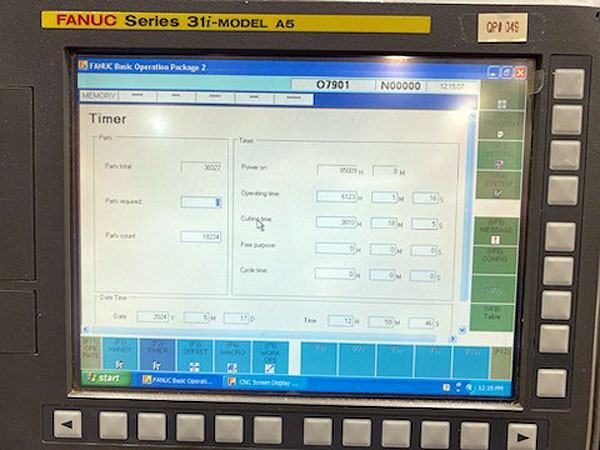

Fanuc F31i – model A5 Control
22 HP Liquid cooled Spindle
TCP for tool Center Point
Heidenhien Scales on X, Y, C, Z Axis
With fully enclosed purged housing
20 HSK F Tool Holders – Collet Type
