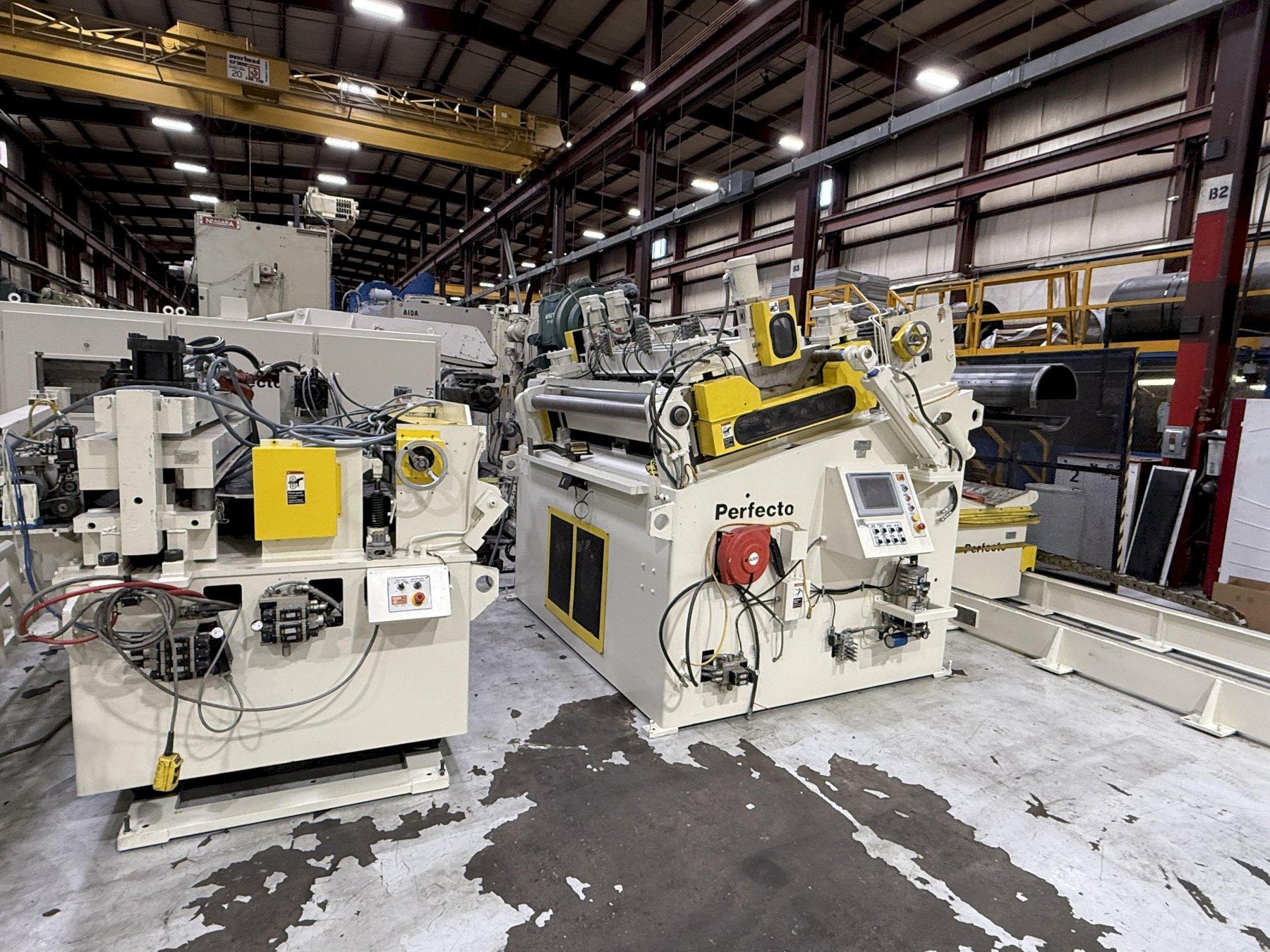

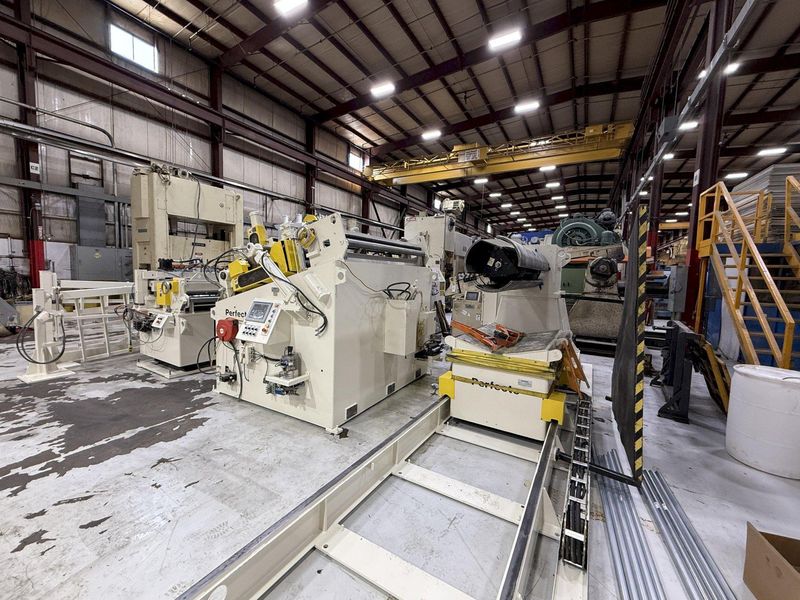

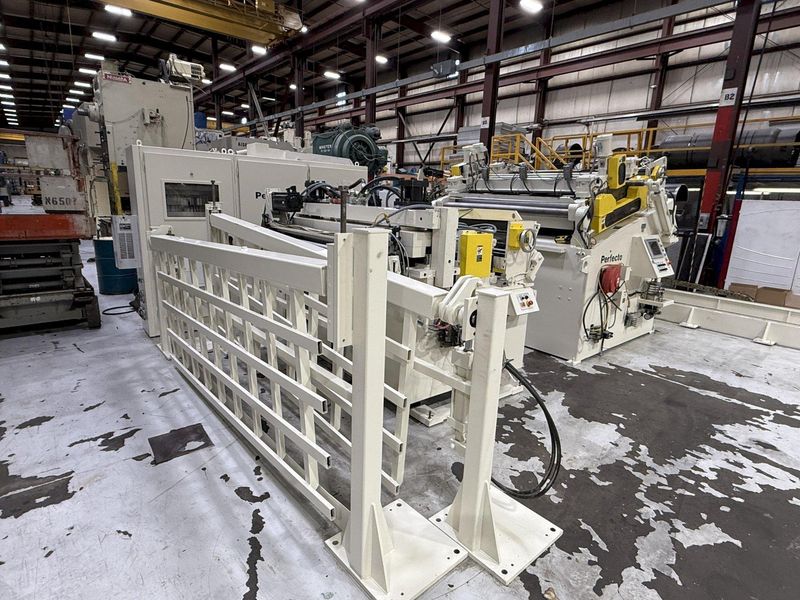

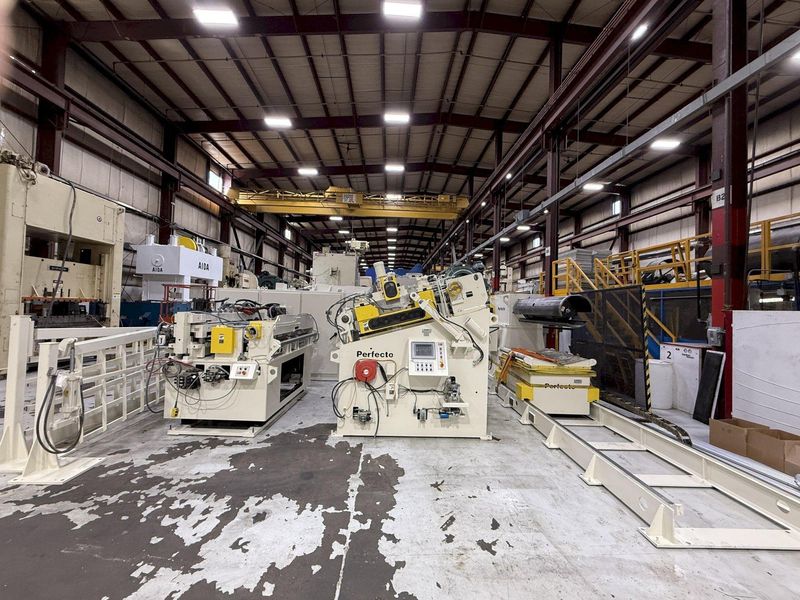

60,000 lbs. x 72" wide Perfecto Complete Coil Feed Line

Manufacturer

PERFECTO

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2912

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 60000 pounds
Coil Width - 72 inches
Coil Thickness - .125 inches


Preliminary Specifications

Perfecto Conventional Coil Feed Line

60,000 lbs. Maximum Coil Capacity
72" Maximum Stock Width Capacity
.125" Maximum Stock Thickness At Full Width:
20"-24" ID Range
72" Maximum Coil O.D. capacity
1080 IPM Coil Line Speed
Right to Left Feed Direction

Stock thickness capacity: .125" x 72" Wide
Stock thickness capacity: .375" x 9" Wide

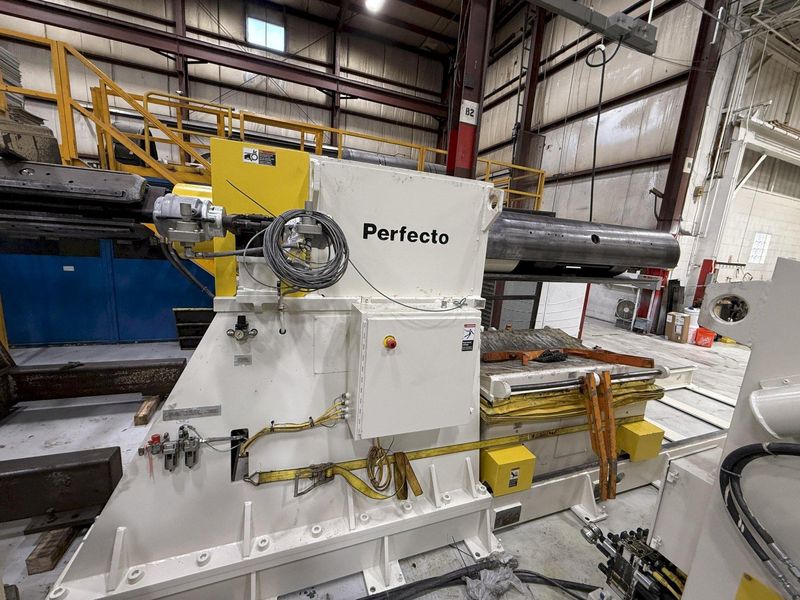

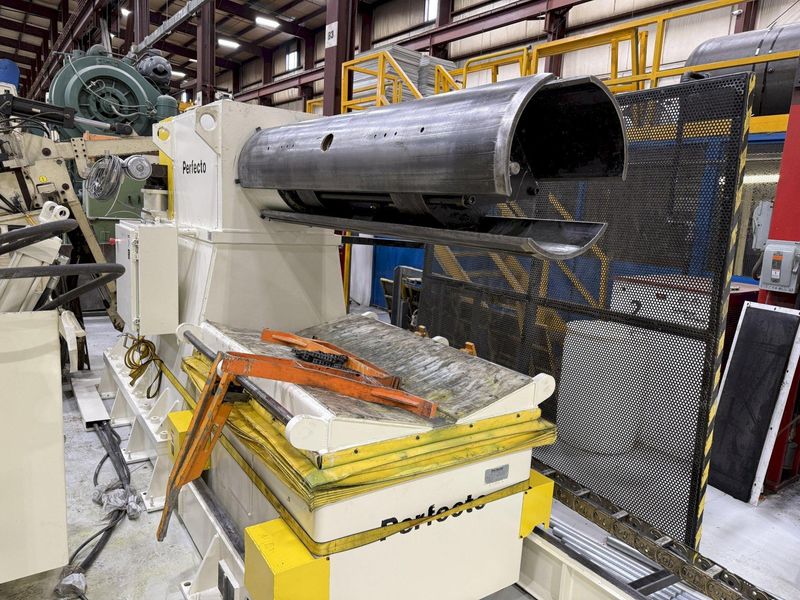

Perfecto Coil Reel Model No. RS607272B
Serial Number - 210079
Three leaf mandrel
Hydraulic mandrel expansion
Air brake (adjustable tensioning)
Jog drive for threading
Travelling Coil Load Car
Hydraulic Lift for Coils
Spindle Jog Forward/Reverse

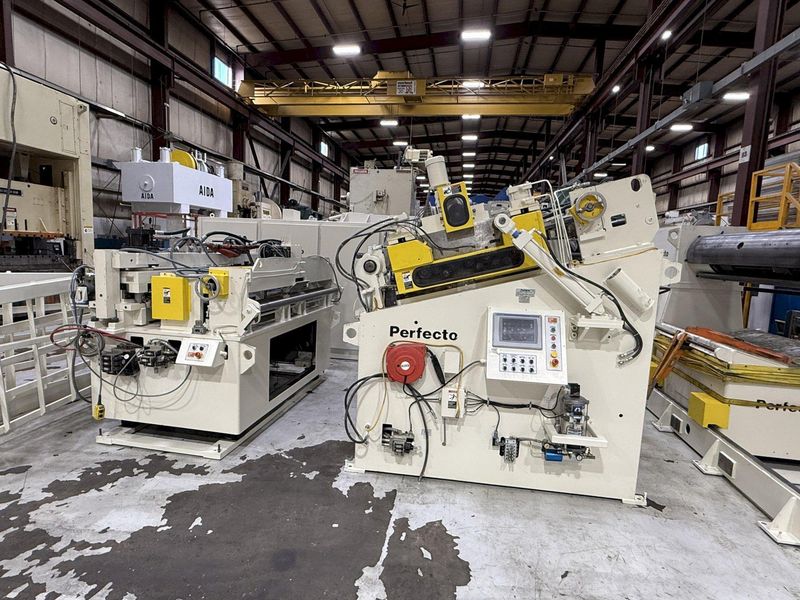

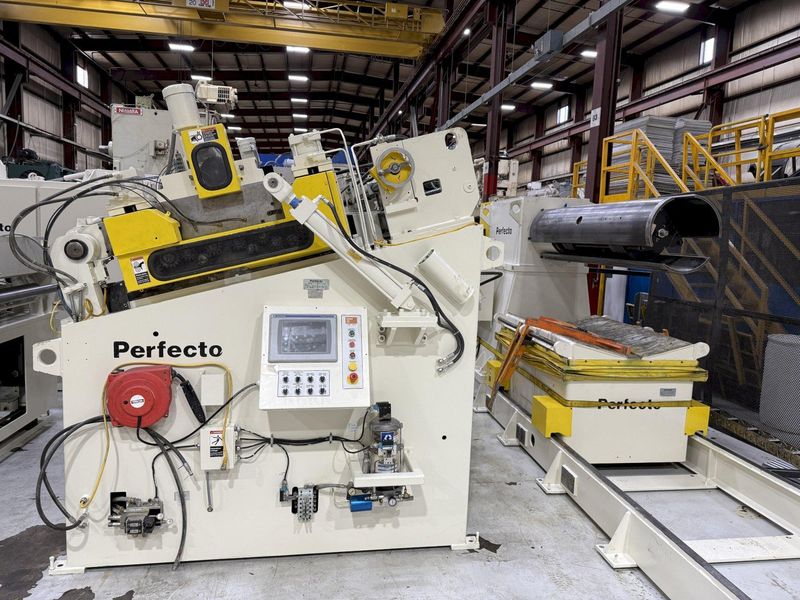

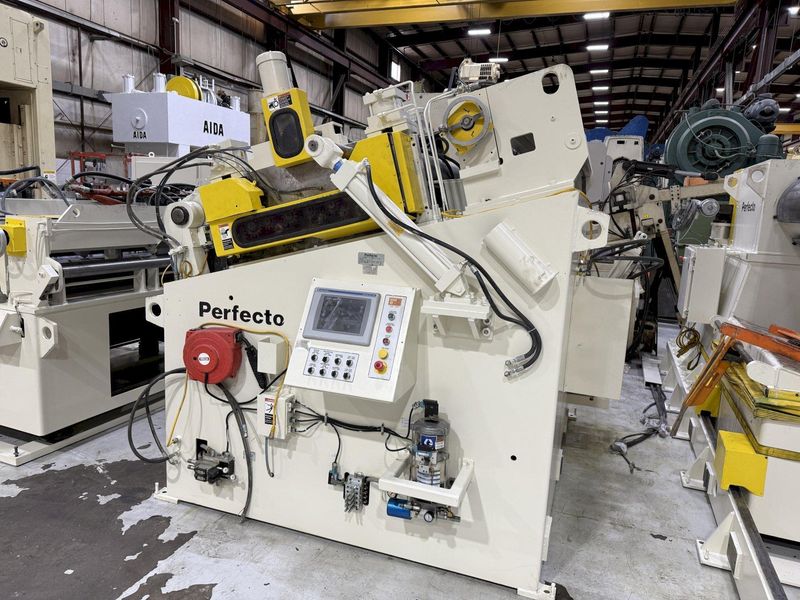

Perfecto Powered Coil Straightener Model No. S387207
Serial Number - 210080
Seven straightening rolls x 3.8" diameter
Individual Upper roll adjustment
Full Back Up Roll Support
Pinch rolls with air operated adjustments
Hold Down Arm (Hydraulically Actuated)
Motorized End Wheel
Exit and Entry Pinch Rolls
Exit cascade rollers
Adjustable stock width edge guides
Exit cascade loop support rollers
Variable speed drive
Auto / run loop control
Stock peeler table -
Hand crank adjustable stock width edge guides
Automatic lubrication system
Operator's control station

Perfecto Dual Sided Thread Table
Bomb Bay Style
Hydraulic Actuated

Perfecto Servo Roll Feed
Serial Number - To be confirmed
Upper and lower feed rolls
Piloting upper feed roll
Press mounted
Stock width edge guides
AC Servo controls

72" Perfecto Chop Shear

60,000 lbs. x 72" Perfecto Conventional Coil Feed Lines are robust and reliable systems designed to efficiently feed metal coils into stamping presses. They are built to handle heavy-duty applications and are often customized to meet specific production requirements. Perfecto's commitment to quality and innovation ensures optimal performance and productivity for various metalworking operations.

Can be seen under power in the S&G Press Warehouse.

Perfecto 72" Conventional Coil Feed Line For Sale
