40,000 lbs. x 36" Feed Lease High Strength Steel Coil Feed Line, Year 2015

Manufacturer

FEED LEASE

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2915

Model

R-40M-36 / FLPS-4.25-7-36 / RF-6-36

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 40000 pounds
Coil Width - 36 inches
Coil Thickness - .187 inches


High Strength Steel Coil Feed Line
40,000 lbs. Capacity Feed Lease Conventional Coil Feed Line Specifications:

Coil weight capacity: 40,000 Lbs.
Coil width capacity: 36"
High Strength Steel Material Capacities @ 60,000 KSI Yield
Stock thickness capacity: .187" x 36" Wide High Strength Steel
Maximum Coil Thickness: .236" x 12" Wide High Strength Steel
Minimum Coil thickness: .030"
Expansion range: 19.5" - 24.5"
Coil O.D. Capacity: 72
Right to Left Feed Direction

Feed Lease Complete "High Strength Steel" Coil Feed Line Equipment and Features:

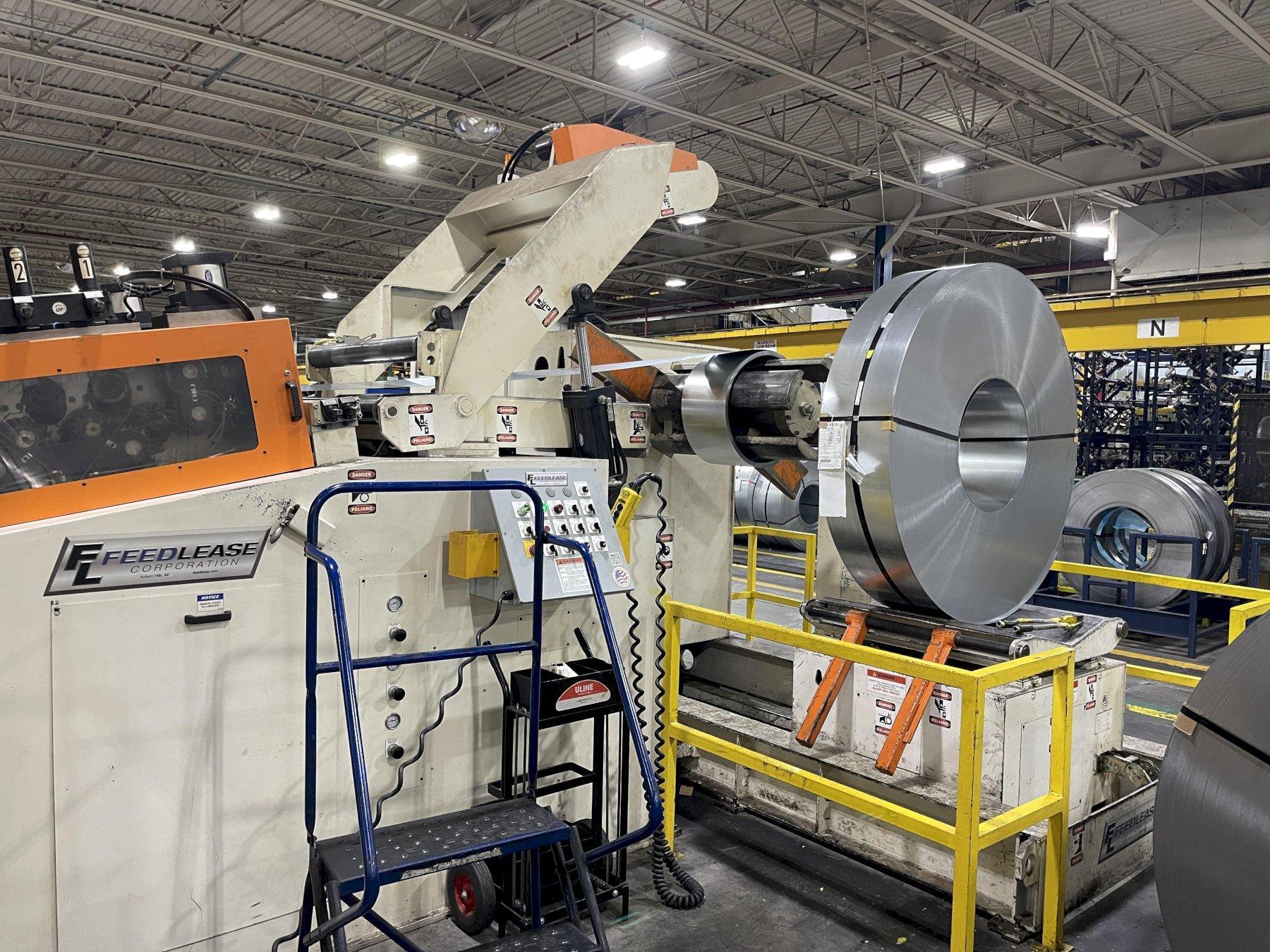

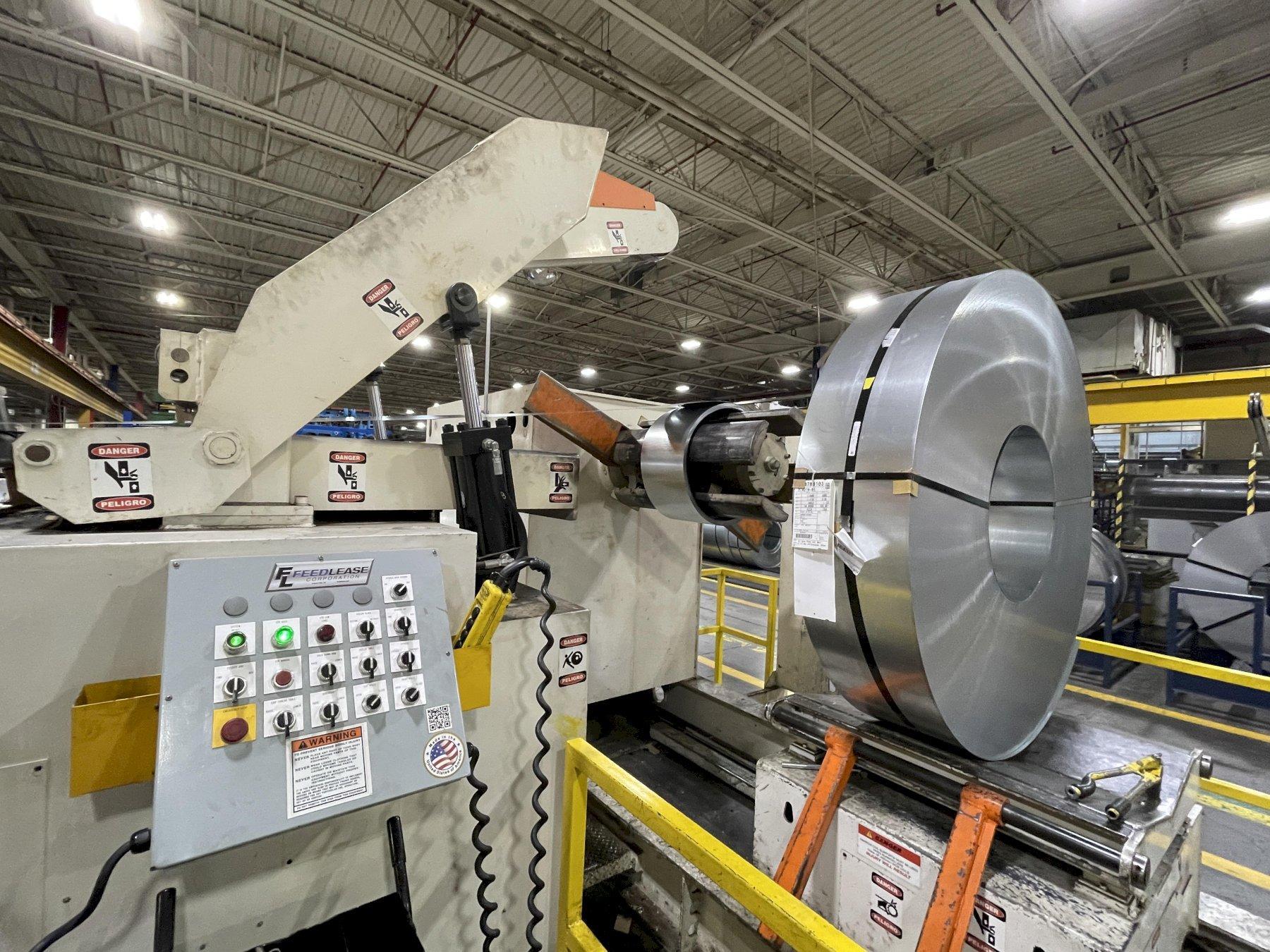

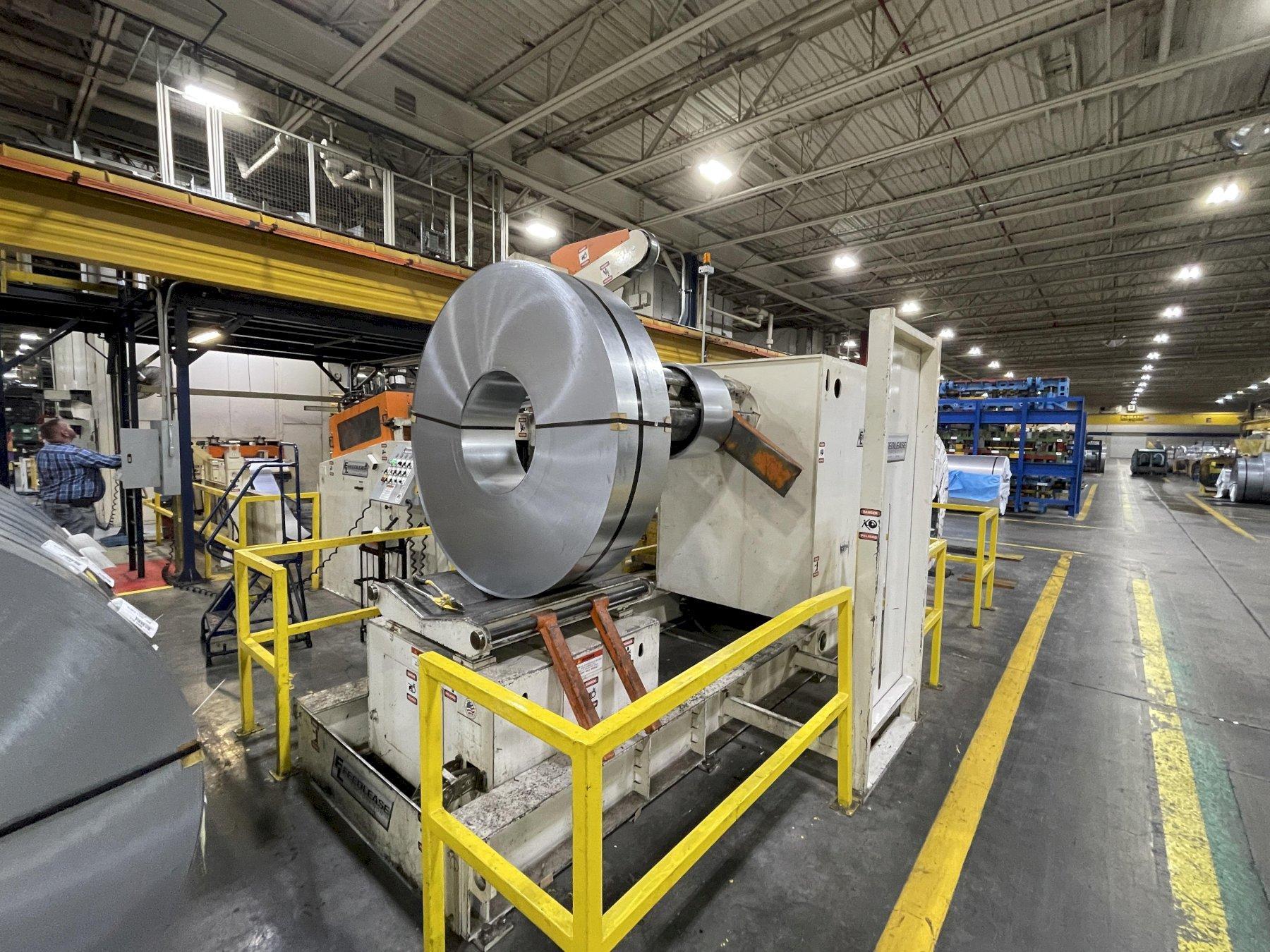

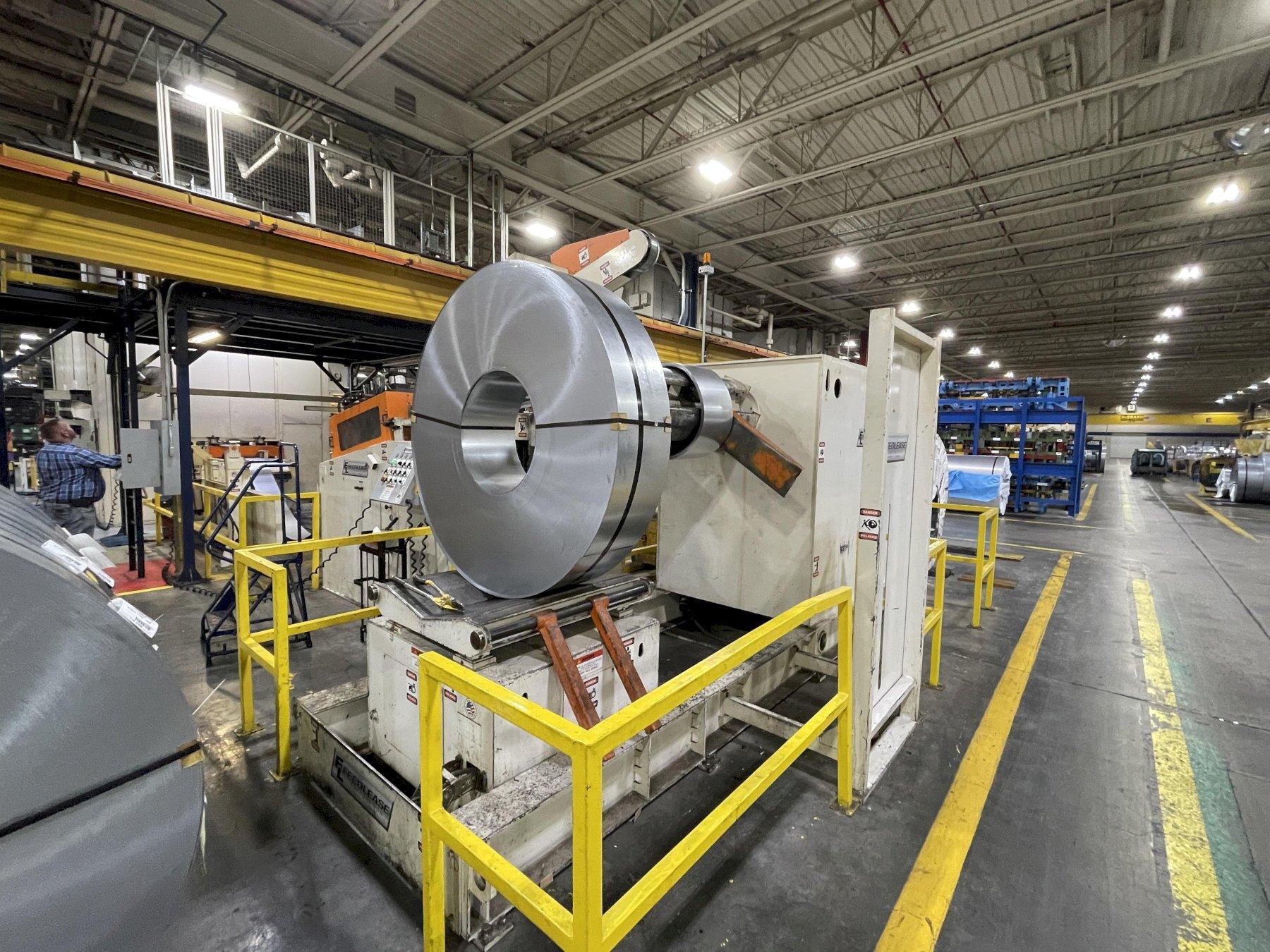

Feed Lease Pull Off Coil Reel with Load Car

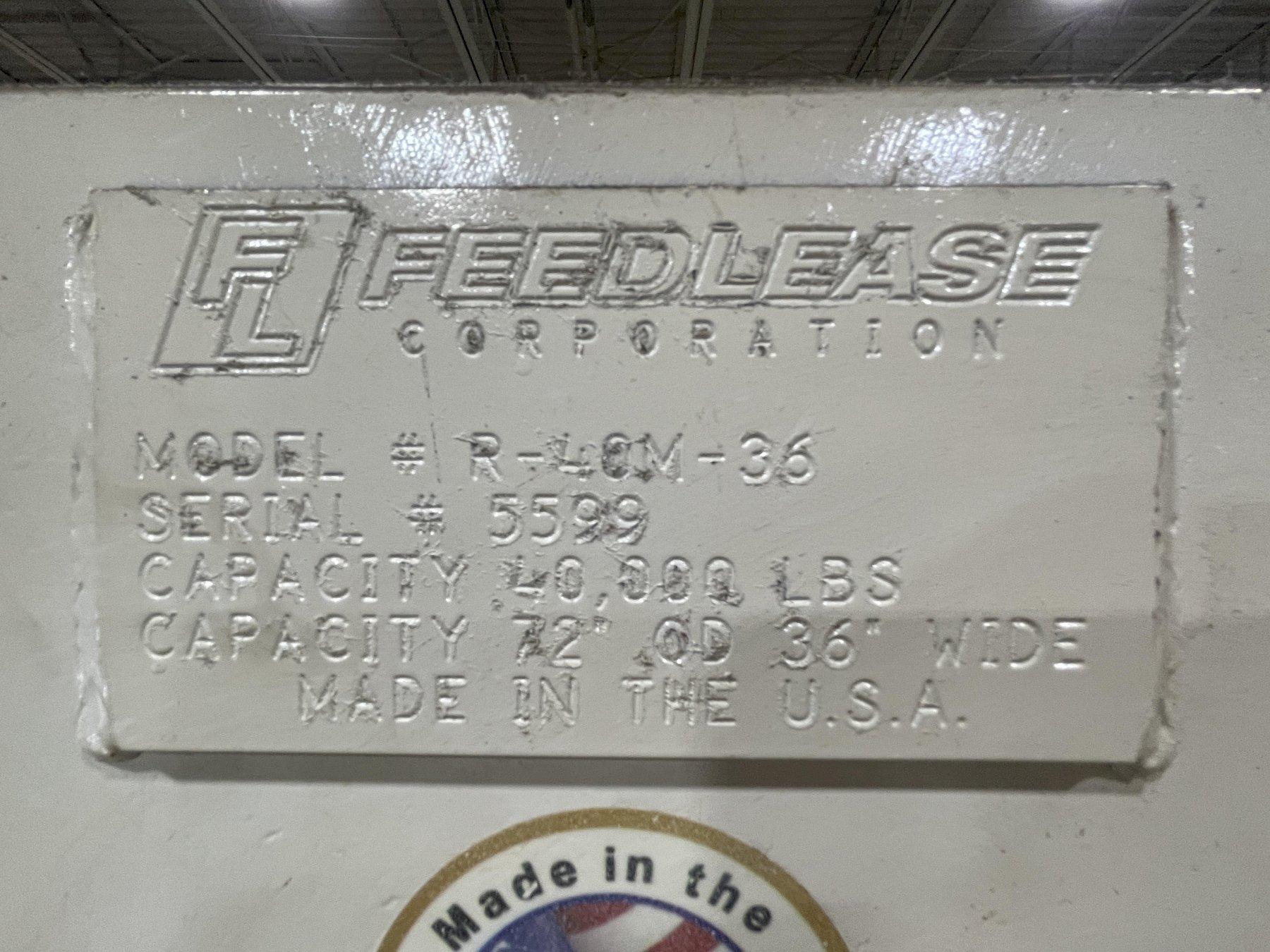

Model No.: R-40M-36, Serial No. 5599
Four leaf mandrel with (4) Adjustable coil keeper arms
Wedge Type Expansion
Hydraulic mandrel expansion
Failsafe Pneumatic drag brake mounted on main spindle
Adjustable tensioning
Narrow Coil Support Arms
Threading drive for jog forward and reverse
Coil Car with 18" Vertical Lift
Six Button Pendant Remote

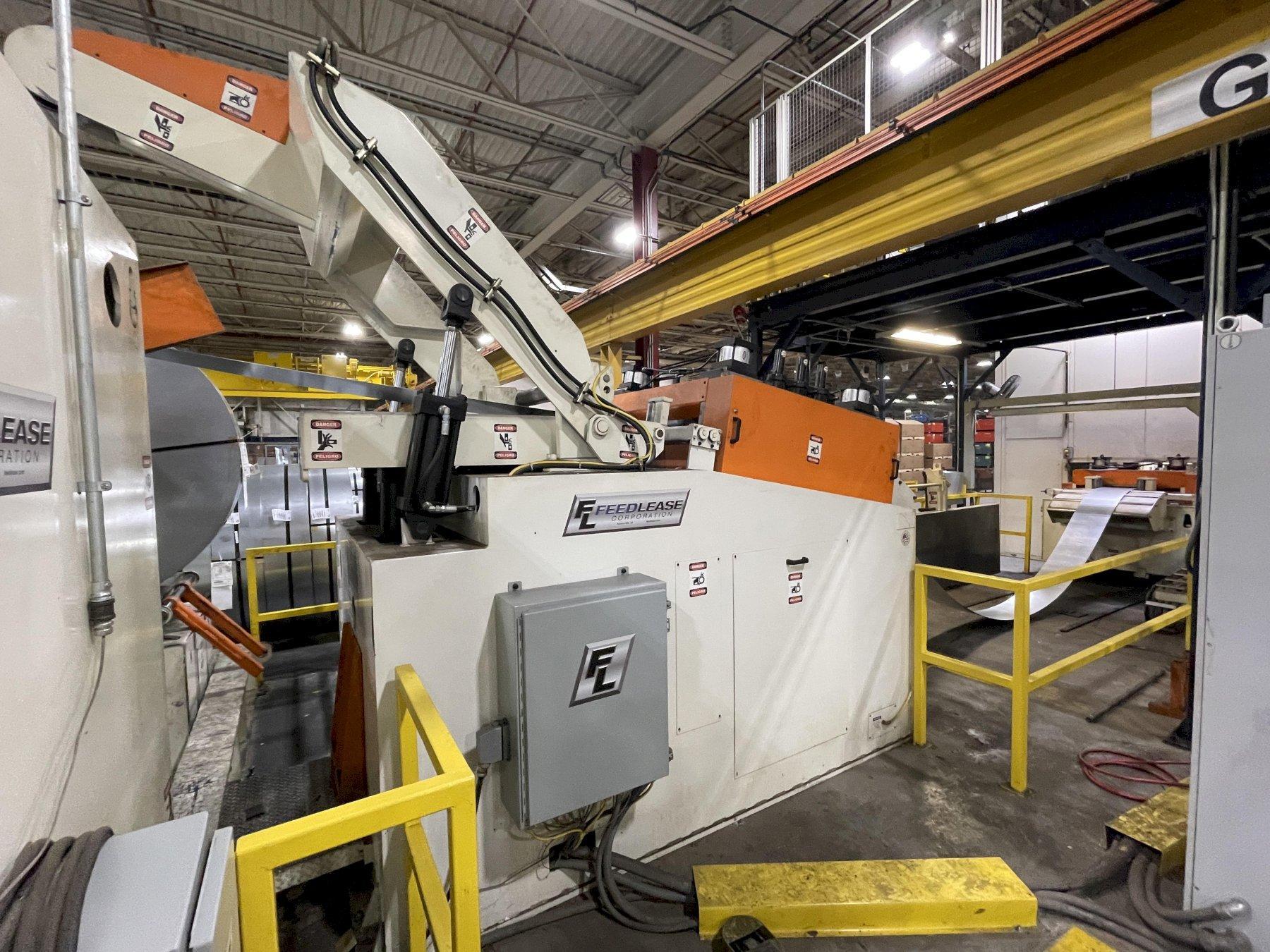

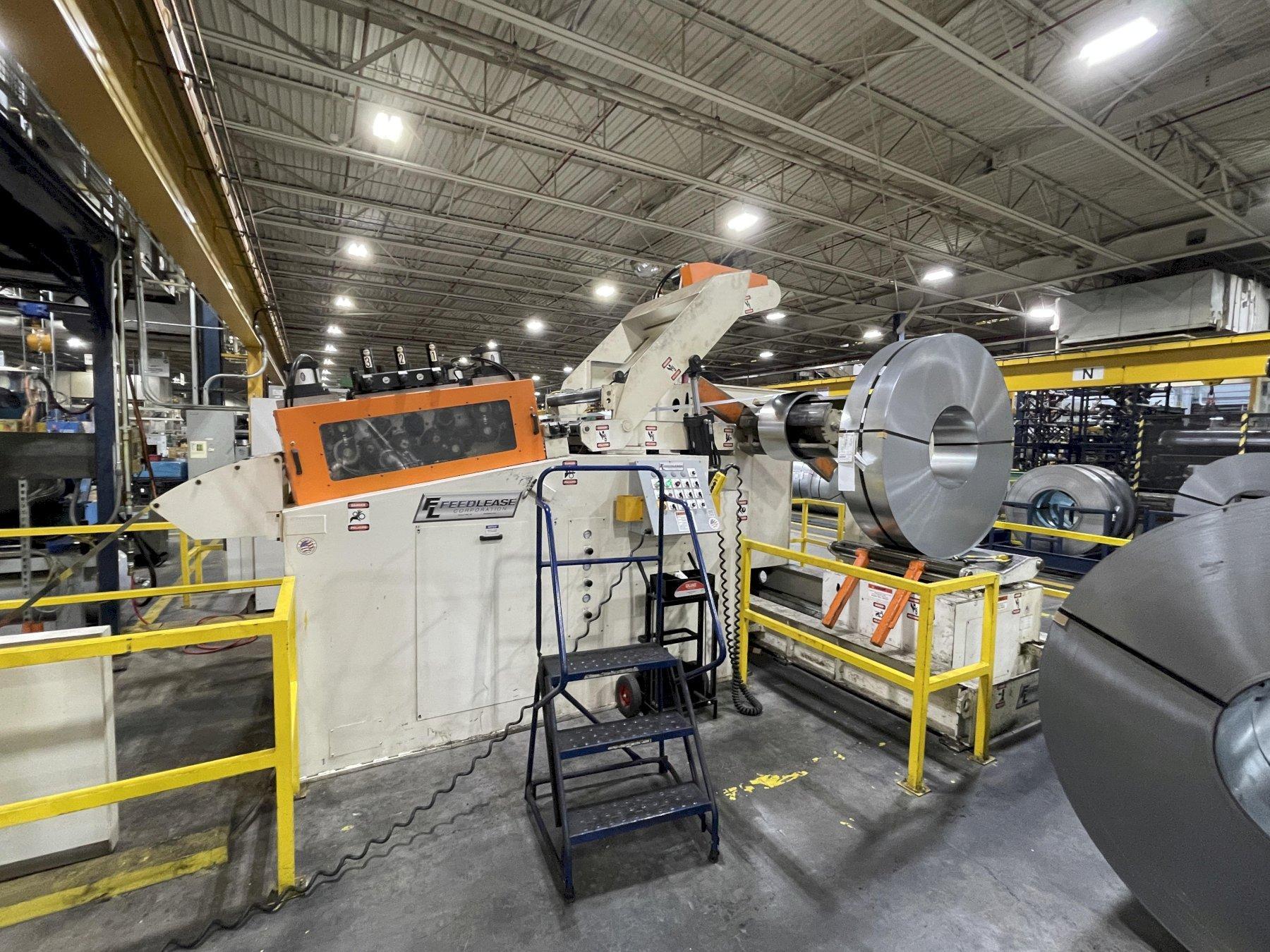

Feed Lease Powered Coil Straightener "High Strength Steel"

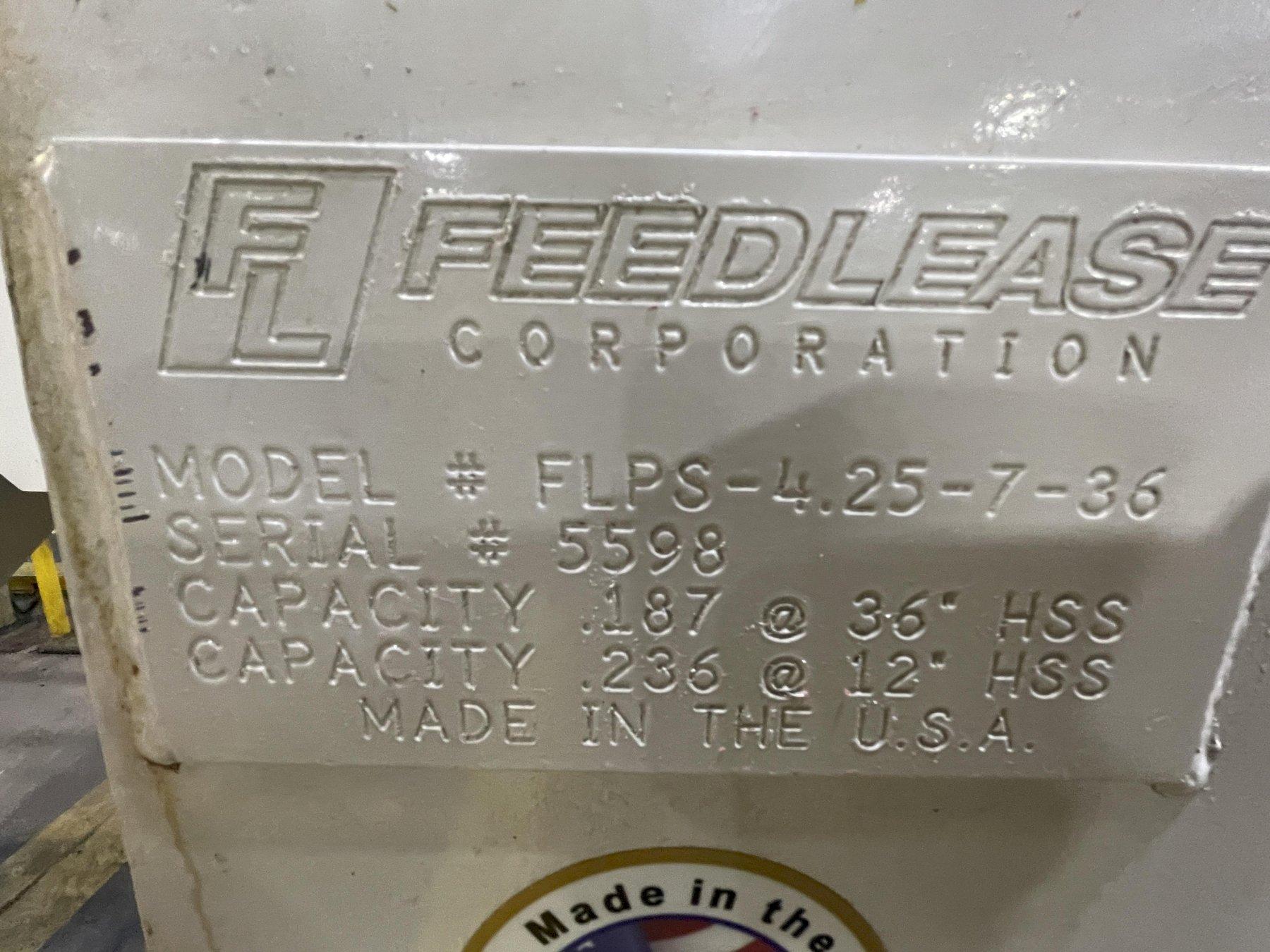

Model FLPS-4.25-7-36, Serial No. 5598
Entry and Exit roll assembly x 5.5" diameter
Air operated upper pinch roll adjustment
Seven powered straightener rolls x 4.25" diameter
Independently adjustable motorized upper straightening rolls
Cluster Gear driven upper pinch rolls
Roll depth display on main HMI
Adjustable stock width edge guides
Coil hold down arm with motorized end wheel
Stock peeler table with spade extension
Coil end-debender roll
Exit cascade loop support rollers
Automatic lubrication system
40 H.P. AC Variable speed drive
15-120 Feet per Minute Pay Out Rate

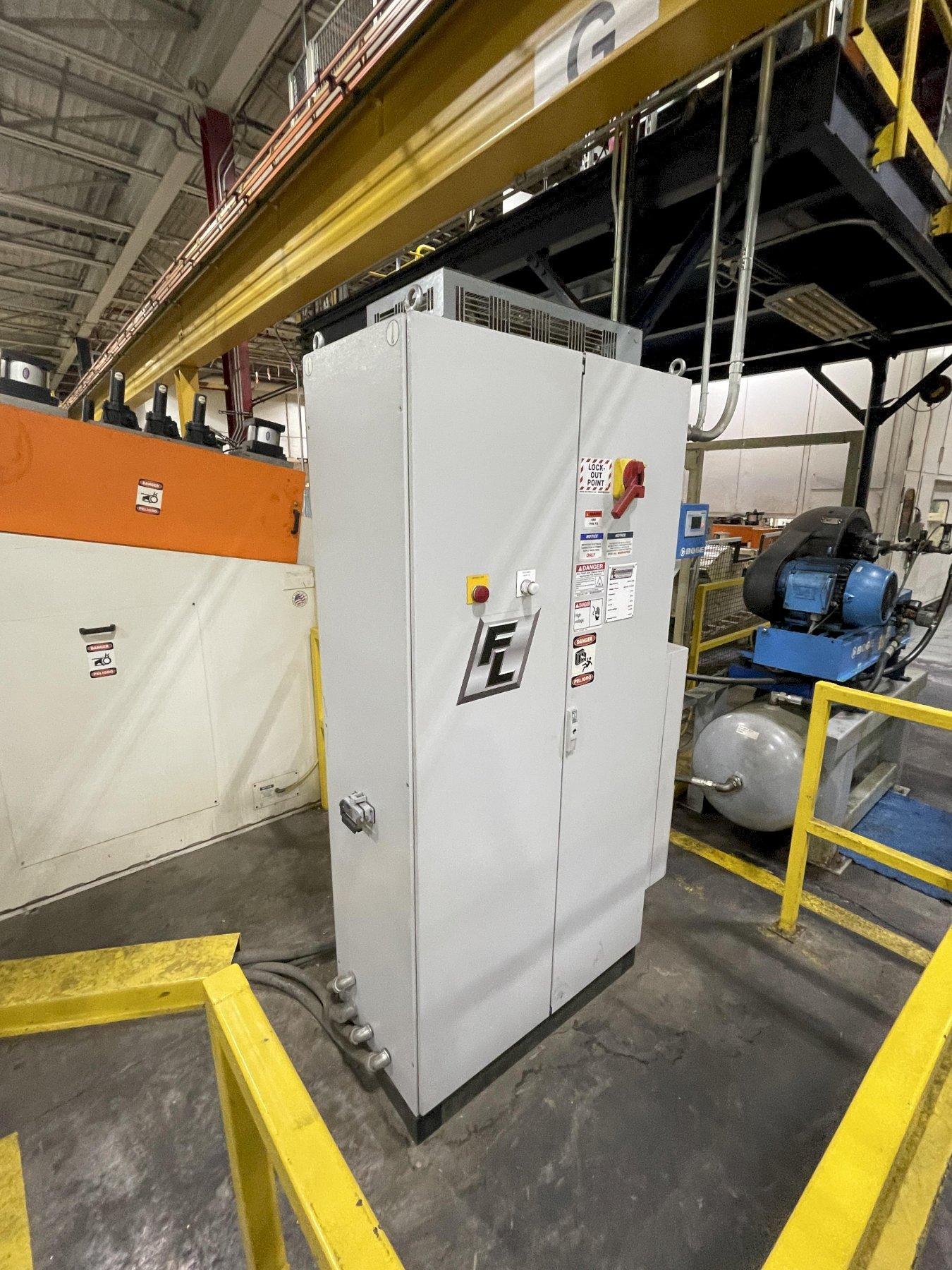

Centralized controls for reel and straightener - Allen Bradley Micro Logix
Jog forward and reverse w/ remote pendant
End of stock sensor
Auto / Run cycle
Laser Style Variable speed loop control

Feed Lease Threading Table

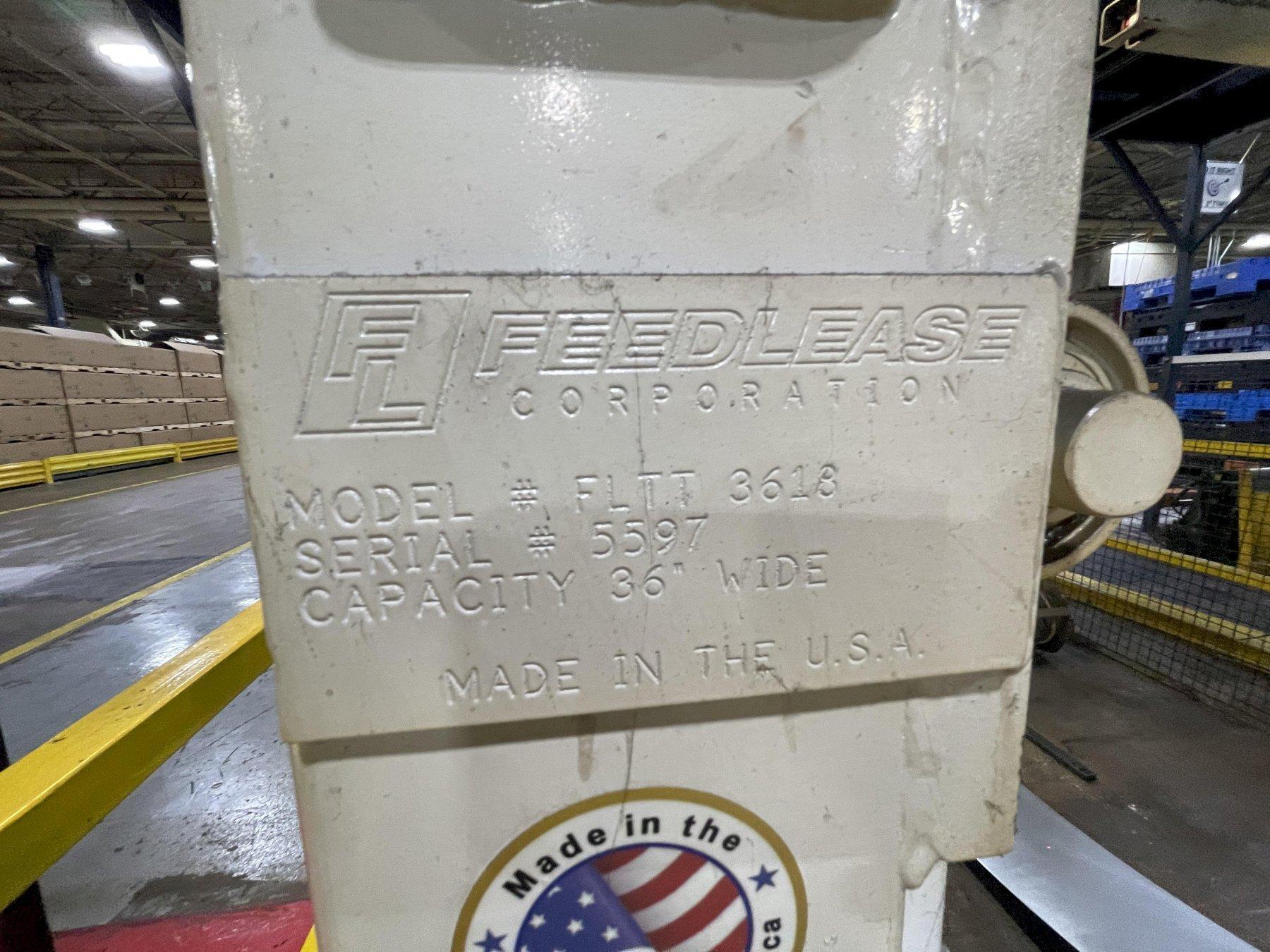

Model FLTT-3618, Single Side Threading Table, Serial No. 5597
Hydraulic actuated
Passline adjustment +-6" at feed entrance
Single side bomb bay style design

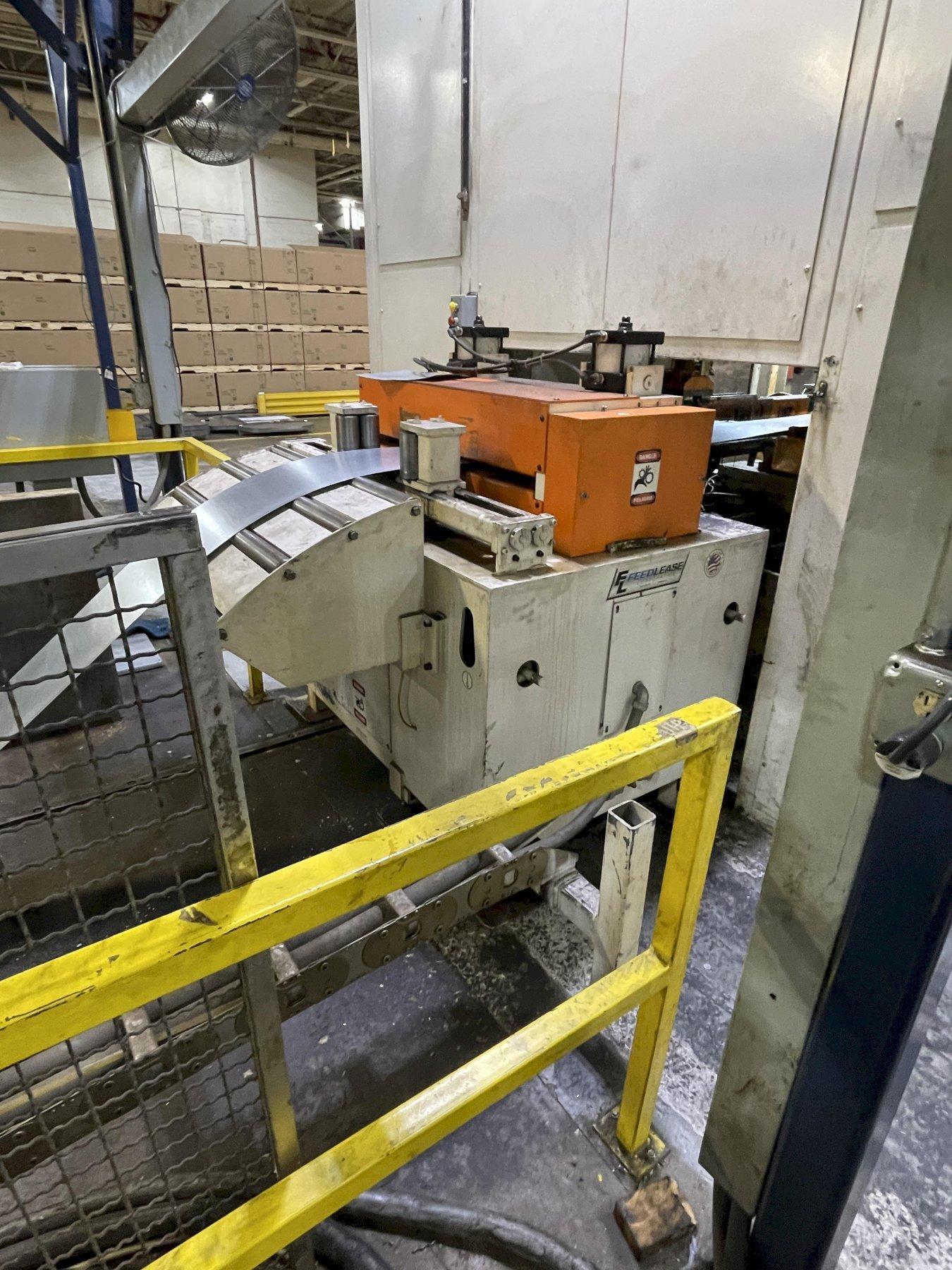

Feed Lease Servo Roll Feed
Cabinet Mounted Feed Model R.F. 6 x 36, Serial No. 5596
6" diameter full width upper and lower servo feed rolls
Pilot pin release of upper feed roll by (2) 6” bore cylinders
Maximum Feed Length 0 to 999.99 inches
Matte chrome finish on servo feed rolls
Four gear cluster arrangement transfers power to the upper feed roll
Air operated upper servo feed roll adjustment / pilot
Entry side cascade material support section
Stock width edge guides
Automatic lubrication system from powered straightener
Solenoid controlled pilot release
Air pressure/regulator
Cabinet base mounted w/ adjustable pass line height
48" Motorized pass line height -  adjustment +/-5”
Allen Bradley Kinetic Drive w/Panel view
6” Color touch screen
Powered Roll Out
* Feeder can travel into loop area for allowing hand feeding and stacking
* If a pit is used the feeder could travel away from the press over the pit
Feed will clamp into home position


40,000 lbs. x 36" Feed Lease Conventional High Strength Steel coil feed lines are designed to handle heavy-duty applications with high-strength steel coils. These lines are built to withstand the rigors of continuous operation and high-speed production processes. They feature robust construction, advanced straightener technology, and precise servo-controlled feed systems to ensure accurate and reliable material delivery.

Can be seen under power upon request in the S & G Press Livonia Michigan Warehouse!
