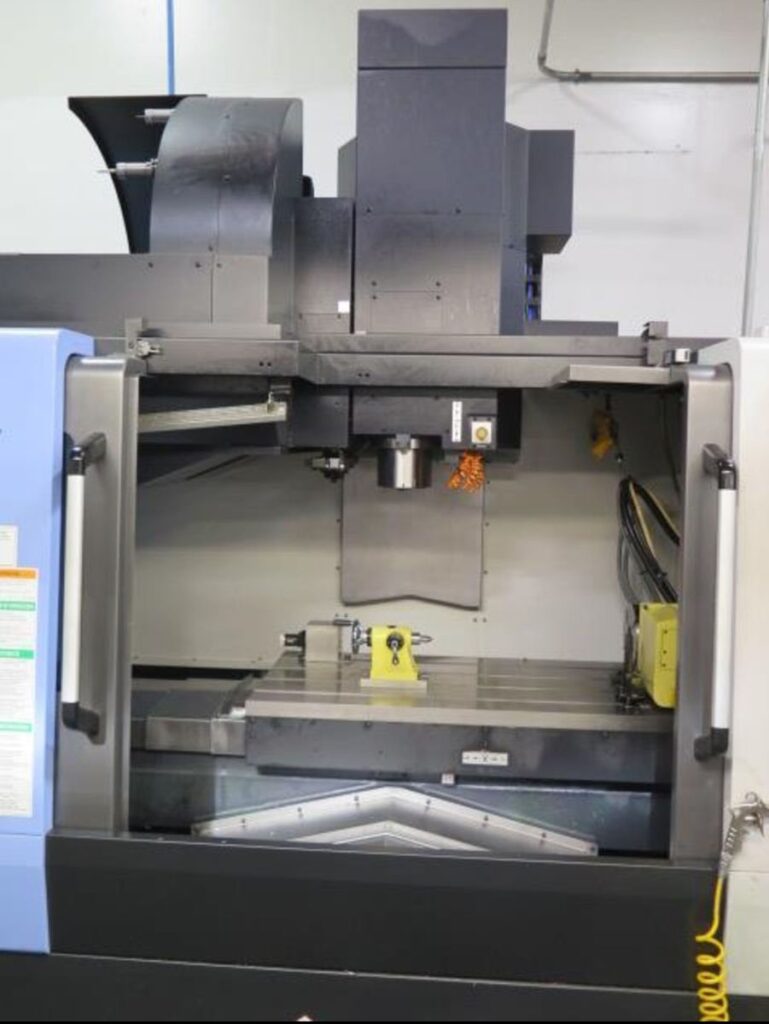

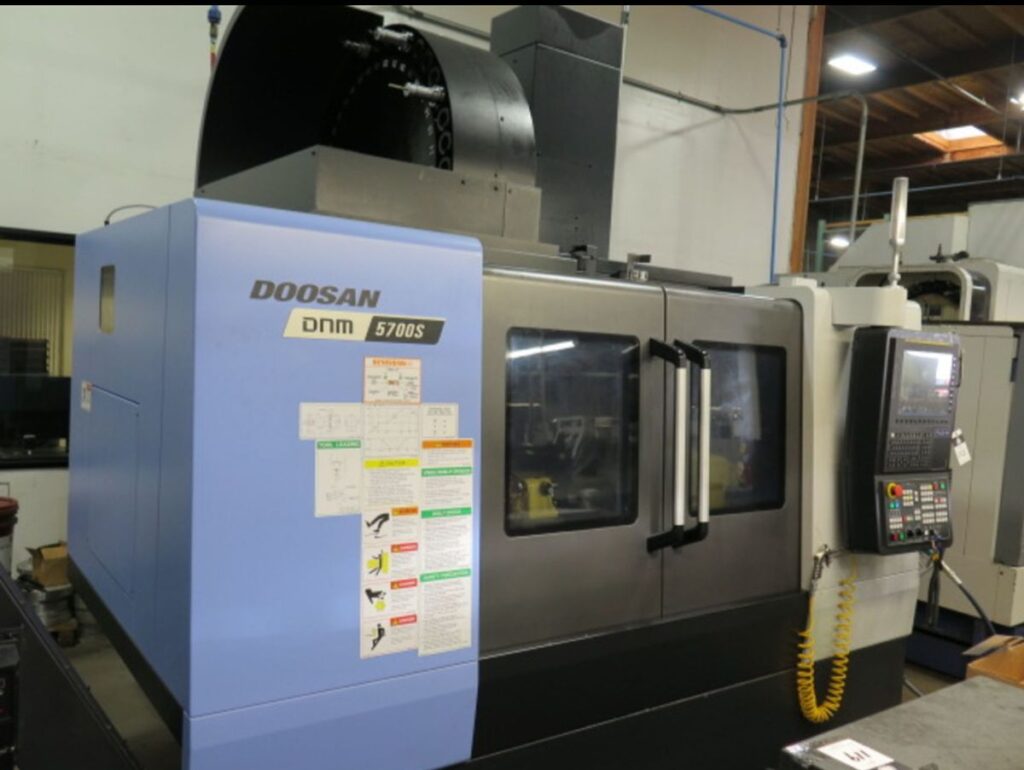

Doosan DNM 5700S CNC Vertical Machining Center w/ 4th Axis Rotary (2022)

Manufacturer

Doosan

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

173240006

Model

DNM 5700S

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 173240006
  • Location: CA
  • Brand: Doosan
  • Model: DNM 5700S
  • Year: 2022
  • Approx. Shipping Weight: 14,330 LBS
  • Approx. Shipping Dimensions: 123.8″ L x 44.4″ W x 117.5″ H
  • Loading Fee: Rigging Required

Specifications

  • X-Axis Travel: 41.3 IN
  • Y-Axis Travel: 22.4 IN
  • Z-Axis Travel: 20 IN
  • Spindle Motor: 25 HP
  • Spindle Speed (Max): 15,000 RPM
  • Spindle Taper: 40 CT

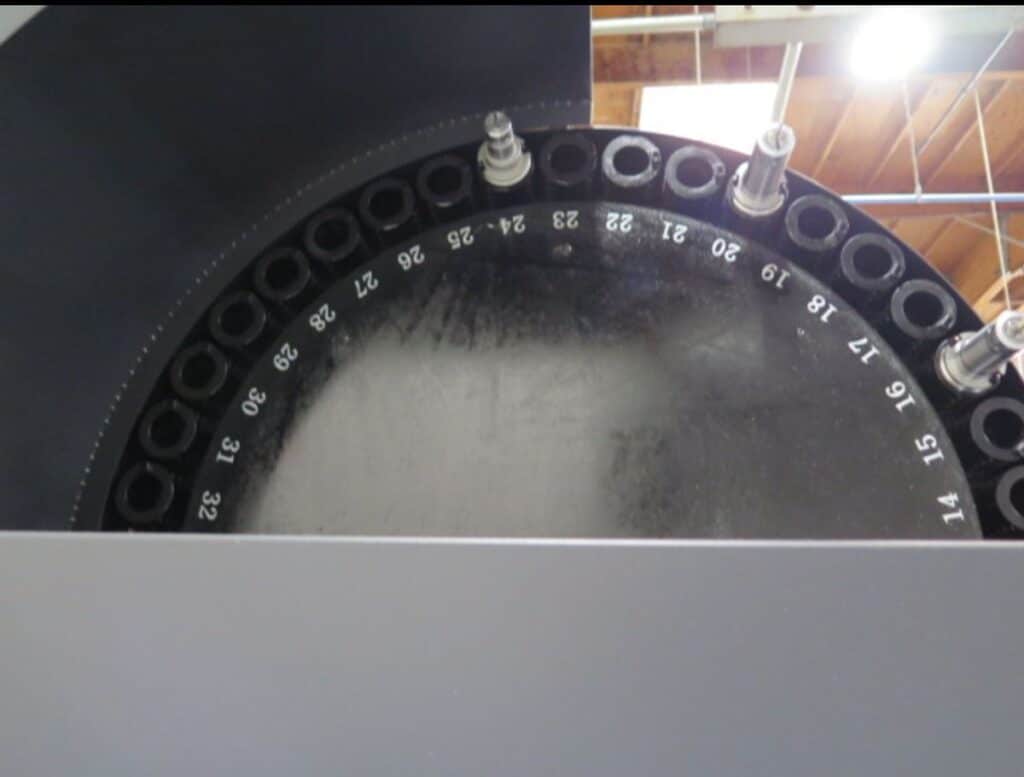

  • Tool Changer: 40 ATC
  • Rapid Rate (X, Y, Z): (1,653 IPM; 1,653 IPM; 1,417 IPM)
  • Table Size: 51.2 IN x 22.4 IN
  • Table Load (Max): 2,205 LBS
  • Power Requirement: 220V / 3PH

Equipped With

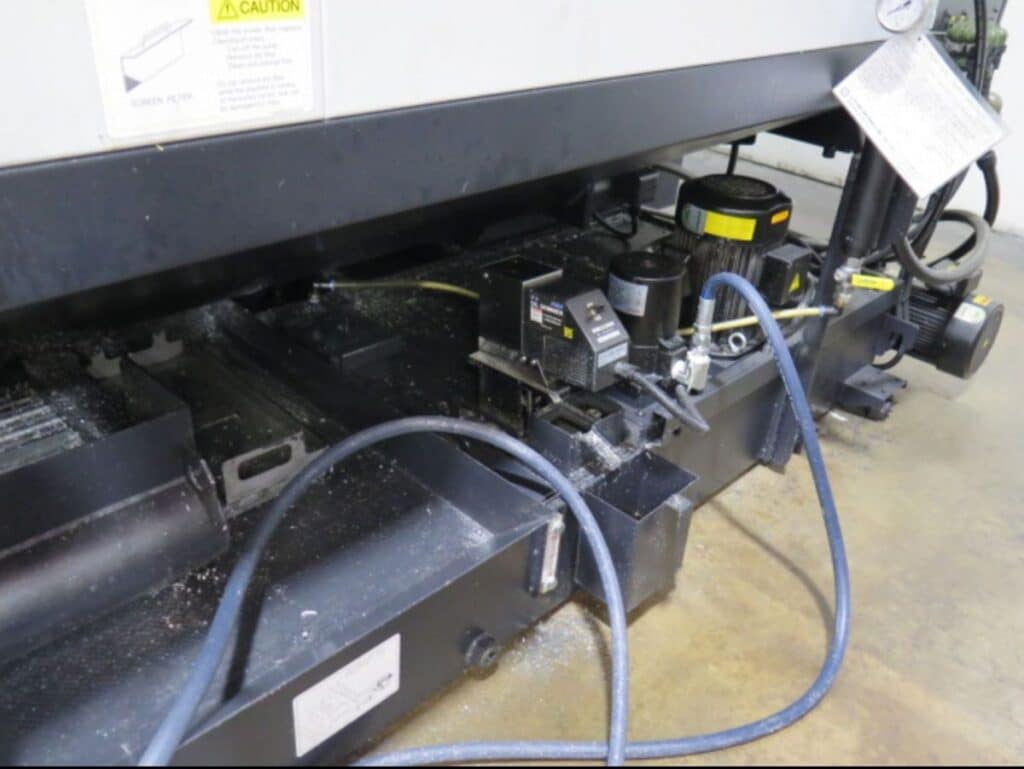

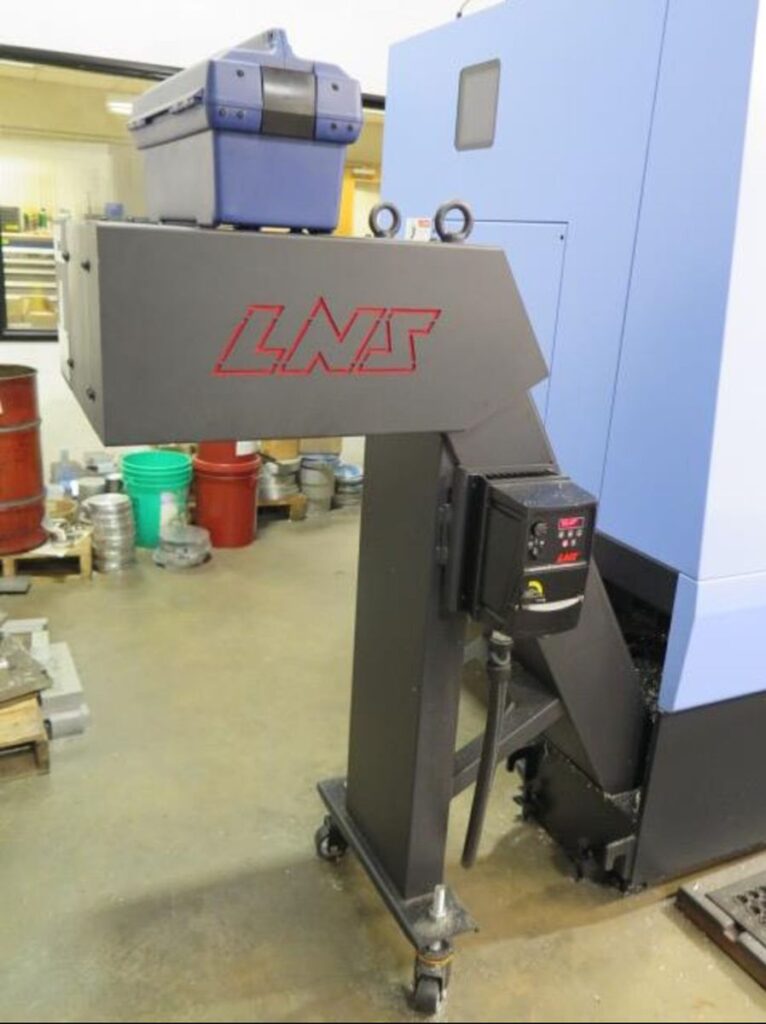

Renishaw Probe, LNS Chip Conveyor, High Flow Coolant, 15,000 RPM Spindle, Through Spindle Coolant, High Speed Machining, Nikken 4th Axis Rotary Table

Additional Info

Machine is under power and available to demo.
