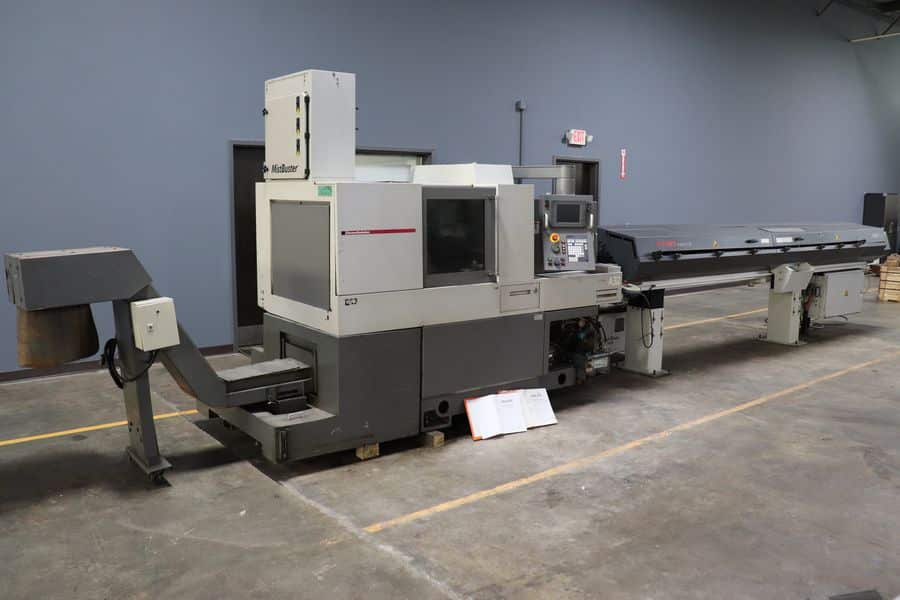

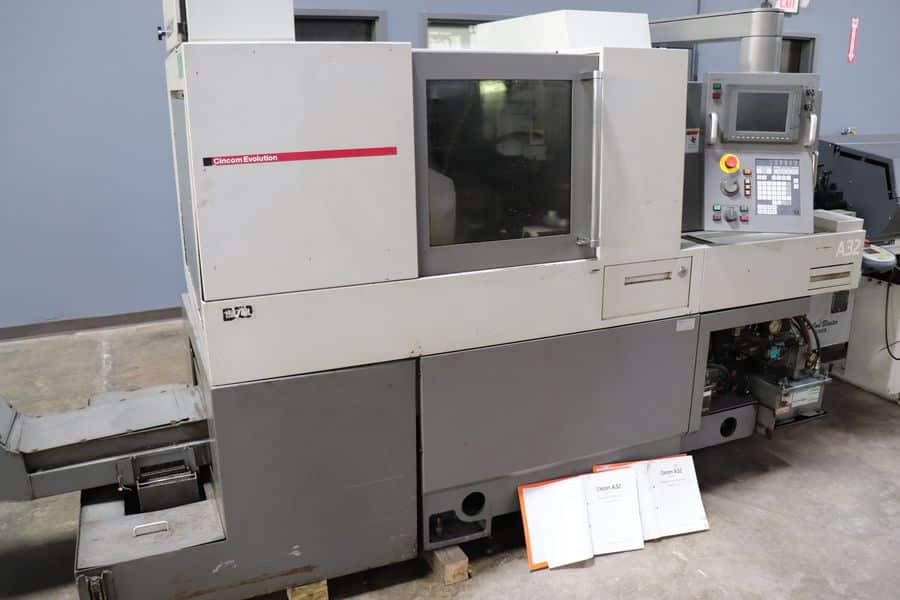

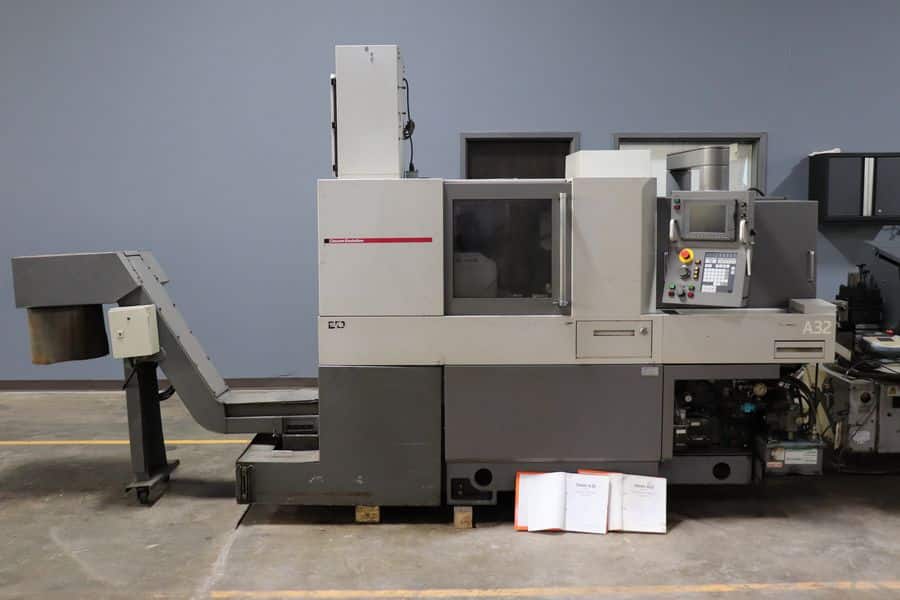

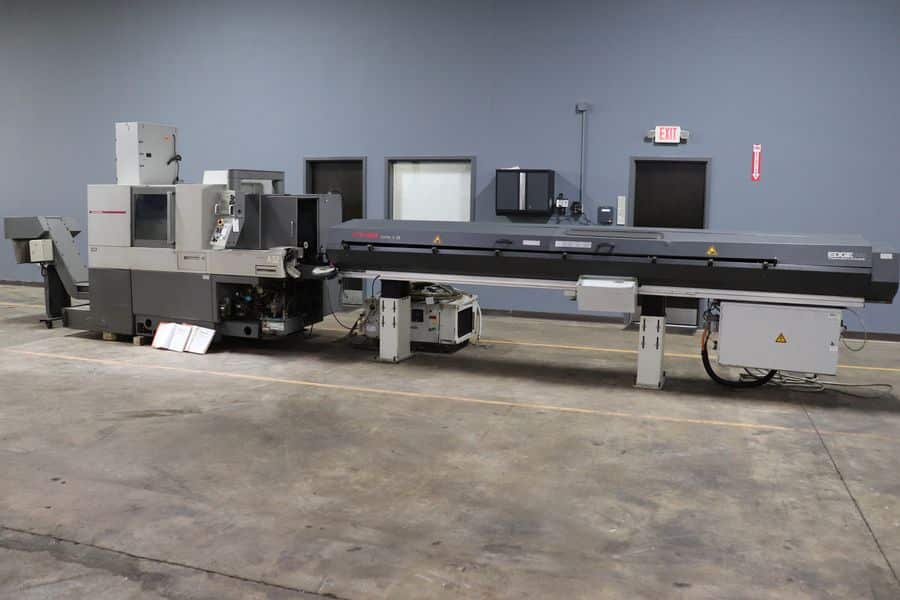

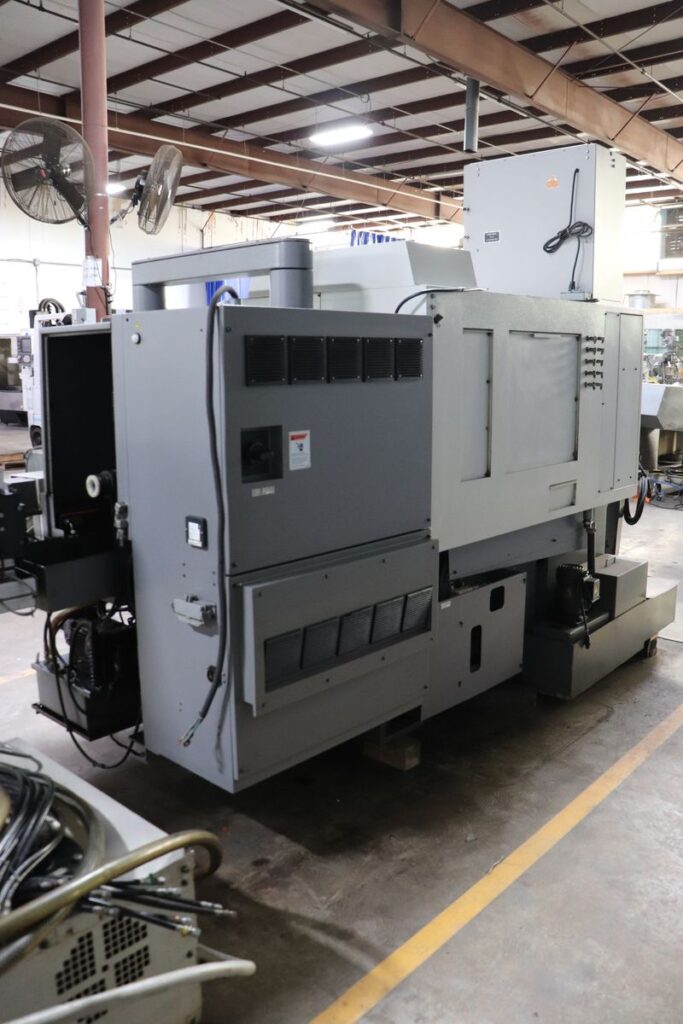

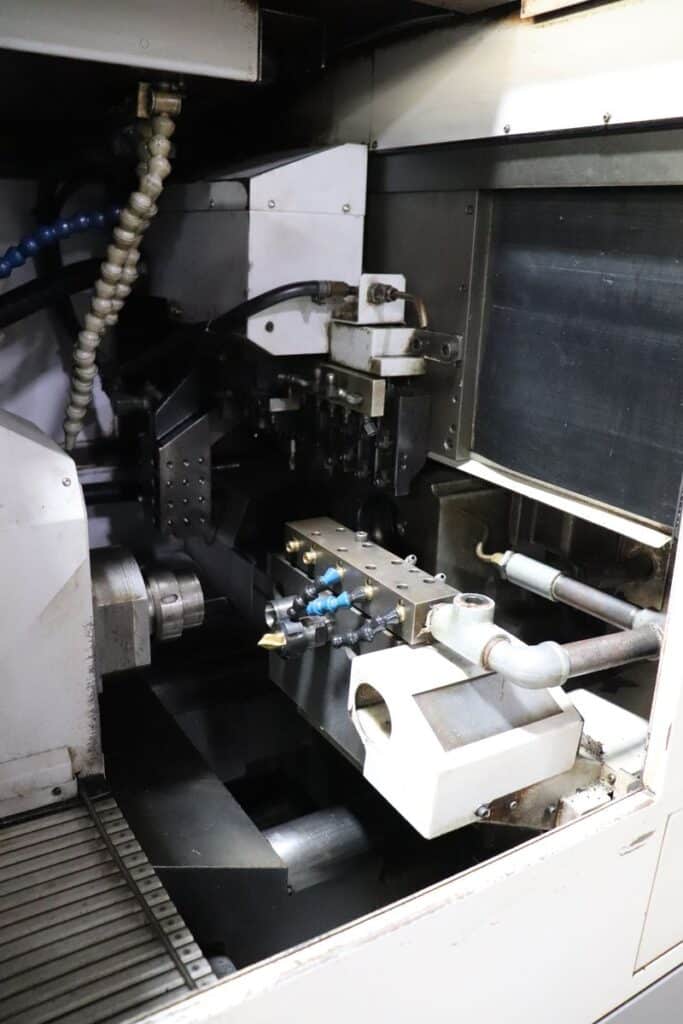

Citizen A32 VIICL CNC Swiss Lathe (2012)

Manufacturer

Citizen

Category

Lathes

Type

LATHES, CNC

Stock

172230022

Model

A32 VIICL

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 172230022
  • Location: GA
  • Brand: Citizen
  • Model: A32 VIICL
  • Serial #: A32/0078
  • Year: 2012
  • Approx. Shipping Weight: 9,000 Lbs.
  • Approx. Shipping Dimensions: 26′ L x 8′ W x 8′ H

Specifications

  • Number of Axis: 7
  • Swing: 12.6″
  • Max Turning Length: 12.6″
  • Turning Diameter: 1.26″
  • Bar Capacity: 1.26″
  • X Axis Travel: 4.33″
  • Z Axis Travel: 12.8″
  • X2 Travel: 14.75″
  • Z2 Travel: 11.42″
  • C Axis Index: 0.001″
  • Rapid Traverse Rate X1: 1,260 IPM
  • Rapid Traverse Rate X2/Y/Z1/Z2: 1,771 IPM
  • Spindle Speed: 8,000 RPM
  • Main Motor: 7.5 HP

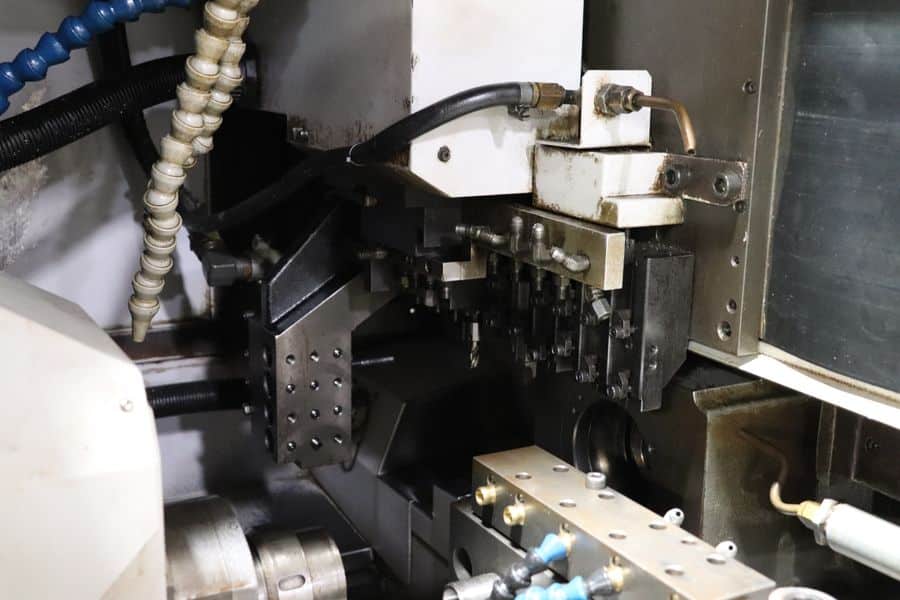

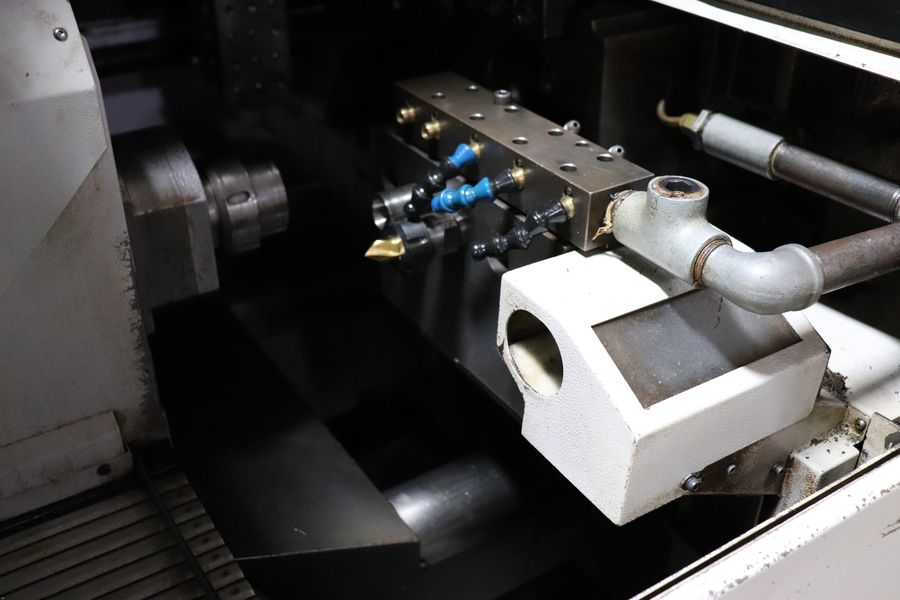

  • Live Tooling: Yes
  • Live Tooling Speed: 5,000 RPM
  • Live Tooling Motor: 1.35 HP
  • Tailstock: No
  • Y Axis: Yes
  • Sub Spindle Speed: 8,000 RPM
  • Turret Capacity: 27
  • Electrical: 200V/3PH

Equipped With

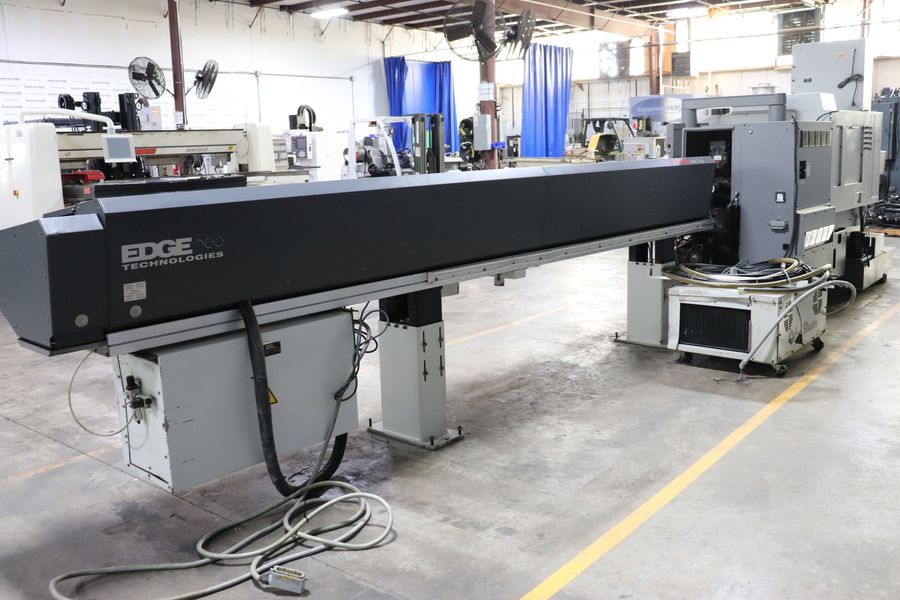

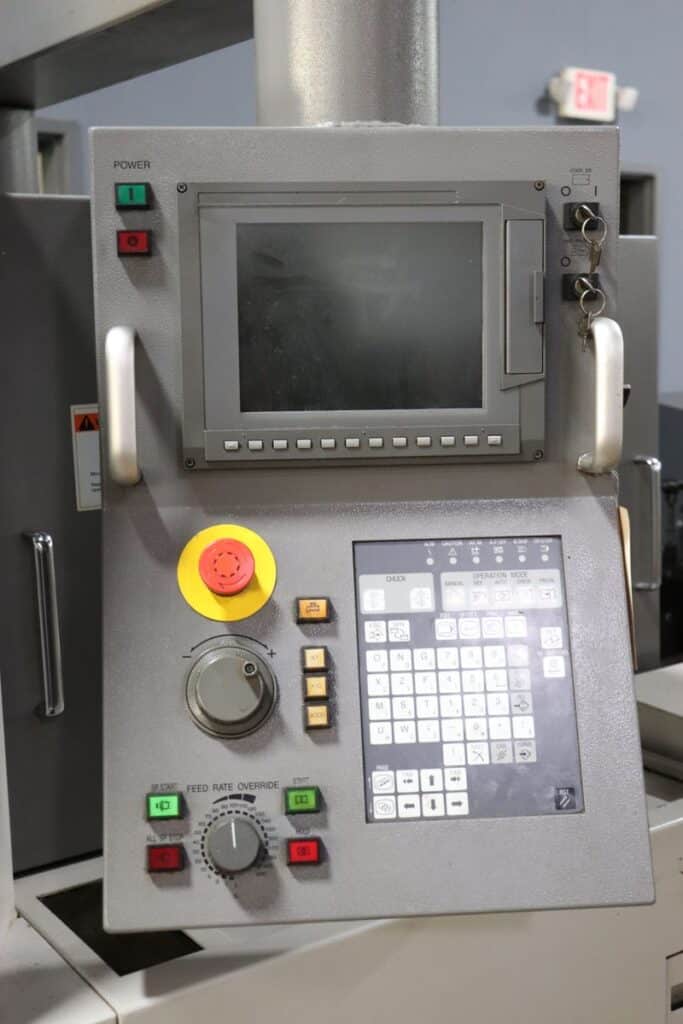

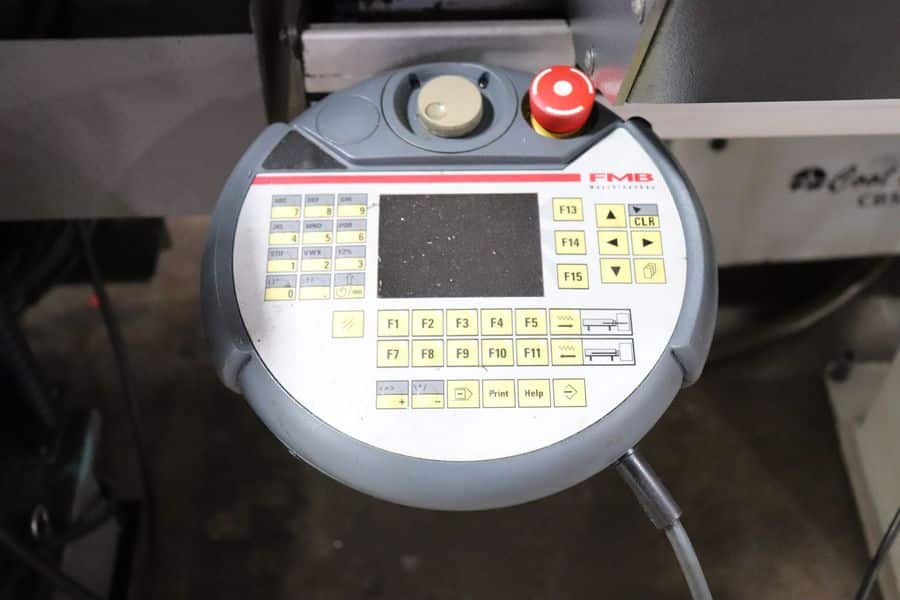

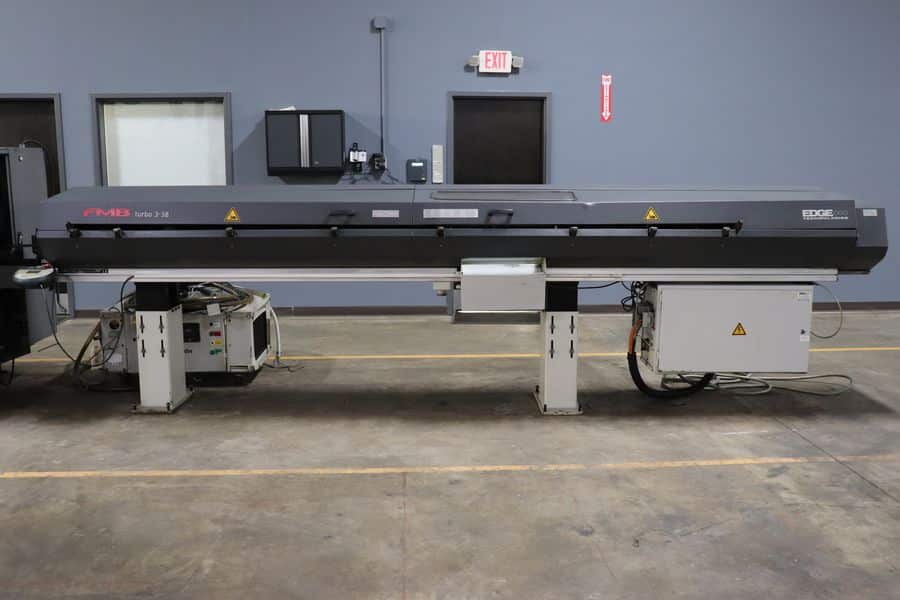

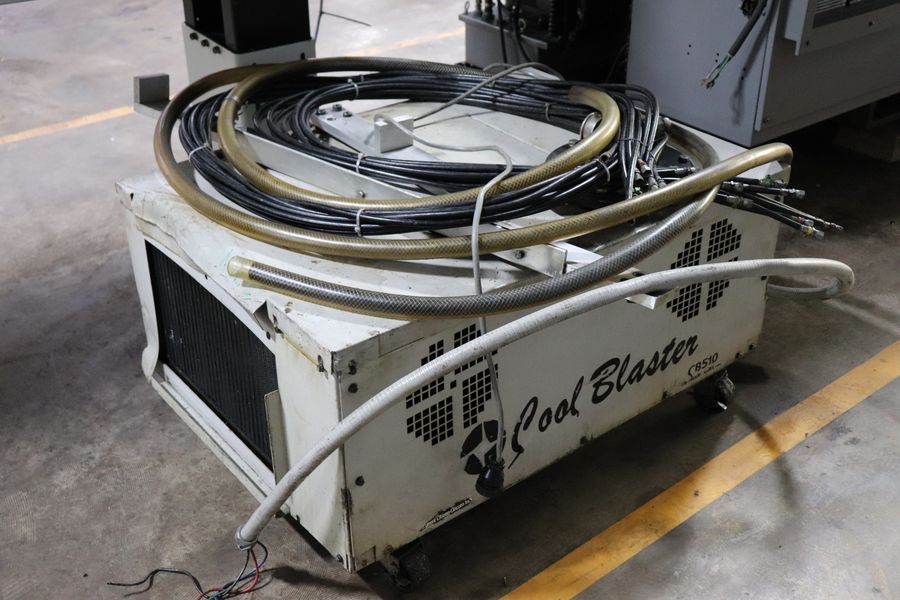

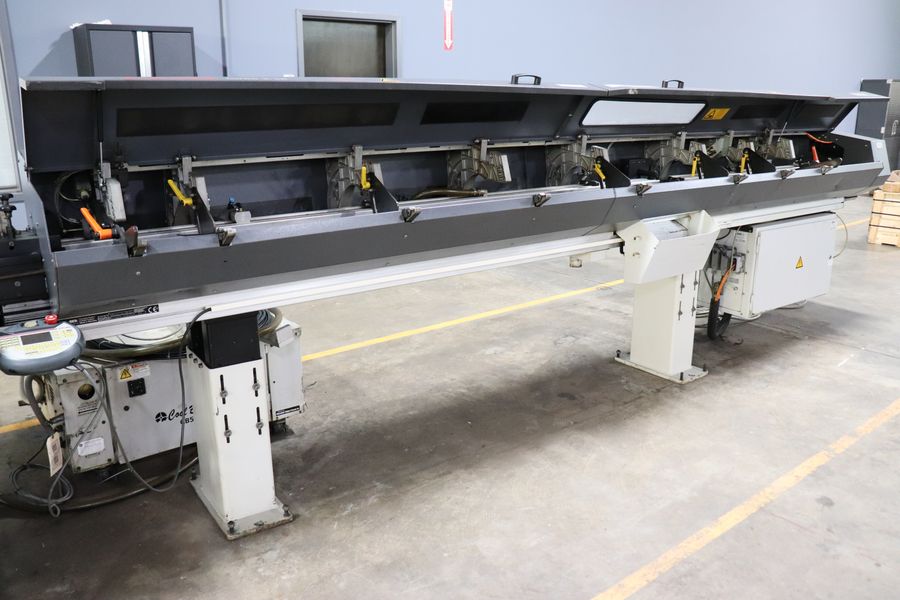

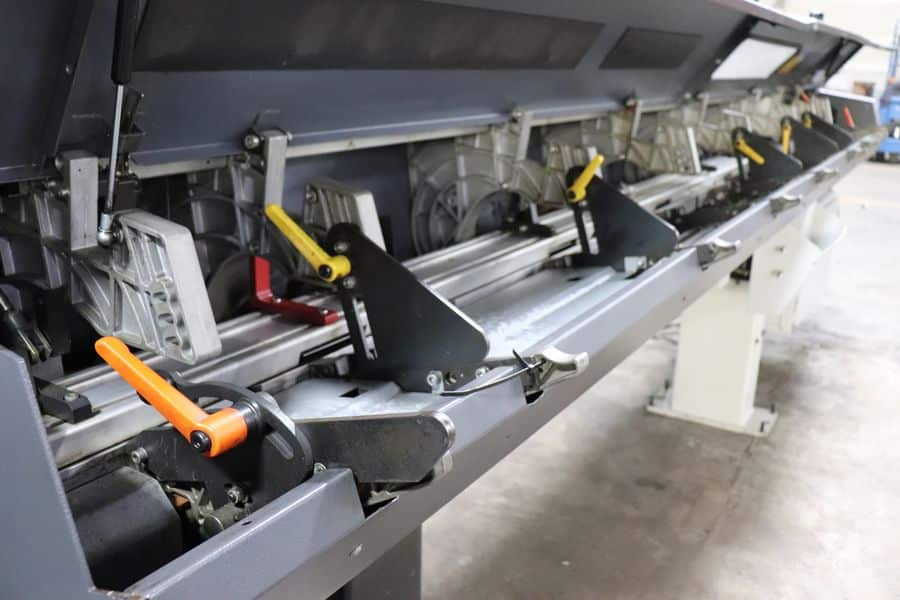

CNC Controller, Edge Technologies Bar Feeder, Chip Conveyor, Coolant System

Additional Info

The Citizen CNC Swiss Lathe can be demoed upon request. Check out the video on the listing to see it in operation.
