DAVI MCA 3028, 4-Roll, 1/2" Capacity, 10' Length, 11" Top Roll, Overhead Support, New 2018, #43656

Manufacturer

DAVI

Category

Rolls

Type

ROLLS, PLATE BENDING, INIT & DBL PINCH TYPE, (Incl Sheet Metal)

Stock

43656

Model

MCA 3028

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43656

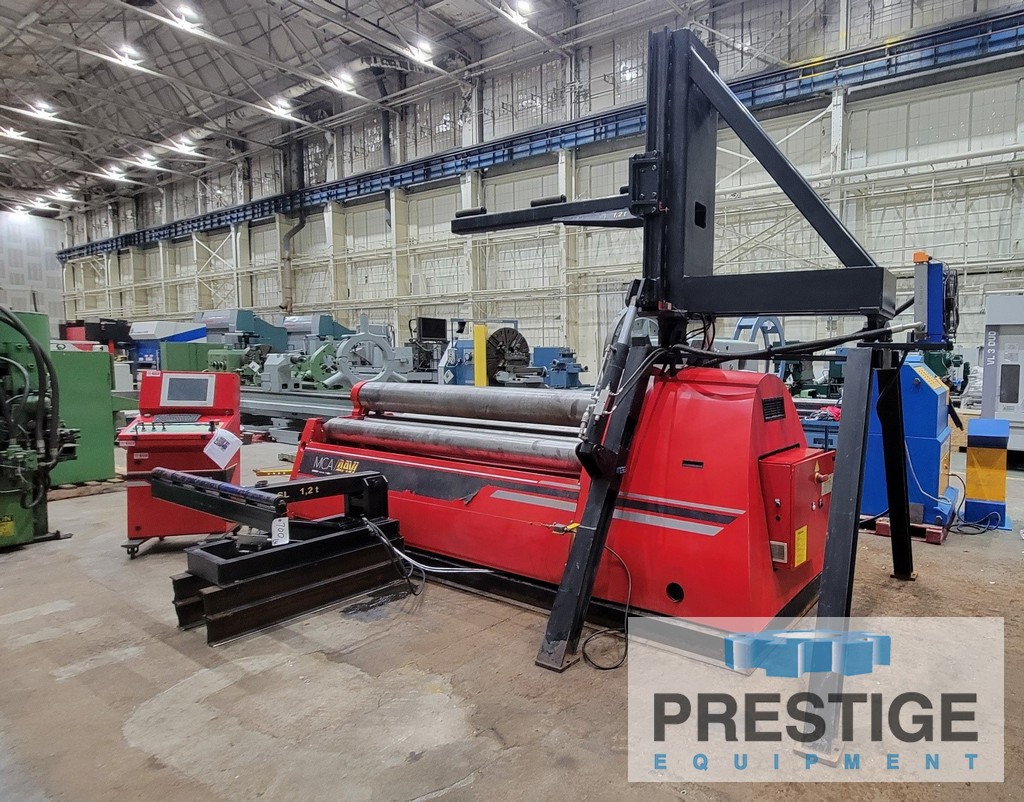

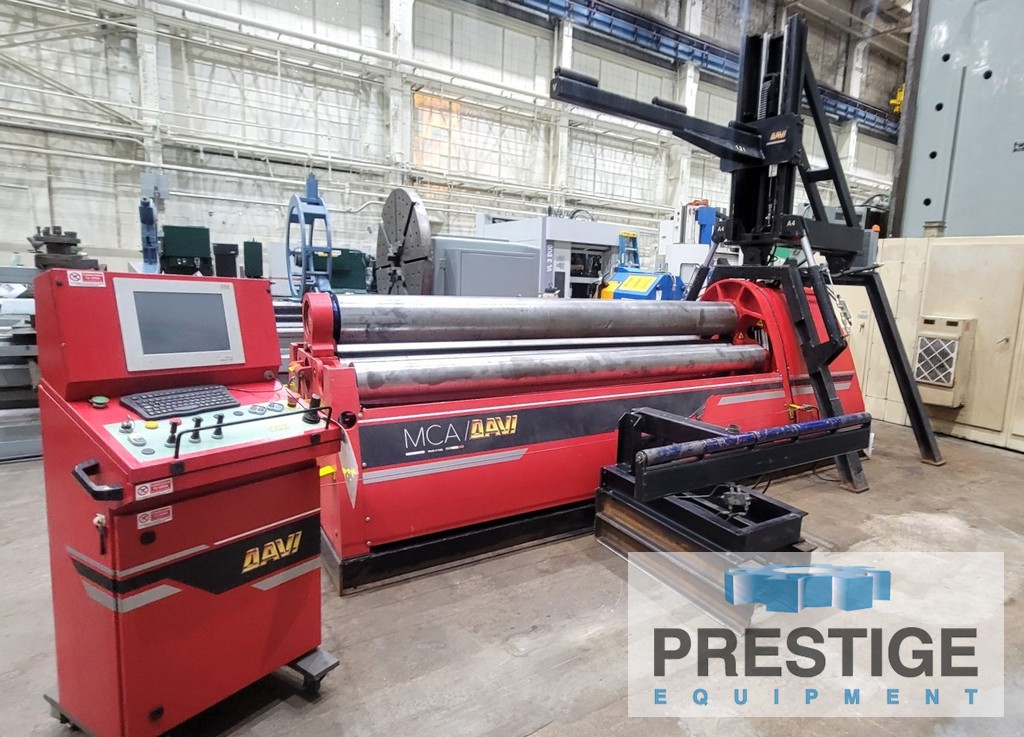

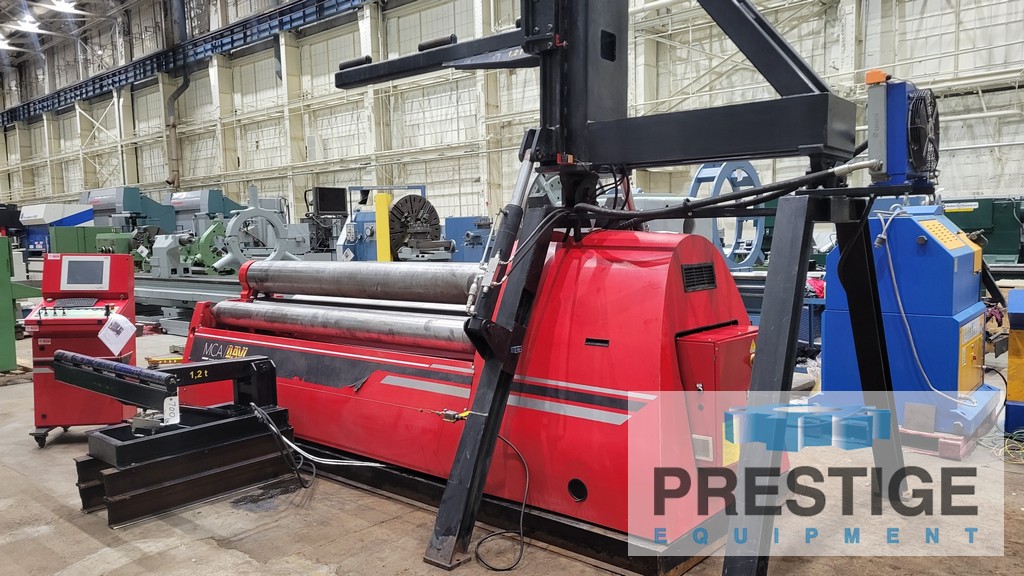

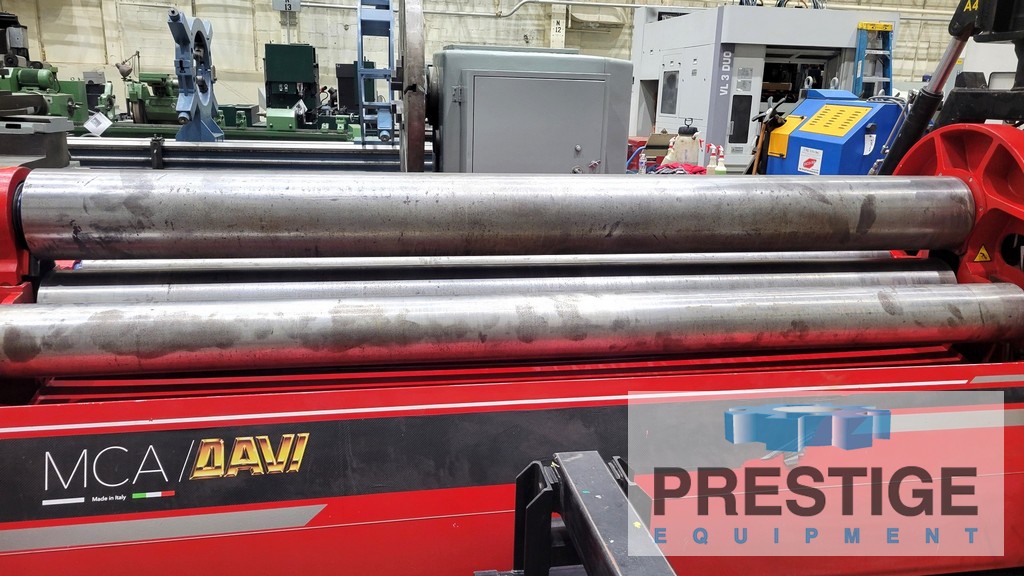

DAVI MCA 3028 1/2" x 10' CNC 4-Roll Hydraulic Plate Roll

FEATURES:

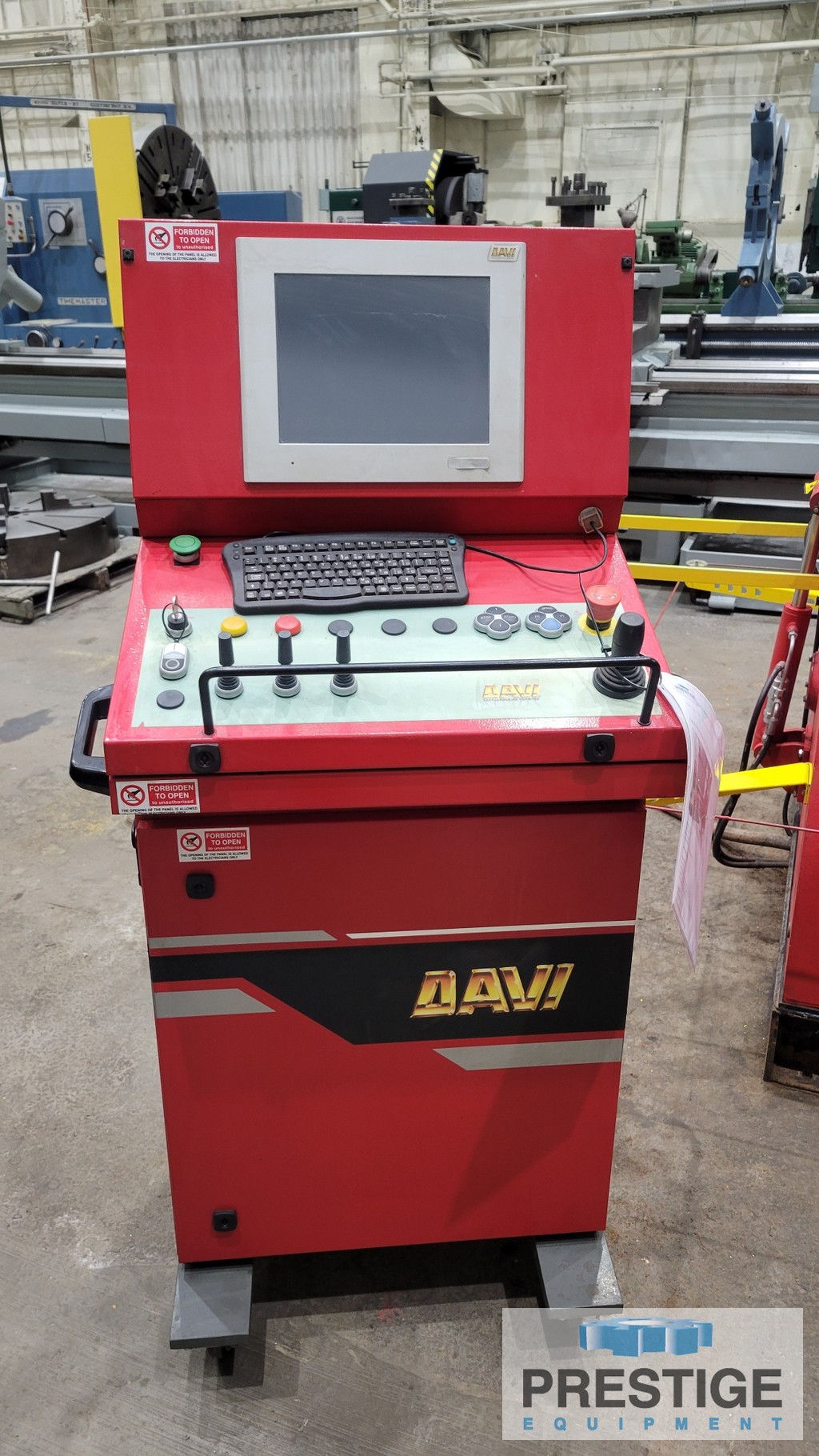

Davi CNC Control
Interpolation Package for Manual Programming

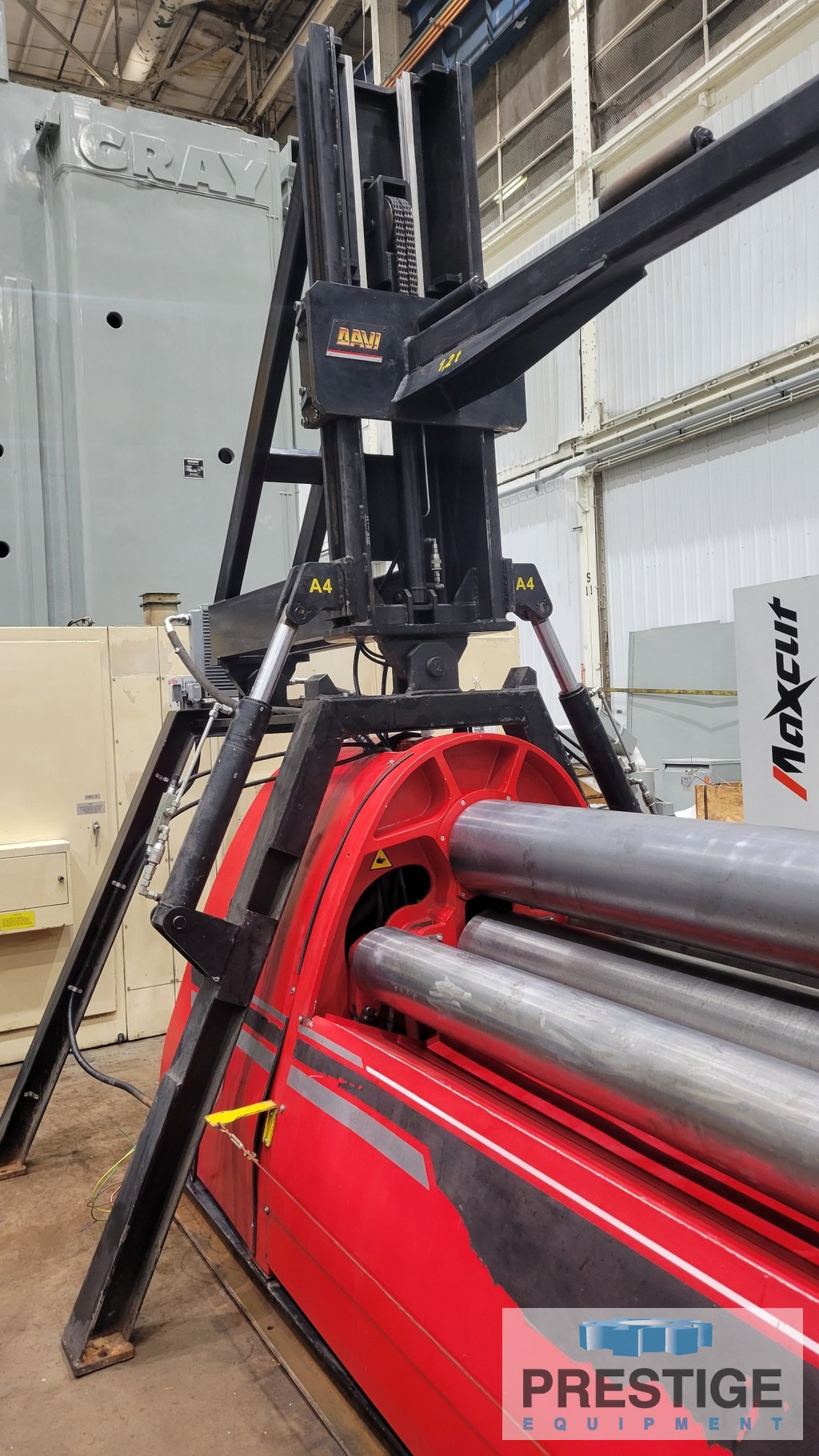

Custom Swingable Overhead Vertical Support
Top & Lower Rolls are Standard Crowned to Compensate Rolls Deflection

CAPACITY:
Rolling Thickness ..................... 1/2"
Pre-Bend Capacity ..................... 3/8"
Roll Width ............................ 10'2"
Top Roll Diameter ..................... 11"
Bottom Clamping Roll Diameter ......... 10"
Side Rolls ............................ 7.9"
Rolling Speed ......................... 20 FPM
Main Motor Power ...................... 18 HP

EQUIPPED WITH:
Davi CNC Control
Interpolation Package for Manual Programming
Custom Swingable Overhead Vertical Support
Top & Lower Rolls are Standard Crowned to Compensate Rolls Deflection
Friction Free, Mill-Scale-Proof, Lubrication-Less Planetary Guides
Self-Aligning Heavy Duty Double Crown Spherical Roller Bearings
High Speed Top Roll Rotation During Re-Rolling
High Quality Surface Finishing
Servo-Tronic Roll Parallelism
Stress-Less Transmission Drive System
Roll-by-Wire Digital Technology
Permanent Lubrication Technology
