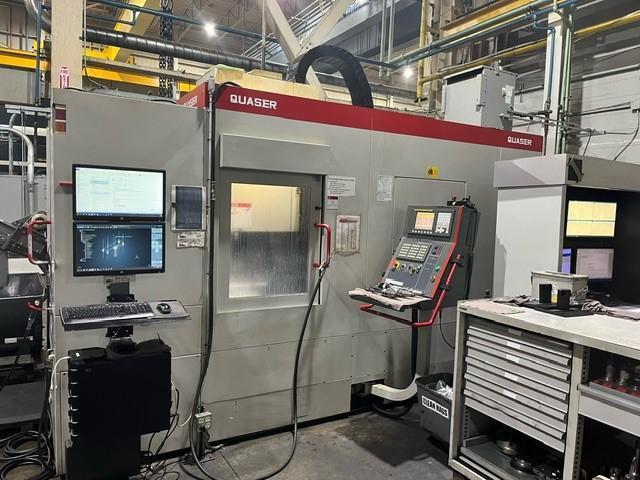

Vertical Machining Center with rotary pallet system

Stock

7206

Model

MK603

Dealer Location

Ontario

Spec Sheet

CNC Control - yes

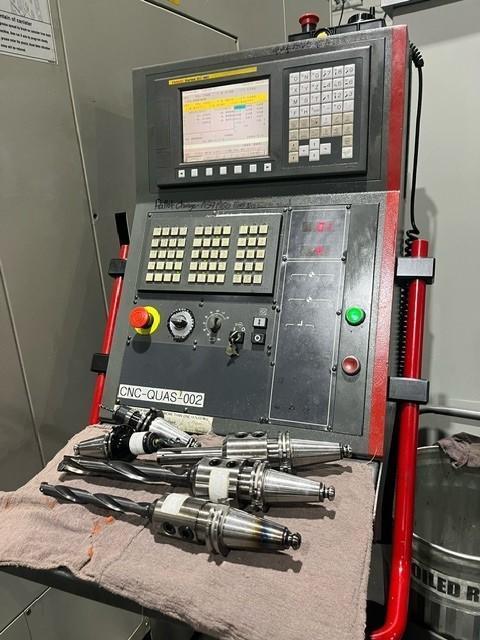

Type of CNC Control - FANUC 0i-MD
# Axis - 3
Table Size - 41.3" x 21.6" (2 Pallets)
Table Capacity - 660 pounds
X-Axis Travel - 40.1 inches
Y-Axis Travel - 24 inches
Z-Axis Travel - 23.6 inches
Spindle Speed - 12,000
Spindle Taper - CAT 40 Big Plus
Main Motor - 30 HP
Tool Changer Capacity - 48
X-Axis Feedrate - 787 ipm
Y-Axis Feedrate - 787 ipm
Z-Axis Feedrate - 787 ipm
X-Axis Rapid Traverse Rate - 1,260 ipm
Y-Axis Rapid Traverse Rate - 1,260 ipm
Z-Axis Rapid Traverse Rate - 1,260 ipm
Coolant Thru Spindle - yes
Dimensions - 113" x 191" x 130"
Max Distance Spindle To Table Top - 28.7 inches
Tool Change Time - 2.5" Tool to Tool, 6" Chip to Chip
