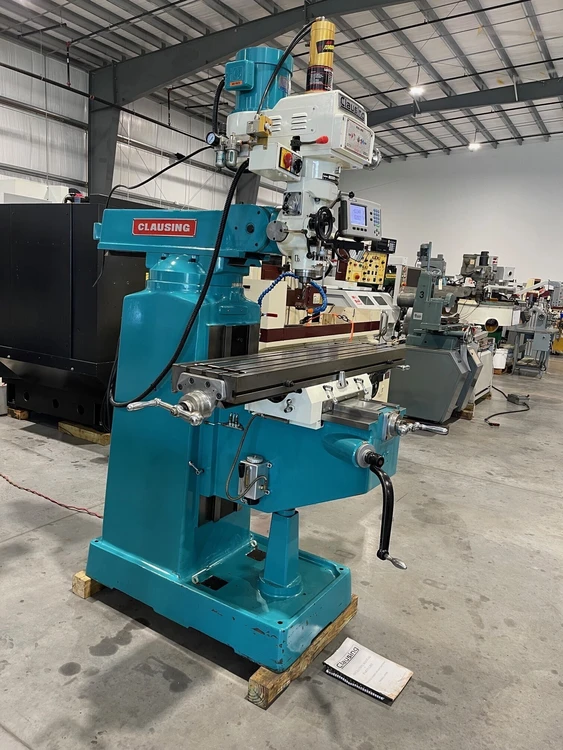

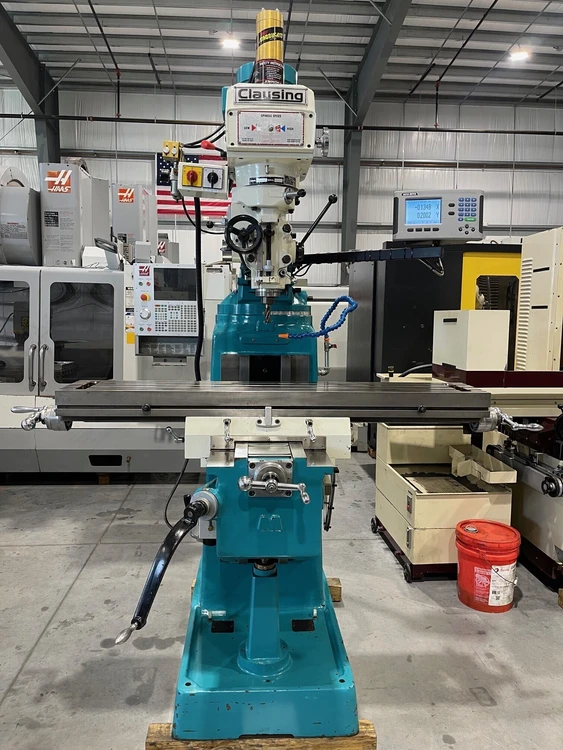

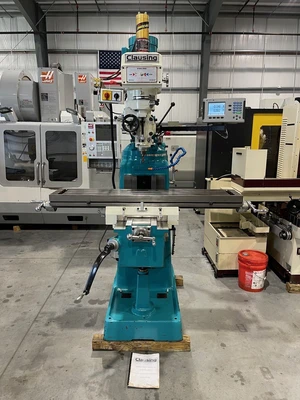

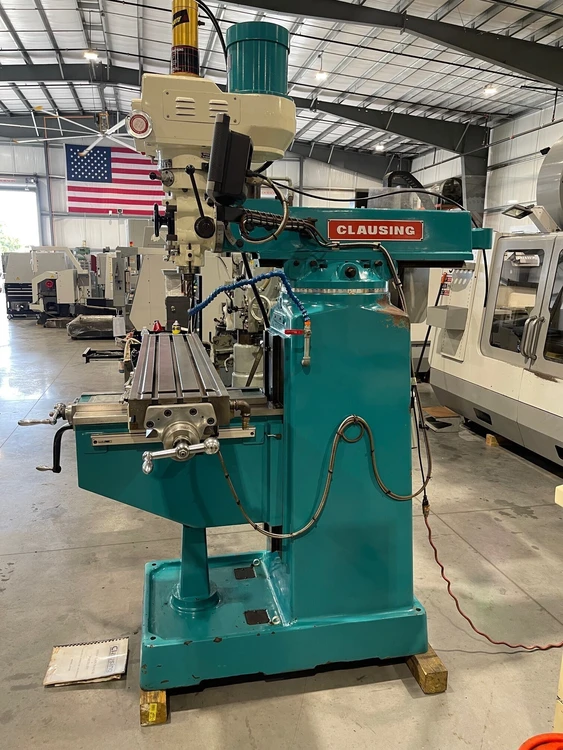

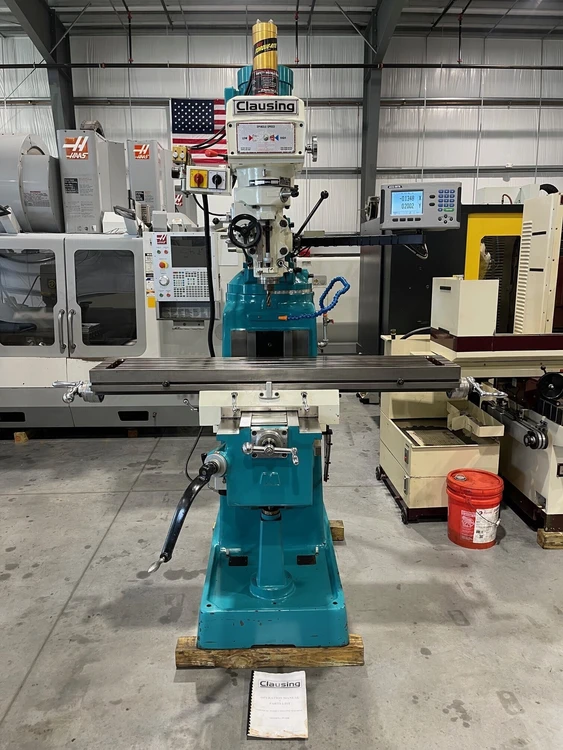

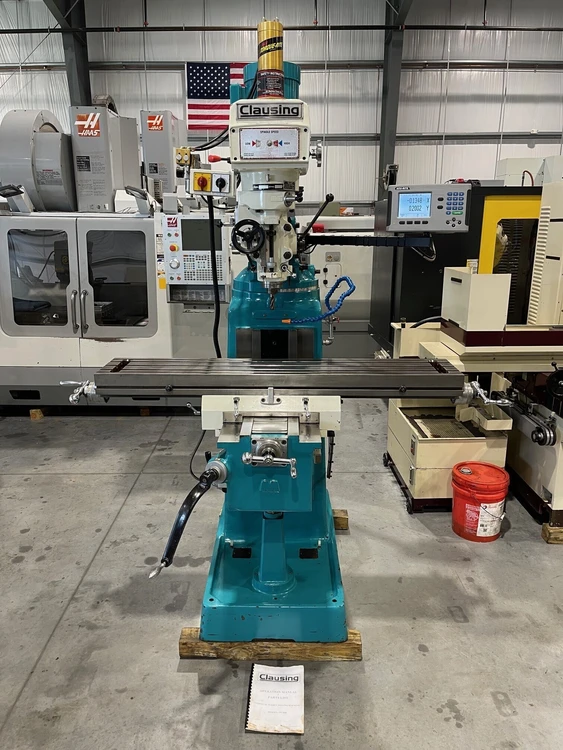

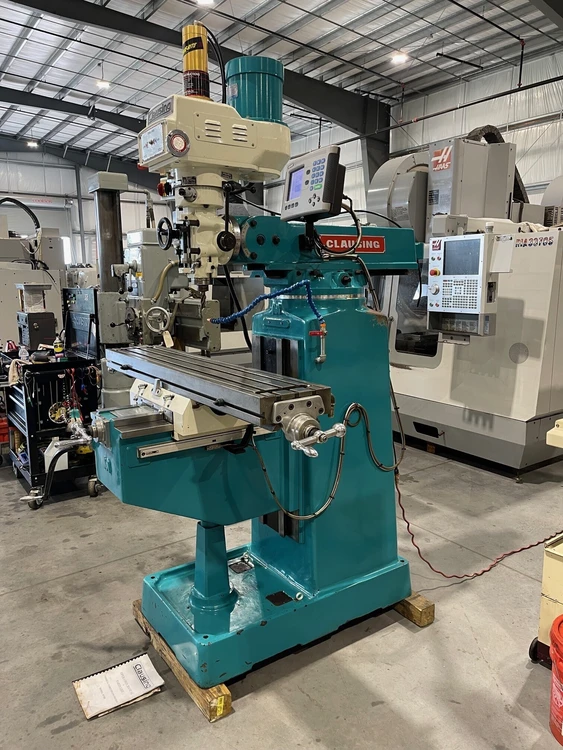

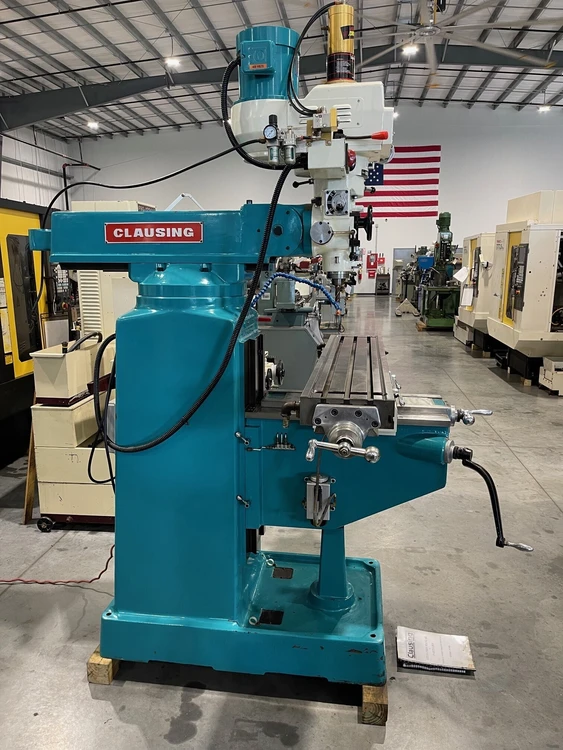

CLAUSING 3VS08 Vertical Milling Machine DRO 2009’ #7015

CLAUSING 3VS08 Vertical Milling Machine DRO 2009’ #7015

Manufacturer

CLAUSING

Spec Sheet

Specifications

ImperialMetric

Table-W	10"	254 mm
Table-L	54"	1,371.6 mm
Travel-Long	36"	914.4 mm
Travel-Cross	15.74"	399.8 mm
Power	3 hp	2.2 kW
RPM	4,300 RPM	4,300 RPM
Taper	R-8	R-8
Dimensions	70” L x 75” W x 86’’ H	70” L x 75” W x 86’’ H
Weight	3,250 Lbs.	3,250 Lbs.

CLAUSING 3VS08 Vertical Milling Machine DRO 2009’ #
Reference #7015
Model # 3VS08
Serial #091222
Year of manufacture- 2009’

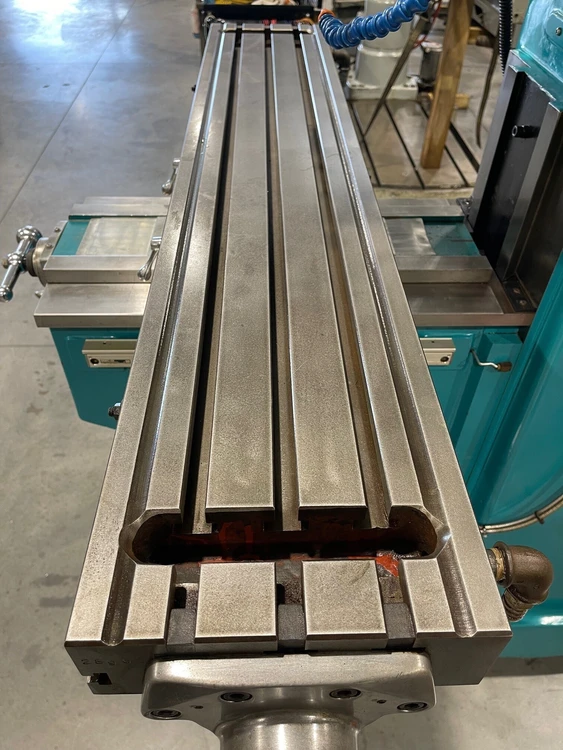

Table size- 10” x 54”
Number of T-slots- 3
T-slot width- 5/8”
Travels-
X axis- 39.6”
Y axis- 15.6”
Knee- 15”
Ram- 22”
Spindle travel- 5”

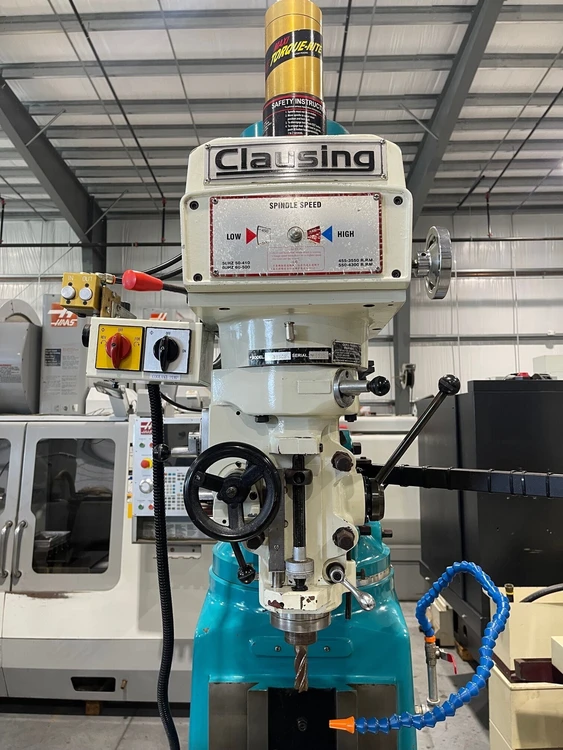

Spindle speeds- Low range 60 – 500 R.P.M. / High range 550-4300 R.P.M.
Spindle taper- R-8
Quill feeds- (3) .0015 / .0031 / .006
Quill diameter- 3.38”
Max table load- 665 Lbs.
Column diameter- 14.96”
Knee width-11.81”
Column bearing length- 16.83”
Saddle / table bearing length- 19.88”
Ram / turret bearing length- 17.51”
Ram length- 32.75”

Equipped With

ACURITE 2 AXIS DRO Digital Readout

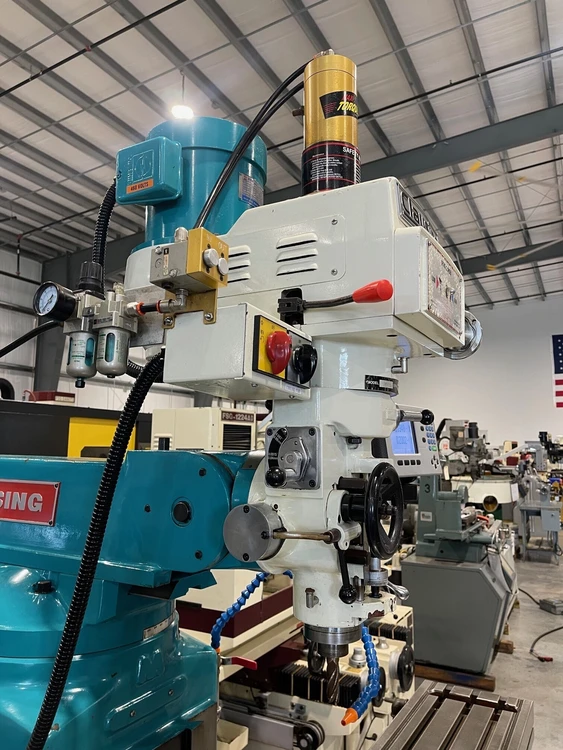

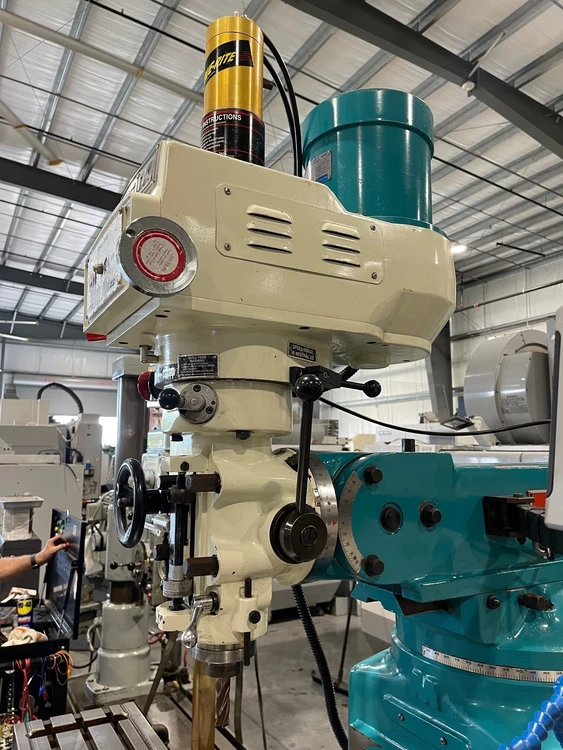

Pneumatic draw bar
Meehanite casting

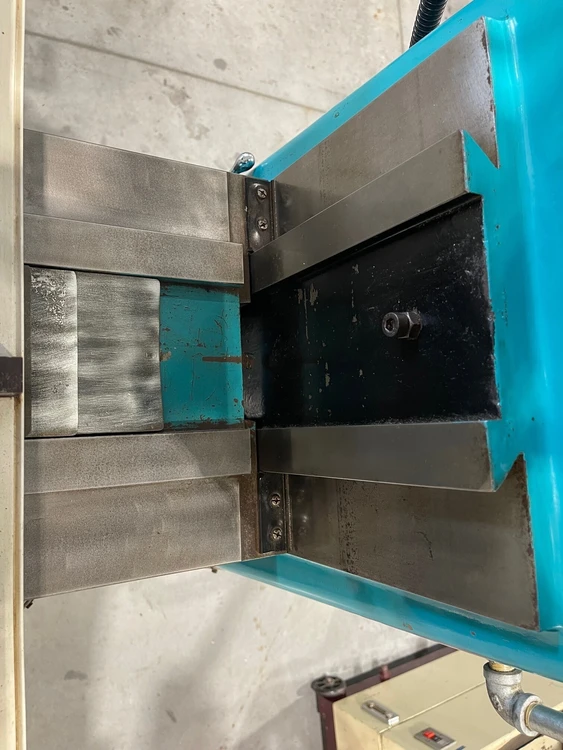

Hardened & Ground X,Y & Z ways
X & Y ways coated with Turcite
Hardened & ground table
Hardened & ground spindle
Chromed & ground quill
Chromed X,Y & Z leadscrews
3 H.P. Motor 230 / 460 volt
Machine is wired 230 volt
Machine weight- 3,250 Lbs.
Machine dimensions- 70” L x 75” W x 86’’ H
Machine location- F.O.B. Sarasota, Florida

No Video Available
