WELE ML-532Z4, X-199",Y-125", Z-55", 196" x 94" Table, 6,000 RPM, 80 ATC, Fanuc OiMF Plus CNC, 2022, #43756

Manufacturer

WELE

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

43756

Model

ML-532Z4

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43756

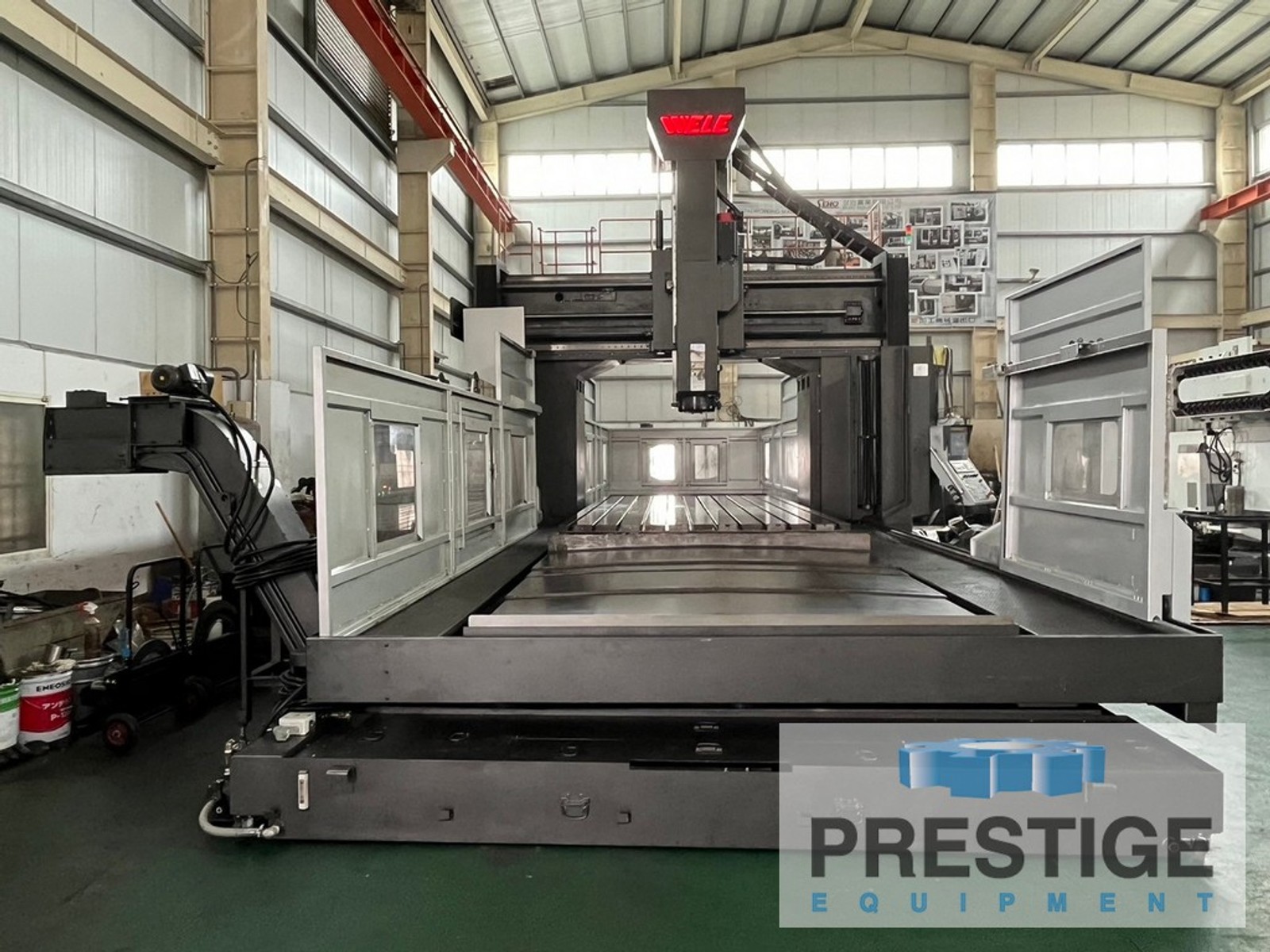

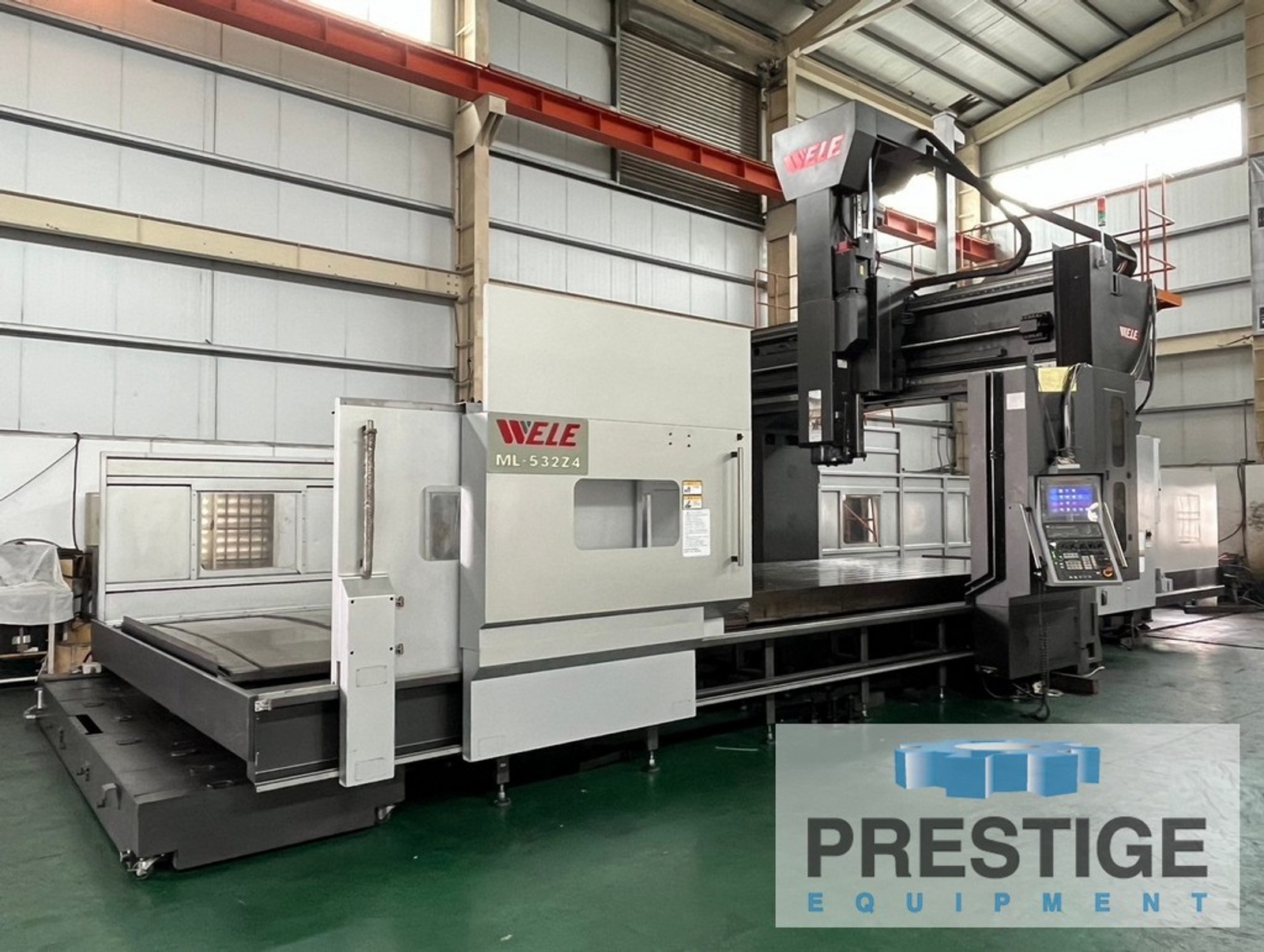

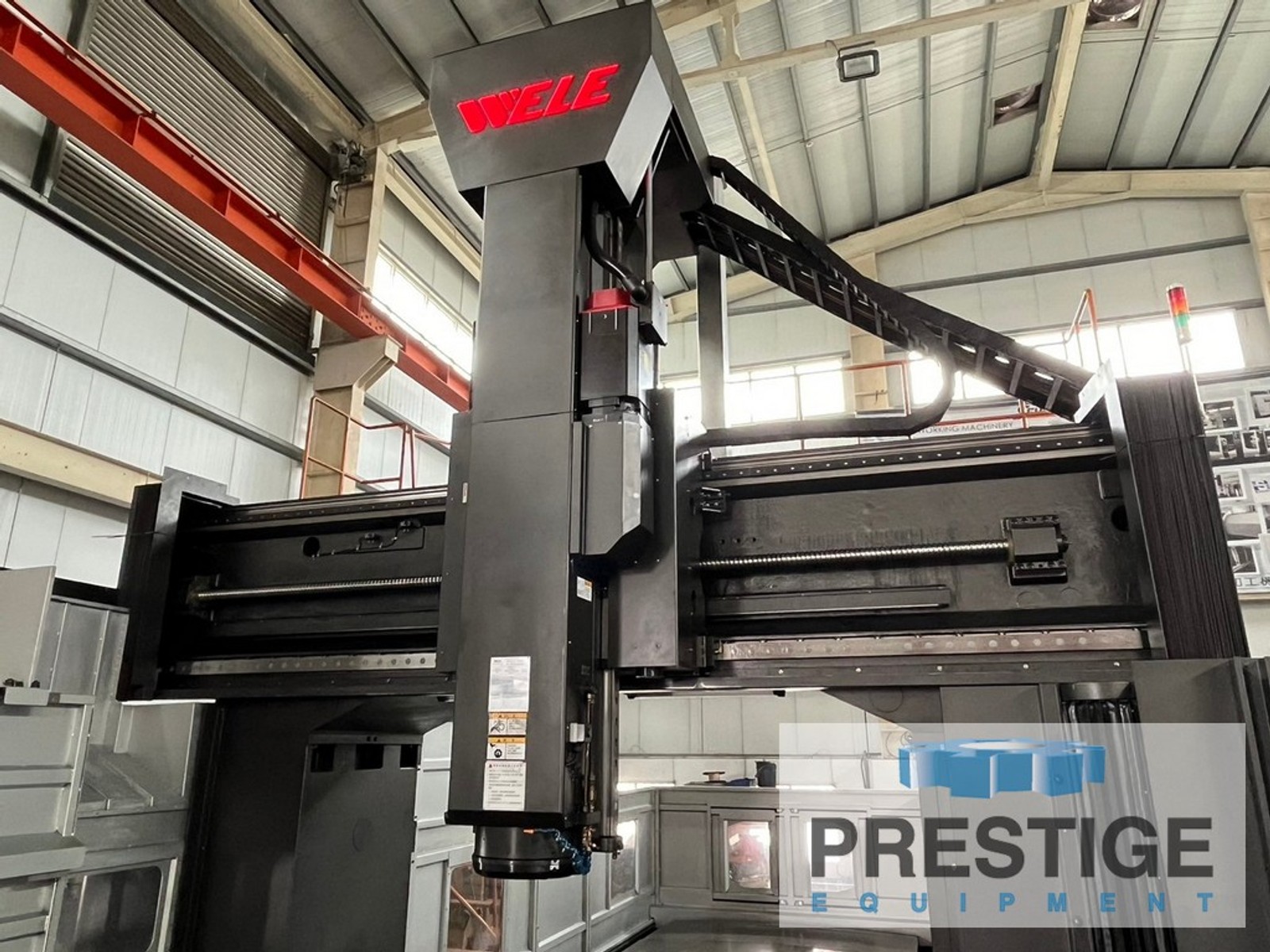

WELE CNC 5 FACE DOUBLE COLUMN MACHINING CENTER

Features:

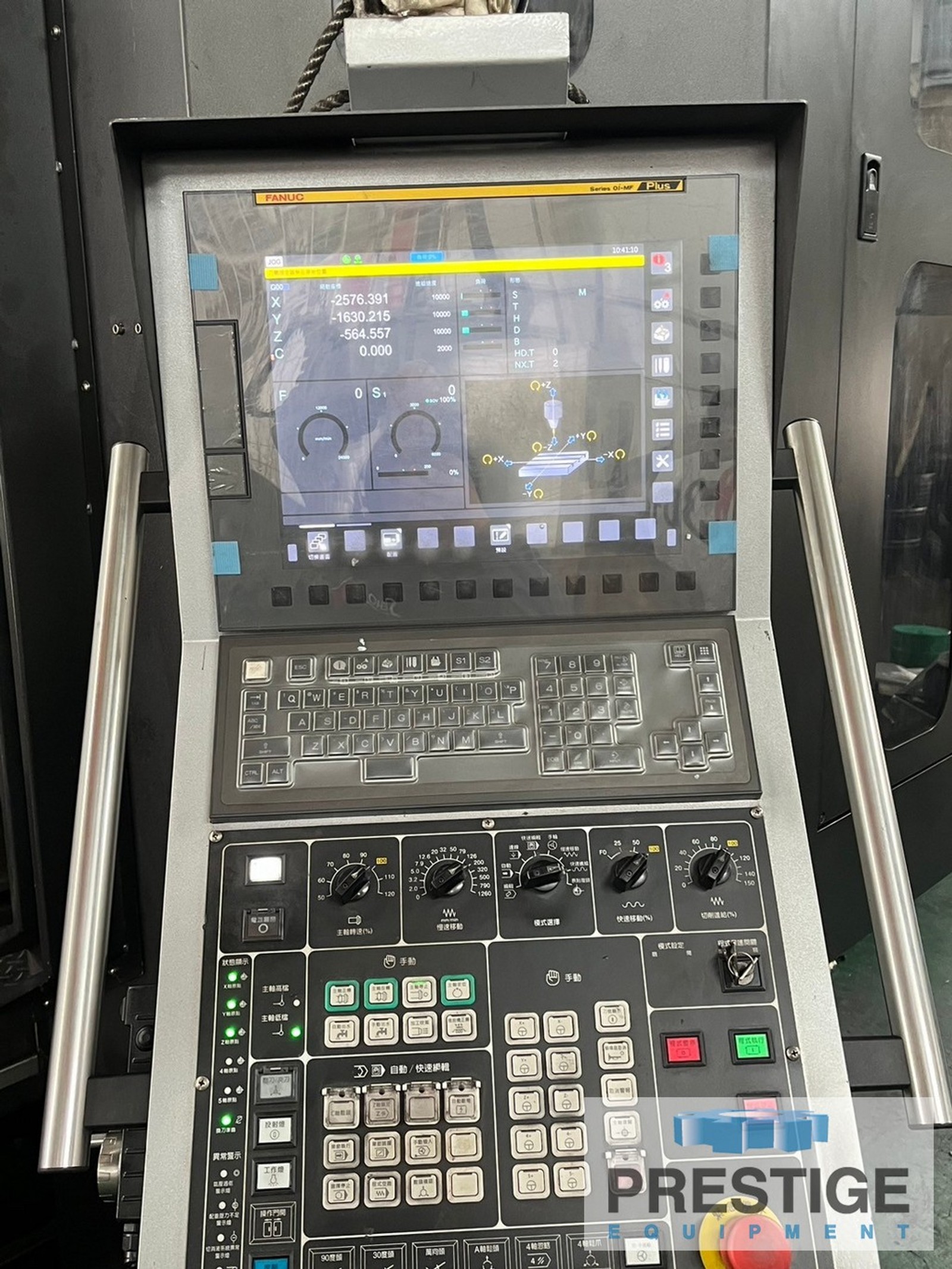

FANUC 0iMF Plus CNC Control w/ 15" LCD Screen
60-Station Automatic Tool Changer
Automatic Attachment Changer

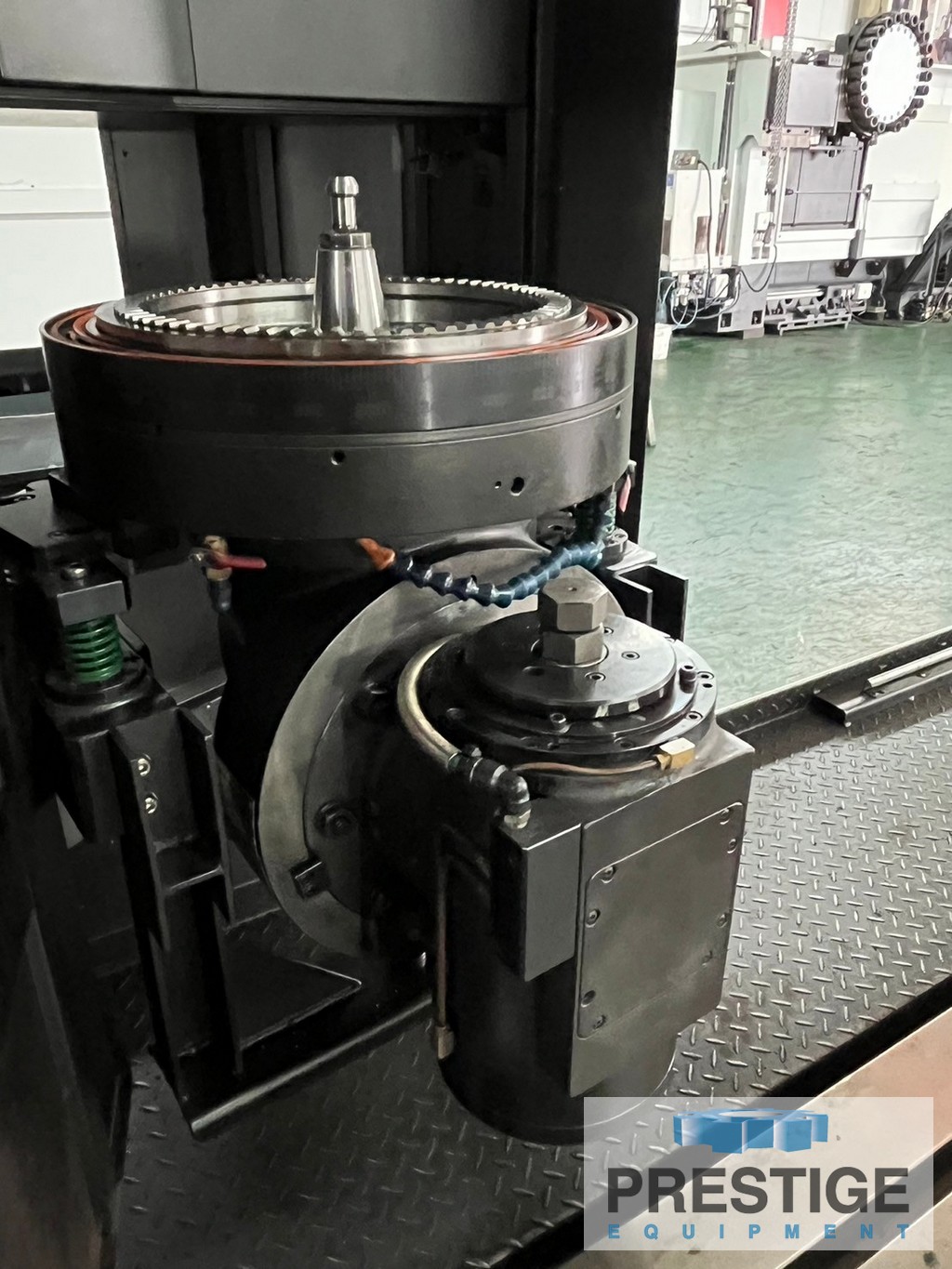

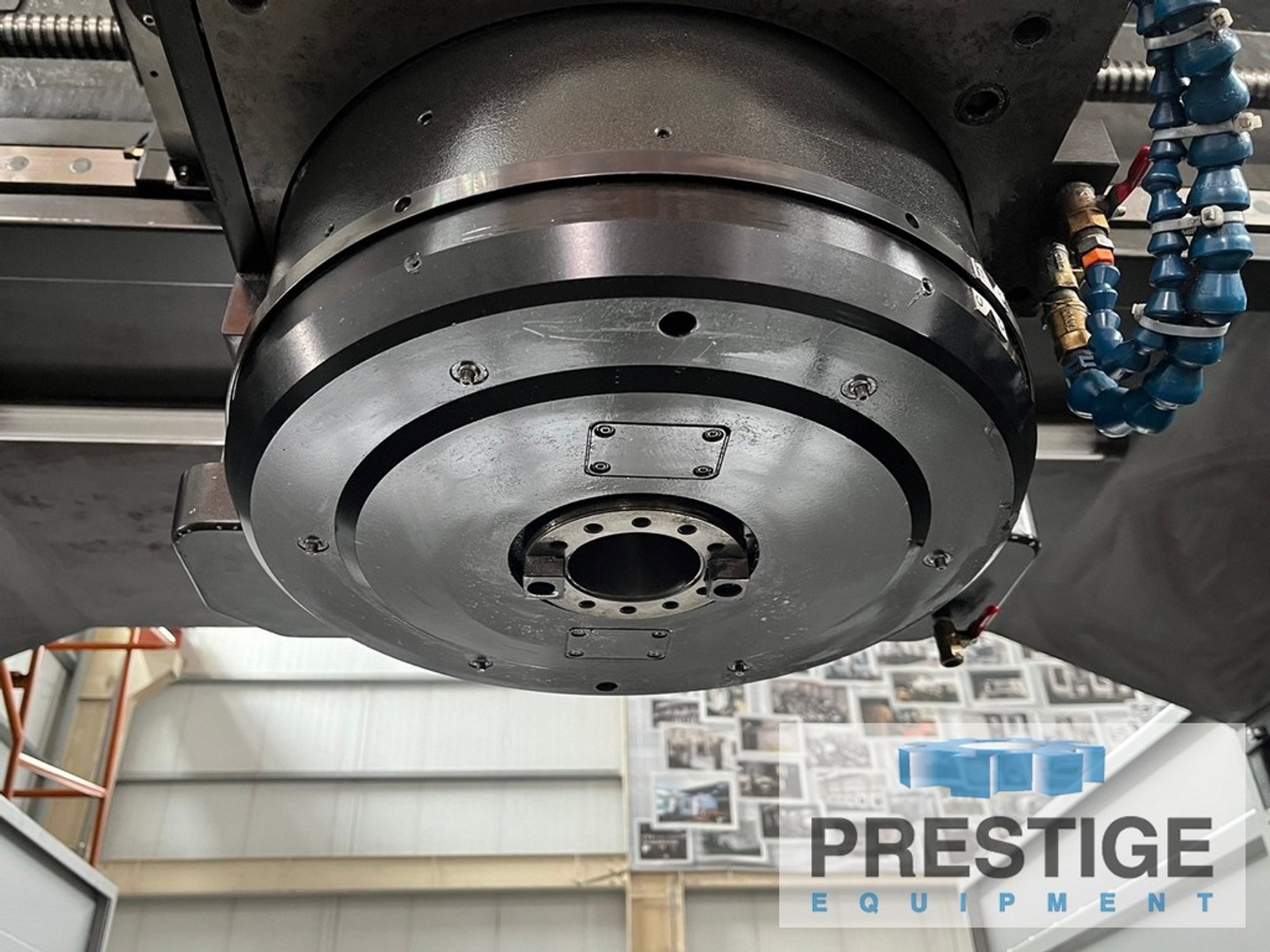

CNC Universal Head
CNC Right Angle Head
X/Y/Z axis linear scales
Air conditioner

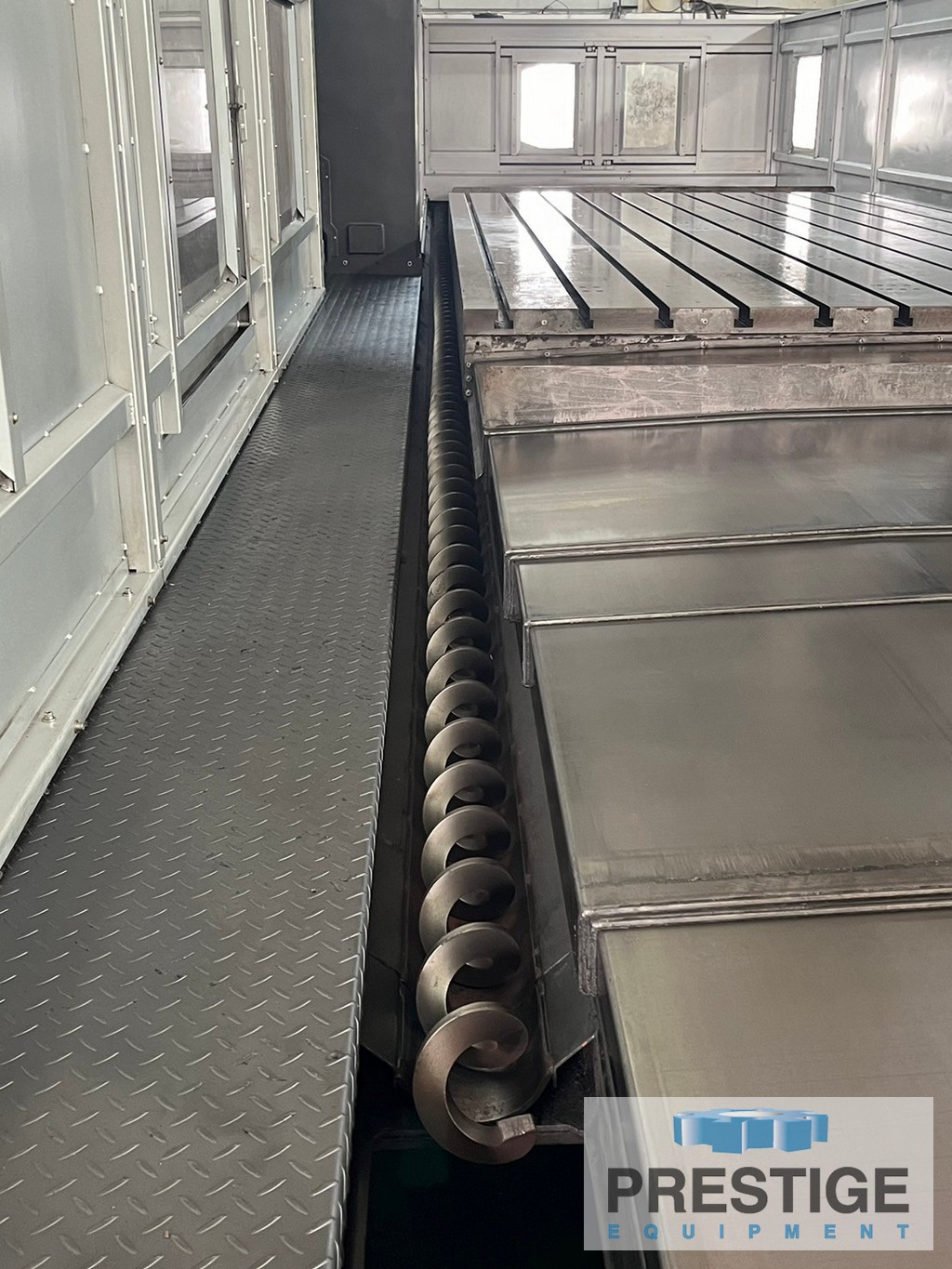

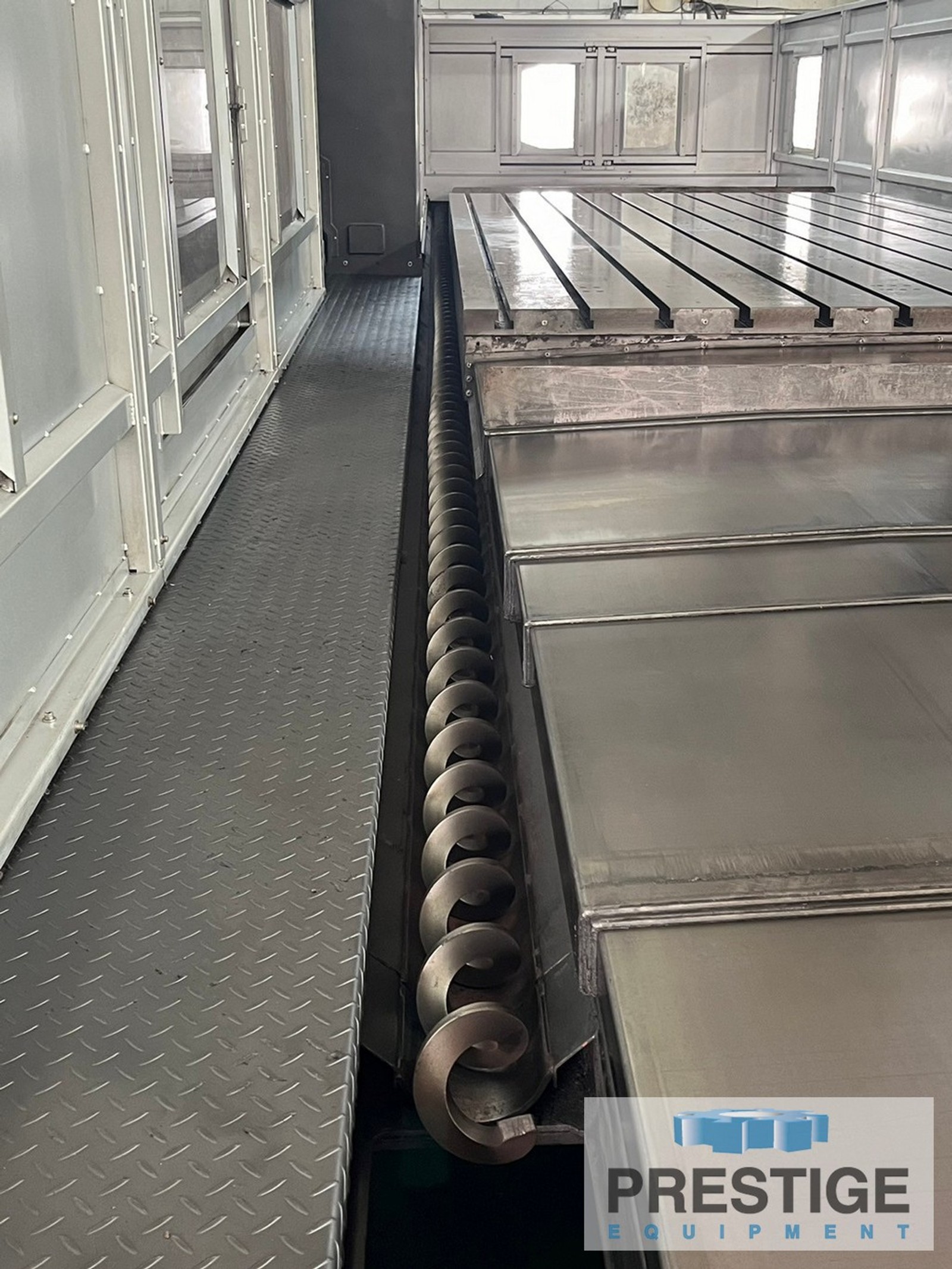

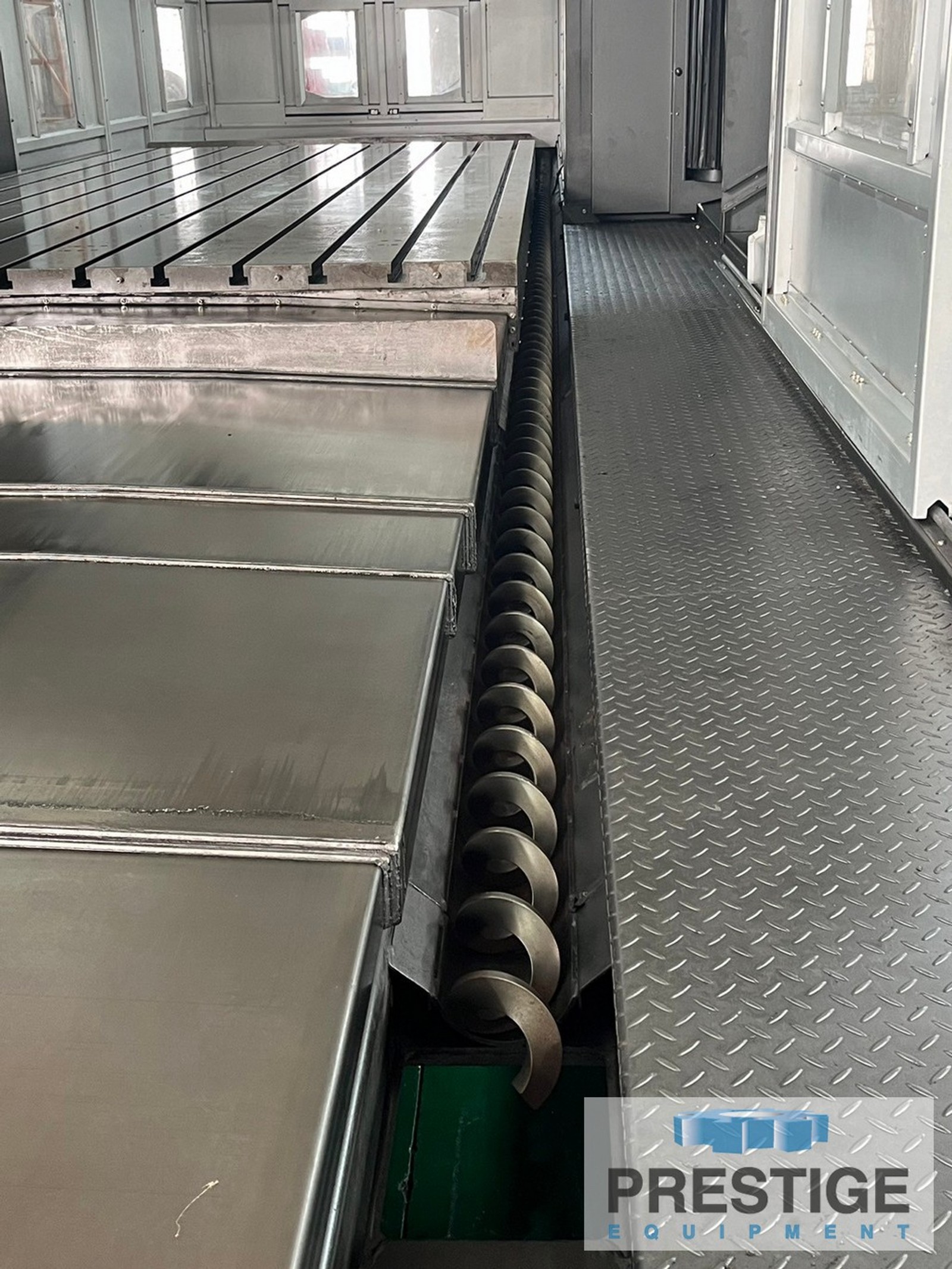

Chip conveyor

Specifications:
Table Travel, X-Axis .................. 199.21"
Head Travel, Y-Axis ................... 125.98"

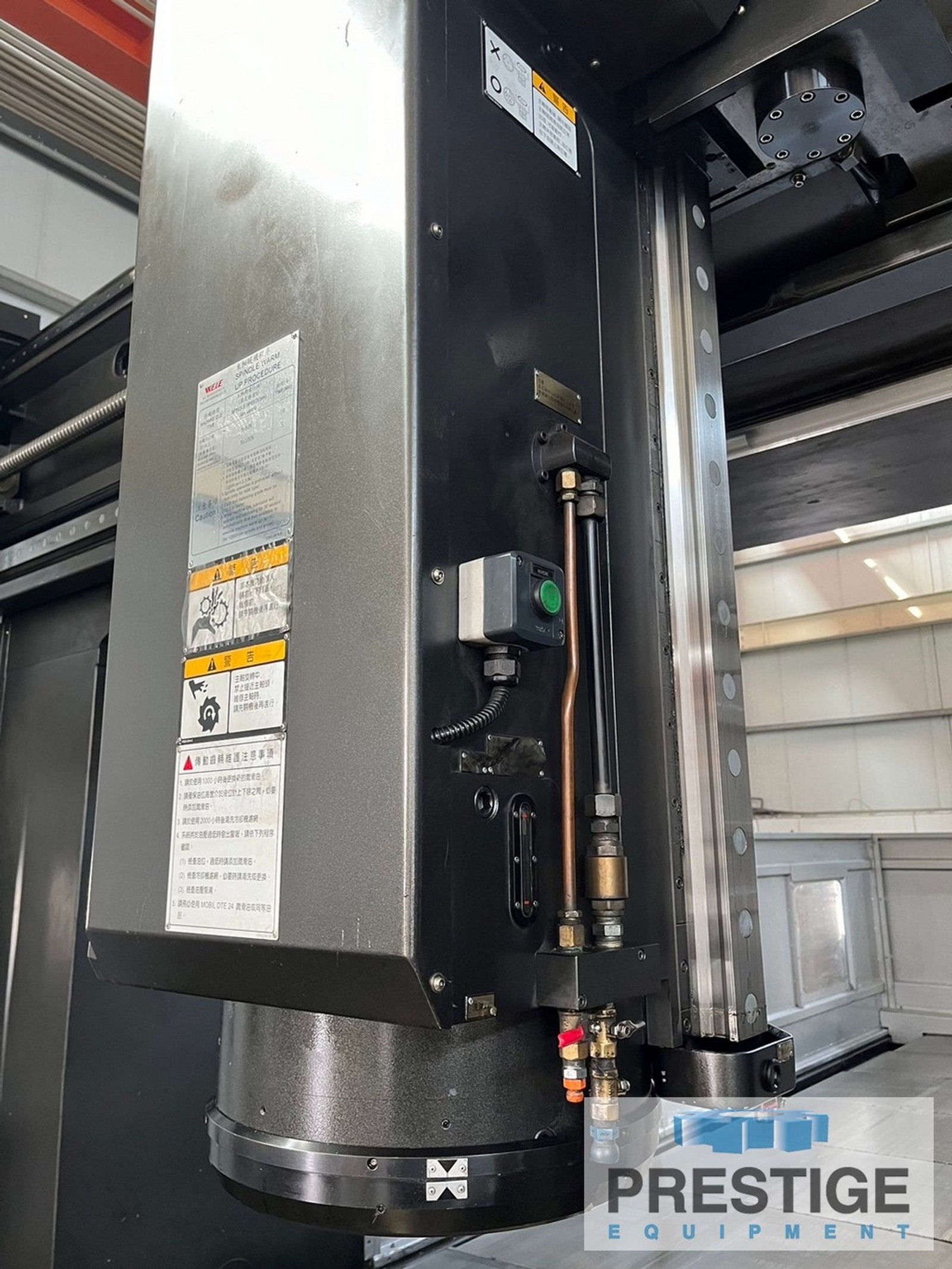

Ram Stroke, Z-Axis .................... 55.11"

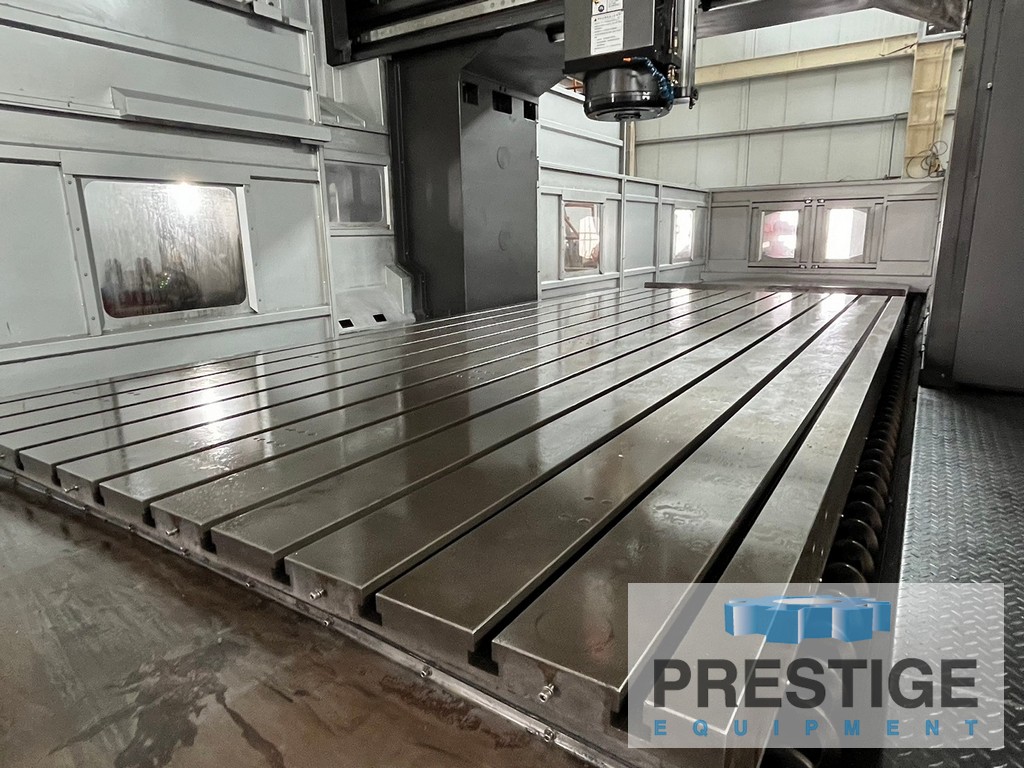

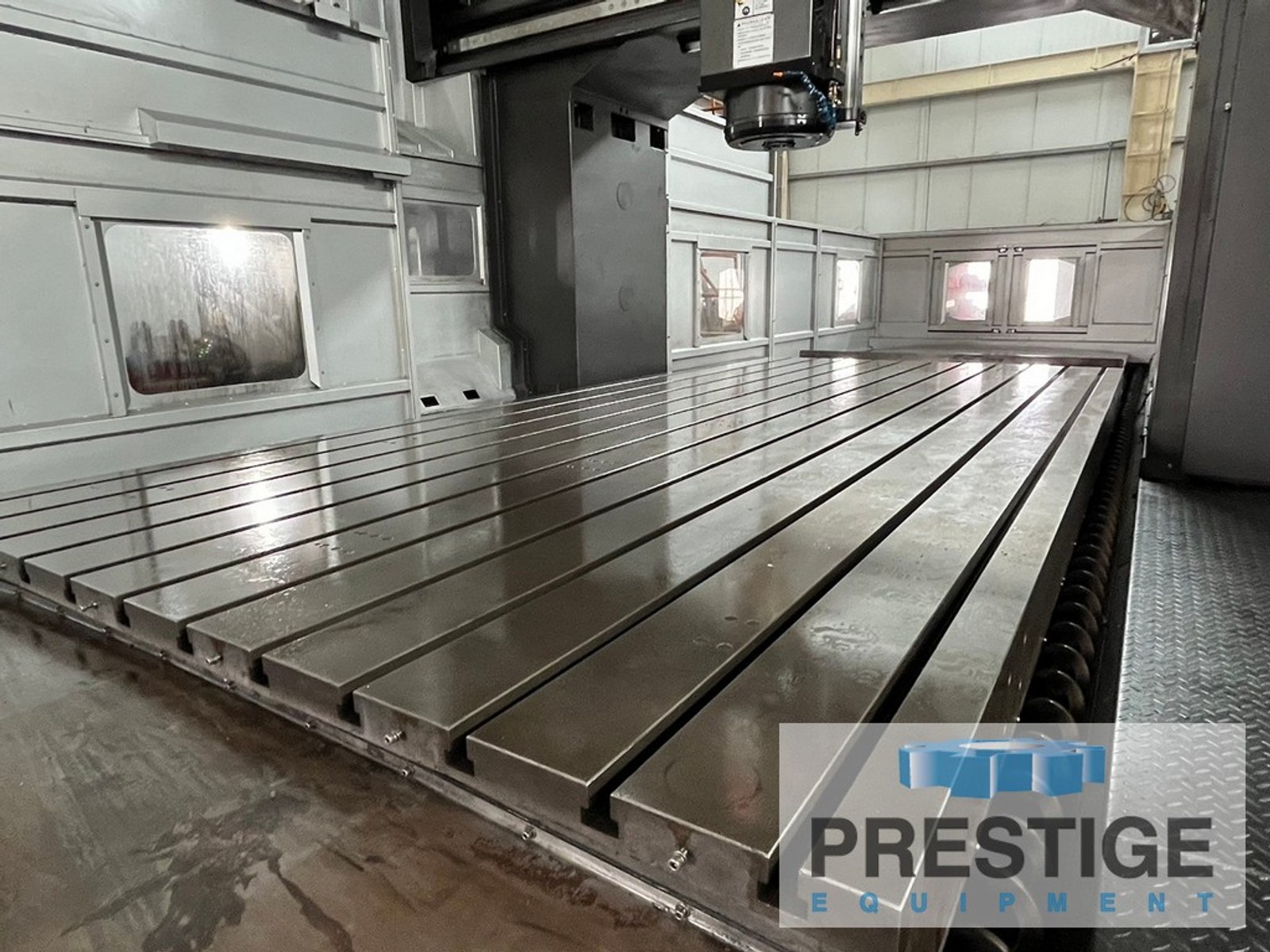

Table size ............................ 196.85" x 94.98"
Distance Between Columns .............. 106.29"
Spindle nose to table surface, Min .... 7.87"
Spindle nose to table surface, Max .... 62.99"
Spindle Speed, Gear Driven ............ 6,000 RPM
Spindle Taper ......................... BBT-50
Tool Changer .......................... 60-Stations

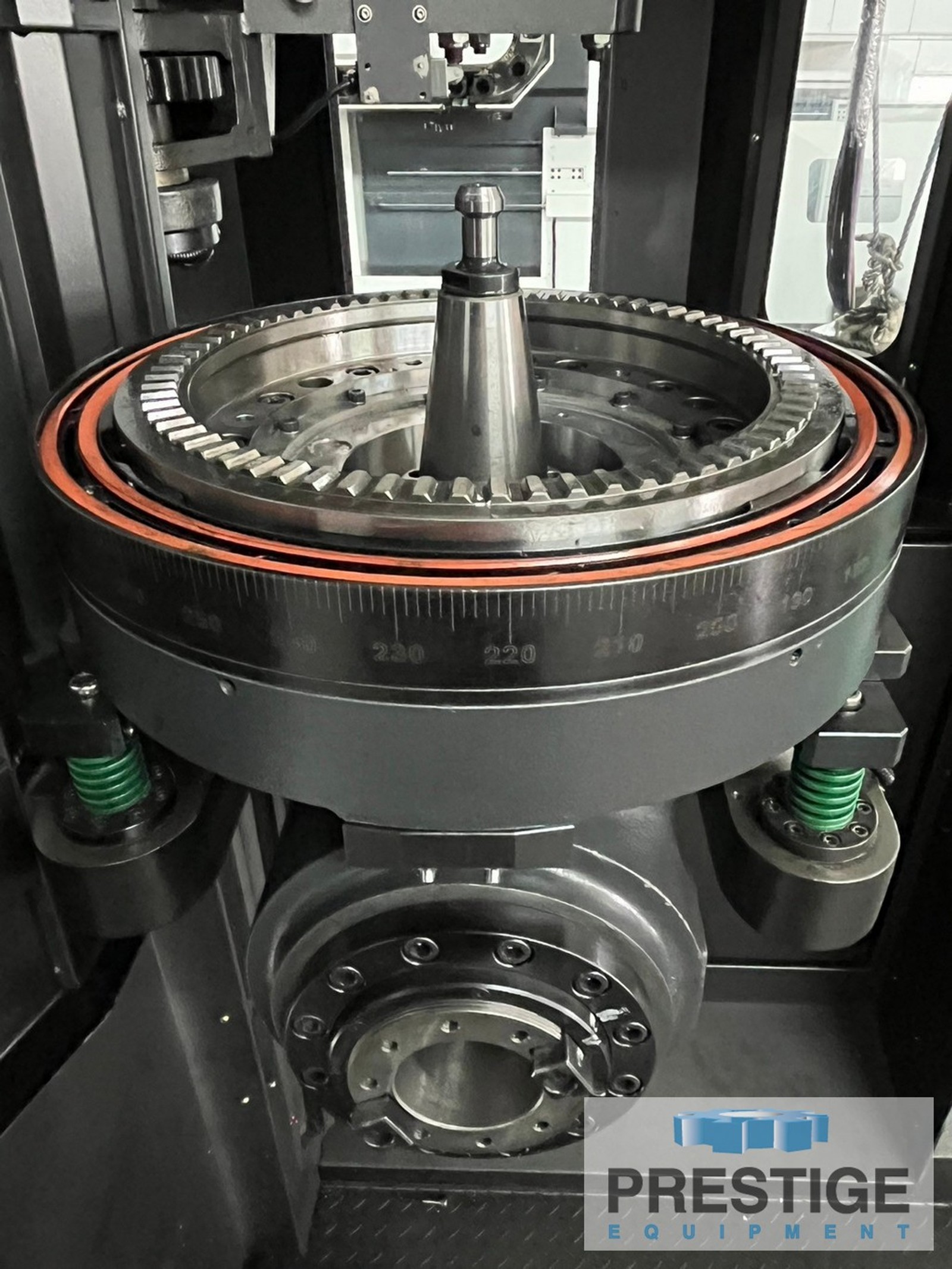

Universal Head:
C axis, Indexing ..................... 5 Degree (Auto)
A axis, Indexing ..................... 5 Degree (Manual)

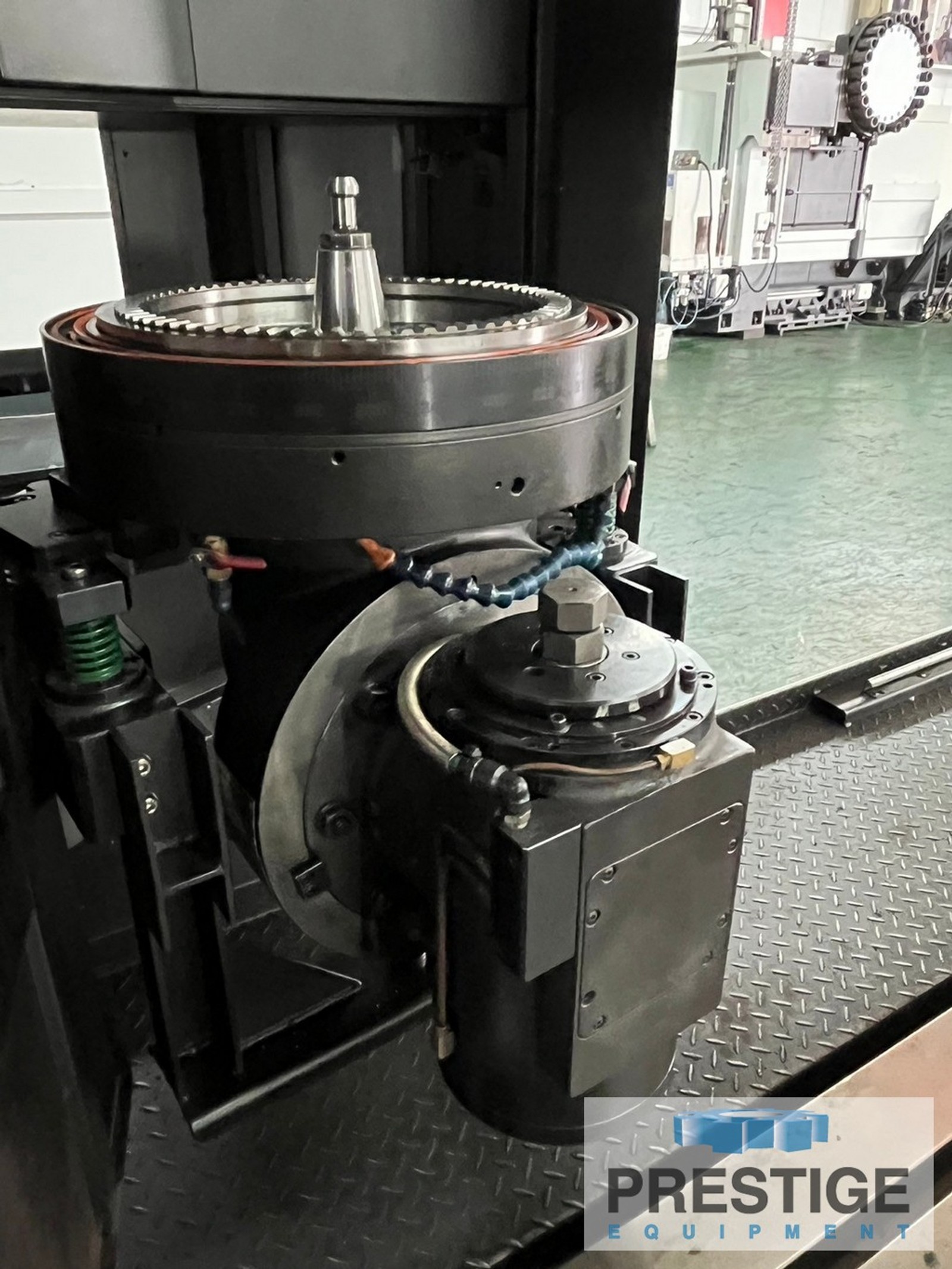

Right Angle:
C axis, Indexing ...................... 5 Degree (Auto)

Equipped With:
FANUC 0iMF Plus CNC Control w/ 15" LCD Screen
60-Station Automatic Tool Changer
Automatic Attachment Changer
CNC Universal Head
CNC Right Angle Head
X/Y/Z axis linear scales
Air conditioner
Chip conveyor
