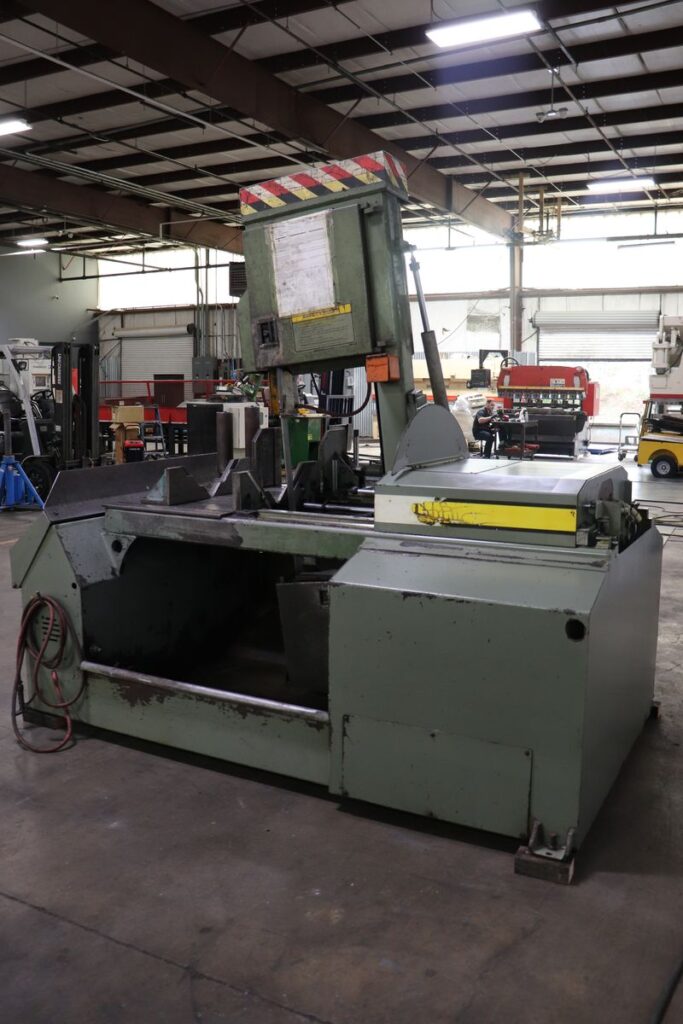

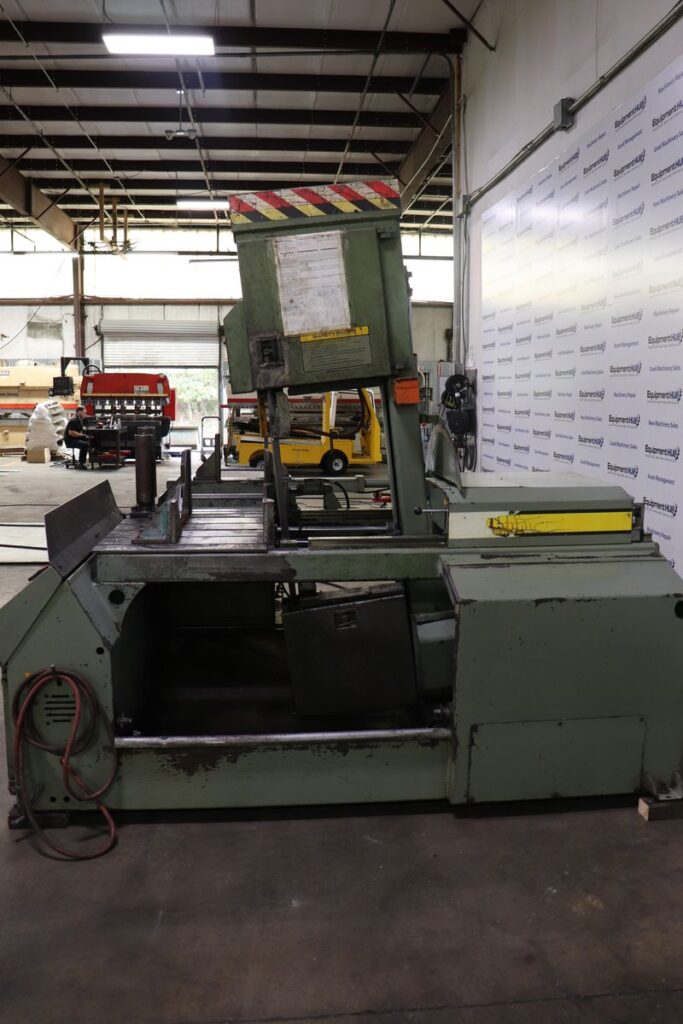

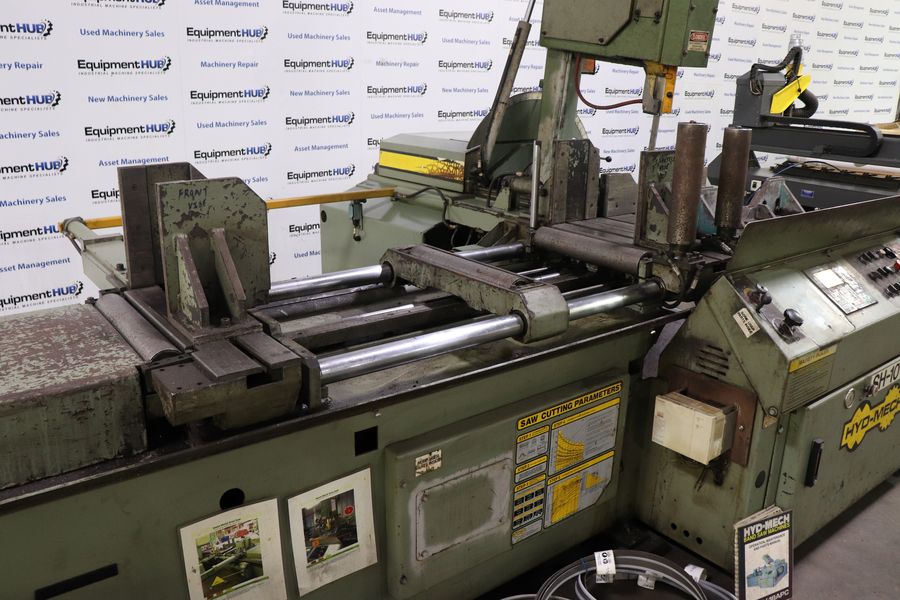

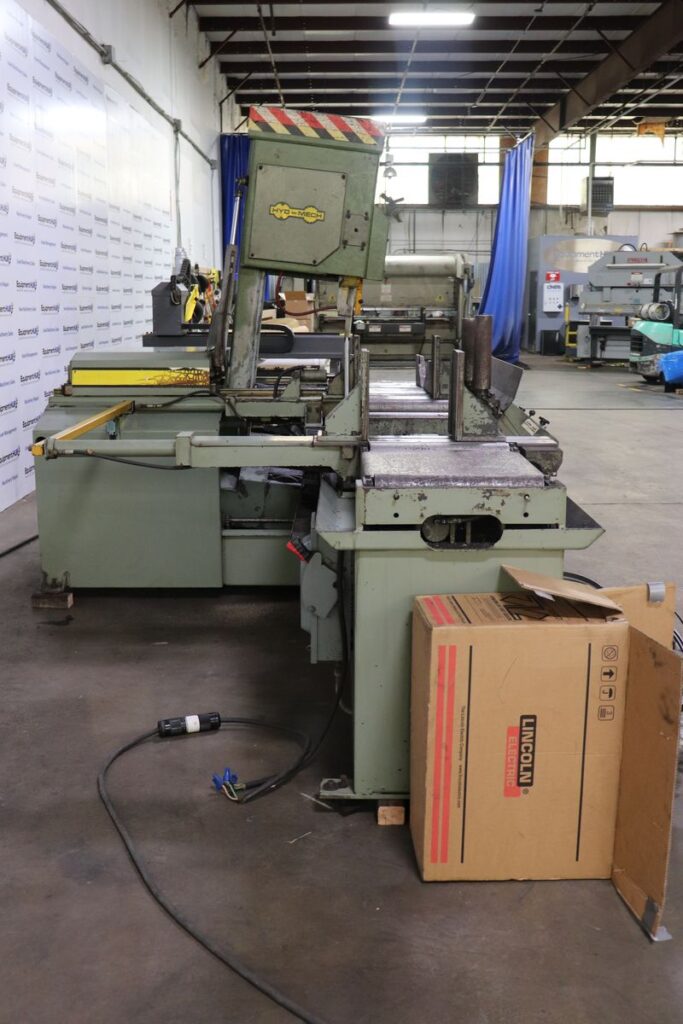

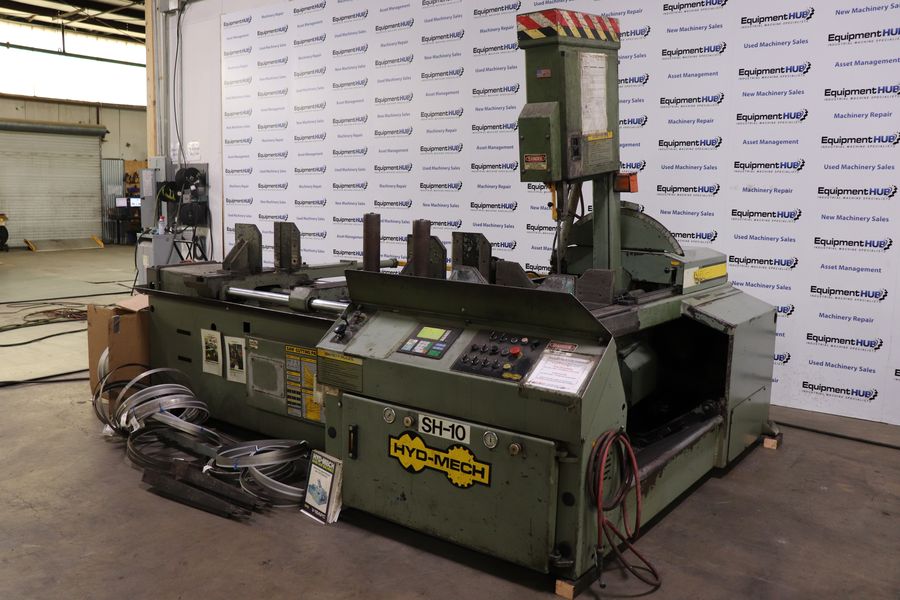

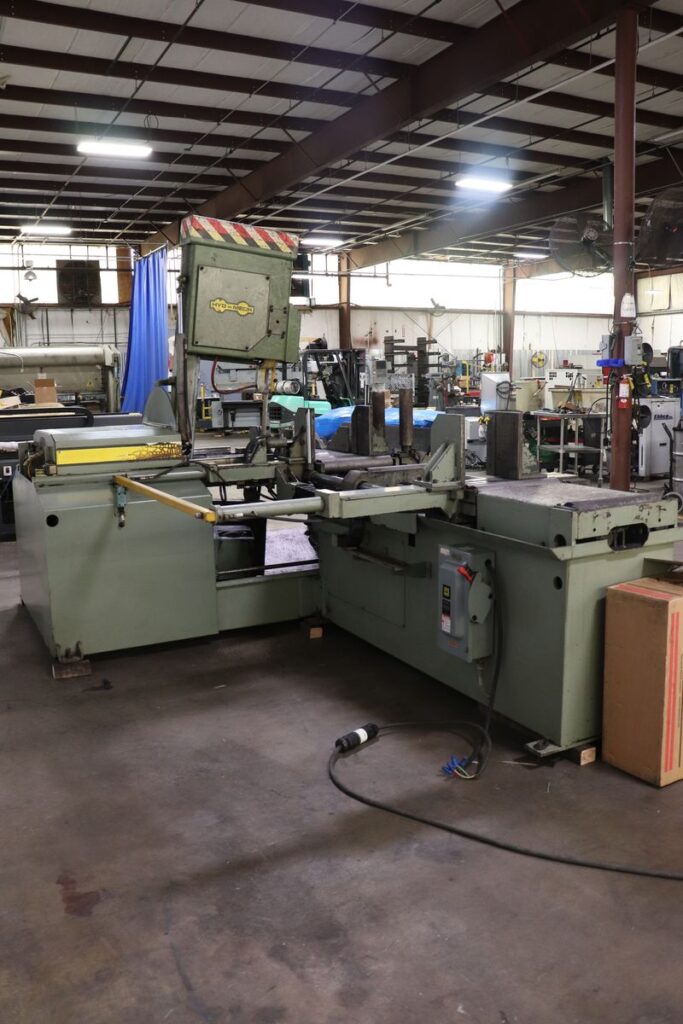

Hyd-Mech V-18APC 18″ x 20″ Automatic Vertical Tilt Frame Band Saw

Manufacturer

Hyd-Mech

Category

Saws

Type

SAWS, BAND, HORIZONTAL

Stock

170240026

Model

V-18APC

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 170240026
  • Location: Stone Mountain, GA
  • Brand: Hyd-Mech
  • Model: V-18APC
  • Approx. Shipping Weight: 8,000 Lbs.
  • Approx. Shipping Dimensions: 144″ L x 103″ W x 102″ H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Cutting Capacity @ 90 Degree: 18″ x 20″
  • Cutting Capacity @ 45 Degree Left or Right: 13″
  • Blade: 1-1/4″ x 14’6″ x .042″
  • Blade Speed: 65 – 385 SFM

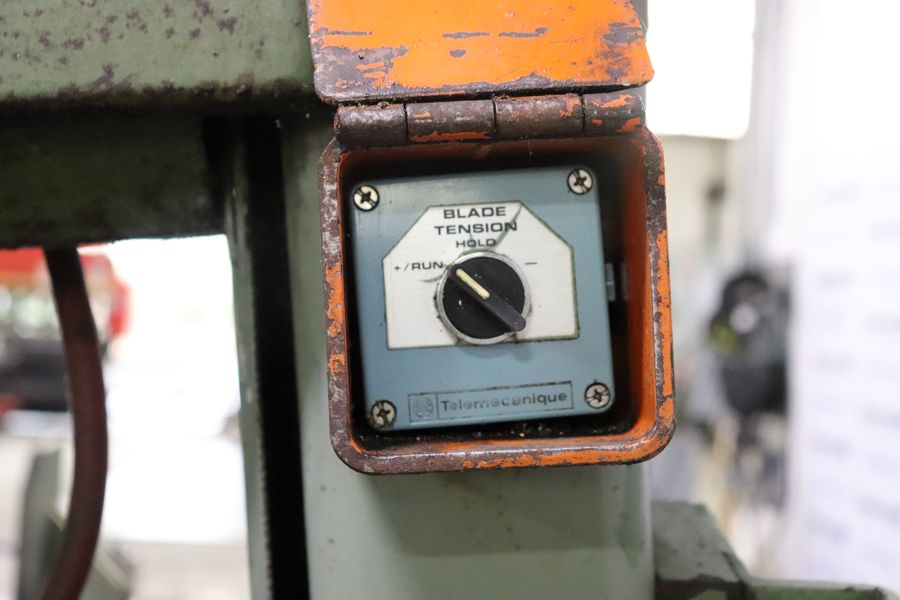

  • Blade Tension: Hydraulic
  • Blade Guides: Carbide
  • Wheel Diameter: 19″
  • Motors: 5HP Blade Drive, 2HP Hydraulic Drive

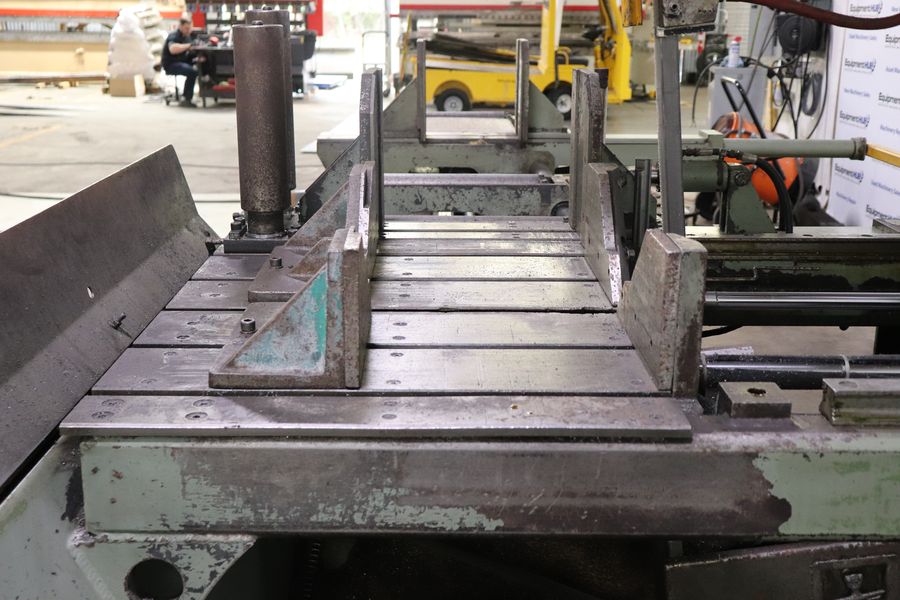

  • Vises: Hydraulic Full Stroke
  • Head Swing: Hydraulically Positioned and Locked. Full 45 Degree Left or Right
  • Table Height: 38″
  • Feed System: Hydraulic Variable Pressure, 0 – 300 PSI, Independent Feed Rate 0 – 15 IPM
  • Guide Arm: Hydraulically Positioned and Locked
  • Electrical: 460V/3PH

Equipped With

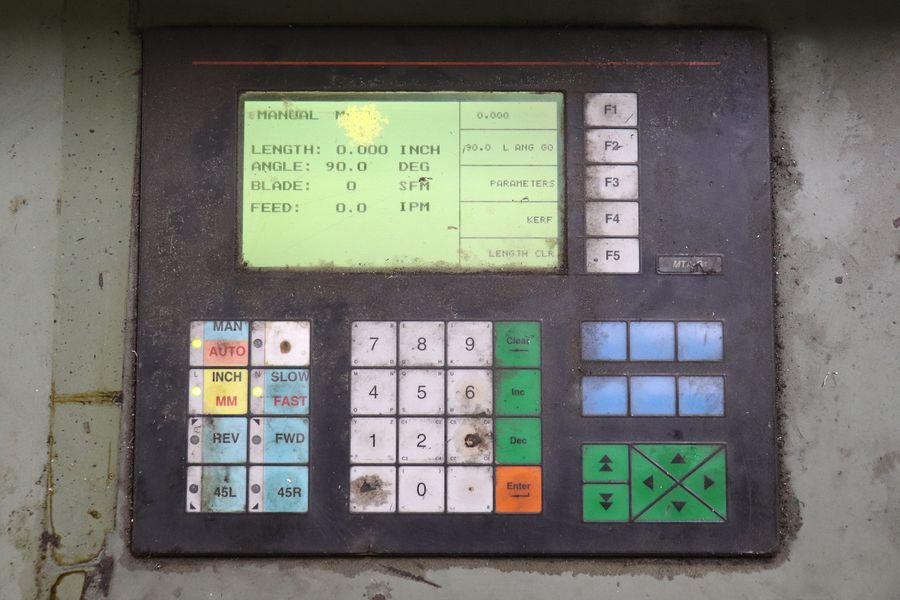

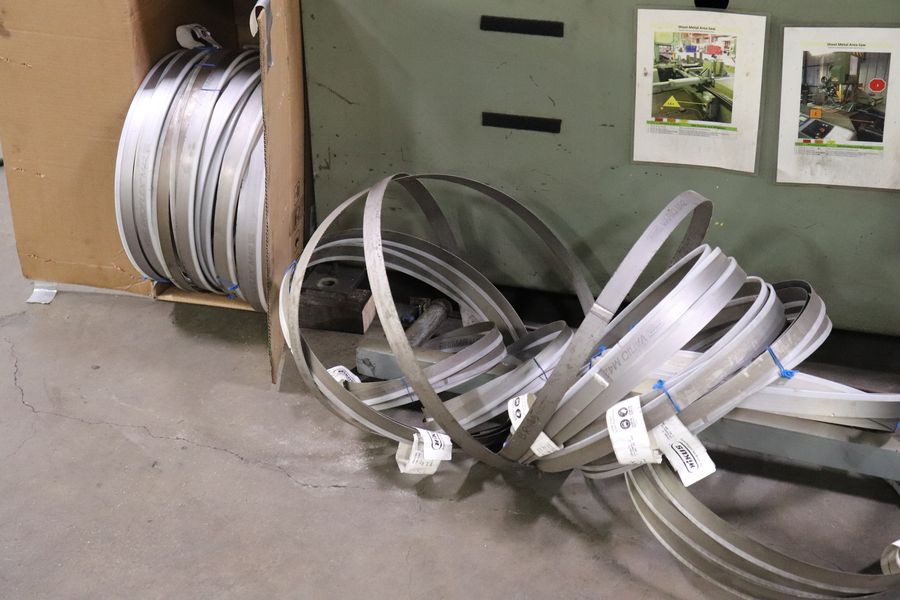

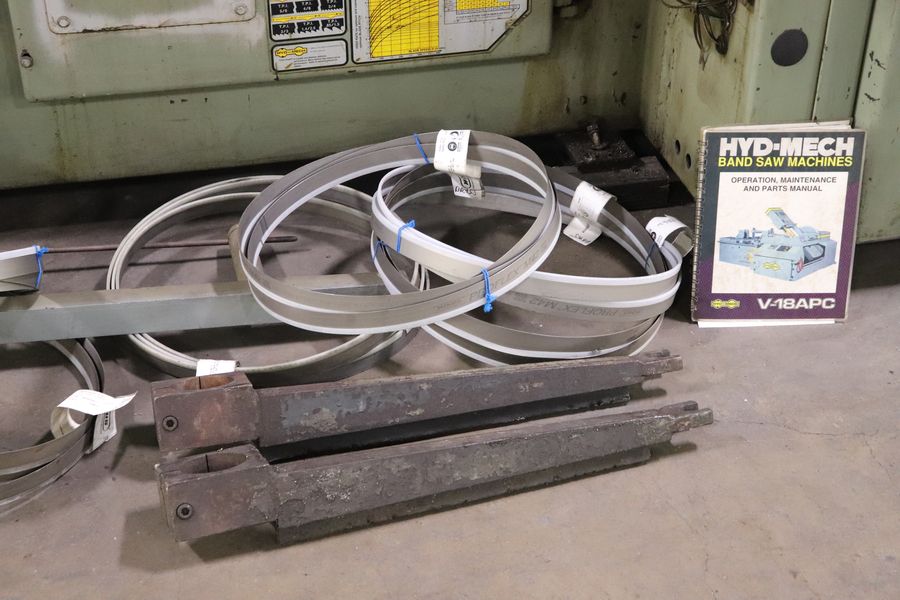

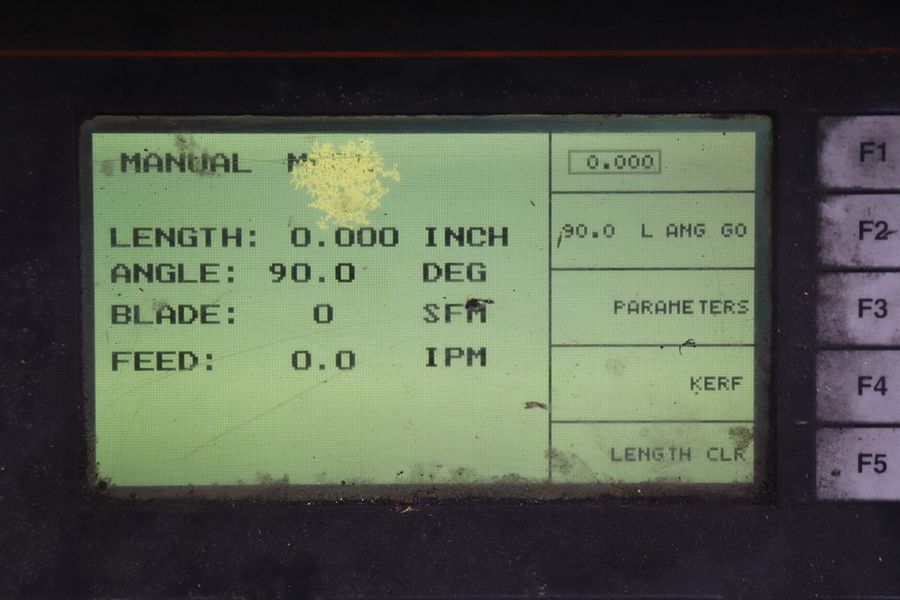

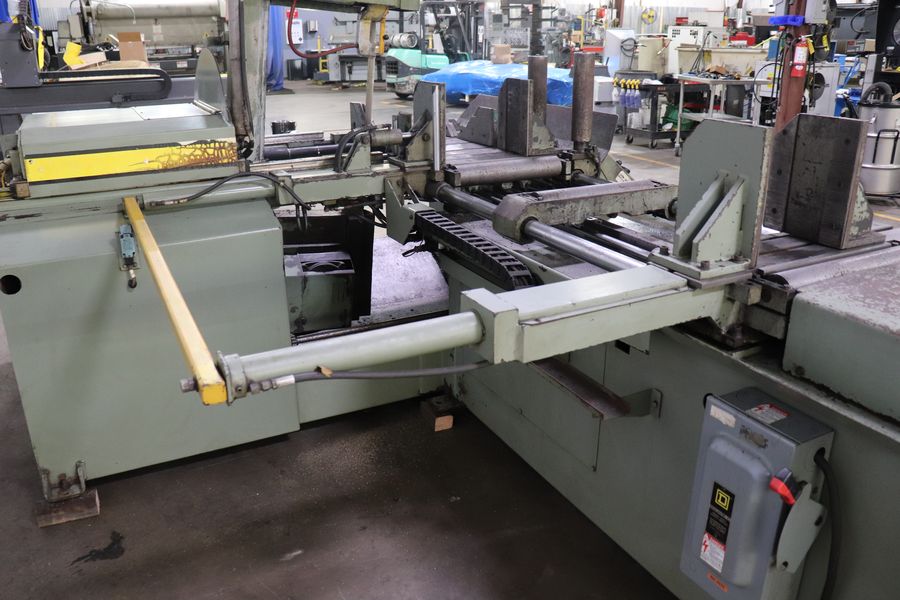

Hydraulic activated mechanical head brake, linear bearings on bar feed, high speed PLC encoder that monitors head angular position, several saw blades, manual

Additional Info

The Hyd-Mech Saw can be demoed upon request. Check out the video on the listing to see it in operation.
