5.12" Giddings & Lewis RT1250, X-98", Y-82", Z-31", W-50", 49" x 63" B-Axis Rotab, 4000 RPM, TSC, Fanuc 310iA CNC, #43781

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43781

Model

RT1250

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43781

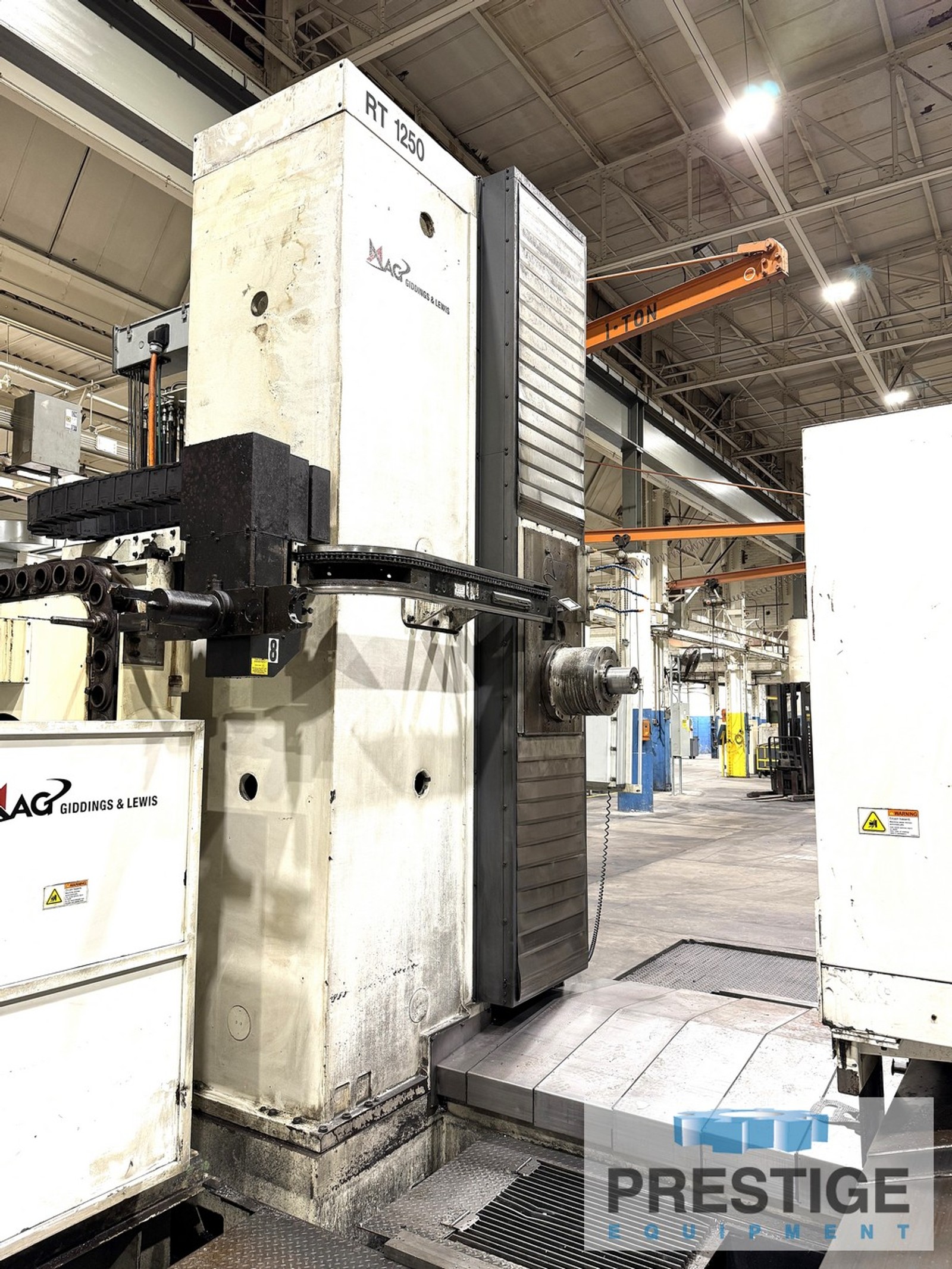

Giddings & Lewis RT1250 5.1" CNC Horizontal Boring Mill

FEATURES
Fanuc 310i CNC Control
60-Position Automatic Tool Changer
Built-In B-Axis Contouring Rotary Table
Thru-Spindle Coolant
Renishaw Part Probe System

SPECIFICATIONS:

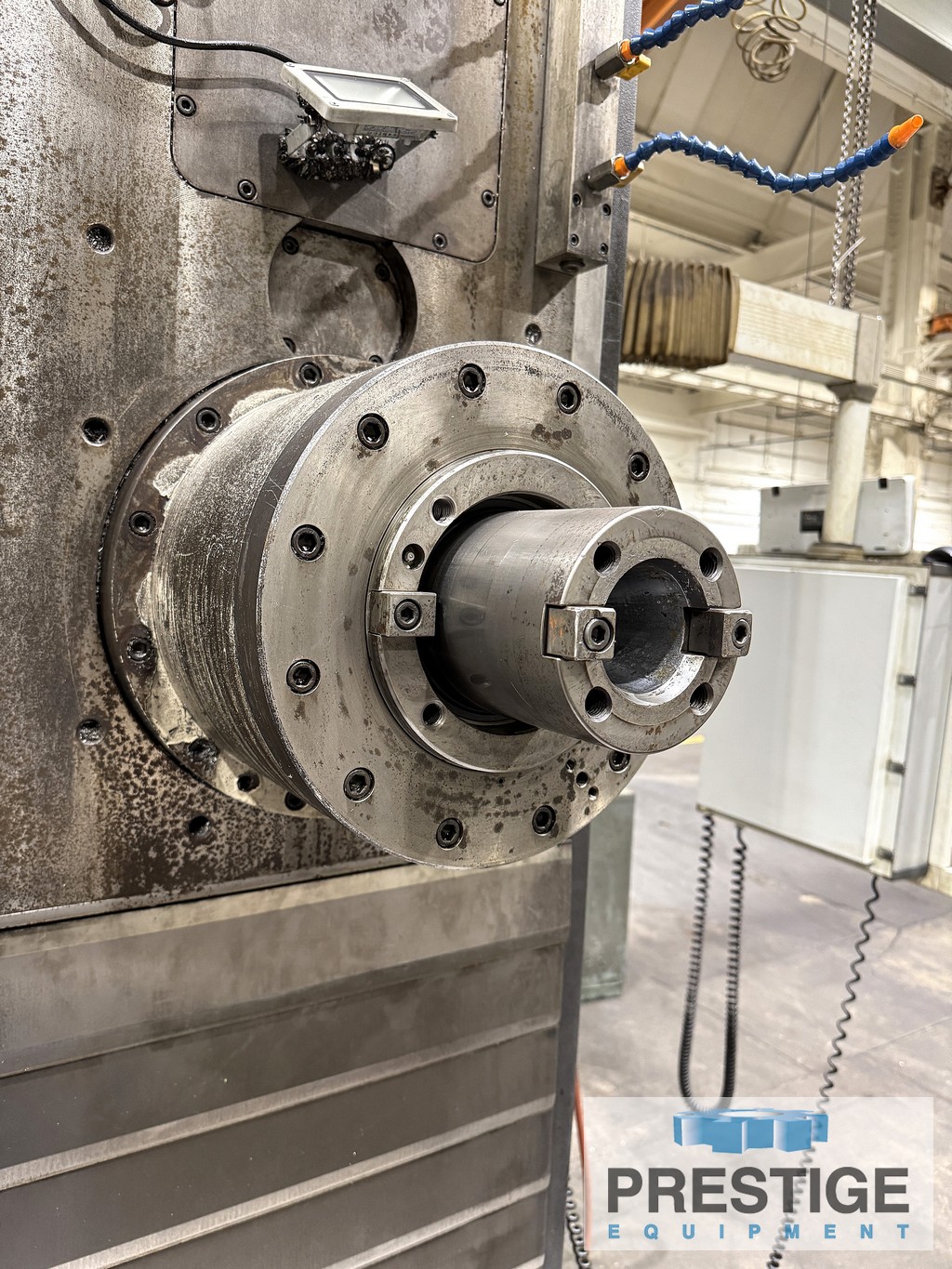

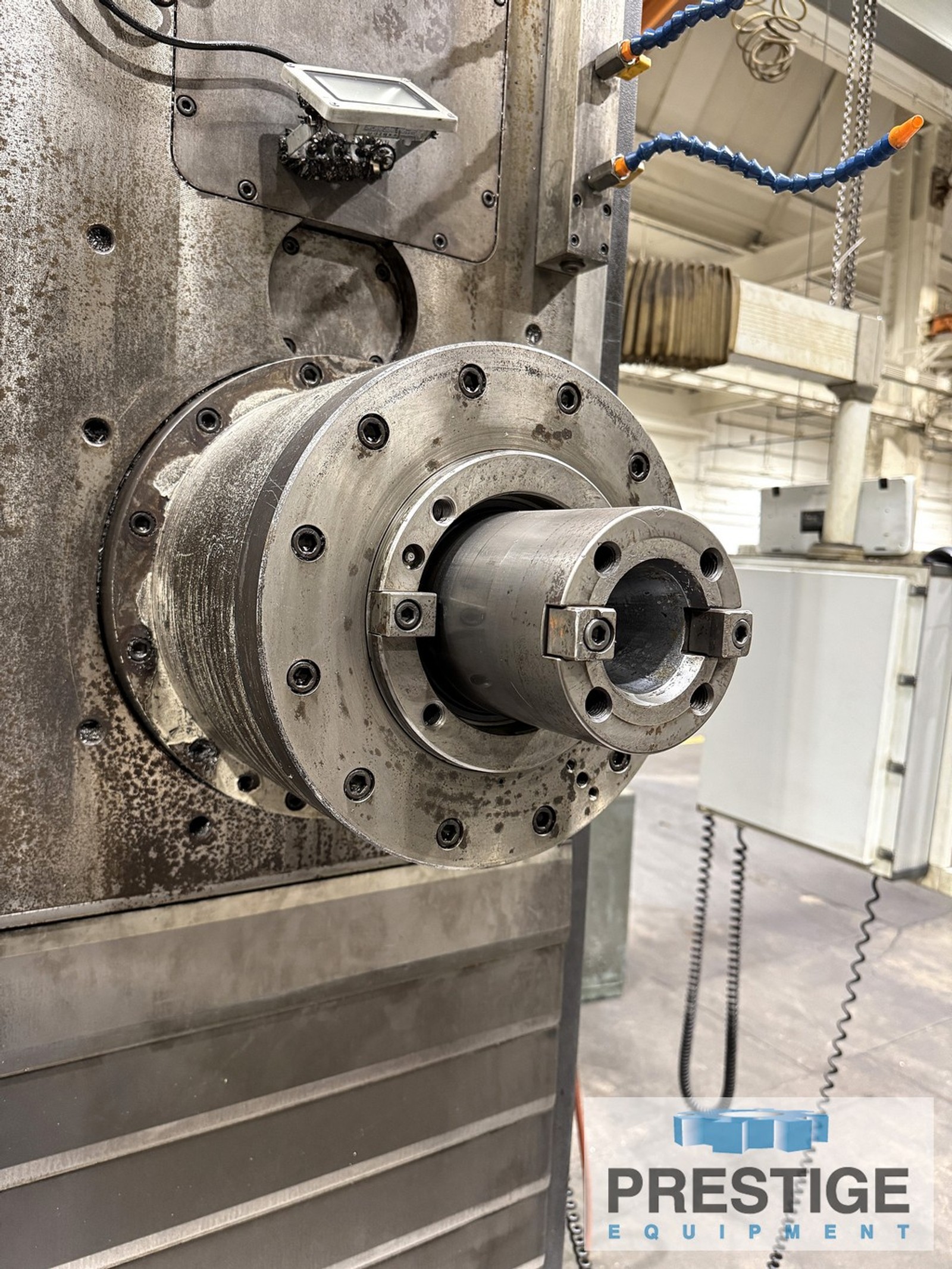

Spindle Diameter ...................... 5.1"
Taper In Spindle ...................... Cat 50
Vertical Head Travel, Y-Axis .......... 82.7"
Vertical Head Travel, Above Table ..... 78.7"
Table Cross Travel, X-Axis ............ 98.42"
Saddle Travel, W-Axis ................. 59.05"
Spindle Travel, Z-Axis ................ 31.5"

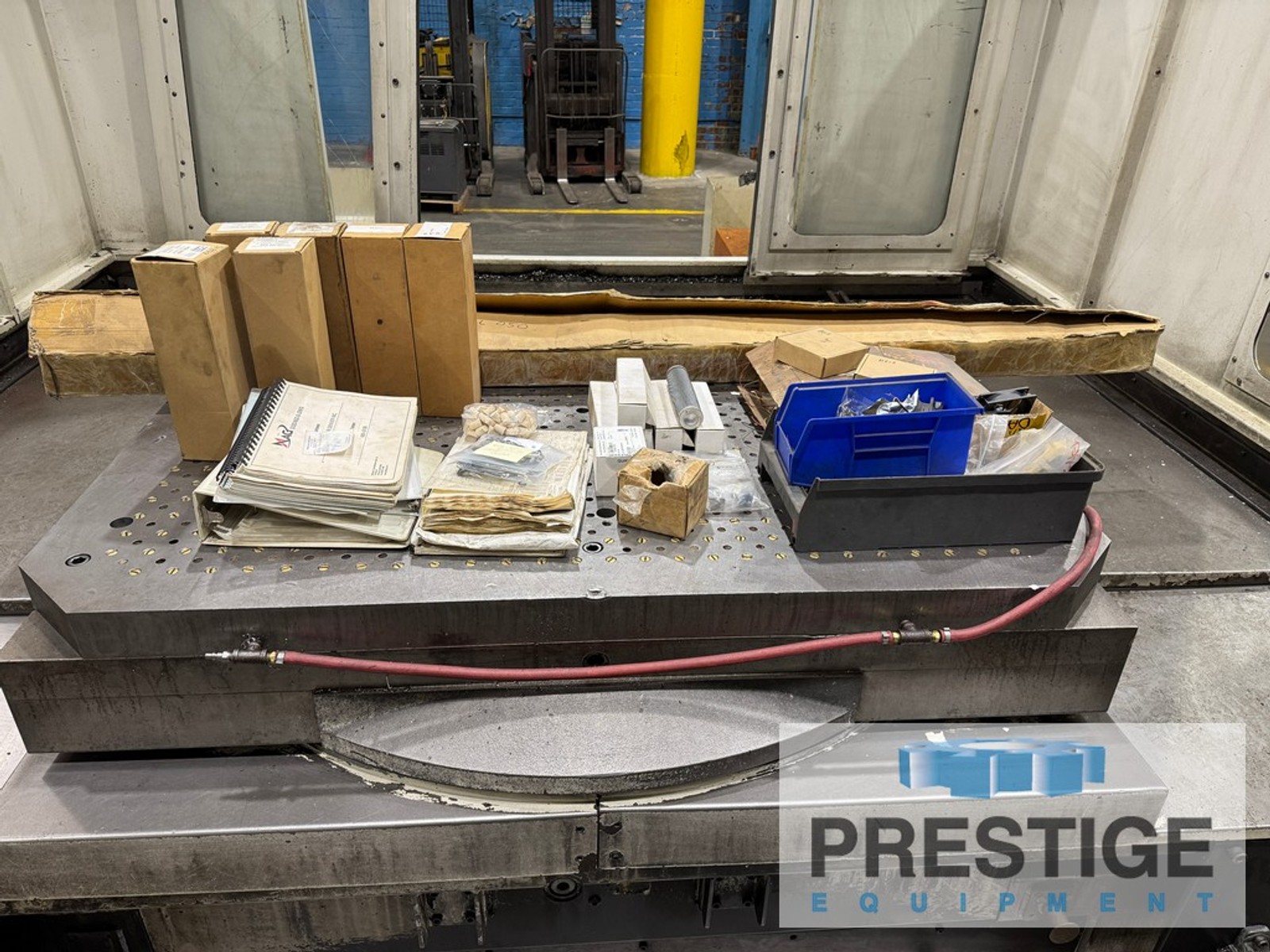

Table Size ............................ 62.99" x 49.2"
Table Rotation, B-Axis ................ .001 Degrees
Table Rotation ........................ 6 RPM
Table Load Capacity ................... 33,100 Lbs
Spindle Speeds ........................ 1-4000 RPM
Speed Ranges .......................... 2
Spindle Motor ......................... 40 HP / 60 HP
Rapid Traverse, X,Y,Z & W ............. 985 IPM
Floor Space W x D ..................... 240" x 300"
Overall Height ........................ 197"
Approximate Weight .................... 70,000 Lbs

EQUIPPED WITH:

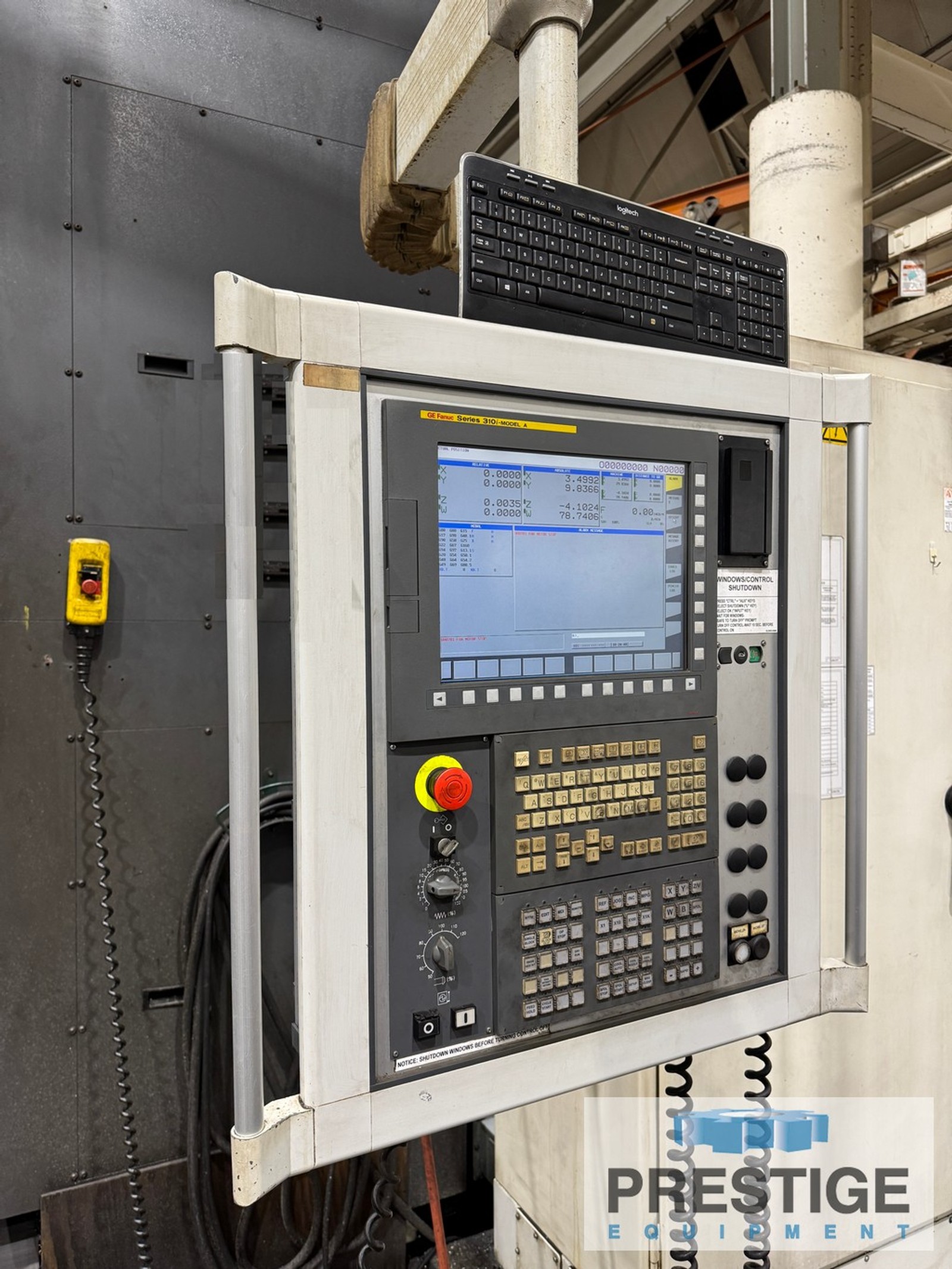

Fanuc 310i CNC Control w/ 15" LCD Monitor
Software for CH Facing Heads & Programmable Boring Bars
Rigid Tapping
Renishaw Part Probe System

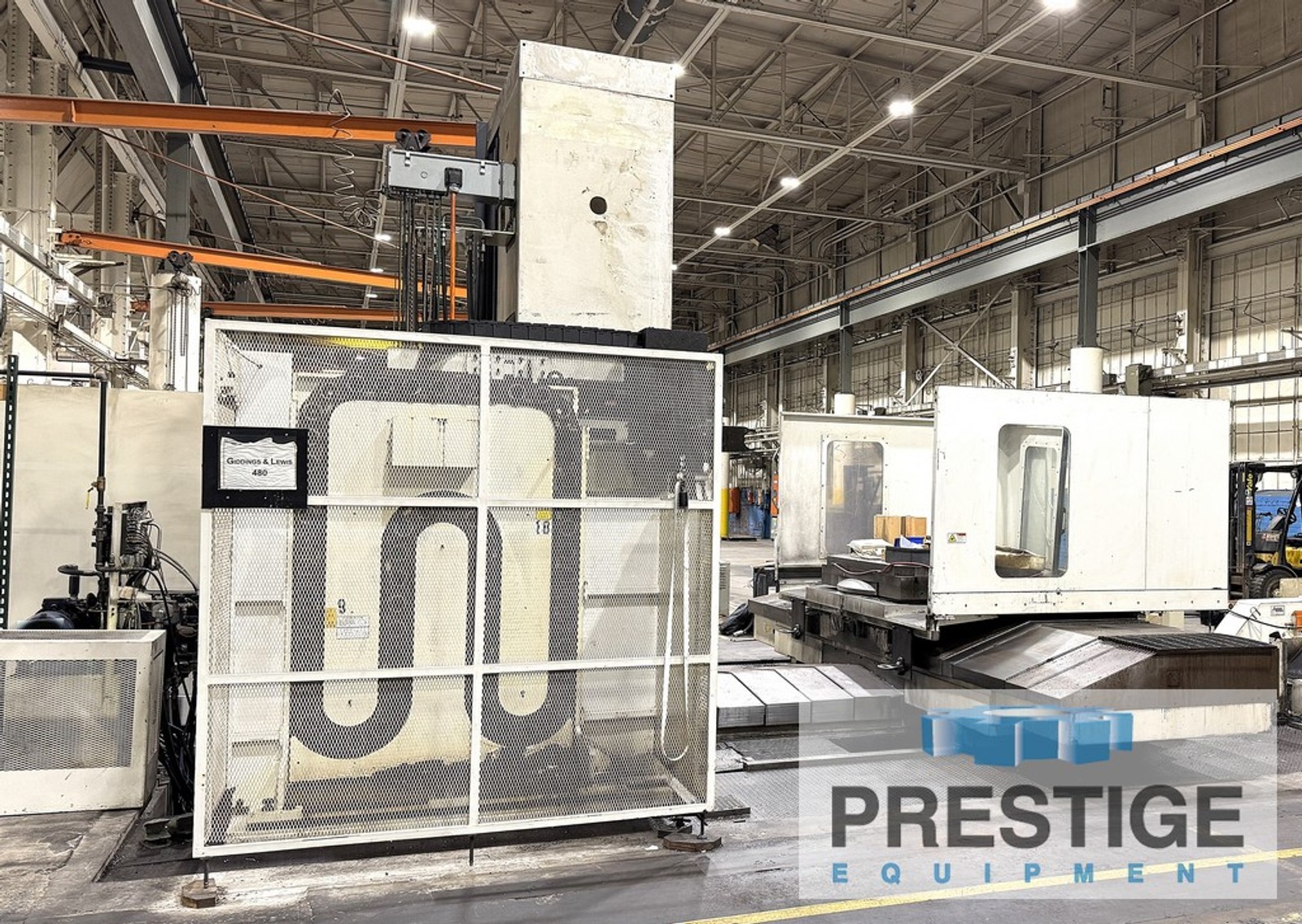

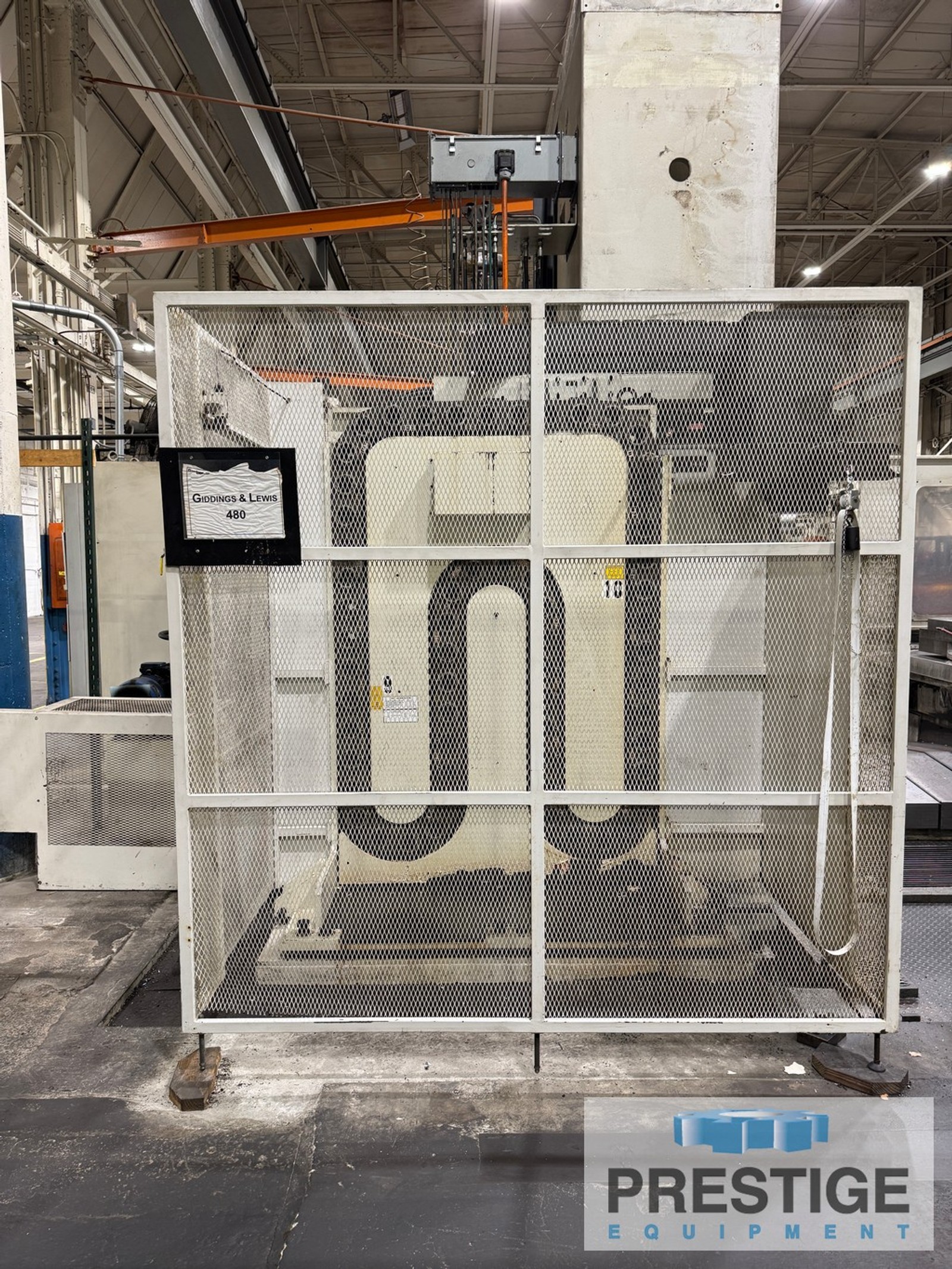

60 Station Automatic Tool Changer
Coolant-Thru Spindle
Manual Cam Lock Latch Coupler For Attachments

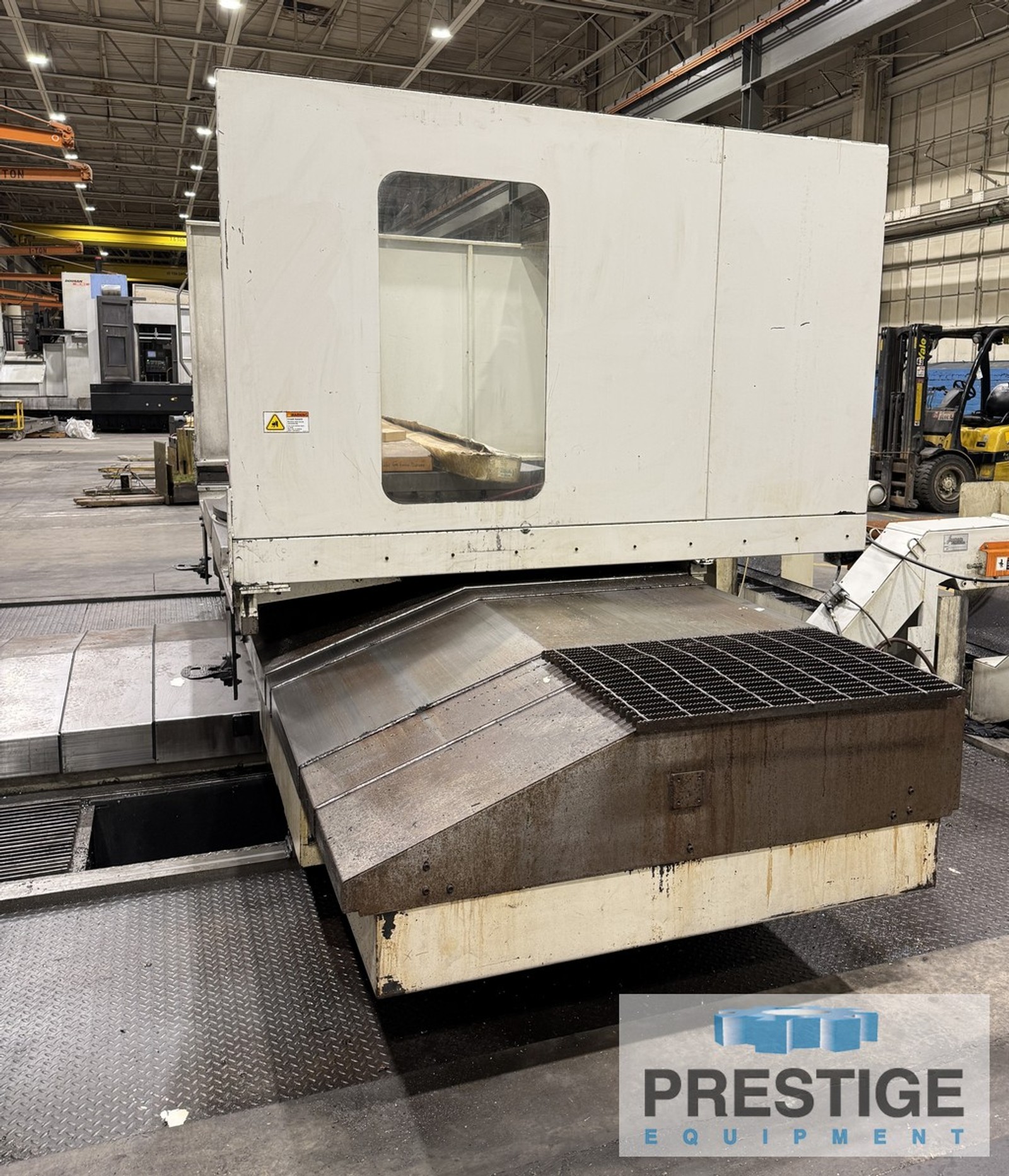

Full Coolant & Chip Enclosure
Steel Telescoping Way Covers

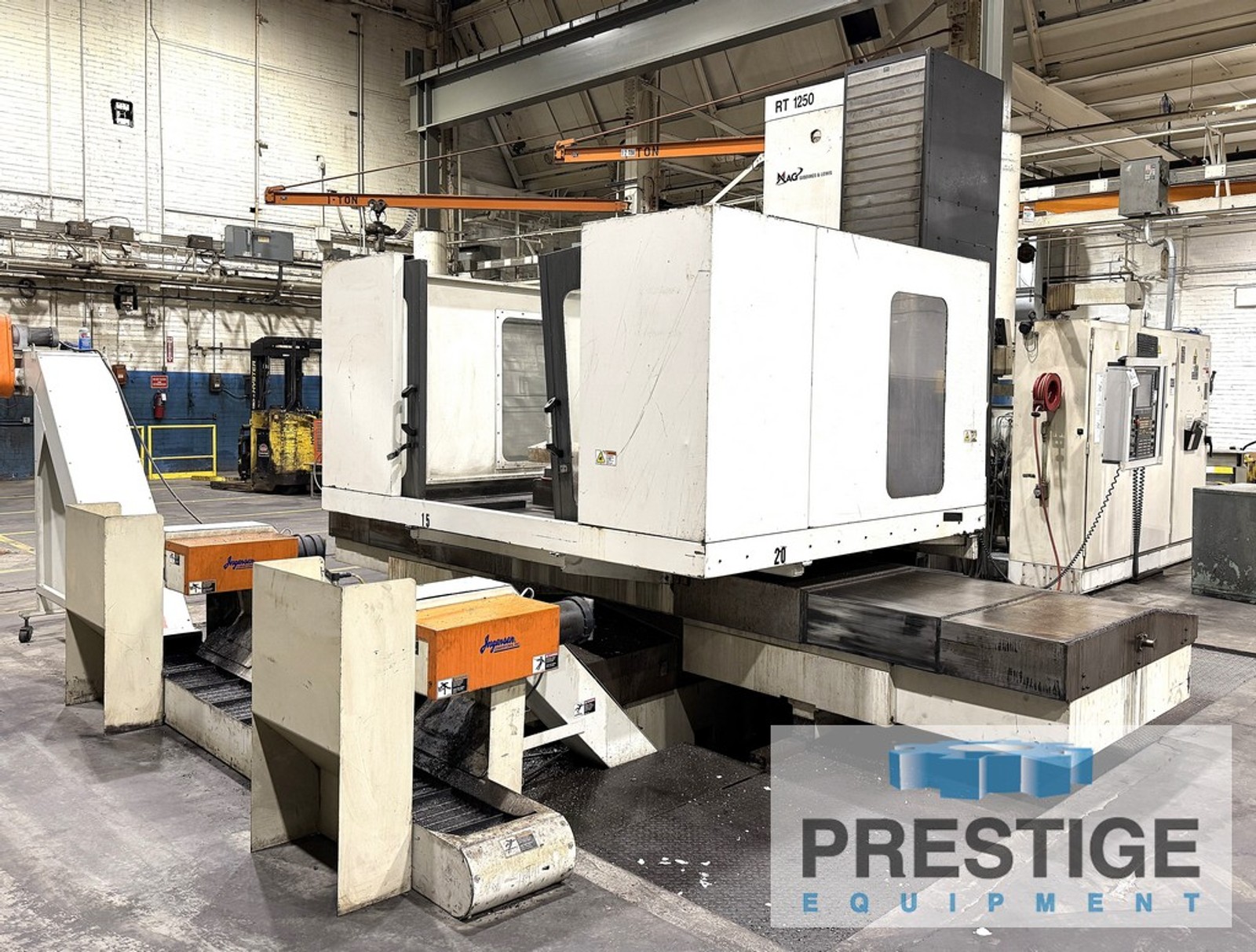

Chip Conveyor
50 HP / 74 HP Spindle Motor
