Peddinghaus PCD-1100/3C-ATC Advantage 2, 3-Spindle, ATC, 2250 RPM, Siemens CNC, 2011 #43542

Stock

43542

Model

PCD1100/3C ATC Advantage 2

Dealer Location

New York

Spec Sheet

Reference #43542

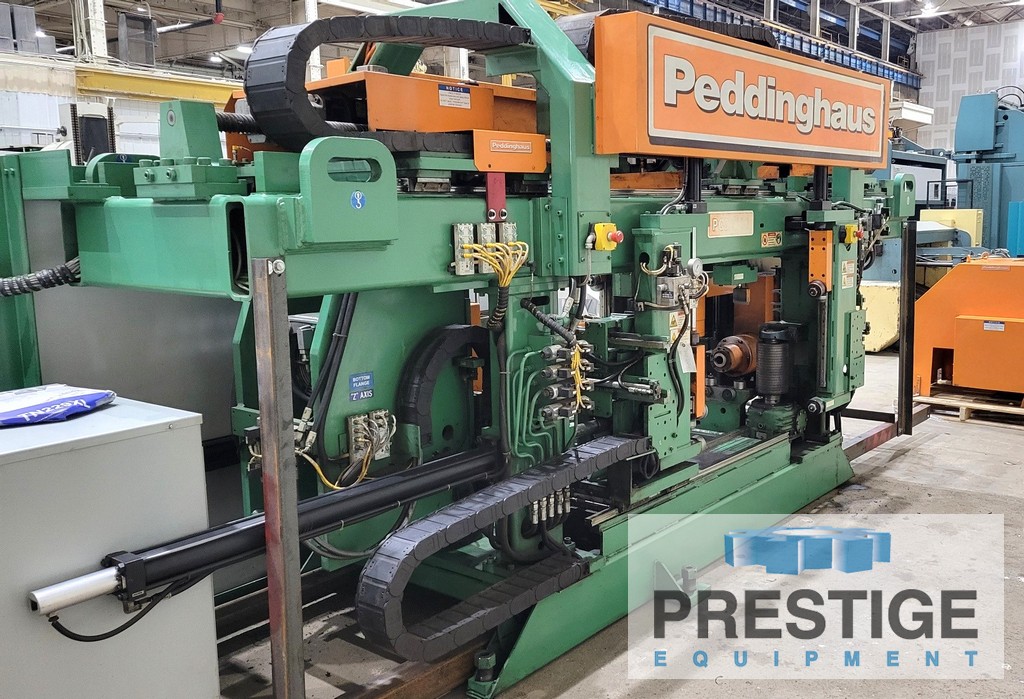

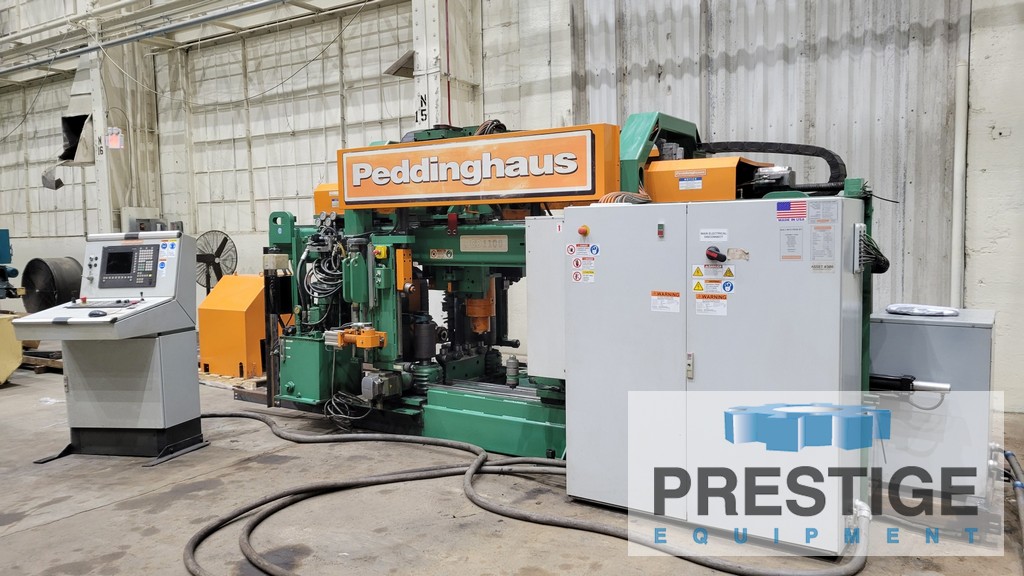

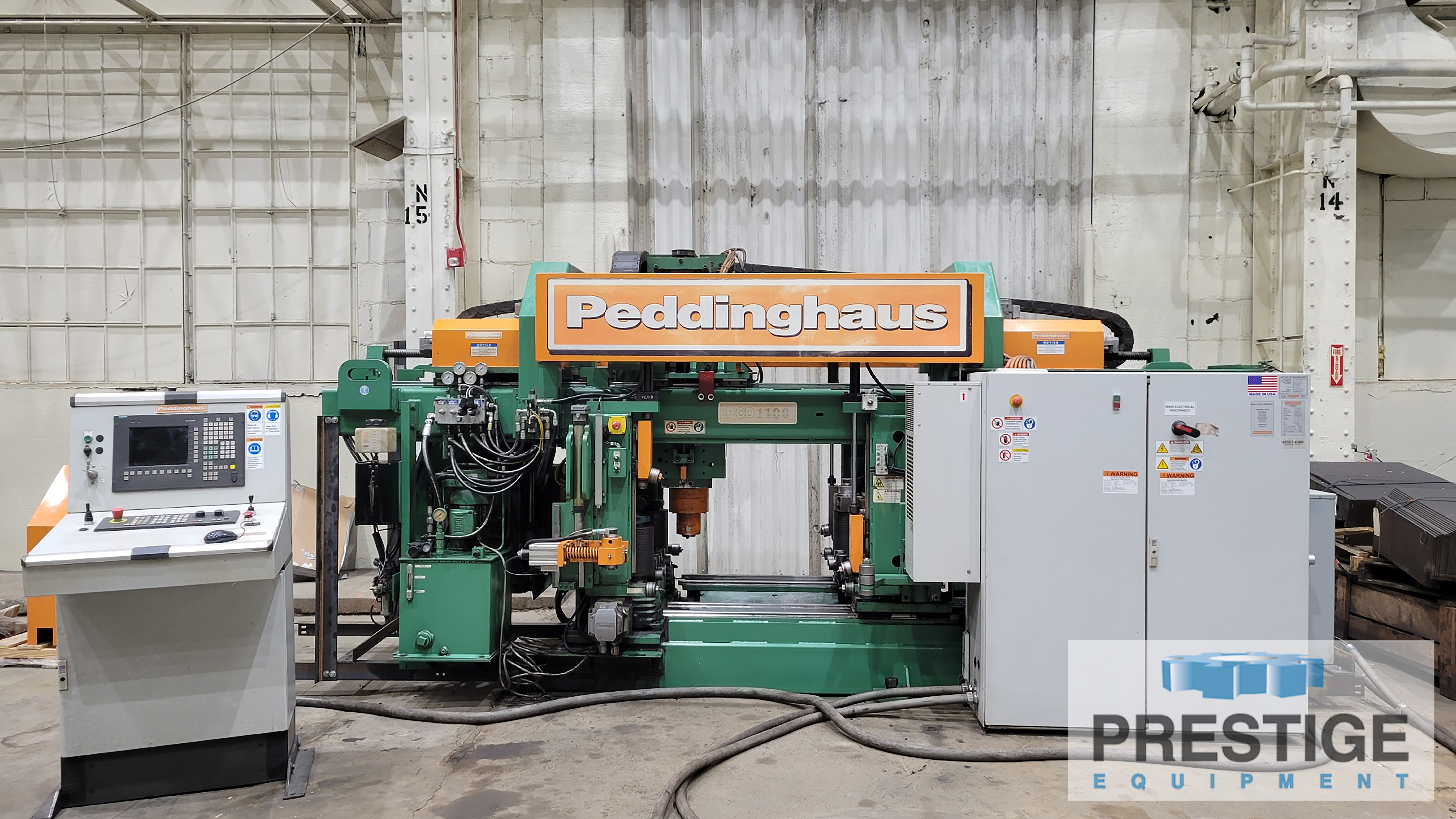

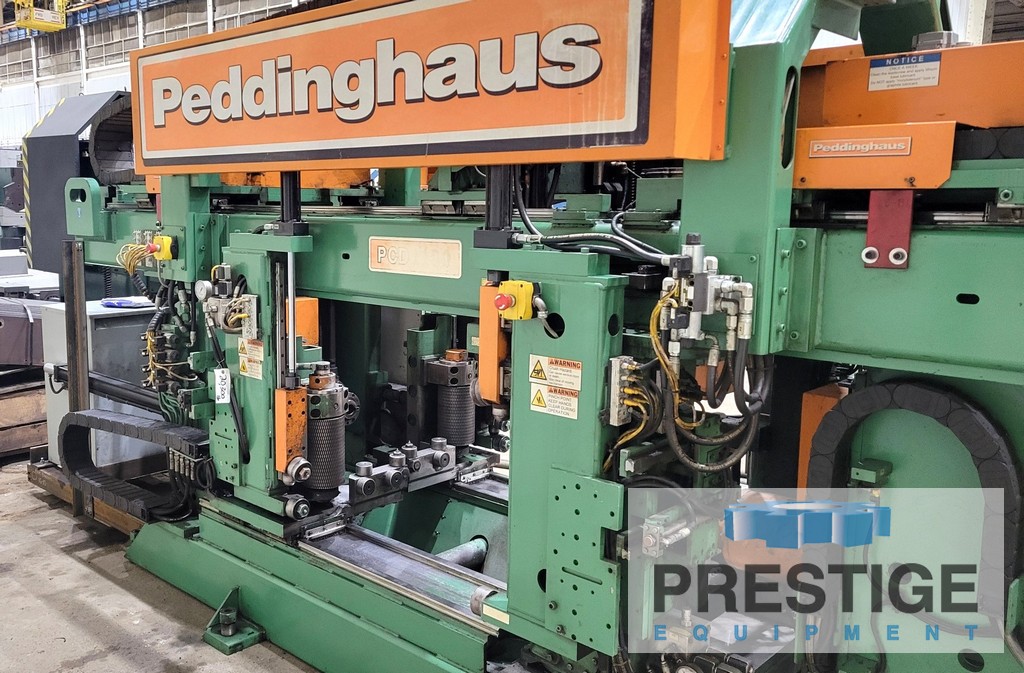

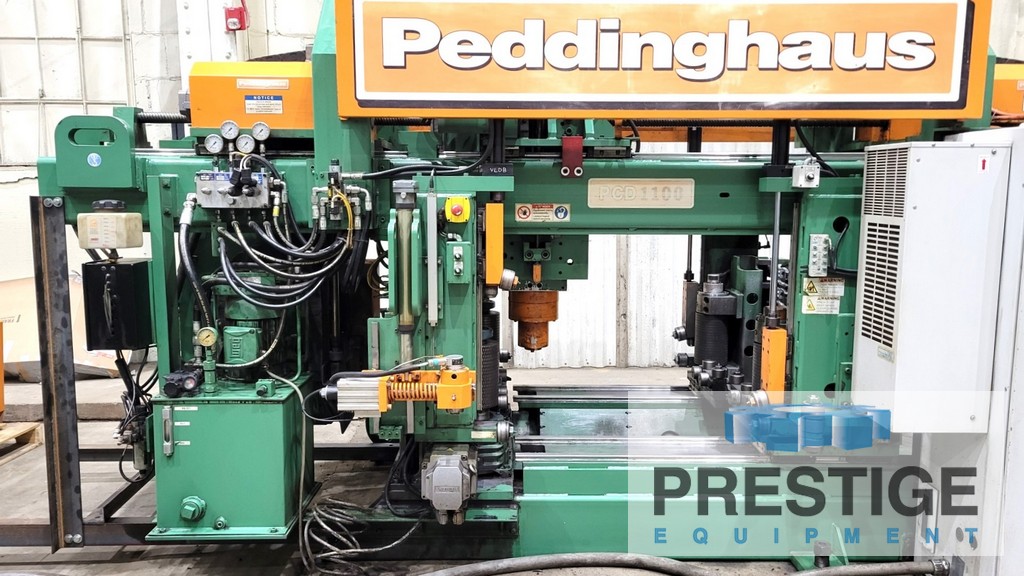

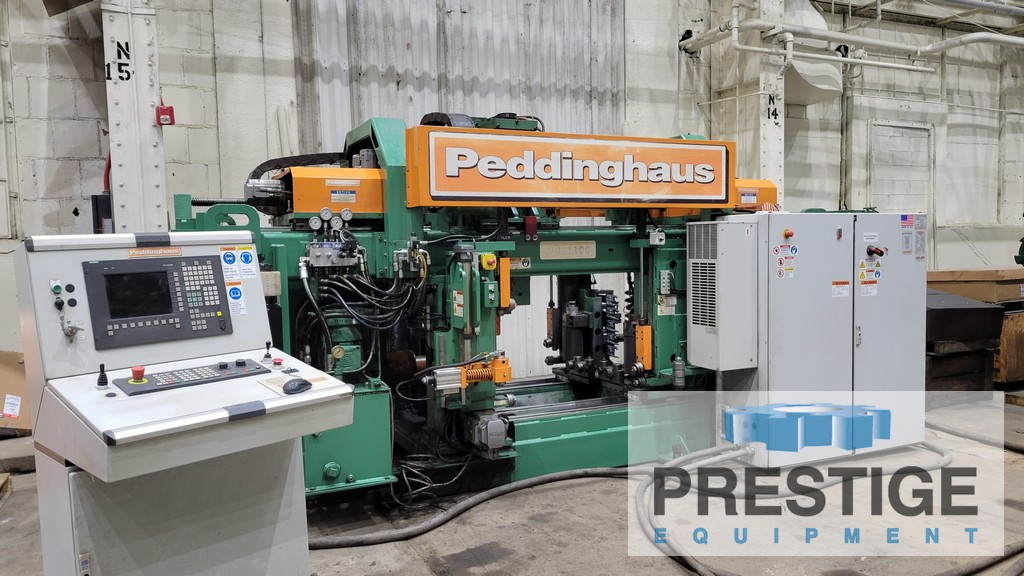

Peddinghaus PCD1100/3C-ATC Advantage 2 Beam Drill Line

FEATURES:

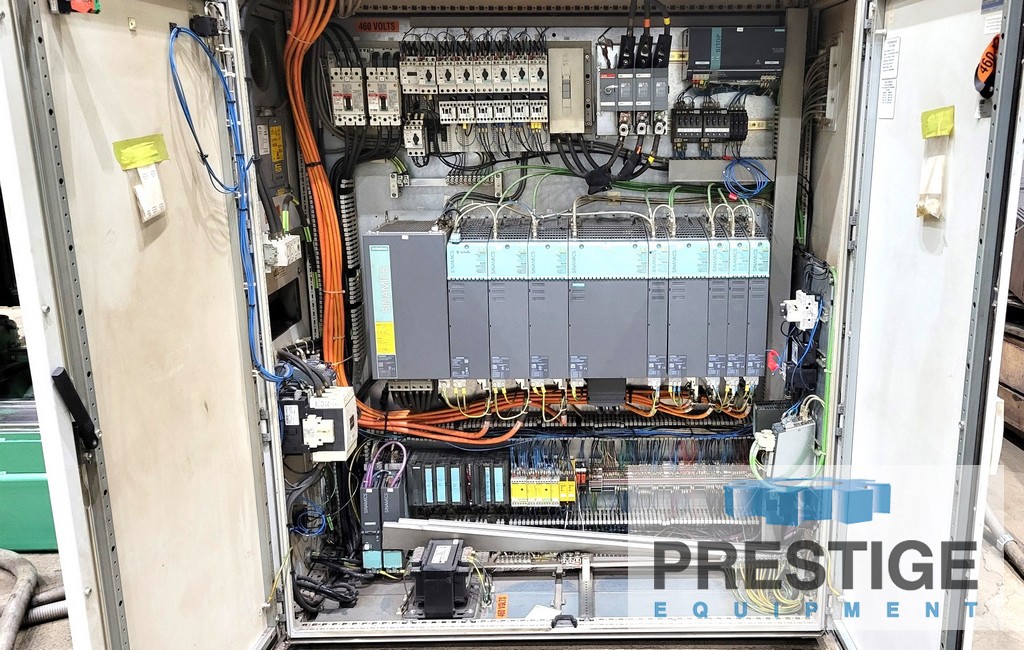

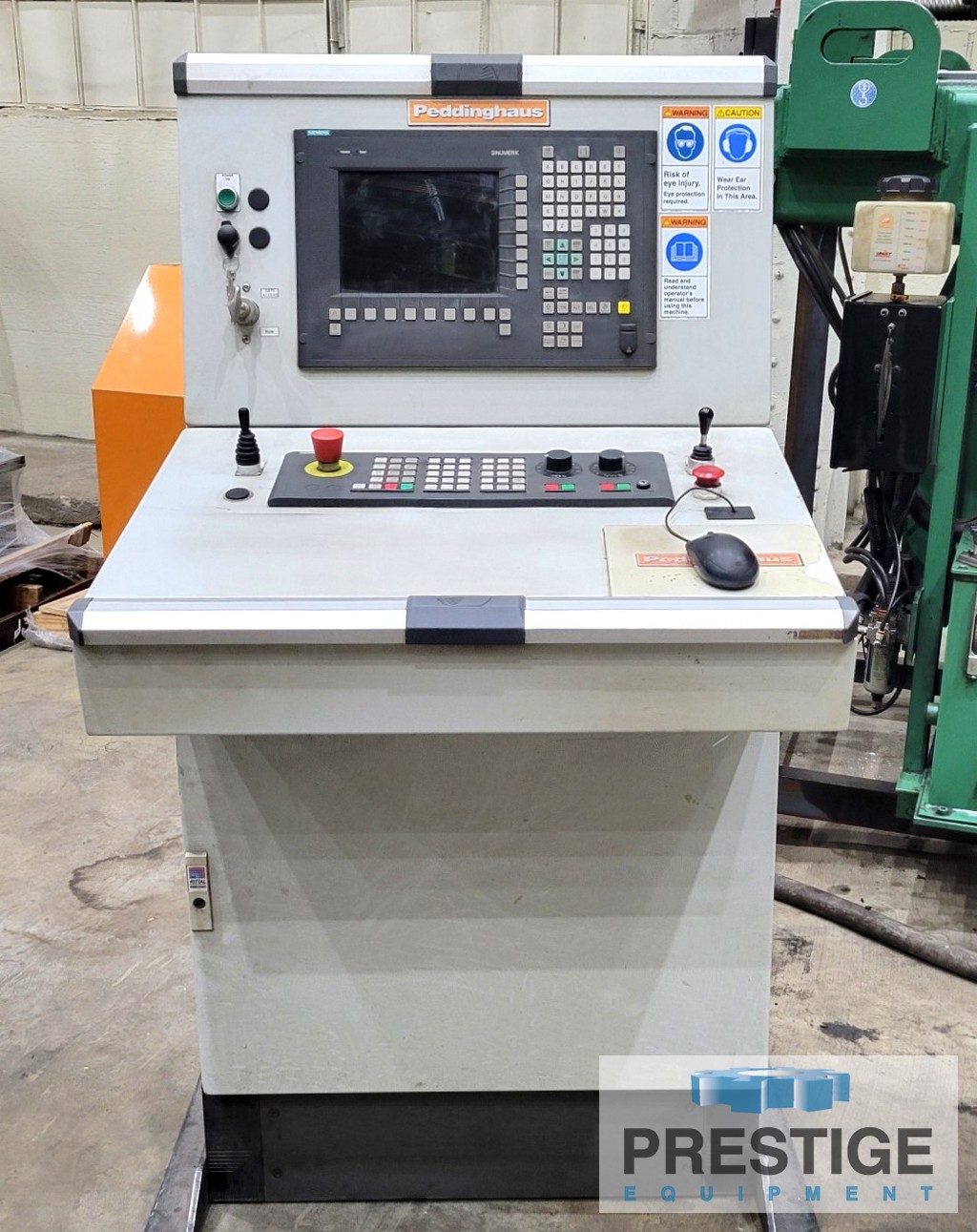

Siemens CNC Control
Servo Driven Ballscrew Axes

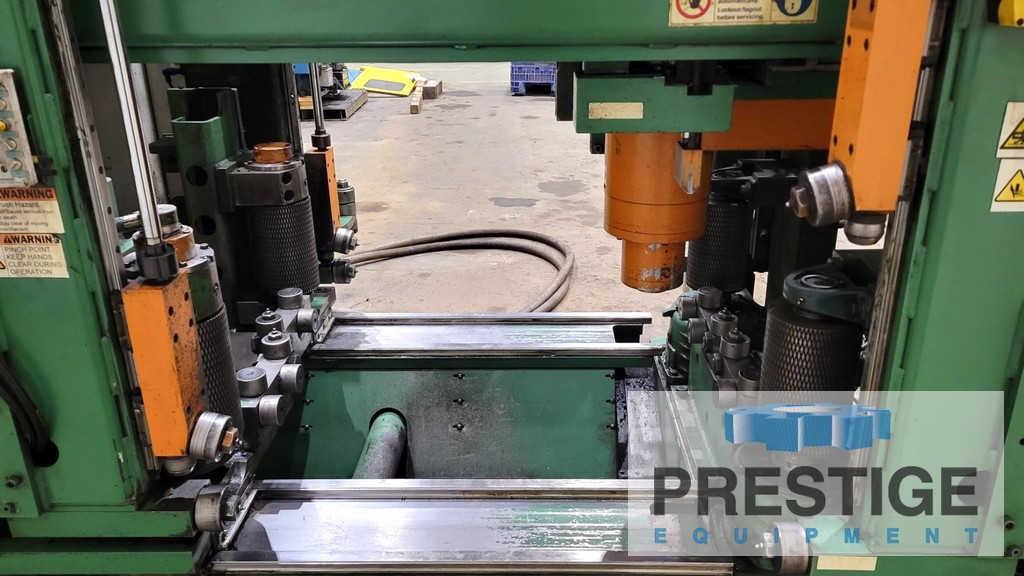

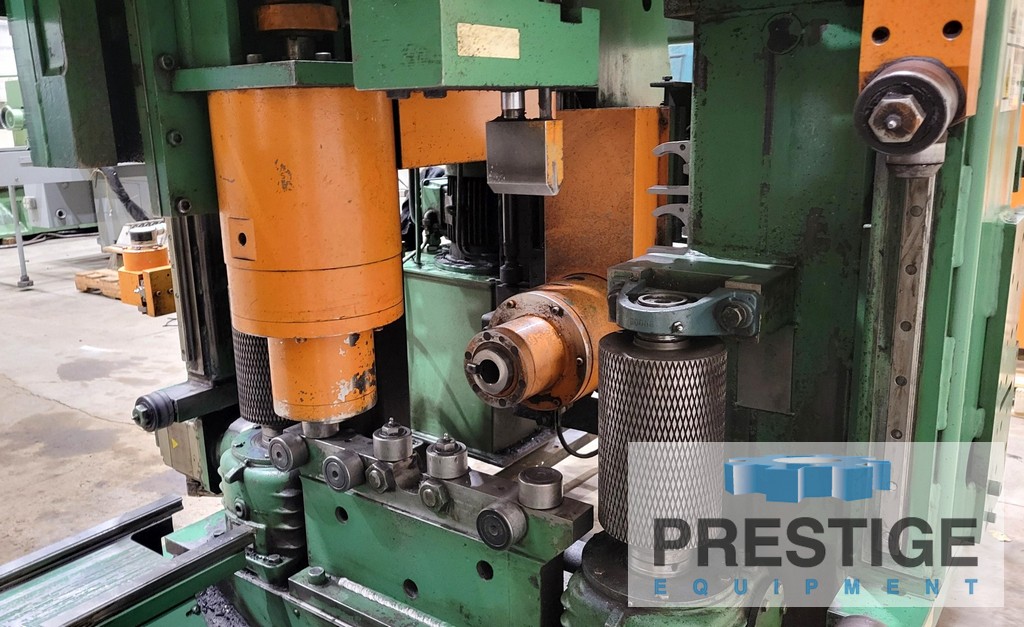

(3) 2500 RPM Spindles Each With 5-Station Automatic Tool Changer
Thru Tool Coolant

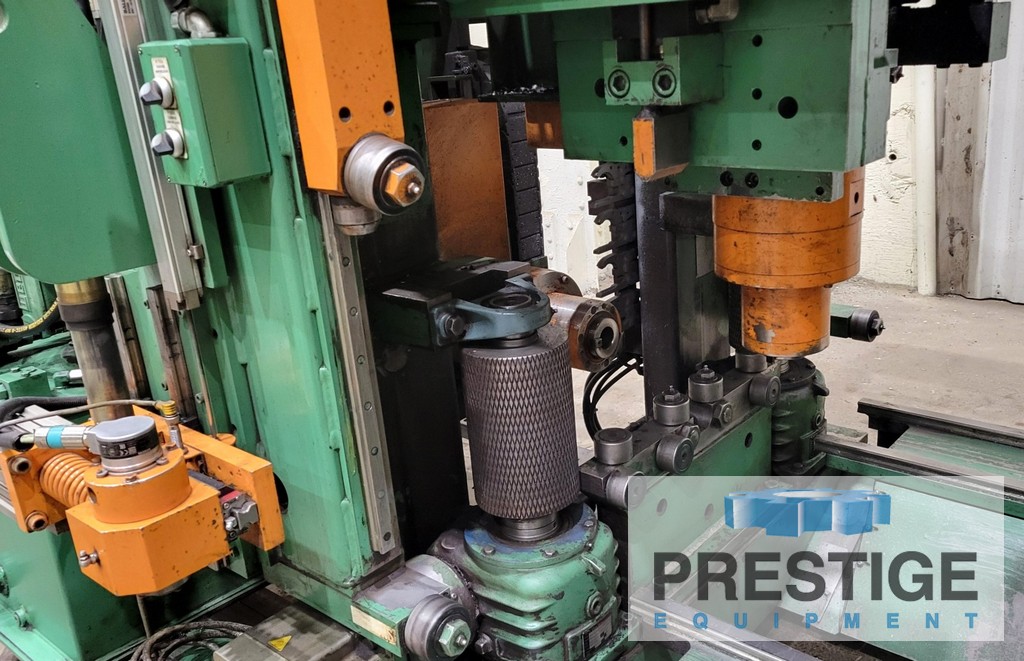

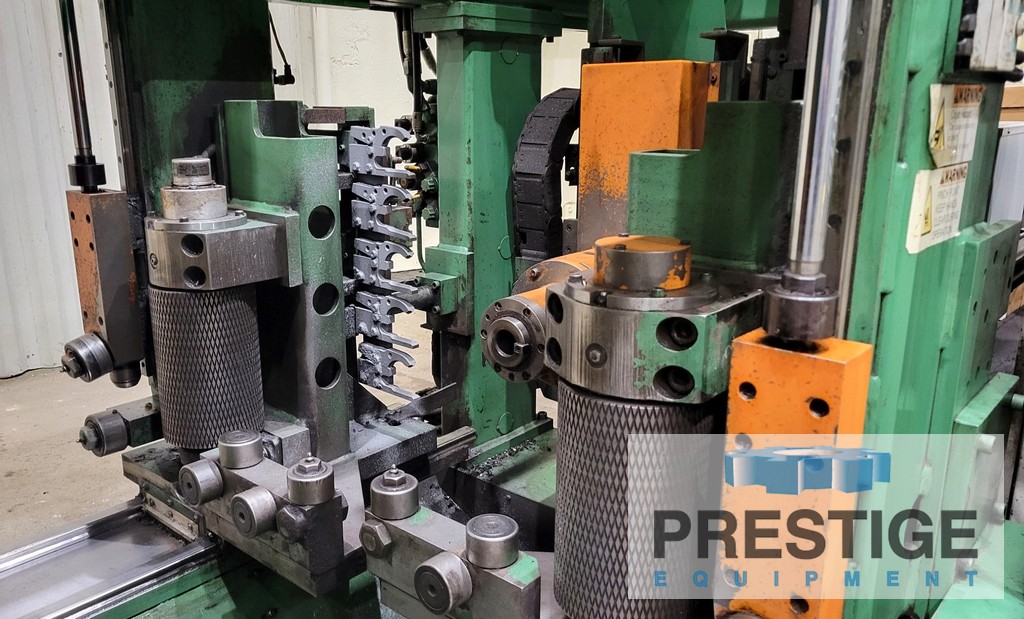

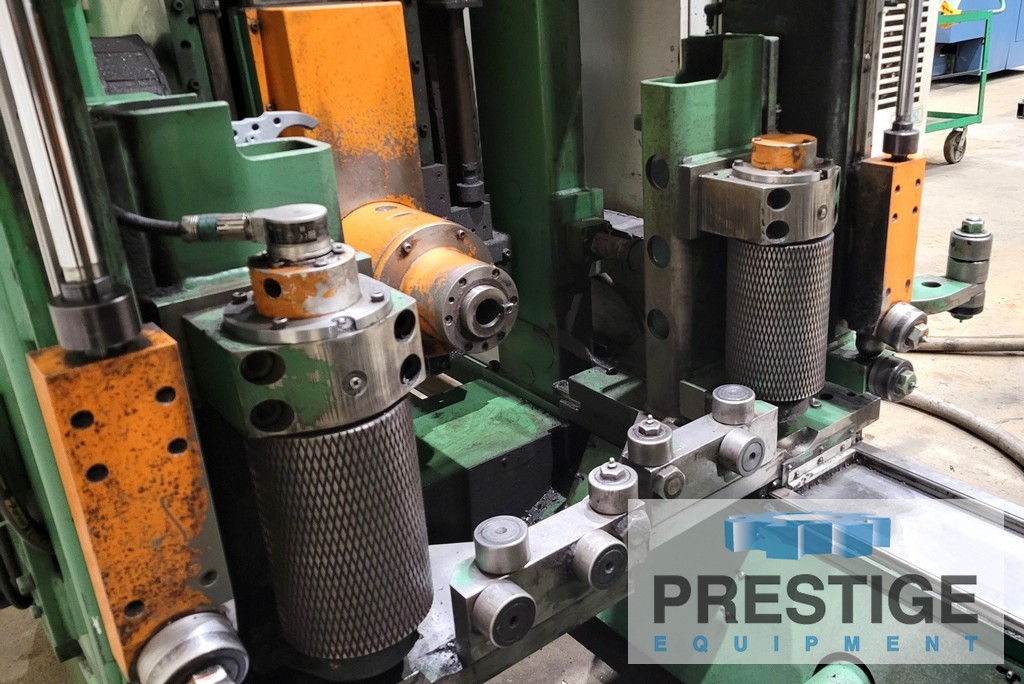

Roller Feed Measurement System
3-Sided Signo Script Marking Device

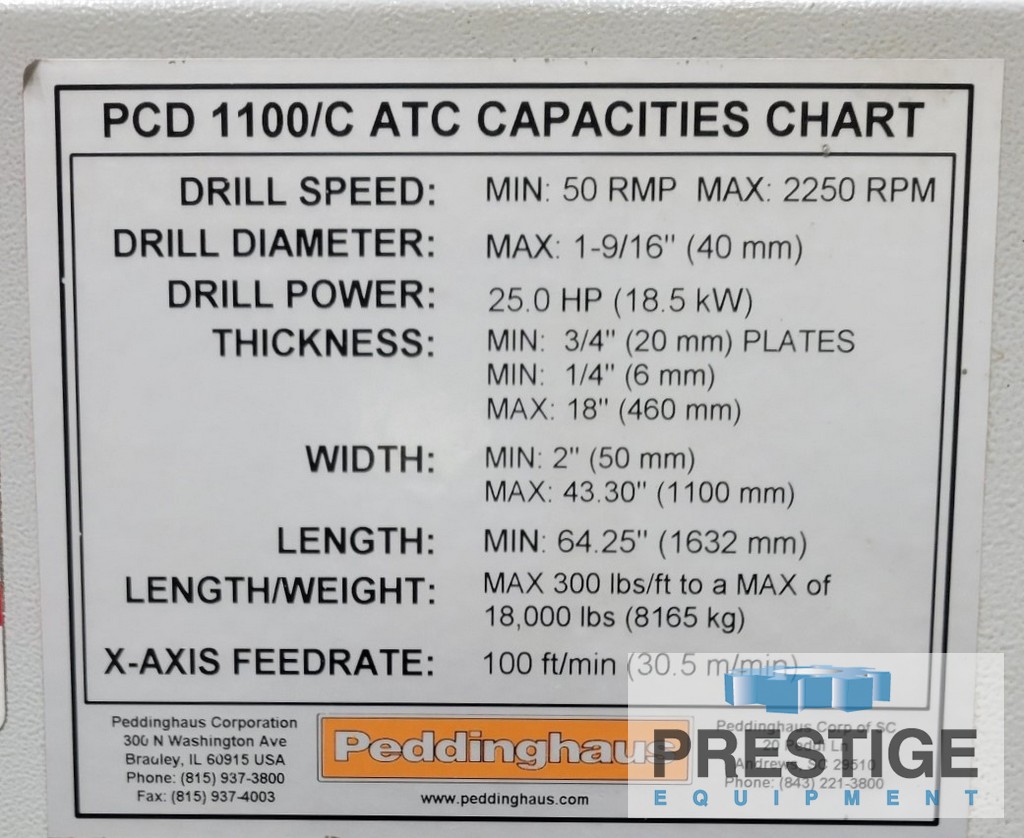

CAPACITY:
Maximum Profile Width ................. 43.40"
Maximum Profile Height ................ 18"
Minimum Profile Width ................. 2"
Minimum Profile Height ................ 3/4"
Number of Spindles .................... 3 Spindles 1-Per Drilling Axis
Tool Changer .......................... 5-Stations Per Drilling Axis
Spindle Power ......................... 25 HP
Spindle Speeds ........................ 50 - 2250 RPM
Maximum Feed Rate, X-Axis ............. 130 FPM
Maximum Hole Diameter ................. 1-9/16”
Maximum Weight Section Size ........... 300 Lbs Per Ft
Maximum Profile Weight Total .......... 18,000 lbs

EQUIPPED WITH:
Siemens CNC Control
Servo Driven Ballscrew Axes
(3) Spindles 2500 RPM Each With 5-Station Automatic Tool Changer
Thru Tool Coolant
Roller Feed Measurement System
3-Sided Signo Script Marking Device

NOTE:
Roller Conveyor & Chip Conveyor Not Included
