Amada Marvel VT5063SW, 20" x 25", Tilt Column, Auto Barfeed w/48" Str., PC3 Prog. Control, 2022 #43753

Manufacturer

AMADA

Category

Saws

Type

SAWS, BAND, VERTICAL

Stock

43753

Model

VT5063SW

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43753

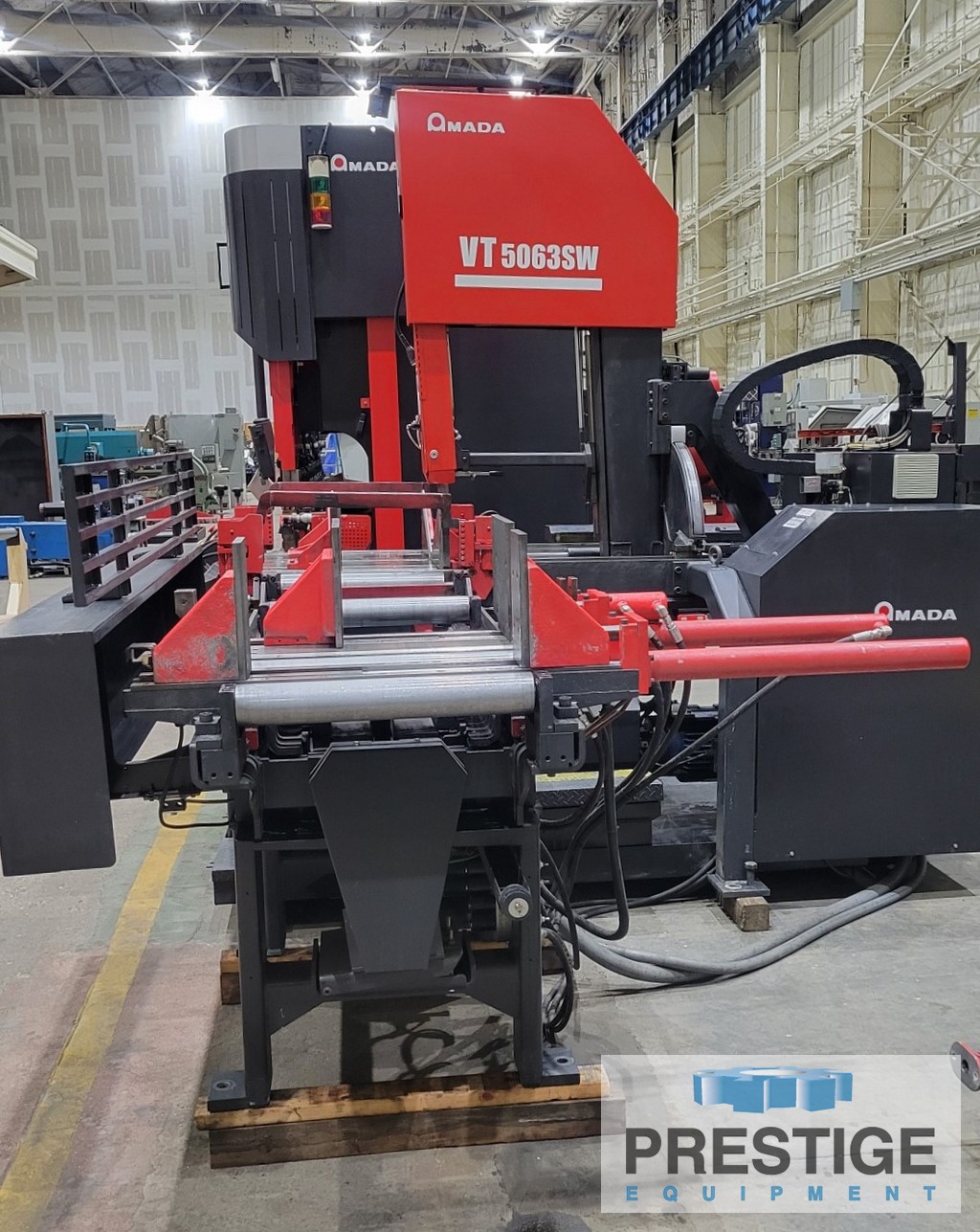

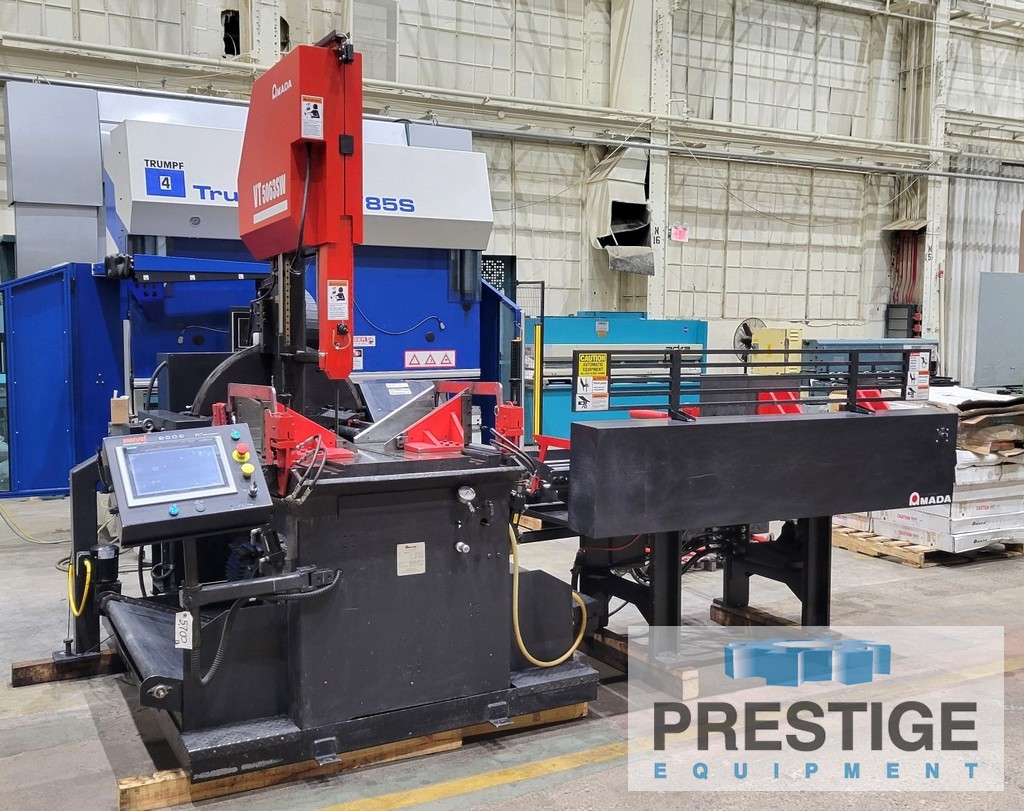

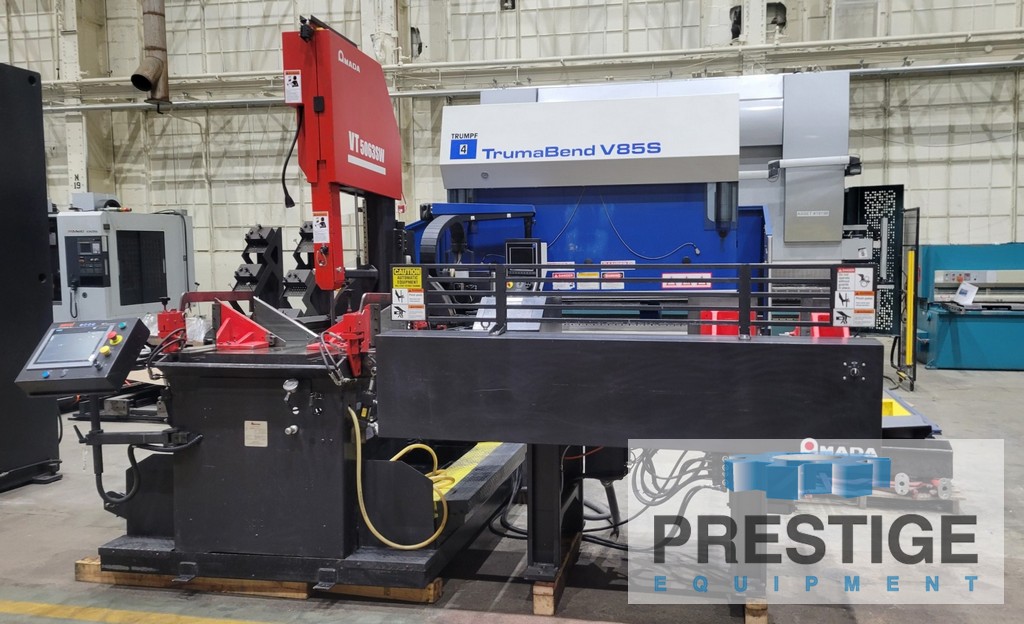

Amada Marvel VT5063SW 20" x 25" Fully Automated CNC Tilting Column Vertical Band Saw

FEATURES:
PC3 Programmable Control with 12" Display and Color Touch Screen
Tilting Column for Miter Cutting
Automatic Bar Feed with 48" Stroke
Hydraulic Vises With Variable Pressure
Hydraulic Hold Downs
Automatic Chip Conveyor

CAPACITY:
Nominal Capacity ...................... 20" x 25"
Capacity, Blade at 60 Deg. ............ 20" x 11.5"
Capacity, Rounds ...................... 20"
Blade Length........................... 18'2"
Blade Width ........................... 1.5"
Blade Thickness........................ .05"
Blade Speeds, Infinity Variable ...... 30 - 650 FPM
Table Height .......................... 40"
Main Motor ............................ 10 HP
Approximate Machine Weight ............ 5,000 Lbs.

EQUIPPED WITH:

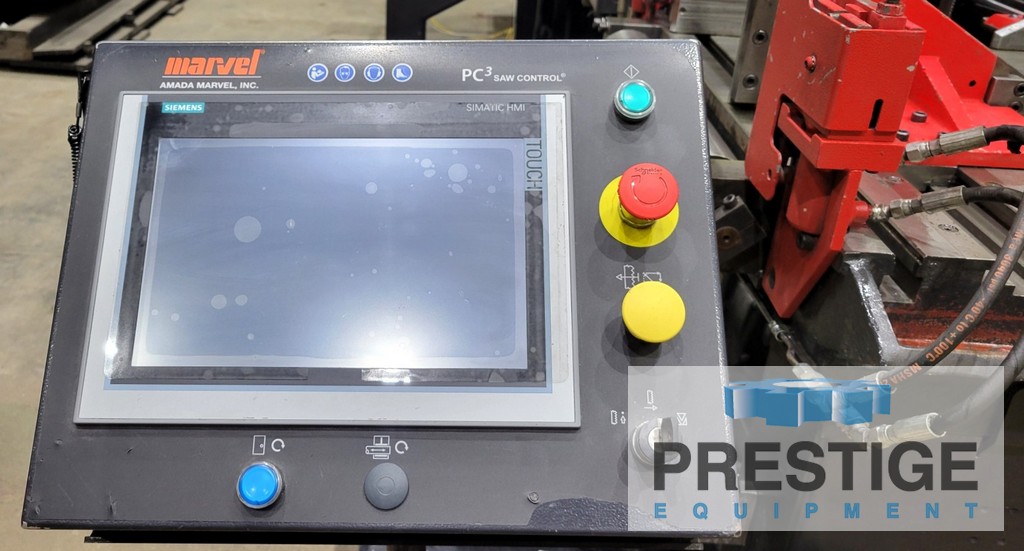

PC3 Programmable Control with 12" Display and Color Touch Screen
Automatic Bar Feed with 48" Stroke
Hydraulic Vises With Variable Pressure
Hydraulic Hold Downs
Tilting Column for Miter Cutting 60 Deg. Left & Right of Vertical
Automatic Chip Conveyor
Mist Lube
Hydraulic Blade Guide Arm

NOTE:
Roller Conveyor Not Included
Inspect In Plant Under Power
