Tonnage - 600
Stroke - 12 inches
Shut Height - 32 inches
Adjustment - 6 inches
Bed Size - 84" LR x 48" FB
Ram Area - 84" LR x 48"FB
SPM - 0-60 VSPM
Standard Specifications

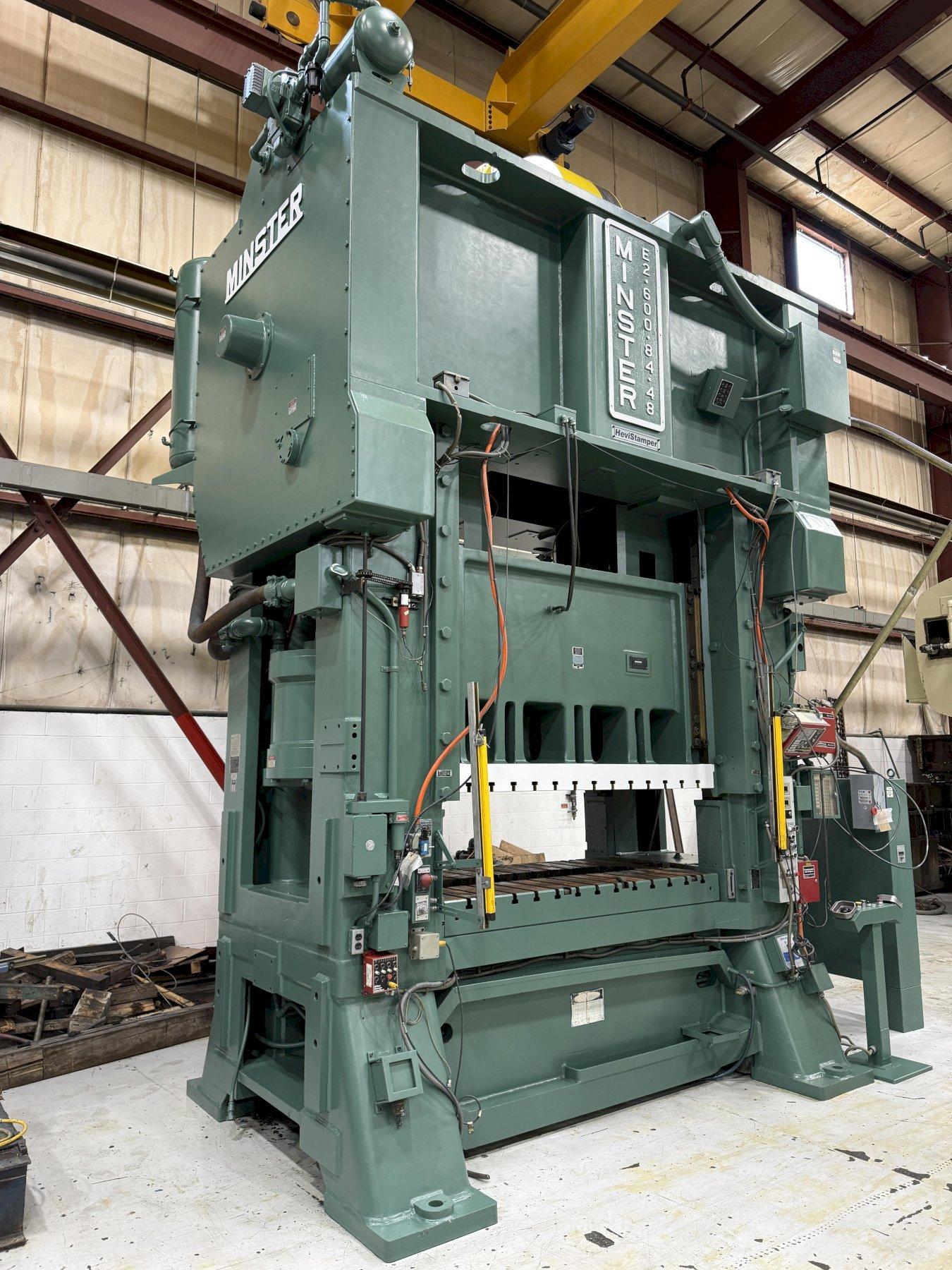

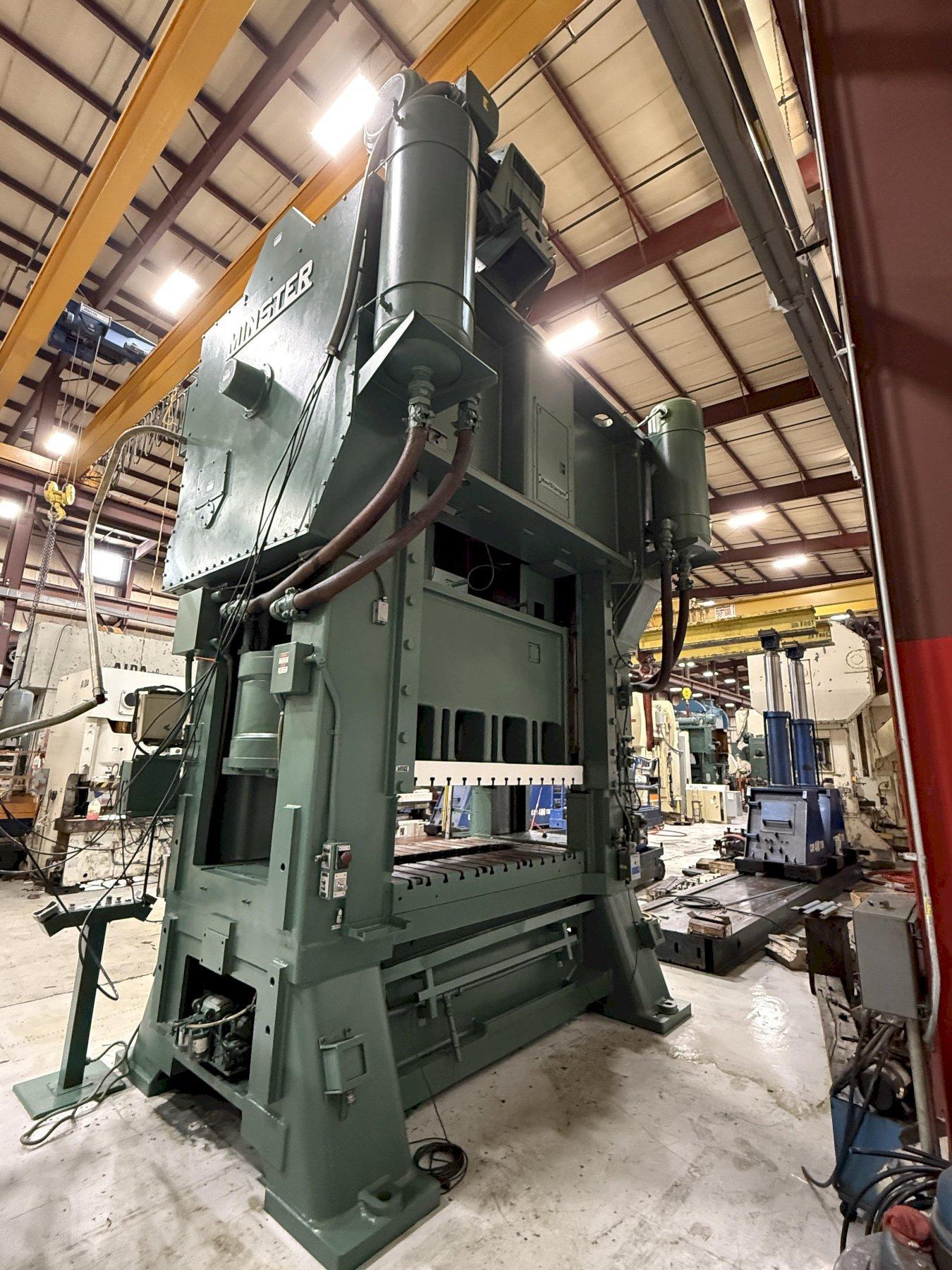

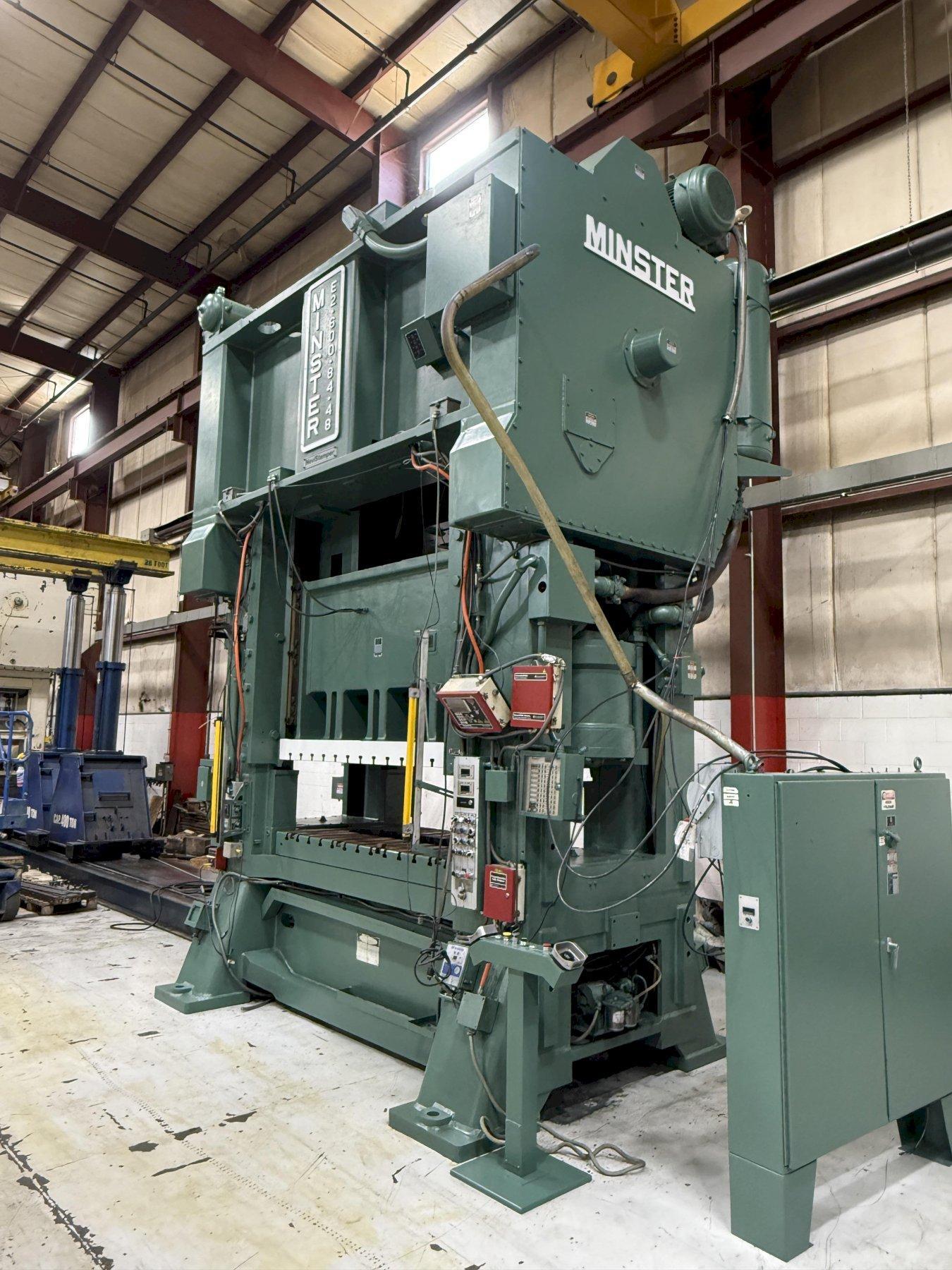

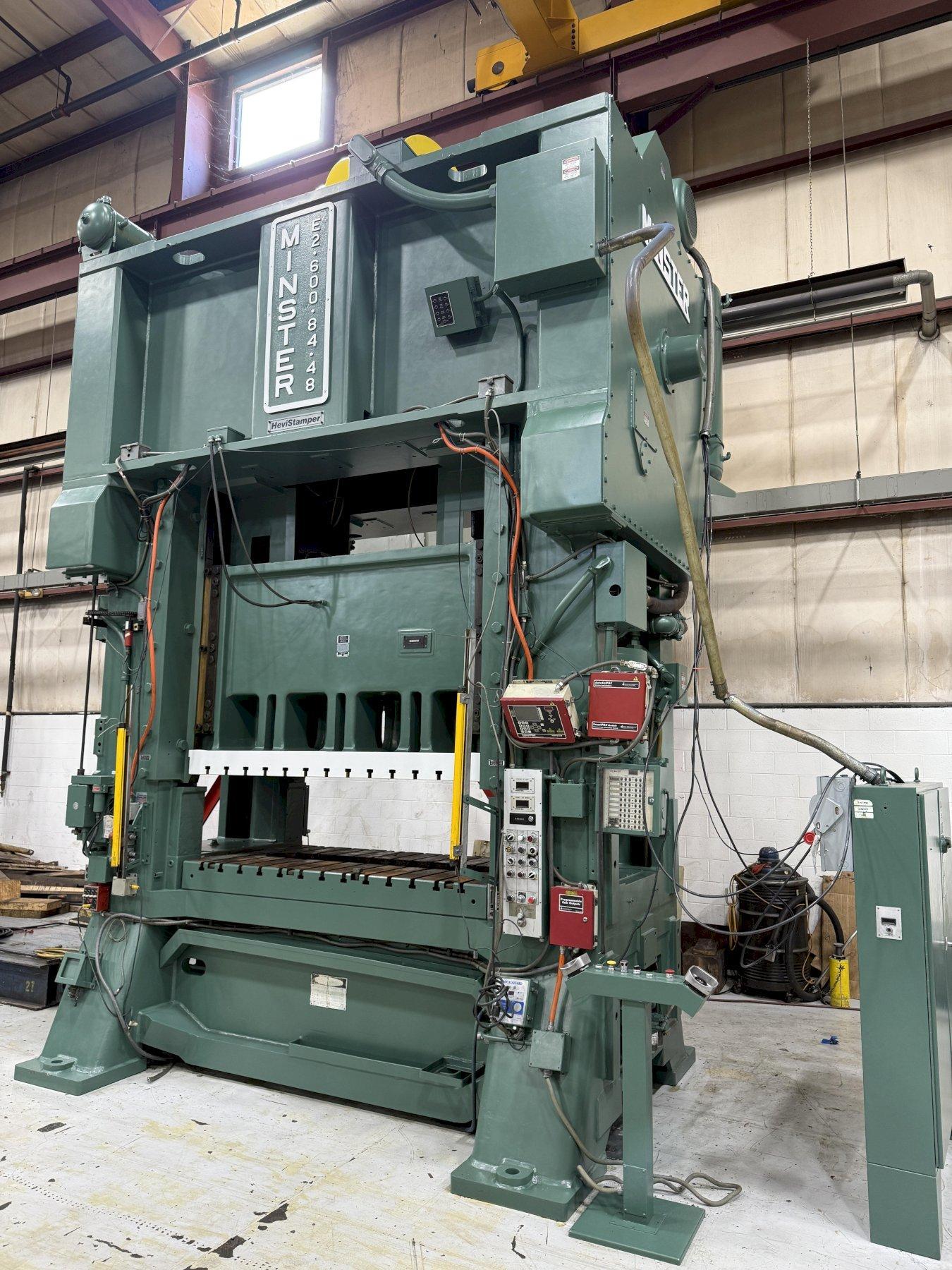

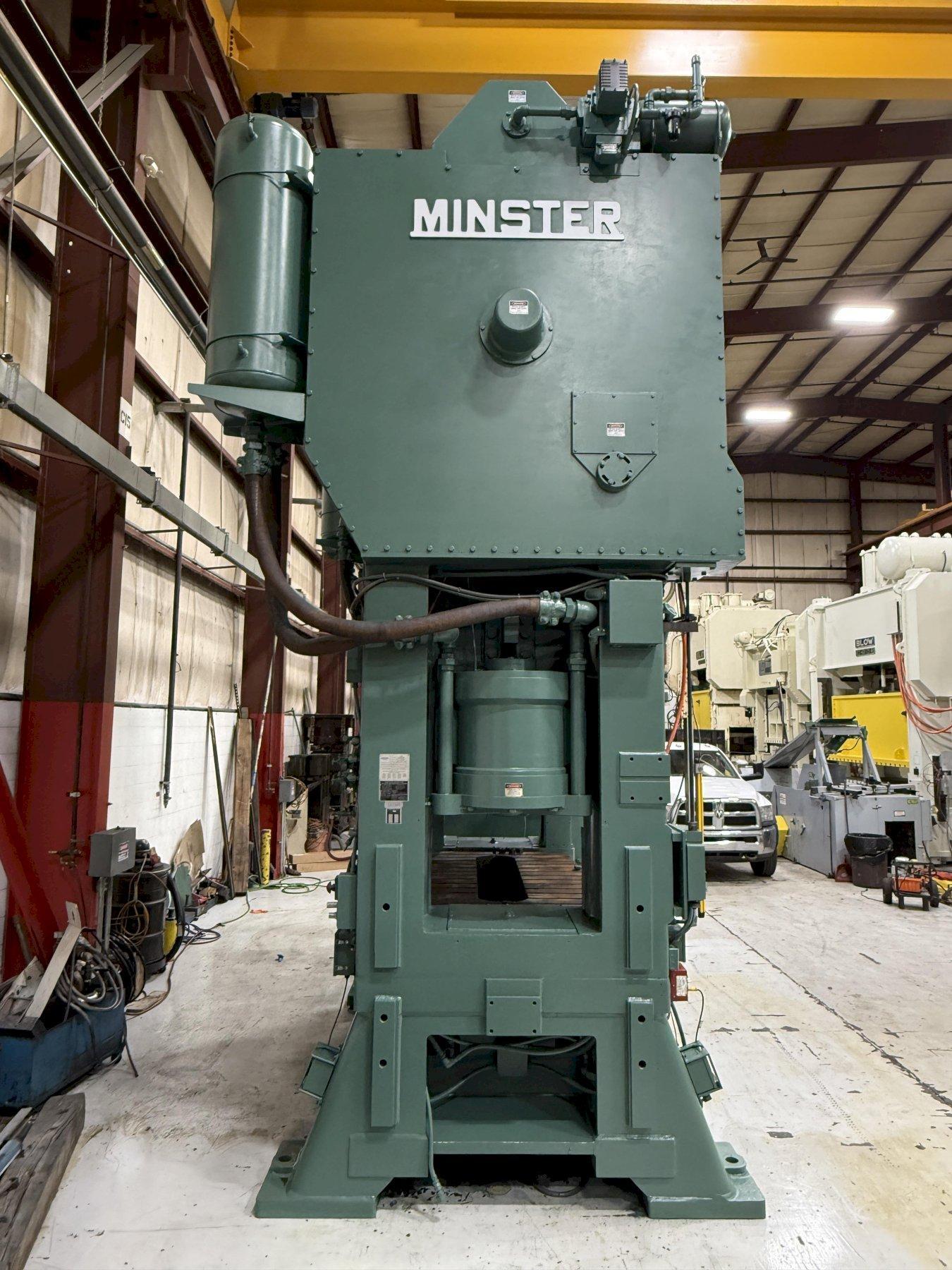

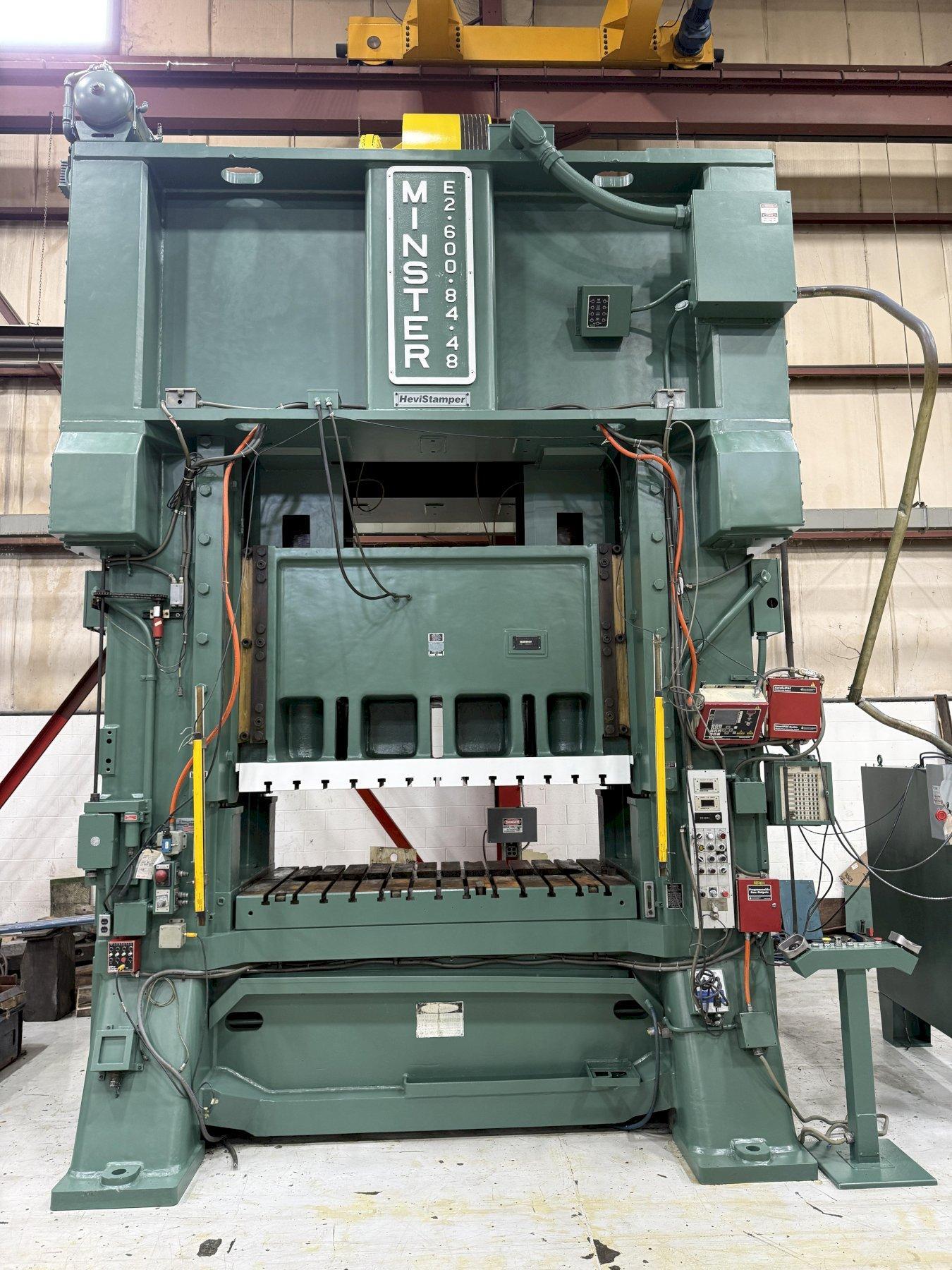

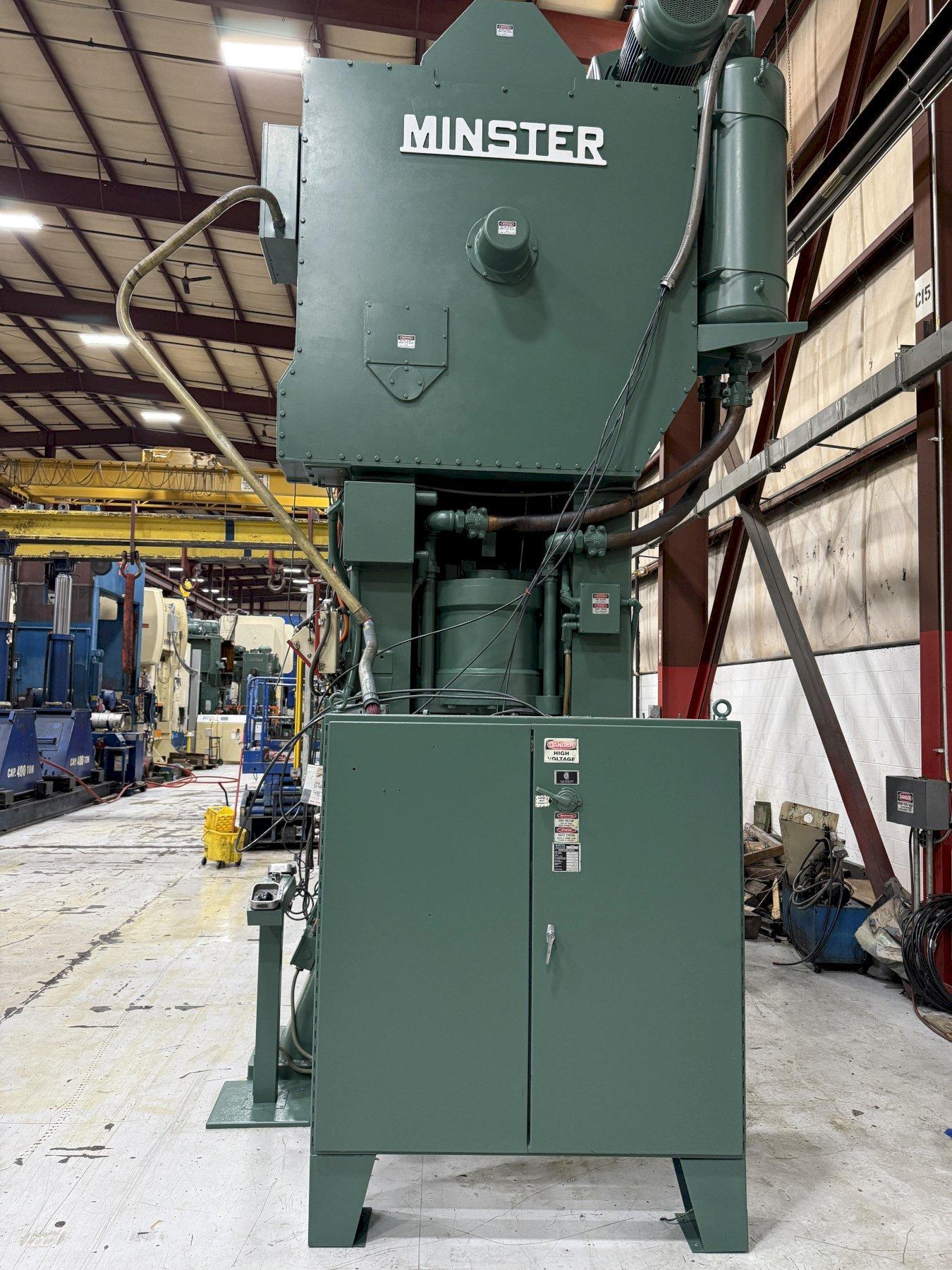

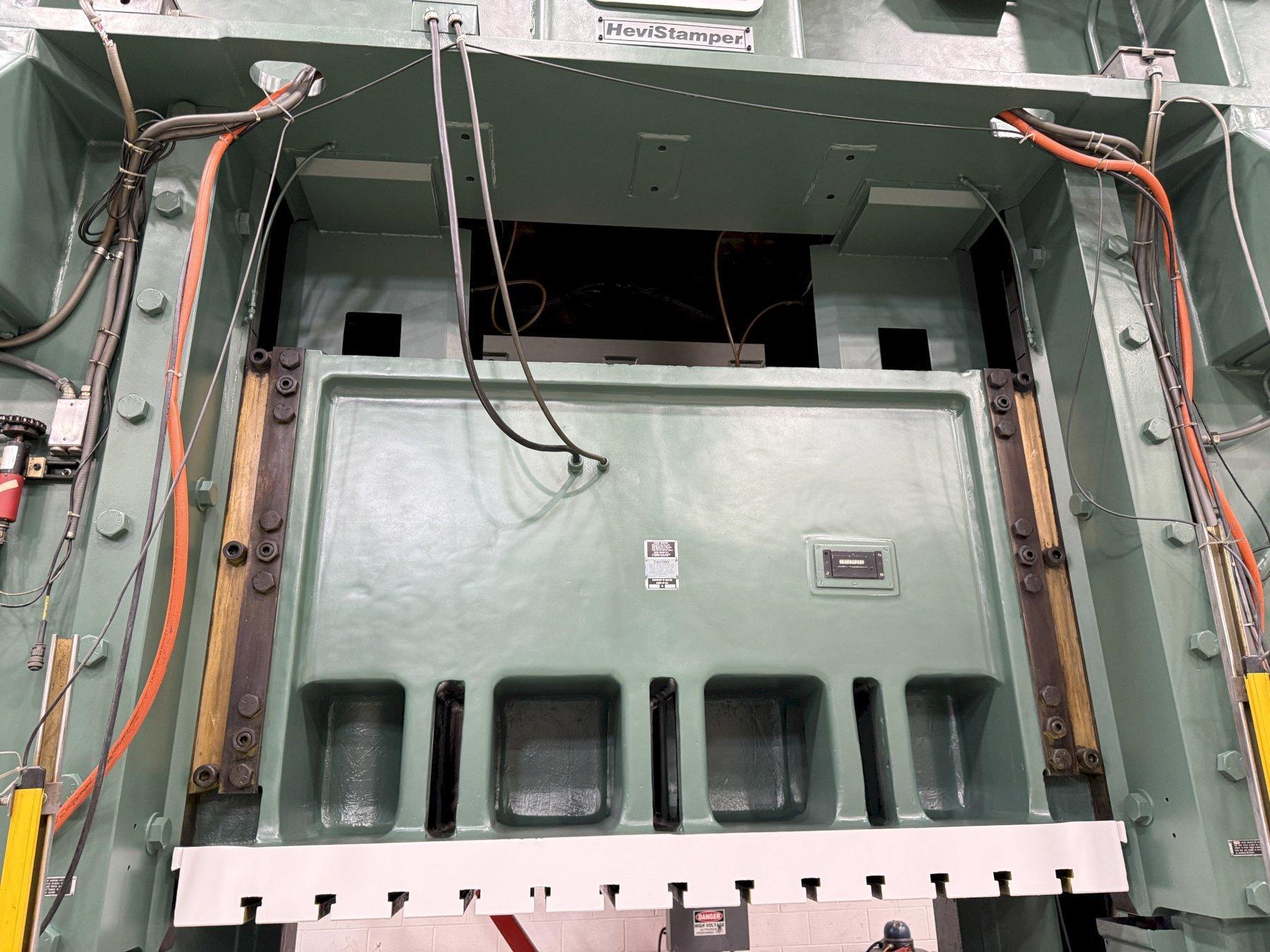

600-ton Minster Hevi-Stamper

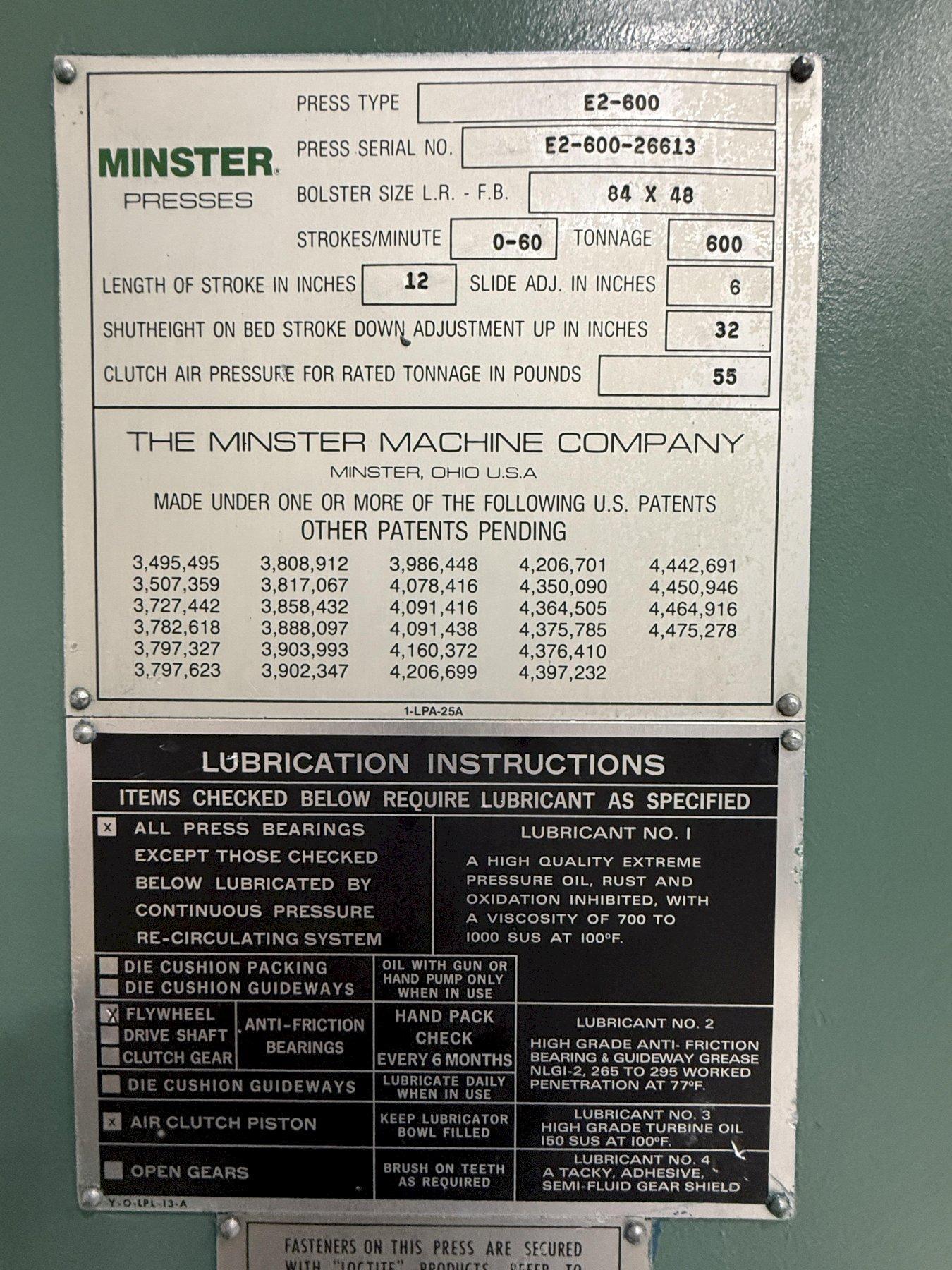

Straight Side Mechanical Press Model E2-600-84-48
600 ton Capacity
12" Stroke
32" Shut Height
25" Die Height on Bolster
6" Motorized Adjustment
84" LR x 48" FB Bed Area
84" LR x 48" FB Slide Area
0-60 VSPM
Equipment and Features
Air Clutch and Brake
Air Counterbalances
Monitor Flow Recirculating Lube System
Single Geared - Twin End Drive
8 Point Adjustable Gibs
3 Crossbar Knockouts in Ram

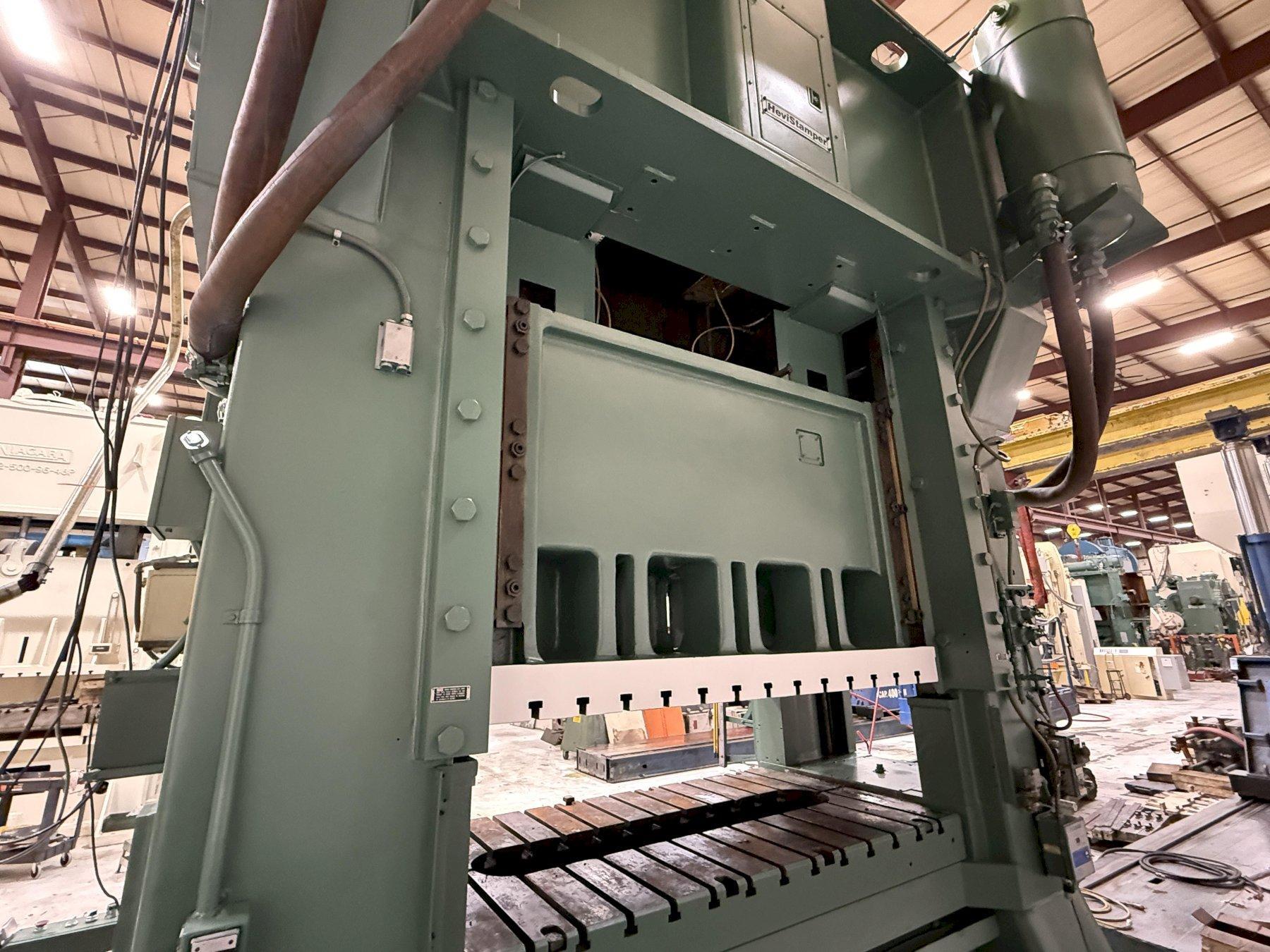

T-Slotted Ram and Bolster
Banner Light Curtains
42" Floor to Top Of Bed
Wintriss Smart Pak 2 Press Control
Wintriss Die and Overload Protection
Wintriss Brake Monitor
Palm Button Station
Free Standing Console Controls
33" wide Windows
100 HP / 1800 RPM Eddy Current Drive
480 volt / 3 phase / 60 Cycle
Vibratory Leveling Pads
Floor Standing
Shipping Dimensions and Weight
20' 4.5" Tall x 94" Front to Back x 162.6" Width
165,000 lbs. Approx. Weight of Press Fully Assembled
This 600-ton Minster Hevi-Stamper Mechanical Metal Stamping Press can be seen under power in the S&G Press Livonia Michigan Warehouse!
