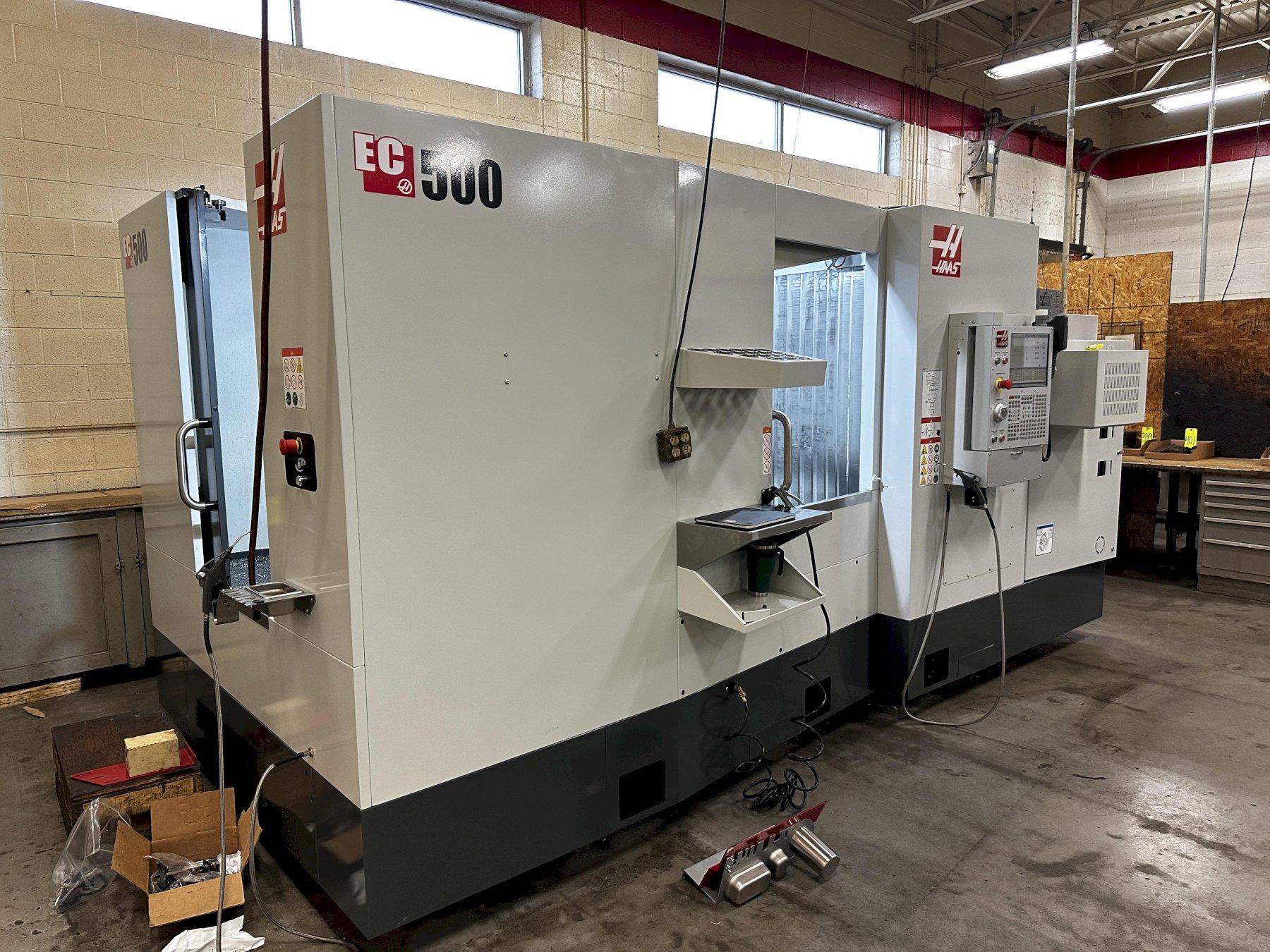

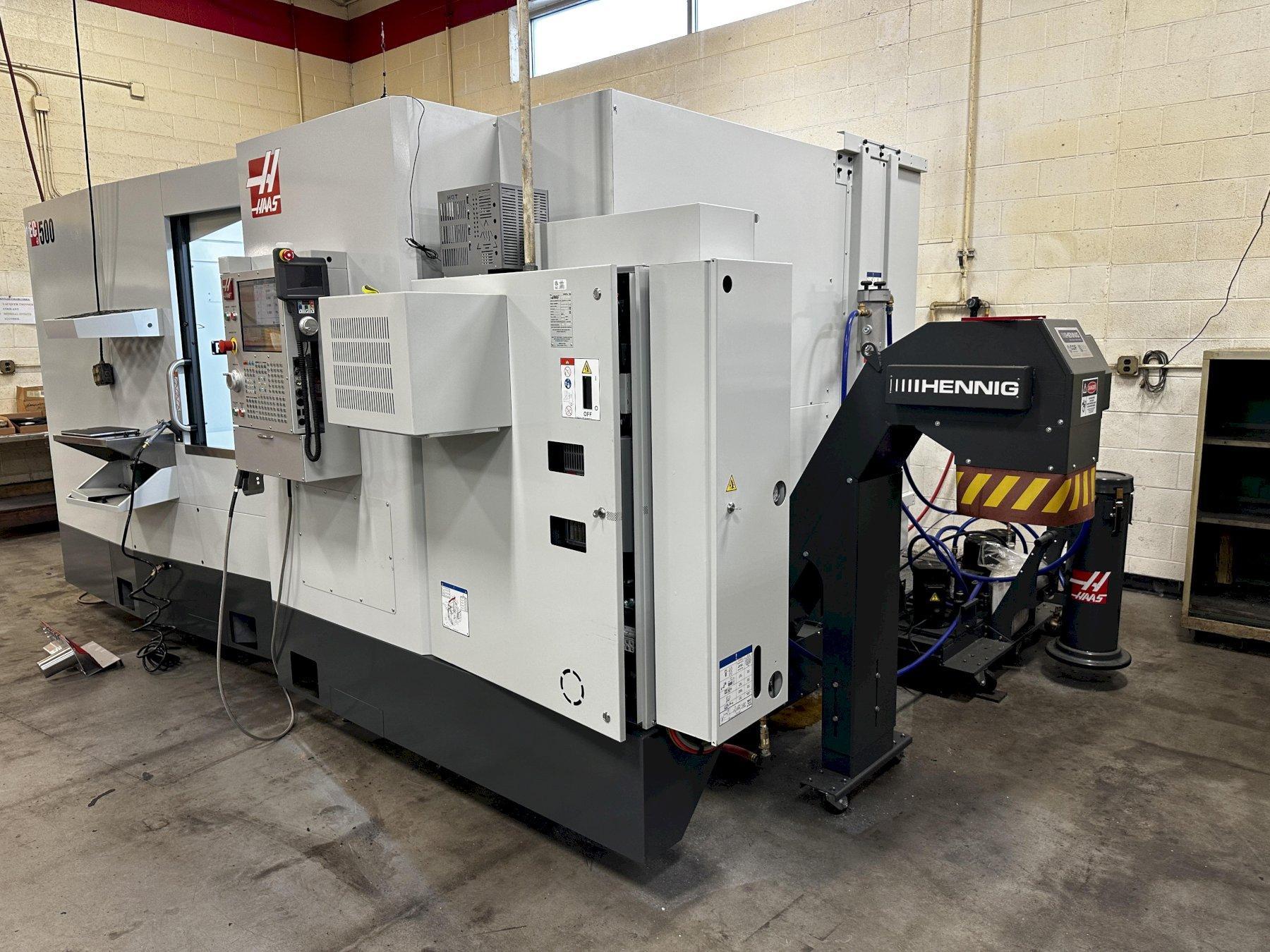

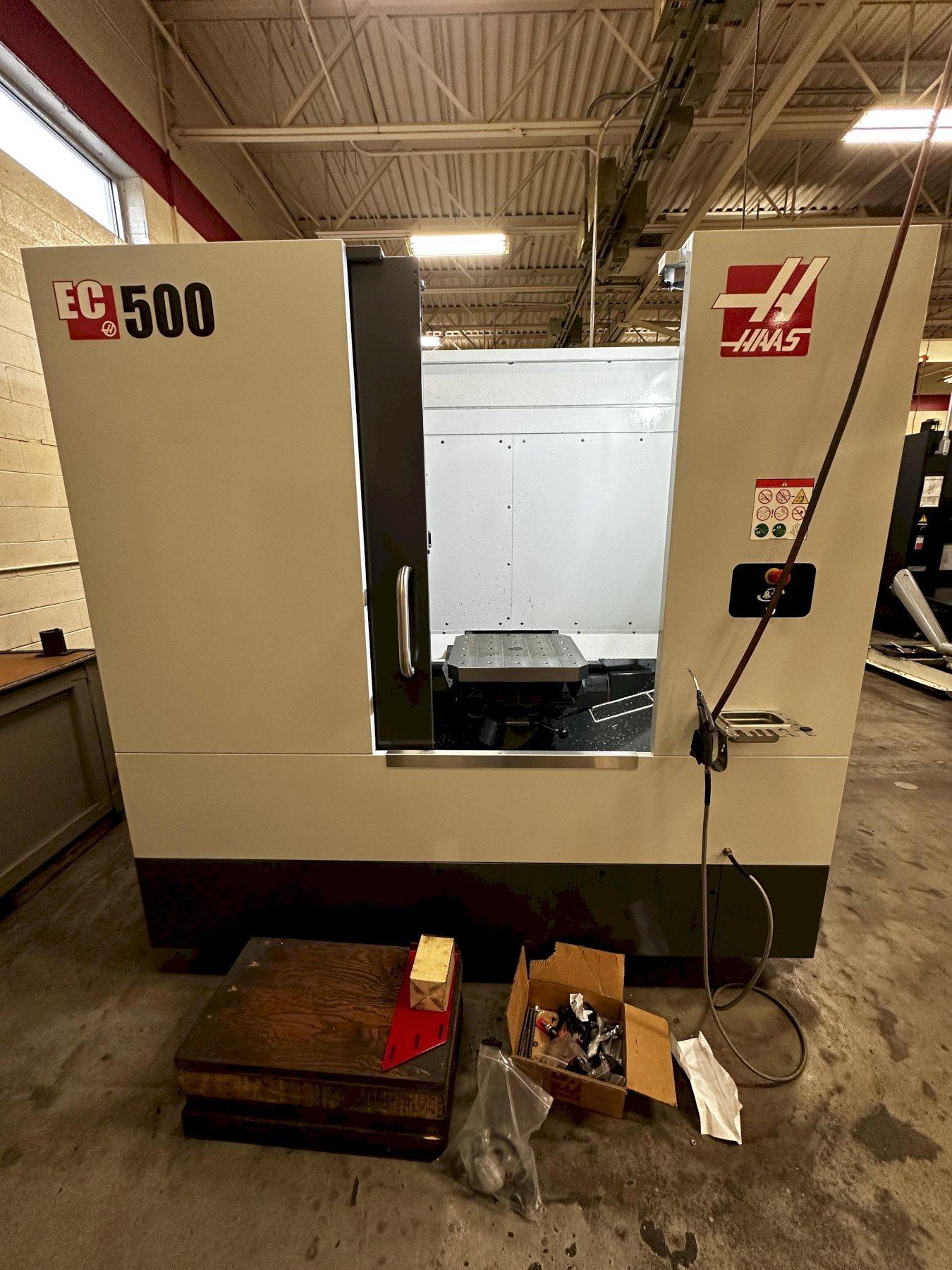

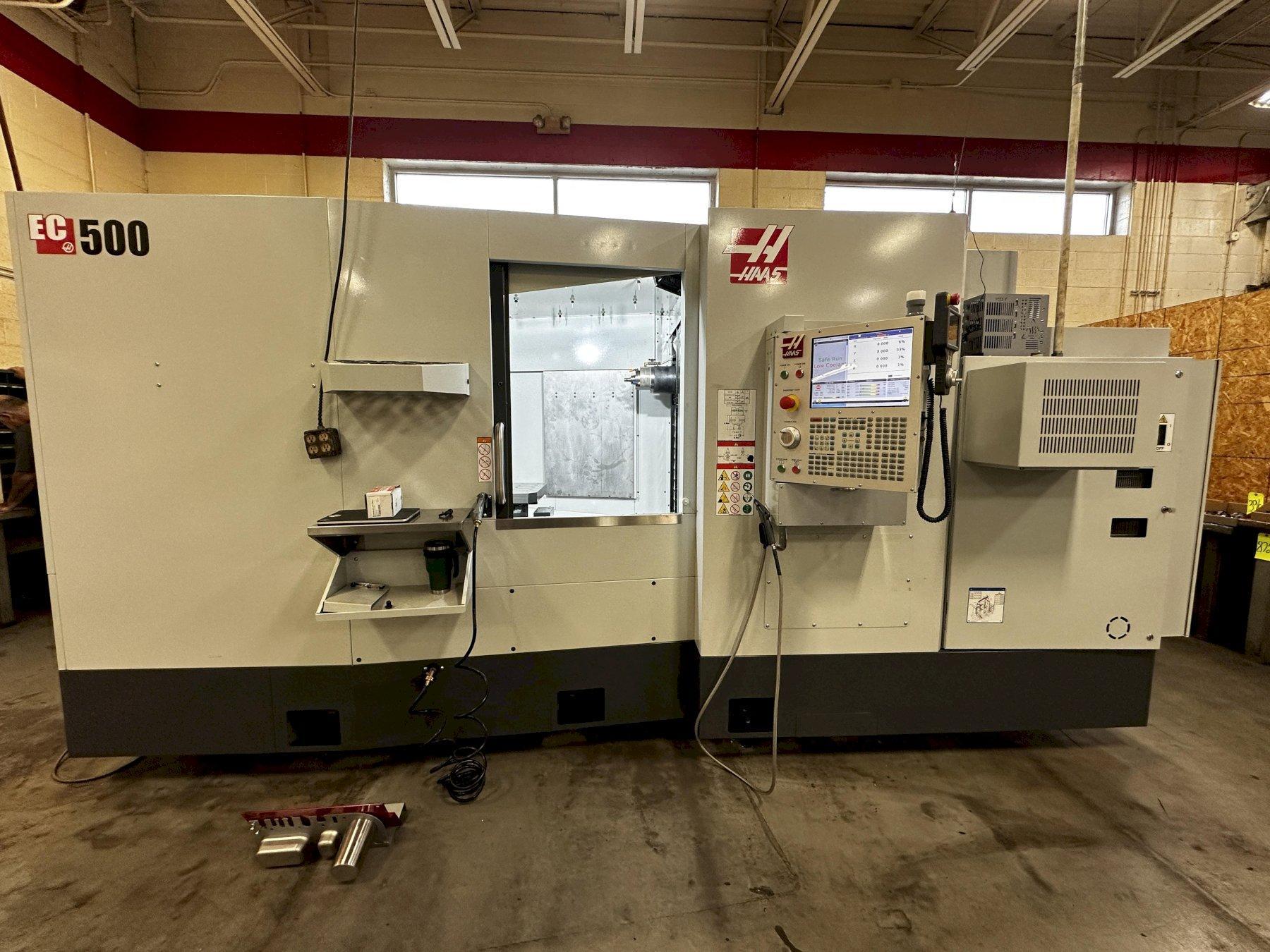

2023 Haas EC-500 CNC Horizontal Machining Center For Sale

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

15003

Model

EC-500

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

CNC Control - yes
Type of CNC Control - Haas
# Axis - 4

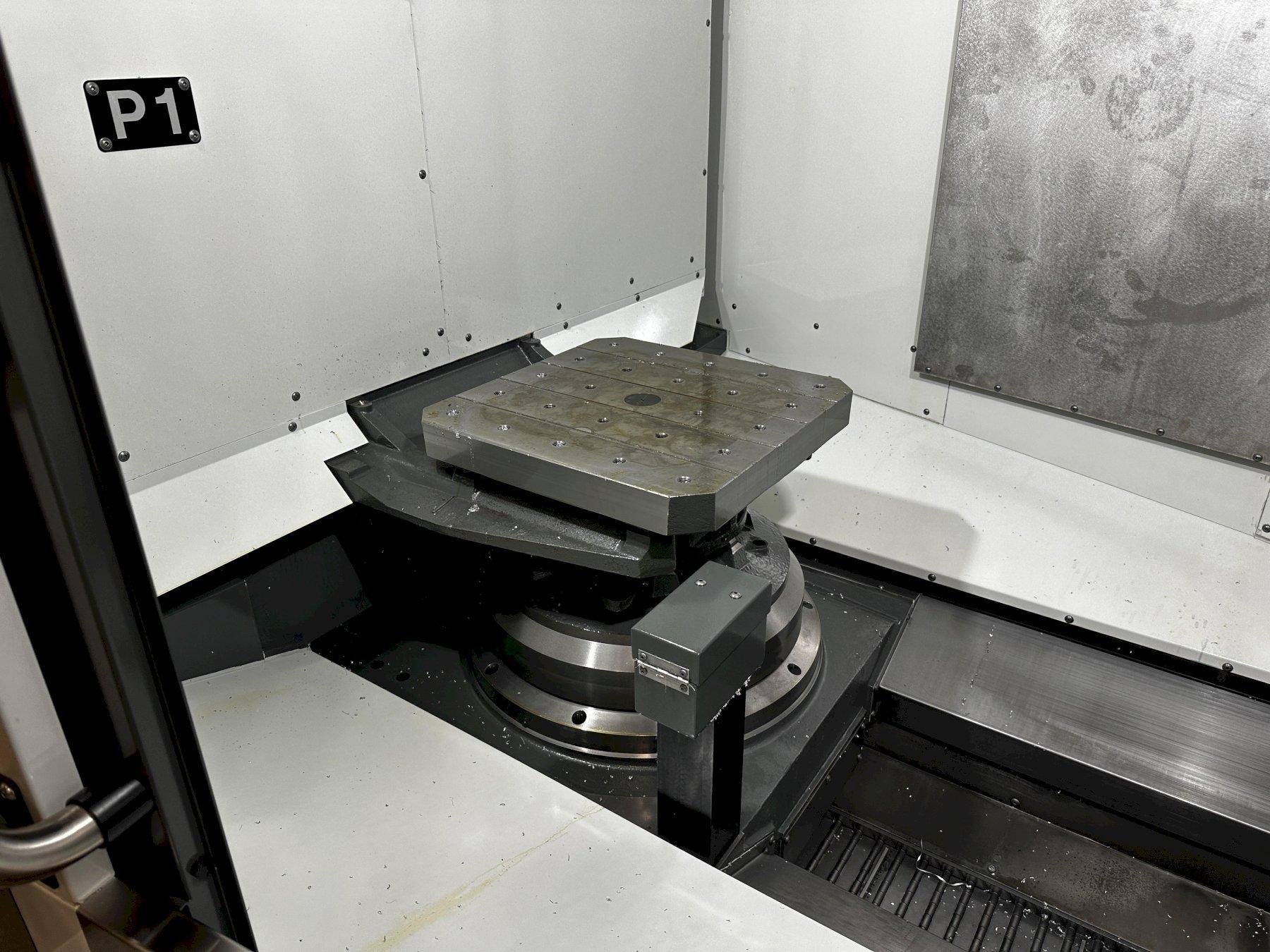

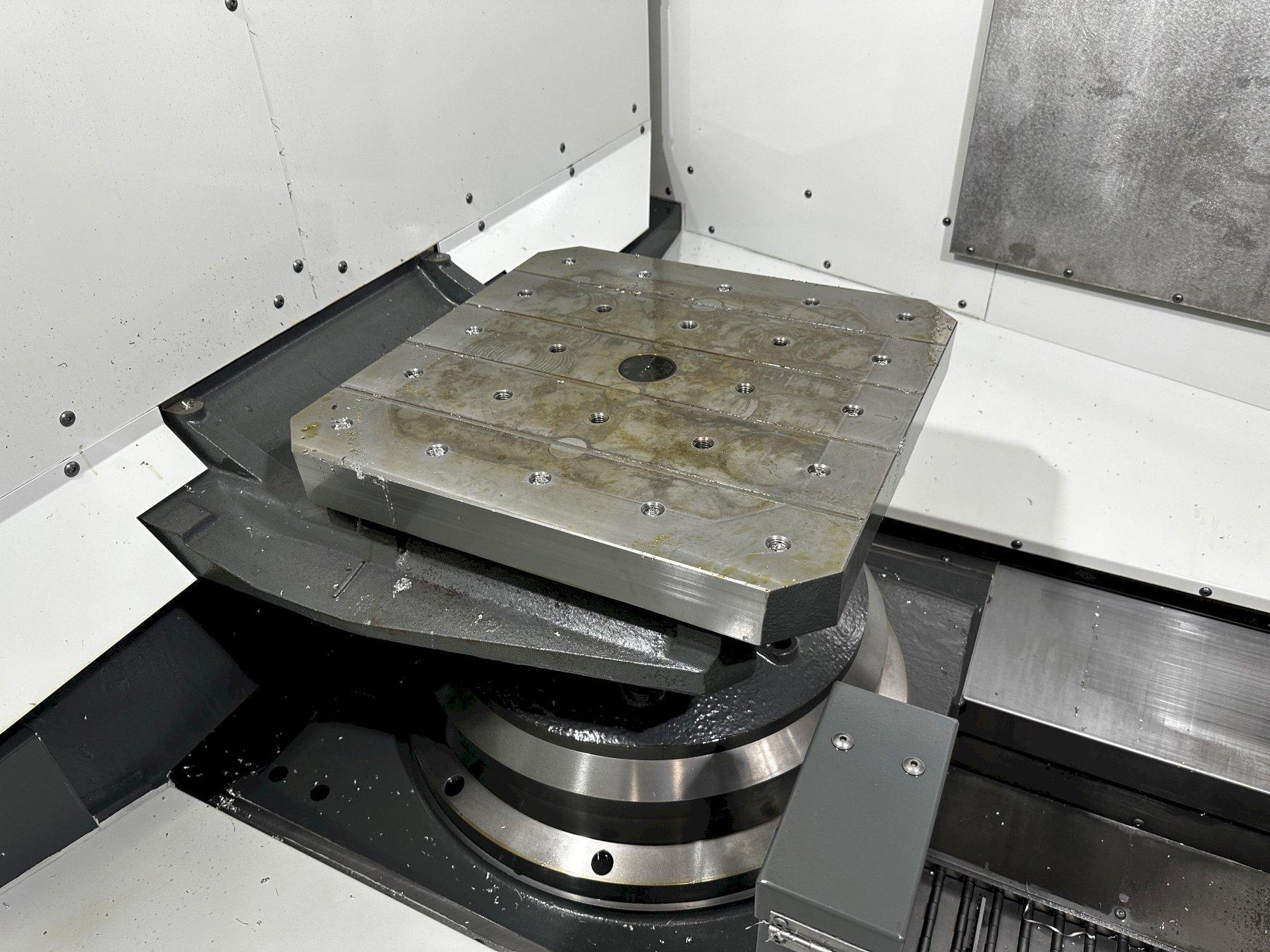

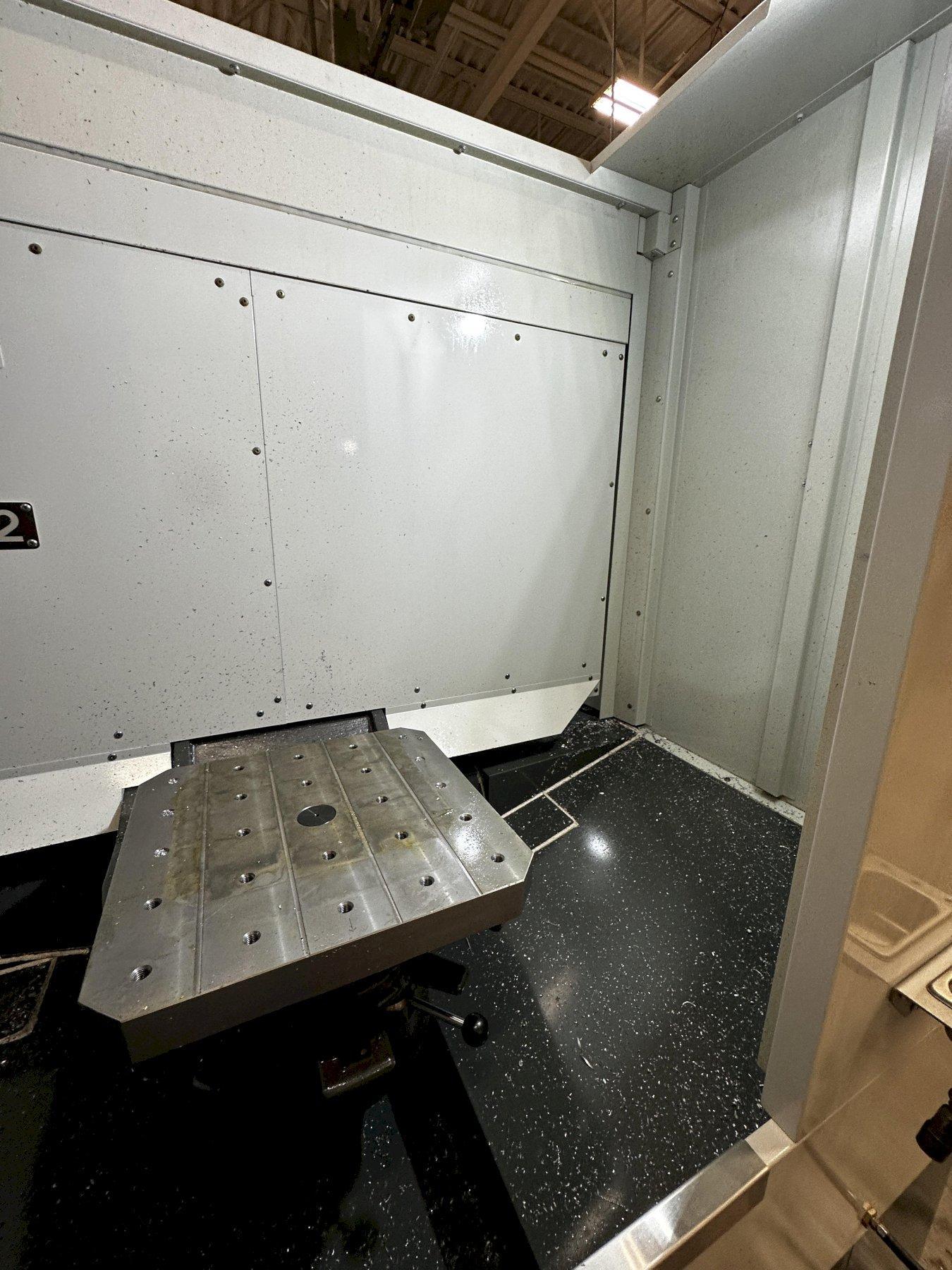

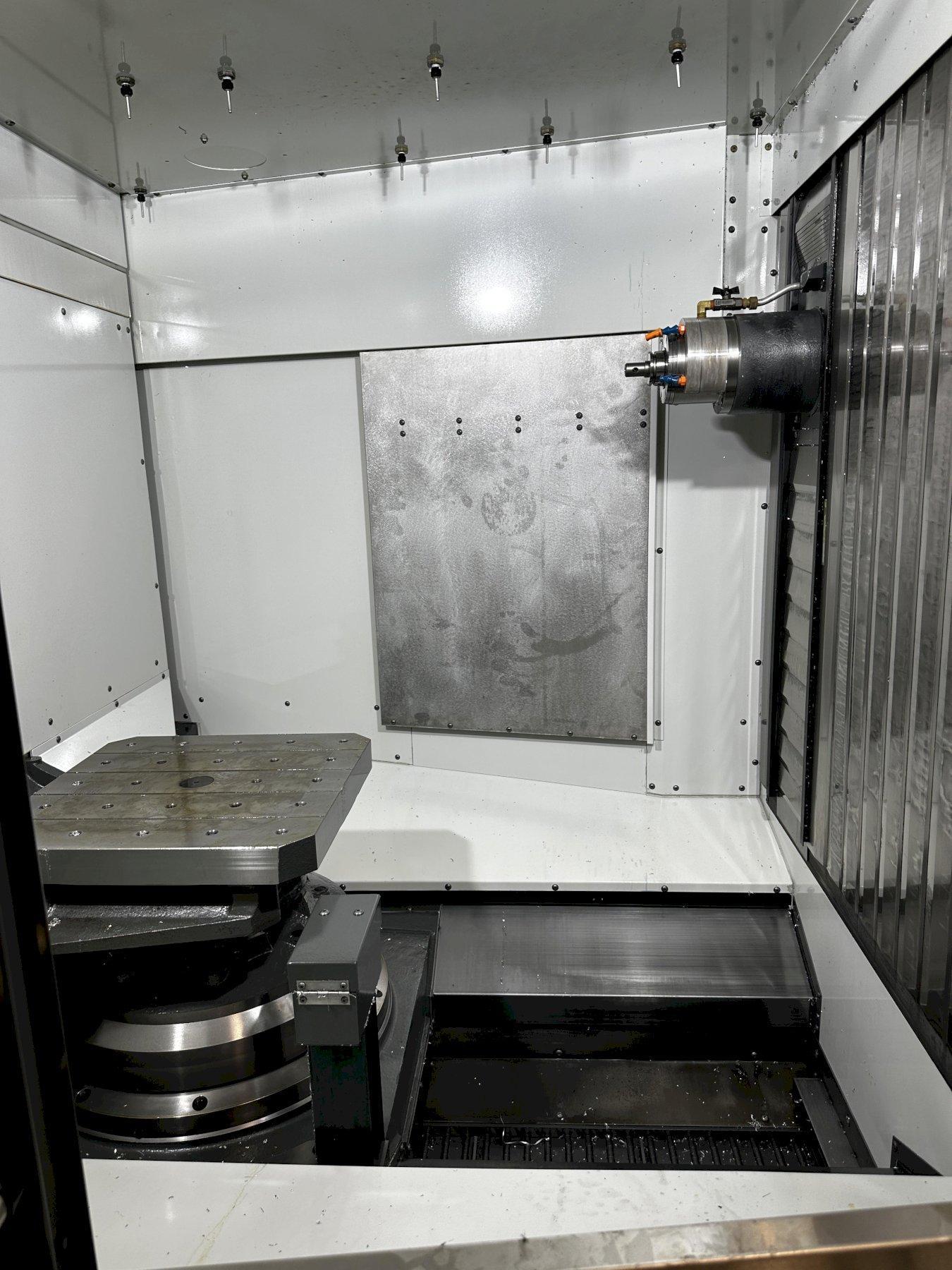

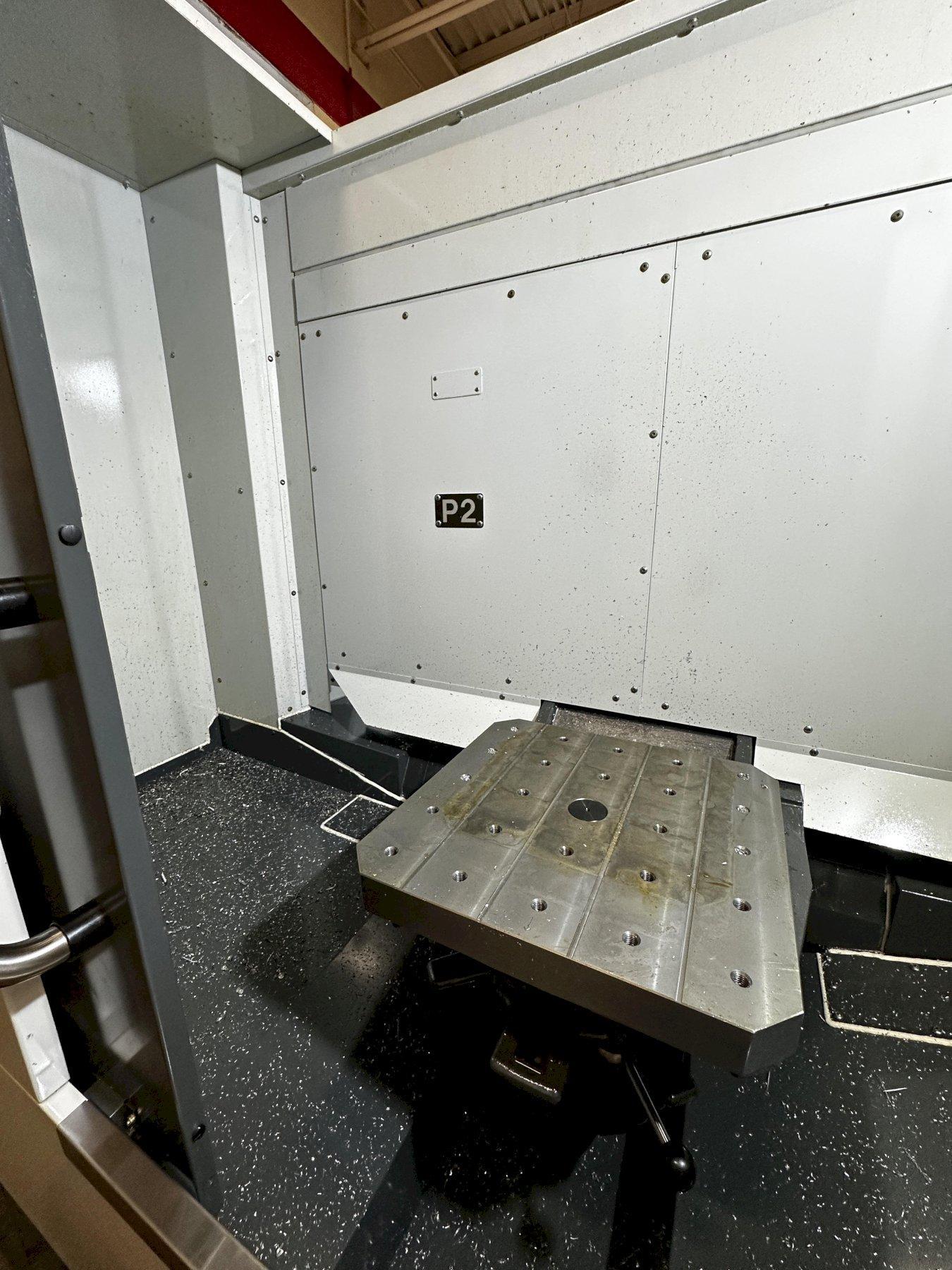

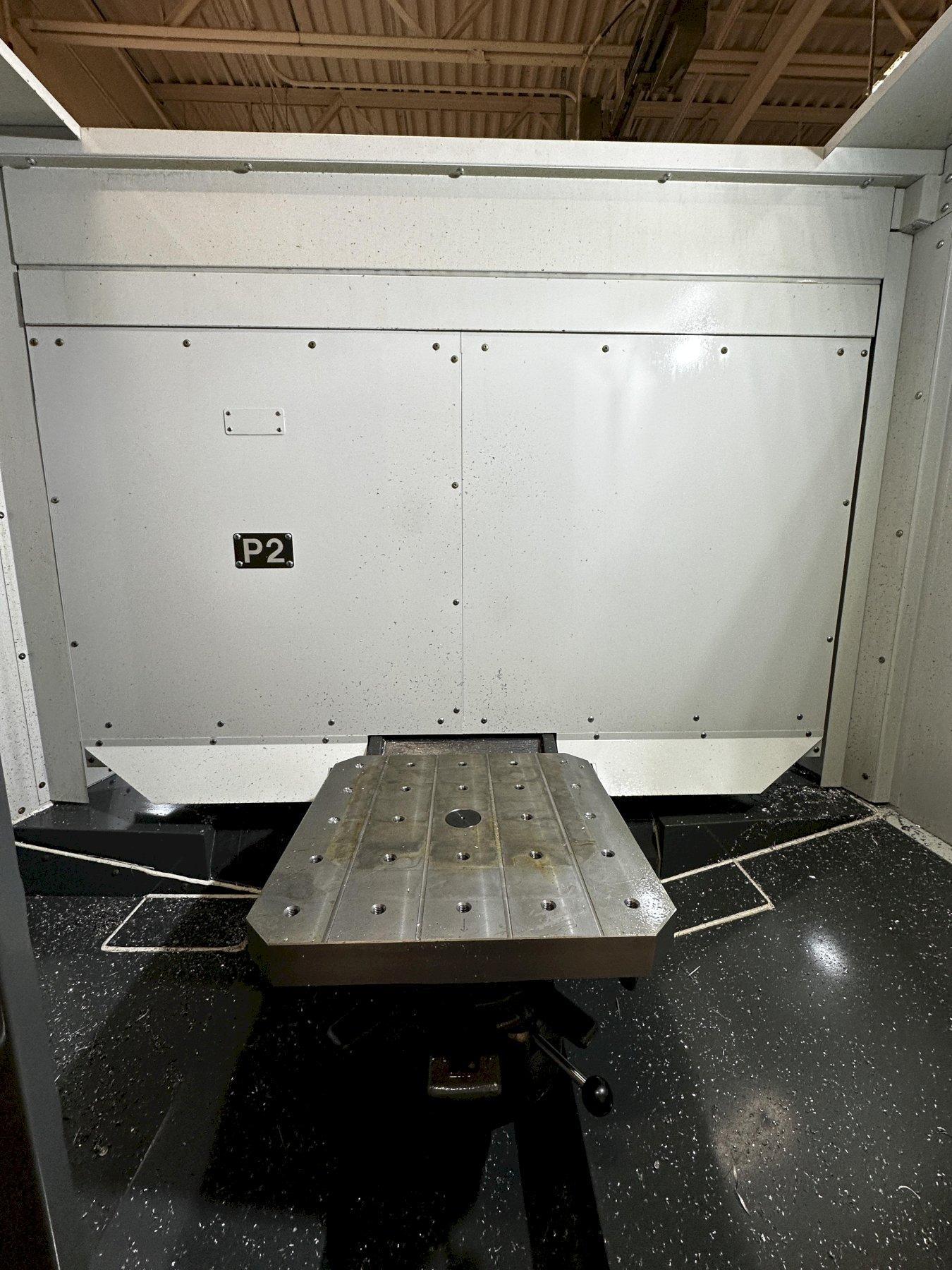

Pallet Length - 19.69 inches
Pallet Width - 19.69 inches
Pallet Load Capacity - 880 pounds
Pallet Indexing (B-Axis) - 0.001°
X-Axis Travel - 32 inches
Y-Axis Travel - 25 inches
Z-Axis Travel - 28 inches
Rapid Traverse Rate (X/Y/Z) - 1,400 ipm

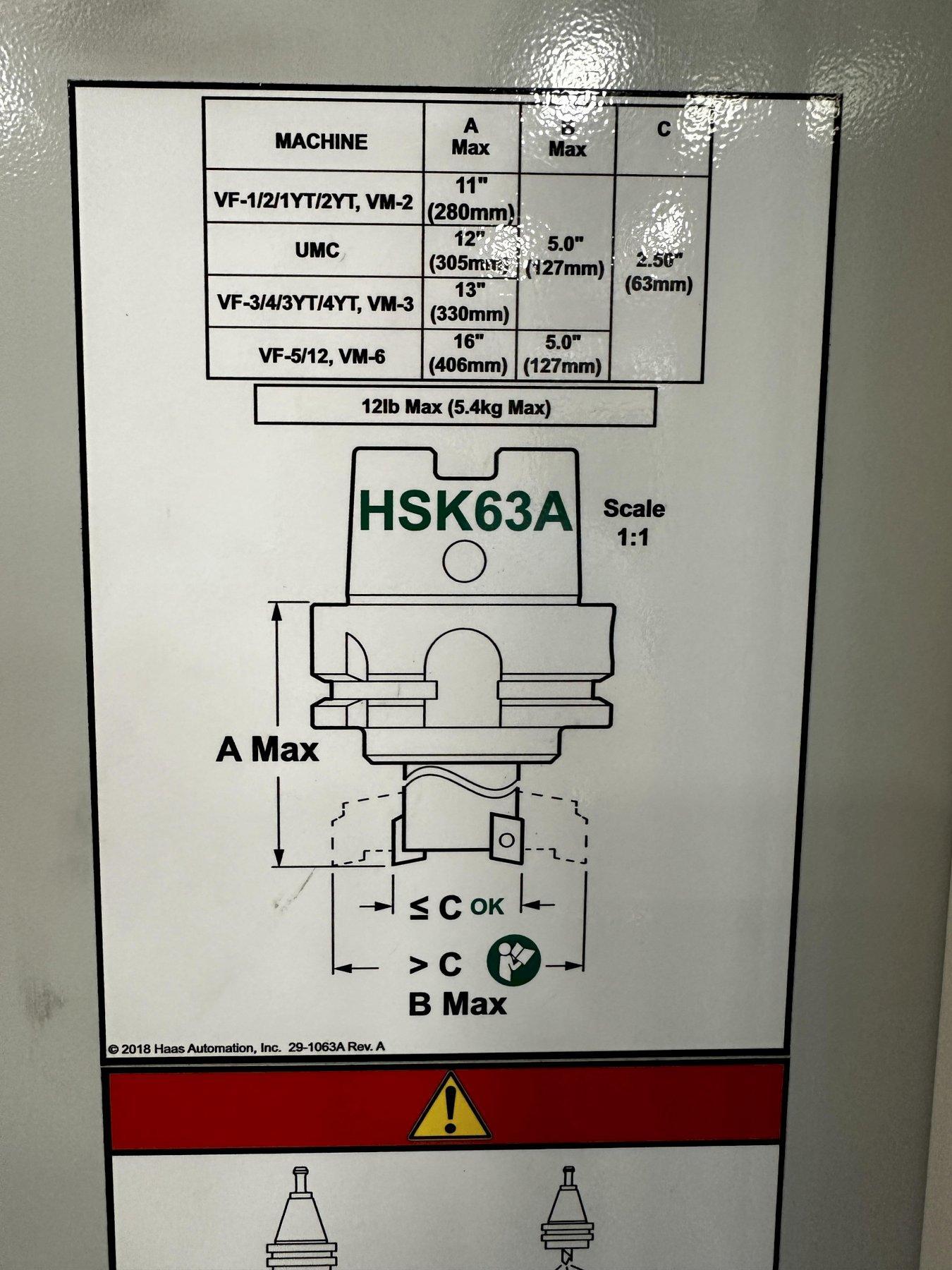

Spindle Taper - HSK-63
Spindle Speed - 15,000 rpm
Spindle Motor (HP) - 30 hp
Tool Changer Capacity - 50
Coolant Through Spindle - yes
Machine Dimensions - 197" x 92" x 101"
Machine Weight - 20500 pounds

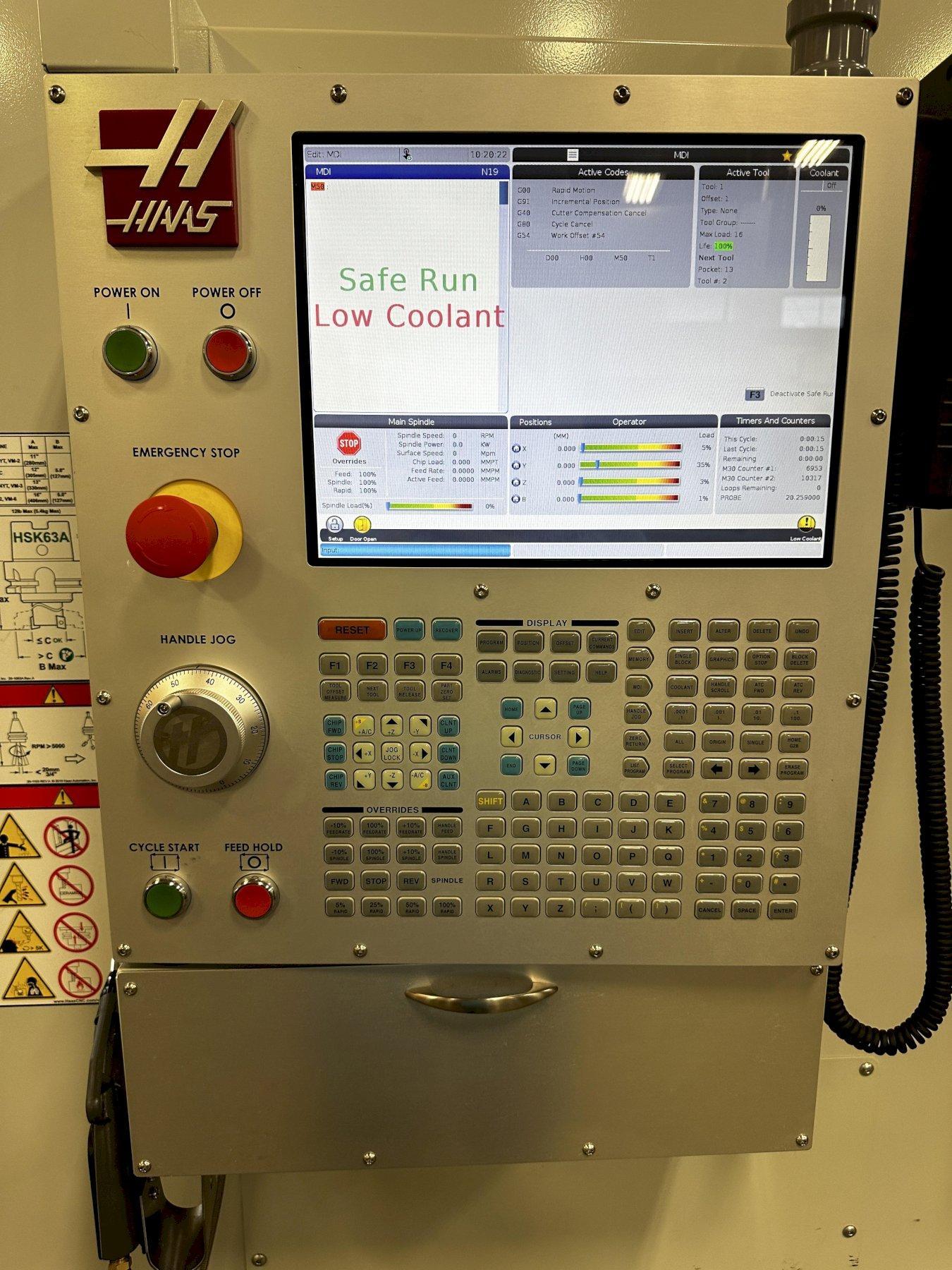

- Haas CNC Control

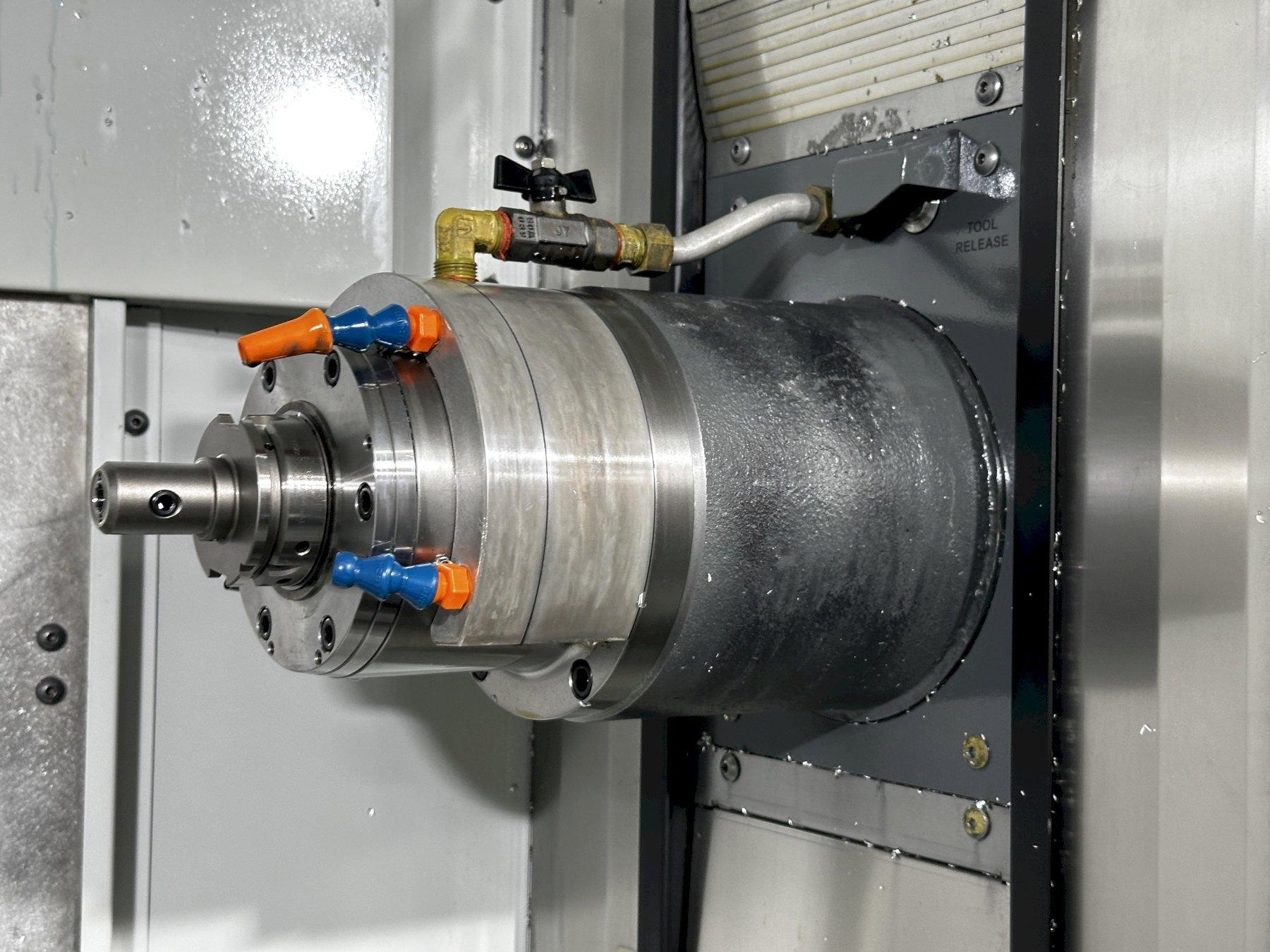

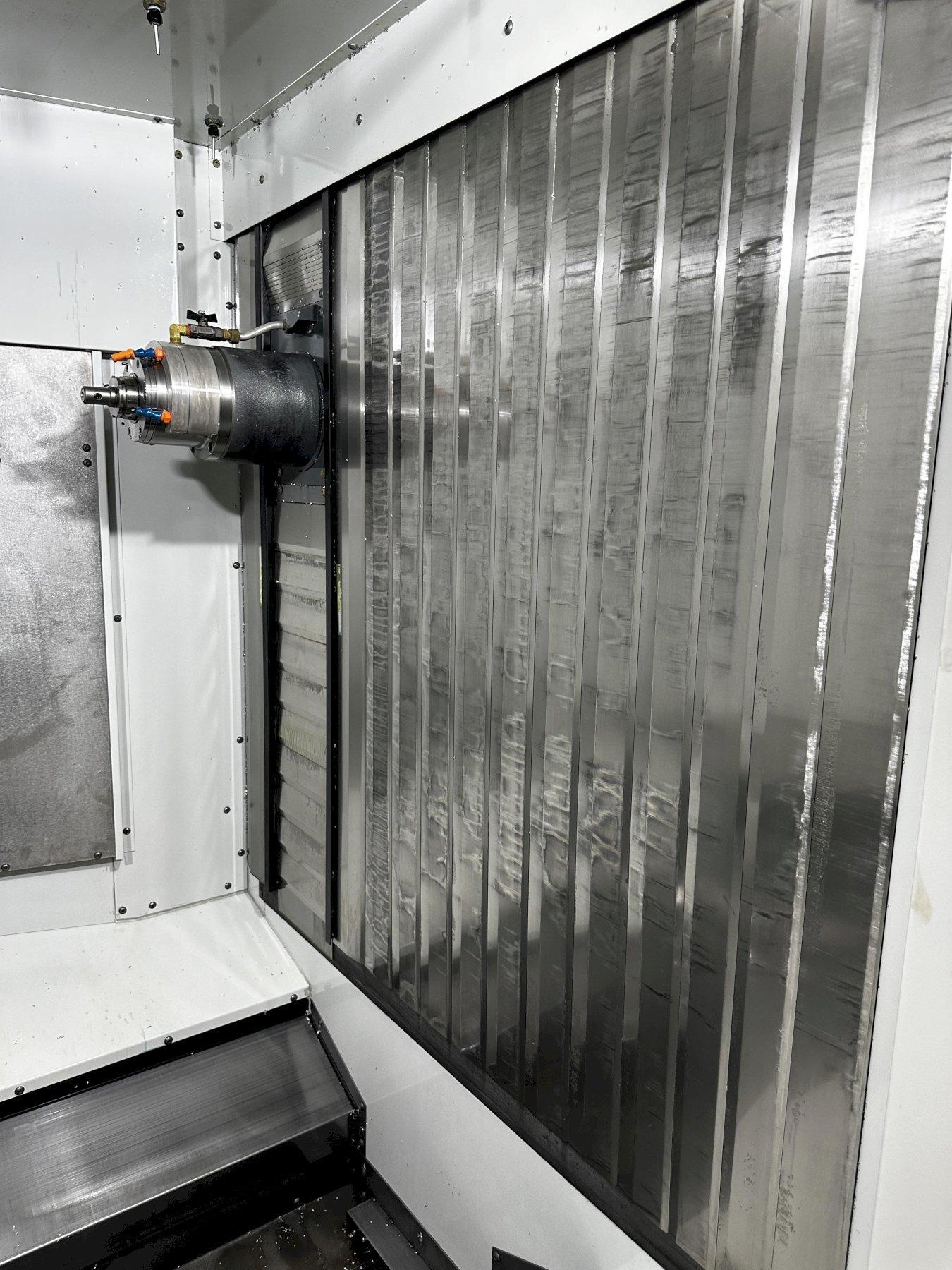

- 15,000 rpm HSK-63 Spindle (Upgrade)

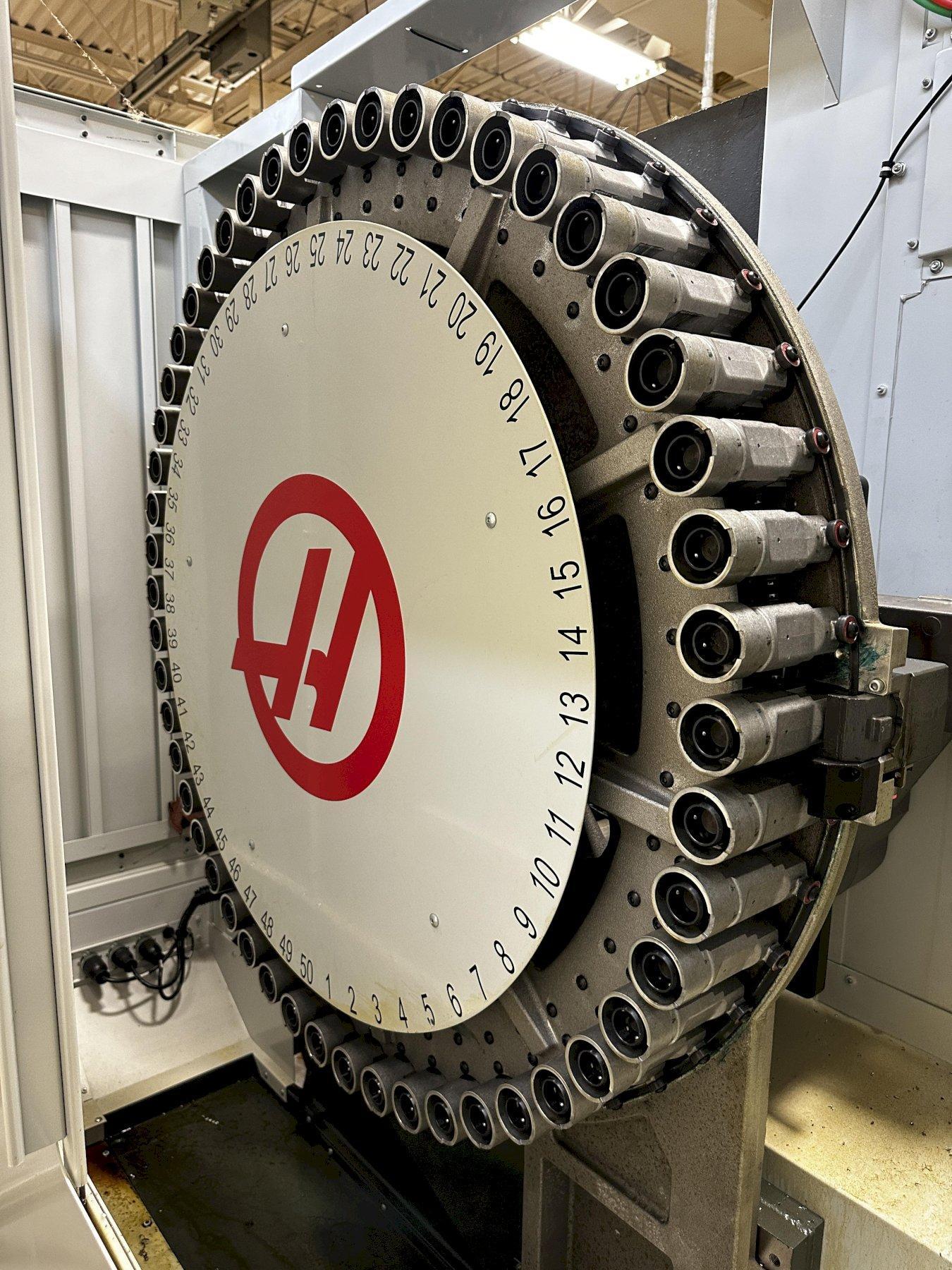

- 50+1 Station Tool Changer

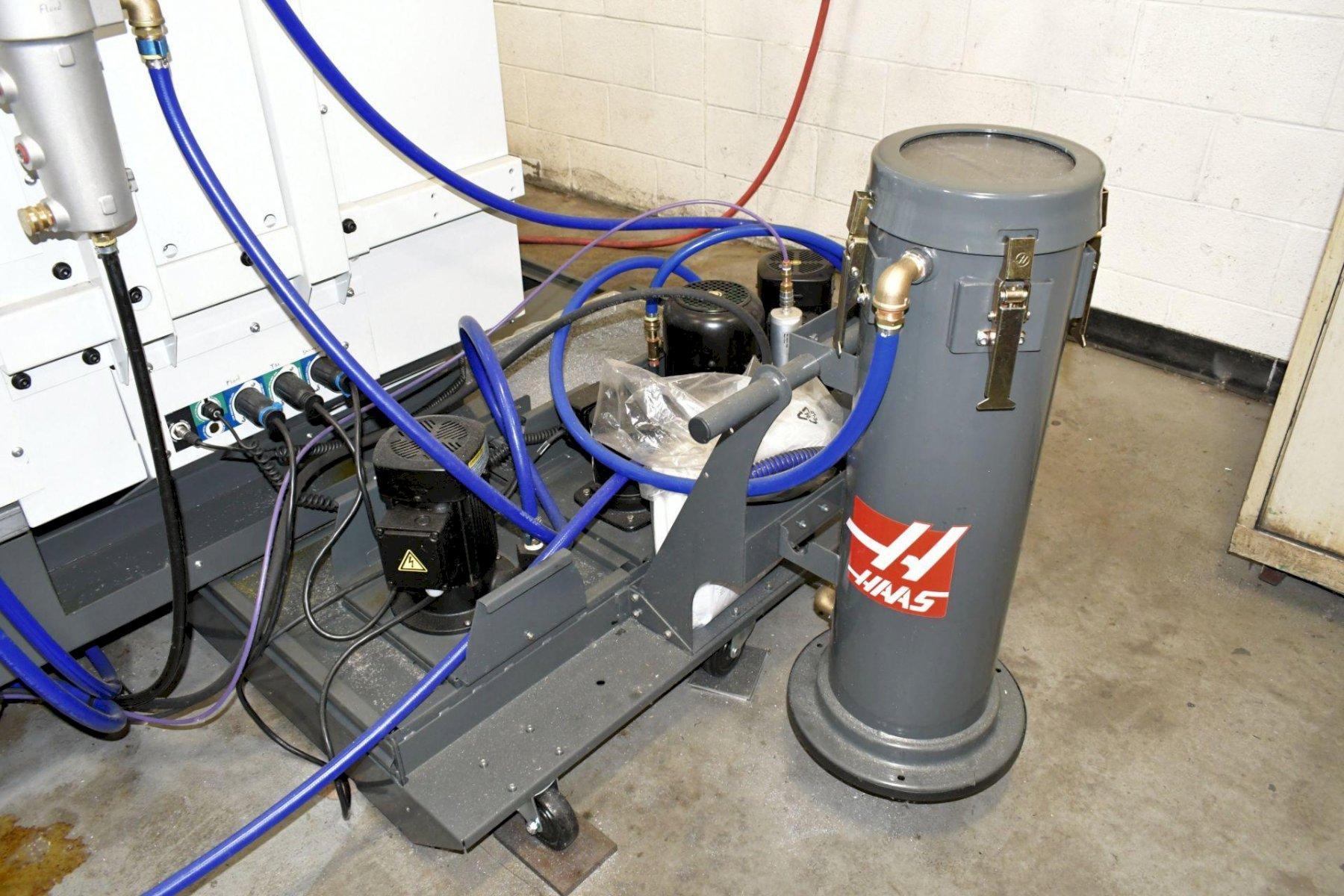

- Coolant Thru Spindle (1,000 psi)

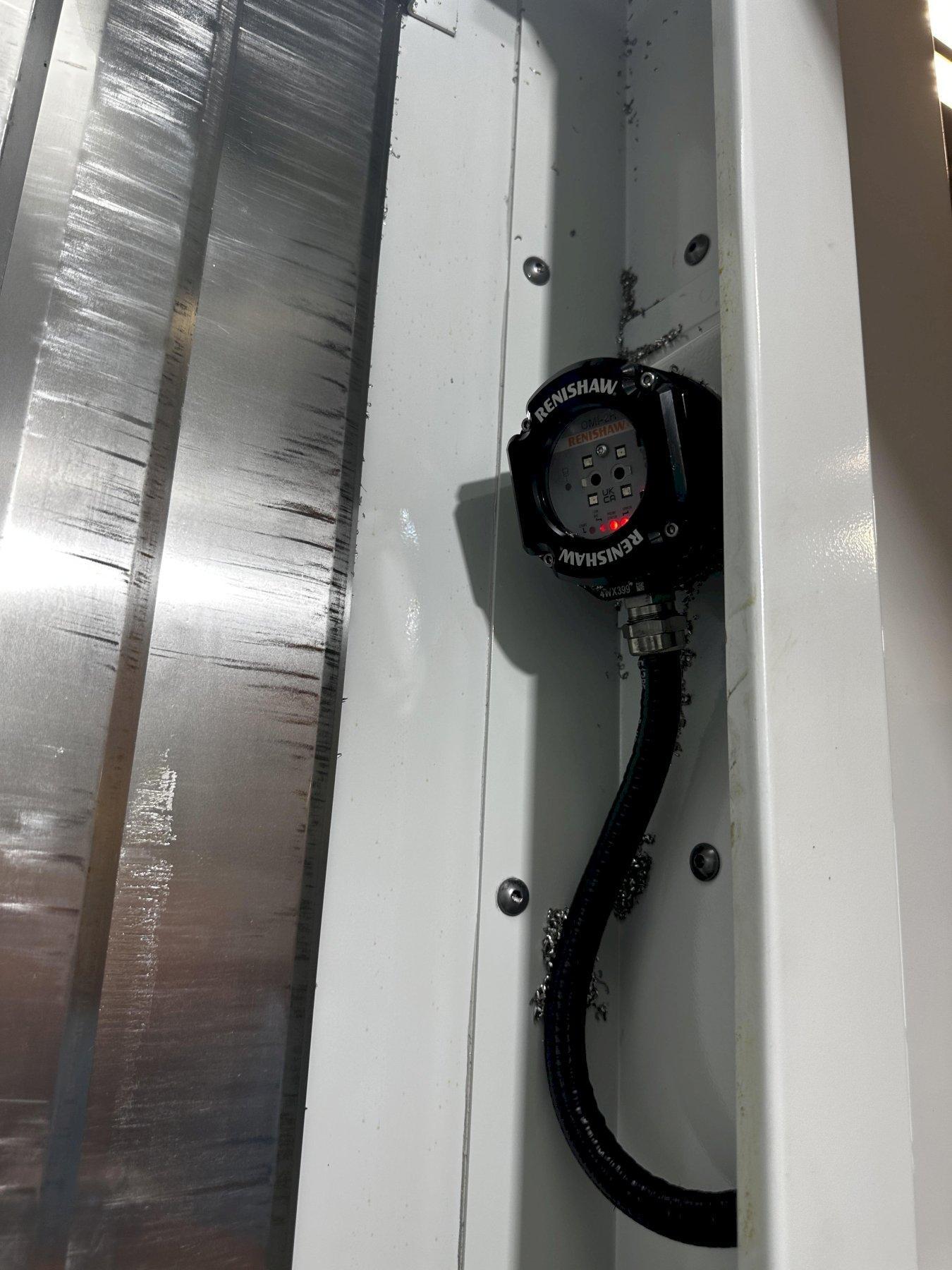

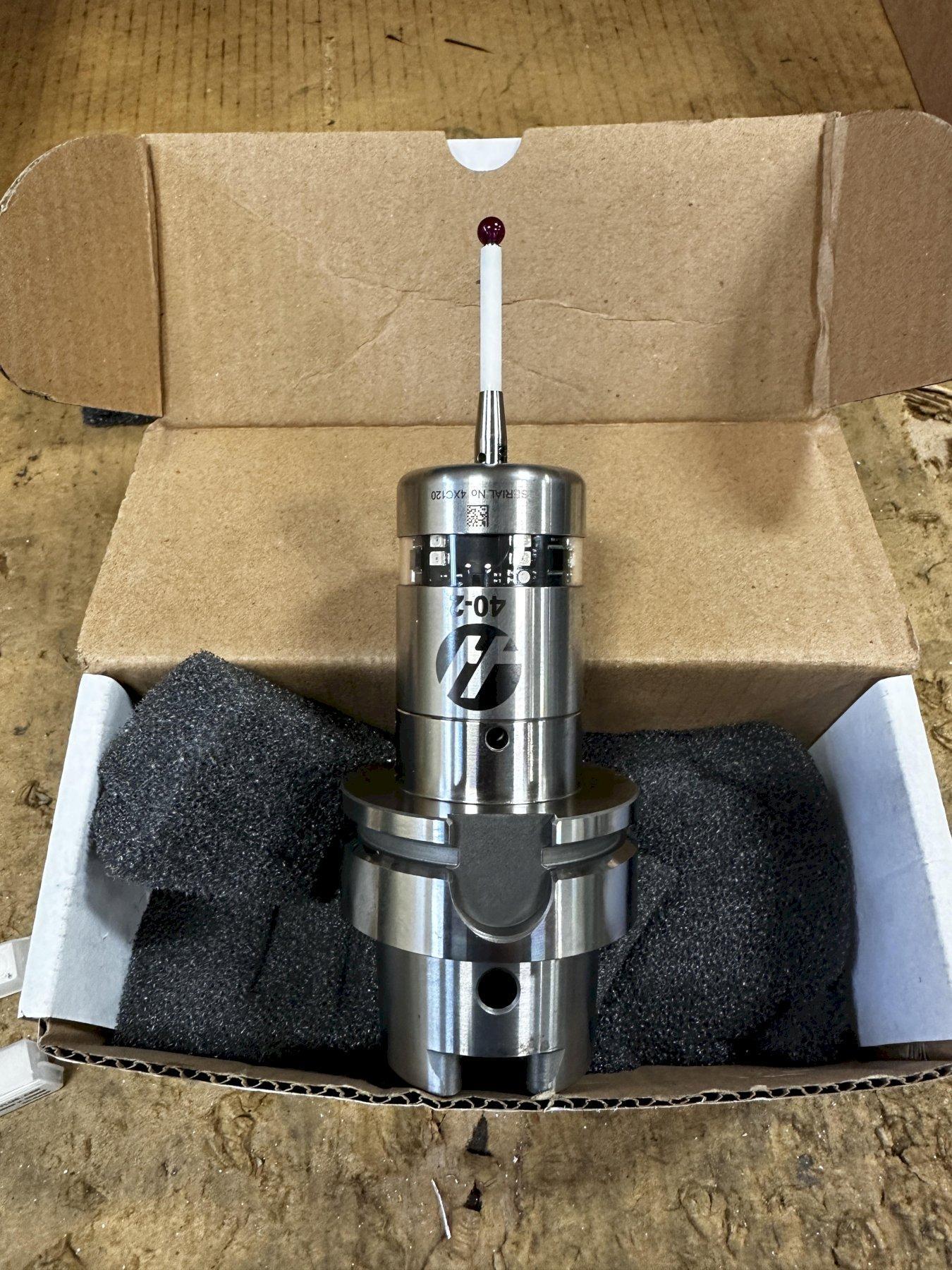

- Wireless Intuitive Probing System

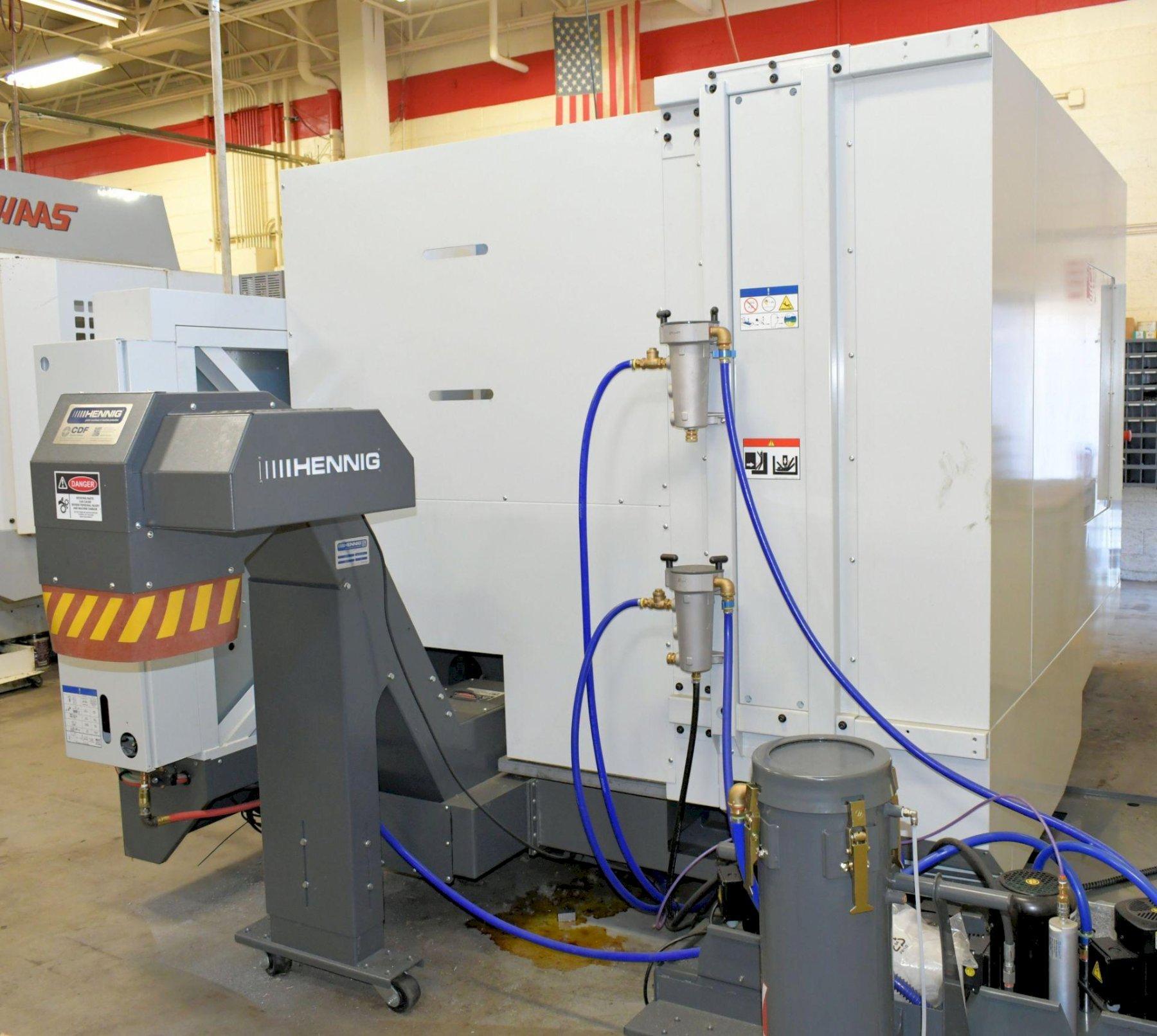

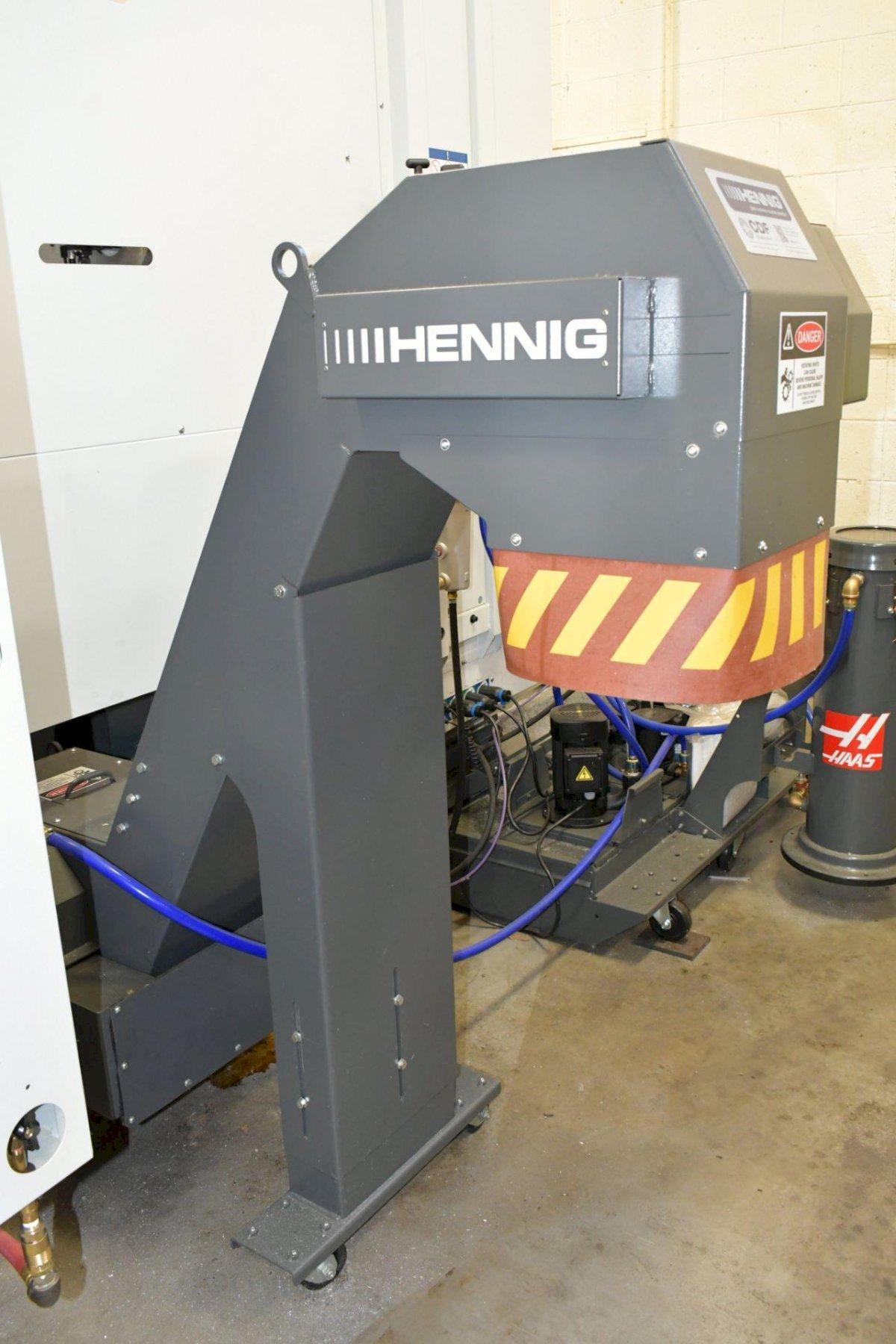

- Chip Disk Filtration Chip Conveyor
- 64 GB Control Memeory
- 8 Spare M-Functions
- Dynamic Work Offsets
- Tool Center Point Control
- High Speed Machining
- User Definable Macros

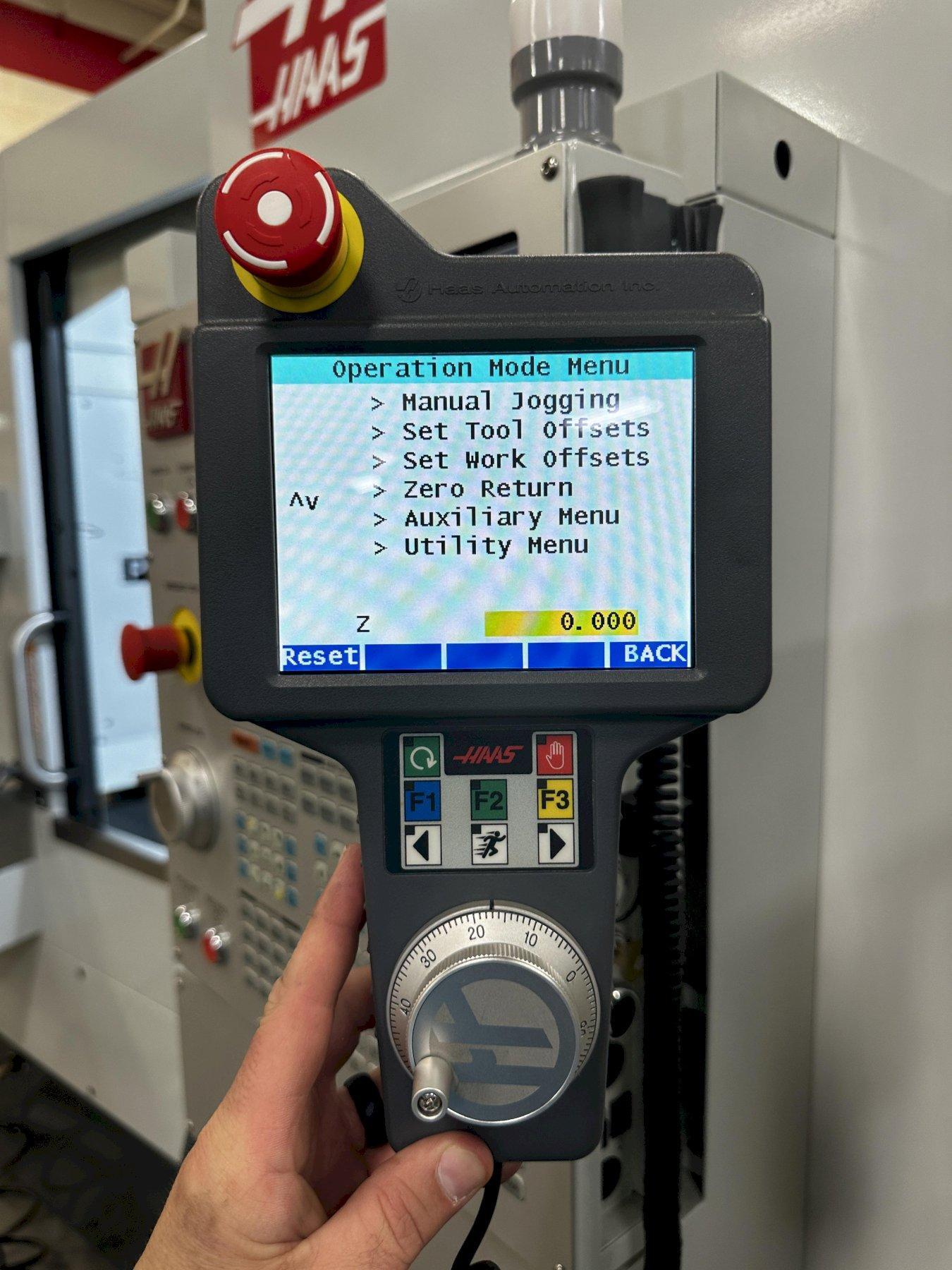

- Large Remote Jog Handle
- Auxiliary Coolant Filtration
- Chip Tray Filter Kit
