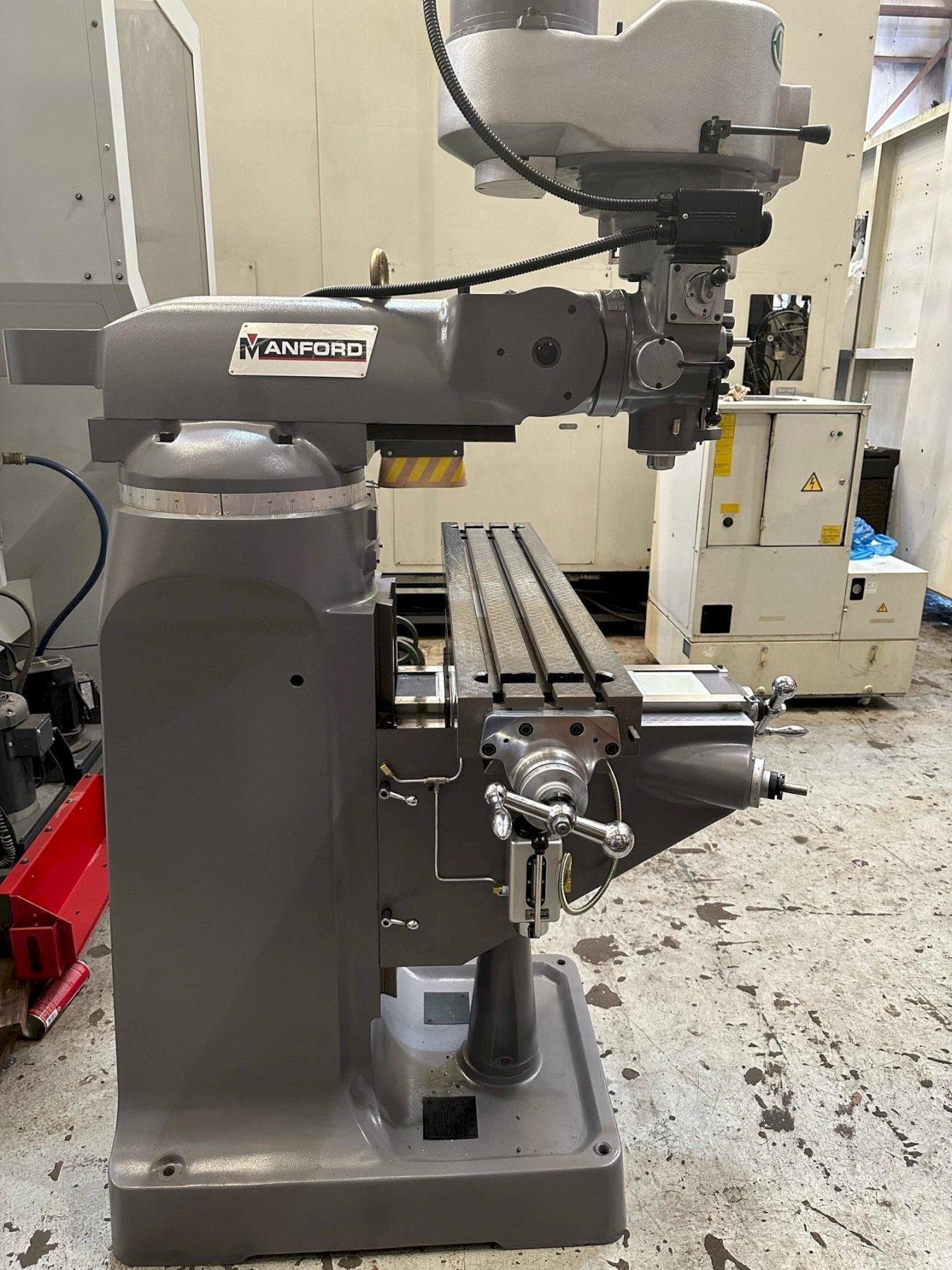

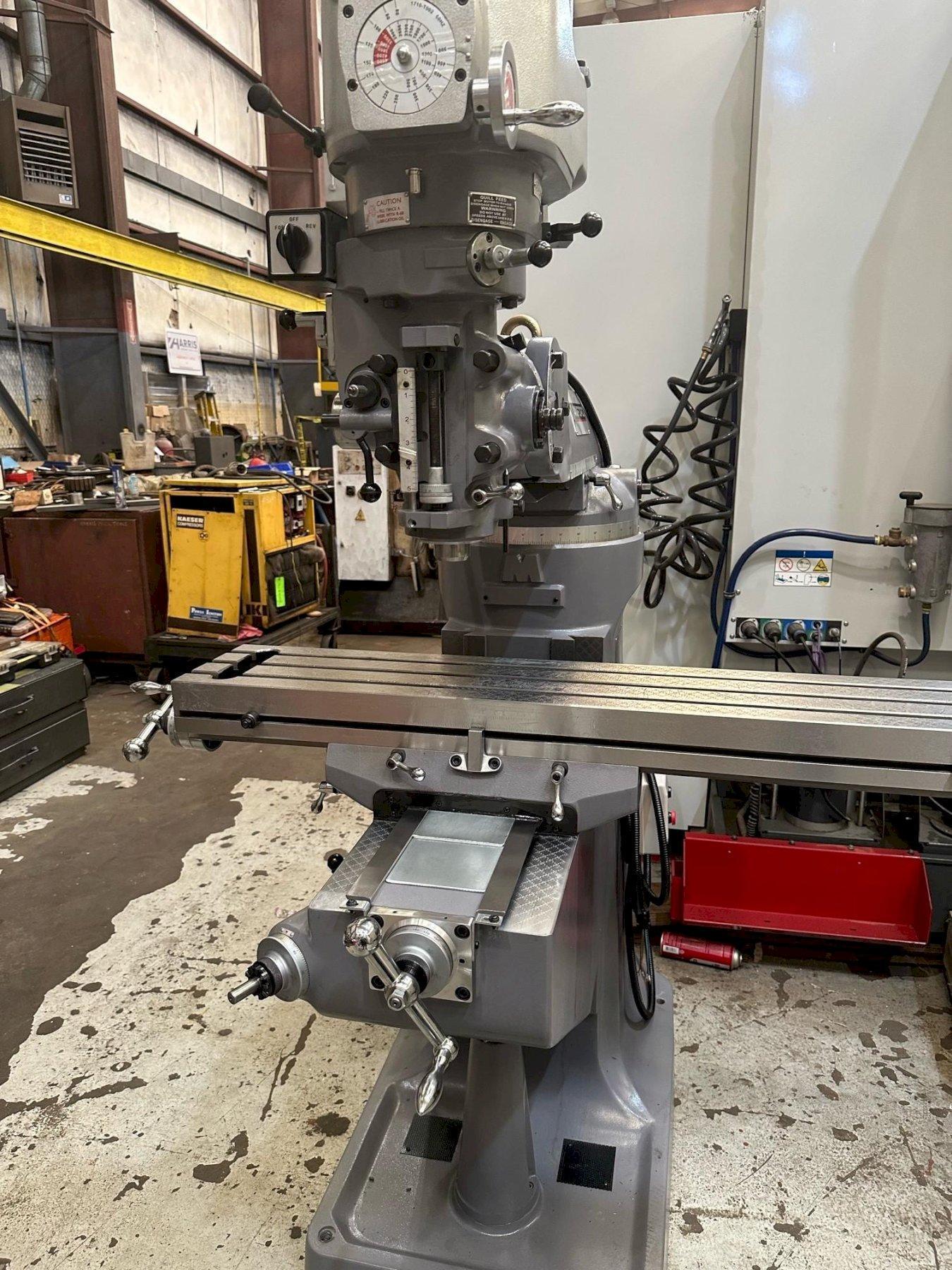

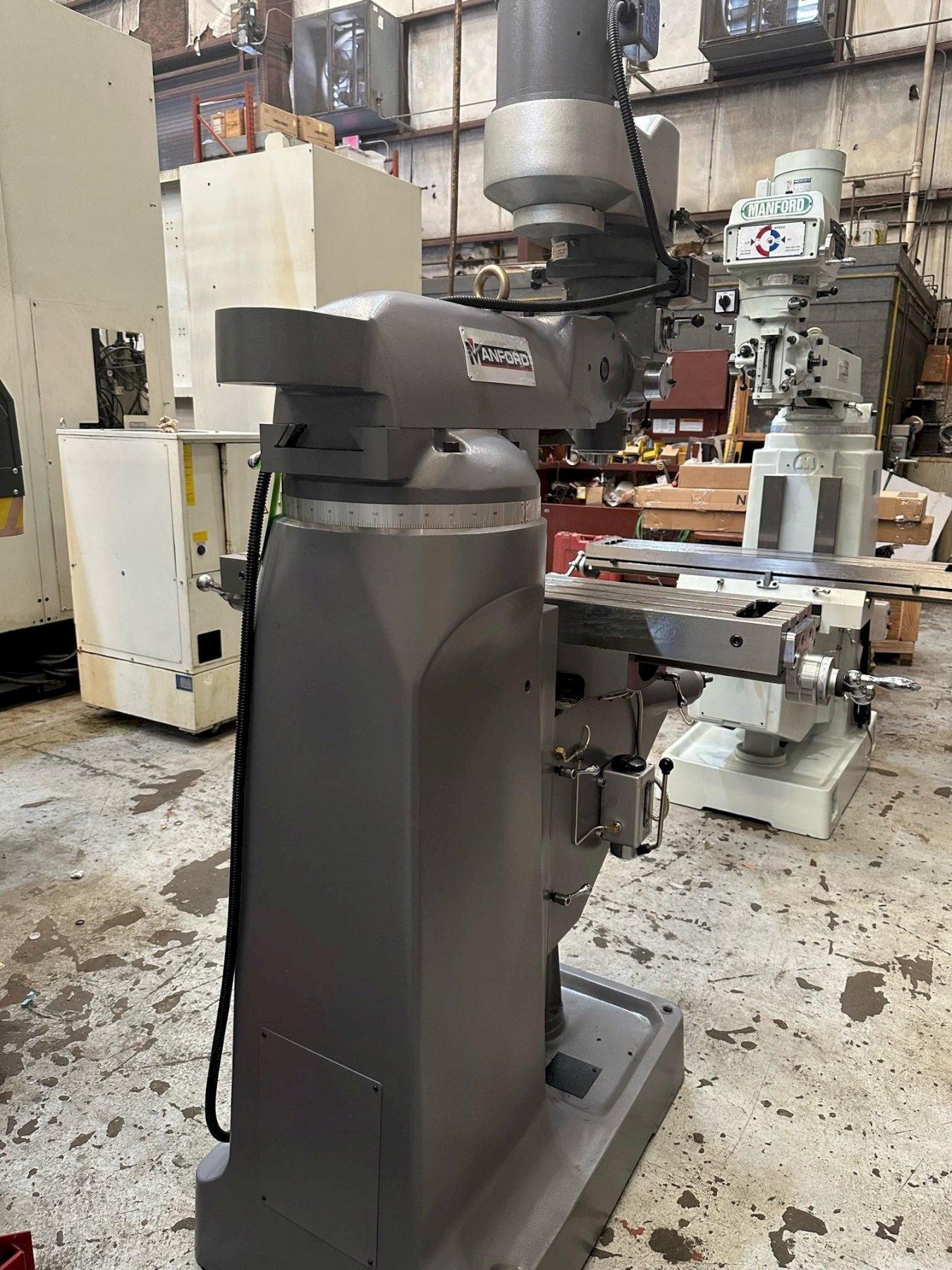

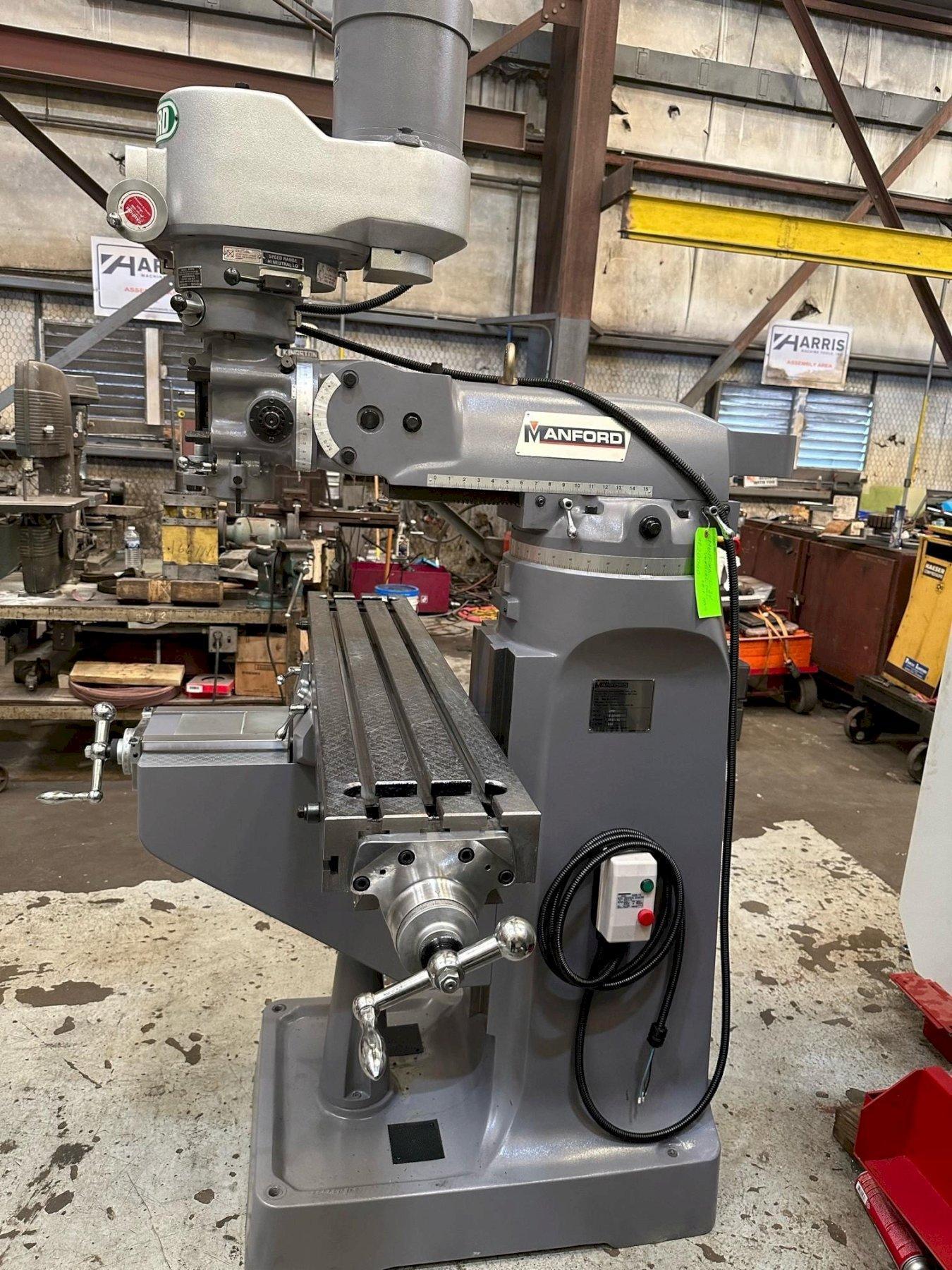

New, Manford Model L-2V Vertical Turret Milling Machine (MF-1 1/2VS)

Manufacturer

MANFORD

Category

Milling Machines

Type

MILLERS, CENTERING & CUT-OFF MACH

Stock

20489

Model

L-2V

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet



Table Size: 9" x 49"
T-Slots: (3) 5/8"
Table Longitudinal Travel: 37"
Table Cross Travel: 12"
Knee Vertical Travel: 16"
Ram Travel: 15"
Quill Travel: 5"
Spindle Nose to Table: 1.3" - 17.3"
Turret Swivel: 360 Deg.
Head Swivel (L-R): +/- 45 Deg.
Head Tilt (Up-Down): +/- 45 Deg.
Spindle to Column: 6" - 21.4"
Spindle Speeds: 70 - 4500 RPM
Spindle Motor: 3 HP
Spindle Taper: R8
Quill Feeds: (3) 0.0015, 0.003, 0.006 IPR
Quill Diameter: 3-3/8"
OAD: 59" x 63-5/8" x 84" High
Weight (Approximate): 2200 Lbs.

EQUIPPED WITH:
2 AXIS NEWALL DRO PACKAGE
X-AXIS POWER FEED

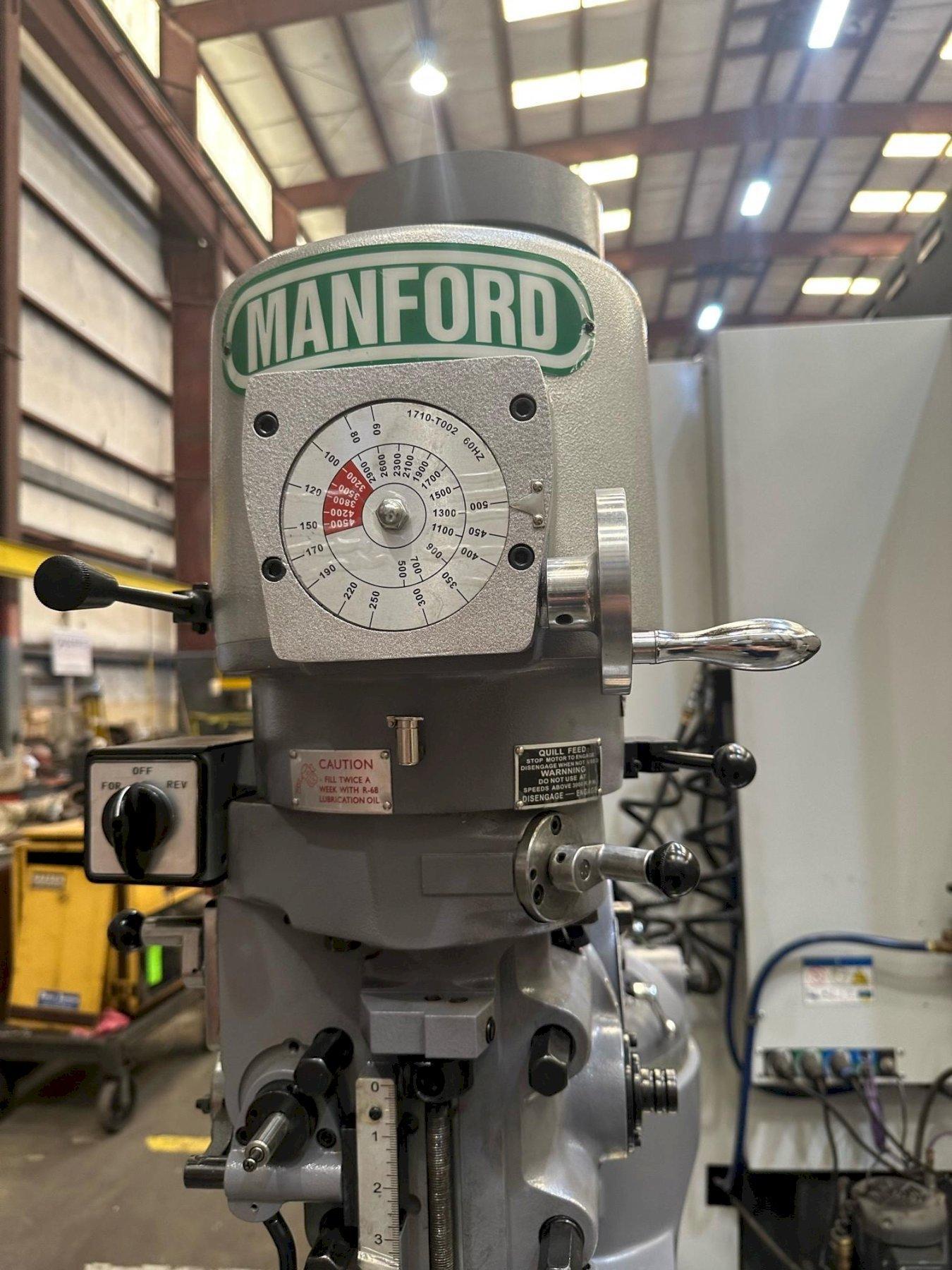

VARIABLE SPEED BRIDGEPORT STYLE HEAD
CHROME WAYS

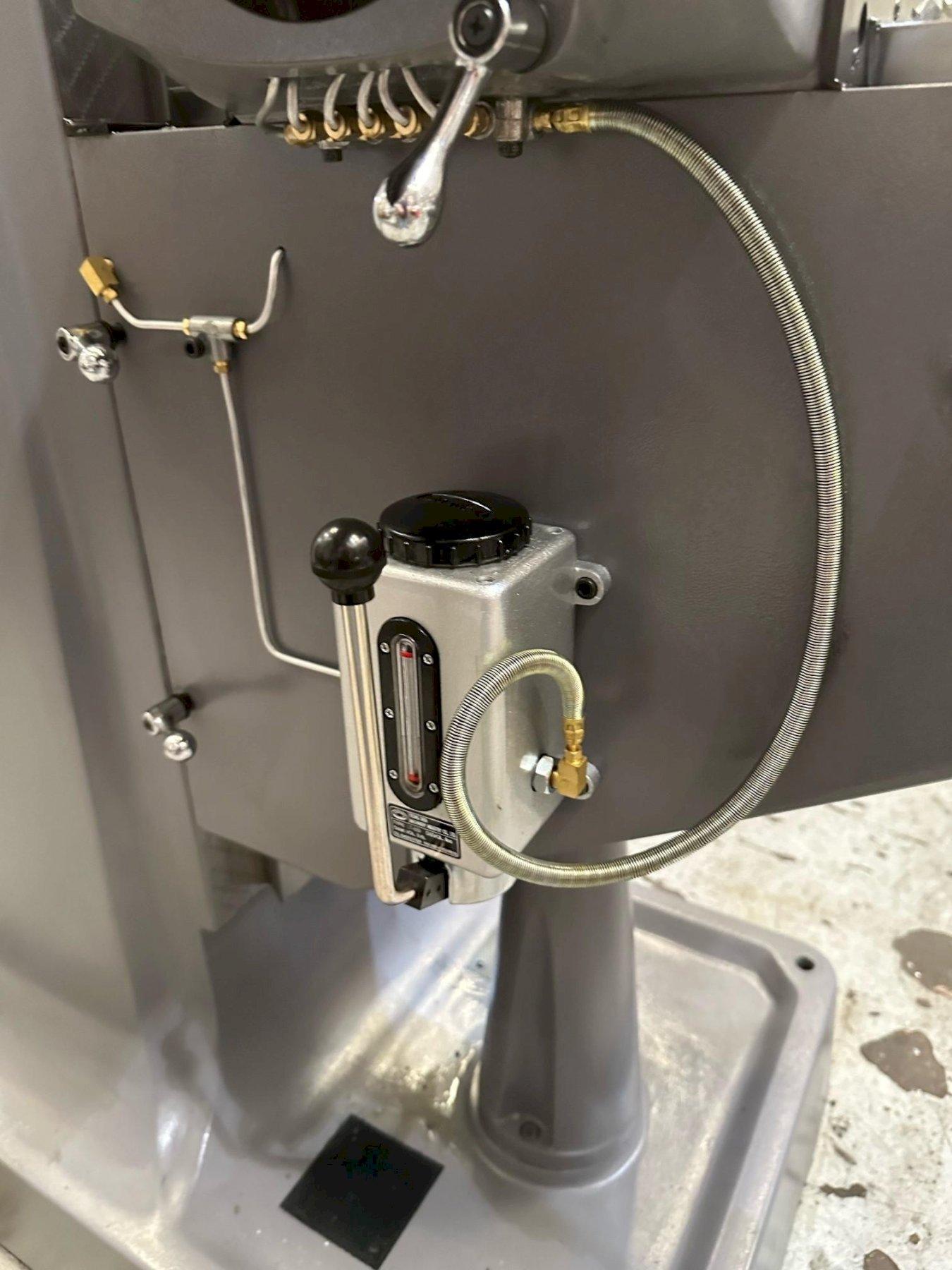

ONCE SHOT LUBE

Note: All Specifications Subject to Verification
